POWER WINDOWS
1998 Mitsubishi Montero
1998 ACCESSORIES & EQUIPMENT
Mitsubishi - Power Windows
Mirage, Montero, Montero Sport & 3000GT
DESCRIPTION & OPERATION
With ignition switch in RUN position, battery voltage is
applied to master power window switch located on driver's door. Master
power window switch provides power and ground for all power window
switches and motors. Master power window switch offers one-touch
operation of driver's window. A solid state control unit, incorporated
in master switch, fully lowers driver's window when switch is
completely depressed. Master switch also includes lock-out feature to
prevent passengers from operating any of the other power window door
switches.
COMPONENT LOCATIONS
COMPONENT LOCATIONS TABLE \
\
\
\
\
\
Component Location
Power Window Relay ( 1) .......... In Passenger Compartment
Fuse/Relay Block
( 1) - See Fig. 1.
\
\
\
\
\
\
TROUBLE SHOOTING
POWER WINDOWS INOPERATIVE
Check for faulty fusible link, faulty power window relay or
faulty power window switches. See WIRING DIAGRAMS.
ONE WINDOW FAILS TO OPERATE
If one window does not operate, even if both master and
passenger side power window switches are pressed, check for faulty
master power window switch or power window motor that is inoperative.
If one window does not operate only when either master or passenger
side power window switch is pressed, but does operate when both
switches are pressed, check power window switch that is inoperative.
ONE-TOUCH SWITCH FUNCTION INOPERATIVE
Replace master power window switch.
COMPONENT TESTS
CIRCUIT BREAKER TEST
Press UP switch to fully close window. Continue to press
switch for 10 seconds. Release UP switch and immediately press DOWN
switch. If window begins to open within 60 seconds, circuit breaker is

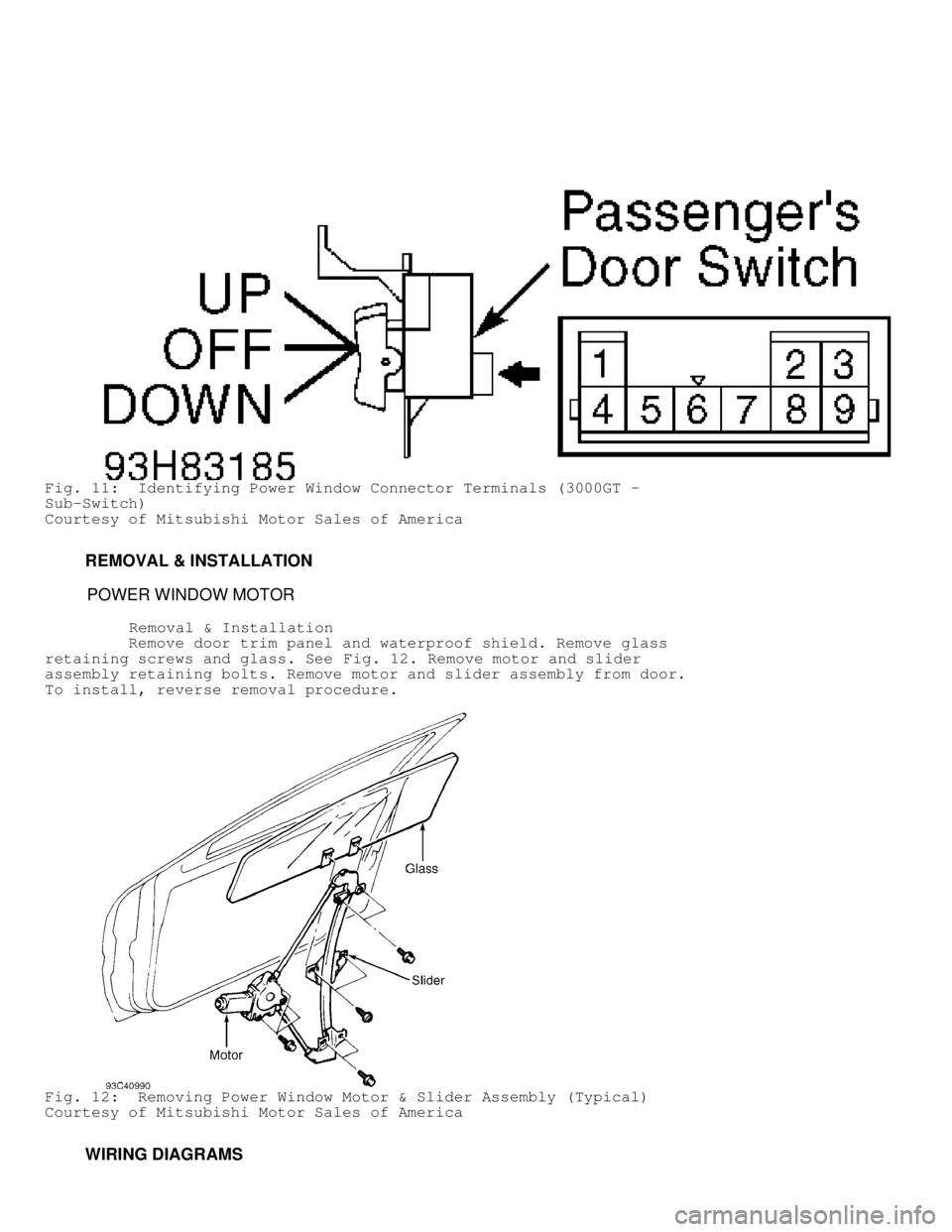

Fig. 11: Identifying Power Window Connector Terminals (3000GT -
Sub-Switch)
Courtesy of Mitsubishi Motor Sales of America
REMOVAL & INSTALLATION
POWER WINDOW MOTOR
Removal & Installation
Remove door trim panel and waterproof shield. Remove glass
retaining screws and glass. See Fig. 12. Remove motor and slider
assembly retaining bolts. Remove motor and slider assembly from door.
To install, reverse removal procedure.
Fig. 12: Removing Power Window Motor & Slider Assembly (Typical)
Courtesy of Mitsubishi Motor Sales of America

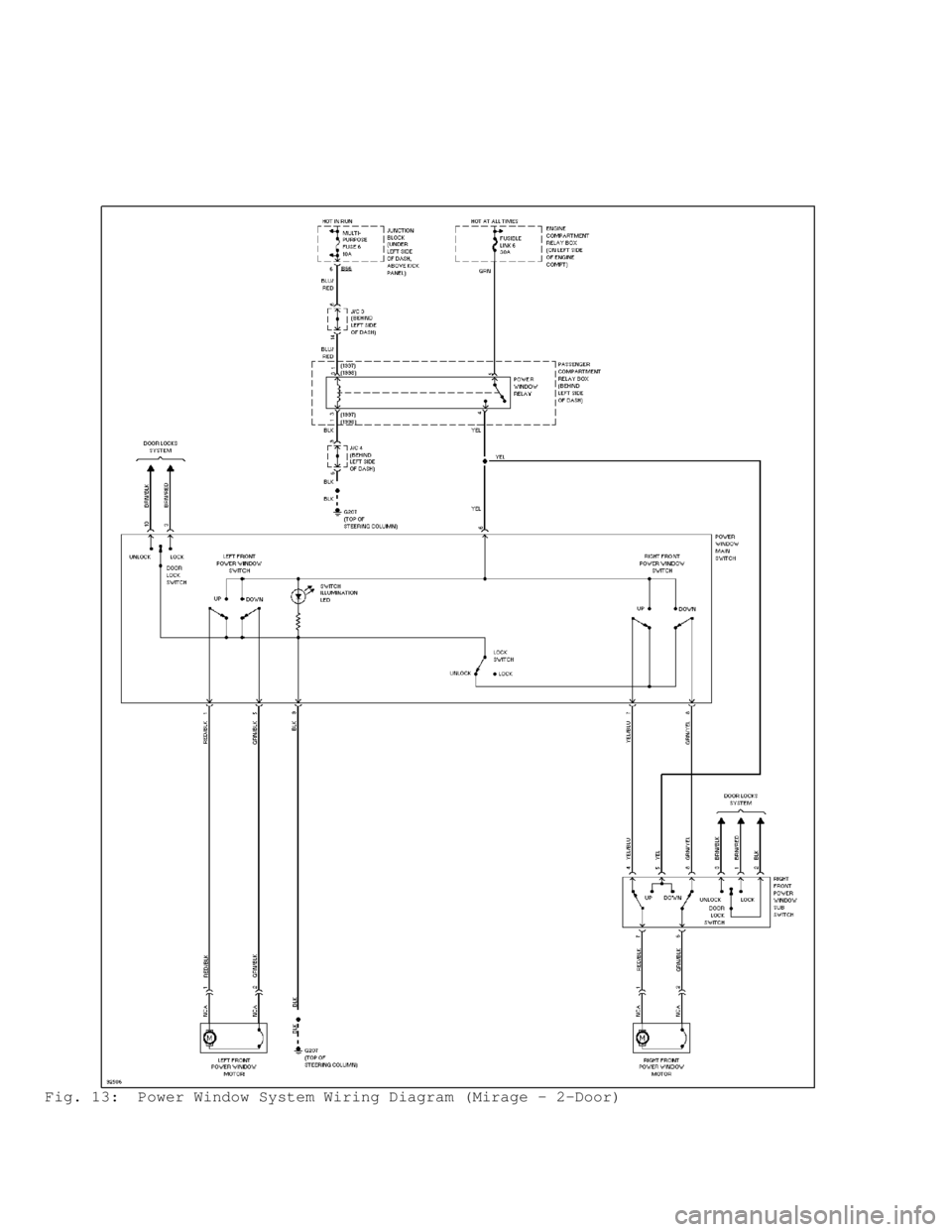

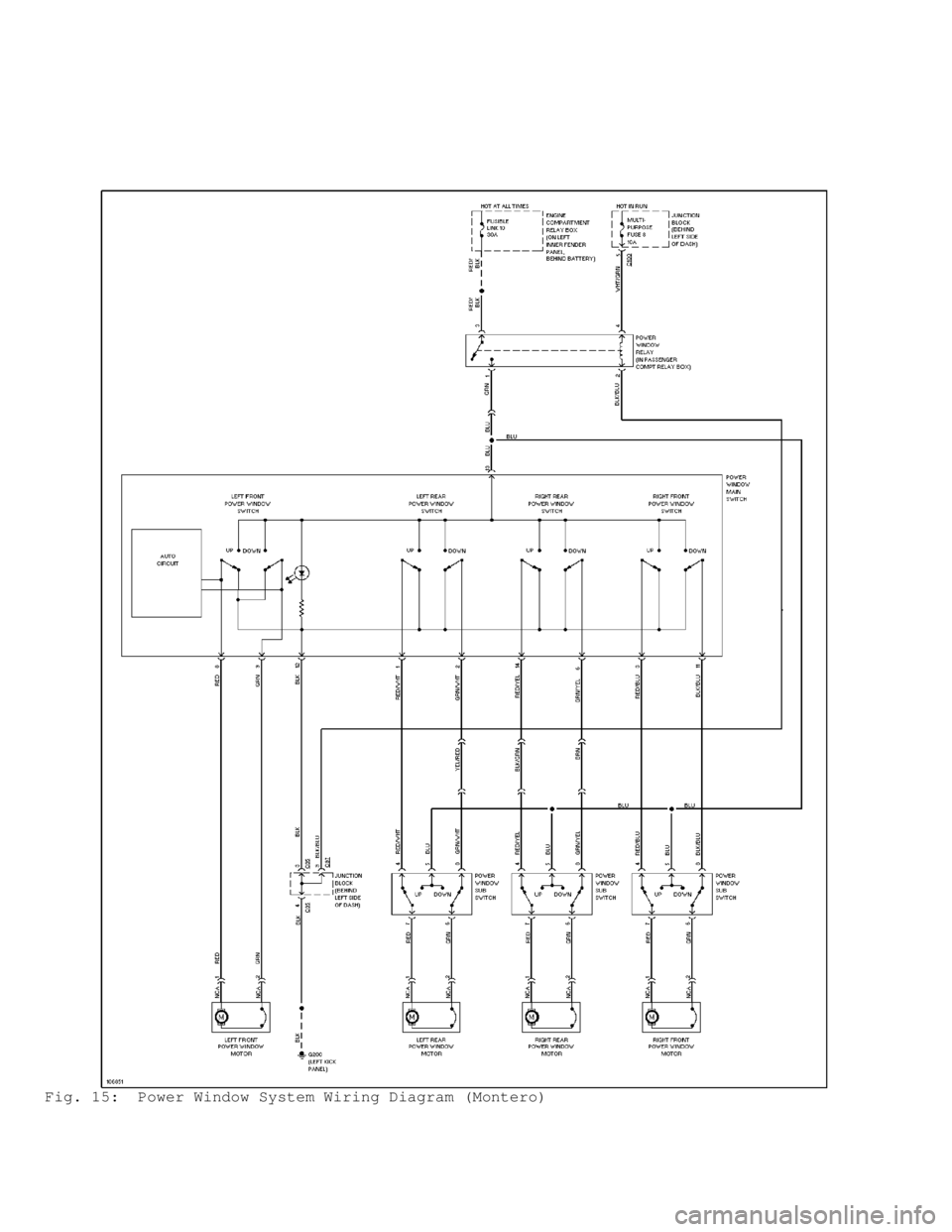

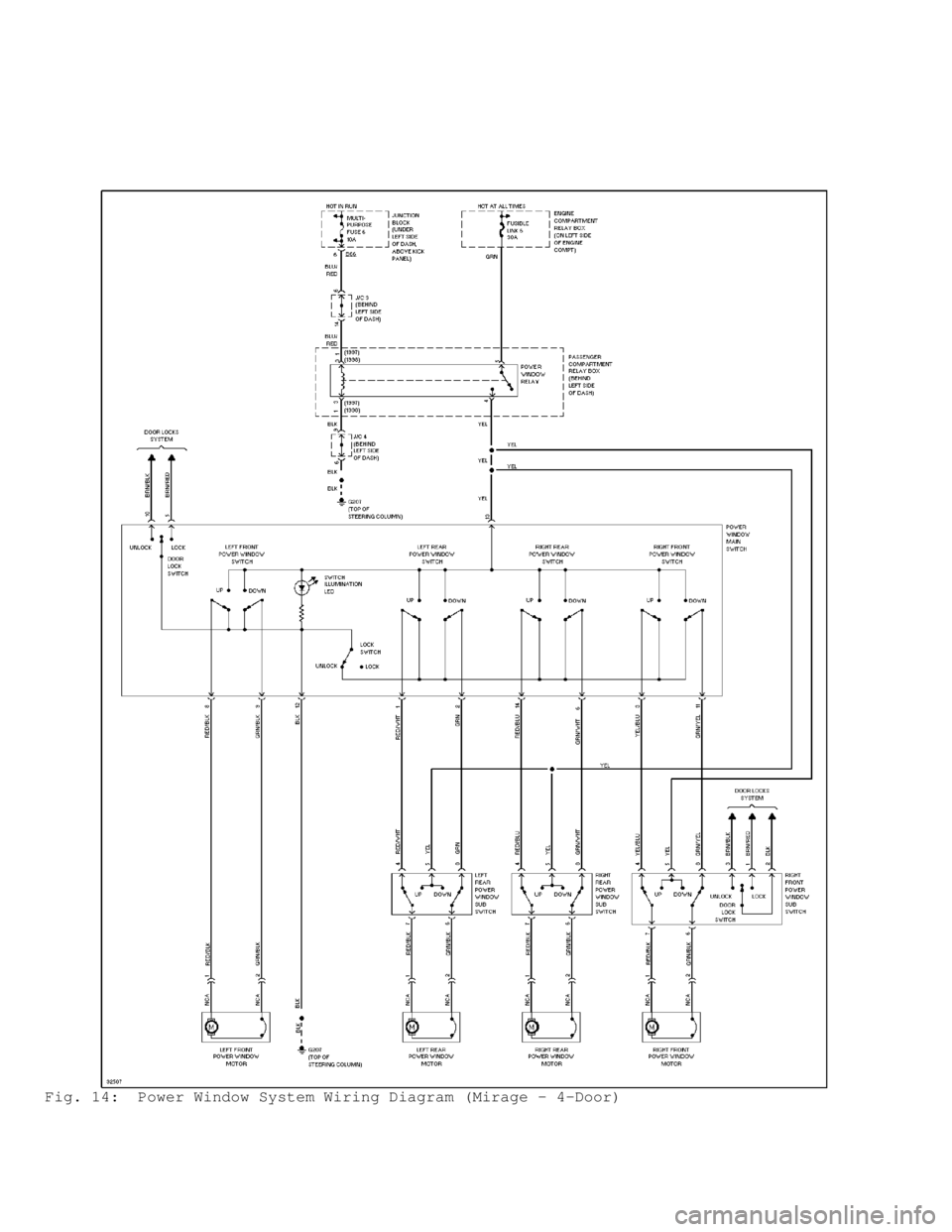

WIRING DIAGRAMS
