diagram MITSUBISHI MONTERO 1998 Service Manual

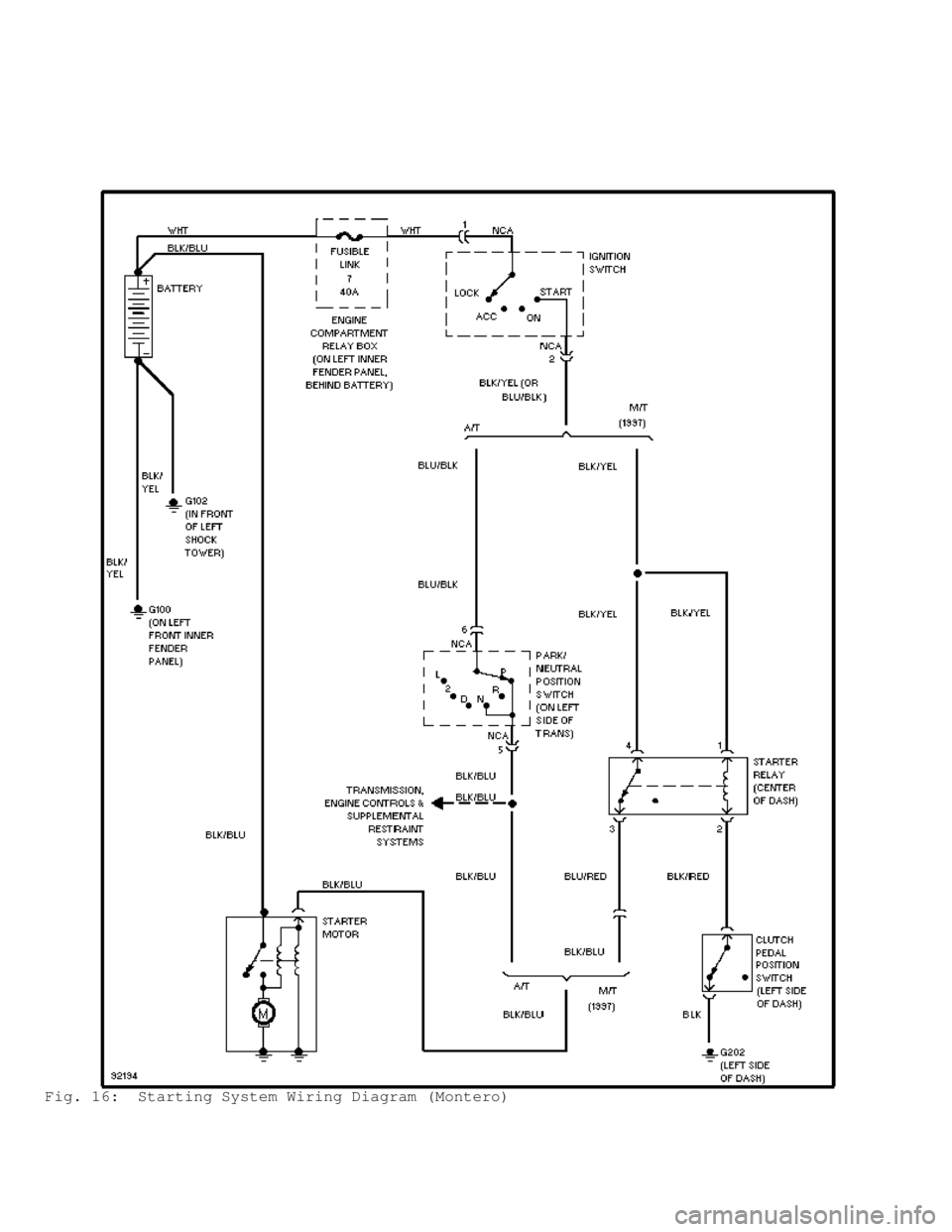

Fig. 15: Starting System Wiring Diagram (Mirage)

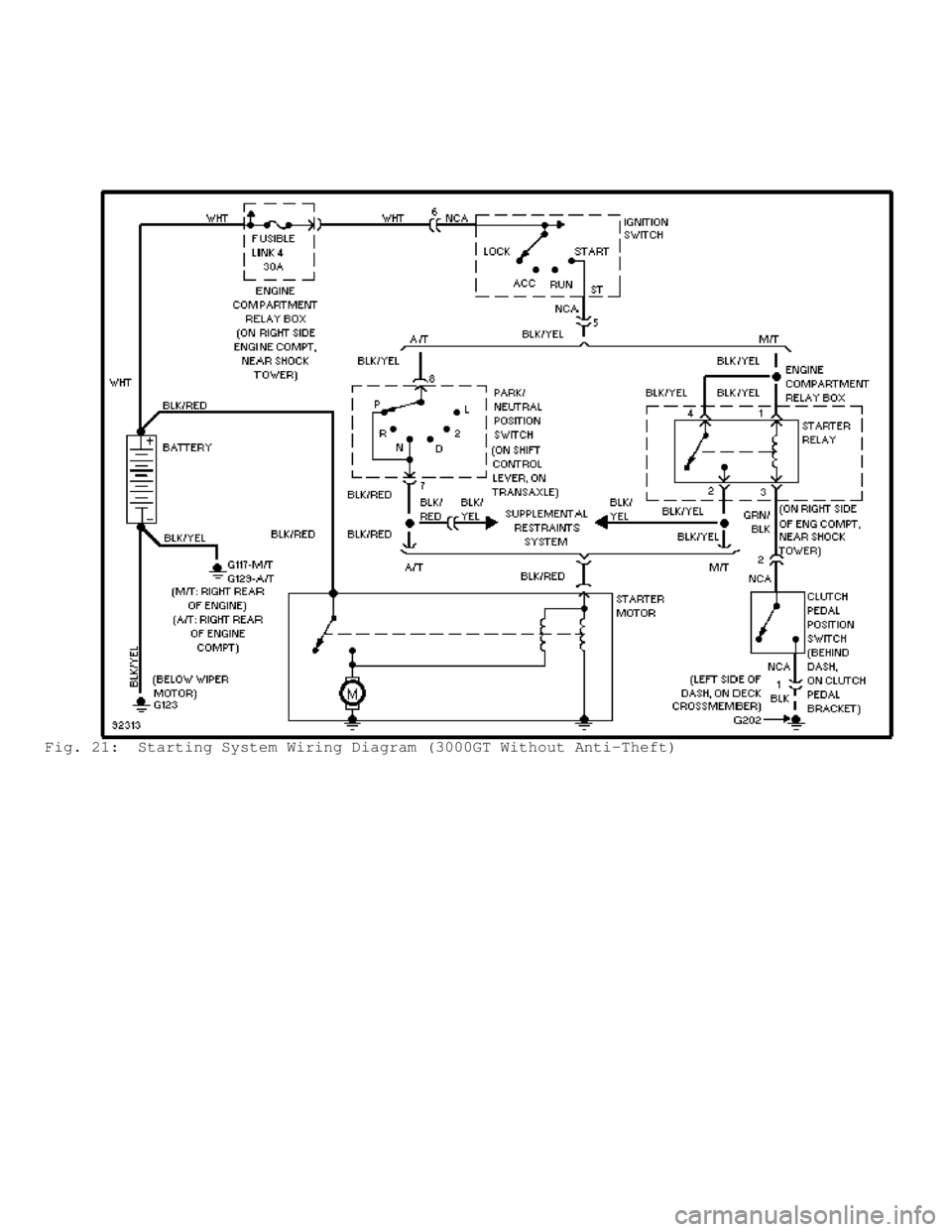

Fig. 16: Starting System Wiring Diagram (Montero)

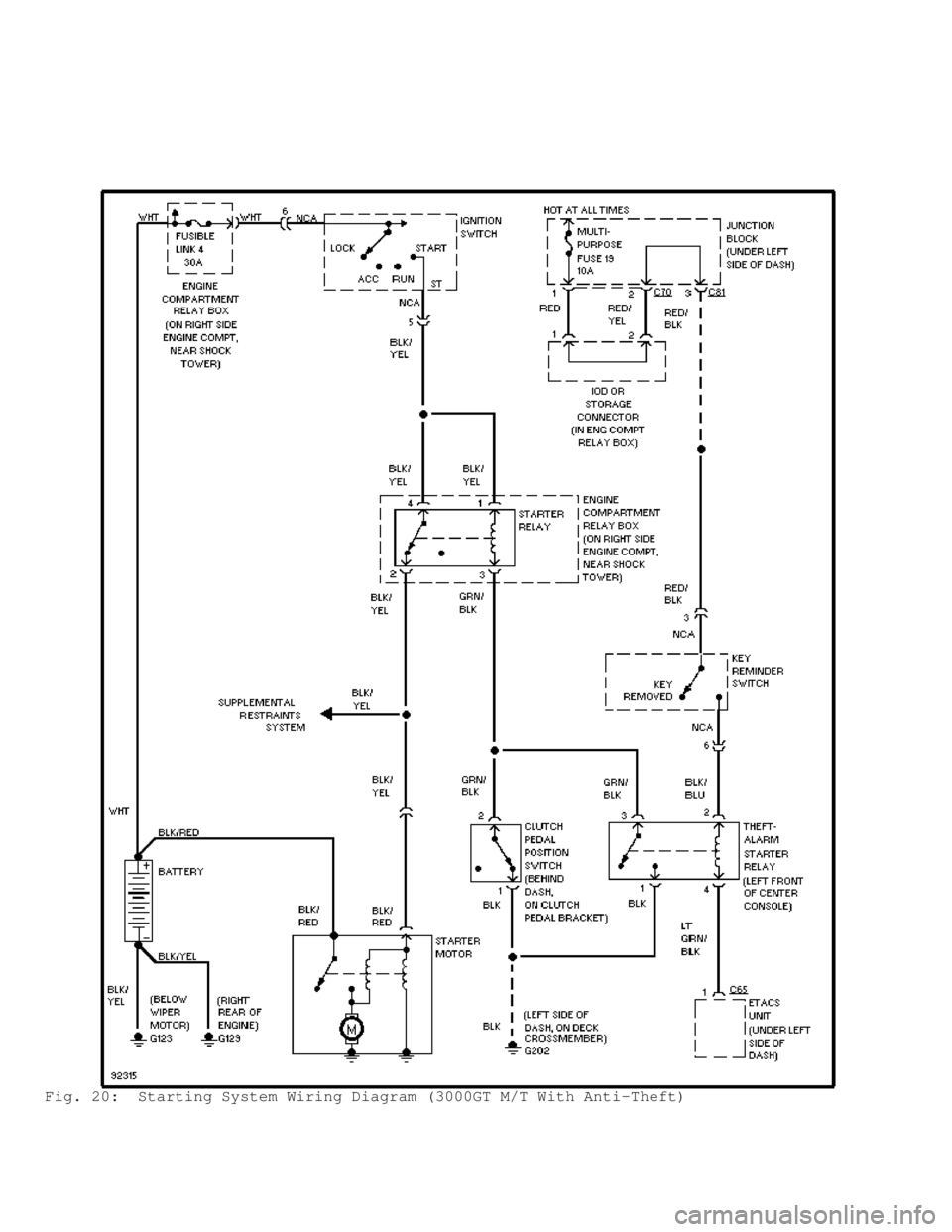

Fig. 17: Starting System Wiring Diagram (Montero Sport A/T)

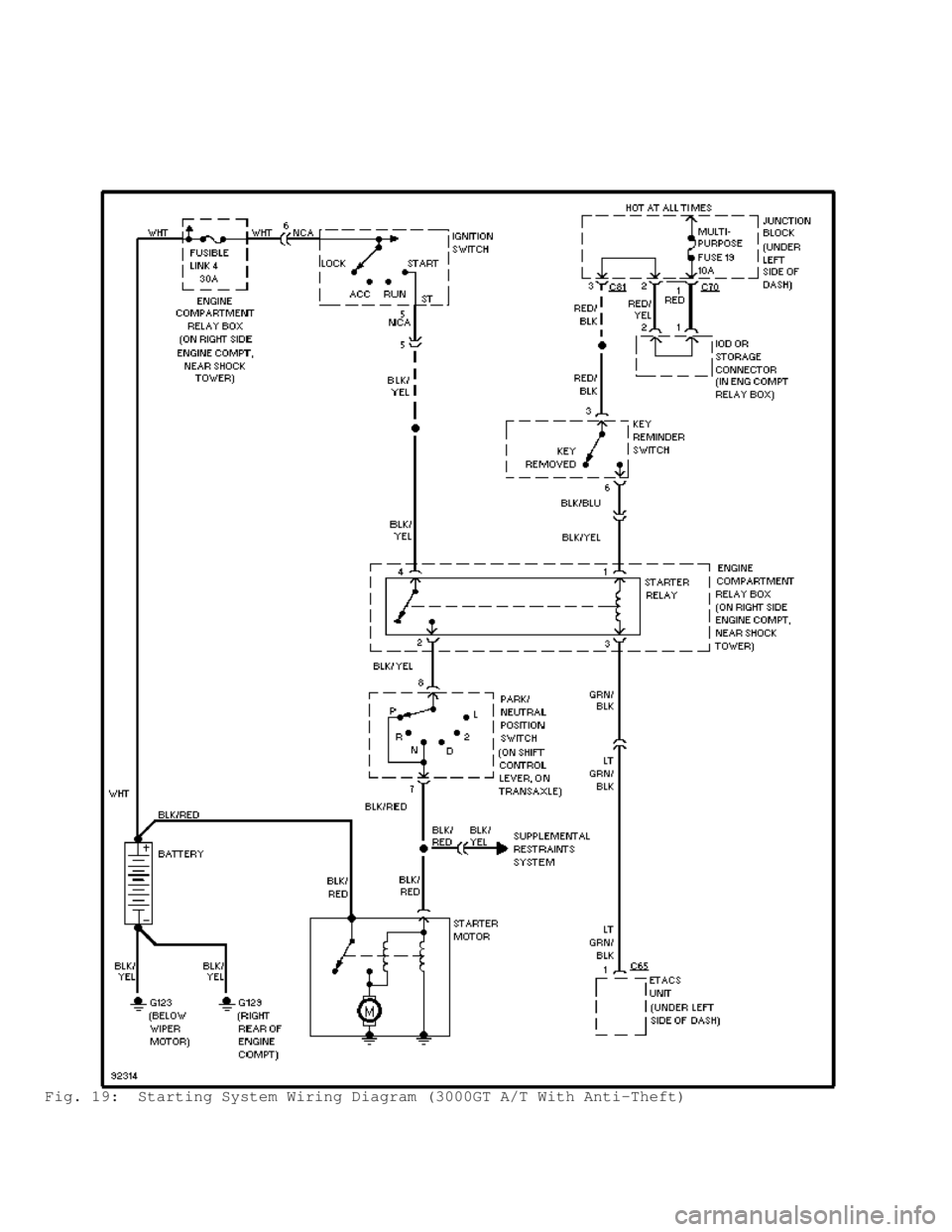

Fig. 18: Starting System Wiring Diagram (Montero Sport M/T)

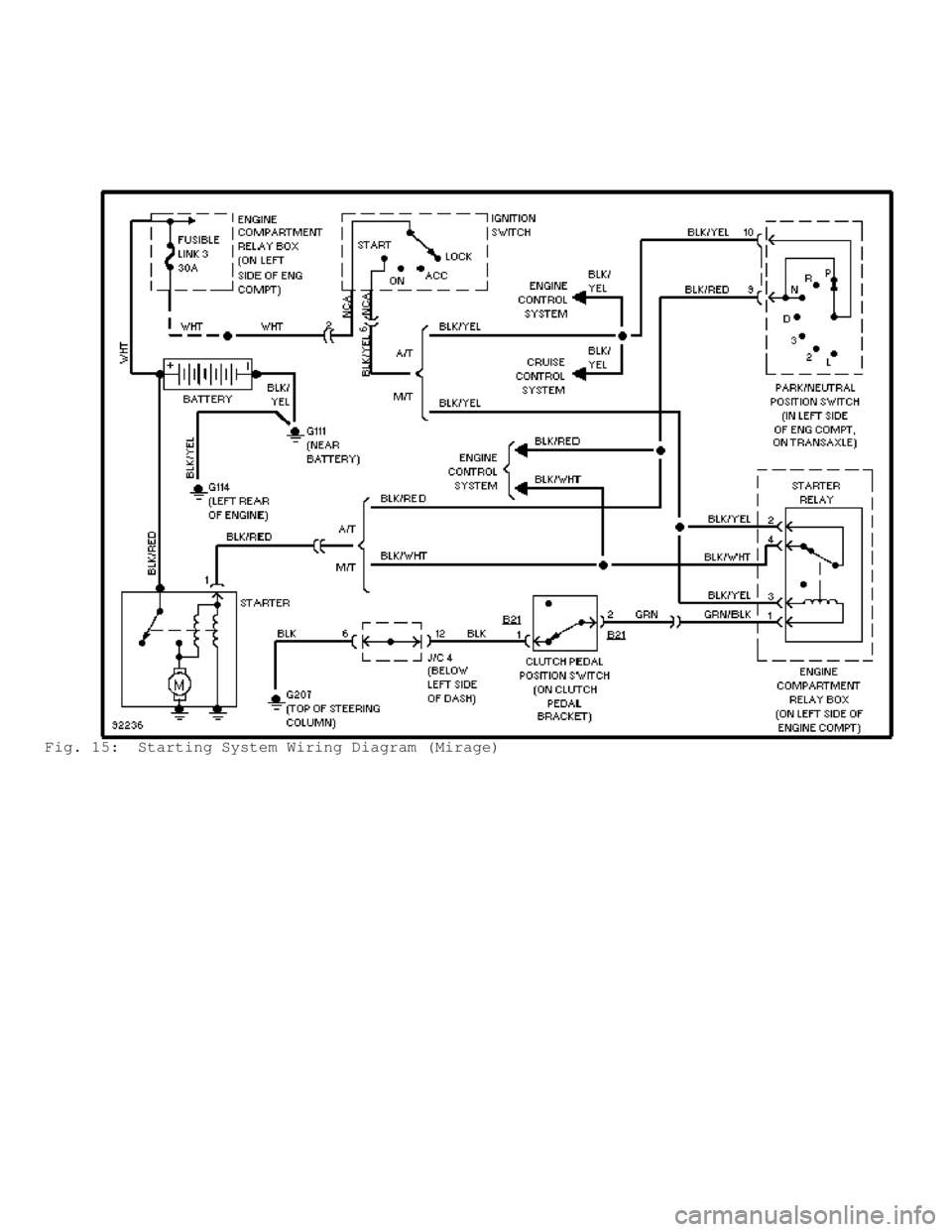

Fig. 19: Starting System Wiring Diagram (3000GT A/T With Anti-Theft)

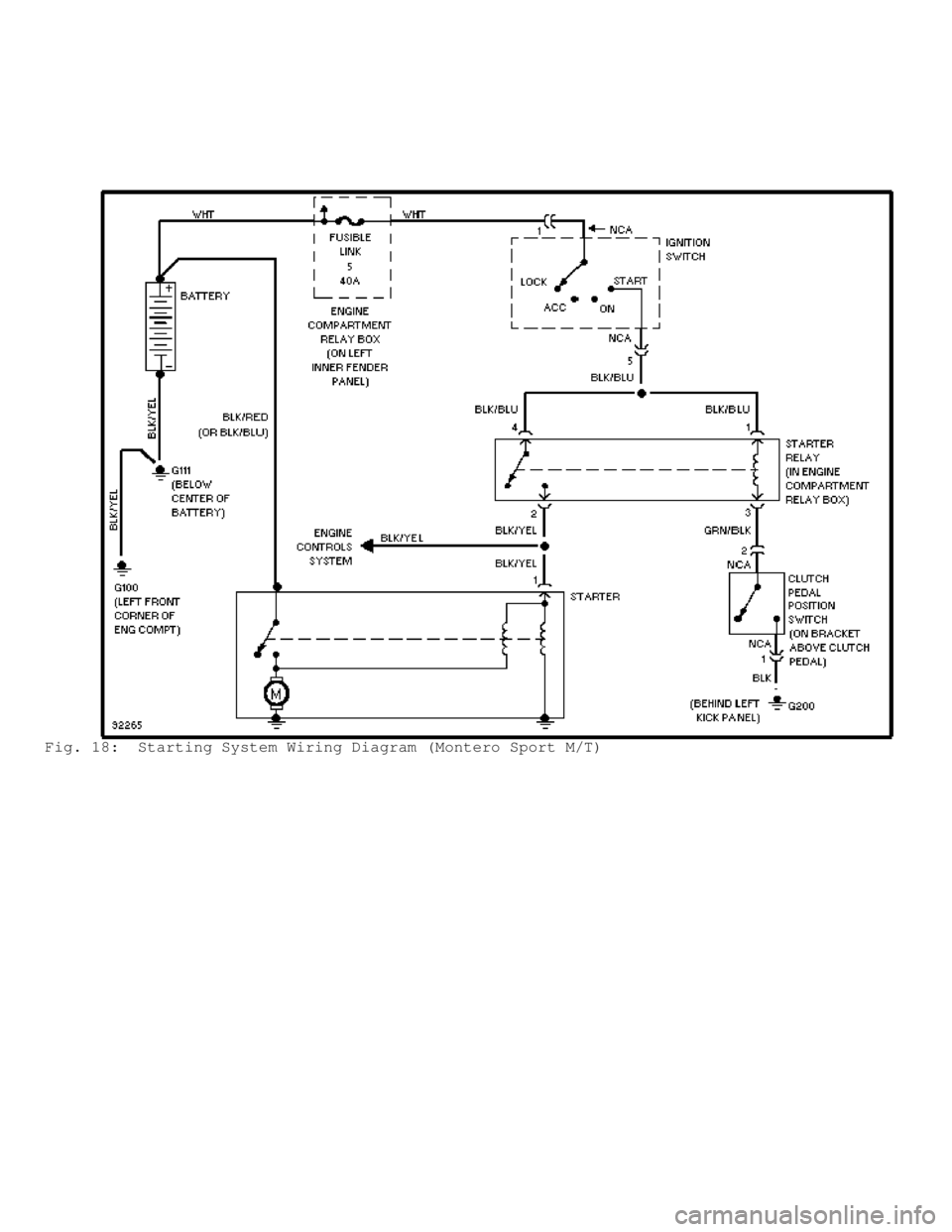

Fig. 20: Starting System Wiring Diagram (3000GT M/T With Anti-Theft)

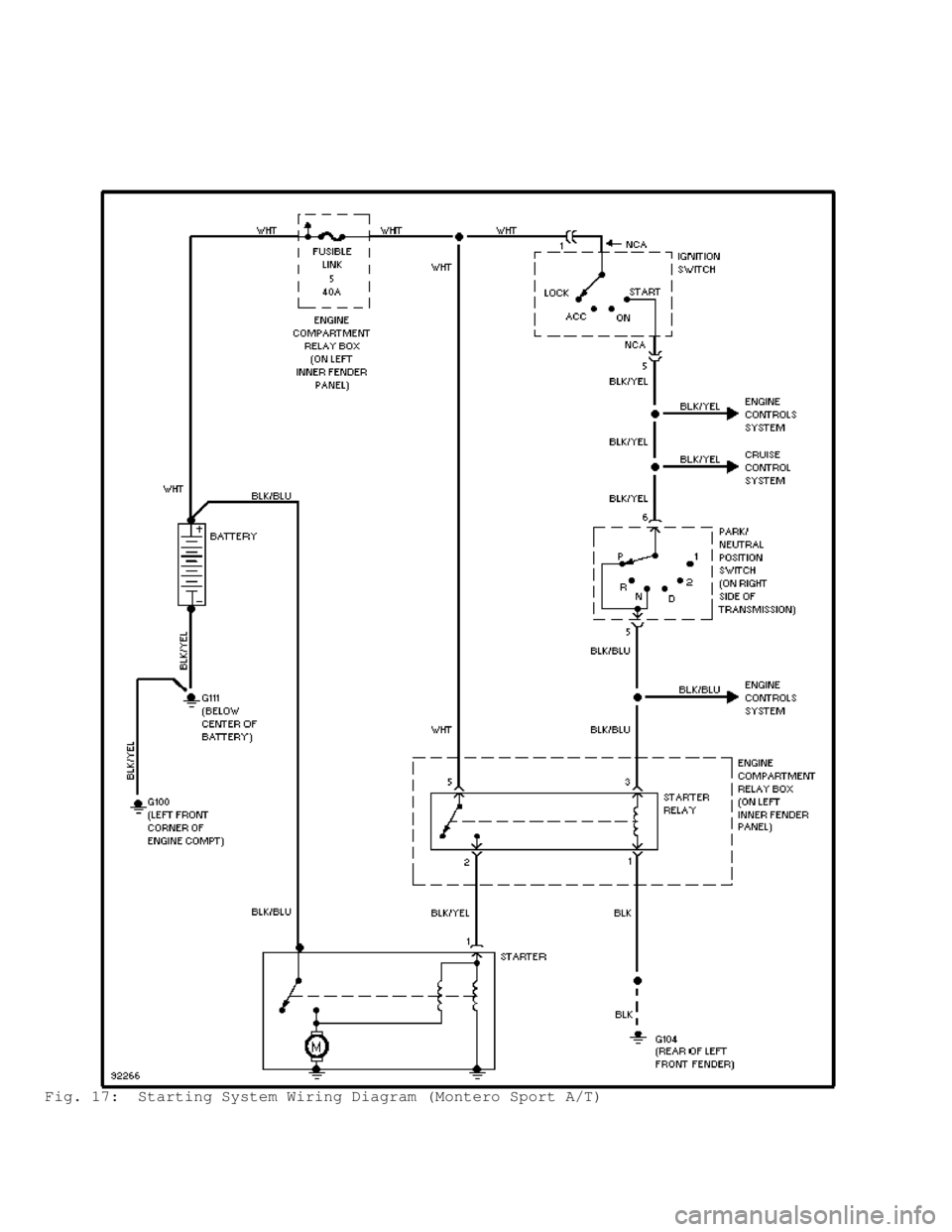

Fig. 21: Starting System Wiring Diagram (3000GT Without Anti-Theft)

column switch. To install, reverse removal procedure.
Removal & Installation (Eclipse)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove horn pad and steering wheel. Remove hood lock release handle.
Remove column pad and upper and lower column covers. See Fig. 6.
Remove A/C-heater system lap cooler duct and foot shower duct. Remove
steering column switch. To install, reverse removal procedure.
Removal & Installation (Galant)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove column pad. Remove foot duct. Remove
upper and lower steering column covers. See Fig. 11. Remove steering
column switch. To install, reverse removal procedure.
Removal & Installation (Mirage)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove hood release handle. Remove knee
protector. Remove upper and lower steering column covers. See Fig. 15.
Remove steering column switch. To install, reverse removal procedure.
Removal & Installation (Montero)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove foot duct. Remove lower instrument panel
cover. Remove upper and lower steering column covers. See Fig. 19.
Remove steering column switch. To install, reverse removal procedure.
Removal & Installation (Montero Sport)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove instrument panel lower cover. Remove
upper and lower steering column covers. See Fig. 25. Remove steering
column switch. To install, reverse removal procedure.
Removal & Installation (3000GT)
Remove air bag module. See AIR BAG RESTRAINT SYSTEMS article.
Remove steering wheel. Remove knee protector. Remove upper and lower
steering column covers. Remove A/C-heater system lap cooler duct and
foot duct. Remove left or right steering column switch. See Fig. 31.
To install, reverse removal procedure.
TORQUE SPECIFICATIONS
TORQUE SPECIFICATIONS TABLE








\









\









\









\









\









\






Application Ft. Lbs. (N.m)
Steering Wheel Nut
Diamante, Montero, Montero Sport
& 3000GT ...................................... 29 (39)
Eclipse, Galant & Mirage ....................... 30 (41)
INCH Lbs. (N.m)
Air Bag Module Bolts/Nuts
Diamante, Eclipse & Mirage .................... 53 (6.0)
Galant & Montero .............................. 80 (9.0)
Montero Sport ................................. 78 (8.8)
3000GT ....................................... 39 (4.4)









\









\









\









\









\









\






WIRING DIAGRAMS

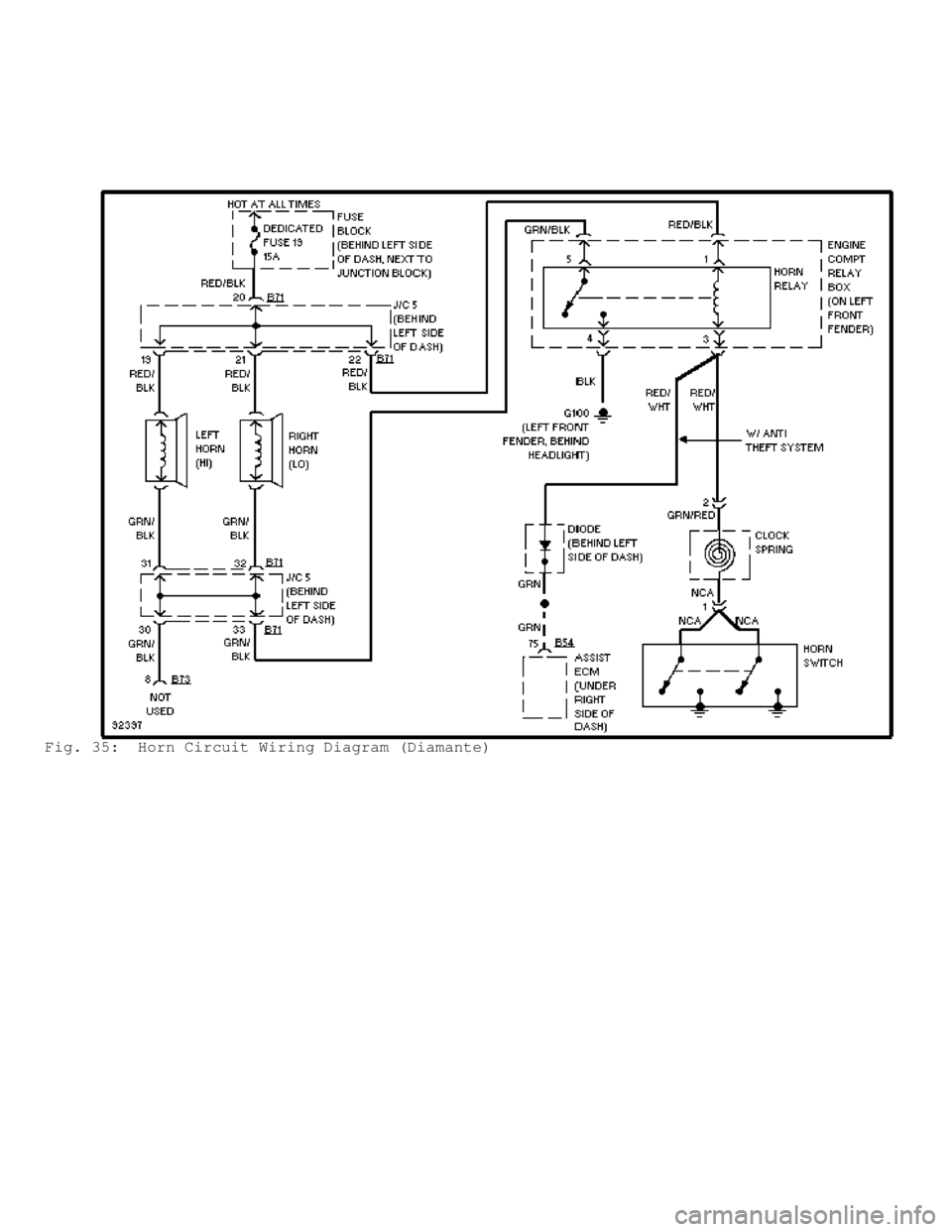

Fig. 35: Horn Circuit Wiring Diagram (Diamante)

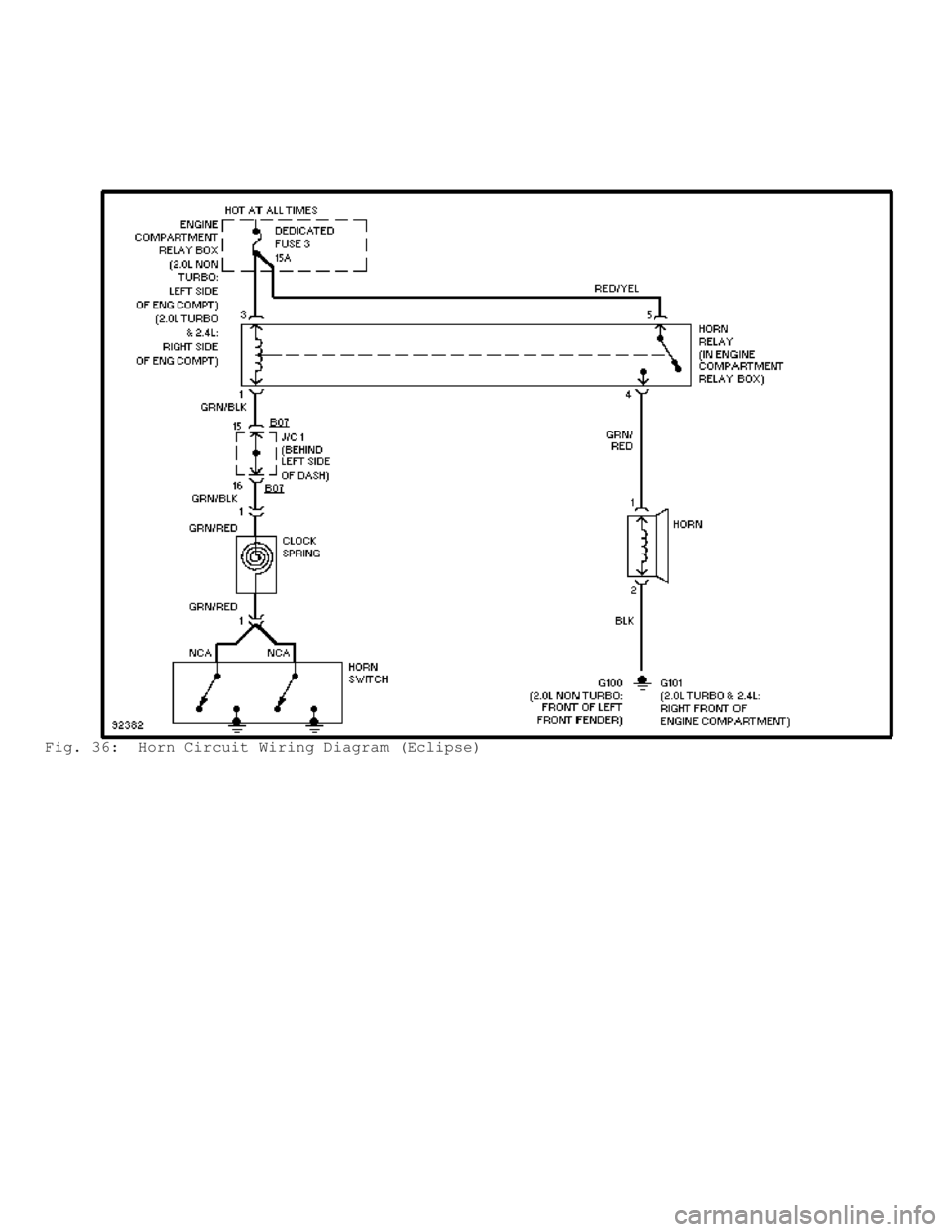

Fig. 36: Horn Circuit Wiring Diagram (Eclipse)
