Page 1232 of 1501

Fig. 17: Power Sun Roof System Wiring Diagram (Montero Sport)

Page 1233 of 1501

Fig. 18: Power Sun Roof System Wiring Diagram (3000GT)

Page 1308 of 1501

MITSUBISHI MONTERO 1998 Service Manual SYSTEM WIRING DIAGRAMS
1998 Mitsubishi Montero
1998 System Wiring Diagrams
Mitsubishi - Montero
AIR CONDITIONING
A/C Circuit

SYSTEM WIRING DIAGRAMS
1998 Mitsubishi Montero
1998 System Wiring Diagrams
Mitsubishi - Montero
AIR CONDITIONING
A/C Circuit

Page 1367 of 1501

$MITSUBISHI MONTERO 1998 Service Manual ALTERNATOR article��\ ��\ ��\ ��\ ��\ ��\ ��$

ALTERNATOR article\
\
\
\
\
\
\

Alternator Blown fuse See WIRING DIAGRAMS
Light Stays Off
With Ignition
Switch ON
Defective alternator See Testing in
ALTERNATOR article
Defective indicator light See Indicator Warning
bulb or socket Lights in STANDARD
INSTRUMENTS in the
ACCESSORIES &
EQUIPMENT section
\
\
\
\
\
\
\

Alternator Short in alternator wiring See On-Vehicle Tests
Light Stays OFF in ALTERNATOR article
With Ignition
Switch ON
Defective rectifier bridge See Bench Tests in
ALTERNATOR article
\
\
\
\
\
\
\

Lights or Fuses Defective alternator wiring See On-Vehicle Tests
Burn Out in ALTERNATOR article
Frequently
Defective regulator See Regulator Check in
ALTERNATOR article
Defective battery Check and replace as
necessary
\
\
\
\
\
\
\

Ammeter Gauge Loose or worn drive belt Check alternator drive
Shows Discharge belt tension and
condition. See Belt
Adjustment in TUNE-UP
article in the
TUNE-UP section
Defective wiring Check all wires and
wire connections
Defective alternator or See Bench Tests and
regulator On-Vehicle Tests in
ALTERNATOR article
Defective ammeter, or See Testing in
improper ammeter wiring STANDARD INSTRUMENTS
connection in the ACCESSORIES &
EQUIPMENT section
\
\
\
\
\
\
\

Noisy Loose drive pulley Tighten drive pulley
Alternator attaching nut
Loose mounting bolts Tighten all alternator
mounting bolts
Worn or dirty bearings See Bearing
Replacement
ALTERNATOR article

Page 1489 of 1501

MITSUBISHI MONTERO 1998 Service Manual 1) Remove wiper switch from instrument panel and disconnect
wiper switch. Place wiper switch in OFF position. Continuity should
exist between terminals No. 4 and 5. See Fig. 12. Place wiper s

1) Remove wiper switch from instrument panel and disconnect
wiper switch. Place wiper switch in OFF position. Continuity should
exist between terminals No. 4 and 5. See Fig. 12. Place wiper switch
in ON position. Continuity should exist between terminals No. 5 and 6.
2) Place wiper switch in INT position. Continuity should
exist between terminals No. 4 and 5, and between terminals No. 7 and
8. Depress washer switch. Continuity should exist between terminals
No. 2 and 6. Continuity between terminals No. 1 and 3 should exist in
all positions (light circuit).
REMOVAL & INSTALLATION
FRONT WIPER MOTOR
Removal & Installation
Remove wiper motor bolts. Pull motor out slightly. Disconnect
wiper linkage from motor assembly and remove motor. To install,
reverse removal procedure.
FRONT WIPER SWITCH
NOTE: Front wiper switch is part of combination switch on steering
column. See STEERING COLUMN SWITCHES article.
REAR WIPER MOTOR
Removal & Installation
Remove wiper blade and arm assembly. Remove tailgate trim, 2
bolts and wiper motor. To install, reverse removal procedure. Ensure
grommet is in good condition.
REAR WIPER SWITCH
Removal & Installation
Pry rear wiper switch from instrument panel and disconnect
wiper switch wiring connector. To install switch, reverse removal
procedure.

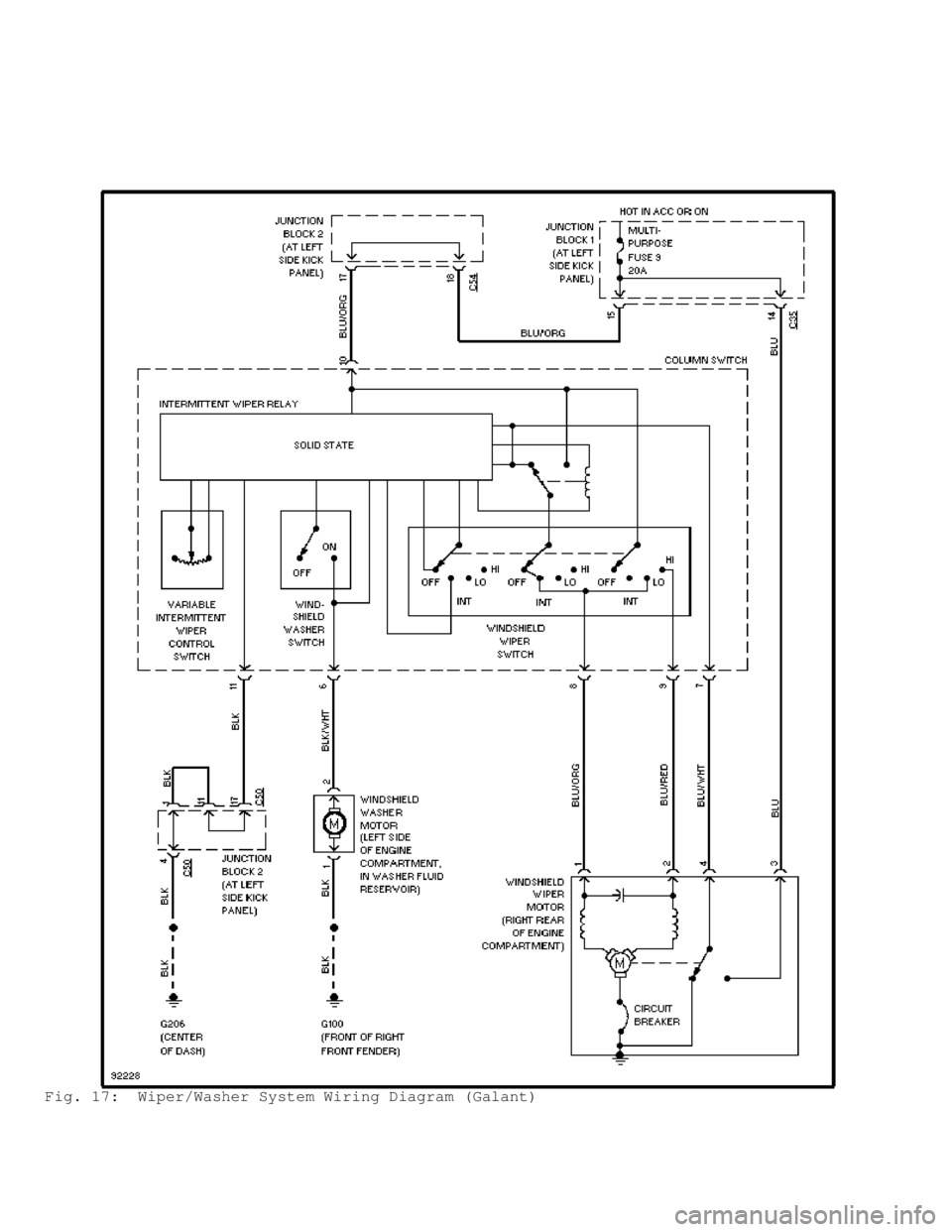

WIRING DIAGRAMS
