Page 981 of 1501
Right Side
UP ........................................ 2 & 4; 6 & 7
DOWN ...................................... 2 & 6; 4 & 7
LEFT ...................................... 4 & 7; 6 & 9
RIGHT ..................................... 4 & 9; 6 & 7
(1) - See Fig. 8.
\
\
\
\
\
\
Fig. 7: Identifying Power Mirror Switch Terminals (Eclipse)
Courtesy of Mitsubishi Motor Sales of America
Fig. 8: Identifying Power Mirror Switch Terminals (All Others)
Courtesy of Mitsubishi Motor Sales of America
REMOVAL & INSTALLATION
POWER MIRROR ASSEMBLY
Page 982 of 1501
Removal & Installation
Remove delta cover (trim cover), screws and electrical
connector. Remove mirror assembly. To install, reverse removal
procedure.
WIRING DIAGRAMS
Fig. 9: Power Mirrors System Wiring Diagram (Eclipse)
Page 983 of 1501
Fig. 10: Power Mirrors System Wiring Diagram (Galant)
Page 984 of 1501
Fig. 11: Power Mirrors System Wiring Diagram (Mirage)
Page 985 of 1501
Fig. 12: Power Mirrors System Wiring Diagram (Montero)
Page 986 of 1501
Fig. 13: Power Mirrors System Wiring Diagram (Montero Sport)
Page 987 of 1501
Fig. 14: Power Mirrors System Wiring Diagram (3000GT)
Page 988 of 1501
N - REMOVE/INSTALL/OVERHAUL
1998 Mitsubishi Montero
1998 ENGINE PERFORMANCE
Mitsubishi - Removal, Overhaul & Installation
Diamante, Eclipse, Galant, Mirage, Montero, Montero Sport,
3000GT
INTRODUCTION
Removal, overhaul and installation procedures are covered in
this article. If component removal and installation is primarily an
unbolt and bolt-on procedure, only a torque specification may be
furnished.
COMPONENT LOCATION
The following illustrations are provided to assist in
locating components for which removal and installation procedures may
not be provided. See Figs. 1-12.
Fig. 1: Engine Performance-Related Components (Diamante)
Courtesy of Mitsubishi Motor Sales of America
Page 989 of 1501

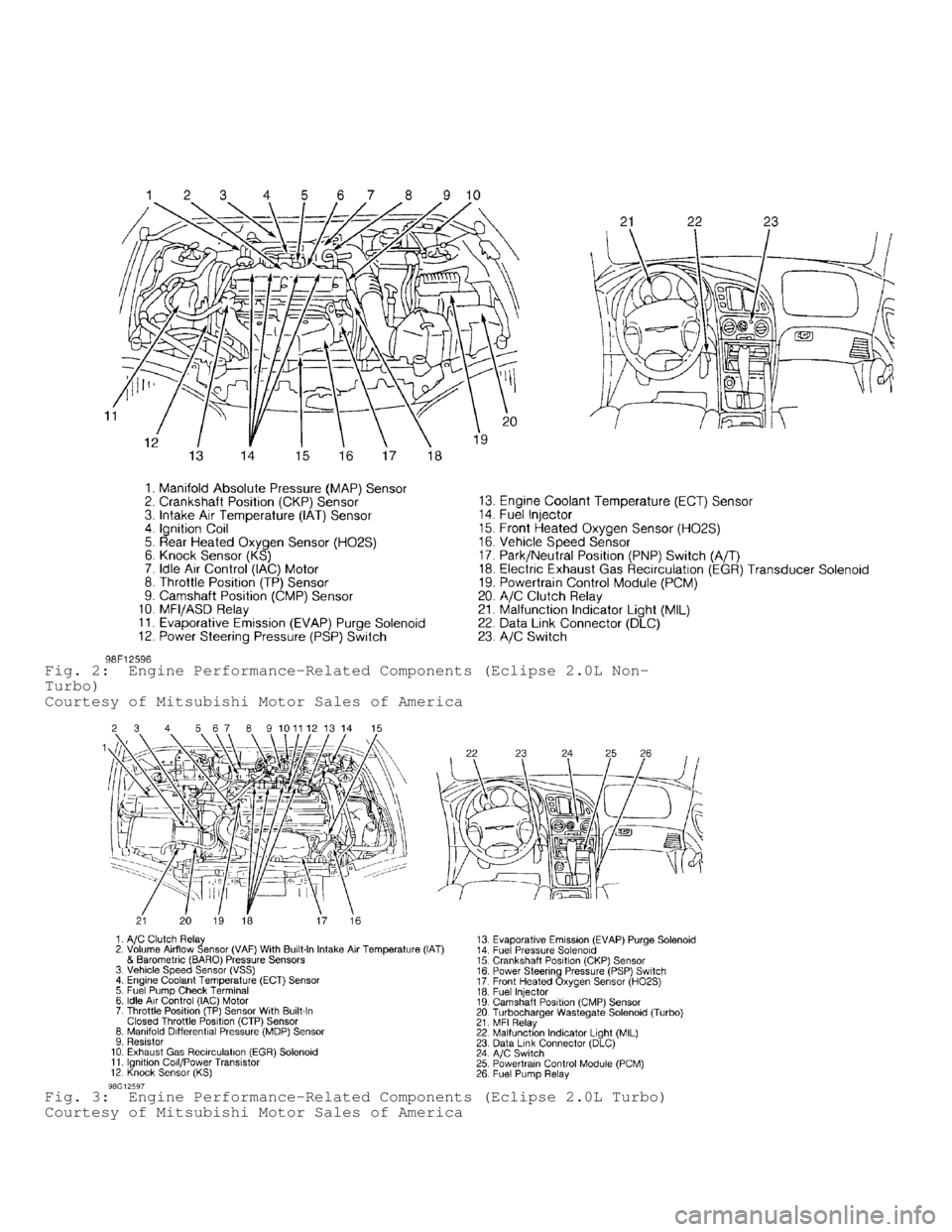

Fig. 2: Engine Performance-Related Components (Eclipse 2.0L Non-
Turbo)
Courtesy of Mitsubishi Motor Sales of America
Fig. 3: Engine Performance-Related Components (Eclipse 2.0L Turbo)
Courtesy of Mitsubishi Motor Sales of America
Page 990 of 1501
Fig. 4: Engine Performance-Related Components (Eclipse 2.4L)
Courtesy of Mitsubishi Motor Sales of America
