Page 221 of 714
3-110 Features and controls
3

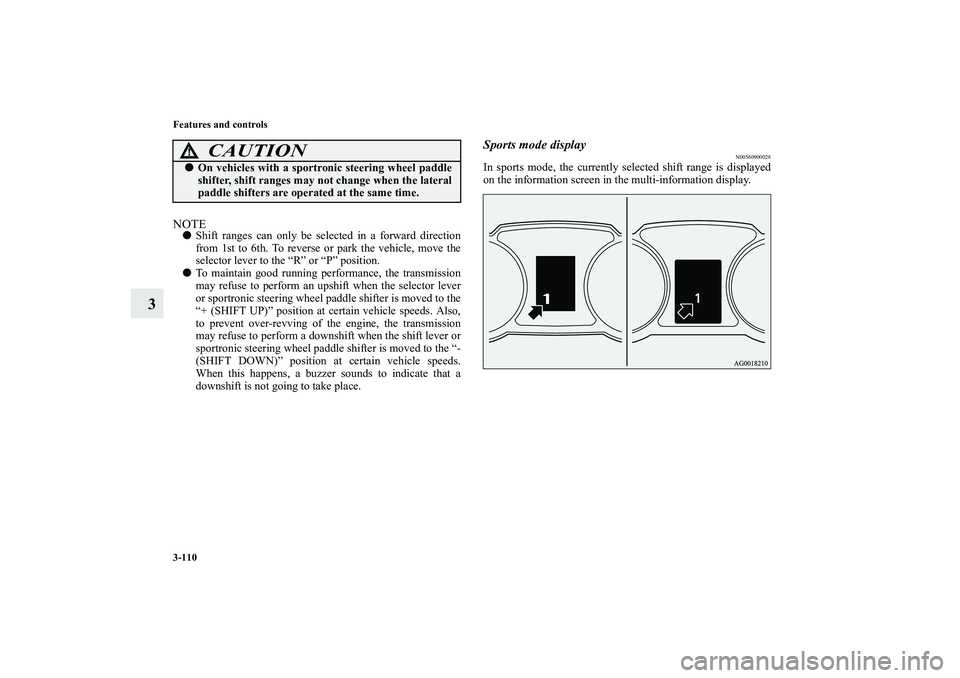

NOTE
Shift ranges can only be selected in a forward direction
from 1st to 6th. To reverse or park the vehicle, move the
selector lever to the “R” or “P” position.
To maintain good running performance, the transmission
may refuse to perform an upshift when the selector lever
or sportronic steering wheel paddle shifter is moved to the
“+ (SHIFT UP)” position at certain vehicle speeds. Also,
to prevent over-revving of the engine, the transmission
may refuse to perform a downshift when the shift lever or
sportronic steering wheel paddle shifter is moved to the “-
(SHIFT DOWN)” position at certain vehicle speeds.
When this happens, a buzzer sounds to indicate that a
downshift is not going to take place.
Sports mode display
N00560900028
In sports mode, the currently selected shift range is displayed
on the information screen in the multi-information display.
On vehicles with a sportronic steering wheel paddle
shifter, shift ranges may not change when the lateral
paddle shifters are operated at the same time.CAUTION
!
BK0115300US.book 110 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 222 of 714
Features and controls
3-111
3

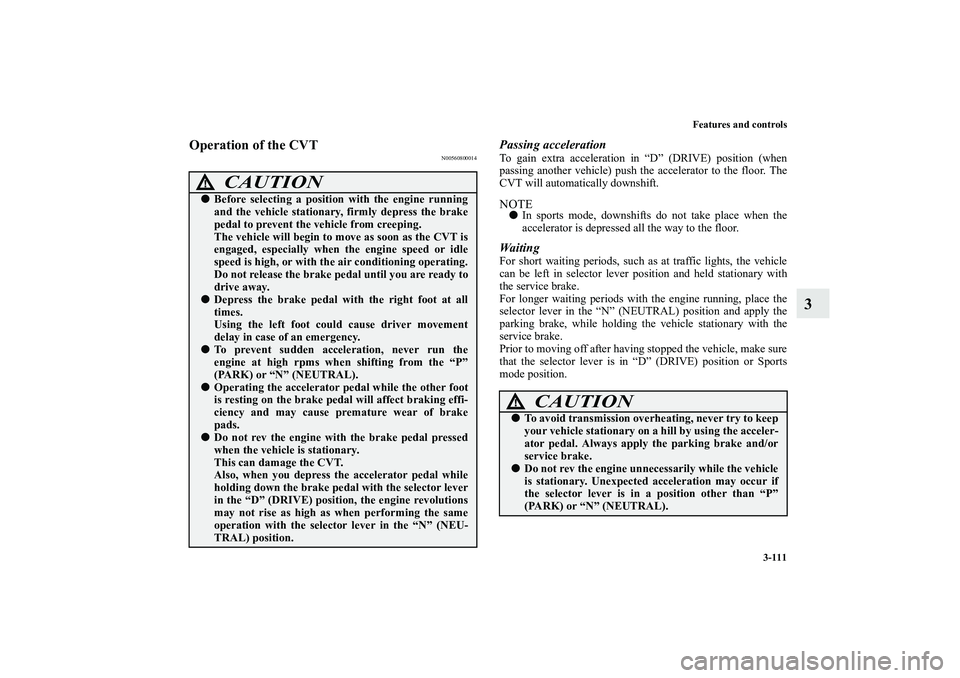

Operation of the CVT
N00560800014
Passing accelerationTo gain extra acceleration in “D” (DRIVE) position (when
passing another vehicle) push the accelerator to the floor. The
CVT will automatically downshift.NOTE
In sports mode, downshifts do not take place when the
accelerator is depressed all the way to the floor.
WaitingFor short waiting periods, such as at traffic lights, the vehicle
can be left in selector lever position and held stationary with
the service brake.
For longer waiting periods with the engine running, place the
selector lever in the “N” (NEUTRAL) position and apply the
parking brake, while holding the vehicle stationary with the
service brake.
Prior to moving off after having stopped the vehicle, make sure
that the selector lever is in “D” (DRIVE) position or Sports
mode position.
CAUTION
!
Before selecting a position with the engine running
and the vehicle stationary, firmly depress the brake
pedal to prevent the vehicle from creeping.
The vehicle will begin to move as soon as the CVT is
engaged, especially when the engine speed or idle
speed is high, or with the air conditioning operating.
Do not release the brake pedal until you are ready to
drive away.
Depress the brake pedal with the right foot at all
times.
Using the left foot could cause driver movement
delay in case of an emergency.
To prevent sudden acceleration, never run the
engine at high rpms when shifting from the “P”
(PARK) or “N” (NEUTRAL).
Operating the accelerator pedal while the other foot
is resting on the brake pedal will affect braking effi-
ciency and may cause premature wear of brake
pads.
Do not rev the engine with the brake pedal pressed
when the vehicle is stationary.
This can damage the CVT.
Also, when you depress the accelerator pedal while
holding down the brake pedal with the selector lever
in the “D” (DRIVE) position, the engine revolutions
may not rise as high as when performing the same
operation with the selector lever in the “N” (NEU-
TRAL) position.
CAUTION
!
To avoid transmission overheating, never try to keep
your vehicle stationary on a hill by using the acceler-
ator pedal. Always apply the parking brake and/or
service brake.
Do not rev the engine unnecessarily while the vehicle
is stationary. Unexpected acceleration may occur if
the selector lever is in a position other than “P”
(PARK) or “N” (NEUTRAL).
BK0115300US.book 111 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 223 of 714
3-112 Features and controls
3

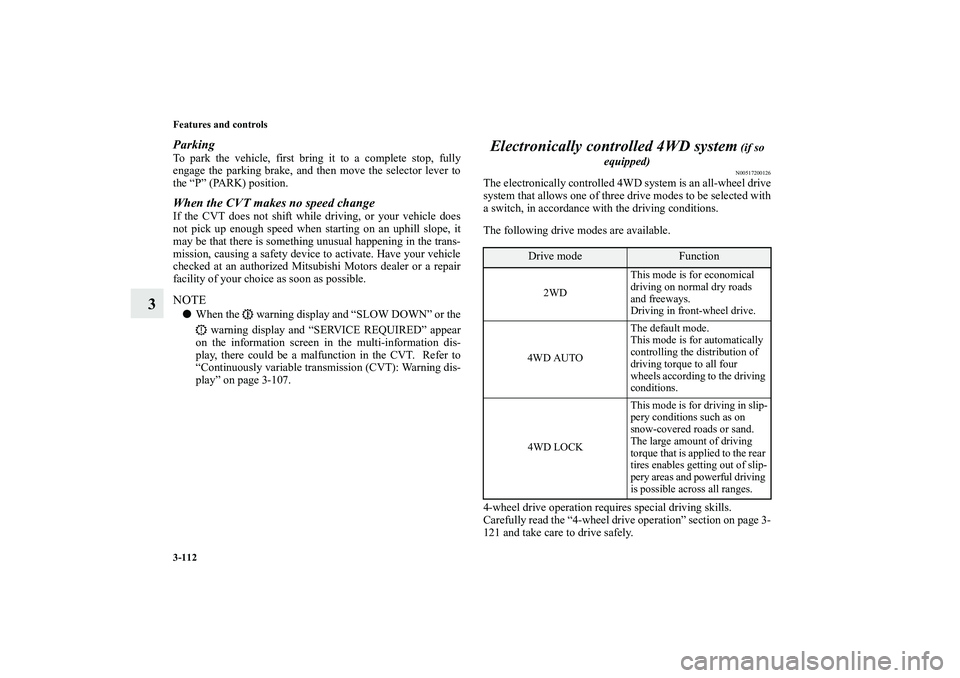

ParkingTo park the vehicle, first bring it to a complete stop, fully
engage the parking brake, and then move the selector lever to
the “P” (PARK) position.When the CVT makes no speed changeIf the CVT does not shift while driving, or your vehicle does
not pick up enough speed when starting on an uphill slope, it
may be that there is something unusual happening in the trans-
mission, causing a safety device to activate. Have your vehicle
checked at an authorized Mitsubishi Motors dealer or a repair
facility of your choice as soon as possible.NOTE
When the warning display and “SLOW DOWN” or the
warning display and “SERVICE REQUIRED” appear
on the information screen in the multi-information dis-
play, there could be a malfunction in the CVT. Refer to
“Continuously variable transmission (CVT): Warning dis-
play” on page 3-107.
Electronically controlled 4WD system
(if so
equipped)N00517200126
The electronically controlled 4WD system is an all-wheel drive
system that allows one of three drive modes to be selected with
a switch, in accordance with the driving conditions.
The following drive modes are available.
4-wheel drive operation requires special driving skills.
Carefully read the “4-wheel drive operation” section on page 3-
121 and take care to drive safely.
Drive mode
Function
2WDThis mode is for economical
driving on normal dry roads
and freeways.
Driving in front-wheel drive.
4WD AUTOThe default mode.
This mode is for automatically
controlling the distribution of
driving torque to all four
wheels according to the driving
conditions.
4WD LOCKThis mode is for driving in slip-
pery conditions such as on
snow-covered roads or sand.
The large amount of driving
torque that is applied to the rear
tires enables getting out of slip-
pery areas and powerful driving
is possible across all ranges.
BK0115300US.book 112 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 224 of 714
Features and controls
3-113
3

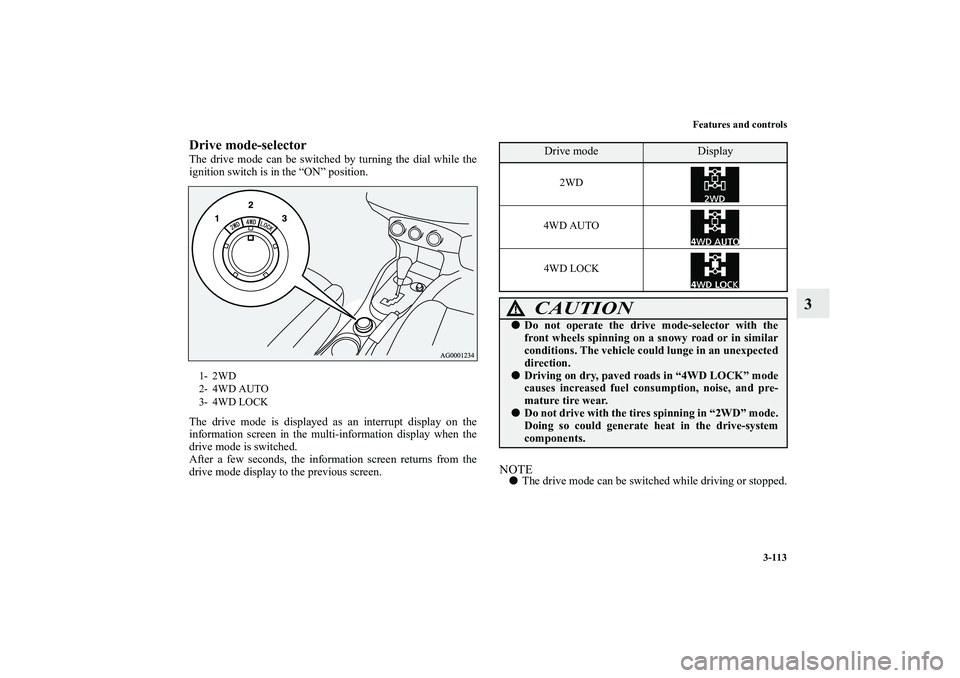

Drive mode-selectorThe drive mode can be switched by turning the dial while the
ignition switch is in the “ON” position.
The drive mode is displayed as an interrupt display on the
information screen in the multi-information display when the
drive mode is switched.
After a few seconds, the information screen returns from the
drive mode display to the previous screen.
NOTE
The drive mode can be switched while driving or stopped.
1- 2WD
2- 4WD AUTO
3- 4WD LOCK
Drive mode
Display
2WD
4WD AUTO
4WD LOCK
CAUTION
!
Do not operate the drive mode-selector with the
front wheels spinning on a snowy road or in similar
conditions. The vehicle could lunge in an unexpected
direction.
Driving on dry, paved roads in “4WD LOCK” mode
causes increased fuel consumption, noise, and pre-
mature tire wear.
Do not drive with the tires spinning in “2WD” mode.
Doing so could generate heat in the drive-system
components.
BK0115300US.book 113 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 225 of 714
3-114 Features and controls
3

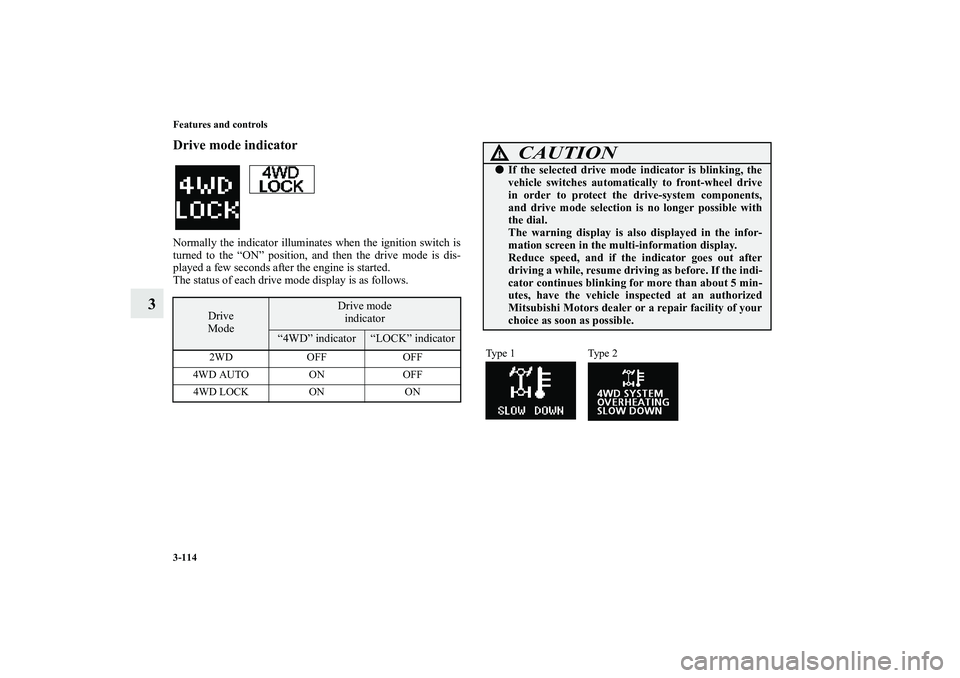

Drive mode indicatorNormally the indicator illuminates when the ignition switch is
turned to the “ON” position, and then the drive mode is dis-
played a few seconds after the engine is started.
The status of each drive mode display is as follows.
Drive
Mode
Drive mode
indicator
“4WD” indicator
“LOCK” indicator
2WD OFF OFF
4WD AUTO ON OFF
4WD LOCK ON ON
CAUTION
!
If the selected drive mode indicator is blinking, the
vehicle switches automatically to front-wheel drive
in order to protect the drive-system components,
and drive mode selection is no longer possible with
the dial.
The warning display is also displayed in the infor-
mation screen in the multi-information display.
Reduce speed, and if the indicator goes out after
driving a while, resume driving as before. If the indi-
cator continues blinking for more than about 5 min-
utes, have the vehicle inspected at an authorized
Mitsubishi Motors dealer or a repair facility of your
choice as soon as possible.
Type 1 Type 2
BK0115300US.book 114 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 226 of 714
Features and controls
3-115
3

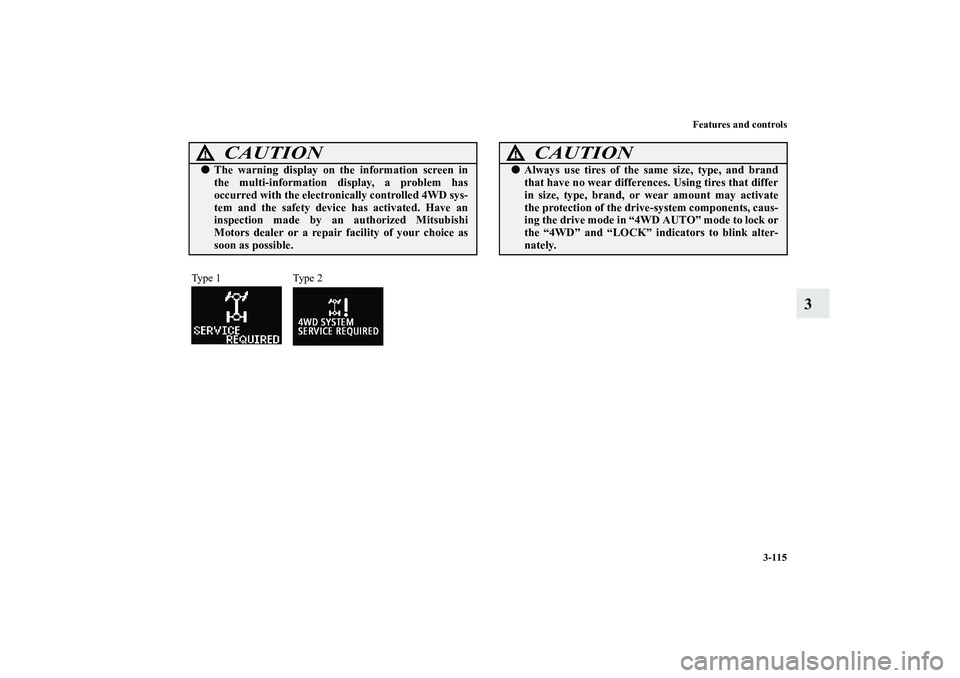

CAUTION
!
The warning display on the information screen in
the multi-information display, a problem has
occurred with the electronically controlled 4WD sys-
tem and the safety device has activated. Have an
inspection made by an authorized Mitsubishi
Motors dealer or a repair facility of your choice as
soon as possible.
Ty p e 1 Ty p e 2
CAUTION
!
Always use tires of the same size, type, and brand
that have no wear differences. Using tires that differ
in size, type, brand, or wear amount may activate
the protection of the drive-system components, caus-
ing the drive mode in “4WD AUTO” mode to lock or
the “4WD” and “LOCK” indicators to blink alter-
nately.
BK0115300US.book 115 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 227 of 714
3-116 Features and controls

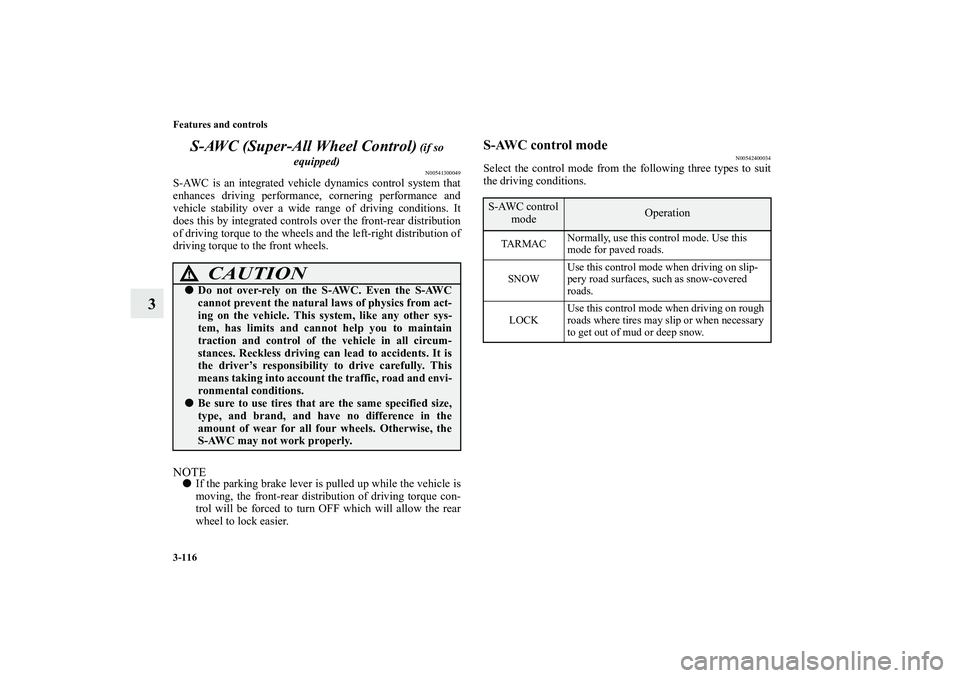

3S-AWC (Super-All Wheel Control)
(if so
equipped)N00541300049
S-AWC is an integrated vehicle dynamics control system that
enhances driving performance, cornering performance and
vehicle stability over a wide range of driving conditions. It
does this by integrated controls over the front-rear distribution
of driving torque to the wheels and the left-right distribution of
driving torque to the front wheels.NOTE
If the parking brake lever is pulled up while the vehicle is
moving, the front-rear distribution of driving torque con-
trol will be forced to turn OFF which will allow the rear
wheel to lock easier.
S-AWC control mode
N00542400034
Select the control mode from the following three types to suit
the driving conditions.
CAUTION
!
Do not over-rely on the S-AWC. Even the S-AWC
cannot prevent the natural laws of physics from act-
ing on the vehicle. This system, like any other sys-
tem, has limits and cannot help you to maintain
traction and control of the vehicle in all circum-
stances. Reckless driving can lead to accidents. It is
the driver’s responsibility to drive carefully. This
means taking into account the traffic, road and envi-
ronmental conditions.
Be sure to use tires that are the same specified size,
type, and brand, and have no difference in the
amount of wear for all four wheels. Otherwise, the
S-AWC may not work properly.
S-AWC control
mode
Operation
TA R M A CNormally, use this control mode. Use this
mode for paved roads.
SNOWUse this control mode when driving on slip-
pery road surfaces, such as snow-covered
roads.
LOCKUse this control mode when driving on rough
roads where tires may slip or when necessary
to get out of mud or deep snow.
BK0115300US.book 116 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 228 of 714
Features and controls
3-117
3

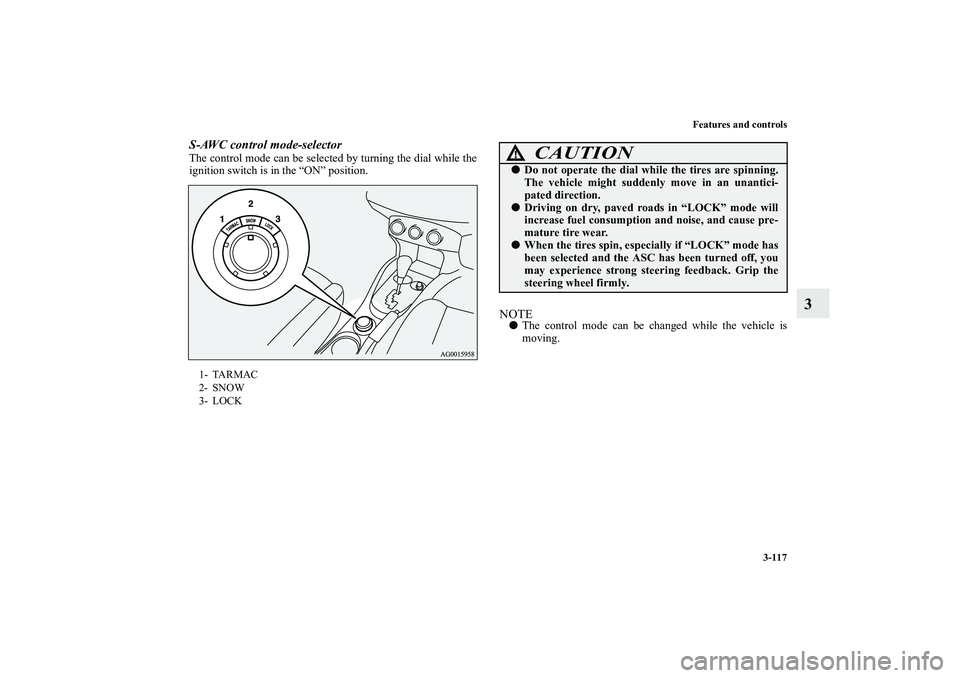

S-AWC control mode-selectorThe control mode can be selected by turning the dial while the
ignition switch is in the “ON” position.
NOTE
The control mode can be changed while the vehicle is
moving.
1- TARMAC
2- SNOW
3- LOCK
CAUTION
!
Do not operate the dial while the tires are spinning.
The vehicle might suddenly move in an unantici-
pated direction.
Driving on dry, paved roads in “LOCK” mode will
increase fuel consumption and noise, and cause pre-
mature tire wear.
When the tires spin, especially if “LOCK” mode has
been selected and the ASC has been turned off, you
may experience strong steering feedback. Grip the
steering wheel firmly.
BK0115300US.book 117 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 229 of 714
3-118 Features and controls
3
S-AWC control mode displayThe currently selected control mode is displayed on the multi-
information display.
In addition, when the control mode is changed, the selected
mode appears on the interrupt display screen of the information
screen in the multi-information display.
The control mode display will appear on the information
screen for a few seconds, and then the original screen will
return.Example: “TARMAC” mode is selected.
CAUTION
!
When the S-AWC control mode display blinks and
“SLOW DOWN” is displayed on the information
screen in the multi-information display, the S-AWC
has been temporarily suspended to prevent over-
heating.
At that time, the drive system of your vehicle is auto-
matically switched to front wheel drive from all
wheel drive. Reduce your speed to cool down the S-
AW C .
After driving for a while, if the S-AWC control
modes display stops blinking and the “SLOW
DOWN” on the information screen in the multi-
information display disappears, the drive system of
your vehicle will return to the all wheel drive.
If the S-AWC control mode display continues blink-
ing for more than about 5 minutes, have the vehicle
inspected at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
BK0115300US.book 118 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 230 of 714
Features and controls
3-119
3

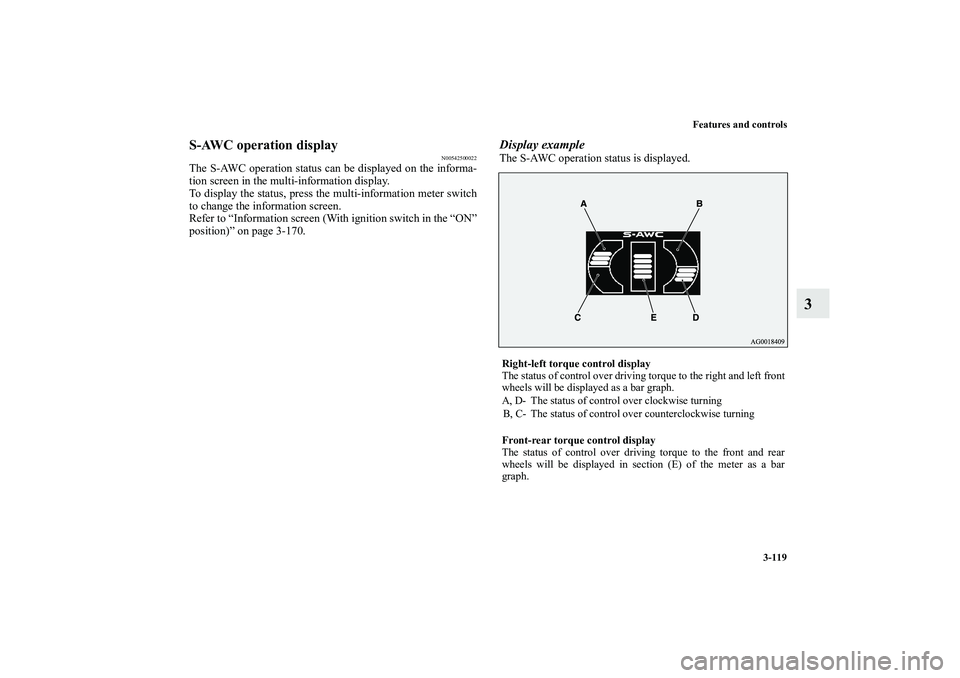

S-AWC operation display
N00542500022
The S-AWC operation status can be displayed on the informa-
tion screen in the multi-information display.
To display the status, press the multi-information meter switch
to change the information screen.
Refer to “Information screen (With ignition switch in the “ON”
position)” on page 3-170.
Display exampleThe S-AWC operation status is displayed.Right-left torque control display
The status of control over driving torque to the right and left front
wheels will be displayed as a bar graph.
A, D- The status of control over clockwise turning
B, C- The status of control over counterclockwise turning
Front-rear torque control display
The status of control over driving torque to the front and rear
wheels will be displayed in section (E) of the meter as a bar
graph.
BK0115300US.book 119 ページ ２００９年７月１６日 木曜日 午前９時１３分
