3-140 Features and controls

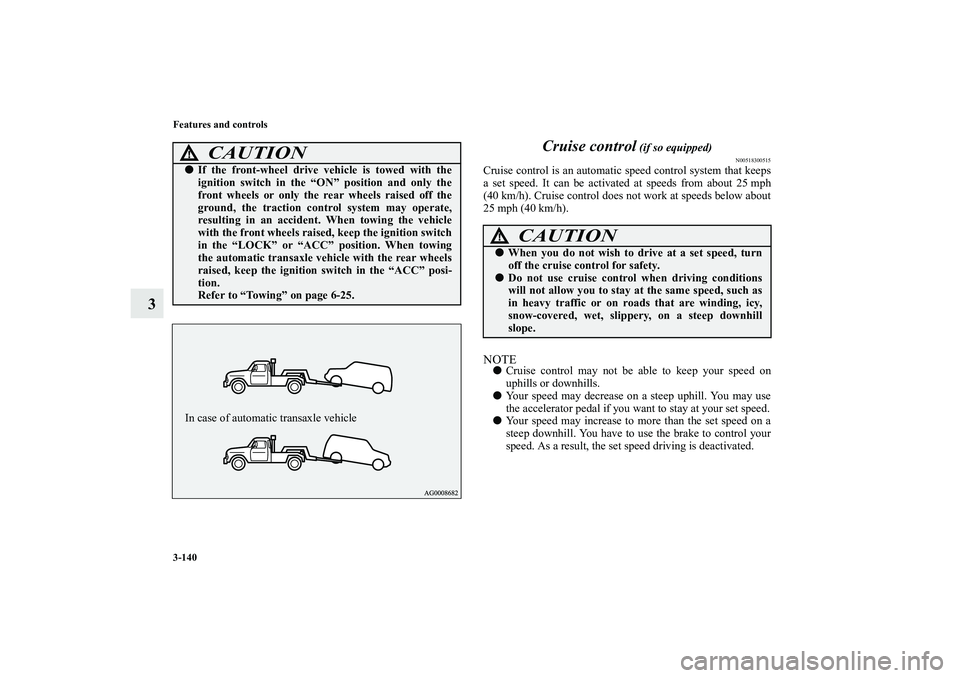

3Cruise control
(if so equipped)
N00518300515
Cruise control is an automatic speed control system that keeps
a set speed. It can be activated at speeds from about 25 mph
(40 km/h). Cruise control does not work at speeds below about
25 mph (40 km/h).NOTE

Cruise control may not be able to keep your speed on
uphills or downhills.


Your speed may decrease on a steep uphill. You may use
the accelerator pedal if you want to stay at your set speed.


Your speed may increase to more than the set speed on a
steep downhill. You have to use the brake to control your
speed. As a result, the set speed driving is deactivated.
CAUTION
!

If the front-wheel drive vehicle is towed with the
ignition switch in the “ON” position and only the
front wheels or only the rear wheels raised off the
ground, the traction control system may operate,
resulting in an accident. When towing the vehicle
with the front wheels raised, keep the ignition switch
in the “LOCK” or “ACC” position. When towing
the automatic transaxle vehicle with the rear wheels
raised, keep the ignition switch in the “ACC” posi-
tion.
Refer to “Towing” on page 6-25.
In case of automatic transaxle vehicle
CAUTION
!

When you do not wish to drive at a set speed, turn
off the cruise control for safety.


Do not use cruise control when driving conditions
will not allow you to stay at the same speed, such as
in heavy traffic or on roads that are winding, icy,
snow-covered, wet, slippery, on a steep downhill
slope.
BK0115300US.book 140 ページ ２００９年１１月２７日　金曜日　午後１時５２分

Features and controls
3-141
3

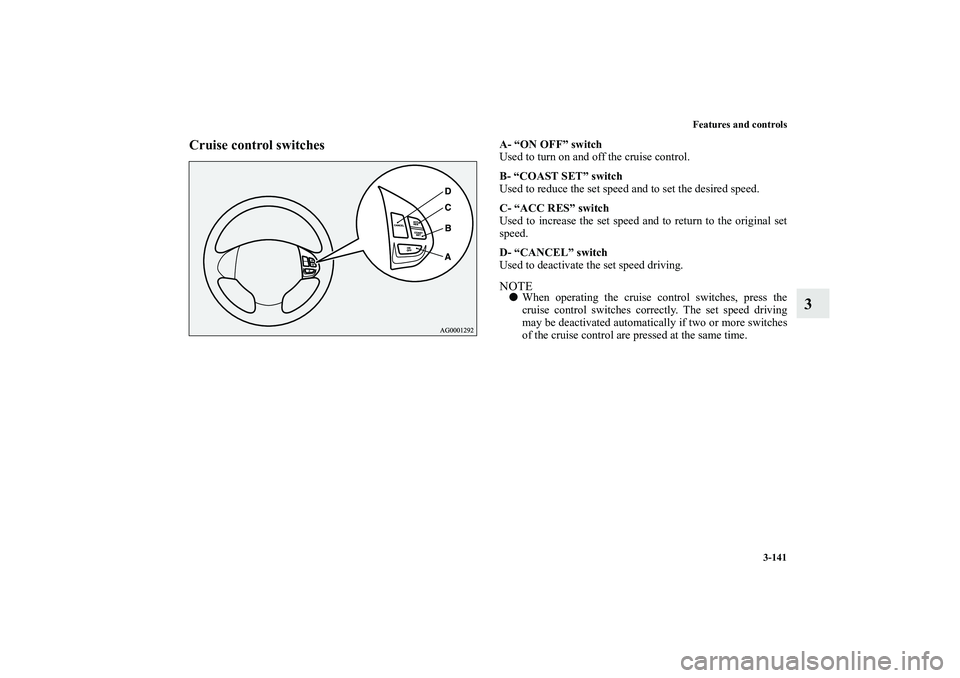

Cruise control switches
A- “ON OFF” switch
Used to turn on and off the cruise control.
B- “COAST SET” switch
Used to reduce the set speed and to set the desired speed.
C- “ACC RES” switch
Used to increase the set speed and to return to the original set
speed.
D- “CANCEL” switch
Used to deactivate the set speed driving.NOTE

When operating the cruise control switches, press the
cruise control switches correctly. The set speed driving
may be deactivated automatically if two or more switches
of the cruise control are pressed at the same time.
BK0115300US.book 141 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-142 Features and controls
3

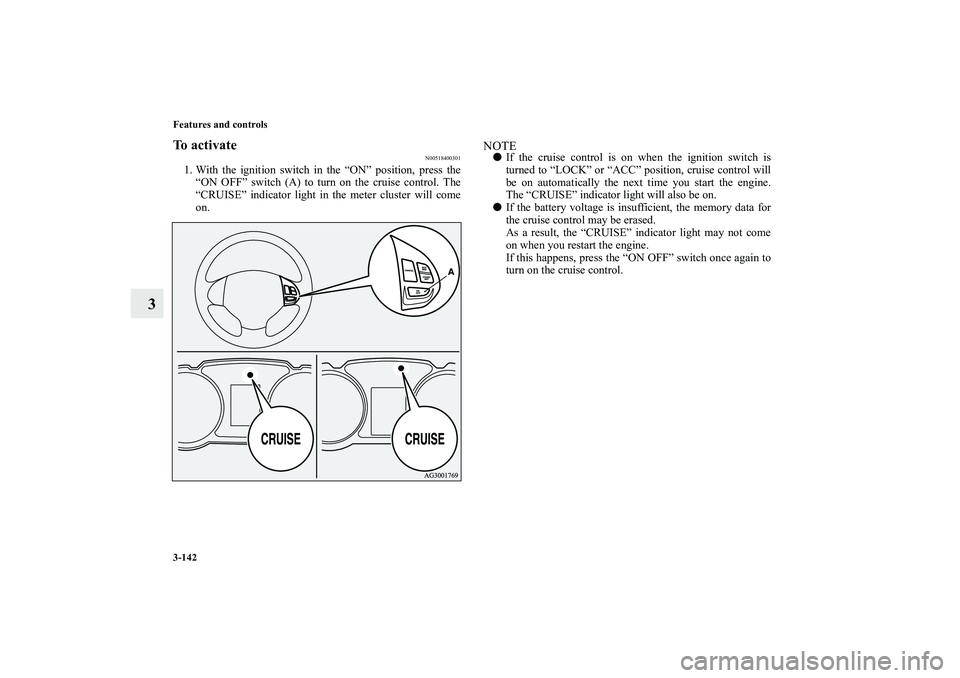

To activate
N00518400301
1. With the ignition switch in the “ON” position, press the
“ON OFF” switch (A) to turn on the cruise control. The
“CRUISE” indicator light in the meter cluster will come
on.
NOTE

If the cruise control is on when the ignition switch is
turned to “LOCK” or “ACC” position, cruise control will
be on automatically the next time you start the engine.
The “CRUISE” indicator light will also be on.


If the battery voltage is insufficient, the memory data for
the cruise control may be erased.
As a result, the “CRUISE” indicator light may not come
on when you restart the engine.
If this happens, press the “ON OFF” switch once again to
turn on the cruise control.
BK0115300US.book 142 ページ ２００９年７月１６日　木曜日　午前９時１３分

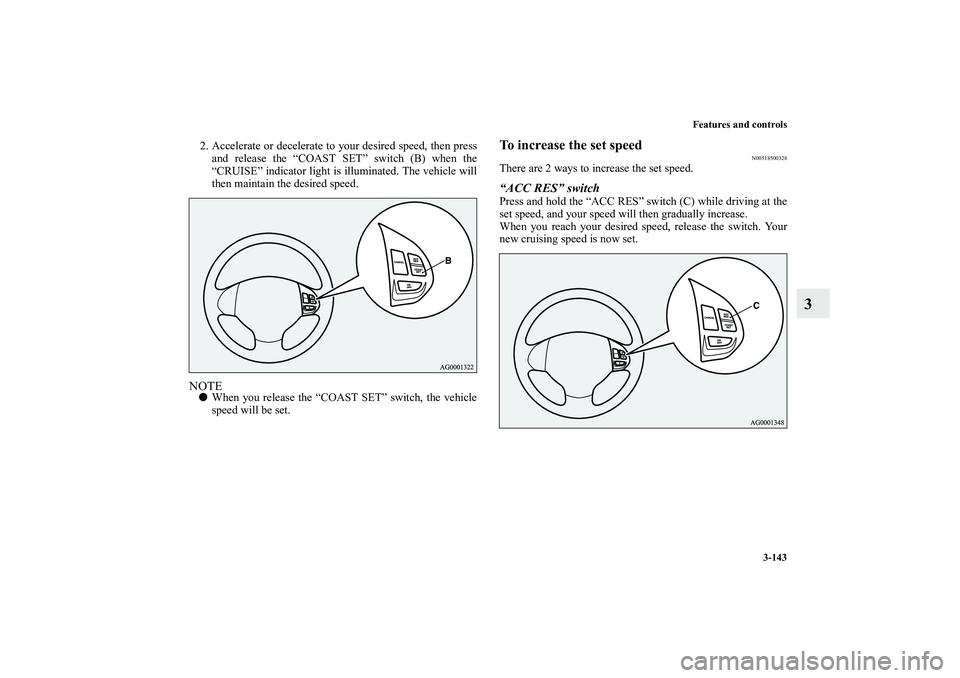

Features and controls
3-143
3
2. Accelerate or decelerate to your desired speed, then press
and release the “COAST SET” switch (B) when the
“CRUISE” indicator light is illuminated. The vehicle will
then maintain the desired speed.NOTE

When you release the “COAST SET” switch, the vehicle
speed will be set.
To increase the set speed
N00518500328
There are 2 ways to increase the set speed.“ACC RES” switchPress and hold the “ACC RES” switch (C) while driving at the
set speed, and your speed will then gradually increase.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0115300US.book 143 ページ ２００９年７月１６日　木曜日　午前９時１３分

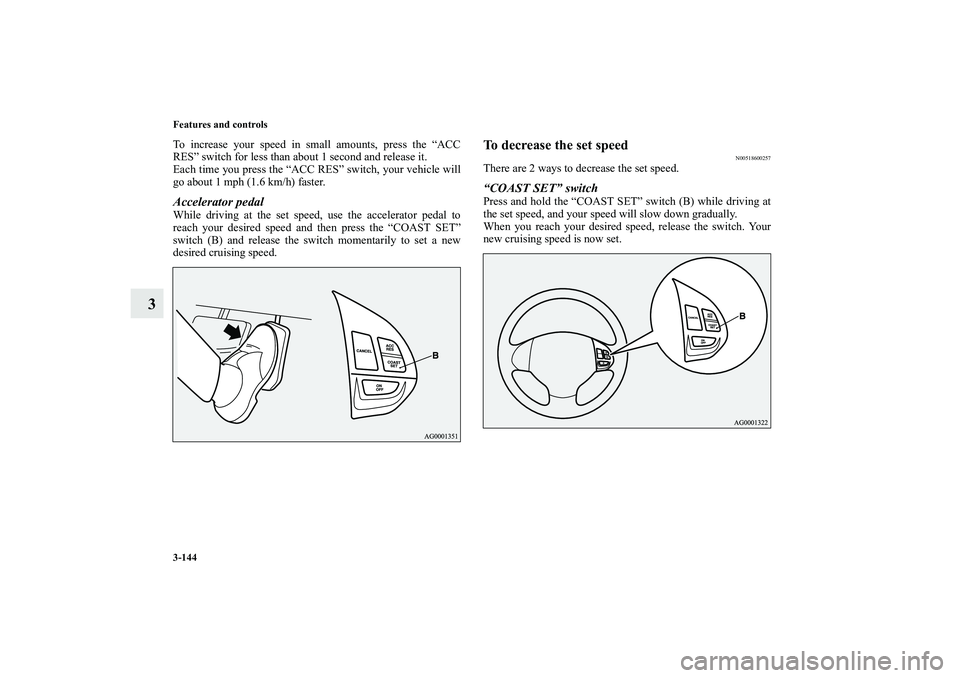

3-144 Features and controls
3
To increase your speed in small amounts, press the “ACC
RES” switch for less than about 1 second and release it.
Each time you press the “ACC RES” switch, your vehicle will
go about 1 mph (1.6 km/h) faster.Accelerator pedalWhile driving at the set speed, use the accelerator pedal to
reach your desired speed and then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To decrease the set speed
N00518600257
There are 2 ways to decrease the set speed.“COAST SET” switchPress and hold the “COAST SET” switch (B) while driving at
the set speed, and your speed will slow down gradually.
When you reach your desired speed, release the switch. Your
new cruising speed is now set.
BK0115300US.book 144 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-145
3

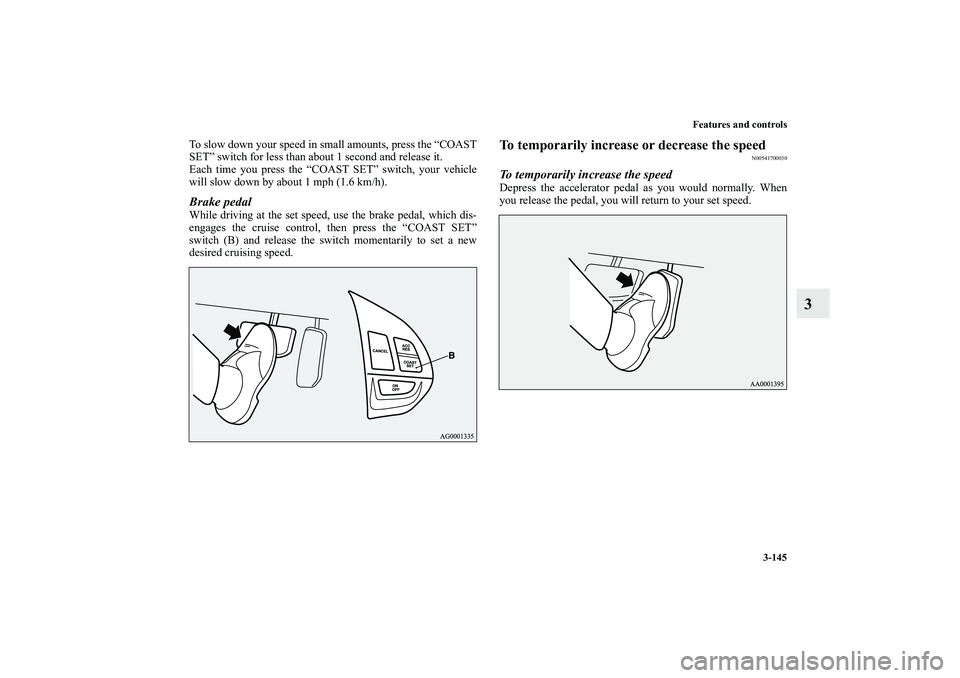

To slow down your speed in small amounts, press the “COAST
SET” switch for less than about 1 second and release it.
Each time you press the “COAST SET” switch, your vehicle
will slow down by about 1 mph (1.6 km/h).Brake pedalWhile driving at the set speed, use the brake pedal, which dis-
engages the cruise control, then press the “COAST SET”
switch (B) and release the switch momentarily to set a new
desired cruising speed.
To temporarily increase or decrease the speed
N00541700030
To temporarily increase the speedDepress the accelerator pedal as you would normally. When
you release the pedal, you will return to your set speed.
BK0115300US.book 145 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-146 Features and controls
3

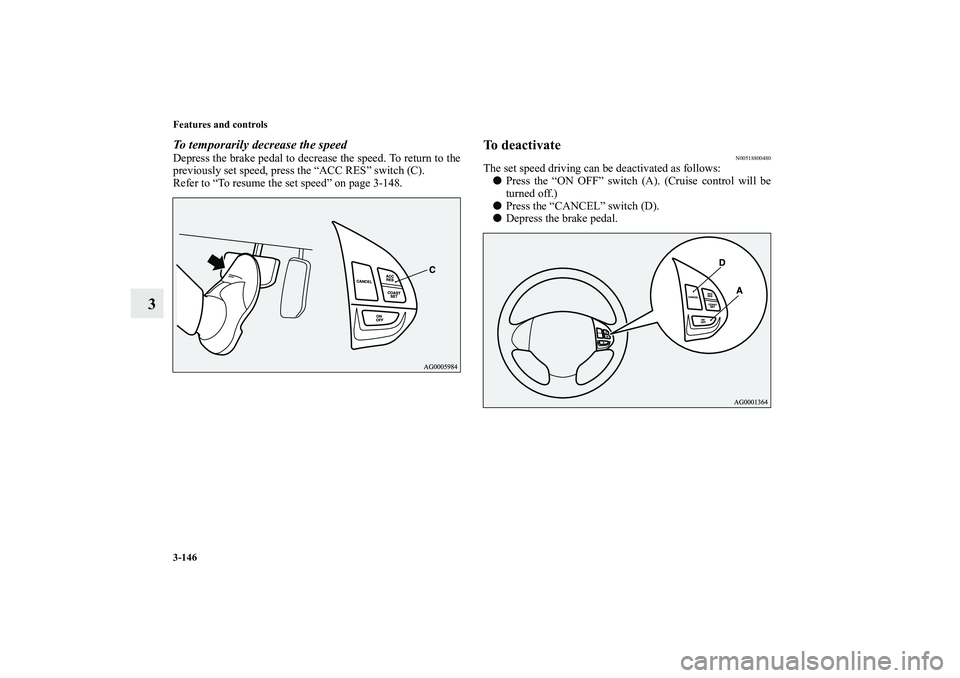

To temporarily decrease the speedDepress the brake pedal to decrease the speed. To return to the
previously set speed, press the “ACC RES” switch (C).
Refer to “To resume the set speed” on page 3-148.
To deactivate
N00518800480
The set speed driving can be deactivated as follows:

Press the “ON OFF” switch (A). (Cruise control will be
turned off.)


Press the “CANCEL” switch (D).


Depress the brake pedal.
BK0115300US.book 146 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-147
3

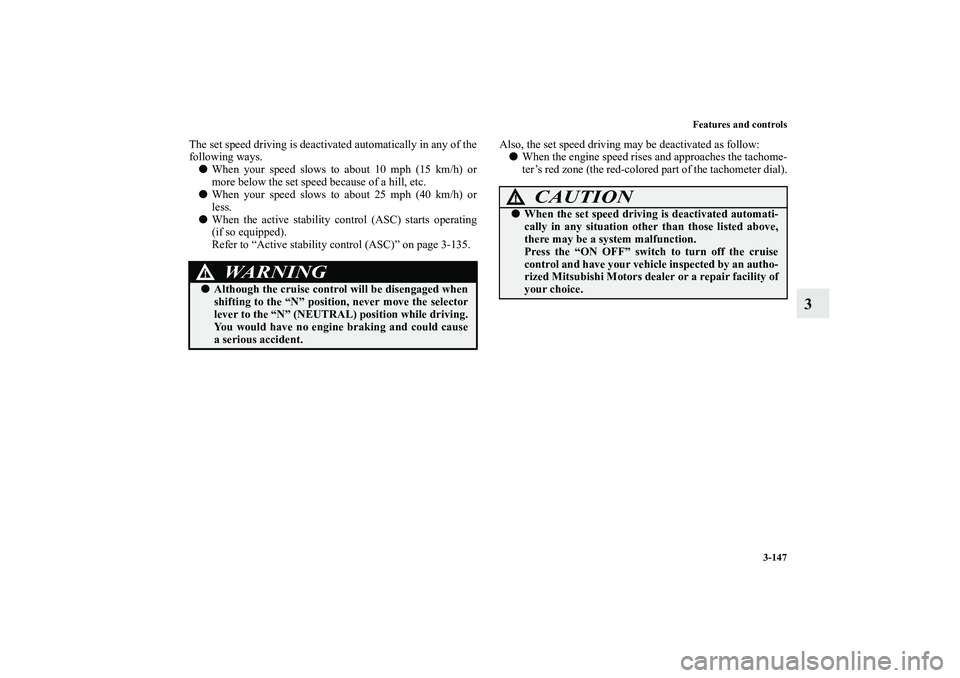

The set speed driving is deactivated automatically in any of the
following ways.

When your speed slows to about 10 mph (15 km/h) or
more below the set speed because of a hill, etc.


When your speed slows to about 25 mph (40 km/h) or
less.


When the active stability control (ASC) starts operating
(if so equipped).
Refer to “Active stability control (ASC)” on page 3-135.Also, the set speed driving may be deactivated as follow:


When the engine speed rises and approaches the tachome-
ter’s red zone (the red-colored part of the tachometer dial).
WA R N I N G
!

Although the cruise control will be disengaged when
shifting to the “N” position, never move the selector
lever to the “N” (NEUTRAL) position while driving.
You would have no engine braking and could cause
a serious accident.
CAUTION
!

When the set speed driving is deactivated automati-
cally in any situation other than those listed above,
there may be a system malfunction.
Press the “ON OFF” switch to turn off the cruise
control and have your vehicle inspected by an autho-
rized Mitsubishi Motors dealer or a repair facility of
your choice.
BK0115300US.book 147 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-148 Features and controls
3

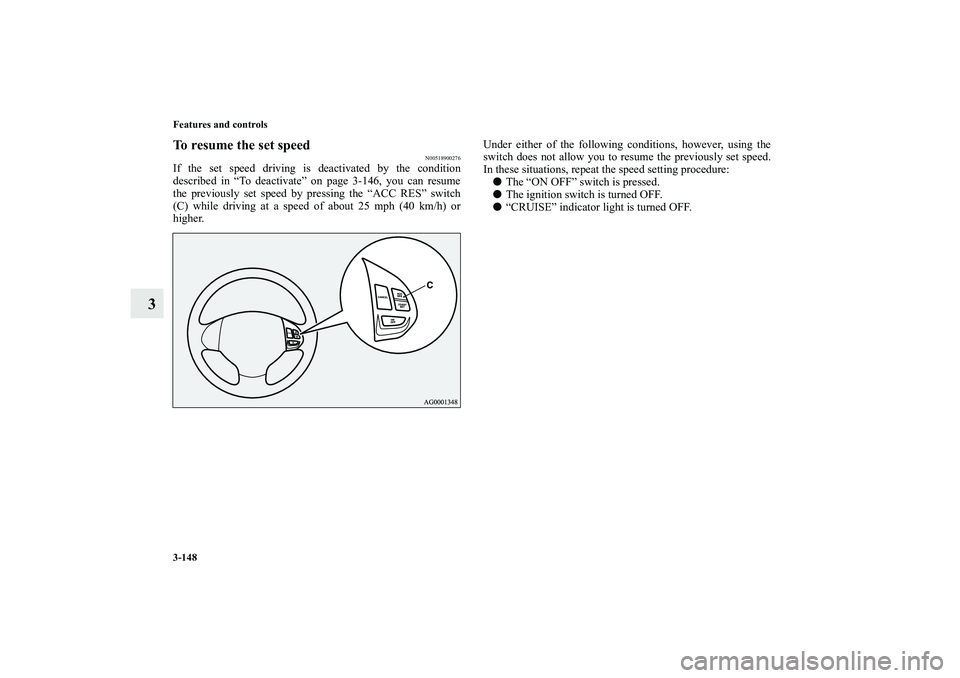

To resume the set speed
N00518900276
If the set speed driving is deactivated by the condition
described in “To deactivate” on page 3-146, you can resume
the previously set speed by pressing the “ACC RES” switch
(C) while driving at a speed of about 25 mph (40 km/h) or
higher.Under either of the following conditions, however, using the
switch does not allow you to resume the previously set speed.
In these situations, repeat the speed setting procedure:


The “ON OFF” switch is pressed.


The ignition switch is turned OFF.


“CRUISE” indicator light is turned OFF.
BK0115300US.book 148 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-149

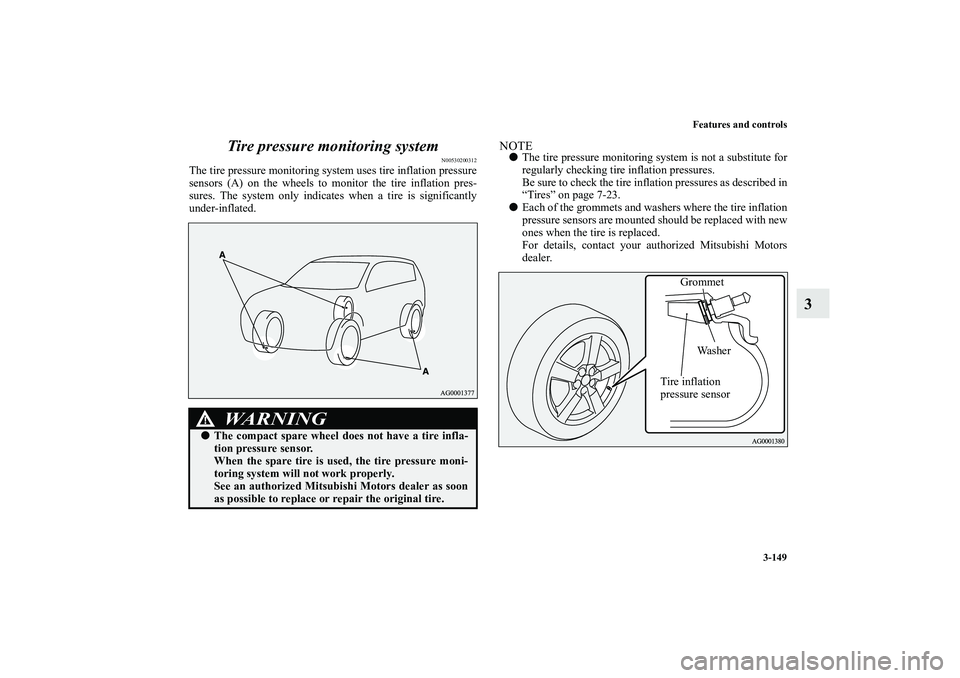

3 Tire pressure monitoring system
N00530200312
The tire pressure monitoring system uses tire inflation pressure
sensors (A) on the wheels to monitor the tire inflation pres-
sures. The system only indicates when a tire is significantly
under-inflated.
NOTE

The tire pressure monitoring system is not a substitute for
regularly checking tire inflation pressures.
Be sure to check the tire inflation pressures as described in
“Tires” on page 7-23.


Each of the grommets and washers where the tire inflation
pressure sensors are mounted should be replaced with new
ones when the tire is replaced.
For details, contact your authorized Mitsubishi Motors
dealer.
WA R N I N G
!

The compact spare wheel does not have a tire infla-
tion pressure sensor.
When the spare tire is used, the tire pressure moni-
toring system will not work properly.
See an authorized Mitsubishi Motors dealer as soon
as possible to replace or repair the original tire.
Grommet
Tire inflation
pressure sensorWa s h e r
