3-150 Features and controls
3

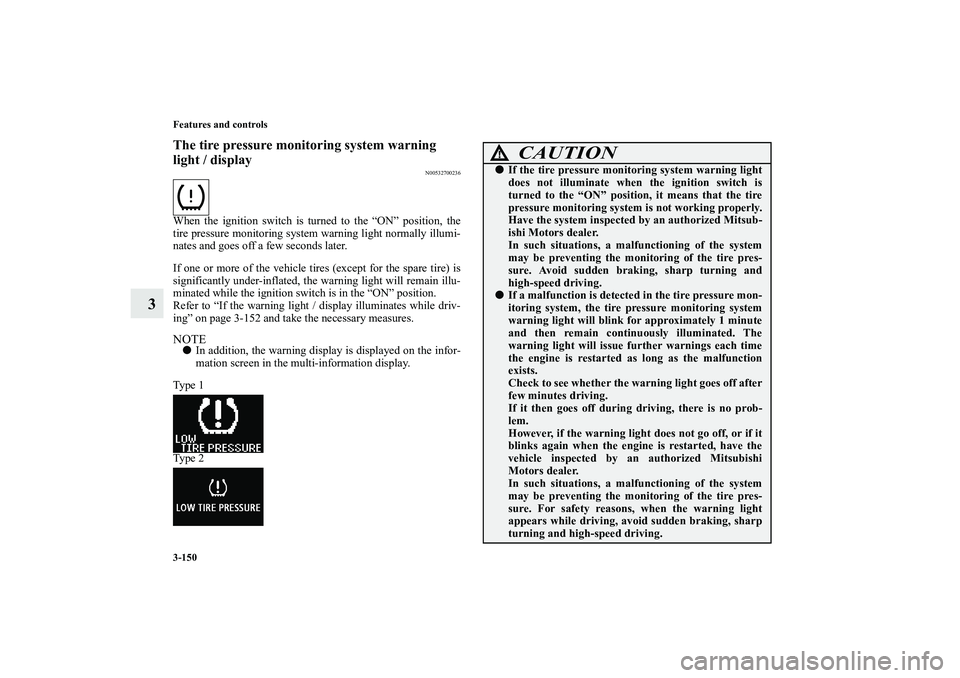

The tire pressure monitoring system warning
light / display
N00532700236
When the ignition switch is turned to the “ON” position, the
tire pressure monitoring system warning light normally illumi-
nates and goes off a few seconds later.
If one or more of the vehicle tires (except for the spare tire) is
significantly under-inflated, the warning light will remain illu-
minated while the ignition switch is in the “ON” position.
Refer to “If the warning light / display illuminates while driv-
ing” on page 3-152 and take the necessary measures.NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2
CAUTION
!

If the tire pressure monitoring system warning light
does not illuminate when the ignition switch is
turned to the “ON” position, it means that the tire
pressure monitoring system is not working properly.
Have the system inspected by an authorized Mitsub-
ishi Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. Avoid sudden braking, sharp turning and
high-speed driving.


If a malfunction is detected in the tire pressure mon-
itoring system, the tire pressure monitoring system
warning light will blink for approximately 1 minute
and then remain continuously illuminated. The
warning light will issue further warnings each time
the engine is restarted as long as the malfunction
exists.
Check to see whether the warning light goes off after
few minutes driving.
If it then goes off during driving, there is no prob-
lem.
However, if the warning light does not go off, or if it
blinks again when the engine is restarted, have the
vehicle inspected by an authorized Mitsubishi
Motors dealer.
In such situations, a malfunctioning of the system
may be preventing the monitoring of the tire pres-
sure. For safety reasons, when the warning light
appears while driving, avoid sudden braking, sharp
turning and high-speed driving.
BK0115300US.book 150 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-151
3

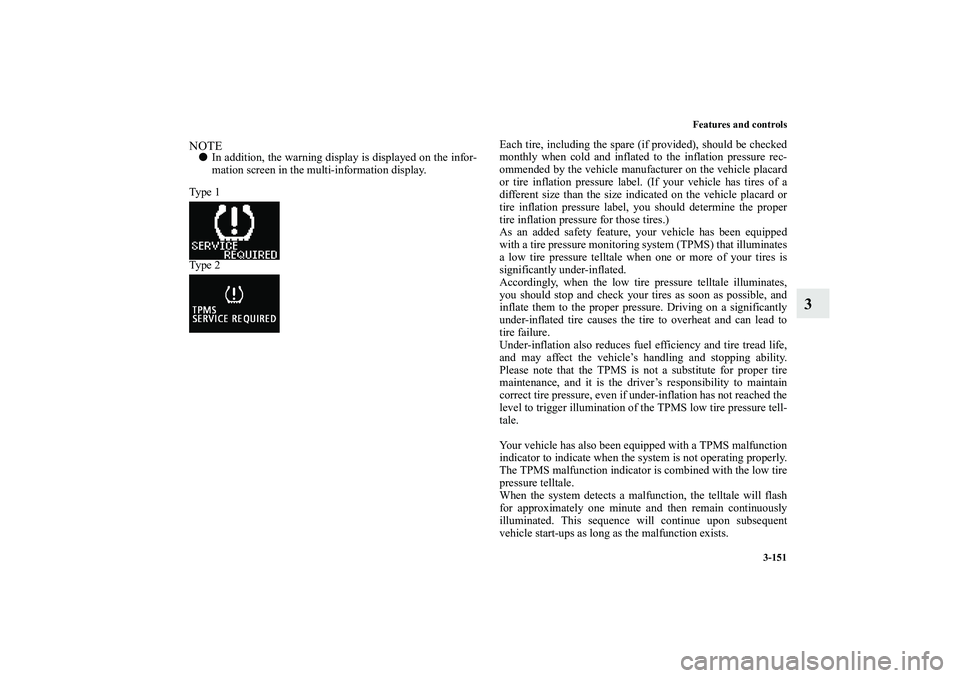

NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.
Ty p e 1
Ty p e 2Each tire, including the spare (if provided), should be checked
monthly when cold and inflated to the inflation pressure rec-
ommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label. (If your vehicle has tires of a
different size than the size indicated on the vehicle placard or
tire inflation pressure label, you should determine the proper
tire inflation pressure for those tires.)
As an added safety feature, your vehicle has been equipped
with a tire pressure monitoring system (TPMS) that illuminates
a low tire pressure telltale when one or more of your tires is
significantly under-inflated.
Accordingly, when the low tire pressure telltale illuminates,
you should stop and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a significantly
under-inflated tire causes the tire to overheat and can lead to
tire failure.
Under-inflation also reduces fuel efficiency and tire tread life,
and may affect the vehicle’s handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver’s responsibility to maintain
correct tire pressure, even if under-inflation has not reached the
level to trigger illumination of the TPMS low tire pressure tell-
tale.
Your vehicle has also been equipped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale.
When the system detects a malfunction, the telltale will flash
for approximately one minute and then remain continuously
illuminated. This sequence will continue upon subsequent
vehicle start-ups as long as the malfunction exists.
BK0115300US.book 151 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-152 Features and controls
3

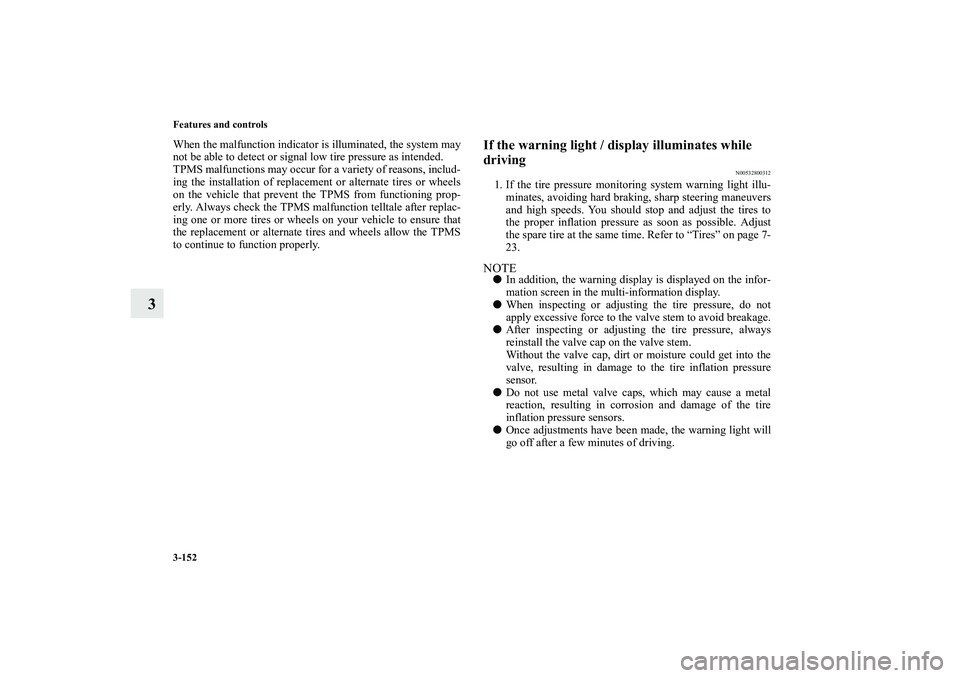

When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, includ-
ing the installation of replacement or alternate tires or wheels
on the vehicle that prevent the TPMS from functioning prop-
erly. Always check the TPMS malfunction telltale after replac-
ing one or more tires or wheels on your vehicle to ensure that
the replacement or alternate tires and wheels allow the TPMS
to continue to function properly.
If the warning light / display illuminates while
driving
N00532800312
1. If the tire pressure monitoring system warning light illu-
minates, avoiding hard braking, sharp steering maneuvers
and high speeds. You should stop and adjust the tires to
the proper inflation pressure as soon as possible. Adjust
the spare tire at the same time. Refer to “Tires” on page 7-
23.NOTE

In addition, the warning display is displayed on the infor-
mation screen in the multi-information display.


When inspecting or adjusting the tire pressure, do not
apply excessive force to the valve stem to avoid breakage.


After inspecting or adjusting the tire pressure, always
reinstall the valve cap on the valve stem.
Without the valve cap, dirt or moisture could get into the
valve, resulting in damage to the tire inflation pressure
sensor.


Do not use metal valve caps, which may cause a metal
reaction, resulting in corrosion and damage of the tire
inflation pressure sensors.


Once adjustments have been made, the warning light will
go off after a few minutes of driving.
BK0115300US.book 152 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-153
3

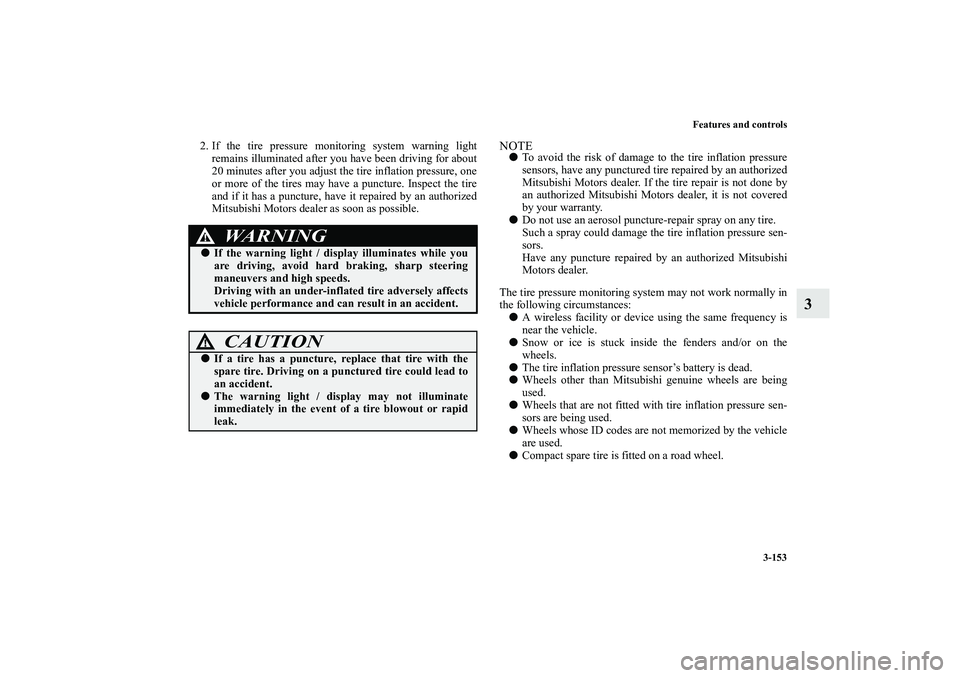

2. If the tire pressure monitoring system warning light
remains illuminated after you have been driving for about
20 minutes after you adjust the tire inflation pressure, one
or more of the tires may have a puncture. Inspect the tire
and if it has a puncture, have it repaired by an authorized
Mitsubishi Motors dealer as soon as possible.
NOTE

To avoid the risk of damage to the tire inflation pressure
sensors, have any punctured tire repaired by an authorized
Mitsubishi Motors dealer. If the tire repair is not done by
an authorized Mitsubishi Motors dealer, it is not covered
by your warranty.


Do not use an aerosol puncture-repair spray on any tire.
Such a spray could damage the tire inflation pressure sen-
sors.
Have any puncture repaired by an authorized Mitsubishi
Motors dealer.
The tire pressure monitoring system may not work normally in
the following circumstances:


A wireless facility or device using the same frequency is
near the vehicle.


Snow or ice is stuck inside the fenders and/or on the
wheels.


The tire inflation pressure sensor’s battery is dead.


Wheels other than Mitsubishi genuine wheels are being
used.


Wheels that are not fitted with tire inflation pressure sen-
sors are being used.


Wheels whose ID codes are not memorized by the vehicle
are used.


Compact spare tire is fitted on a road wheel.
WA R N I N G
!

If the warning light / display illuminates while you
are driving, avoid hard braking, sharp steering
maneuvers and high speeds.
Driving with an under-inflated tire adversely affects
vehicle performance and can result in an accident.CAUTION
!

If a tire has a puncture, replace that tire with the
spare tire. Driving on a punctured tire could lead to
an accident.


The warning light / display may not illuminate
immediately in the event of a tire blowout or rapid
leak.
BK0115300US.book 153 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-154 Features and controls
3
NOTE

Tire inflation pressures vary with the ambient tempera-
ture. If the vehicle is subjected to large variations in ambi-
ent temperature, the tire inflation pressures may be under-
inflated (causing the warning light / display come on)
when the ambient temperature is relatively low. If the
warning light / display comes on, adjust the tire inflation
pressure.

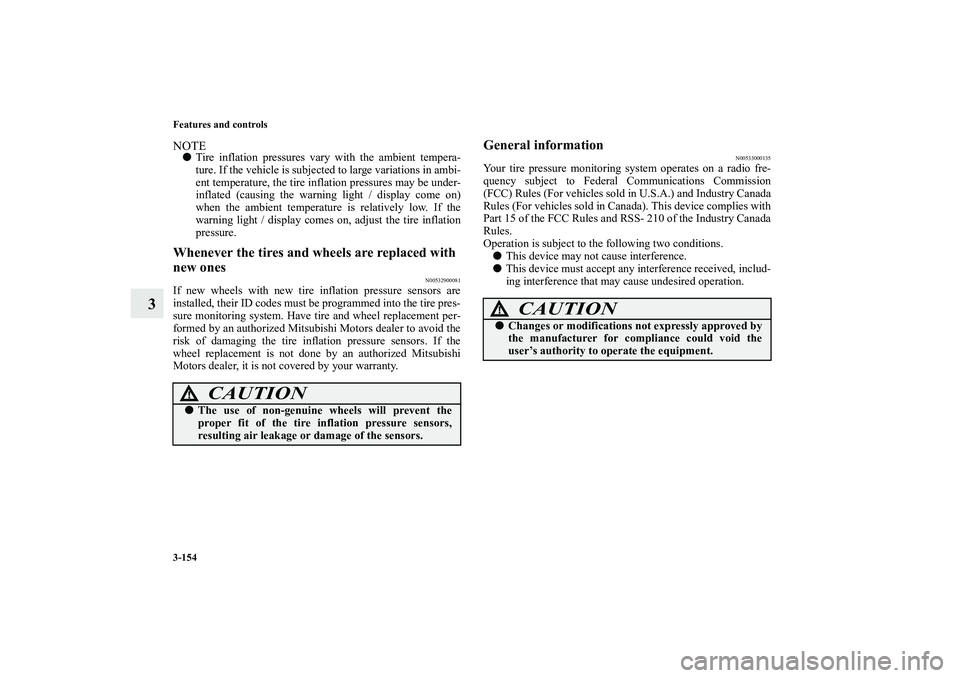

Whenever the tires and wheels are replaced with
new ones
N00532900081
If new wheels with new tire inflation pressure sensors are
installed, their ID codes must be programmed into the tire pres-
sure monitoring system. Have tire and wheel replacement per-
formed by an authorized Mitsubishi Motors dealer to avoid the
risk of damaging the tire inflation pressure sensors. If the
wheel replacement is not done by an authorized Mitsubishi
Motors dealer, it is not covered by your warranty.
General information
N00533000135
Your tire pressure monitoring system operates on a radio fre-
quency subject to Federal Communications Commission
(FCC) Rules (For vehicles sold in U.S.A.) and Industry Canada
Rules (For vehicles sold in Canada). This device complies with
Part 15 of the FCC Rules and RSS- 210 of the Industry Canada
Rules.
Operation is subject to the following two conditions.

This device may not cause interference.


This device must accept any interference received, includ-
ing interference that may cause undesired operation.
CAUTION
!

The use of non-genuine wheels will prevent the
proper fit of the tire inflation pressure sensors,
resulting air leakage or damage of the sensors.
CAUTION
!

Changes or modifications not expressly approved by
the manufacturer for compliance could void the
user’s authority to operate the equipment.
BK0115300US.book 154 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-155

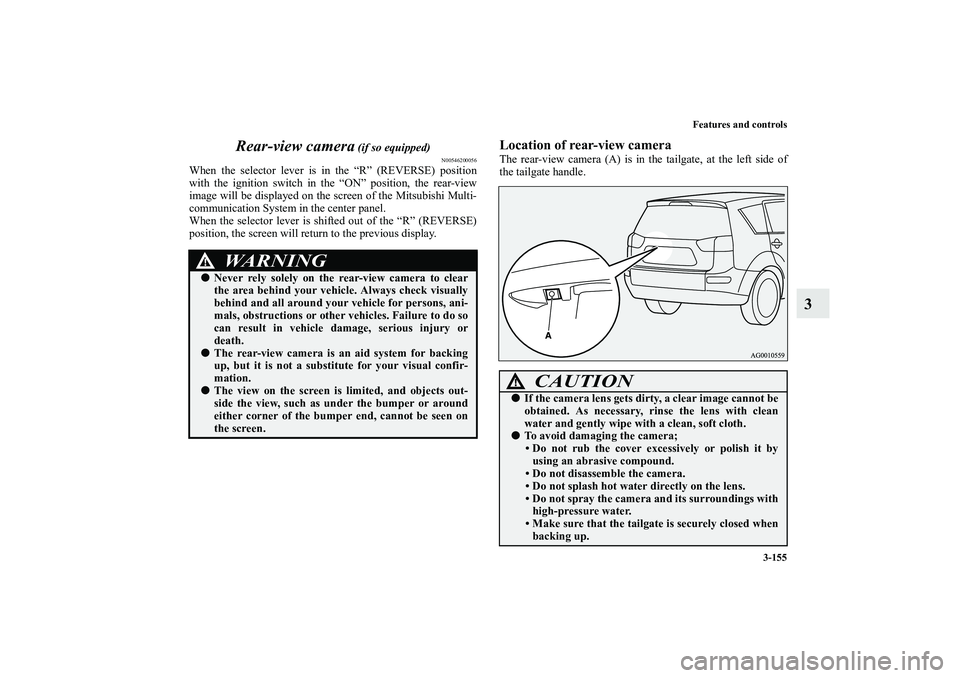

3 Rear-view camera
(if so equipped)
N00546200056
When the selector lever is in the “R” (REVERSE) position
with the ignition switch in the “ON” position, the rear-view
image will be displayed on the screen of the Mitsubishi Multi-
communication System in the center panel.
When the selector lever is shifted out of the “R” (REVERSE)
position, the screen will return to the previous display.
Location of rear-view cameraThe rear-view camera (A) is in the tailgate, at the left side of
the tailgate handle.
WA R N I N G
!

Never rely solely on the rear-view camera to clear
the area behind your vehicle. Always check visually
behind and all around your vehicle for persons, ani-
mals, obstructions or other vehicles. Failure to do so
can result in vehicle damage, serious injury or
death.


The rear-view camera is an aid system for backing
up, but it is not a substitute for your visual confir-
mation.


The view on the screen is limited, and objects out-
side the view, such as under the bumper or around
either corner of the bumper end, cannot be seen on
the screen.
CAUTION
!

If the camera lens gets dirty, a clear image cannot be
obtained. As necessary, rinse the lens with clean
water and gently wipe with a clean, soft cloth.


To avoid damaging the camera; Do not rub the cover excessively or polish it by
using an abrasive compound.
 Do not disassemble the camera.
 Do not splash hot water directly on the lens.
 Do not spray the camera and its surroundings with
high-pressure water.
 Make sure that the tailgate is securely closed when
backing up.
BK0115300US.book 155 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-156 Features and controls
3

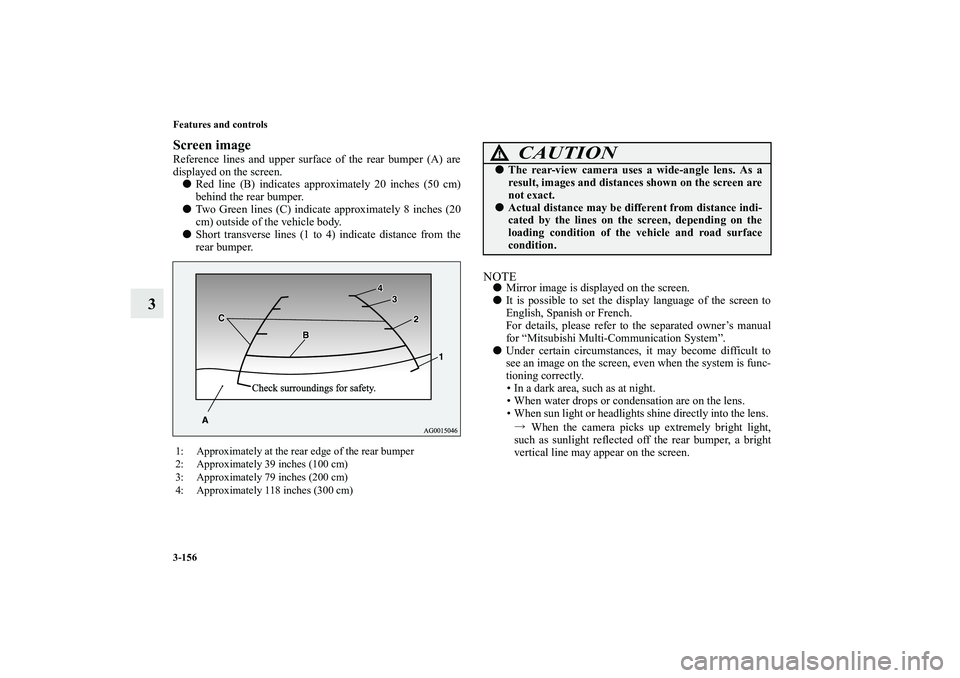

Screen imageReference lines and upper surface of the rear bumper (A) are
displayed on the screen.

Red line (B) indicates approximately 20 inches (50 cm)
behind the rear bumper.


Two Green lines (C) indicate approximately 8 inches (20
cm) outside of the vehicle body.


Short transverse lines (1 to 4) indicate distance from the
rear bumper.
NOTE

Mirror image is displayed on the screen.


It is possible to set the display language of the screen to
English, Spanish or French.
For details, please refer to the separated owner’s manual
for “Mitsubishi Multi-Communication System”.


Under certain circumstances, it may become difficult to
see an image on the screen, even when the system is func-
tioning correctly.
 In a dark area, such as at night.
 When water drops or condensation are on the lens.
 When sun light or headlights shine directly into the lens.
→When the camera picks up extremely bright light,
such as sunlight reflected off the rear bumper, a bright
vertical line may appear on the screen.
1: Approximately at the rear edge of the rear bumper
2: Approximately 39 inches (100 cm)
3: Approximately 79 inches (200 cm)
4: Approximately 118 inches (300 cm)
CAUTION
!

The rear-view camera uses a wide-angle lens. As a
result, images and distances shown on the screen are
not exact.


Actual distance may be different from distance indi-
cated by the lines on the screen, depending on the
loading condition of the vehicle and road surface
condition.
BK0115300US.book 156 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-157

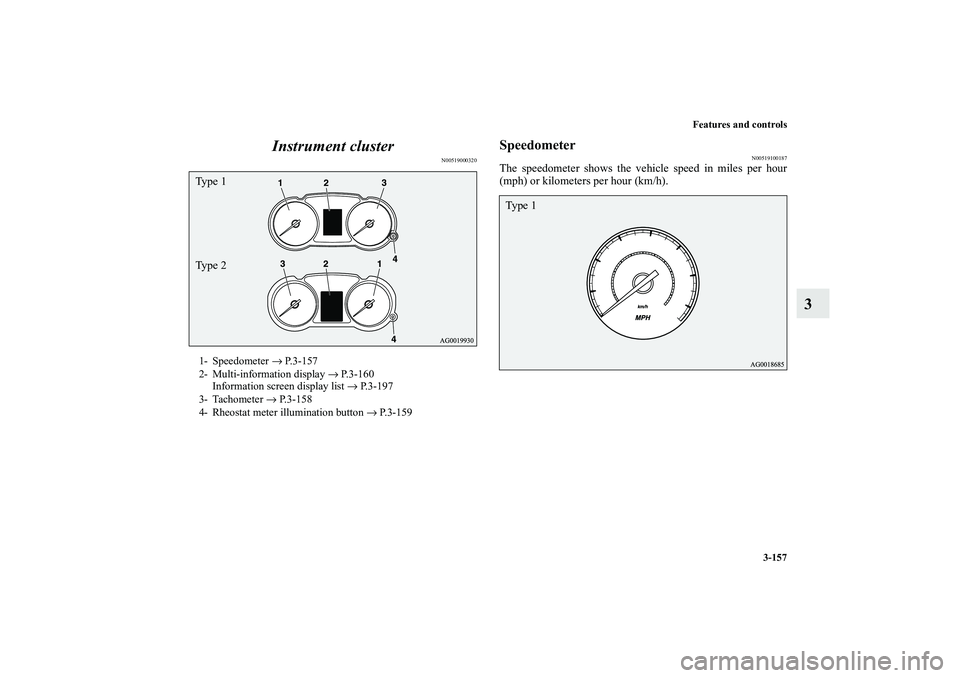

3 Instrument cluster
N00519000320
Speedometer
N00519100187
The speedometer shows the vehicle speed in miles per hour
(mph) or kilometers per hour (km/h).
1- Speedometer → P.3-157
2- Multi-information display → P.3-160
Information screen display list → P.3-197
3- Tachometer → P.3-158
4- Rheostat meter illumination button → P.3-159Ty p e 1
Ty p e 2
Ty p e 1
BK0115300US.book 157 ページ ２００９年７月１６日　木曜日　午前９時１３分

3-158 Features and controls
3

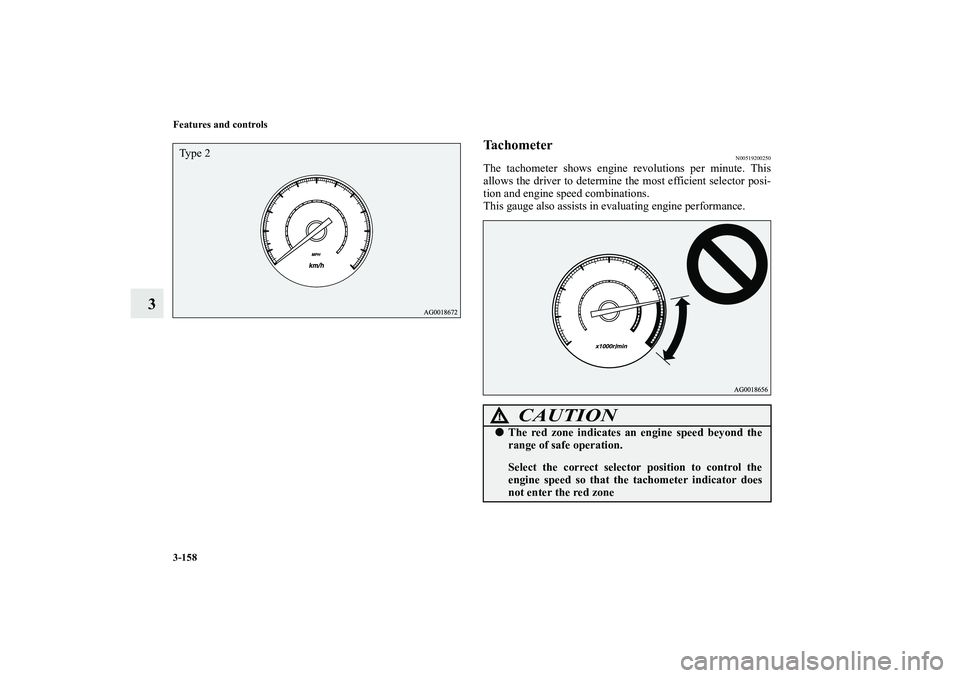

Tachometer
N00519200250
The tachometer shows engine revolutions per minute. This
allows the driver to determine the most efficient selector posi-
tion and engine speed combinations.
This gauge also assists in evaluating engine performance.
Ty p e 2
CAUTION
!

The red zone indicates an engine speed beyond the
range of safe operation.
Select the correct selector position to control the
engine speed so that the tachometer indicator does
not enter the red zone
BK0115300US.book 158 ページ ２００９年７月１６日　木曜日　午前９時１３分

Features and controls
3-159
3
Rheostat meter illumination button
N00554900124
Each time you press this button, there is a sound and the bright-
ness of the instruments changes.NOTE

You can adjust to 8 different levels respectively for when
the tail lights are illuminated and when they are not.


If the vehicle is equipped with the automatic lamp control,
when the lamp switch is in the “AUTO” position, the
meter illumination switches automatically to the adjusted
brightness, depending on the brightness outside the vehi-
cle.


The brightness level of the instruments is stored when the
ignition switch is turned off.


If you press and hold the button for longer than about 1
second, the brightness automatically scrolls through its
different levels, and stops scrolling when you release the
button. Select your desired level of brightness.
(except for vehicles equipped with the color multi-infor-
mation display)


If you press and hold the button for longer than about 1
second when the front side-marker and parking lights are
illuminated, the brightness level changes to the maximum
level. Pressing and holding the button for longer than
about 1 second again returns the brightness level to the
previous level.
(for vehicles equipped with the color multi-information
display)
1- Brightness display
2- Rheostat illumination button
BK0115300US.book 159 ページ ２００９年７月１６日　木曜日　午前９時１３分
