MITSUBISHI OUTLANDER XL 2010 Owners Manual
Manufacturer: MITSUBISHI, Model Year: 2010, Model line: OUTLANDER XL, Model: MITSUBISHI OUTLANDER XL 2010Pages: 714, PDF Size: 22.5 MB

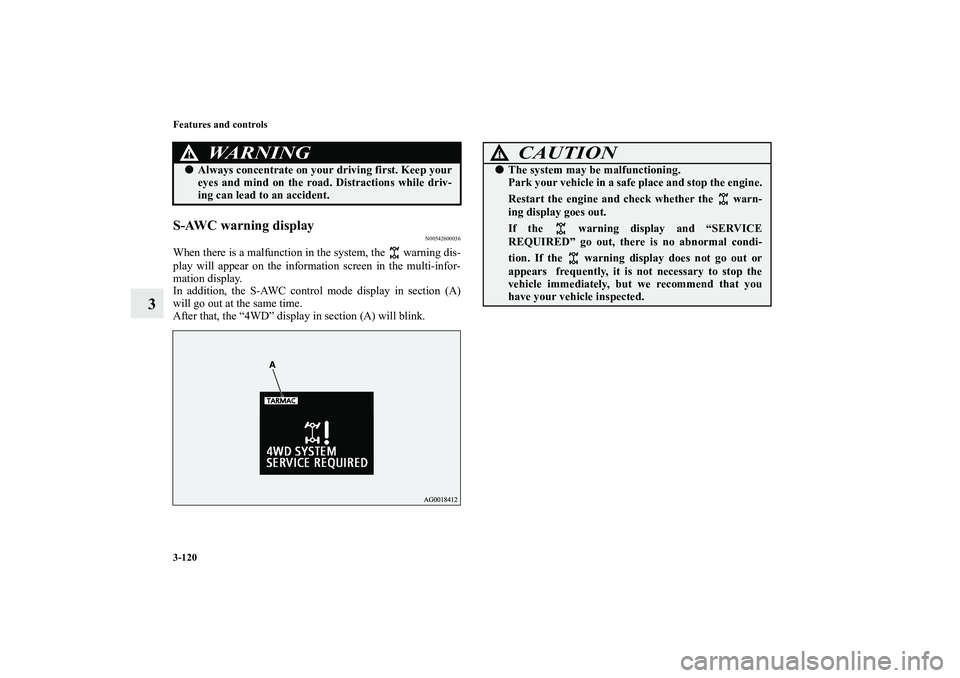

Page 231 of 714
3-120 Features and controls
3
S-AWC warning display
N00542600036
When there is a malfunction in the system, the warning dis-
play will appear on the information screen in the multi-infor-
mation display.
In addition, the S-AWC control mode display in section (A)
will go out at the same time.
After that, the “4WD” display in section (A) will blink.
WA R N I N G
!
Always concentrate on your driving first. Keep your
eyes and mind on the road. Distractions while driv-
ing can lead to an accident.
CAUTION
!
The system may be malfunctioning.
Park your vehicle in a safe place and stop the engine.
Restart the engine and check whether the warn-
ing display goes out.
If the warning display and “SERVICE
REQUIRED” go out, there is no abnormal condi-
tion. If the warning display does not go out or
appears frequently, it is not necessary to stop the
vehicle immediately, but we recommend that you
have your vehicle inspected.
BK0115300US.book 120 ページ ２００９年７月１６日 木曜日 午前９時１３分

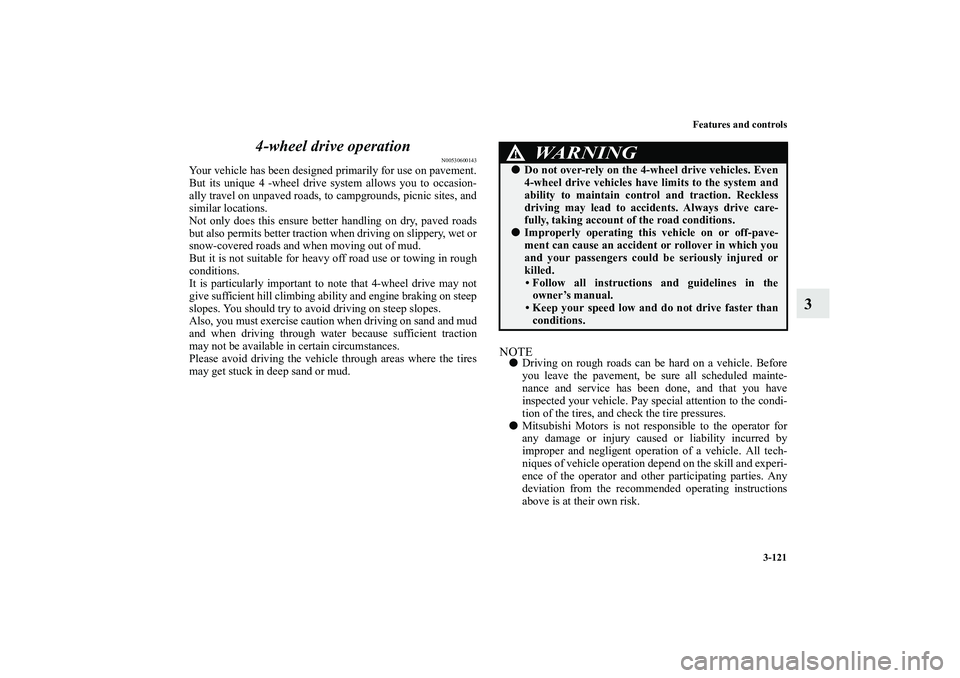

Page 232 of 714
Features and controls
3-121
3 4-wheel drive operation
N00530600143
Your vehicle has been designed primarily for use on pavement.
But its unique 4 -wheel drive system allows you to occasion-
ally travel on unpaved roads, to campgrounds, picnic sites, and
similar locations.
Not only does this ensure better handling on dry, paved roads
but also permits better traction when driving on slippery, wet or
snow-covered roads and when moving out of mud.
But it is not suitable for heavy off road use or towing in rough
conditions.
It is particularly important to note that 4-wheel drive may not
give sufficient hill climbing ability and engine braking on steep
slopes. You should try to avoid driving on steep slopes.
Also, you must exercise caution when driving on sand and mud
and when driving through water because sufficient traction
may not be available in certain circumstances.
Please avoid driving the vehicle through areas where the tires
may get stuck in deep sand or mud.
NOTE
Driving on rough roads can be hard on a vehicle. Before
you leave the pavement, be sure all scheduled mainte-
nance and service has been done, and that you have
inspected your vehicle. Pay special attention to the condi-
tion of the tires, and check the tire pressures.
Mitsubishi Motors is not responsible to the operator for
any damage or injury caused or liability incurred by
improper and negligent operation of a vehicle. All tech-
niques of vehicle operation depend on the skill and experi-
ence of the operator and other participating parties. Any
deviation from the recommended operating instructions
above is at their own risk.
WA R N I N G
!
Do not over-rely on the 4-wheel drive vehicles. Even
4-wheel drive vehicles have limits to the system and
ability to maintain control and traction. Reckless
driving may lead to accidents. Always drive care-
fully, taking account of the road conditions.
Improperly operating this vehicle on or off-pave-
ment can cause an accident or rollover in which you
and your passengers could be seriously injured or
killed. Follow all instructions and guidelines in the
owner’s manual.
Keep your speed low and do not drive faster than
conditions.
BK0115300US.book 121 ページ ２００９年７月１６日 木曜日 午前９時１３分

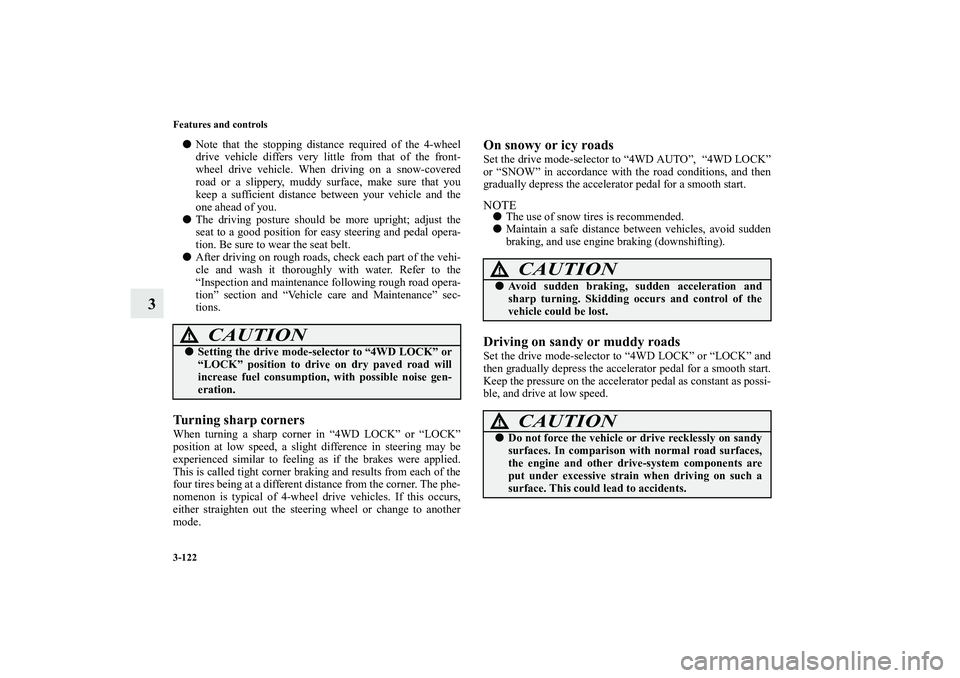

Page 233 of 714
3-122 Features and controls
3
Note that the stopping distance required of the 4-wheel
drive vehicle differs very little from that of the front-
wheel drive vehicle. When driving on a snow-covered
road or a slippery, muddy surface, make sure that you
keep a sufficient distance between your vehicle and the
one ahead of you.
The driving posture should be more upright; adjust the
seat to a good position for easy steering and pedal opera-
tion. Be sure to wear the seat belt.
After driving on rough roads, check each part of the vehi-
cle and wash it thoroughly with water. Refer to the
“Inspection and maintenance following rough road opera-
tion” section and “Vehicle care and Maintenance” sec-
tions.
Turning sharp cornersWhen turning a sharp corner in “4WD LOCK” or “LOCK”
position at low speed, a slight difference in steering may be
experienced similar to feeling as if the brakes were applied.
This is called tight corner braking and results from each of the
four tires being at a different distance from the corner. The phe-
nomenon is typical of 4-wheel drive vehicles. If this occurs,
either straighten out the steering wheel or change to another
mode.
On snowy or icy roadsSet the drive mode-selector to “4WD AUTO”, “4WD LOCK”
or “SNOW” in accordance with the road conditions, and then
gradually depress the accelerator pedal for a smooth start.NOTE
The use of snow tires is recommended.
Maintain a safe distance between vehicles, avoid sudden
braking, and use engine braking (downshifting).
Driving on sandy or muddy roadsSet the drive mode-selector to “4WD LOCK” or “LOCK” and
then gradually depress the accelerator pedal for a smooth start.
Keep the pressure on the accelerator pedal as constant as possi-
ble, and drive at low speed.
CAUTION
!
Setting the drive mode-selector to “4WD LOCK” or
“LOCK” position to drive on dry paved road will
increase fuel consumption, with possible noise gen-
eration.
CAUTION
!
Avoid sudden braking, sudden acceleration and
sharp turning. Skidding occurs and control of the
vehicle could be lost.CAUTION
!
Do not force the vehicle or drive recklessly on sandy
surfaces. In comparison with normal road surfaces,
the engine and other drive-system components are
put under excessive strain when driving on such a
surface. This could lead to accidents.
BK0115300US.book 122 ページ ２００９年７月１６日 木曜日 午前９時１３分

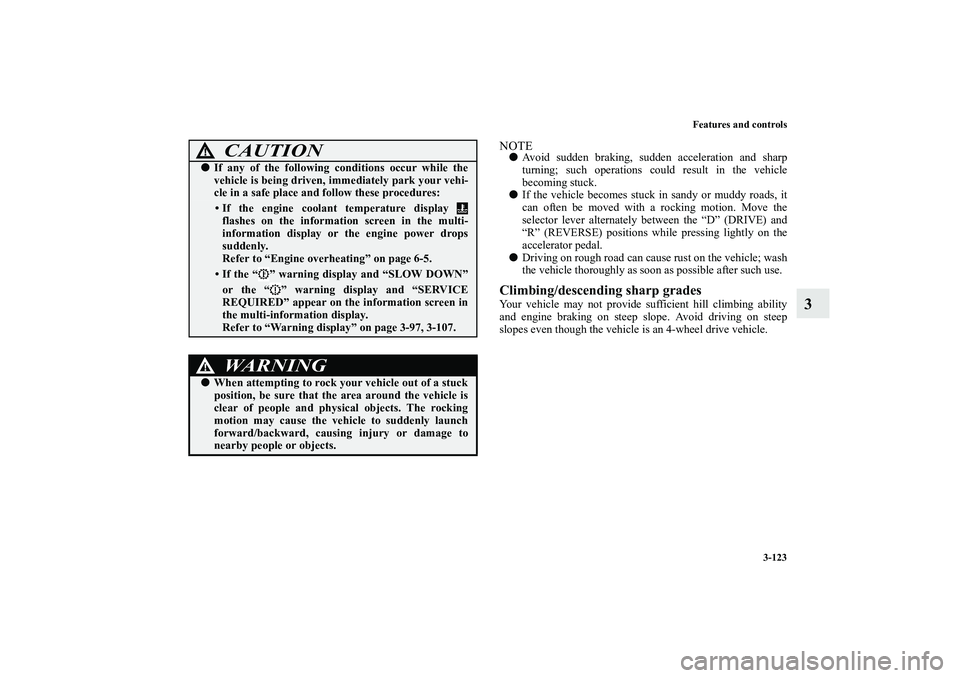

Page 234 of 714
Features and controls
3-123
3
NOTE
Avoid sudden braking, sudden acceleration and sharp
turning; such operations could result in the vehicle
becoming stuck.
If the vehicle becomes stuck in sandy or muddy roads, it
can often be moved with a rocking motion. Move the
selector lever alternately between the “D” (DRIVE) and
“R” (REVERSE) positions while pressing lightly on the
accelerator pedal.
Driving on rough road can cause rust on the vehicle; wash
the vehicle thoroughly as soon as possible after such use.
Climbing/descending sharp gradesYour vehicle may not provide sufficient hill climbing ability
and engine braking on steep slope. Avoid driving on steep
slopes even though the vehicle is an 4-wheel drive vehicle.
If any of the following conditions occur while the
vehicle is being driven, immediately park your vehi-
cle in a safe place and follow these procedures: If the engine coolant temperature display
flashes on the information screen in the multi-
information display or the engine power drops
suddenly.
Refer to “Engine overheating” on page 6-5.
If the “ ” warning display and “SLOW DOWN”
or the “ ” warning display and “SERVICE
REQUIRED” appear on the information screen in
the multi-information display.
Refer to “Warning display” on page 3-97, 3-107.WA R N I N G
!
When attempting to rock your vehicle out of a stuck
position, be sure that the area around the vehicle is
clear of people and physical objects. The rocking
motion may cause the vehicle to suddenly launch
forward/backward, causing injury or damage to
nearby people or objects.CAUTION
!
BK0115300US.book 123 ページ ２００９年７月１６日 木曜日 午前９時１３分

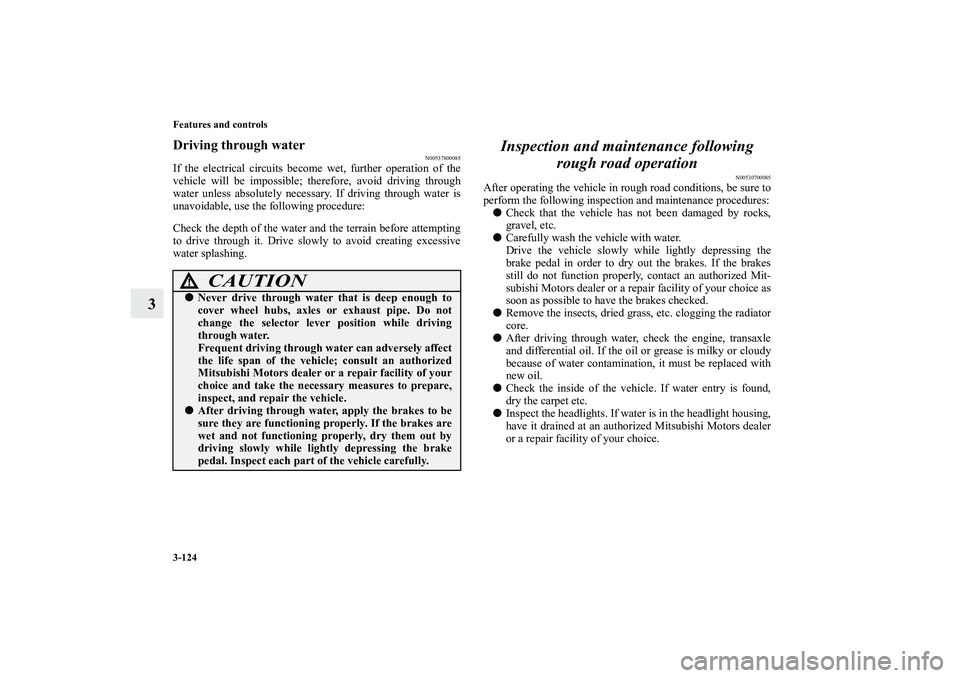

Page 235 of 714
3-124 Features and controls
3
Driving through water
N00537800085
If the electrical circuits become wet, further operation of the
vehicle will be impossible; therefore, avoid driving through
water unless absolutely necessary. If driving through water is
unavoidable, use the following procedure:
Check the depth of the water and the terrain before attempting
to drive through it. Drive slowly to avoid creating excessive
water splashing.
Inspection and maintenance following
rough road operation
N00530700085
After operating the vehicle in rough road conditions, be sure to
perform the following inspection and maintenance procedures:
Check that the vehicle has not been damaged by rocks,
gravel, etc.
Carefully wash the vehicle with water.
Drive the vehicle slowly while lightly depressing the
brake pedal in order to dry out the brakes. If the brakes
still do not function properly, contact an authorized Mit-
subishi Motors dealer or a repair facility of your choice as
soon as possible to have the brakes checked.
Remove the insects, dried grass, etc. clogging the radiator
core.
After driving through water, check the engine, transaxle
and differential oil. If the oil or grease is milky or cloudy
because of water contamination, it must be replaced with
new oil.
Check the inside of the vehicle. If water entry is found,
dry the carpet etc.
Inspect the headlights. If water is in the headlight housing,
have it drained at an authorized Mitsubishi Motors dealer
or a repair facility of your choice.
CAUTION
!
Never drive through water that is deep enough to
cover wheel hubs, axles or exhaust pipe. Do not
change the selector lever position while driving
through water.
Frequent driving through water can adversely affect
the life span of the vehicle; consult an authorized
Mitsubishi Motors dealer or a repair facility of your
choice and take the necessary measures to prepare,
inspect, and repair the vehicle.
After driving through water, apply the brakes to be
sure they are functioning properly. If the brakes are
wet and not functioning properly, dry them out by
driving slowly while lightly depressing the brake
pedal. Inspect each part of the vehicle carefully.
BK0115300US.book 124 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 236 of 714
Features and controls
3-125
3 Cautions on the handling of 4-wheel drive
vehicles
N00530800161
Tires and wheelsSince the driving torque can be applied to the four wheels, the
driving performance of the vehicle when operating in 4-wheel
drive is greatly affected by the condition of the tires.
Pay close attention to the tires.
Install only the specified tires on all wheels. Refer to
“Tires and wheels” on page 9-10.
Be sure all four tires and wheels are the same size and
type.
When it is necessary to replace any of the tires or wheels,
replace all four.
All tires should be rotated before the wear difference
between the front and rear tires is recognizable.
Good vehicle performance cannot be expected if there is a dif-
ference in wear between tires. Refer to “Tire rotation” on page
7-30.
Check the tire inflation pressure regularly.
CAUTION
!
Always use tires of the same size, type, and brand
that have no wear differences. Using tires of differ-
ent size, type, brands or degree of wear, will increase
the differential oil temperature and result in possi-
ble damage to the driving system. Further, the drive
train will be subject to excessive loading, possibly
leading to oil leakage, component seizure, or other
serious failures.
BK0115300US.book 125 ページ ２００９年７月１６日 木曜日 午前９時１３分

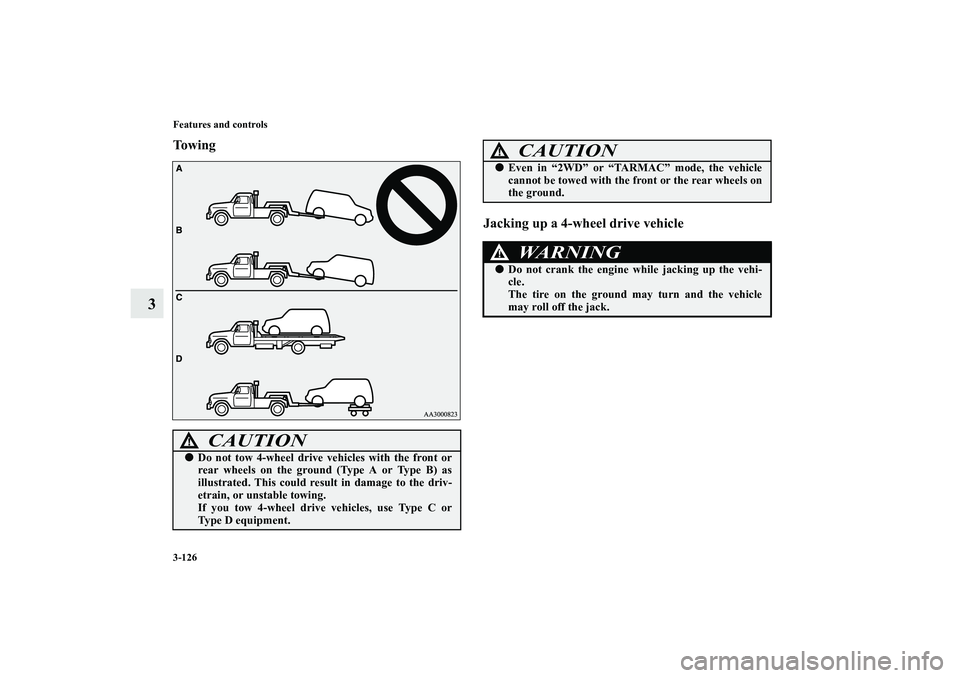

Page 237 of 714
3-126 Features and controls
3
To w i n g
Jacking up a 4-wheel drive vehicle
CAUTION
!
Do not tow 4-wheel drive vehicles with the front or
rear wheels on the ground (Type A or Type B) as
illustrated. This could result in damage to the driv-
etrain, or unstable towing.
If you tow 4-wheel drive vehicles, use Type C or
Type D equipment.
Even in “2WD” or “TARMAC” mode, the vehicle
cannot be towed with the front or the rear wheels on
the ground.WA R N I N G
!
Do not crank the engine while jacking up the vehi-
cle.
The tire on the ground may turn and the vehicle
may roll off the jack.CAUTION
!
BK0115300US.book 126 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 238 of 714
Features and controls
3-127

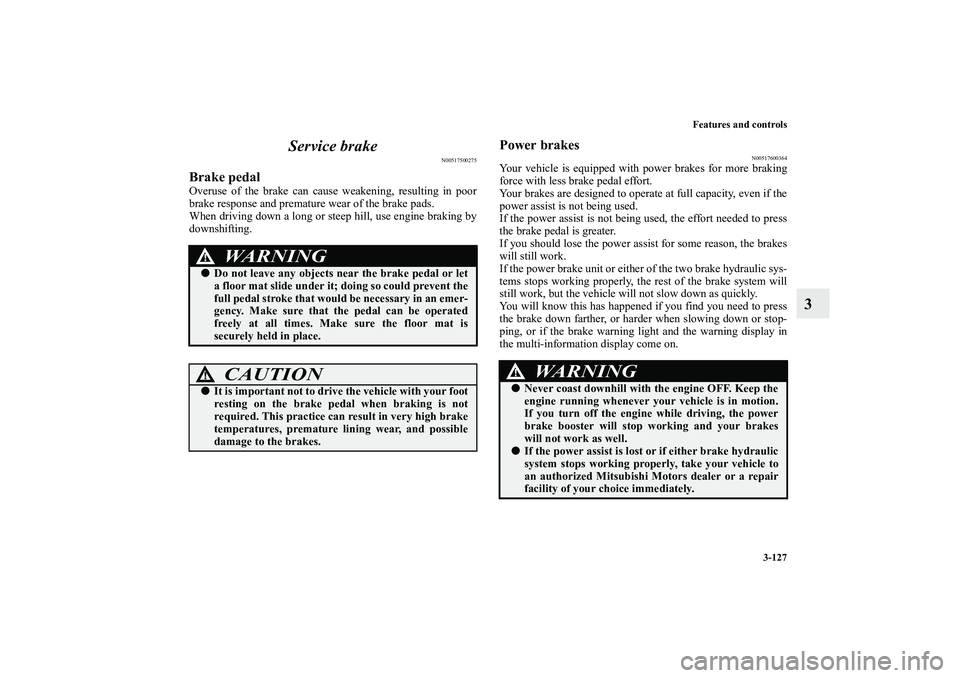

3 Service brake
N00517500275
Brake pedalOveruse of the brake can cause weakening, resulting in poor
brake response and premature wear of the brake pads.
When driving down a long or steep hill, use engine braking by
downshifting.
Power brakes
N00517600364
Your vehicle is equipped with power brakes for more braking
force with less brake pedal effort.
Your brakes are designed to operate at full capacity, even if the
power assist is not being used.
If the power assist is not being used, the effort needed to press
the brake pedal is greater.
If you should lose the power assist for some reason, the brakes
will still work.
If the power brake unit or either of the two brake hydraulic sys-
tems stops working properly, the rest of the brake system will
still work, but the vehicle will not slow down as quickly.
You will know this has happened if you find you need to press
the brake down farther, or harder when slowing down or stop-
ping, or if the brake warning light and the warning display in
the multi-information display come on.
WA R N I N G
!
Do not leave any objects near the brake pedal or let
a floor mat slide under it; doing so could prevent the
full pedal stroke that would be necessary in an emer-
gency. Make sure that the pedal can be operated
freely at all times. Make sure the floor mat is
securely held in place.CAUTION
!
It is important not to drive the vehicle with your foot
resting on the brake pedal when braking is not
required. This practice can result in very high brake
temperatures, premature lining wear, and possible
damage to the brakes.
WA R N I N G
!
Never coast downhill with the engine OFF. Keep the
engine running whenever your vehicle is in motion.
If you turn off the engine while driving, the power
brake booster will stop working and your brakes
will not work as well.
If the power assist is lost or if either brake hydraulic
system stops working properly, take your vehicle to
an authorized Mitsubishi Motors dealer or a repair
facility of your choice immediately.
BK0115300US.book 127 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 239 of 714
3-128 Features and controls
3

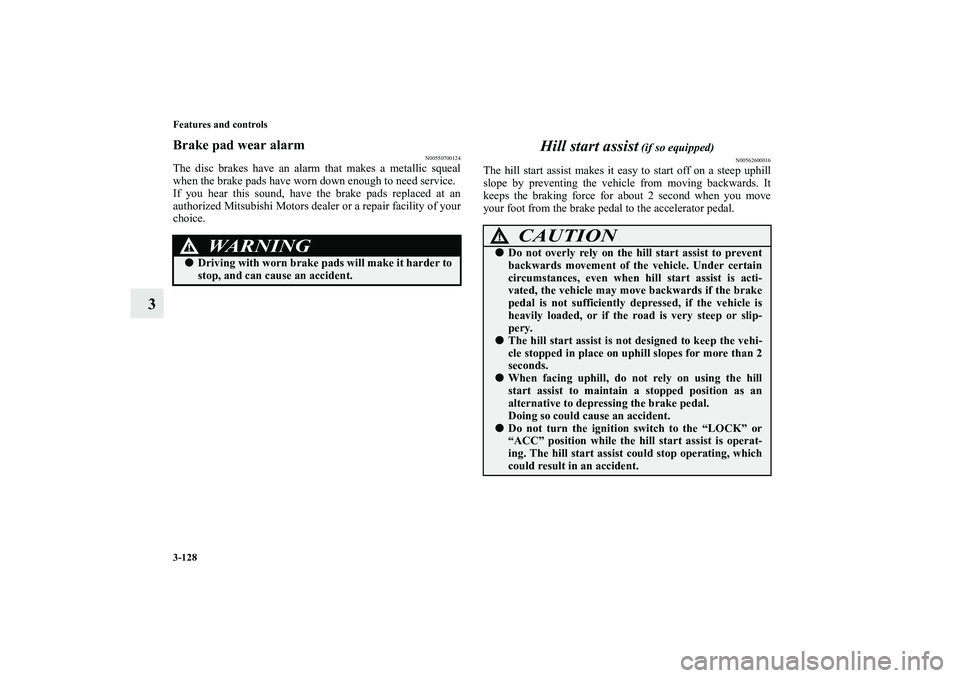

Brake pad wear alarm
N00550700124
The disc brakes have an alarm that makes a metallic squeal
when the brake pads have worn down enough to need service.
If you hear this sound, have the brake pads replaced at an
authorized Mitsubishi Motors dealer or a repair facility of your
choice.
Hill start assist
(if so equipped)
N00562600016
The hill start assist makes it easy to start off on a steep uphill
slope by preventing the vehicle from moving backwards. It
keeps the braking force for about 2 second when you move
your foot from the brake pedal to the accelerator pedal.
WA R N I N G
!
Driving with worn brake pads will make it harder to
stop, and can cause an accident.
CAUTION
!
Do not overly rely on the hill start assist to prevent
backwards movement of the vehicle. Under certain
circumstances, even when hill start assist is acti-
vated, the vehicle may move backwards if the brake
pedal is not sufficiently depressed, if the vehicle is
heavily loaded, or if the road is very steep or slip-
pery.
The hill start assist is not designed to keep the vehi-
cle stopped in place on uphill slopes for more than 2
seconds.
When facing uphill, do not rely on using the hill
start assist to maintain a stopped position as an
alternative to depressing the brake pedal.
Doing so could cause an accident.
Do not turn the ignition switch to the “LOCK” or
“ACC” position while the hill start assist is operat-
ing. The hill start assist could stop operating, which
could result in an accident.
BK0115300US.book 128 ページ ２００９年７月１６日 木曜日 午前９時１３分
Page 240 of 714
Features and controls
3-129
3

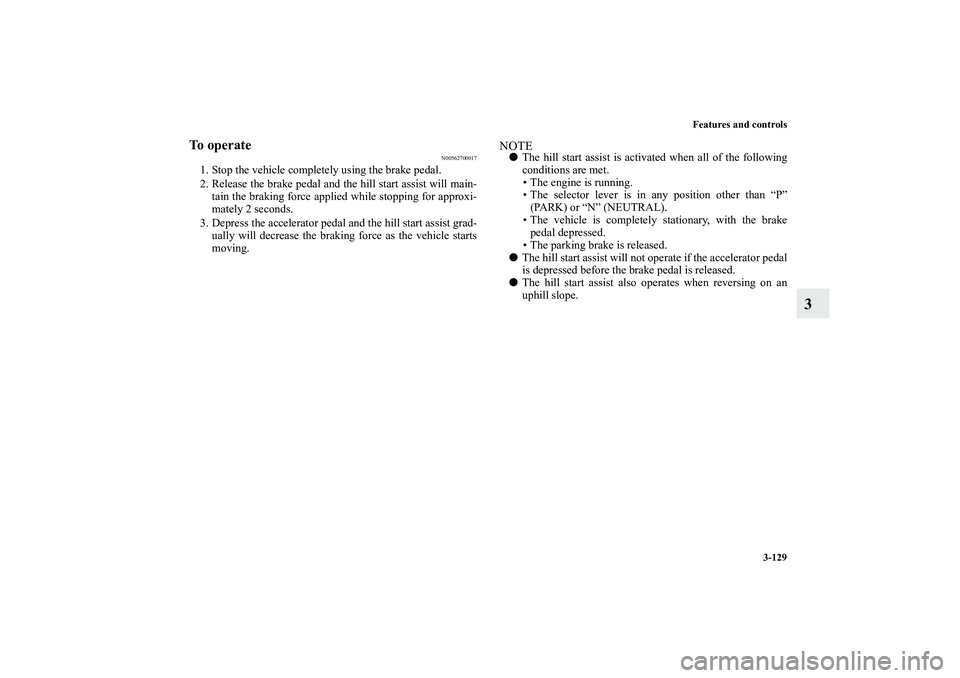

To operate
N00562700017
1. Stop the vehicle completely using the brake pedal.
2. Release the brake pedal and the hill start assist will main-
tain the braking force applied while stopping for approxi-
mately 2 seconds.
3. Depress the accelerator pedal and the hill start assist grad-
ually will decrease the braking force as the vehicle starts
moving.
NOTE
The hill start assist is activated when all of the following
conditions are met.
The engine is running.
The selector lever is in any position other than “P”
(PARK) or “N” (NEUTRAL).
The vehicle is completely stationary, with the brake
pedal depressed.
The parking brake is released.
The hill start assist will not operate if the accelerator pedal
is depressed before the brake pedal is released.
The hill start assist also operates when reversing on an
uphill slope.
BK0115300US.book 129 ページ ２００９年７月１６日 木曜日 午前９時１３分
