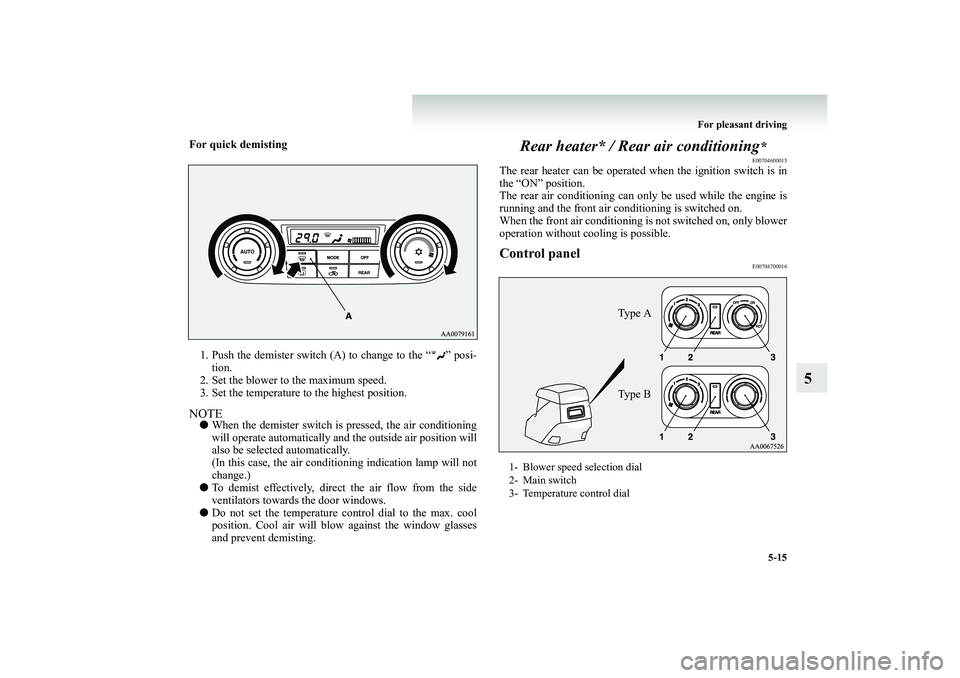

For quick demisting

1. Push the demister switch (A) to change to the “ ” posi-
tion.
2. Set the blower to the maximum speed. 3. Set the temperature to the highest position.NOTE●
When the demister switch is
pressed, the air conditioning
will operate automatically and the outside air position will also be selected automatically. (In this case, the air conditioning indication lamp will not change.)
●
To demist effectively, direct
the air flow from the side
ventilators towards the door windows.
●
Do not set the temperature control dial to the max. cool position. Cool air will blow against the window glassesand prevent demisting.
Rear heater* / Rear air conditioning
*E00704600015
The rear heater can be operated when the ignition switch is in the “ON” position. The rear air conditioning can only be used while the engine isrunning and the front air conditioning is switched on. When the front air conditioning is
not switched on, only blower
operation without cooling is possible.Control panel
E00704700016
1- Blower speed selection dial 2- Main switch 3- Temperature control dial
Ty p e A Ty p e B
BK-BK2008E1ENUK.en-uk-Section8.fm Page
15 Wednesday, January 9, 2008 4:41 PM

5-16 For pleasant driving
5
Rear fan switch for the front seat
E00705000016
When the rear blower switch is
pressed, the rear blower starts
operating, the rear blower op
eration display (A) shows “REAR
ON”. When the rear blower swit
ch is pressed again, the rear
blower goes off.NOTE●
Check whether or not the rear
blower is operating by look-
ing at the operation display (A). The operation displayshows when the rear
blower is operating.
Main switch for the rear seat
E00704900018
Push the switch, and the rear bl
ower will operat
e, turning the
operation indication lamp (A) on. Push the switch again, and the rear blower will stop.NOTE●
Either the front rear switch
or the rear main switch can be
used to switch the power of
the rear blower ON and OFF.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
16 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-17
5

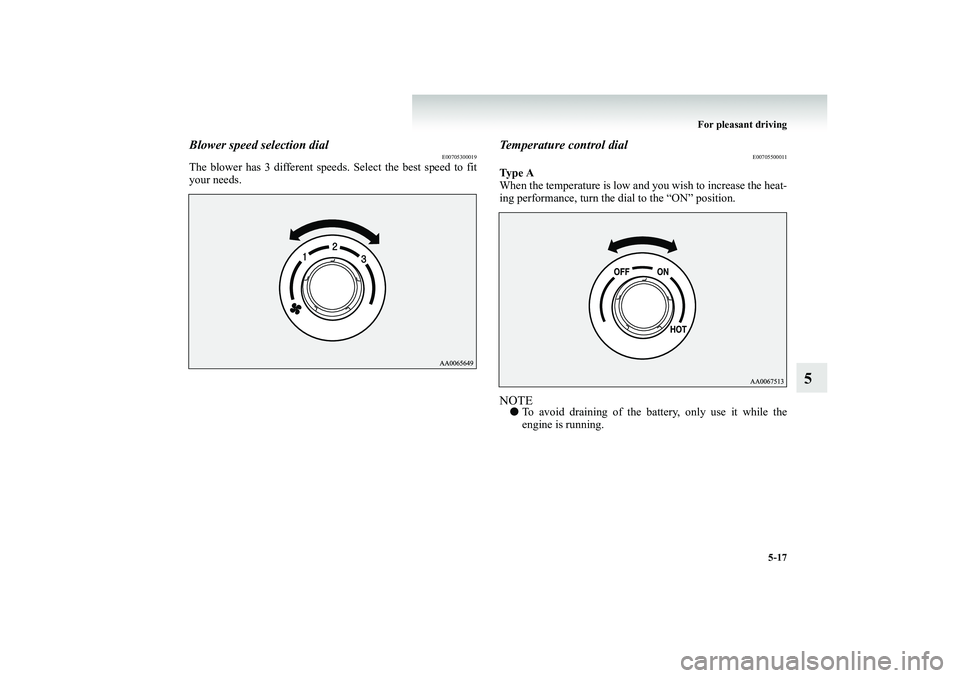

Blower speed selection dial
E00705300019
The blower has 3 different speeds.
Select the best speed to fit
your needs.
Temperature control dial
E00705500011
Ty p e A When the temperature is low and
you wish to increase the heat-
ing performance, turn the dial to the “ON” position.NOTE●
To avoid draining of the battery, only use it while the engine is running.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
17 Wednesday, January 9, 2008 4:41 PM

5-18 For pleasant driving
5

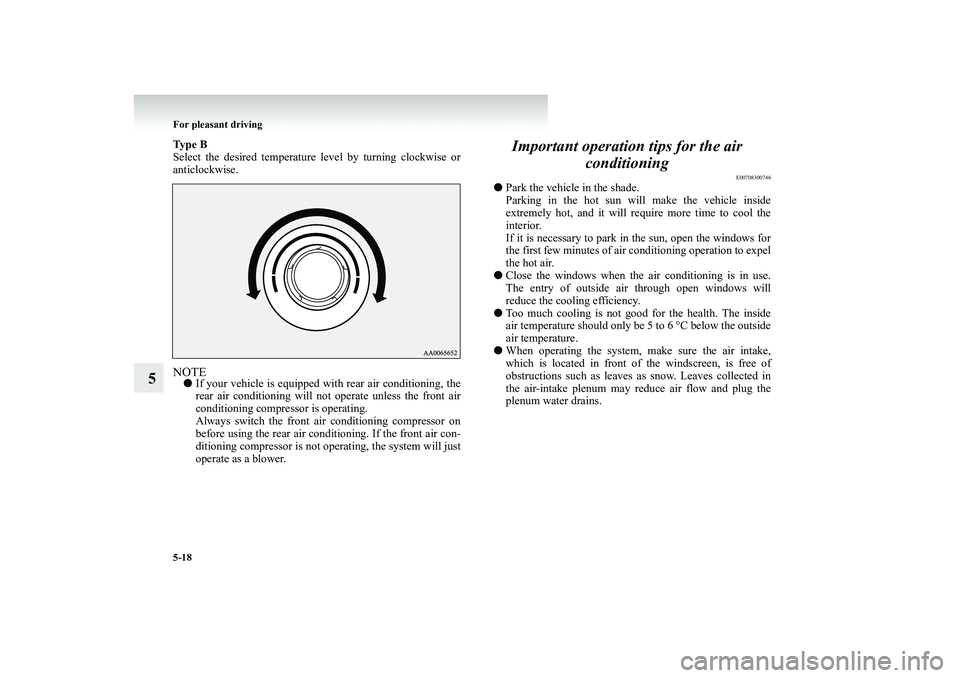

Ty p e B Select the desired temperature level by turning clockwise or anticlockwise.NOTE●
If your vehicle is equipped with rear air conditioning, the rear air conditioning will no
t operate unless the front air
conditioning compressor is operating. Always switch the front air conditioning compressor onbefore using the rear air condi
tioning. If th
e front air con-
ditioning compressor is not operating, the system will just operate as a blower.
Important operation tips for the air
conditioning
E00708300746
●
Park the vehicle in the shade. Parking in the hot sun will make the vehicle inside extremely hot, and it will require more time to cool theinterior. If it is necessary to park in the sun, open the windows for the first few minutes of air conditioning operation to expelthe hot air.
●
Close the windows when the air conditioning is in use. The entry of outside air through open windows willreduce the cooling efficiency.
●
Too much cooling is not good for the health. The inside air temperature should only be 5 to 6 °C below the outsideair temperature.
●
When operating the system,
make sure the air intake,
which is located in front of the windscreen, is free ofobstructions such as leaves
as snow. Leaves collected in
the air-intake plenum may reduce air flow and plug the plenum water drains.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
18 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-19
5

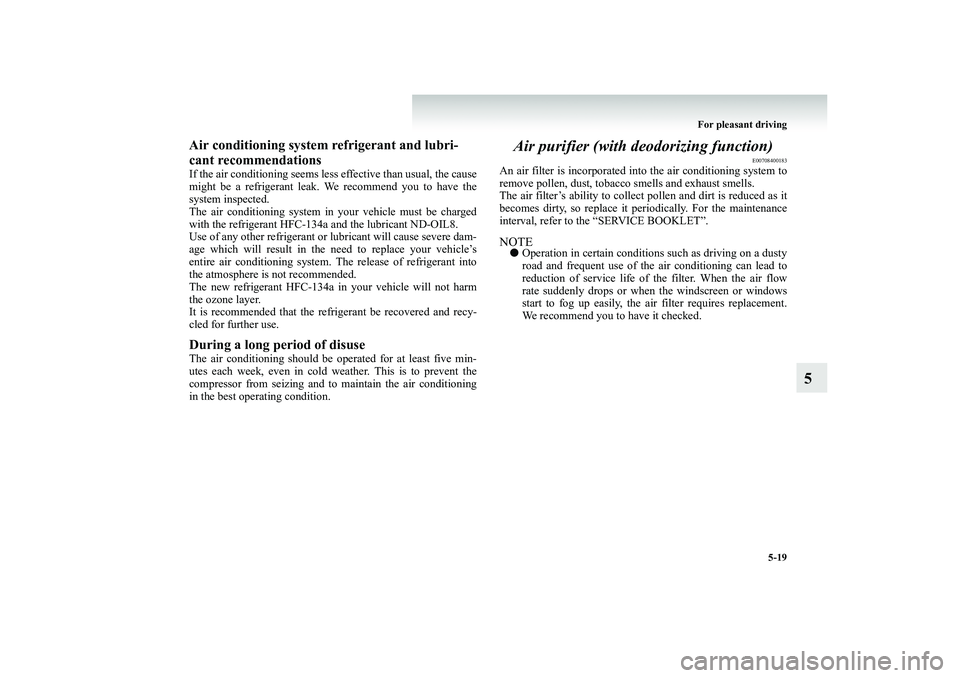

Air conditioning system
refrigerant and lubri-
cant recommendationsIf the air conditioning seems less
effective than usual, the cause
might be a refrigerant leak. We recommend you to have the system inspected.The air conditioning system in your vehicle must be charged with the refrigerant HFC-134a
and the lubricant ND-OIL8.
Use of any other refrigerant or
lubricant will cause severe dam-
age which will result in the n
eed to replace your vehicle’s
entire air conditioning system. The release of refrigerant into the atmosphere is not recommended.The new refrigerant HFC-134a in
your vehicle will not harm
the ozone layer. It is recommended that the refr
igerant be recovered and recy-
cled for further use.During a long period of disuseThe air conditioning should be operated for at least five min- utes each week, even in cold weather. This is to prevent the compressor from seizing and to maintain the air conditioningin the best operating condition.
Air purifier (with deodorizing function)
E00708400183
An air filter is incorporated in
to the air conditioning system to
remove pollen, dust, tobacco
smells and exhaust smells.
The air filter’s ability to collect pollen and dirt is reduced as itbecomes dirty, so replace it pe
riodically. For the maintenance
interval, refer to th
e “SERVICE BOOKLET”.
NOTE●
Operation in certain conditions such as driving on a dusty road and frequent use of th
e air conditioning can lead to
reduction of service life of
the filter. When the air flow
rate suddenly drops or when the windscreen or windowsstart to fog up easily, the ai
r filter requires replacement.
We recommend you to have it checked.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
19 Wednesday, January 9, 2008 4:41 PM

5-20 For pleasant driving
5
LW/MW/FM electronic tuning radio with
CD player
*
E00708500432
The audio system can be used when
the ignition switch is in the
“ON” or “ACC” position.NOTE●
To listen to the audio system while the engine is stopped, turn the ignition key to the “ACC” position.
●
If a cellular phone is used insi
de the vehicle, it may create
noise from the audio equipment. This does not mean thatanything is wrong with your audio equipment. In such a case, use the cellular phone at
a place as far as possible
from the audio equipment.
●
If foreign objects or water ge
t into the audio equipment, or
if smoke or a strange odour comes from it, immediately turn off the audio system. We recommend you to have itchecked. Never try to repair it by yourself. Avoid continu- ous usage without inspection by a qualified person.
Volume and tone control panel
E00708600114
1- PWR (On-Off) button 2- VOL (Volume control) button 3- Memory select buttons4- MENU button 5- Sound adjust button 6- Display
BK-BK2008E1ENUK.en-uk-Section8.fm Page
20 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-21
5

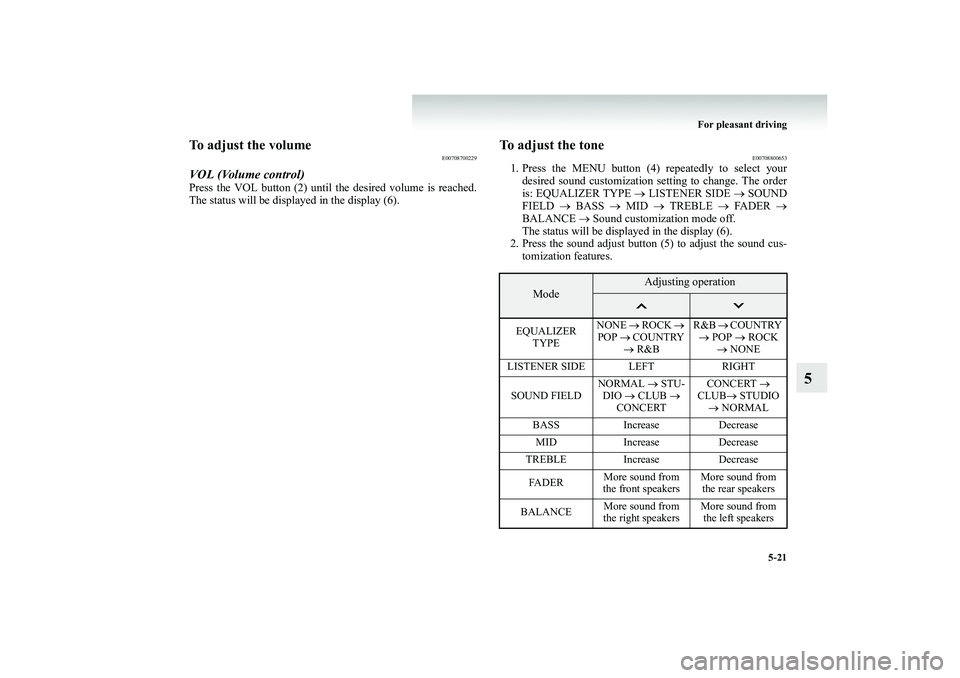

To adjust the volume
E00708700229
VOL (Volume control)Press the VOL button (2) until
the desired volume is reached.
The status will be displayed in the display (6).
To adjust the tone
E00708800653
1. Press the MENU button (4) repeatedly to select your
desired sound customization setting to change. The order is: EQUALIZER TYPE
→ LISTENER SIDE
→ SOUND
FIELD
→ BASS
→ MID
→ TREBLE
→ FADER
→
BALANCE
→ Sound customization mode off.
The status will be displayed in the display (6).
2. Press the sound adjust button (5) to adjust the sound cus-
tomization features.Mode
Adjusting operation
EQUALIZER
TYPE
NONE
→ ROCK
→
POP
→ COUNTRY → R&B
R&B
→ COUNTRY
→ POP
→ ROCK
→ NONE
LISTENER SIDE LEFT RIGHT SOUND FIELD
NORMAL
→ STU-
DIO
→ CLUB
→
CONCERT
CONCERT
→
CLUB
→ STUDIO
→ NORMAL
BASS Increase Decrease MID Increase Decrease TREBLE Increase Decrease FA D E R
More sound from the front speakers
More sound from the rear speakers
BALANCE
More sound from the right speakers
More sound from the left speakers
BK-BK2008E1ENUK.en-uk-Section8.fm Page
21 Wednesday, January 9, 2008 4:41 PM

5-22 For pleasant driving
5

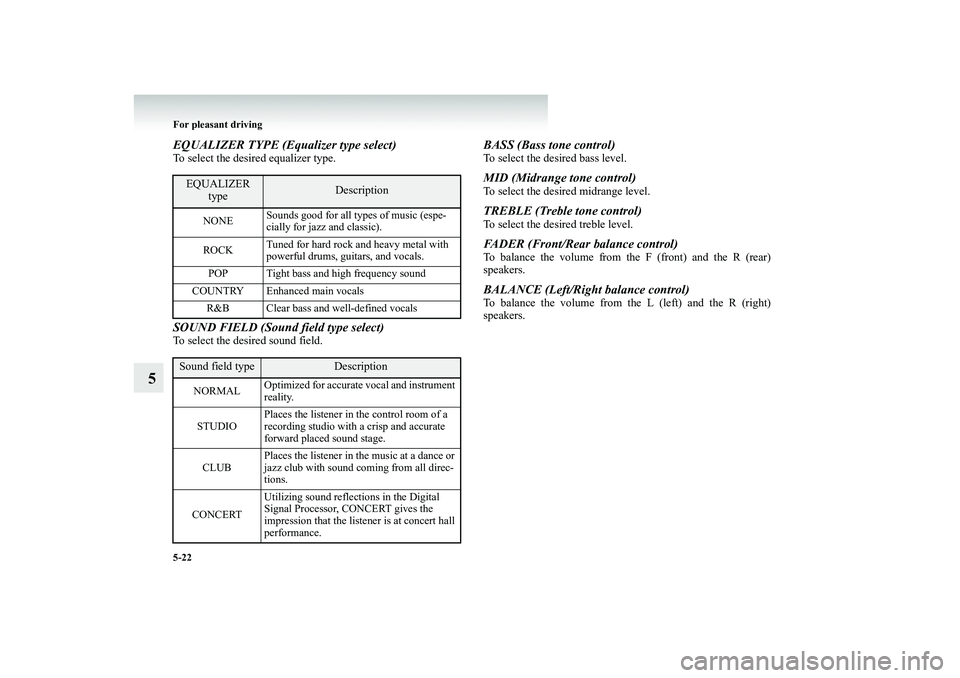

EQUALIZER TYPE (Equalizer type select)To select the desired equalizer type.SOUND FIELD (Sound field type select)To select the desired sound field.
BASS (Bass tone control) To select the desired bass level. MID (Midrange tone control) To select the desired midrange level. TREBLE (Treble tone control) To select the desired treble level. FADER (Front/Rear balance control) To balance the volume from the F (front) and the R (rear) speakers. BALANCE (Left/Right balance control) To balance the volume from th
e L (left) and the R (right)
speakers.
EQUALIZER
type
Description
NONE
Sounds good for all types of music (espe- cially for jazz and classic).
ROCK
Tuned for hard rock and heavy metal with powerful drums, guitars, and vocals.
POP Tight bass and high frequency sound
COUNTRY Enhanced main vocals
R&B Clear bass and well-defined vocals
Sound field type
Description
NORMAL
Optimized for accurate vocal and instrument reality.
STUDIO
Places the listener in the control room of a recording studio with a crisp and accurate forward placed sound stage.
CLUB
Places the listener in the music at a dance or jazz club with sound coming from all direc-tions.
CONCERT
Utilizing sound reflections in the Digital Signal Processor, CONCERT gives the impression that the listener is at concert hall performance.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
22 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-23
5

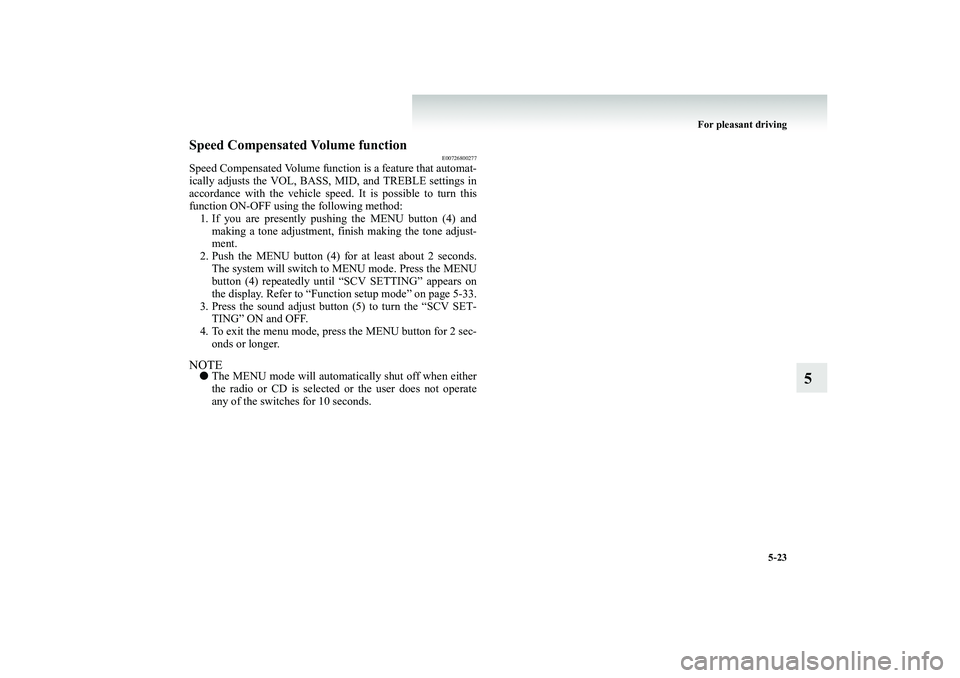

Speed Compensated Volume function
E00726800277
Speed Compensated Volume functio
n is a feature that automat-
ically adjusts the VOL, BASS, MID, and TREBLE settings in accordance with the vehicle speed.
It is possible to turn this
function ON-OFF using the following method:1. If you are presently pushing the MENU button (4) and
making a tone adjustment, finish making the tone adjust- ment.
2. Push the MENU button (4) fo
r at least about 2 seconds.
The system will switch to
MENU mode. Press the MENU
button (4) repeatedly until
“SCV SETTING” appears on
the display. Refer to “Function setup mode” on page 5-33.
3. Press the sound adjust button (5) to turn the “SCV SET-
TING” ON and OFF.
4. To exit the menu mode, press the MENU button for 2 sec-
onds or longer.
NOTE●
The MENU mode will automatically shut off when either the radio or CD is selected or the user does not operate any of the switches for 10 seconds.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
23 Wednesday, January 9, 2008 4:41 PM

5-24 For pleasant driving
5
Radio control panel and display
E00708900351
1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button 3- Memory select buttons4- SEEK (Down-seek) button 5- SEEK (Up-seek) button 6- TUNE (Down-step) button7- TUNE (Up-step) button 8- FM (FM1/FM2/FM3) indicator 9- ST (Stereo) indicator10- Preset memory number display 11- DisplayBK-BK2008E1ENUK.en-uk-Section8.fm Page
