MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

For pleasant driving
5-25
5
To listen to the radio
E00709000388
1. Press the PWR button (2) to turn the audio system on and
off.
2. Press the AM/FM button (1) to select the desired band. 3. Press the TUNE button (6 or 7) or SEEK button (4 or 5) to
tune to a station, or press one of the memory select button (3) to recall a station memorised for that button.
To tune the radio
E00709100318
Automatic tuning After pressing the SEEK button (4 or 5), the selected stationreception will start. Manual tuning The frequency changes every time
the TUNE button (6 or 7) is
pressed. The frequency changes continuously if you keep push- ing the button. Press the button to select the desired station.
To enter frequencies into the memory
E00716100440
Manual setting You can assign to the memory select buttons (3) a maximum of18 stations in the FM band (6 FM1, 6 FM2 and 6 FM3 stations) and 6 stations each in the MW
and LW band. (Stations already
assigned to the memory select
buttons are replaced by any
newly assigned stations.) Follow the steps described below. 1. Press either the TUNE button
(6 or 7) to tune the fre-
quency to be entered in the memory.
2. Press one of the memory select buttons (3) for 2 seconds
or longer. The sound will be momentarily interruptedwhile the frequency is being entered into the memory. The number of the button corresponding to the entry in the memory and the frequency are displayed.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
25 Wednesday, January 9, 2008 4:41 PM

5-26 For pleasant driving
5

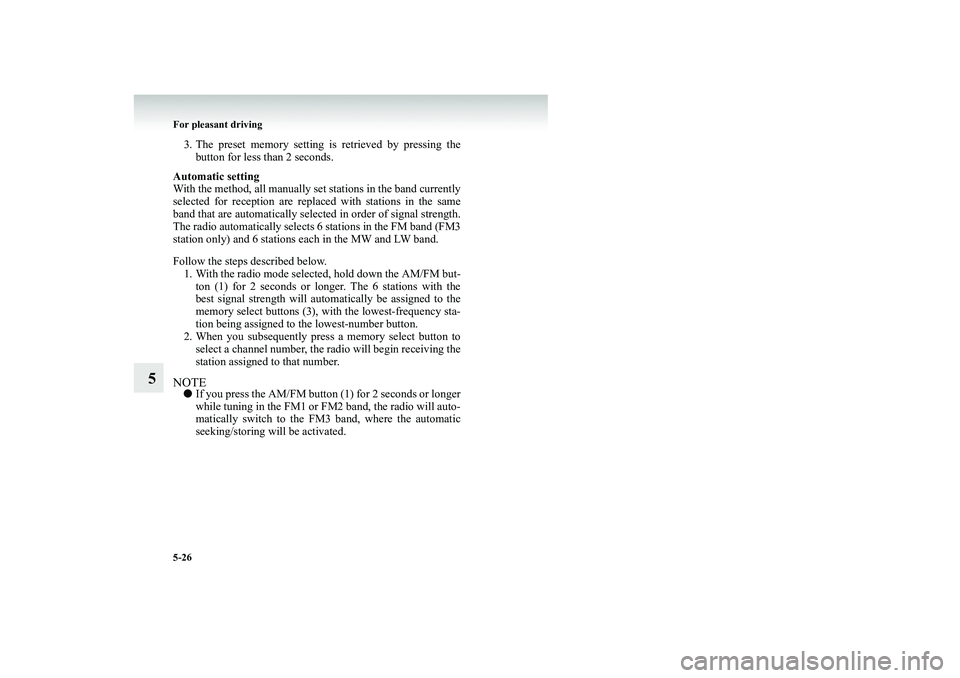

3. The preset memory setting is retrieved by pressing the
button for less than 2 seconds.
Automatic setting With the method, all manually set stations in the band currentlyselected for reception are replac
ed with stations in the same
band that are automatically select
ed in order of signal strength.
The radio automatically selects
6 stations in the FM band (FM3
station only) and 6 stations
each in the MW and LW band.
Follow the steps described below. 1. With the radio mode selected, hold down the AM/FM but-
ton (1) for 2 seconds or longer. The 6 stations with thebest signal strength will automatically be assigned to the memory select buttons (3), wi
th the lowest-frequency sta-
tion being assigned to the lowest-number button.
2. When you subsequently press a memory select button to
select a channel number, the radio will begin receiving the station assigned to that number.
NOTE●
If you press the AM/FM button (1) for 2 seconds or longer while tuning in the FM1 or FM2 band, the radio will auto-matically switch to the FM
3 band, where the automatic
seeking/storing w
ill be activated.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
26 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-27
5

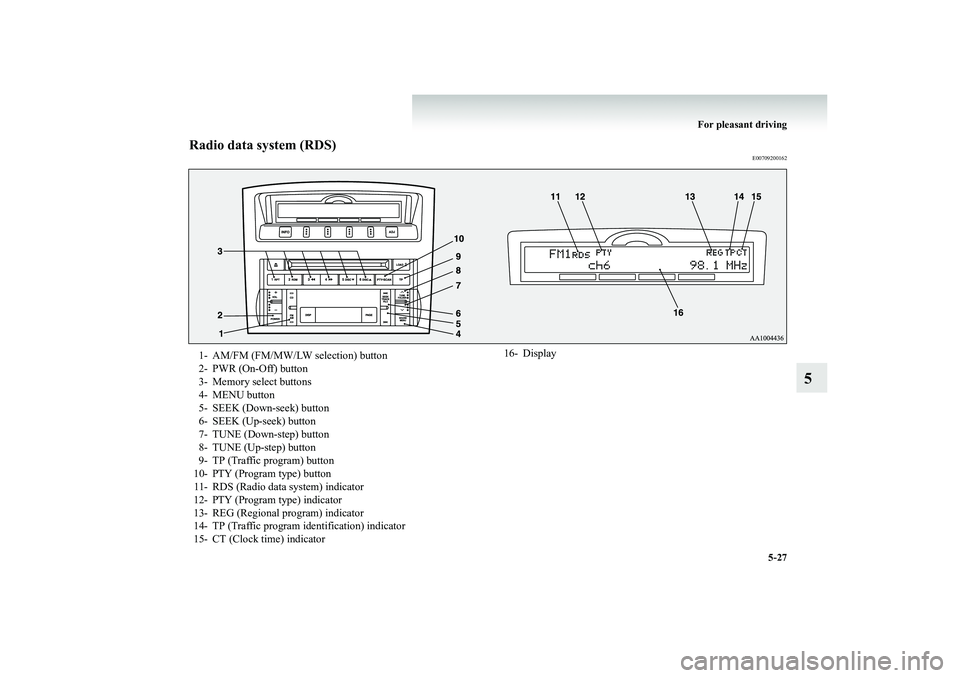

Radio data system (RDS)
E00709200162
1- AM/FM (FM/MW/LW selection) button 2- PWR (On-Off) button3- Memory select buttons 4- MENU button 5- SEEK (Down-seek) button6- SEEK (Up-seek) button 7- TUNE (Down-step) button 8- TUNE (Up-step) button9- TP (Traffic program) button 10- PTY (Program type) button 11- RDS (Radio data system) indicator12- PTY (Program type) indicator13- REG (Regional program) indicator 14- TP (Traffic program identification) indicator 15- CT (Clock time) indicator
16- Display
BK-BK2008E1ENUK.en-uk-Section8.fm Page
27 Wednesday, January 9, 2008 4:41 PM

5-28 For pleasant driving
5
RDS uses PI (program identification) signal and AF (alterna- tive frequency) list transmitted in addition to the normal FM broadcasting programs, and picks
up the FM stations that are
transmitting the same program from the AF list and automati-cally tunes to the station with the strongest signal intensity. Therefore, you can co
ntinue listening to one program in, for
example, a long dist
ance driving without retuning to the other
station transmitting the same
program when you are leaving
the service area of the cu
rrently receiving station.
The RDS radio also features th
e limited reception of the pro-
gram types, the break-in reception of the traffic announcement to the EON (enhanced other network) and emergency broad- cast, and the limited/
unlimited reception of
the regional pro-
grams.AF (Alternative Frequencies) function
E00720900090
The AF function finds a station broadcasting the same programand selects the station with the strongest signal of AF lists. The AF function is turned on at all times unless you manually switch it off. The AF function can be turned ON and OFF. Refer to “Adjusting the time” on page 3-19.CT (Clock Time) function
E00721000085
The clock can be set automatically
by using the signal from the
local RDS stations. Refer to “Adjusting the time” on page
3-19
.
REG (Regional) function
E00721100028
REG function limits to receive the stations broadcastingregional programs. Regional programming and regional networks are organizeddifferently depending on the country or area (they may be changed according to the hour, st
ate, or broadcast area), so if
you don’t want to receive the re
gional programs automatically,
you can set up REG ON not to
receive regional programs.
The REG function can be
turned ON and OFF.
Refer to “Function setup mode” on page 5-33.PI (Program Identification) search function
E00721200133
When travelling long distance a
nd the recalled preset station is
weak, the radio searches anot
her frequency broadcasting the
same programming with the same PI code in AF list. If there are no frequencies br
oadcasting the same program-
ming, the radio searches a frequency broadcasting the regionalprogramming. The radio succeeds in searching the regional programming, then the display shows the REG indicator (13). If the radio does not succeed
in searching the regional pro-
gramming, the radio returns to
the recalled preset station.
The PI function can be turned ON and OFF on some vehicles. Refer to “Function setup mode” on page 5-33.NOTE●
While searching, the audio sy
stem is muted. The display
shows “WAIT” or “SEARCH”.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
28 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-29
5

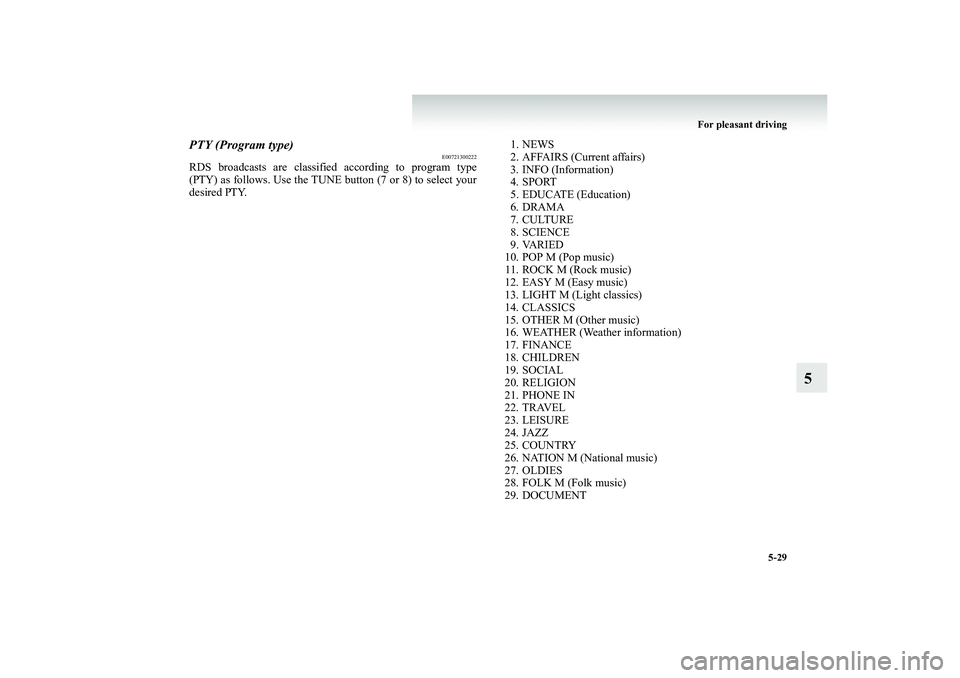

PTY (Program type)
E00721300222
RDS broadcasts are classifi
ed according to program type
(PTY) as follows. Use the TUNE button (7 or 8) to select your desired PTY.
1. NEWS 2. AFFAIRS (Current affairs) 3. INFO (Information) 4. SPORT5. EDUCATE (Education) 6. DRAMA 7. CULTURE8. SCIENCE 9. VARIED 10. POP M (Pop music)11. ROCK M (Rock music) 12. EASY M (Easy music) 13. LIGHT M (Light classics)14. CLASSICS 15. OTHER M (Other music) 16. WEATHER (Weather information)17. FINANCE 18. CHILDREN 19. SOCIAL20. RELIGION 21. PHONE IN 22. TRAVEL23. LEISURE 24. JAZZ 25. COUNTRY 26. NATION M (National music) 27. OLDIES28. FOLK M (Folk music) 29. DOCUMENT
BK-BK2008E1ENUK.en-uk-Section8.fm Page
29 Wednesday, January 9, 2008 4:41 PM

5-30 For pleasant driving
5

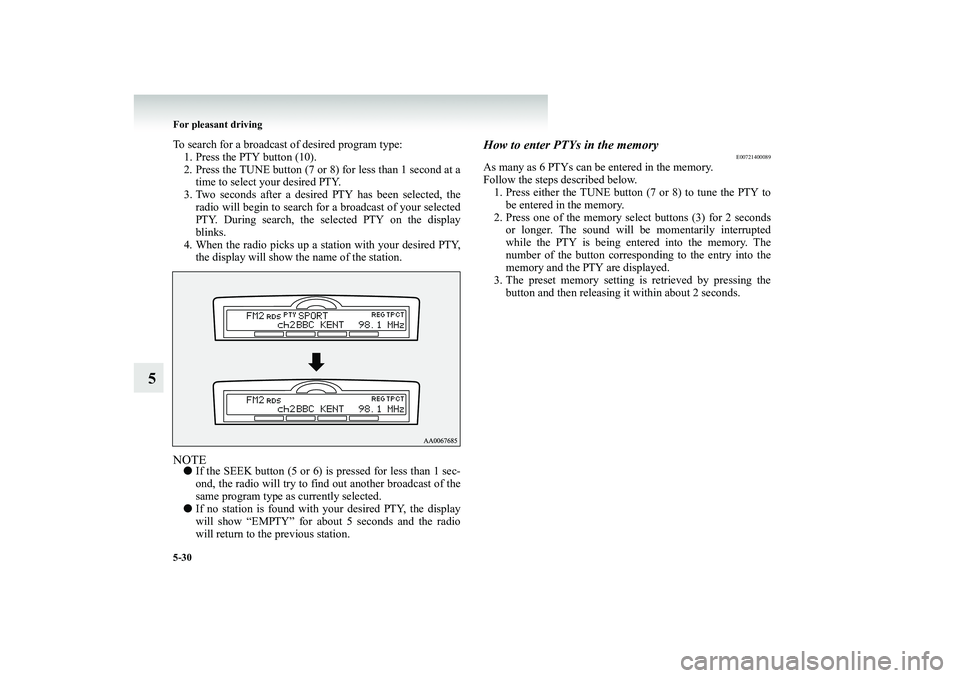

To search for a broadcast of desired program type: 1. Press the PTY button (10). 2. Press the TUNE button (7 or 8) for less than 1 second at a
time to select your desired PTY.
3. Two seconds after a desired PTY has been selected, the
radio will begin to search for a broadcast of your selected PTY. During search, the se
lected PTY on the display
blinks.
4. When the radio picks up a station with your desired PTY,
the display will show the name of the station.
NOTE●
If the SEEK button (5 or 6) is pressed for less than 1 sec- ond, the radio will try to find out another broadcast of the same program type as currently selected.
●
If no station is found with your desired PTY, the display will show “EMPTY” for about 5 seconds and the radio will return to the previous station.
How to enter PTYs in the memory
E00721400089
As many as 6 PTYs can be entered in the memory. Follow the steps described below. 1. Press either the TUNE button (7 or 8) to tune the PTY to
be entered in the memory.
2. Press one of the memory sel
ect buttons (3) for 2 seconds
or longer. The sound will be momentarily interruptedwhile the PTY is being entered into the memory. The number of the button corresponding to the entry into the memory and the PTY are displayed.
3. The preset memory setting is retrieved by pressing the
button and then releasing it within about 2 seconds.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
30 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-31
5

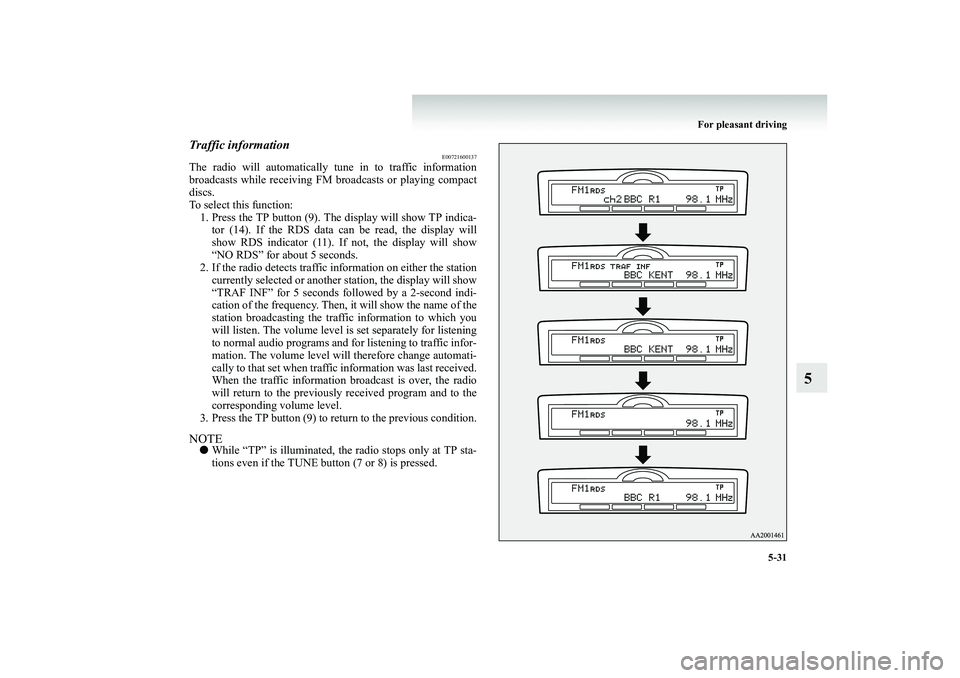

Traffic information
E00721600137
The radio will automatically tune in to traffic information broadcasts while receiving FM
broadcasts or playing compact
discs.To select this function: 1. Press the TP button (9). The display will show TP indica-
tor (14). If the RDS data can
be read, the display will
show RDS indicator (11). If not, the display will show “NO RDS” for about 5 seconds.
2. If the radio detects traffic in
formation on eith
er the station
currently selected or another
station, the display will show
“TRAF INF” for 5 seconds followed by a 2-second indi- cation of the frequency. Then, it will show the name of thestation broadcasting the traf
fic information to which you
will listen. The volume level is set separately for listening to normal audio programs and for listening to traffic infor-mation. The volume level will therefore change automati- cally to that set when traffi
c information was last received.
When the traffic information
broadcast is over, the radio
will return to the previously
received program and to the
corresponding volume level.
3. Press the TP button (9) to return to the previous condition.NOTE●
While “TP” is illuminated, the
radio stops only at TP sta-
tions even if the TUNE button (7 or 8) is pressed.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
31 Wednesday, January 9, 2008 4:41 PM

5-32 For pleasant driving
5

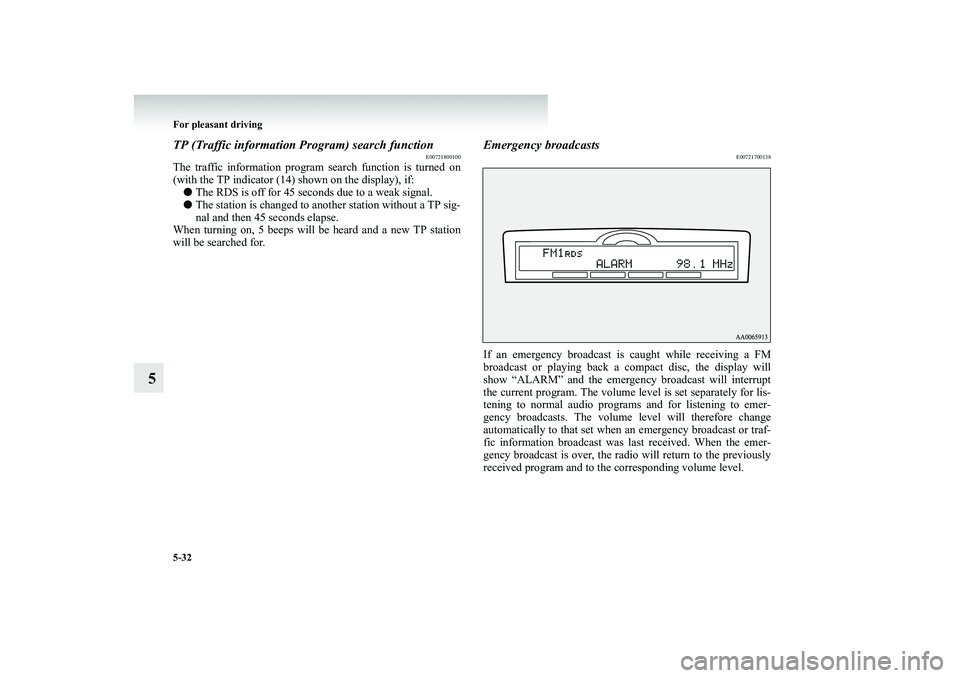

TP (Traffic information Program) search function
E00721800100
The traffic information program
search function is turned on
(with the TP indicator (14) shown on the display), if: ●
The RDS is off for 45 seconds due to a weak signal.
●
The station is changed to another station without a TP sig- nal and then 45 seconds elapse.
When turning on, 5 beeps will
be heard and a new TP station
will be searched for.
Emergency broadcasts
E00721700138
If an emergency broadcast is caught while receiving a FMbroadcast or playing back a
compact disc, the display will
show “ALARM” and the emergency broadcast will interrupt the current program. The volume level is set separately for lis- tening to normal audio programs and for listening to emer-gency broadcasts. The volume
level will therefore change
automatically to that set when
an emergency broadcast or traf-
fic information broadcast was la
st received. When the emer-
gency broadcast is over, the radio will return to the previously received program and to the corresponding volume level.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
32 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-33
5

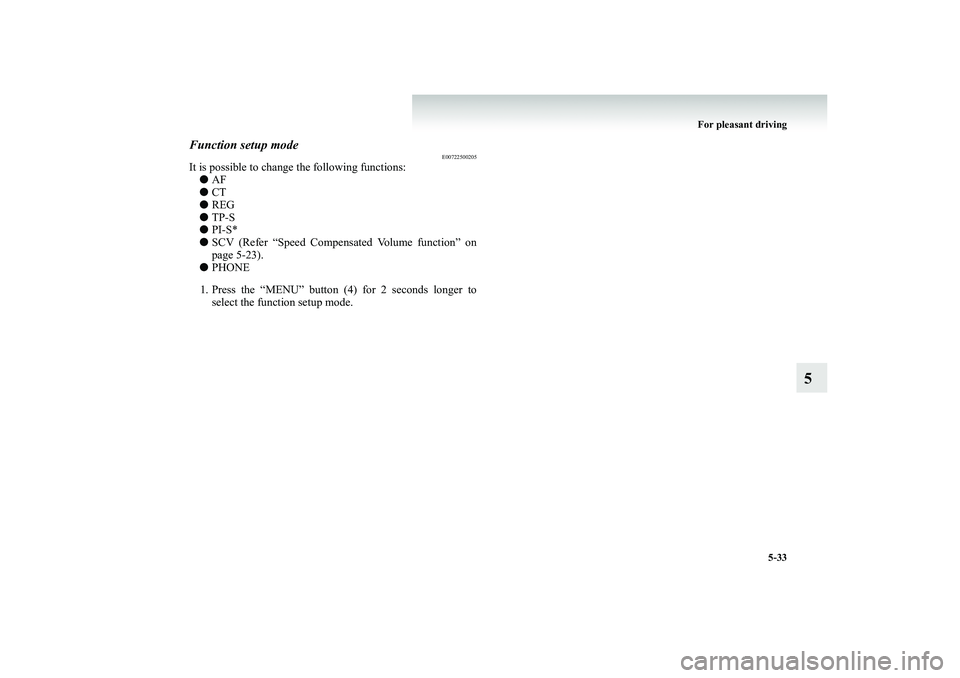

Function setup mode
E00722500205
It is possible to change the following functions: ●
AF
●
CT
●
REG
●
TP-S
●
PI-S*
●
SCV (Refer “Speed Compensated Volume function” on page 5-23).
●
PHONE
1. Press the “MENU” button (4) for 2 seconds longer to
select the function setup mode.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
33 Wednesday, January 9, 2008 4:41 PM

5-34 For pleasant driving
5

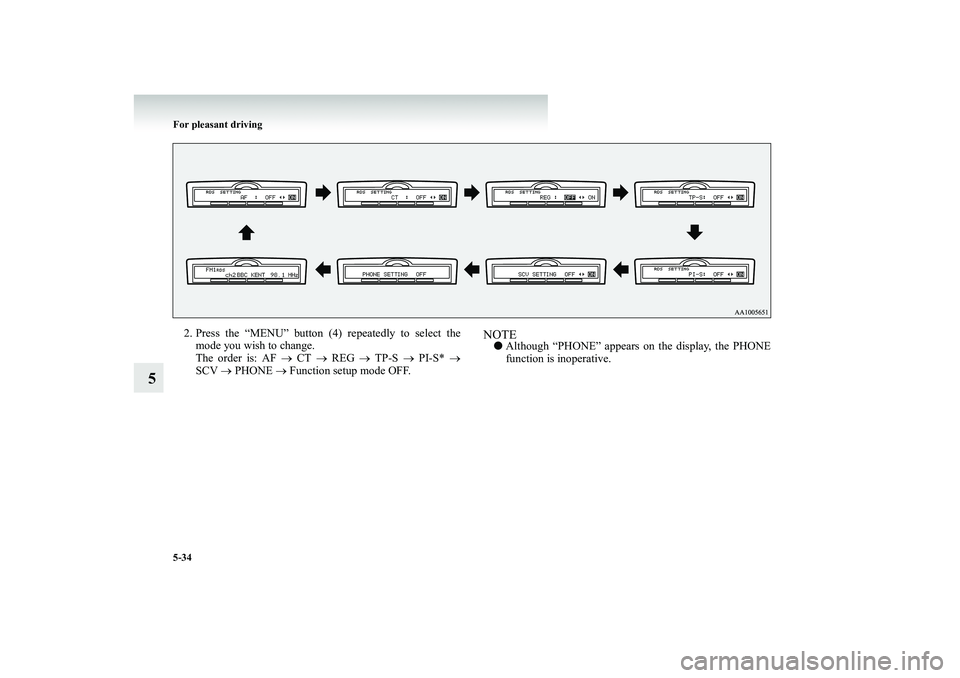

2. Press the “MENU” button (4) repeatedly to select the
mode you wish to change.The order is: AF
→ CT
→ REG
→ TP-S
→ PI-S*
→
SCV
→ PHONE
→ Function setup mode OFF.
NOTE●
Although “PHONE” appears on the display, the PHONE function is inoperative.
