MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

For pleasant driving
5-75
5
●
In the following circumstan
ces, moisture can form on
discs and inside the audio system, preventing normal operation. • When there is high humidity (for example, when it israining). • When the temperature suddenly
rises, such as right after
the heater is turned on in cold weather. In this case, wait until the moisture has had time to dry out.
●
When the CD player is subj
ected to violent vibrations,
such as during off-road dr
iving, the tracking may not
work.
●
When storing compact discs,
always store them in their
separate cases. Never place compact discs in direct sun-light, or in any place where th
e temperature or humidity is
high.
●
Never touch the flat surface of the disc without a label. This will damage the disc surface and could affect the sound quality. When handling a compact disc, alwayshold it by the outer
edge and the centre hole.
●
To clean a disc, use a soft, cl
ean, dry cloth. Wipe directly
from the centre hole toward the outer edge. Do not wipe in a circle. Never use any chemicals such as benzine, paint thinner, a disc spray cleaner, or
an anti-static agent on the
disc.
●
Do not use a ball point pen, felt pen, pencil, etc. to write on the label surface of the disc.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
75 Wednesday, January 9, 2008 4:41 PM

5-76 For pleasant driving
5
●
Do not put additional labels (A) or stickers (B) on com- pact discs. Also, do not use any compact disc on which a label or sticker has started to peel off or any compact disc that has stickiness or other contamination left by a peeled-off label or sticker. If you use such a compact disc, the CD player may stop working properly and you may not be able to eject the compact disc.
Notes on CD-Rs/RWs
E00725100026
●
You may have trouble playing back some CD-R/RW discs recorded on CD recorders (C
D-R/RW drives), either due
to their recording characteris
tics or dirt, fingerprints,
scratches, etc. on the disc surface.
●
CD-R/RW discs are less resistant to high temperatures and high humidity than ordinary music CDs. Leaving them inside a vehicle for extended periods may damage themand make playback impossible.
●
The unit may not successfully play back a CD-R/RW that was made by the combination of writing software, a CDrecorder (CD-R/RW drive) an
d a disc if they are incom-
patible with one another.
●
This player cannot play the
CD-R/RW discs if the session
is not closed.
●
This player cannot play CD-R/RW discs which contain other than CD-DA or MP3 data (Video CD, etc.).
●
Be sure to observe the handling instructions for the CD- R/RW disc.
WARNING
!●
Operating the CD player
in a manner other than
specifically instructed here
in may result in hazard-
ous radiation exposure. Do not remove the coverand attempt to repair the CD player by yourself. There are no user serviceabl
e parts inside. In case of
malfunction, we recommend
you to have it checked.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
76 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-77
5

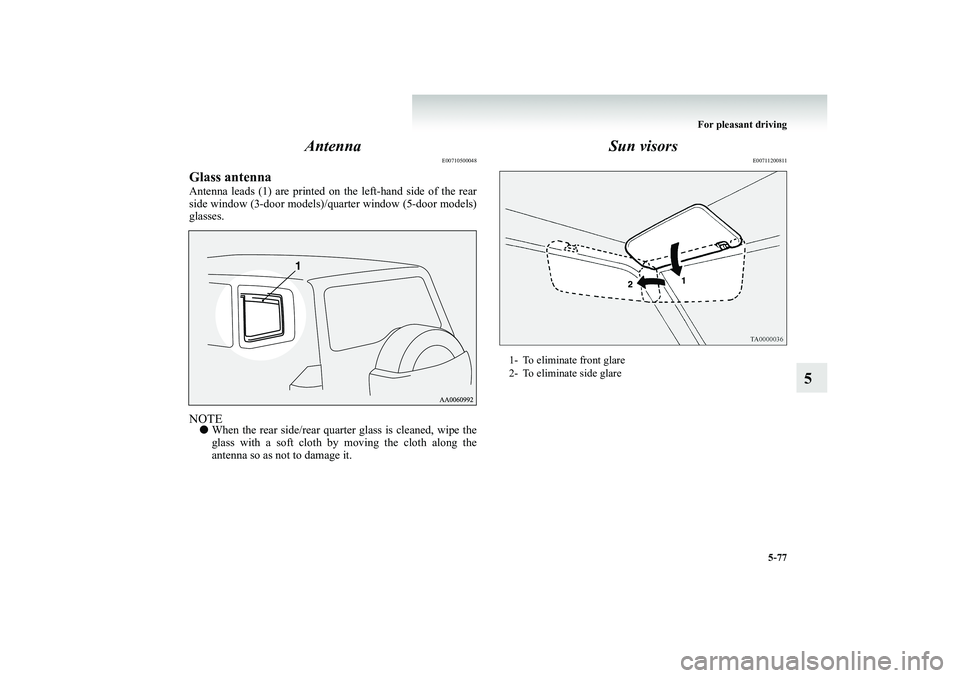

Antenna
E00710500048
Glass antennaAntenna leads (1) are printed on the left-hand side of the rear side window (3-door models)/quarter window (5-door models) glasses.NOTE●
When the rear side/rear quarte
r glass is cleaned, wipe the
glass with a soft cloth by moving the cloth along the antenna so as not to damage it.
Sun visors
E00711200811
1- To eliminate front glare 2- To eliminate side glare
BK-BK2008E1ENUK.en-uk-Section8.fm Page
77 Wednesday, January 9, 2008 4:41 PM

5-78 For pleasant driving
5

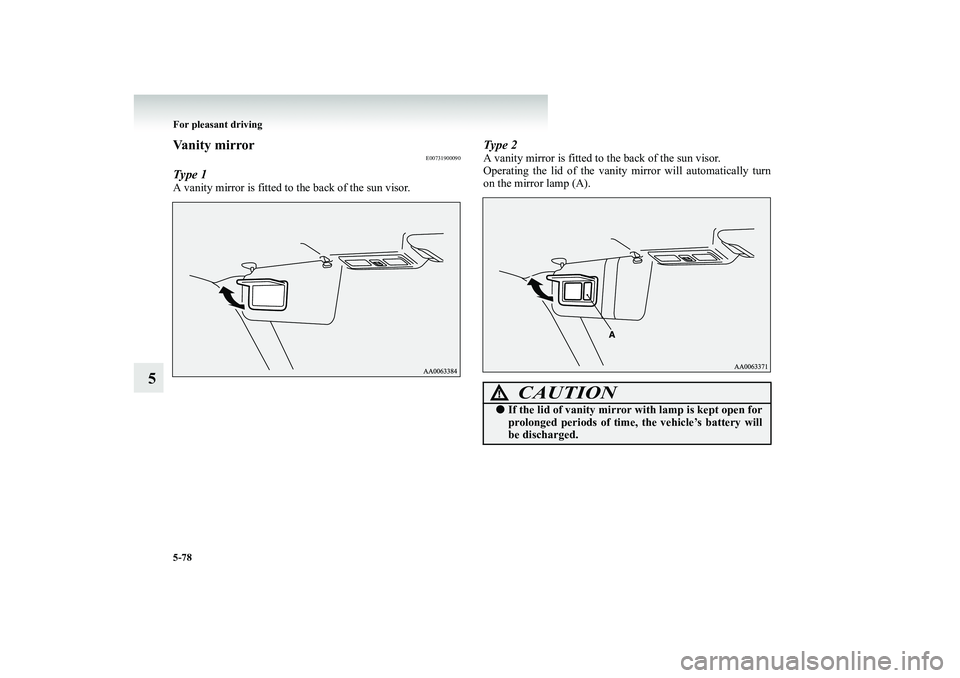

Vanity mirror
E00731900090
Type 1A vanity mirror is fitted to the back of the sun visor.
Type 2A vanity mirror is fitted to the back of the sun visor. Operating the lid of the vanity mirror will automatically turn on the mirror lamp (A).
CAUTION
!●
If the lid of vanity mirror with lamp is kept open for prolonged periods of time,
the vehicle’s battery will
be discharged.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
78 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-79
5

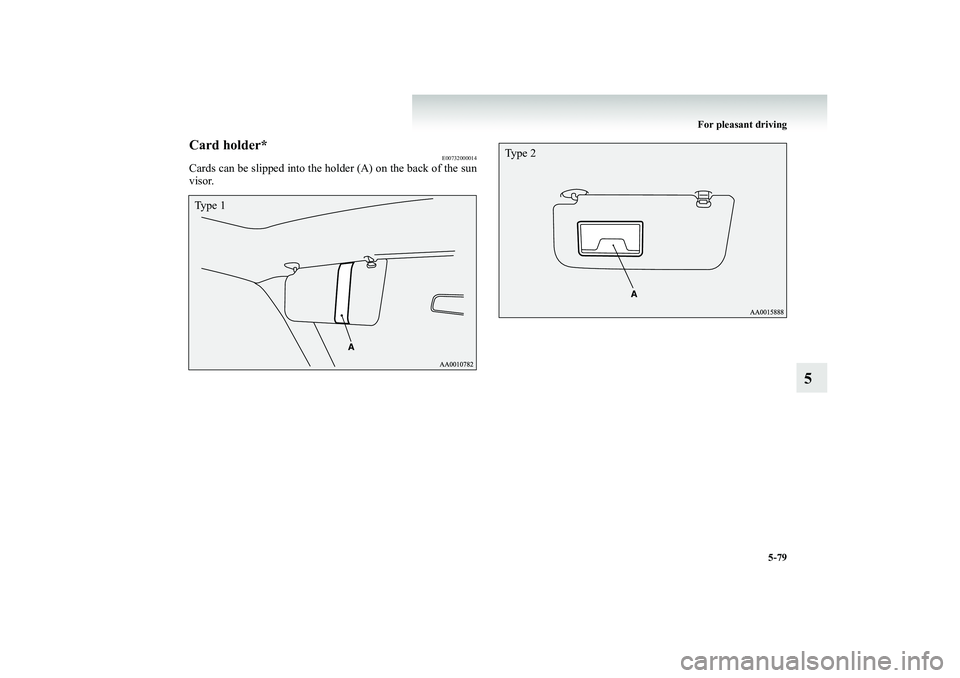

Card holder*
E00732000014
Cards can be slipped into the holder (A) on the back of the sun visor.Type 1
Type 2
BK-BK2008E1ENUK.en-uk-Section8.fm Page
79 Wednesday, January 9, 2008 4:41 PM

5-80 For pleasant driving
5

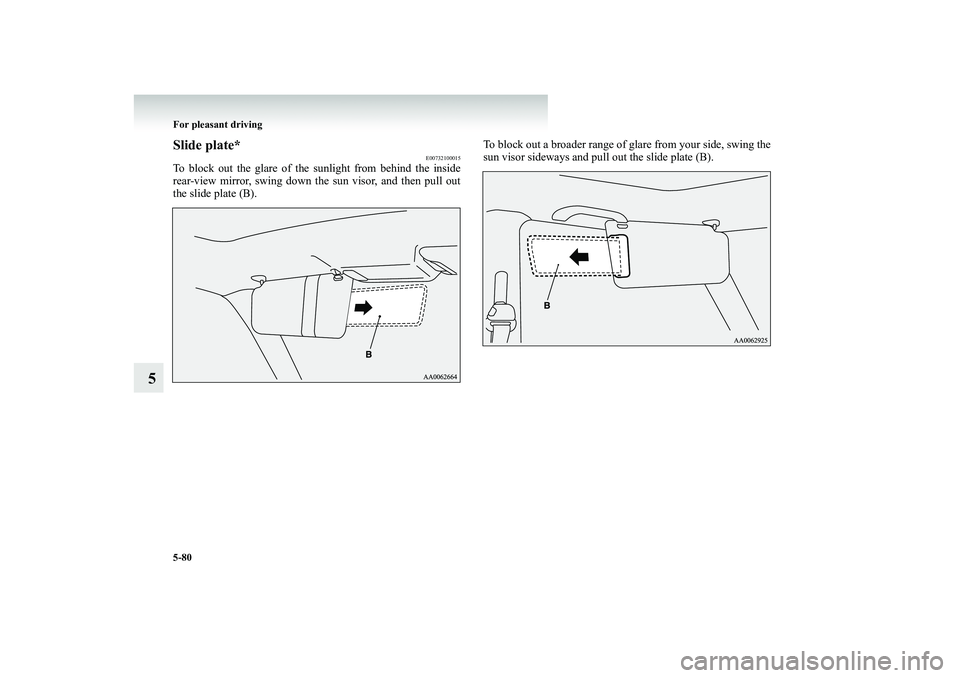

Slide plate*
E00732100015
To block out the glare of the sunlight from behind the inside rear-view mirror, swing down the sun visor, and then pull out the slide plate (B).
To block out a broader range of glare from your side, swing the sun visor sideways and pull out the slide plate (B).
BK-BK2008E1ENUK.en-uk-Section8.fm Page
80 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-81
5

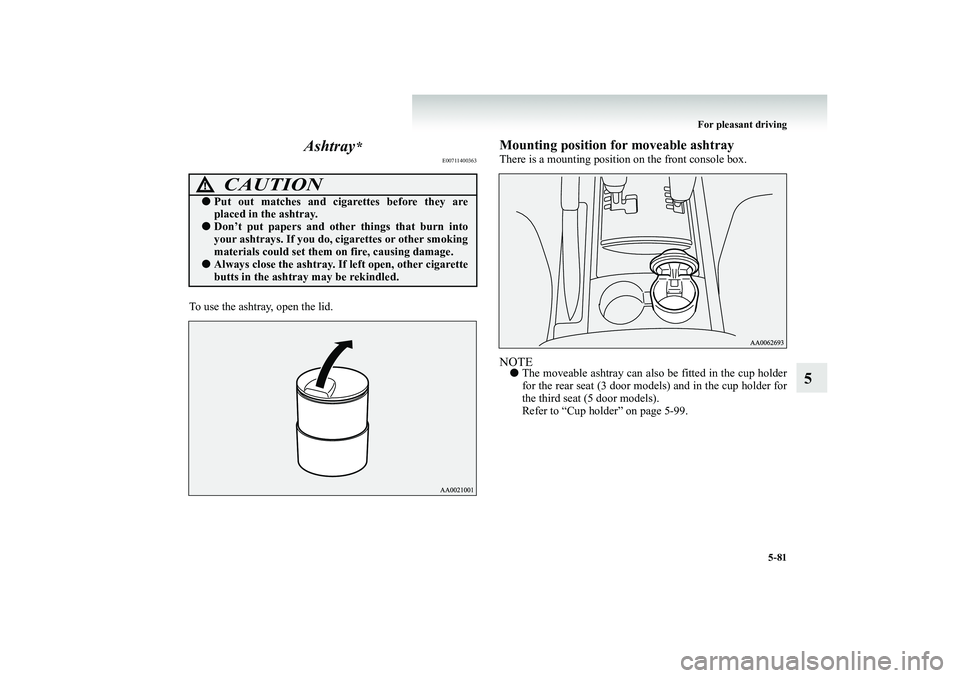

Ashtray
*
E00711400363
To use the ashtray, open the lid.
Mounting position for moveable ashtrayThere is a mounting position on the front console box.NOTE●
The moveable ashtray can also be fitted in the cup holder for the rear seat (3 door models) and in the cup holder for the third seat (5 door models). Refer to “Cup holder” on page 5-99.
CAUTION
!●
Put out matches and cigarettes before they are placed in the ashtray.
●
Don’t put papers and other things that burn into your ashtrays. If you do, cigarettes or other smokingmaterials could set them
on fire, causing damage.
●
Always close the ashtray. If
left open, other cigarette
butts in the ashtray may be rekindled.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
81 Wednesday, January 9, 2008 4:41 PM

5-82 For pleasant driving
5
Cigarette lighter
*
E00711500713
The cigarette lighter can be used
while the ignition switch is in
the “ON” or “ACC” position. The cigarette lighter will automatically return to its original position with a “click” when ready. Pull it out for use. After use, insert the cigarette lighter to its original position inthe socket.NOTE●
Do not leave the cigarette light
er removed from its socket,
because the socket might
become clogged by foreign
material and be short-circuited.
1- Open the lid 2- Push all the way in.
CAUTION
!●
Do not touch the heating
element or the cigarette
lighter housing, hold the kn
ob only to prevent burns.
●
Do not allow children to op
erate or play with the cig-
arette lighter as burns may occur.
●
Something is wrong with th
e cigarette lighter if it
does not pop back out wi
thin approximately 30 sec-
onds of being pushed in.
We recommend you to have
it checked.
●
Do not use any electric
appliance that is not
approved by MITSUBISHI MOTORS. Doing so could damage the socket. If
you used the cigarette
lighter after damaging th
e socket, the cigarette
lighter might pop out or fail to come out after beingpushed in.
●
When the cigarette lighter so
cket is used as a power
source for an electric app
liance, be sure that the
electric appliance operates
at 12 V and has an elec-
tric capacity of 120 W or less. In addition, long use of the electric appliance
without running the engine
may run down the battery.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
82 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-83
5

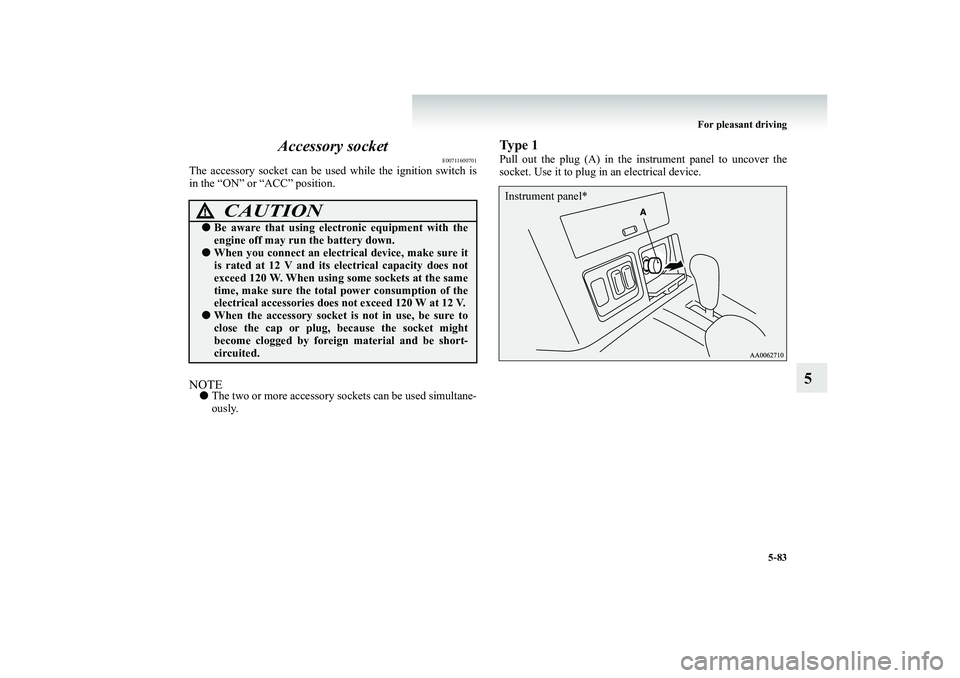

Accessory socket
E00711600701
The accessory socket can be us
ed while the ignition switch is
in the “ON” or “ACC” position.NOTE●
The two or more accessory sock
ets can be used simultane-
ously.
Ty p e 1Pull out the plug (A) in the instrument panel to uncover thesocket. Use it to plug in
an electrical device.
CAUTION
!●
Be aware that using electronic equipment with the engine off may run the battery down.
●
When you connect an electri
cal device, make sure it
is rated at 12 V and its el
ectrical capacity does not
exceed 120 W. When using some sockets at the same time, make sure the total power consumption of theelectrical accessories does
not exceed 120 W at 12 V.
●
When the accessory socket is not in use, be sure to close the cap or plug, because the socket mightbecome clogged by foreig
n material and be short-
circuited.
Instrument panel*
BK-BK2008E1ENUK.en-uk-Section8.fm Page
83 Wednesday, January 9, 2008 4:41 PM

5-84 For pleasant driving
5

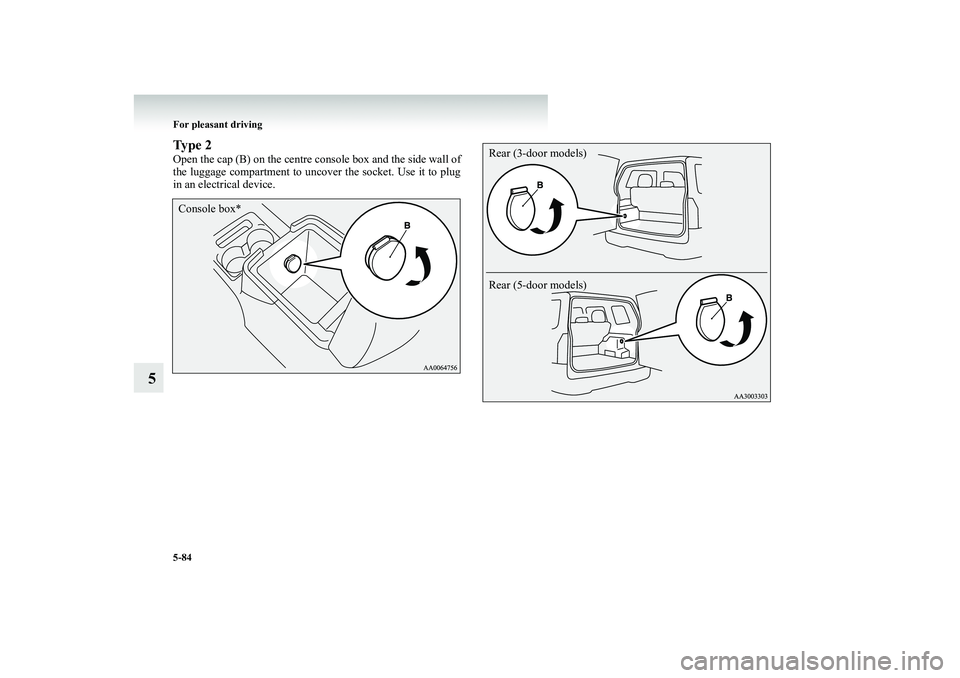

Ty p e 2Open the cap (B) on the centre console box and the side wall of the luggage compartment to unc
over the socket. Use it to plug
in an electrical device.Console box*
Rear (3-door models) Rear (5-door models)
BK-BK2008E1ENUK.en-uk-Section8.fm Page
84 Wednesday, January 9, 2008 4:41 PM
