MITSUBISHI SHOGUN 2008 Owner's Manual (in English)

For pleasant driving
5-85
5

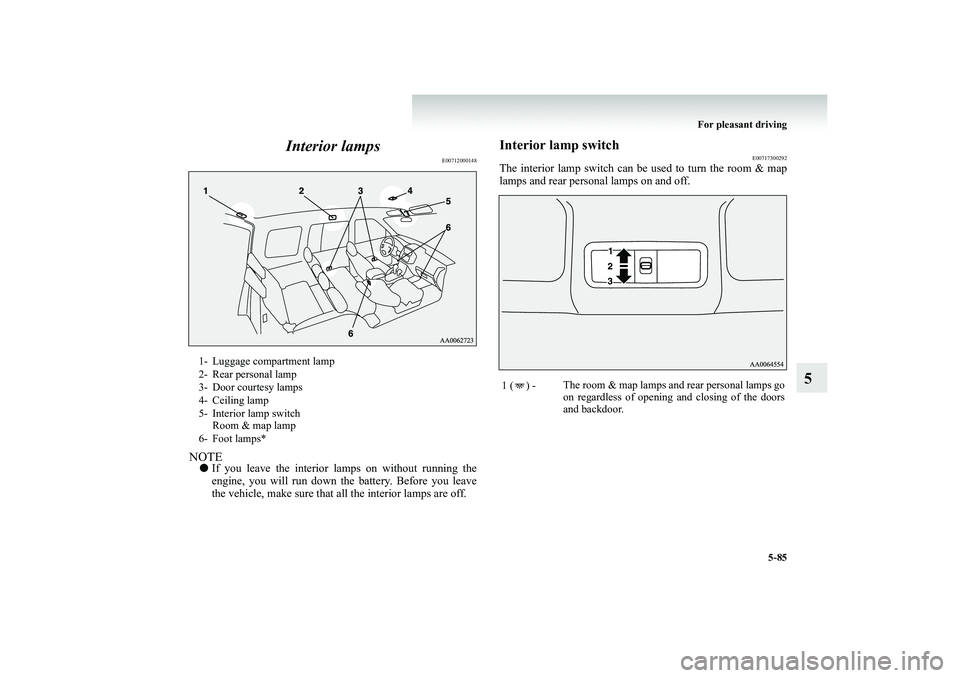

Interior lamps
E00712000148
NOTE●
If you leave the interior lamps on without running the engine, you will run down the battery. Before you leavethe vehicle, make sure that
all the interior lamps are off.
Interior lamp switch
E00717300292
The interior lamp switch can be used to turn the room & map lamps and rear personal lamps on and off.
1- Luggage compartment lamp 2- Rear personal lamp 3- Door courtesy lamps 4- Ceiling lamp5- Interior lamp switch
Room & map lamp
6- Foot lamps*
1 ( ) -
The room & map lamps and rear personal lamps go on regardless of opening and closing of the doorsand backdoor.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
85 Wednesday, January 9, 2008 4:41 PM

5-86 For pleasant driving
5
2(DOOR) - The room & map lamps and rear personal lamps go
on when any of the doors or the backdoor isopened. When all doors and backdoor are closed,the room & map lamps and rear personal lamps areilluminated and dimmed gradually for 15 secondsand then go off.However, the lamps go off immediately withoutbeing dimmed in the following cases:●
The doors and backdoor are closed and the ignition switch is turned to the “ON” position.
●
All doors and backdoor are locked using the key mechanism of the driver’s door, the cen-tral door lock switch, or the remote controlswitch of the keyless entry system (if soequipped).
NOTE●
On vehicles with keyless entry system, if the ignition key is removed with the doors andbackdoor closed, the room & map lamps andrear personal lamps are illuminated for 15seconds and then go off.The dimming period is also adjustable.For further information, we recommend youto consult a MITSUBISHI MOTORS Author-ized Service Point.
●
When the room & map lamp switch is in the “ON” position, closing the doors and back-door does not cause the room & map lamps togo off.
3 ( ) -
The room & map lamps and rear personal lamps are off regardless of opening and closing of thedoors and backdoor.NOTE●
When the room & map lamp switch is in the “ON” position, the interior lamp switch can-not be used to turn off the room & map lamps.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
86 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-87
5

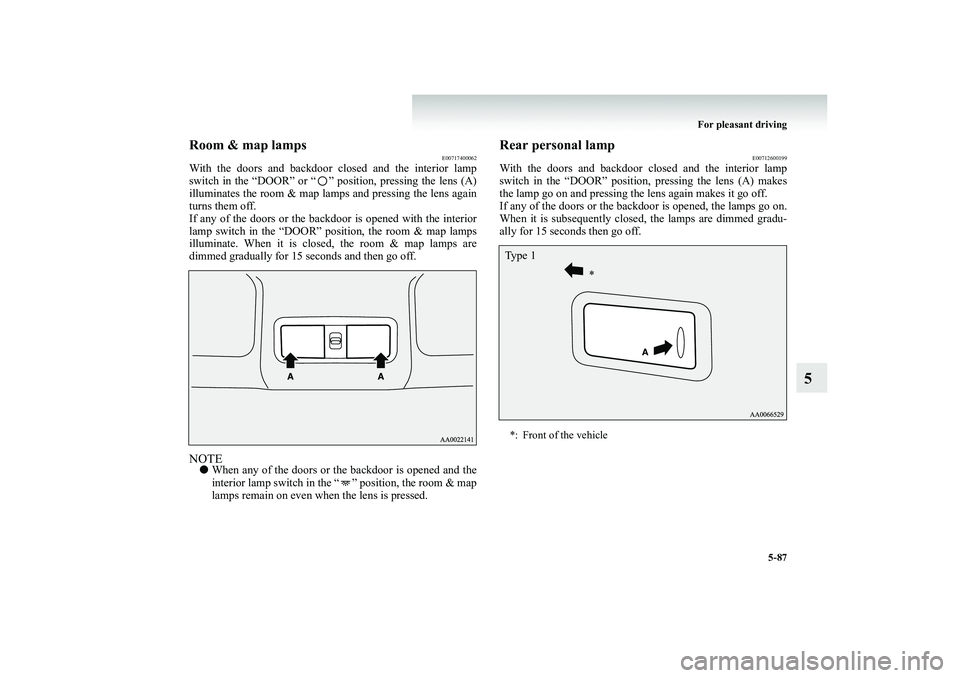

Room & map lamps
E00717400062
With the doors and backdoor
closed and the interior lamp
switch in the “DOOR” or “ ” position, pressing the lens (A) illuminates the room & map lamps and pressing the lens again turns them off.If any of the doors or the backdoor is opened with the interior lamp switch in the “DOOR” position, the room & map lamps illuminate. When it is closed, the room & map lamps aredimmed gradually for 15 seconds and then go off.NOTE●
When any of the doors or the backdoor is opened and the interior lamp switch in the “ ” position, the room & map lamps remain on even when the lens is pressed.
Rear personal lamp
E00712600199
With the doors and backdoor closed and the interior lamp switch in the “DOOR” position, pressing the lens (A) makes the lamp go on and pressing the lens again makes it go off. If any of the doors or the backdoor is opened, the lamps go on.When it is subsequently clos
ed, the lamps are dimmed gradu-
ally for 15 seconds then go off.*: Front of the vehicleType 1
*
BK-BK2008E1ENUK.en-uk-Section8.fm Page
87 Wednesday, January 9, 2008 4:41 PM

5-88 For pleasant driving
5
NOTE●
When the interior lamp switch is in the “ ” position, the lamp remains off even when the lens (A) is pressed and any of the doors or the backdoor is opened.
Luggage compartment lamp
E00712700262
*: Front of the vehicleTy p e 2
*
1 ( ) -
The lamp illuminates.
2 ( ) -
The lamp goes on when any of the doors or the back- door is opened. When all doors and the backdoor areclosed, the lamp is illuminated for 15 seconds thengoes off.However, the lamp goes off immediately withoutbeing dimmed in case of the followings:●
The ignition switch is turned to the “ON” posi- tion.
●
All doors and the backdoor are locked using the key mechanism of the driver’s door, the centraldoor lock switch, or the remote control switch ofthe keyless entry system (if so equipped).
BK-BK2008E1ENUK.en-uk-Section8.fm Page
88 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-89
5
Foot lamps and ceiling lamp
E00726600086
The front foot lamps (A), rear foot lamp (B) and ceiling lamp (C) operate when the interior lamp switch is in the “DOOR” position. The lamps go on in case of the followings:●
Any of the doors or the backdoor is opened.
●
The ignition switch is turned to the “ON” position.
●
All doors and backdoor are unlocked using the key mech- anism of the driver’s door, th
e central door lock switch or
the remote control switch of the keyless entry system (vehicle with keyless entry system).
NOTE●
On vehicles with keyless entry system, when the ignition key is removed with the doors and thebackdoor closed, the lamp is illuminated for15 seconds then goes off.The dimming period is also adjustable.For further information, we recommended you toconsult a MITSUBISHI MOTORS AuthorizedService Point.
3 ( ) - The lamp goes off.
Front foot lamps*
BK-BK2008E1ENUK.en-uk-Section8.fm Page
89 Wednesday, January 9, 2008 4:41 PM

5-90 For pleasant driving
5
NOTE●
When the ignition switch is turned from the “ON” posi- tion to the “ACC” or “LOCK” position, the lamps illumi- nate for 15 seconds and then go off.
●
All doors and backdoor are un
locked using the key mech-
anism of the driver’s door, th
e central door lock switch or
the remote control switch
of the keyless entry system
(vehicle with keyless entry system), the lamps illuminatefor 15 seconds and then go off.
●
When any of the doors or the backdoor is opened without the ignition switch in the “ON” position, the lamps illumi-nate. When it is closed, the lamps stay on for 30 seconds and then go off. However, the lamps go off immediately when all doorsare closed and locked using the key mechanism of the driver’s door, the central d
oor lock switch, the remote
control switch of the keyless entry system (vehicle withkeyless entry system).
●
If you want the foot lamps and ceiling lamp to go off while driving, select the interior lamp switch in the “ ”position.
Rear foot lamp*Ceiling lampBK-BK2008E1ENUK.en-uk-Section8.fm Page
90 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-91
5

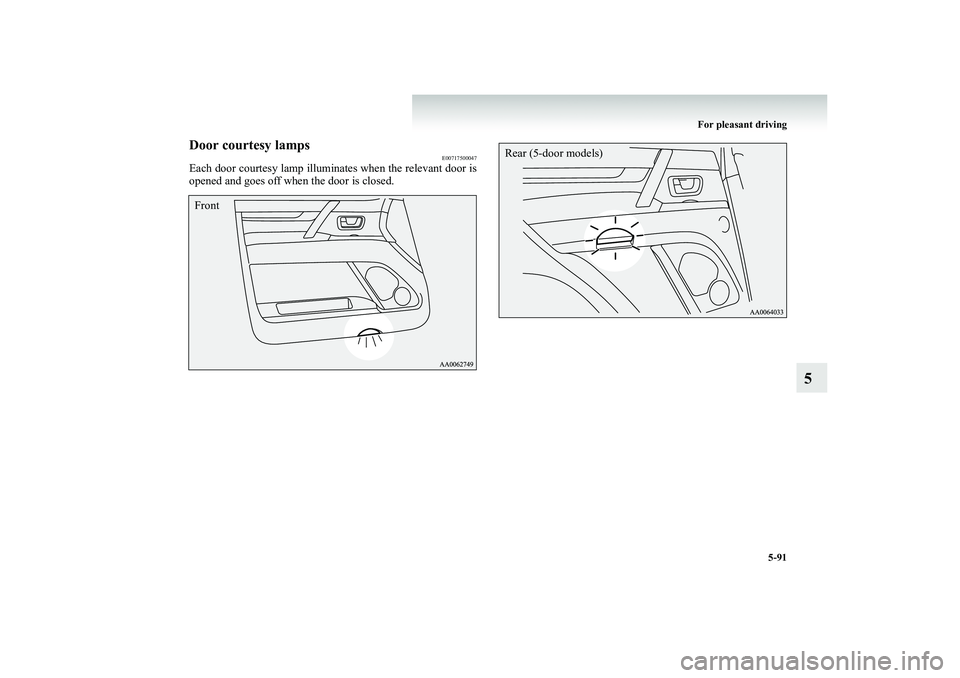

Door courtesy lamps
E00717500047
Each door courtesy lamp illuminates when the relevant door is opened and goes off when the door is closed.Front
Rear (5-door models)
BK-BK2008E1ENUK.en-uk-Section8.fm Page
91 Wednesday, January 9, 2008 4:41 PM

5-92 For pleasant driving
5
Lamps (room lamps, etc.
) auto-cutout function
(Vehicle with keyless entry system)
E00712900613
If any of the interior lamps are
left switched on with the igni-
tion key in any position other than “ON” or “ACC”, it goes offautomatically after approximately
30 minutes to prevent com-
plete discharge of the battery. The lamp goes on again if the ignition key is turned to the“ON” or “ACC” position, any door or backdoor is opened and closed, or the keyless entry
remote control is operated.
NOTE●
The interior lamp auto-cut fu
nction period can be adjusted
or deactivated. We recomm
end you to consult a MIT-
SUBISHI MOTORS Authorized Service Point for detailed information and assistance.
Storage spaces
E00713100885
NOTE●
Do not leave valuables in an
y storage space when leaving
the vehicle.
CAUTION
!●
Never leave lighters, cans
of carbonated drink, and
spectacles in the cabin when parking the vehicle in hot sunshine. The cabin w
ill become extremely hot,
so lighters and other fla
mmable items may catch fire
and unopened drink cans (i
ncluding beer cans) may
rupture. The heat may also
deform or crack plastic
spectacle lenses and other spectacle parts that aremade of plastic.
●
Keep the lids of storage sp
aces closed while driving
the vehicle. A lid or the co
ntents of a storage space
could otherwise cause injuries.
BK-BK2008E1ENUK.en-uk-Section8.fm Page
92 Wednesday, January 9, 2008 4:41 PM

For pleasant driving
5-93
5
Glove box
E00717600657
The glove box can be locked and unlocked using the key.
1- Sunglasses holder* 2- Glove box 3- Accessory box* 4- Centre console box5- Side box* 6- Luggage floor box
1- To lock2- To unlock 3- To open, pull the lever
BK-BK2008E1ENUK.en-uk-Section8.fm Page
93 Wednesday, January 9, 2008 4:41 PM

5-94 For pleasant driving
5
NOTE●

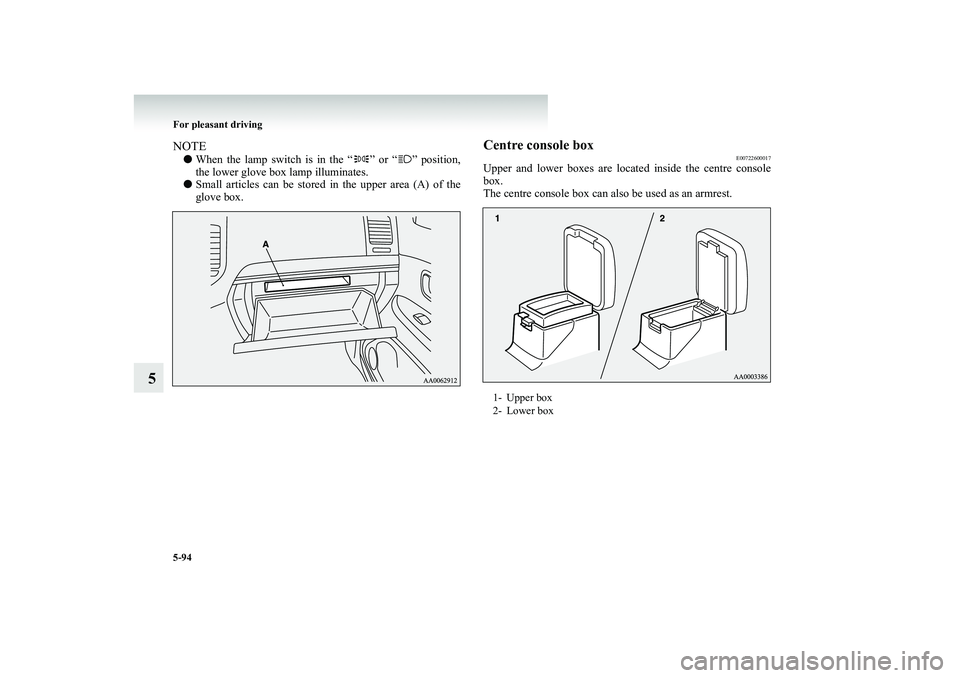

When the lamp switch is in the “ ” or “ ” position, the lower glove box lamp illuminates.
●
Small articles can be stored in the upper area (A) of the glove box.
Centre console box
E00722600017
Upper and lower boxes are locat
ed inside the centre console
box. The centre console box can also
be used as an armrest.
1- Upper box 2- Lower box
BK-BK2008E1ENUK.en-uk-Section8.fm Page
94 Wednesday, January 9, 2008 4:41 PM
