CHARGING SYSTEM -Alternator-
Reasi
Carefully observe the following instructions
1 When soldering each stator coil lead wire to
diode assembly terminal, carry out the opera-
tion
as fast as possible
2 When soldering brush lead wire, observe the
following
Position brush so that its wear limit line
protrudes 2 mm (0 08 in) beyond end face
of brush holder
Solder points
SEL6320
3 Fit ring into groove in rear bearing so that it is
as close to the adjacent area as possible.
Quantity of prorrusion FIX ring at the position of minimum protrusion
mbly
4 Before installing front cover with pulley and
rotor with
rear cover, push brush up with
fingers and retain brush, by inserting brush
lift
into brush lift hole from outside
After installing, remove wire for brush
lift
EE540
EE541
5 After installing front and rear sides of alter-
nator, pull brush lift by pushing toward center
Do not pull brush lift by pushing toward outside
of cover as it will damage slip ring sliding surface.
EL-21
Page 60 of 116

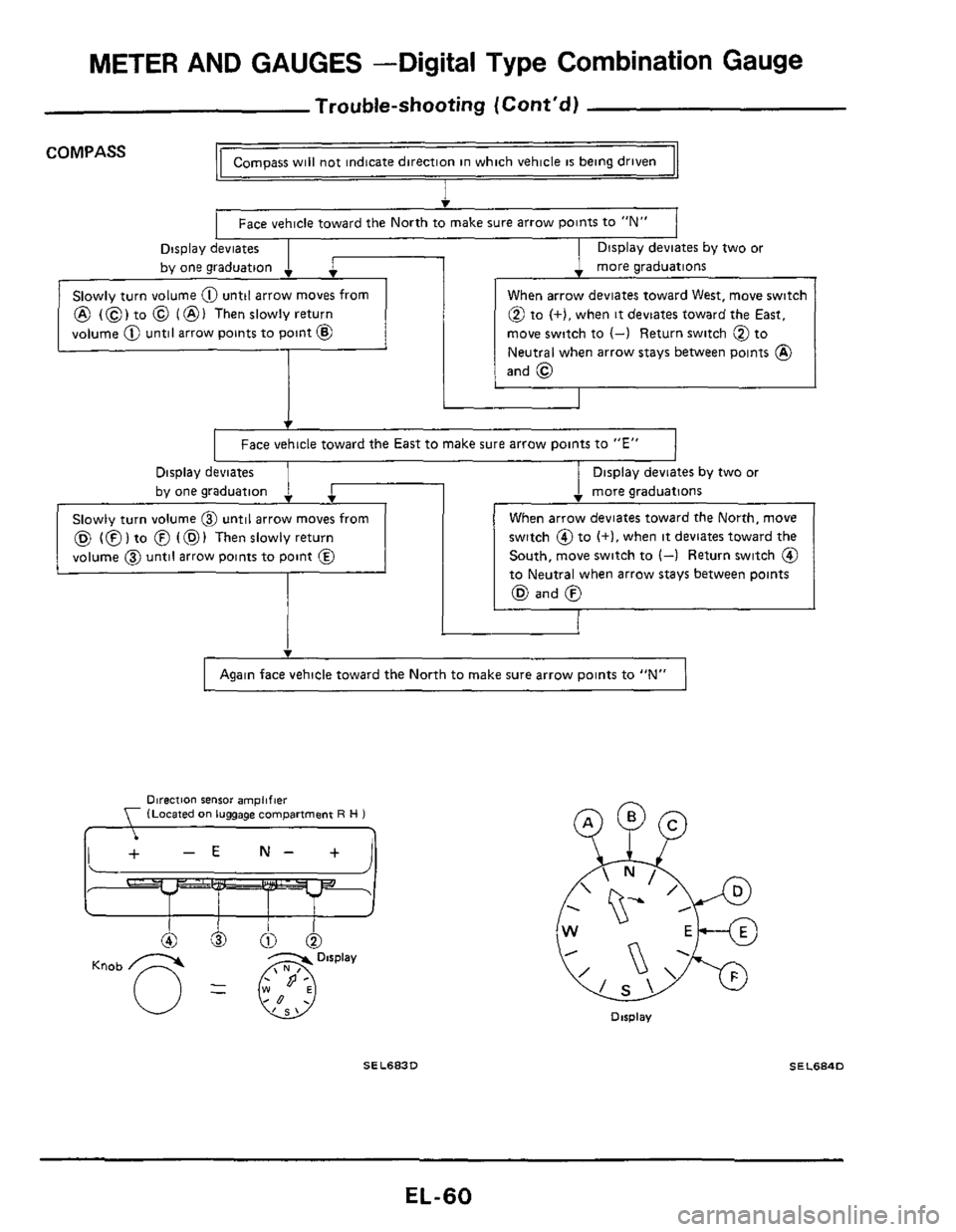

METER AND GAUGES -Digital Type Combination Gauge
,- Trouble-shooting (Cont'd)
Compass will not indicate direction in which vehicle is being driven COMPASS
I
Face vehicle toward the North to make sure arrow points to "N"
Display deviates
by one graduation
. more graduations
Display deviates by two or
. 1 SIOWI~ turn volume 0 until arrow moves from
@ (0) to @ (@I Thenslowlyreturn
volume
@ until arrow points to point @
When arrow deviates toward West, move switch
@ to (+),when it deviates toward the East,
move switch to
(-) Return switch @ to
Neutral when arrow stays between points
@)
and @
I Face vehicle toward the East to make sure arrow points to "E" 1
Display deviates
SIOWIV turn volume @ until arrow moves from
(Q (0) to @ (@I Then slowly return
volume
@ until arrow points to point @
1 Display deviates by two or
. more graduations
switch @to (+I, when it deviates toward the
South, move switch
to (4 Return switch @
to Neutral when arrow stays between points
(Q and 0
I Again face vehicle toward the North to make sure arrow points to "N" 1
Direction sensor amplifier (Located on luggage compartment R H 1 , ,
Dirplav
SEL683D SEL684D
EL-60
