NISSAN 350Z 2005 Z33 Navigation Manual

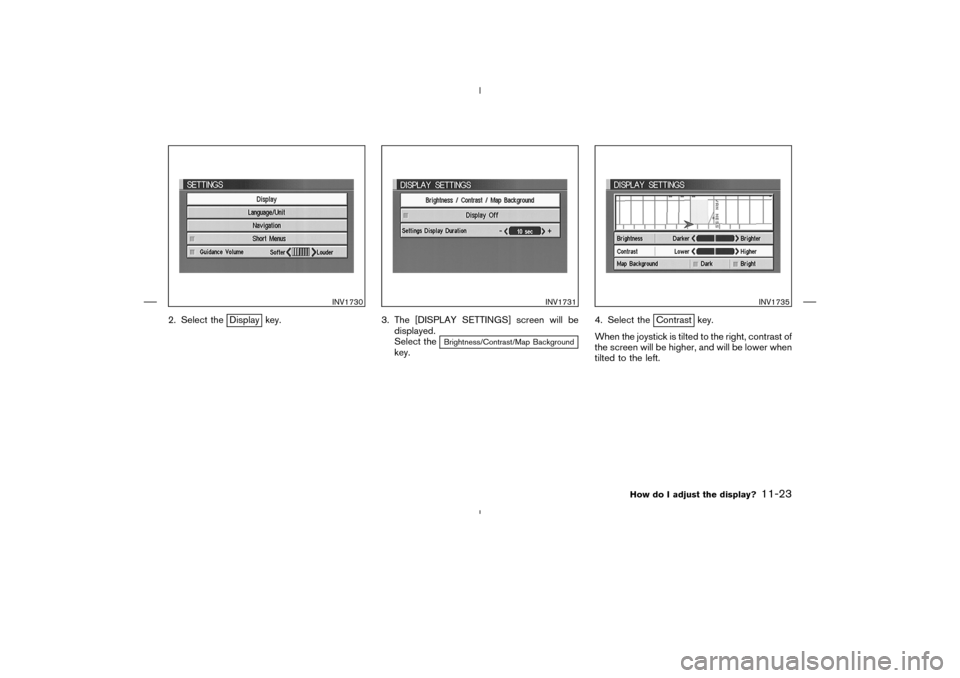

2. Select the
Display key. 3. The [DISPLAY SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key.4. Select the
Contrast key.
When the joystick is tilted to the right, contrast of
the screen will be higher, and will be lower when
tilted to the left.
INV1730
INV1731
INV1735
How do I adjust the display?
11-23


04.7.6/Z33-N


SWITCHING THE DISPLAY COLOR1. Press the SETTING button.
2. Select the
Display key. 3. The [DISPLAY SETTINGS] screen will be
displayed.
Select the
Brightness/Contrast/Map Background
key.
INV1730
INV1731
11-24
How do I adjust the display?


04.7.6/Z33-N

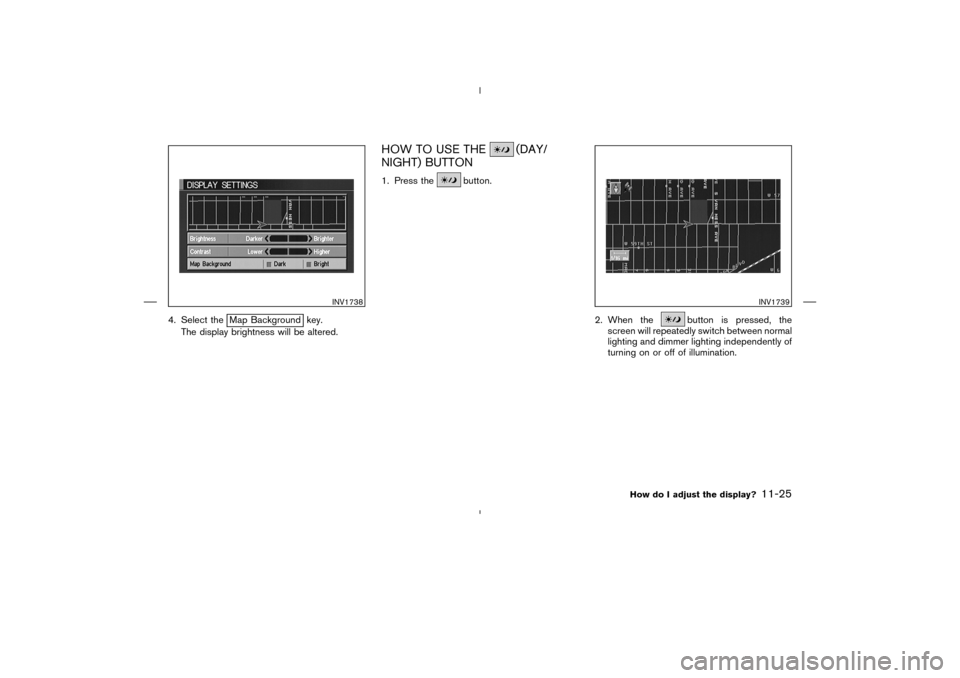

4. Select the
Map Background key.
The display brightness will be altered.
HOW TO USE THE
(DAY/
NIGHT) BUTTON
1. Press the
button.
2. When the
button is pressed, the
screen will repeatedly switch between normal
lighting and dimmer lighting independently of
turning on or off of illumination.
INV1738
INV1739
How do I adjust the display?
11-25


04.7.6/Z33-N


DISPLAY OFFThe display can be turned off with the following
procedure.
1. Press the SETTING button.
2. Select the
Display key. 3. The [DISPLAY SETTINGS] screen will be
displayed.
Select the
Display Off key.
The indicator of the [DISPLAY OFF] will turn
green.
INV1730
INV1741
11-26
How do I adjust the display?


04.7.6/Z33-N


4. A comment will be displayed for 5 seconds
and the display will turn off.
To restart the display, press the SETTING
button and select the
Display Off key again.
INFO:

When the INFO and MAP buttons are
pressed with the display turned off, the
screen shows normally, then the display turns
off again.

When the
button is pressed with the
display turned off, the display brightness is
changed when the screen is re-displayed.
SETTING DISPLAY DURATIONYou can set the display duration time.
1. Press the SETTING button.
2. Select the
Display key.
INV1742
INV1730
How do I adjust the display?
11-27


04.7.6/Z33-N


3. The [DISPLAY SETTINGS] screen will be
displayed.
Select the
Setting Display Duration key.
INFO:
When you finish setting the display duration
time, the display will return to the previous
display automatically.The display uses liquid crystal and should be
handled with care.
WARNING
Never disassemble the display. It has
some areas with extreme high voltage.
Touching it may result in serious per-
sonal injury.CHARACTERISTICS OF LIQUID
CRYSTAL DISPLAY
If the temperature inside the vehicle is espe-
cially low, the display will stay relatively dim or
the movement of the images may be slow.
These conditions are normal; when the tem-
perature rises, the display will function nor-
mally.

You may notice darker or brighter dots in
parts of the display; this is inherent in monitor
displays and is not a malfunction.

You may also notice a remnant of the previ-
ous display image on the screen. This after-
image is inherent in displays and is not
abnormal.INFO:
The screen may become distorted by strong
magnetic fields.
MAINTENANCE OF THE DISPLAY
CAUTION

To clean the display, never use a
rough cloth, alcohol, benzine, thin-
ner, any kind of solvent, or paper
towel with chemical cleaning agent.
They will scratch or deteriorate the
panel.

Do not splash any liquid such as
water or car fragrance on the display.
Contact with liquid will cause the
system to malfunction.
If you need to clean the display screen, use a dry
soft cloth. If additional cleaning is necessary, use
a small amount of neutral detergent with a soft
cloth. Never soak the exterior with water or
detergent.
INV1744
HOW TO HANDLE THE DISPLAY
11-28
How do I adjust the display?


04.7.6/Z33-N


12 How do I use the vehicle information?Maintenance information.................................................... 12-2


04.7.6/Z33-N

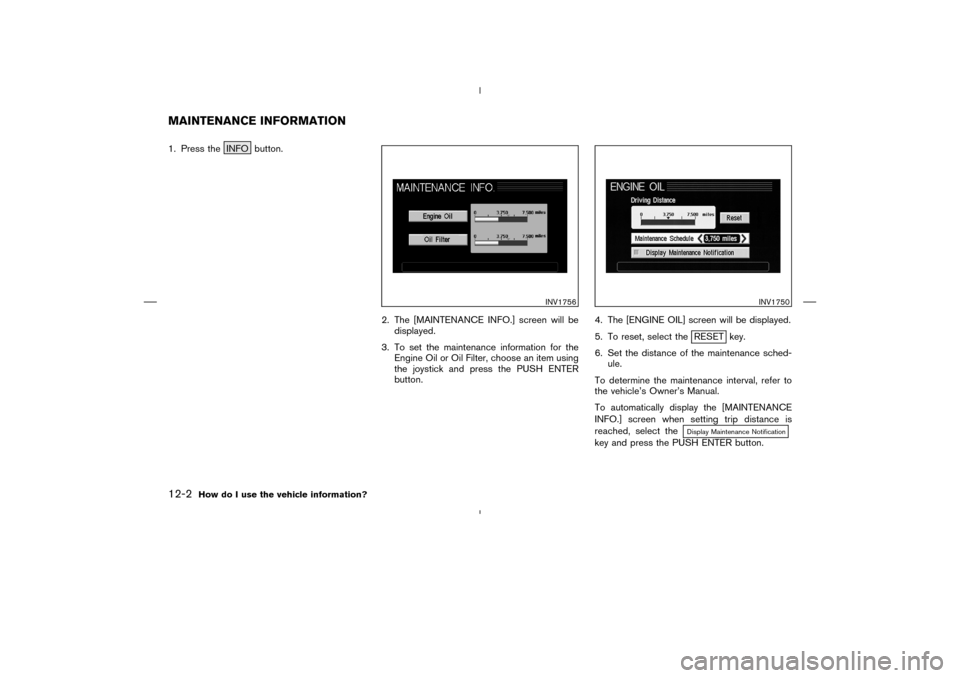

1. Press the INFO button.
2. The [MAINTENANCE INFO.] screen will be
displayed.
3. To set the maintenance information for the
Engine Oil or Oil Filter, choose an item using
the joystick and press the PUSH ENTER
button.4. The [ENGINE OIL] screen will be displayed.
5. To reset, select the
RESET key.
6. Set the distance of the maintenance sched-
ule.
To determine the maintenance interval, refer to
the vehicle’s Owner’s Manual.
To automatically display the [MAINTENANCE
INFO.] screen when setting trip distance is
reached, select theDisplay Maintenance Notification
key and press the PUSH ENTER button.
INV1756
INV1750
MAINTENANCE INFORMATION12-2
How do I use the vehicle information?


04.7.6/Z33-N


13 Information on map data discsHow to order map data DVD-ROM updates ............... 13-2
How to handle the DVD-ROM ........................................ 13-2
About the navigation map DVD-ROM .................... 13-2
Icons ................................................................................. 13-3
Abbreviations definition list ............................................... 13-6


04.7.6/Z33-N


To order updated mapping DVD-ROMs or addi-
tional DVD-ROMs, please contact the NISSAN
NAVIGATION SYSTEM HELPDESK at:

ADDRESS: P.O. Box 2082, Burlingame, CA
94011

E-MAIL: [email protected]

WEB SITE: www.zenrin.com

PHONE: 1-888-661-9995

HOURS: 6:00 AM to 5:00 PM (Pacific Time)

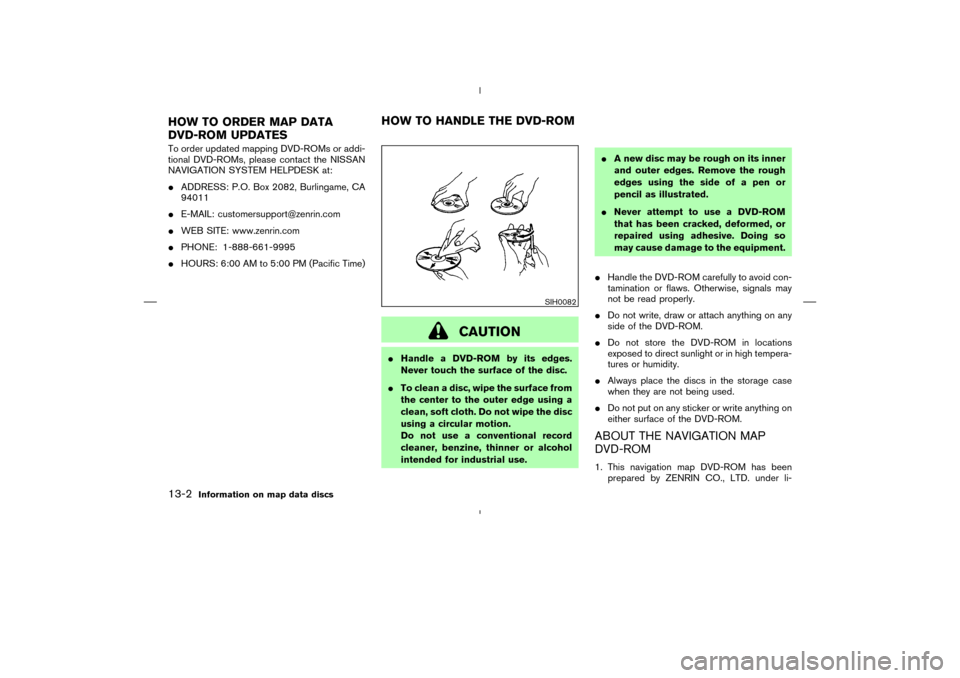

CAUTION

Handle a DVD-ROM by its edges.
Never touch the surface of the disc.

To clean a disc, wipe the surface from
the center to the outer edge using a
clean, soft cloth. Do not wipe the disc
using a circular motion.
Do not use a conventional record
cleaner, benzine, thinner or alcohol
intended for industrial use.
A new disc may be rough on its inner
and outer edges. Remove the rough
edges using the side of a pen or
pencil as illustrated.

Never attempt to use a DVD-ROM
that has been cracked, deformed, or
repaired using adhesive. Doing so
may cause damage to the equipment.

Handle the DVD-ROM carefully to avoid con-
tamination or flaws. Otherwise, signals may
not be read properly.

Do not write, draw or attach anything on any
side of the DVD-ROM.

Do not store the DVD-ROM in locations
exposed to direct sunlight or in high tempera-
tures or humidity.

Always place the discs in the storage case
when they are not being used.

Do not put on any sticker or write anything on
either surface of the DVD-ROM.
ABOUT THE NAVIGATION MAP
DVD-ROM1. This navigation map DVD-ROM has been
prepared by ZENRIN CO., LTD. under li-
SIH0082
HOW TO ORDER MAP DATA
DVD-ROM UPDATESHOW TO HANDLE THE DVD-ROM13-2
Information on map data discs


04.7.6/Z33-N
