NISSAN 350Z 2007 Z33 Automatic Transmission Workshop Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: 350Z, Model: NISSAN 350Z 2007 Z33Pages: 312, PDF Size: 10.64 MB
Page 241 of 312
AIR BREATHER HOSE
AT-241
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
AIR BREATHER HOSEPFP:31098
Removal and InstallationNCS00096

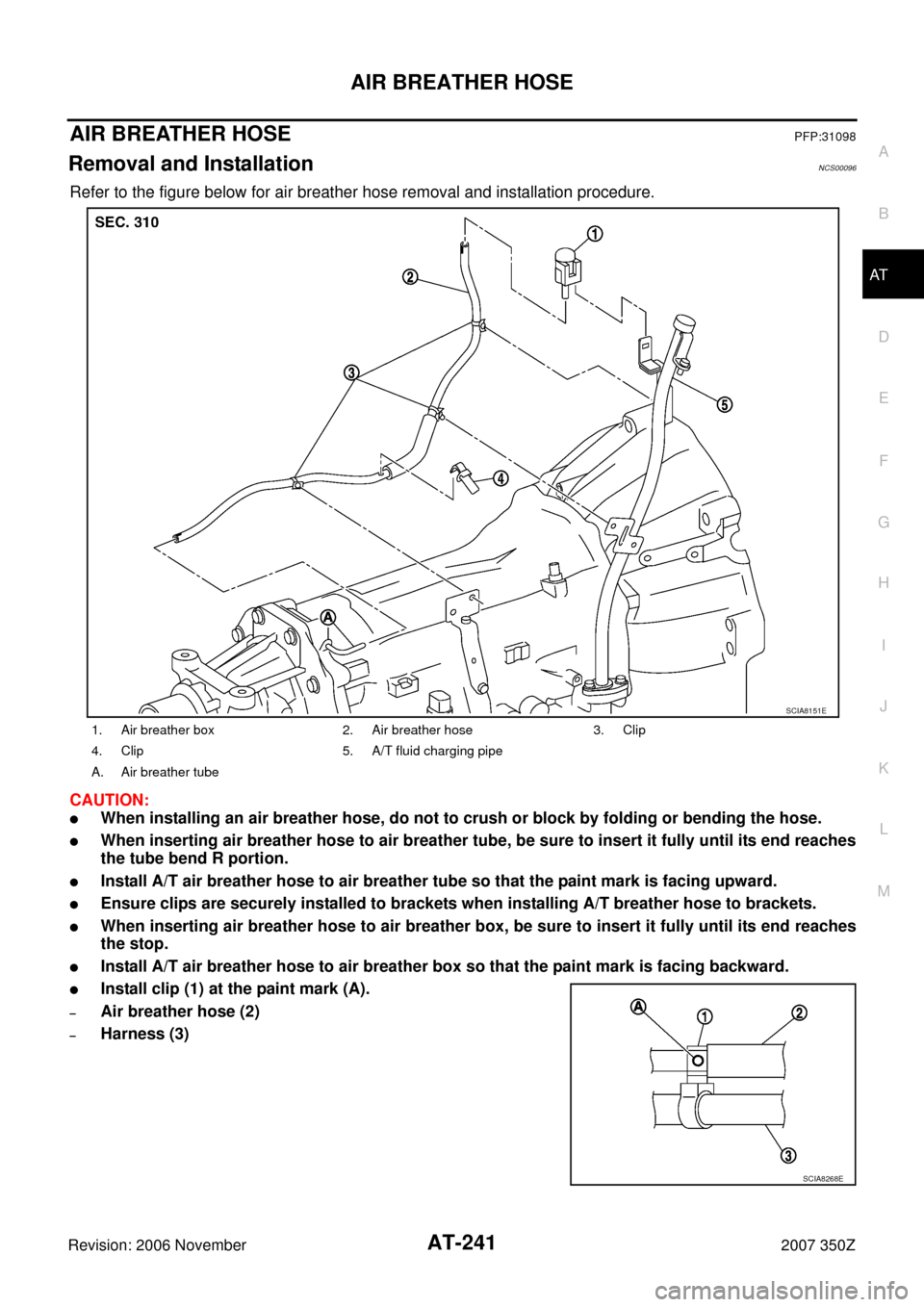

Refer to the figure below for air breather hose removal and installation procedure.
CAUTION:
When installing an air breather hose, do not to crush or block by folding or bending the hose.
When inserting air breather hose to air breather tube, be sure to insert it fully until its end reaches
the tube bend R portion.
Install A/T air breather hose to air breather tube so that the paint mark is facing upward.
Ensure clips are securely installed to brackets when installing A/T breather hose to brackets.
When inserting air breather hose to air breather box, be sure to insert it fully until its end reaches
the stop.
Install A/T air breather hose to air breather box so that the paint mark is facing backward.
Install clip (1) at the paint mark (A).
–Air breather hose (2)
–Harness (3)
1. Air breather box 2. Air breather hose 3. Clip
4. Clip 5. A/T fluid charging pipe
A. Air breather tube
SCIA8151E
SCIA8268E
Page 242 of 312
AT-242
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
TRANSMISSION ASSEMBLYPFP:31020
Removal and InstallationNCS00097
REMOVAL
CAUTION:
When removing A/T assembly from engine assembly, first remove crankshaft position sensor
(POS) from A/T assembly.
Be careful not to damage sensor edge.
1. Disconnect the battery cable from the negative terminal.
2. Remove tower bar with power tool. Refer to FSU-20, "
Removal and Installation" .
3. Remove engine under covers with power tool.
4. Remove exhaust mounting bracket. Refer to EX-3, "
Removal and Installation" .
1. O-ring 2. Engine mounting insulator (rear) 3. Rear engine mounting member
4. Copper washer 5. Fluid cooler tube 6. Bracket
7. Bracket 8. Bracket 9. A/T assembly
10. A/T fluid charging pipe 11. A/T fluid level gauge
A. For tightening torque, refer to AT- 2 4 4 , "
INSTALLATION" .
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
SCIA8266E
Page 243 of 312
TRANSMISSION ASSEMBLY
AT-243
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
5. Disconnect heated oxygen sensor 2 harness connectors (A).
: Vehicle front
: Bolt
6. Remove heated oxygen sensor 2 harness (B) from clips (1).
7. Remove bracket (2) from transmission assembly.
8. Remove front cross bar with power tool. Refer to FSU-8, "
Com-
ponents" .
9. Remove exhaust front tube and center muffler with power tool.
Refer to EX-3, "
Removal and Installation" .
10. Remove three way catalyst (right bank) and three way catalyst
(left bank). Refer to EM-22, "
Removal and Installation" .
11. Remove crankshaft position sensor (POS) (1). Refer to EM-26,
"Removal and Installation" .
Three way catalyst (right bank) (2)
CAUTION:
Do not subject it to impact by dropping or hitting it.
Do not disassemble.
Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.
Do not place in an area affected by magnetism.
12. Remove rear propeller shaft. Refer to PR-6, "
Removal and
Installation" .
CAUTION:
Do not impact, or damage propeller shaft tube.
13. Remove control rod. Refer to AT- 2 0 5 , "
Control Rod Removal and Installation" .
14. Disconnect the following:
A/T assembly harness connector
S terminal connector (A)
EPS solenoid valve harness connector (B)
15. Remove starter motor with power tool. Refer to SC-17,
"Removal and Installation" .
16. Remove A/T fluid level gauge.
17. Remove A/T fluid charging pipe
18. Remove O-ring from A/T fluid charging pipe.
19. Remove fluid cooler tube according to the following procedure.
a. Remove mounting nuts of the engine mounting insulator (LH) and engine mounting insulator (RH) on the
undersurface of the vehicle. Refer to EM-101, "
Removal and Installation" .
b. Push engine assembly upward from the vehicle with transmission jack to create clearance for removing
fluid cooler tube.
CAUTION:
Be careful with hoses and harness when pushing up the engine assembly.
c. Remove fluid cooler tube.
20. Plug up openings such as A/T fluid charging pipe hole, etc.
21. Remove rear plate cover from converter housing. Refer to EM-26, "
Removal and Installation" .
22. Turn crankshaft, and remove the four tightening bolts for drive plate and torque converter.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from the front of the engine.
23. Support A/T assembly with a transmission jack.
CAUTION:
When setting the transmission jack, be careful not to allow it to collide against the drain plug.
24. Remove rear engine mounting member with power tool. Refer to AT- 2 4 2 , "
Removal and Installation" .
SCIA8269E
SCIA8272E
SCIA8273E
Page 244 of 312
AT-244
TRANSMISSION ASSEMBLY
Revision: 2006 November2007 350Z
25. Remove engine mounting insulator (rear) with power tool. Refer to AT- 2 4 2 , "Removal and Installation" .
26. Remove bolts fixing A/T assembly to engine assembly with power tool.
27. Remove A/T assembly from vehicle with a transmission jack.
Secure torque converter to prevent it from dropping.
Secure A/T assembly to a transmission jack.
28. Remove air breather hose. Refer to AT- 2 4 1 , "
Removal and
Installation" .
INSPECTION
Installation and Inspection of Torque Converter
After inserting a torque converter to a A/T, be sure to check dis-
tance “A” to ensure it is within the reference value limit.
INSTALLATION
Install the removed parts in the reverse order of the removal, while paying attention to the following work.
When installing A/T assembly to the engine assembly, attach the
fixing bolts in accordance with the following standard.
–: Engine to transmission
–: Transmission to engine
Align the positions of tightening bolts for drive plate with those of
the torque converter, and temporarily tighten the bolts. Then
tighten the bolts with the specified torque.
CAUTION:
When turning crankshaft, turn it clockwise as viewed from
the front of the engine.
When tightening the tightening bolts for torque converter
after fixing crankshaft pulley bolts, be sure to confirm the
tightening torque of crankshaft pulley mounting bolts.
Refer to EM-53, "
TIMING CHAIN" .
After converter is installed to drive plate, rotate crankshaft several turns and check to be sure that
transmission rotates freely without binding.
Install crankshaft position sensor (POS). Refer to EM-26, "Removal and Installation" .
SCIA0499E
Distance “A”: 25.0 mm (0.98 in) or more
SCIA5694E
Bolt symbol A B
Number of bolts 8 4
Bolt length mm (in) 65 (2.56) 35 (1.38)
Tightening torque
N·m (kg-m, ft-lb)75 (7.7, 55) 46.6 (4.8, 34)
SCIA8152E
: 51 N·m (5.2 kg-m, 38 ft-lb)
SCIA1493E
Page 245 of 312
TRANSMISSION ASSEMBLY
AT-245
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
After completing installation, check A/T fluid leakage, A/T fluid level and A/T position. Refer to AT- 1 2 ,
"Checking A/T Fluid" , AT- 2 0 6 , "Checking of A/T Position" .
Page 246 of 312
AT-246
OVERHAUL
Revision: 2006 November2007 350Z
OVERHAULPFP:00000
ComponentsNCS00098
SCIA7983E
Page 247 of 312
OVERHAUL
AT-247
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

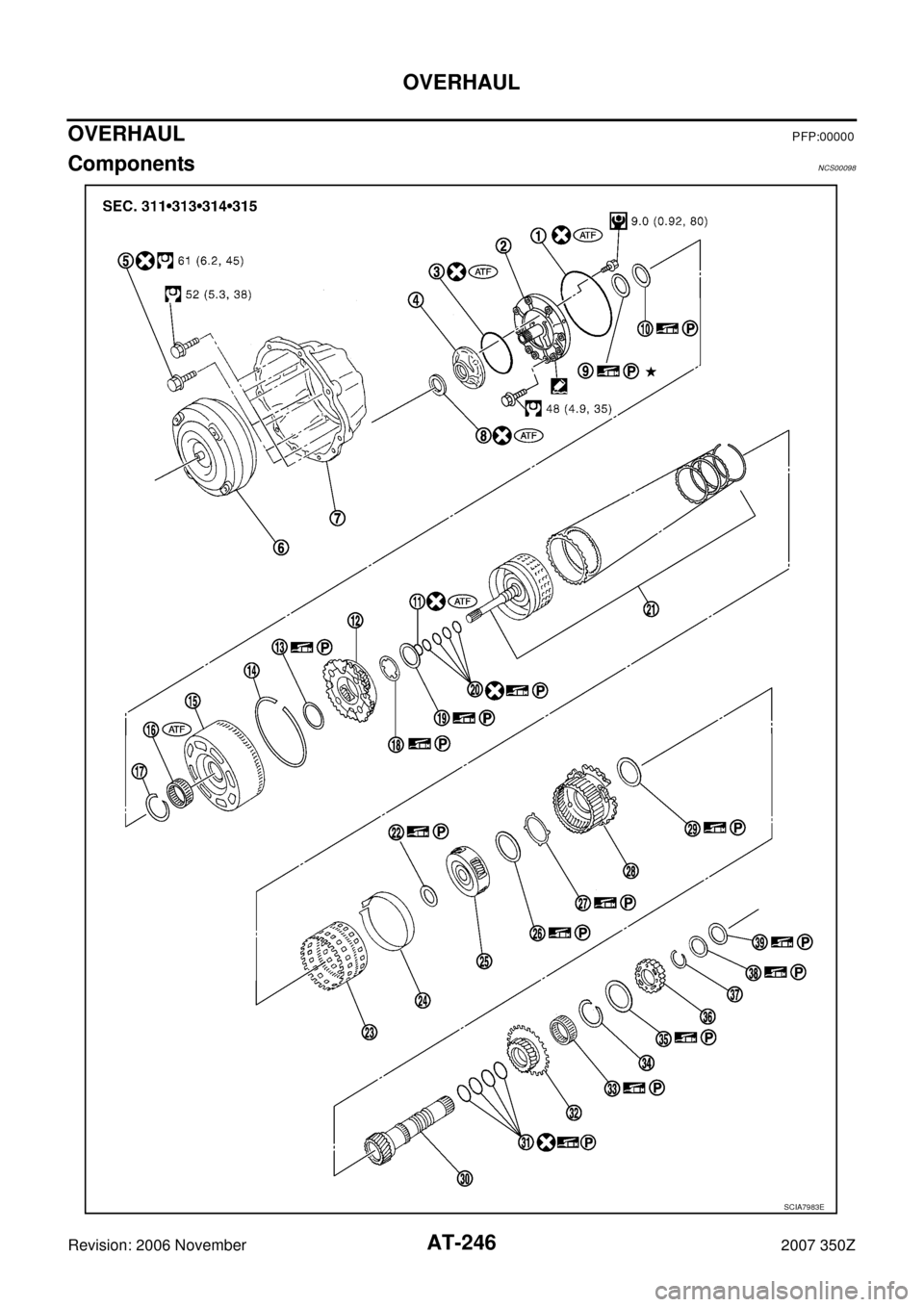

1. O-ring 2. Oil pump cover 3. O-ring
4. Oil pump housing 5. Self-sealing bolt 6. Torque converter
7. Converter housing 8. Oil pump housing oil seal 9. Bearing race
10. Needle bearing 11. O-ring 12. Front carrier assembly
13. Needle bearing 14. Snap ring 15. Front sun gear
16. 3rd one-way clutch 17. Snap ring 18. Bearing race
19. Needle bearing 20. Seal ring 21. Input clutch assembly
22. Needle bearing 23. Rear internal gear 24. Brake band
25. Mid carrier assembly 26. Needle bearing 27. Bearing race
28. Rear carrier assembly 29. Needle bearing 30. Mid sun gear
31. Seal ring 32. Rear sun gear 33. 1st one-way clutch
34. Snap ring 35. Needle bearing 36. High and low reverse clutch hub
37. Snap ring 38. Bearing race 39. Needle bearing
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
However, refer to the following for others.
: Apply Genuine RTV silicone sealant or equivalent. Refer to GI-45, "
Recommended Chemical Products and Sealants" .
Page 248 of 312
AT-248
OVERHAUL
Revision: 2006 November2007 350Z

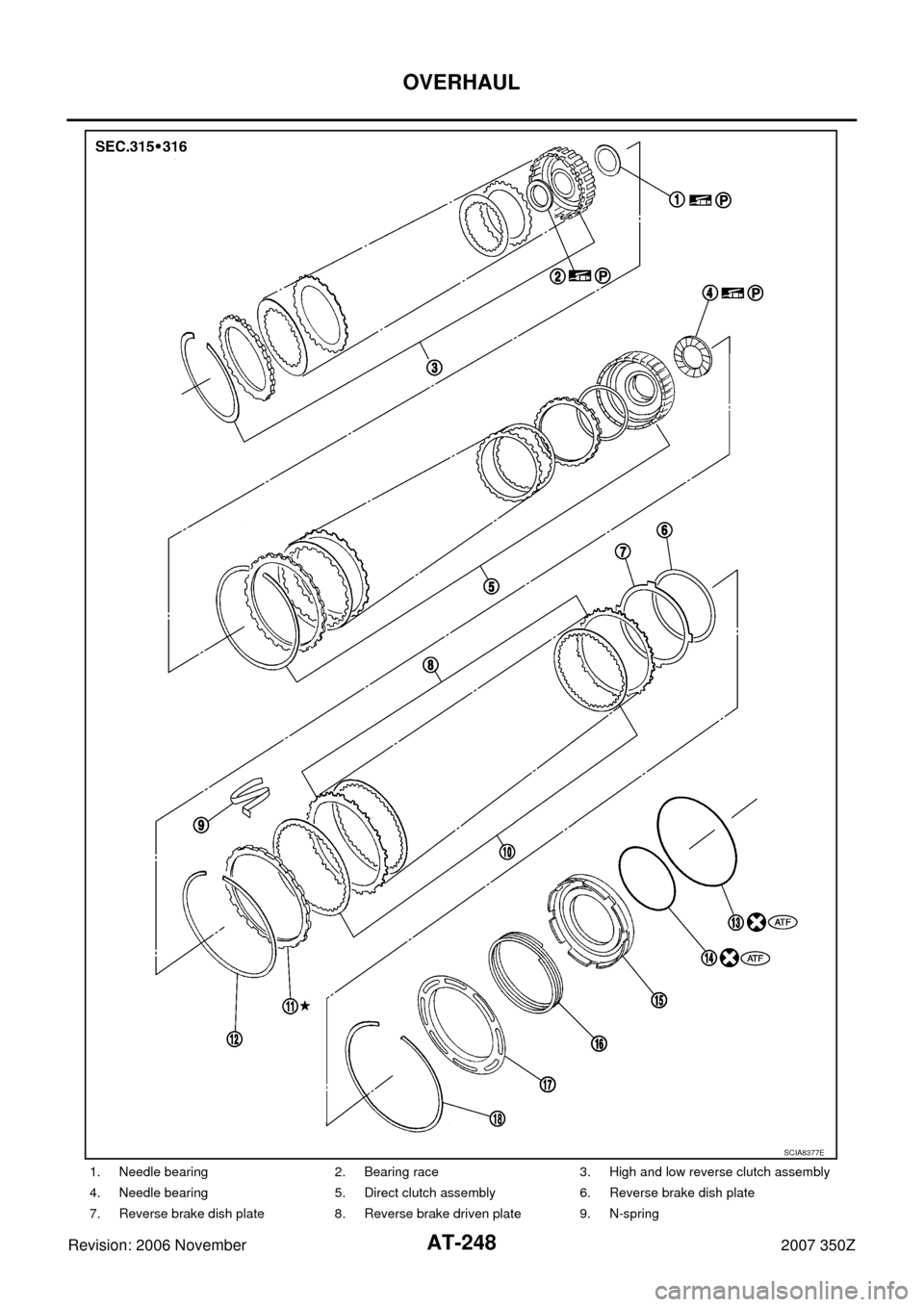

1. Needle bearing 2. Bearing race 3. High and low reverse clutch assembly
4. Needle bearing 5. Direct clutch assembly 6. Reverse brake dish plate
7. Reverse brake dish plate 8. Reverse brake driven plate 9. N-spring
SCIA8377E
Page 249 of 312
OVERHAUL
AT-249
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
10. Reverse brake drive plate 11. Reverse brake retaining plate 12. Snap ring
13. D-ring 14. D-ring 15. Reverse brake piston
16. Return spring 17. Spring retainer 18. Snap ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-11, "
Components" .
Page 250 of 312
AT-250
OVERHAUL
Revision: 2006 November2007 350Z

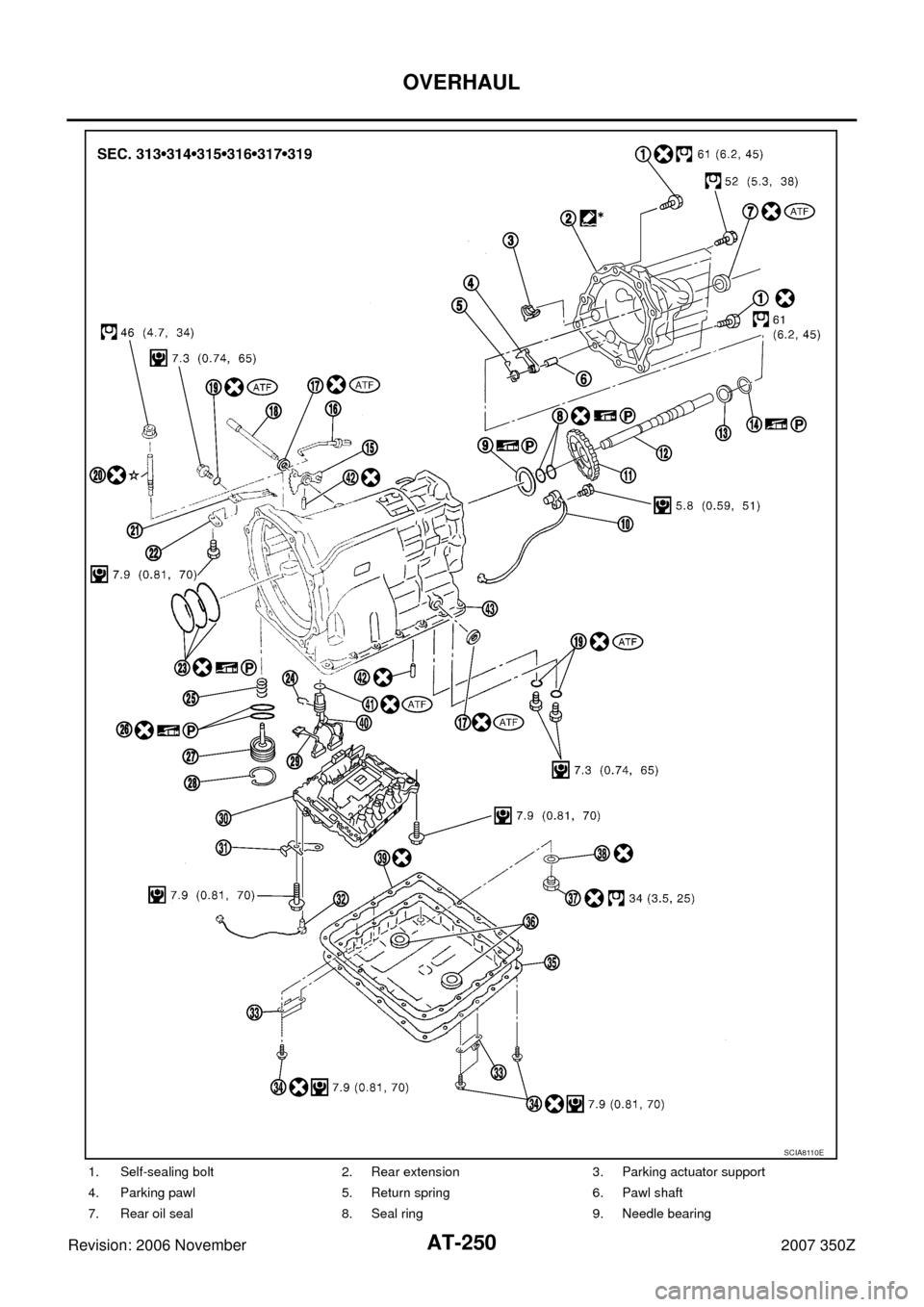

1. Self-sealing bolt 2. Rear extension 3. Parking actuator support
4. Parking pawl 5. Return spring 6. Pawl shaft
7. Rear oil seal 8. Seal ring 9. Needle bearing
SCIA8110E
