NISSAN 350Z 2007 Z33 Automatic Transmission Workshop Manual

ASSEMBLY
AT-291
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

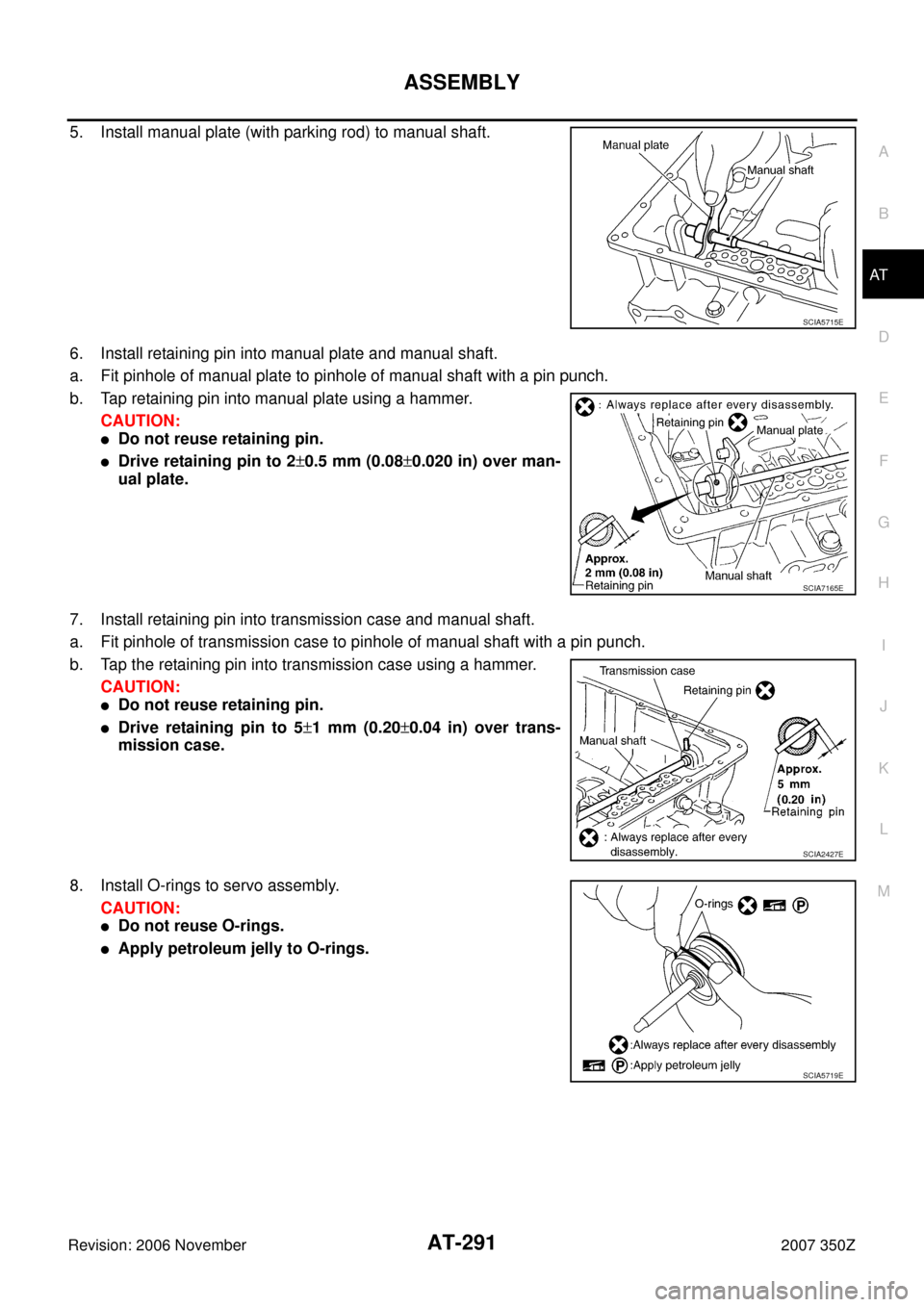

5. Install manual plate (with parking rod) to manual shaft.
6. Install retaining pin into manual plate and manual shaft.
a. Fit pinhole of manual plate to pinhole of manual shaft with a pin punch.
b. Tap retaining pin into manual plate using a hammer.
CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 2±0.5 mm (0.08±0.020 in) over man-
ual plate.
7. Install retaining pin into transmission case and manual shaft.
a. Fit pinhole of transmission case to pinhole of manual shaft with a pin punch.
b. Tap the retaining pin into transmission case using a hammer.
CAUTION:

Do not reuse retaining pin.

Drive retaining pin to 5±1 mm (0.20±0.04 in) over trans-
mission case.
8. Install O-rings to servo assembly.
CAUTION:

Do not reuse O-rings.

Apply petroleum jelly to O-rings.
SCIA5715E
SCIA7165E
SCIA2427E
SCIA5719E

AT-292
ASSEMBLY
Revision: 2006 November2007 350Z

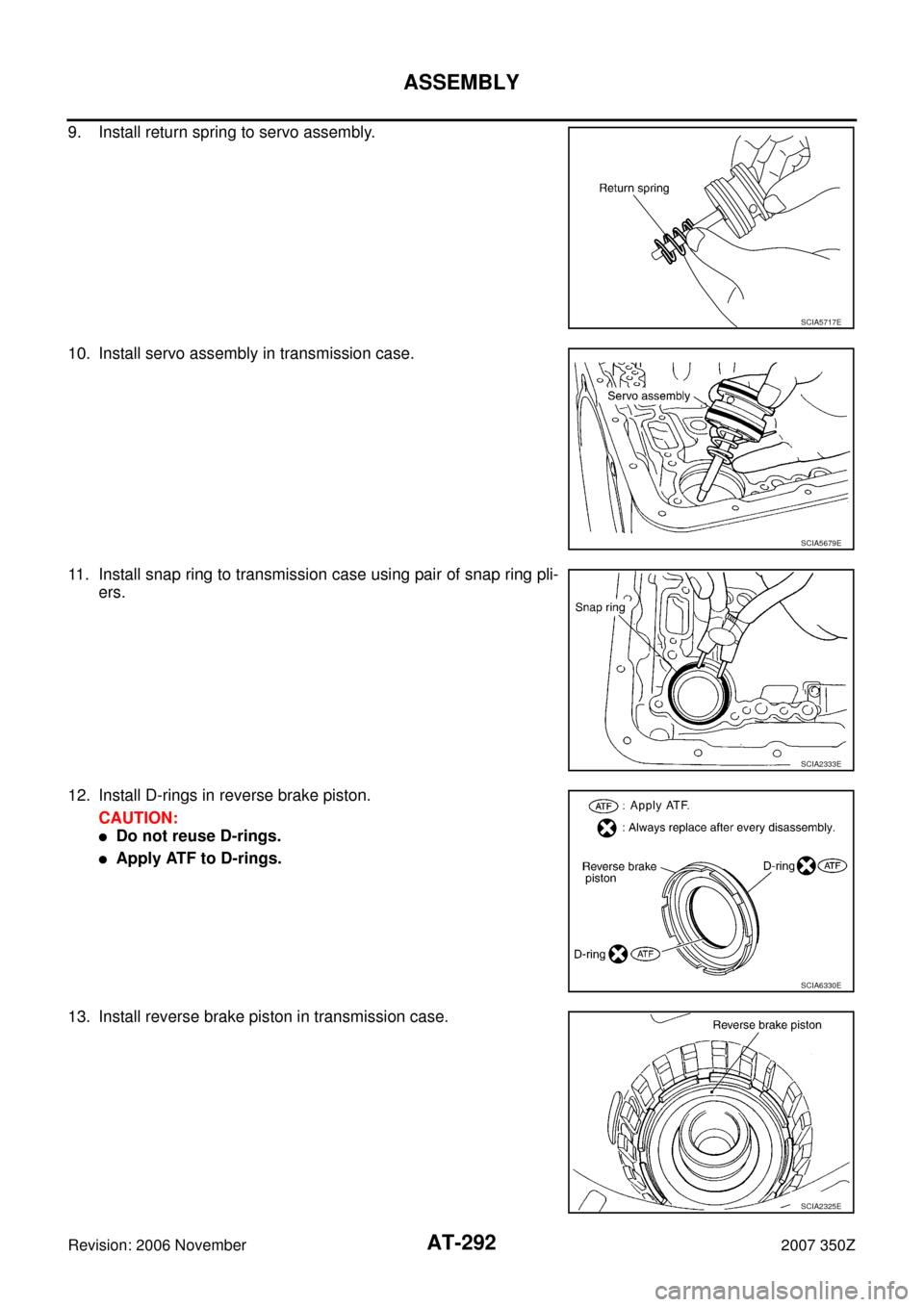

9. Install return spring to servo assembly.
10. Install servo assembly in transmission case.
11. Install snap ring to transmission case using pair of snap ring pli-
ers.
12. Install D-rings in reverse brake piston.
CAUTION:

Do not reuse D-rings.

Apply ATF to D-rings.
13. Install reverse brake piston in transmission case.
SCIA5717E
SCIA5679E
SCIA2333E
SCIA6330E
SCIA2325E

ASSEMBLY
AT-293
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

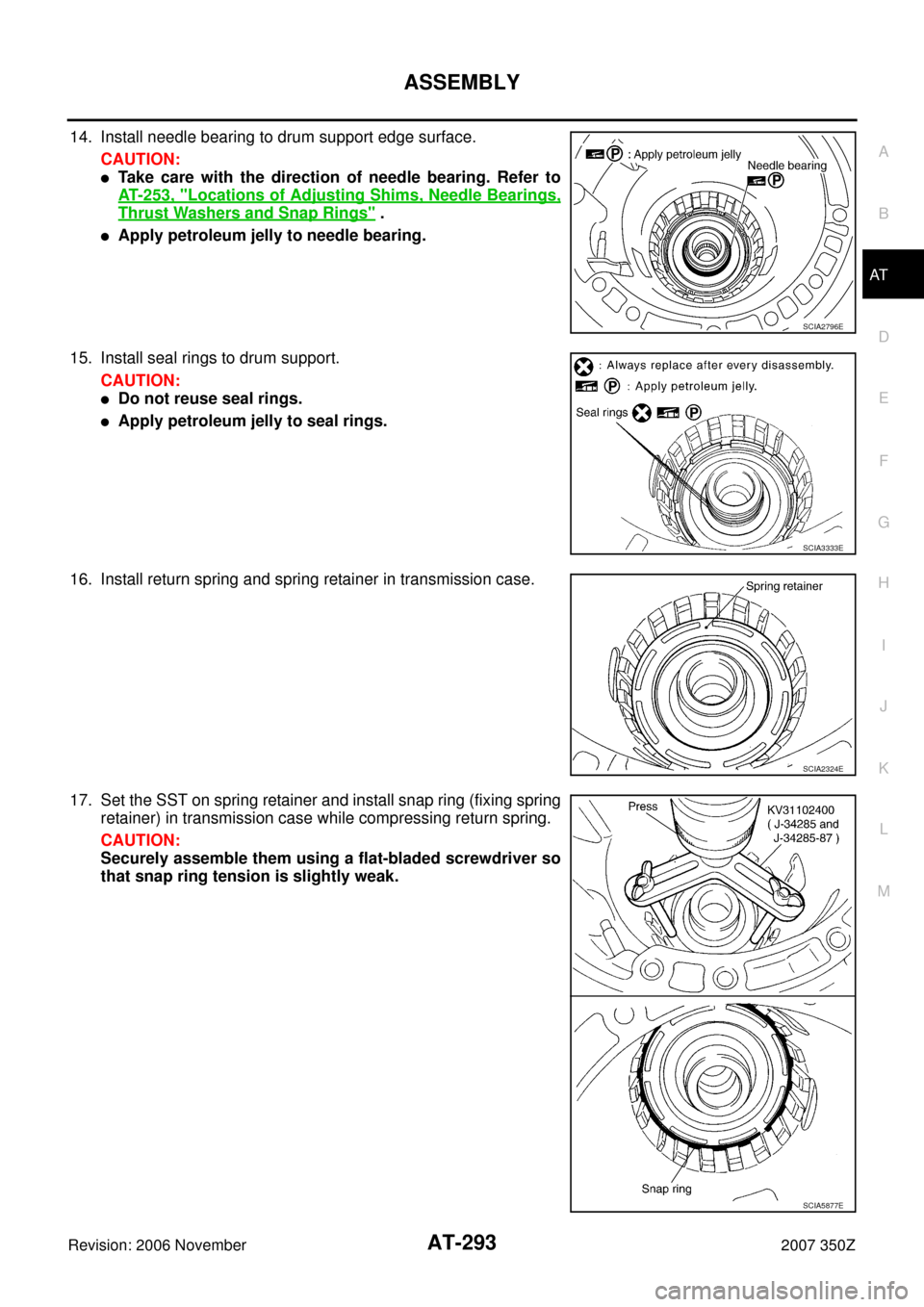

14. Install needle bearing to drum support edge surface.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
15. Install seal rings to drum support.
CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.
16. Install return spring and spring retainer in transmission case.
17. Set the SST on spring retainer and install snap ring (fixing spring
retainer) in transmission case while compressing return spring.
CAUTION:
Securely assemble them using a flat-bladed screwdriver so
that snap ring tension is slightly weak.
SCIA2796E
SCIA3333E
SCIA2324E
SCIA5877E

AT-294
ASSEMBLY
Revision: 2006 November2007 350Z

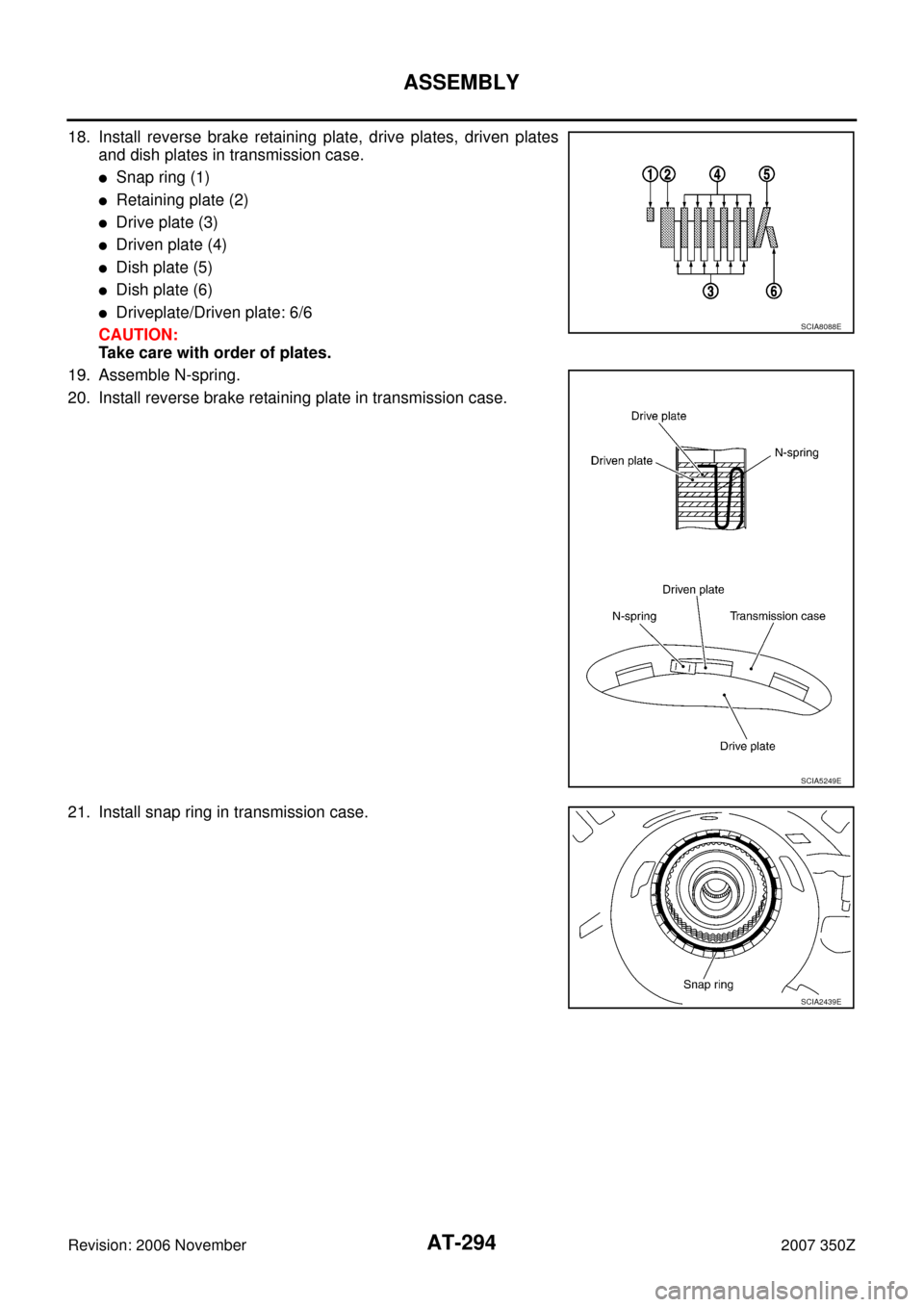

18. Install reverse brake retaining plate, drive plates, driven plates
and dish plates in transmission case.

Snap ring (1)

Retaining plate (2)

Drive plate (3)

Driven plate (4)

Dish plate (5)

Dish plate (6)

Driveplate/Driven plate: 6/6
CAUTION:
Take care with order of plates.
19. Assemble N-spring.
20. Install reverse brake retaining plate in transmission case.
21. Install snap ring in transmission case.SCIA8088E
SCIA5249E
SCIA2439E

ASSEMBLY
AT-295
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z
22. Measure clearance between retaining plate and snap ring. If not
within specified clearance, select proper retaining plate. Refer to
“Parts Information” for retaining plate selection.
23. Install needle bearing to transmission case.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
24. Install revolution sensor to transmission case, and then tighten
mounting bolt to the specified torque. Refer to AT- 2 4 6 , "
Compo-
nents" .
CAUTION:

Do not subject it to impact by dropping or hitting it.

Do not disassemble.

Do not allow metal filings, etc. to get on the sensor's front
edge magnetic area.

Do not place in an area affected by magnetism.
25. As shown in the figure, drive rear oil seal into rear extension until
it is flush using a drift.
CAUTION:

Do not reuse rear oil seal.

Apply ATF to rear oil seal.
26. Install return spring (1) to parking pawl (2).Specified clearance “A”:
Refer to AT- 3 1 2 , "
Reverse Brake" .
SCIA3129E
SCIA5031E
SCIA2320E
SCIA5311E
SCIA6180J

AT-296
ASSEMBLY
Revision: 2006 November2007 350Z

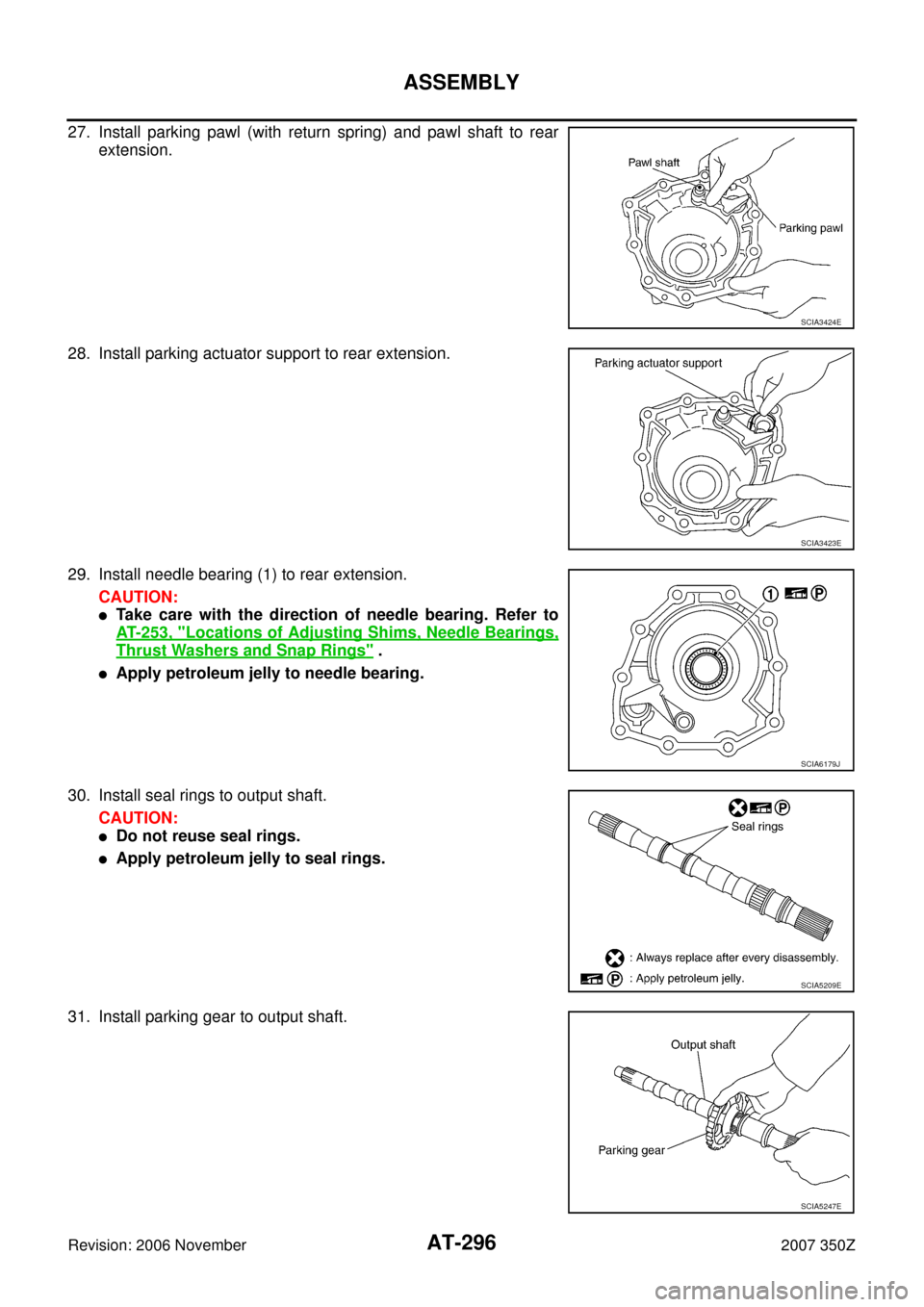

27. Install parking pawl (with return spring) and pawl shaft to rear
extension.
28. Install parking actuator support to rear extension.
29. Install needle bearing (1) to rear extension.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
30. Install seal rings to output shaft.
CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.
31. Install parking gear to output shaft.
SCIA3424E
SCIA3423E
SCIA6179J
SCIA5209E
SCIA5247E

ASSEMBLY
AT-297
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

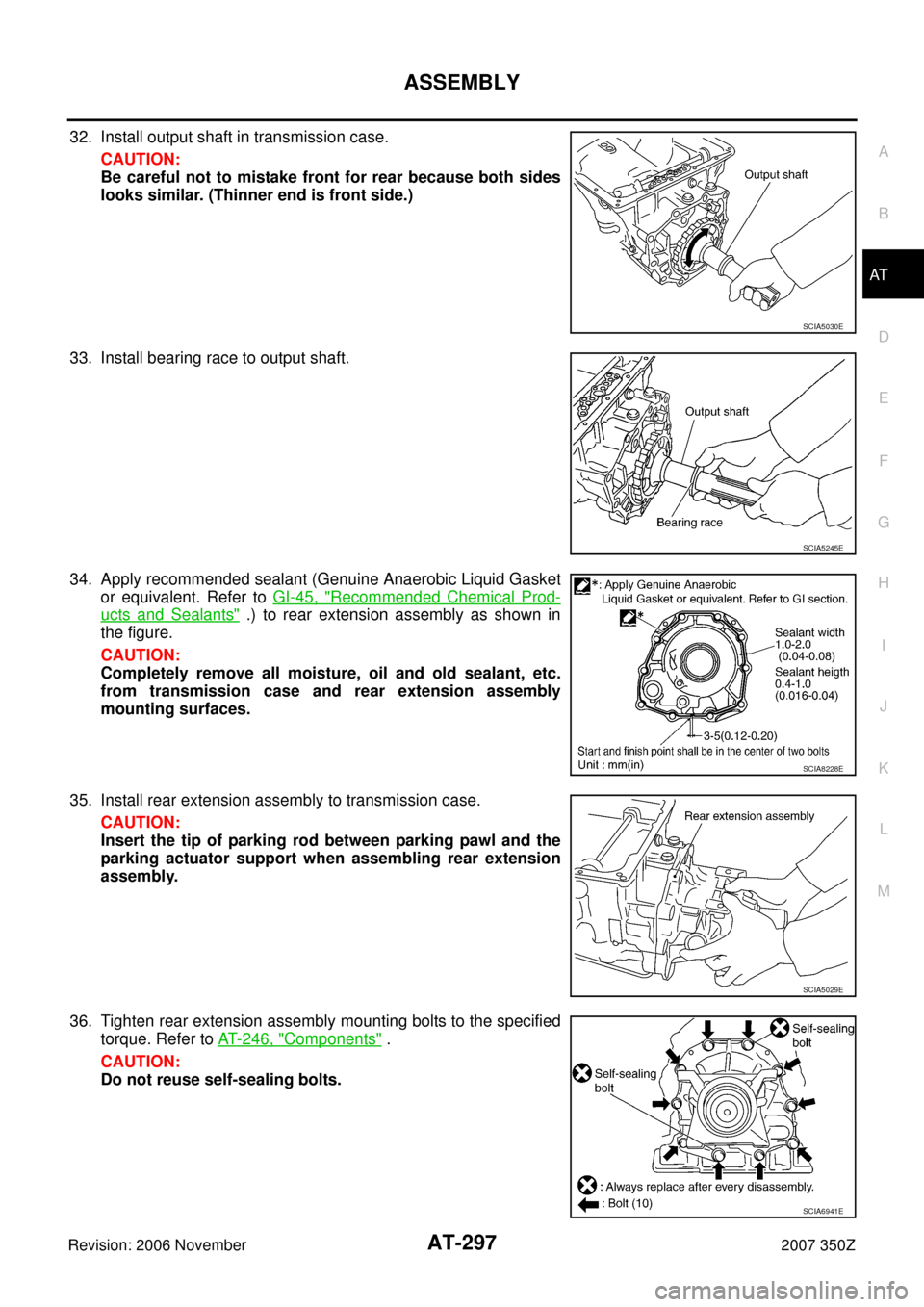

32. Install output shaft in transmission case.
CAUTION:
Be careful not to mistake front for rear because both sides
looks similar. (Thinner end is front side.)
33. Install bearing race to output shaft.
34. Apply recommended sealant (Genuine Anaerobic Liquid Gasket
or equivalent. Refer to GI-45, "
Recommended Chemical Prod-
ucts and Sealants" .) to rear extension assembly as shown in
the figure.
CAUTION:
Completely remove all moisture, oil and old sealant, etc.
from transmission case and rear extension assembly
mounting surfaces.
35. Install rear extension assembly to transmission case.
CAUTION:
Insert the tip of parking rod between parking pawl and the
parking actuator support when assembling rear extension
assembly.
36. Tighten rear extension assembly mounting bolts to the specified
torque. Refer to AT- 2 4 6 , "
Components" .
CAUTION:
Do not reuse self-sealing bolts.
SCIA5030E
SCIA5245E
SCIA8228E
SCIA5029E
SCIA6941E

AT-298
ASSEMBLY
Revision: 2006 November2007 350Z

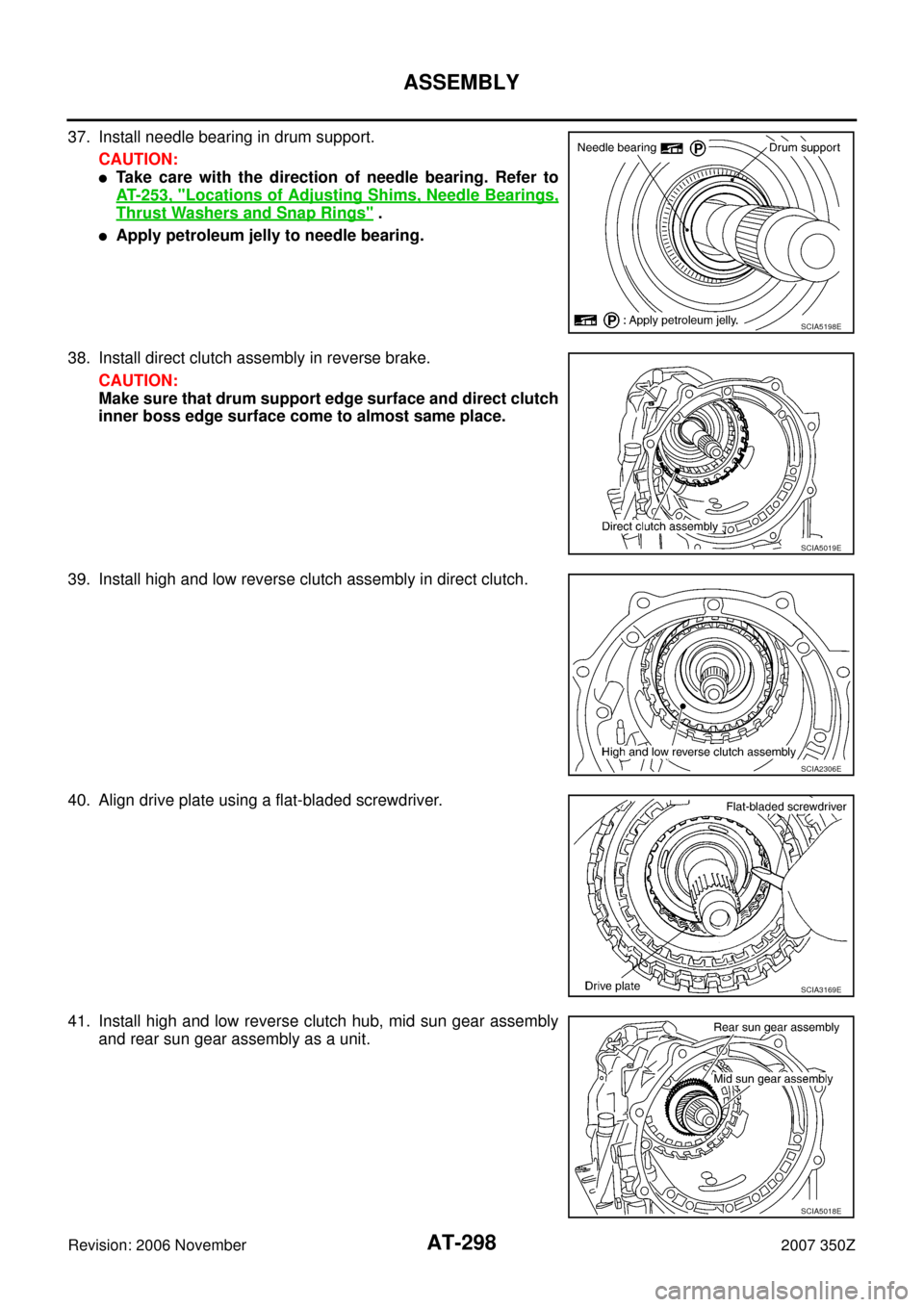

37. Install needle bearing in drum support.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
38. Install direct clutch assembly in reverse brake.
CAUTION:
Make sure that drum support edge surface and direct clutch
inner boss edge surface come to almost same place.
39. Install high and low reverse clutch assembly in direct clutch.
40. Align drive plate using a flat-bladed screwdriver.
41. Install high and low reverse clutch hub, mid sun gear assembly
and rear sun gear assembly as a unit.
SCIA5198E
SCIA5019E
SCIA2306E
SCIA3169E
SCIA5018E

ASSEMBLY
AT-299
D
E
F
G
H
I
J
K
L
MA
B
AT
Revision: 2006 November2007 350Z

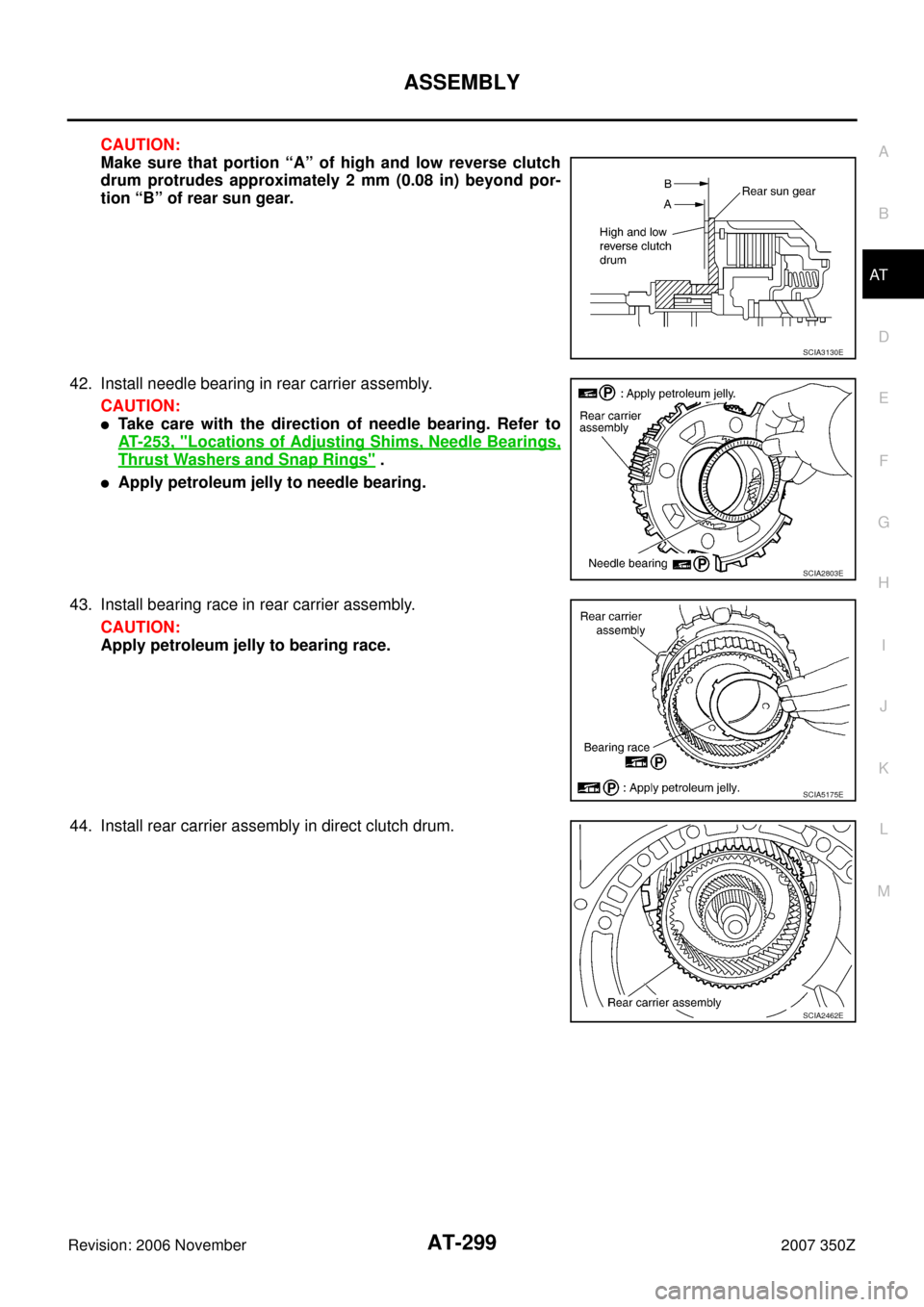

CAUTION:
Make sure that portion “A” of high and low reverse clutch
drum protrudes approximately 2 mm (0.08 in) beyond por-
tion “B” of rear sun gear.
42. Install needle bearing in rear carrier assembly.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
43. Install bearing race in rear carrier assembly.
CAUTION:
Apply petroleum jelly to bearing race.
44. Install rear carrier assembly in direct clutch drum.
SCIA3130E
SCIA2803E
SCIA5175E
SCIA2462E

AT-300
ASSEMBLY
Revision: 2006 November2007 350Z

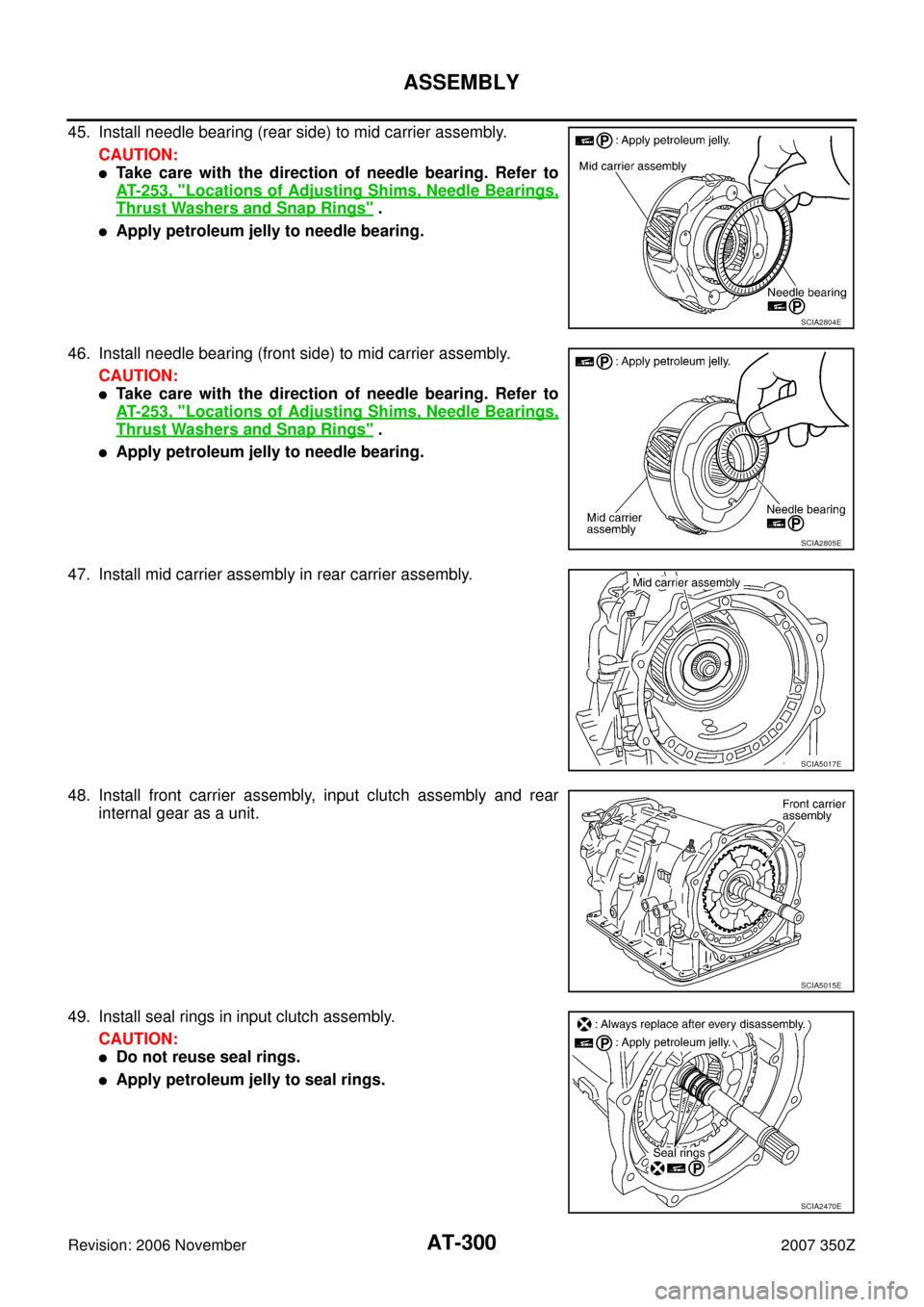

45. Install needle bearing (rear side) to mid carrier assembly.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
46. Install needle bearing (front side) to mid carrier assembly.
CAUTION:

Take care with the direction of needle bearing. Refer to
AT- 2 5 3 , "
Locations of Adjusting Shims, Needle Bearings,
Thrust Washers and Snap Rings" .

Apply petroleum jelly to needle bearing.
47. Install mid carrier assembly in rear carrier assembly.
48. Install front carrier assembly, input clutch assembly and rear
internal gear as a unit.
49. Install seal rings in input clutch assembly.
CAUTION:

Do not reuse seal rings.

Apply petroleum jelly to seal rings.
SCIA2804E
SCIA2805E
SCIA5017E
SCIA5015E
SCIA2470E
