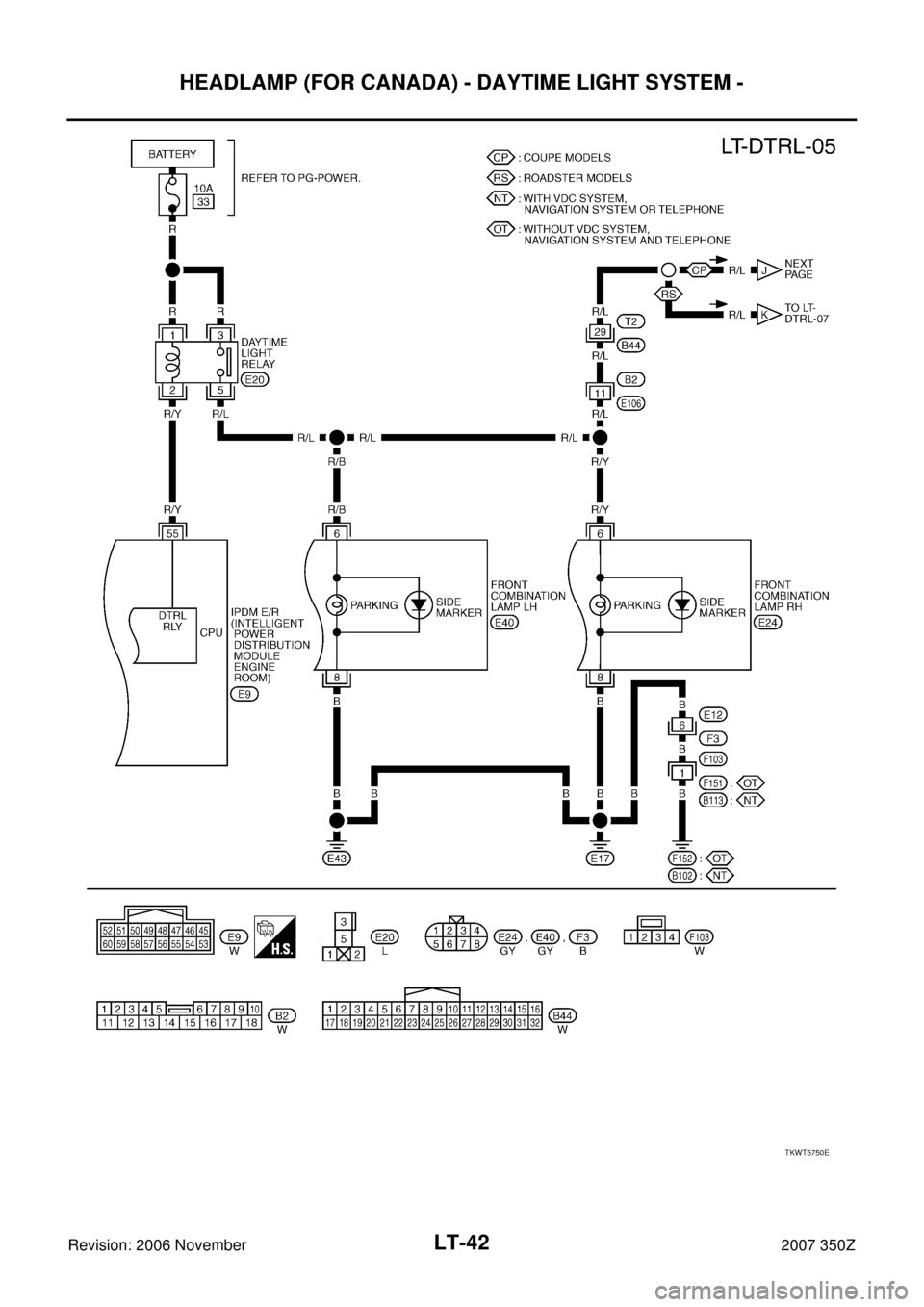

HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-41
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4026E
Page 42 of 172
LT-42
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
TKWT5750E
Page 43 of 172
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-43
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
TKWT4028E
Page 44 of 172
LT-44
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
TKWT4029E
Page 45 of 172
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-45
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Terminals and Reference Values for BCMNKS004XI
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper dial position to 4 except when checking waveform or voltage of wiper dial position.
Wiper dial position can be confirmed on CONSULT-III. Refer to LT- 9 1 , "
DATA MONITOR" .
Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
2GYCombination
switch input 5ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below
Lighting switch 1ST
Lighting switch HIGH beam
(Operates only HIGH beam
switch)
Approx. 1.0 V
Lighting switch 2ND
Approx. 2.0 V
3L/WCombination
switch input 4ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF Approx. 0 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Approx. 1.0 V
11 L GIgnition switch
(ACC)ACC — Battery voltage
PKIB4959J
PKIB4953J
PKIB4959J
Page 46 of 172
LT-46
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
33 GCombination
switch output 4ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Lighting switch 1ST (The same
result with lighting switch 2ND)
Approx. 1.2 V
34 W/LCombination
switch output 3ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch HI beam
(Operates only HI beam switch)
Approx. 1.2 V
35 W/GCombination
switch output 2ONLighting, turn,
wiper switch
(Wiper inter-
mittent dial
position 4)OFF
Approx. 7.2 V
Any of the conditions below
Lighting switch 2ND
Lighting switch PASSING
(Operates only PASSING switch)
Approx. 1.2 V
38 W/LIgnition switch
(ON) ON — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
PKIB4960J
PKIB4958J
Page 47 of 172
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-47
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
Terminals and Reference Values for IPDM E/RNKS004XJ
How to Proceed With Trouble DiagnosisNKS004XK
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT- 3 2 , "
System Description" .
3. Perform the preliminary check. Refer to LT- 4 7 , "
Preliminary Check" .
4. Check symptom and repair or replace the cause of malfunction.
5. Does headlamp operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckNKS004XL
CHECK POWER SUPPLY AND GROUND CIRCUIT
1. CHECK FUSES AND FUSIBLE LINK
Check for blown fuses and fusible link.
39 L CAN − H— — —
40 P CAN − L— — —
42 GYBattery power
supplyOFF — Battery voltage
52 B Ground ON — Approx. 0 V
55 RBattery power
supplyOFF — Battery voltage Te r -
minal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
Terminal
No.Wire
colorSignal nameMeasuring condition
Reference value
Ignition
switchOperation or condition
20 R/L Headlamp low (RH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
27 BR Headlamp high (RH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
28 R/Y Headlamp high (LH) ON Lighting switch HIGH or PASS positionOFF Approx. 0 V
ON Battery voltage
30 R/W Headlamp low (LH) ON Lighting switch 2ND positionOFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
49 P CAN − L— — —
55 R/Y Daytime light relay signal ON Lighting switch 1ST positionOFF Approx. 0 V
ON Battery voltage
60 B Ground ON — Approx. 0 V
UNIT POWER SOURCE Fuse and fusible link No.
BCMBatteryF
18
Ignition switch ON or START position 1
Ignition switch ACC or ON position 6
Page 48 of 172
LT-48
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
Refer to LT- 3 8 , "Wiring Diagram — DTRL —" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
2. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3. CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
IPDM E/R Battery33
72
74
76
86 UNIT POWER SOURCE Fuse and fusible link No.
Terminals Ignition switch position
(+)
(-) OFF ACC ON
BCM
connectorTerminal
M9011
GroundApprox. 0 VBattery
voltageBattery
voltage
38 Approx. 0 V Approx. 0 VBattery
voltage
M9142Battery
voltageBattery
voltageBattery
voltage
55Battery
voltageBattery
voltageBattery
voltage
PKIB5197E
BCM connector Terminal
GroundContinuity
M91 52 Yes
PKIB5198E
Page 49 of 172
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
LT-49
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: 2006 November2007 350Z
CONSULT-III Function (BCM)NKS004XM
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
WORK SUPPORT
Display Item List
DATA MONITOR
Display Item List
NOTE:
This item is displayed, but cannot be monitored.BCM diagnosis part Diagnosis mode Description
HEADLAMPWORK SUPPORT Changes the setting for each function.
DATA MONITOR Displays BCM input data in real time.
ACTIVE TEST Operation of electrical loads can be checked by sending drive signal to them.
BCMSELF-DIAG RESULTS BCM performs self-diagnosis of CAN communication.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
Item Description CONSULT-III Factory setting
BATTERY SAVER SETExterior lamp battery saver control mode can be changed in this mode.
Select exterior lamp battery saver control mode between two ON/OFF.ON×
OFF —
Monitor item Contents
IGN ON SW “ON/OFF” Displays “IGN position (ON)/OFF, ACC position (OFF)” judged from the ignition switch signal.
ACC ON SW “ON/OFF” Displays “ACC (ON)/OFF, Ignition OFF (OFF)” status judged from ignition switch signal.
HI BEAM SW “ON/OFF”Displays status (high beam switch: ON/Others: OFF) of high beam switch judged from light-
ing switch signal.
HEAD LAMP SW 1 “ON/OFF”Displays status (headlamp switch 1: ON/Others: OFF) of headlamp switch 1 judged from
lighting switch signal.
HEAD LAMP SW 2 “ON/OFF”Displays status (headlamp switch 2: ON/Others: OFF) of headlamp switch 2 judged from
lighting switch signal.
LIGHT SW 1 ST “ON/OFF”Displays status (lighting switch 1ST or 2ND position: ON/Others: OFF) of lighting switch
judged from lighting switch signal.
PASSING SW “ON/OFF”Displays status (flash-to-pass switch: ON/Others: OFF) of flash-to-pass switch judged from
lighting switch signal.
FR FOG SW
NOTE“ON/OFF” —
DOOR SW - DR “ON/OFF”Displays status of driver door as judged from driver door switch signal. (Door is open: ON/
Door is closed: OFF)
DOOR SW - AS “ON/OFF”Displays status of passenger door as judged from passenger door switch signal. (Door is
open: ON/Door is closed: OFF)
DOOR SW - RR
NOTE“OFF” —
DOOR SW - RL
NOTE“OFF” —
BACK DOOR SW “ON/OFF”
Displays status of back door as judged from back door switch signal. (Coupe models)
Displays status of rear trunk hood as judged from trunk lamp switch signal. (Roadster mod-
els)
TURN SIGNAL R “ON/OFF” Displays status (Turn right: ON/Others: OFF) as judged from lighting switch signal.
TURN SIGNAL L “ON/OFF” Displays status (Turn left: ON/Others: OFF) as judged from lighting switch signal.
ENGINE RUN “ON/OFF”Displays status (engine running: ON/ engine stopped: OFF) of engine judged from engine run
signal.
PKB SW “ON/OFF”Displays status (parking brake released: ON/ parking brake applied: OFF) of parking brake
switch judged from parking brake switch signal.
CARGO LAMP SW
NOTE“OFF” —
Page 50 of 172
LT-50
HEADLAMP (FOR CANADA) - DAYTIME LIGHT SYSTEM -
Revision: 2006 November2007 350Z
ACTIVE TEST
Display Item List
NOTE:
This item is displayed, but cannot be tested.
CONSULT-III Function (IPDM E/R)NKS004XN
CONSULT-III can display each diagnostic item using the diagnostic test mode shown following.
DATA MONITOR
All Signals, Main Signals, Selection From Menu
NOTE:
Perform monitoring of IPDM E/R data with ignition switch ON. When ignition switch is at ACC, the display may
not be correct.
ACTIVE TEST
Display Item List
Test item Description
TAIL LAMP Allows tail lamp relay to operate by switching ON−OFF.
HEAD LAMP Allows headlamp relay to operate by switching ON−OFF.
FR FOG LAMP
NOTE—
CORNERING LAMP
NOTE—
DAYTIME RUNNING LIGHT Allows headlamp low relay and daytime light relay to operate switching ON−OFF.
Check Item, Diagnosis Mode Description
SELF-DIAG RESULTS Refer to PG-18, "
SELF-DIAG RESULTS" .
DATA MONITOR The input/output data of IPDM E/R is displayed in real time.
CAN DIAG SUPPORT MNTR The result of transmit/receive diagnosis of CAN communication can be read.
ACTIVE TEST IPDM E/R sends a drive signal to electronic components to check their operation.
Item nameCONSULT-III
screen displayDisplay
or unitMonitor item selection
Description ALL
SIG-
NALSMAIN
SIGNALSSELECTION
FROM
MENU
Position lights request TAIL&CLR REQ ON/OFF×× ×Signal status input from BCM
Headlamp low beam request HL LO REQ ON/OFF×× ×Signal status input from BCM
Headlamp high beam request HL HI REQ ON/OFF×× ×Signal status input from BCM
Daytime running light request DTRL REQ ON/OFF××Signal status input from BCM
Te s t i t e mCONSULT-III
screen displayDescription
Tail lamp relay output TAIL LAMP Allows tail lamp relay to operate by switching operation ON−OFF at your option.
Headlamp relay (HI, LO) output LAMPSAllows headlamp relay (HI, LO) to operate by switching operation (OFF, HI ON, LO
ON) at your option (Headlamp high beam repeats ON−OFF every 1 second).
