POWER SEAT/FOR ROADSTER
SE-21
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
MANUAL OPERATION
The seat positions can be adjusted by operating the sliding switch and reclining switch located on the side of
both driver and passenger seat cushions.
A U T O M AT I C O P E R AT I O N
Passenger Seatback Tilting Function
When the seatback tilt switch on the rear side of the passenger seatback is operated to tilt forward, the
seatback tilts forward to the front most position.
To tilt the seatback backward or restore its position, push the seatback tilt switch on the tilt-backward
direction. The seatback will be tilting backwards while the switch is operated. It can be moved backwards
until it reaches to its start position.
Conditions For the Operation
When the following conditions are satisfied, the seatback tilts forward or backward by operating the seatback
tilt switch.
*1: The operation will be stopped only while the reclining motor is operating.
Conditions for Stopping the Operation
Seatback tilting operation stops when any one of the conditions below is satisfied.
*2: Operation will be stopped only while the reclining motor is operating.
NOTE:
If operation stops as a result of the conditions below, use the reclining switch to tilt the seat backward.
A power seat switch (sliding or reclining) is operated.
The seat belt is fastened.
The seatback tilt cancel switch is turned to “CANCEL”.
Soft Top Interlocking Operation Function
The seatback tilts forward by approximately 6° (tilt froward operation) when the soft top opens or closes.
When open/close operation is completed, the seatback returns to the tilt start position (return operation).
Conditions for the Operation
When the soft top switch is pushed to OPEN or CLOSE, and all of the conditions below are satisfied, then the
seatback operates, linked with the operation of the soft top.
Conditions for the Pausing/Stopping Operation
Operation is paused or stopped if any of the conditions below are satisfied during soft top operation.
Conditions
Power seat switches (sliding and reclining) are OFF.
The seat belt is not fastened.
The vehicle speed is approximately 6 km/h or less.
The soft top is not currently in operation.*1
The ignition switch is not in the START position.
The seatback tilt cancel switch is in AUTO.
Conditions
A power seat switch (sliding or reclining) is operated.
The seat belt is fastened.
The vehicle speed is approximately 7 km/h or more.
The soft top is in operation. (Stops only tilt-forward operation.)*2
The seatback tilting switch is operated while the seatback is in operation.
The ignition switch is turned to the START position.
Reclining motor lock is detected.
Conditions
The power seat switches (sliding and reclining) are OFF.
The seatback tilt switch is OFF.
The vehicle speed is 6 km/h or less.
The ignition switch is ON.
The seatback tilt cancel switch is turned to AUTO.
Page 22 of 80
SE-22
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
Seat Status Output Signal
Depending on the seat status, the “passenger seat control unit” sends the seat status output signal to the
“soft top control unit”.
The “soft top control unit” controls the soft top open/close operation based on whether the seat status sig-
nal is ON or OFF. For details about soft top control, refer to RF-19, "
Operation Chart" .
*3: After that, seat condition signal stays ON if cancel switch turns to AUTO.
The seat status signal turns ON only when power window DOWN signal input is ON.
*4: If tilt forward/backward operation stops as a result of the conditions below, the tilt start position does not change.
The vehicle speed is approximately 7 km/h or more.
The seatback tilt switch is operated while the seatback is operating.
The ignition switch is turned to the START position. Stop conditions
A power seat switch (sliding or reclining) is operated.
Reclining motor lock is detected (return operation only).
The seatback tilt switch is operated while the seatback is operating.
The seatback tilt cancel switch is turned to CANCEL.
Pause condition
The ignition switch is turned to the START position.
Seat status signal
OFF→ ON condition
When a seatback tilt forward motion has been completed.
(as a process during a soft top interlocking operation)
When a seatback tilt forward motion has been completed.
(during a automatic operation by using a seatback tilt switch)
When a seatback tilt forward permission condition is satisfied for a soft top interlocking operation, and a tilt
forward / backward operation is under going, and if the seatback is tilted more than 6 degree from the start
position of the tilt forward / backward operation.
(during a automatic operation by using a seatback tilt switch)
When a seatback tilt forward permission condition is satisfied for a soft top interlocking operation, and a tilt
forward operation was under going, but the operation was stopped under some conditions, (See below *4.)
and if the seatback is tilted more than 6 degree from the start position of the tilt forward operation.
(after an automatic operation by using a seatback tilt switch)
When a seatback tilt forward permission condition is satisfied for a soft top interlocking operation, and also
the seatback tilt cancel switch is in “Cancel” position.
When the ignition switch has been turned from “START” to “ON” position.
(during a soft top interlocking operation. After an engine start operation, the soft top interlocking operation is
accepted.)
Seat status signal
ON→ OFF condition
When a seatback tilt backward motion has been started.
(as a process during a soft top interlocking operation)
When a seatback tilt backward permission condition is satisfied for a soft top interlocking operation, after a
tilt forward operation has been finished.
(during a automatic operation by using a seatback tilt switch)
When a seatback tilt backward permission condition is satisfied for a soft top interlocking operation, and a tilt
forward / backward operation is under going, and if the seatback is tilted more than 6 degree from the start
position of the tilt forward / backward operation.
(during a automatic operation by using a seatback tilt switch)
When a seatback tilt backward permission condition is satisfied for a soft top interlocking operation, and a tilt
forward operation was under going, but the operation was stopped under some conditions, (See below *4.)
and if the seatback is still tilted more than 6 degree from the start position of the tilt forward operation.
(after an automatic operation by using a seatback tilt switch.)
When the ignition switch has been turned from “ON” to “START” position.
(during a soft top interlocking operation. During an engine start operation, the soft top interlocking operation
is paused.)
When a seatback tilt forward motion has been started by the seatback tilt switch, just after the seatback tilt
forward motion has been finished for a soft top interlocking operation.
(for the seatback tilt switch operation during a soft top interlocking operation)
When a seatback tilt forward motion has been started by the passenger seat reclining switch, just after the
seatback tilt forward motion has been finished for a soft top interlocking operation.
(for the seat reclining switch operation during a soft top interlocking operation)
Page 23 of 80
POWER SEAT/FOR ROADSTER
SE-23
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

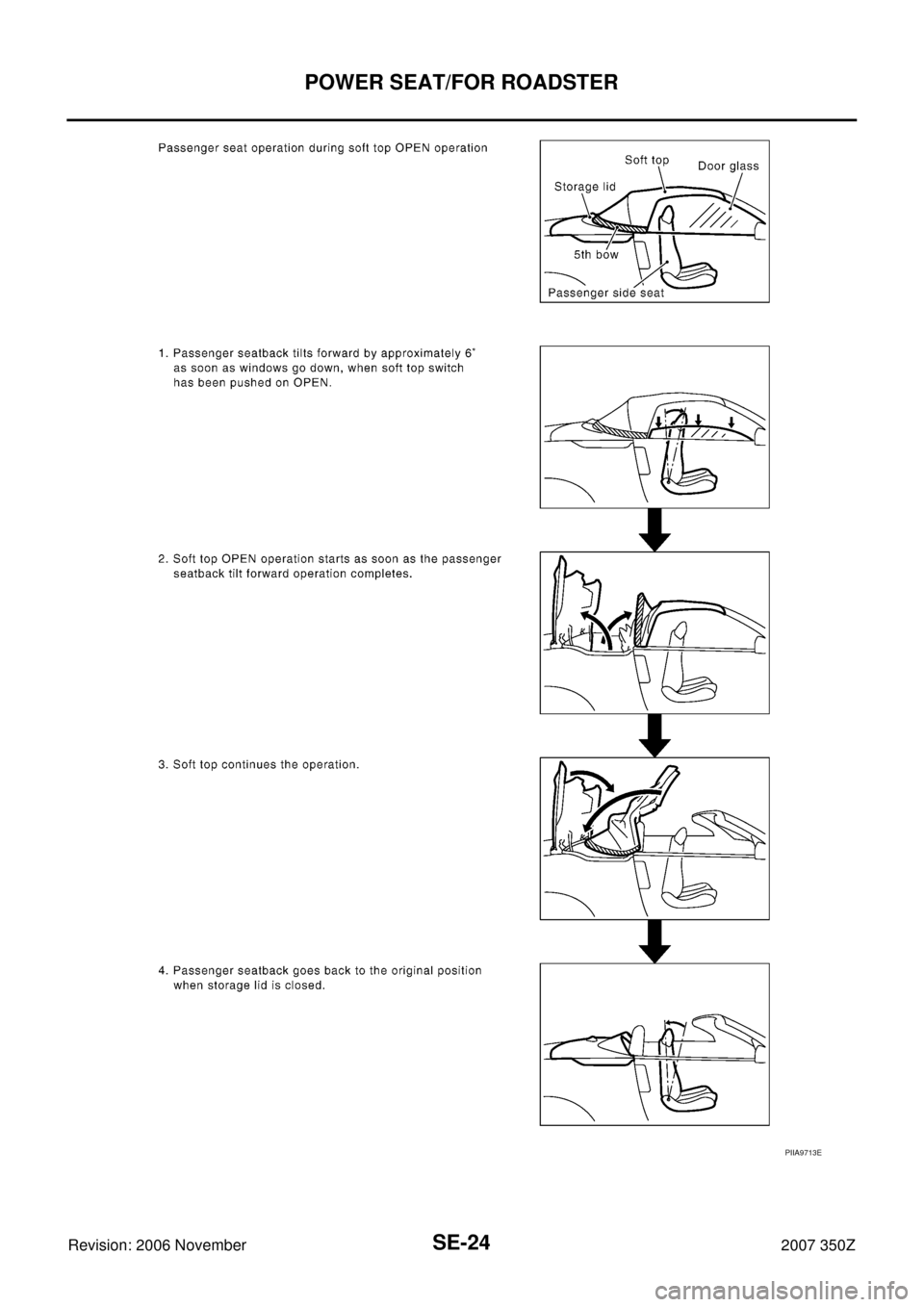

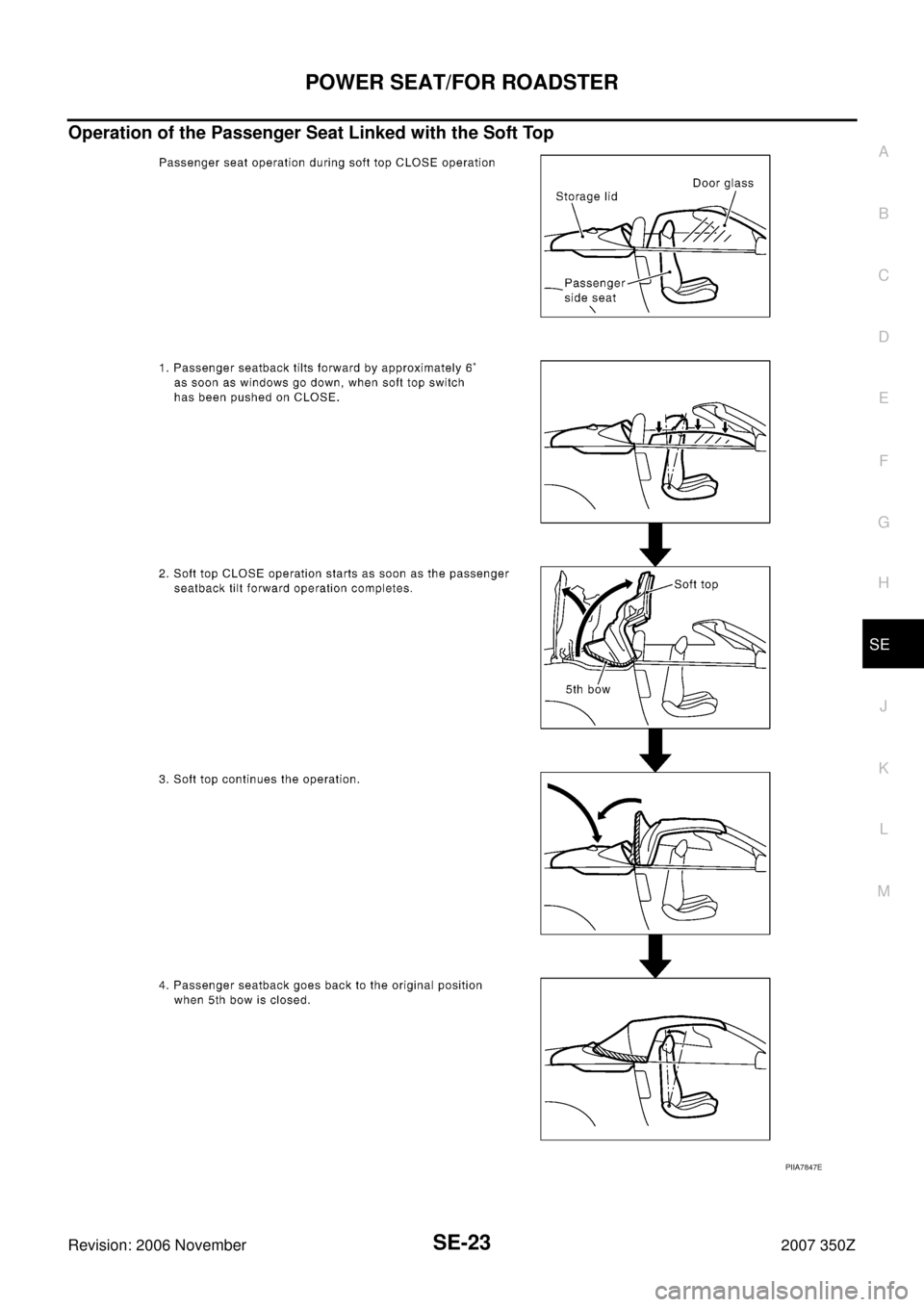

Operation of the Passenger Seat Linked with the Soft Top
PIIA7847E
Page 24 of 80
SE-24
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
PIIA9713E
Page 25 of 80
POWER SEAT/FOR ROADSTER
SE-25
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
CANCEL FUNCTION
The seatback tilt cancel switch can be used to set following functions ON or OFF.
The seatback tilt forward/backward function
The soft top interlocking operation function
CAUTION:
If a child seat is installed, turn the seat tilt cancel switch OFF to disable the seatback tilt forward/
backward function and the soft top interlock operation function.
FAIL-SAFE MODE
If the power seat switch is not operated, nor the seat back tilt switch is not operated, nor the soft top interlock-
ing operation is not under operation, and if the passenger seat control unit detects a motor operation power
from the soft top control unit, the passenger seat control unit stops the motor by switching the motor power line
to ground.
Canceling Fail-Safe Mode
Disconnect and reconnect the battery terminal.
Disconnect and reconnect the passenger seat control unit connector.
Operation locationSliding motor
Reclining motor
Page 26 of 80
SE-26
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z

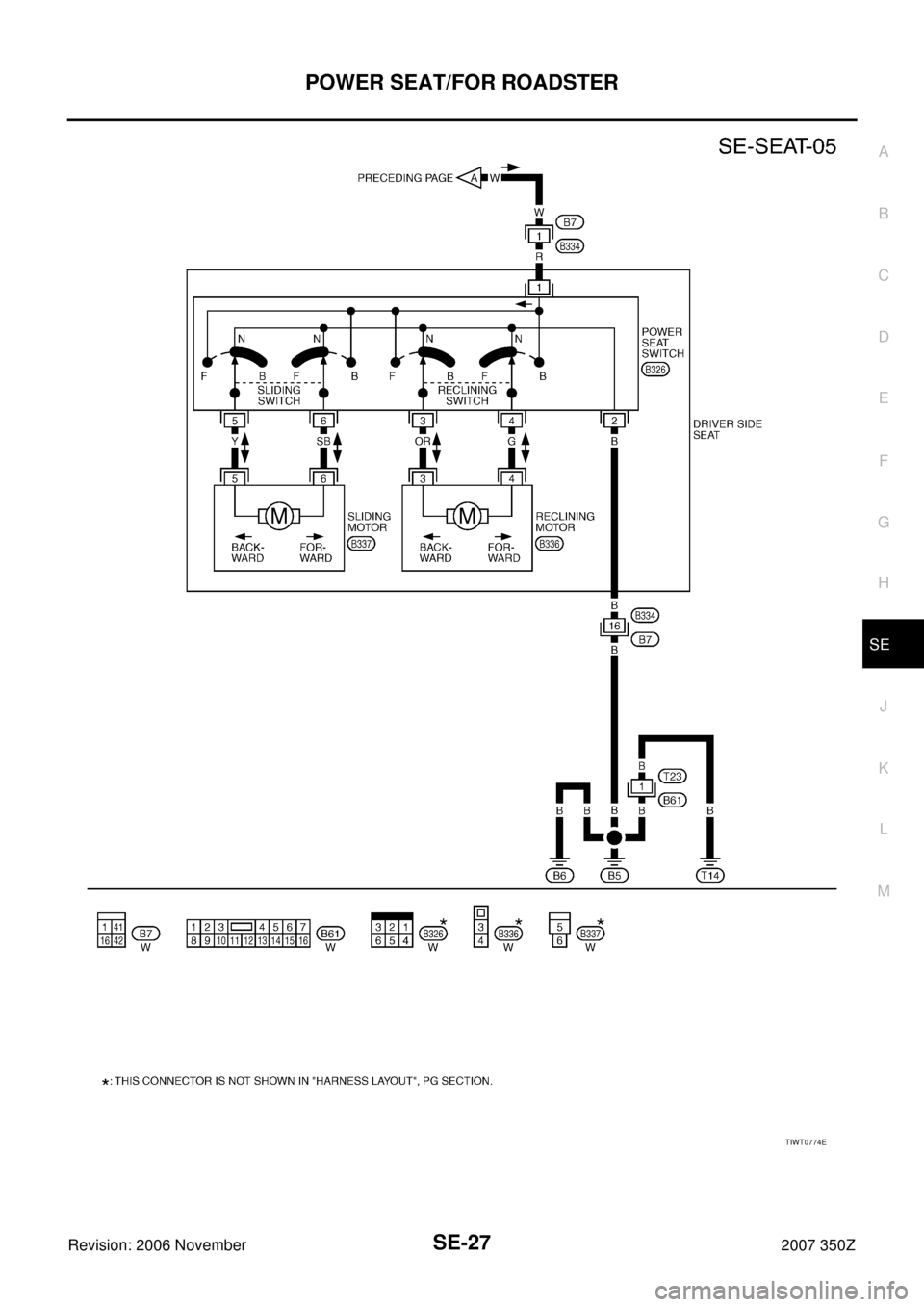

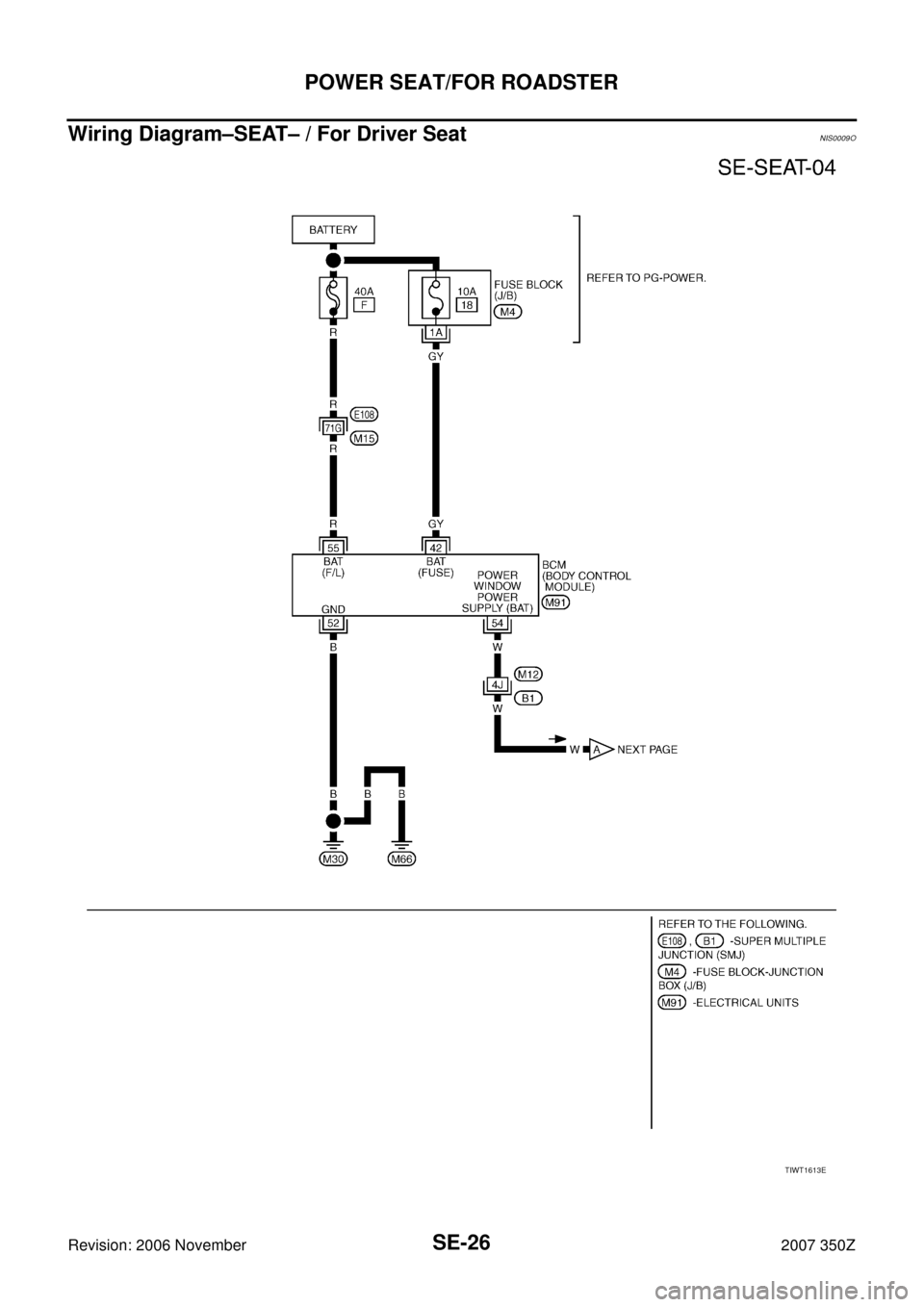

Wiring Diagram–SEAT– / For Driver SeatNIS0009O
TIWT1613E
Page 27 of 80
POWER SEAT/FOR ROADSTER
SE-27
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT0774E
Page 28 of 80
SE-28
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z

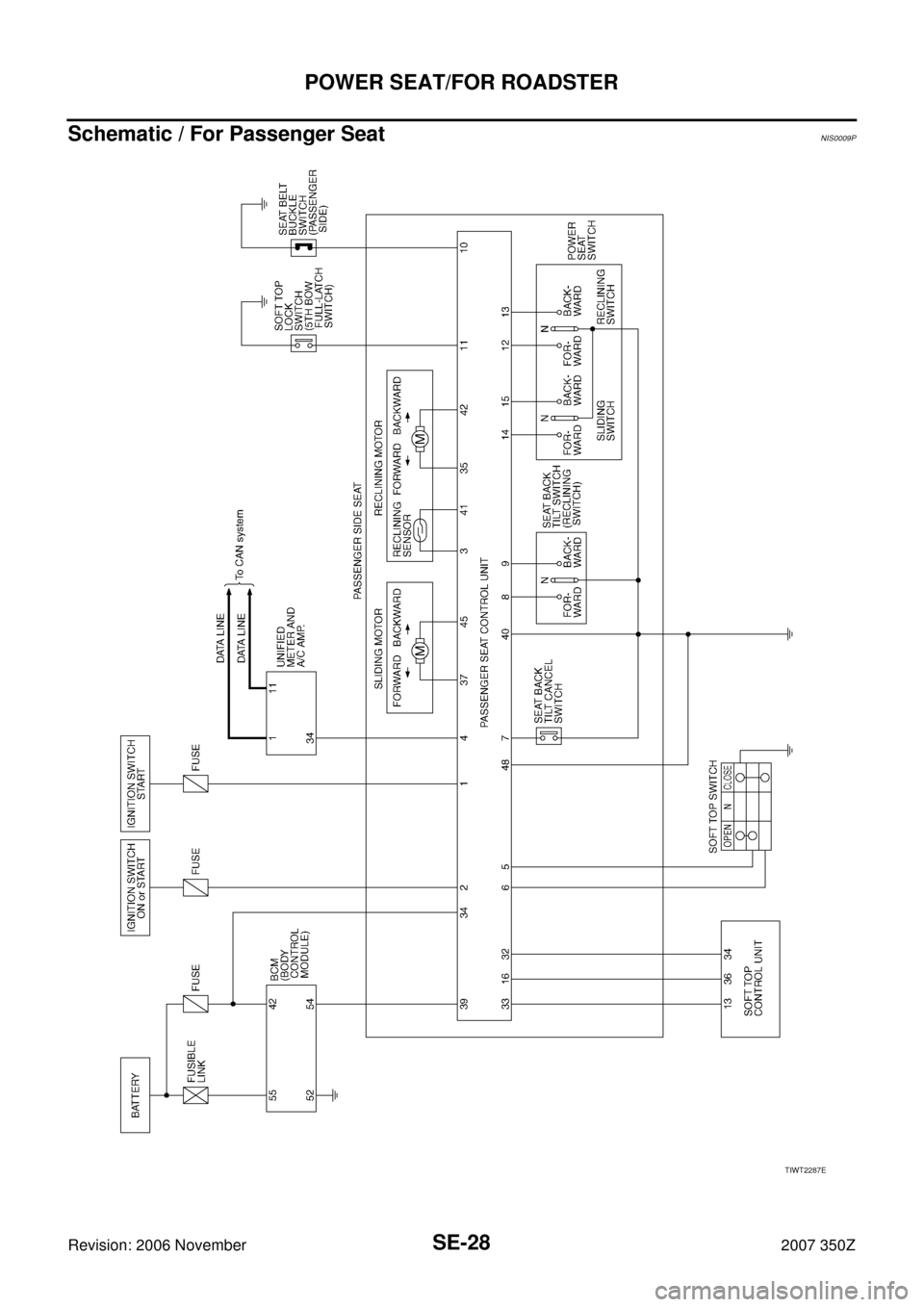

Schematic / For Passenger SeatNIS0009P
TIWT2287E
Page 29 of 80
POWER SEAT/FOR ROADSTER
SE-29
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z

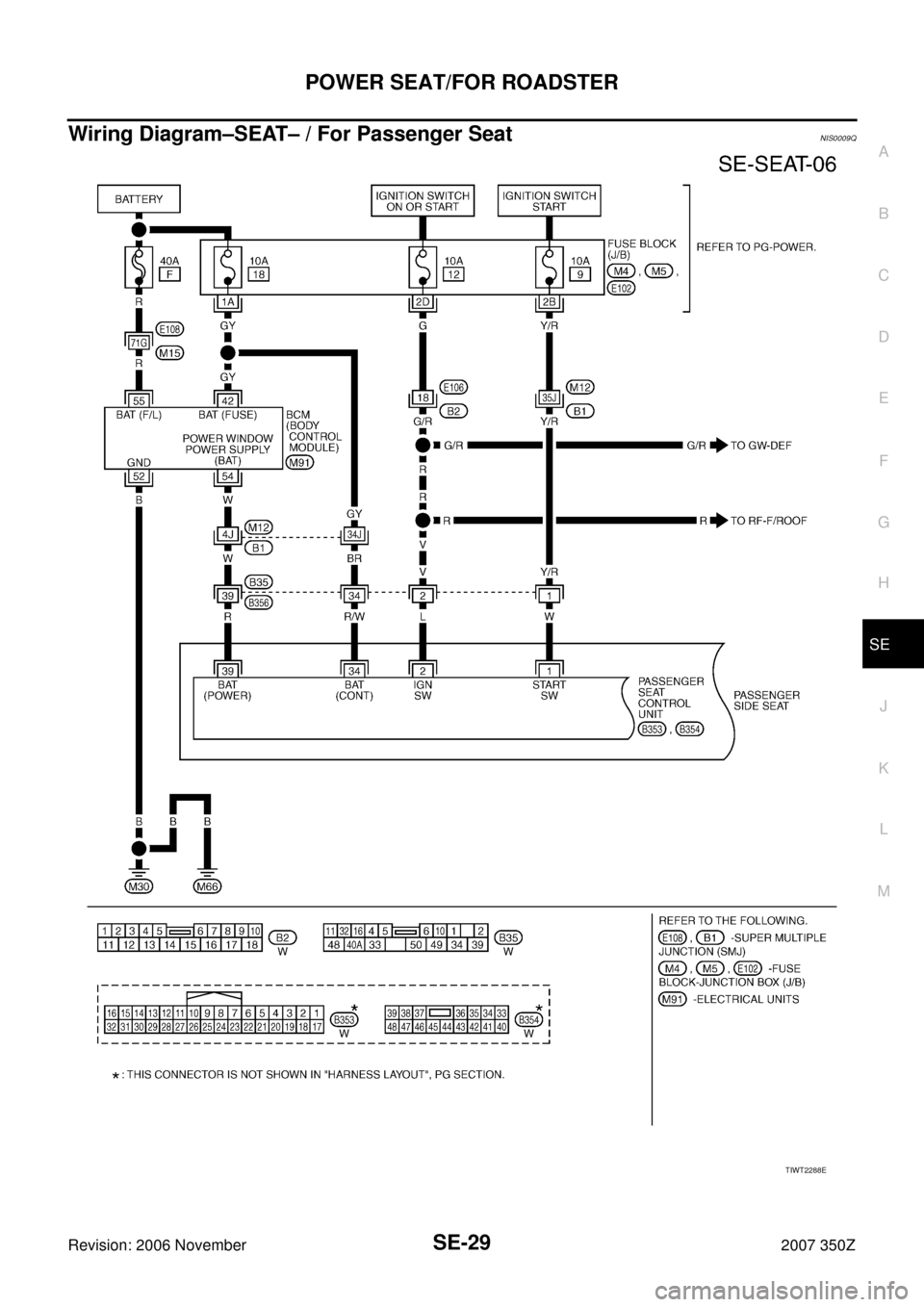

Wiring Diagram–SEAT– / For Passenger SeatNIS0009Q
TIWT2288E
Page 30 of 80
SE-30
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
TIWT2213E
