NISSAN 350Z 2007 Z33 Seat Owner's Guide

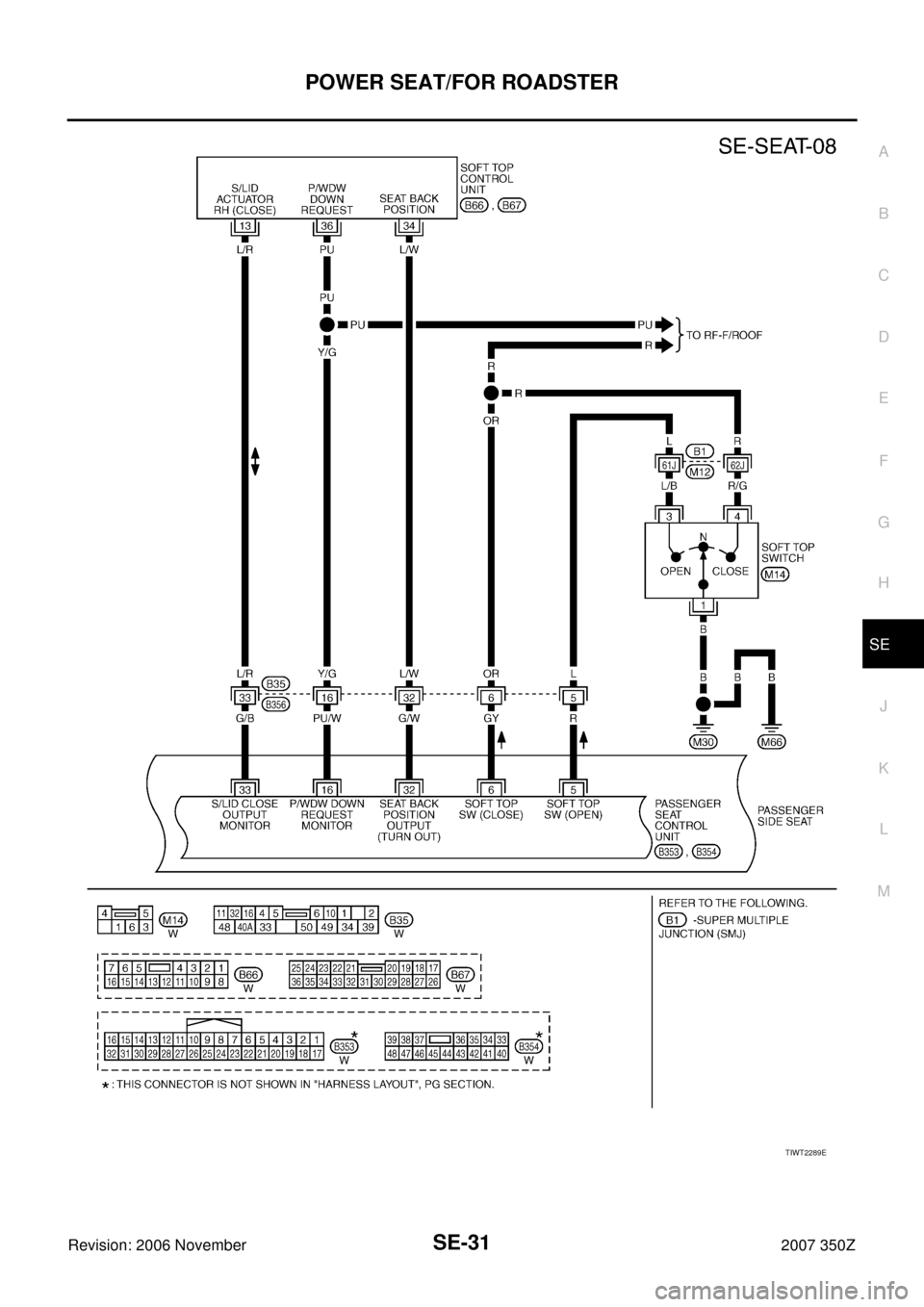

POWER SEAT/FOR ROADSTER
SE-31
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT2289E

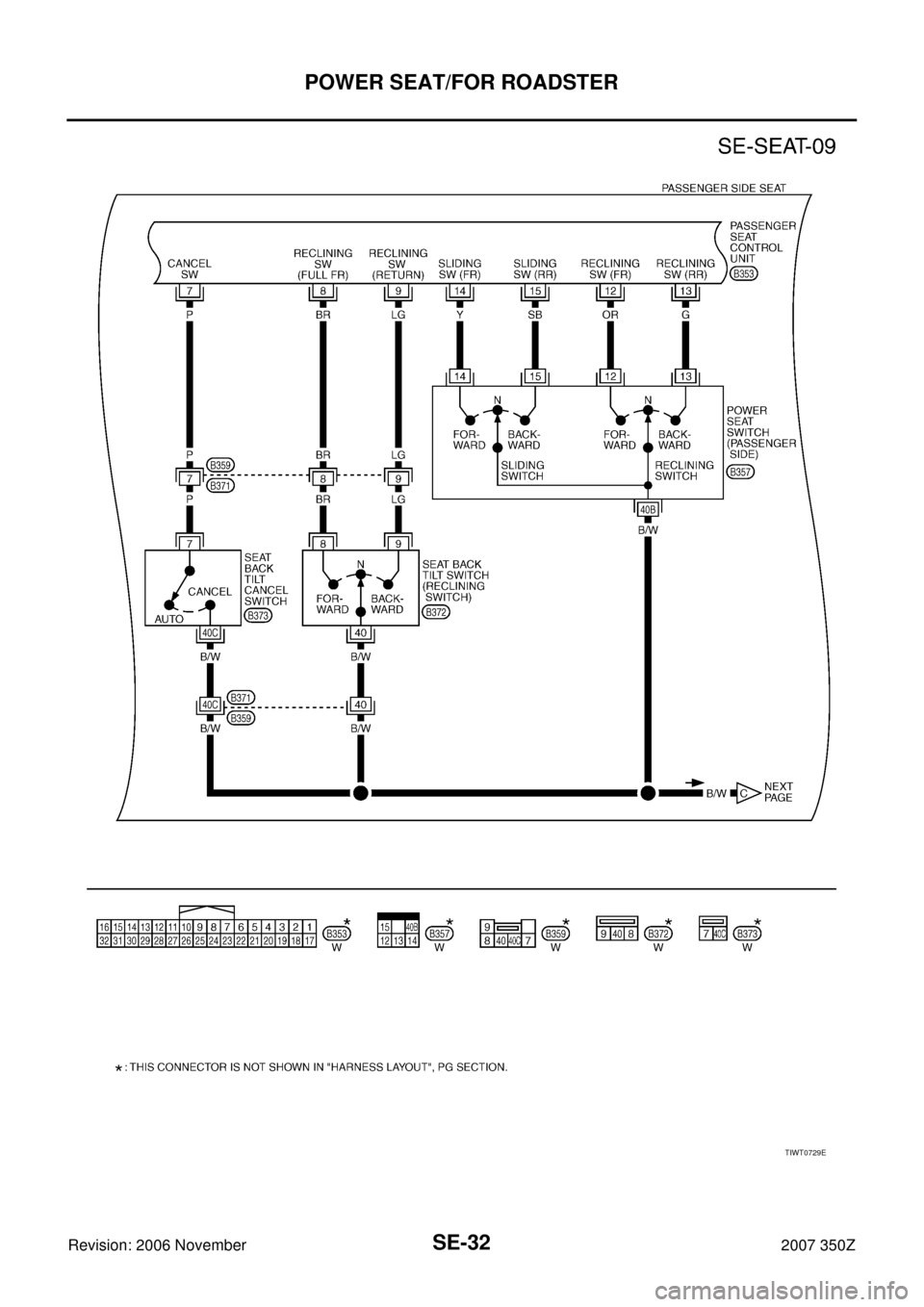

SE-32
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
TIWT0729E

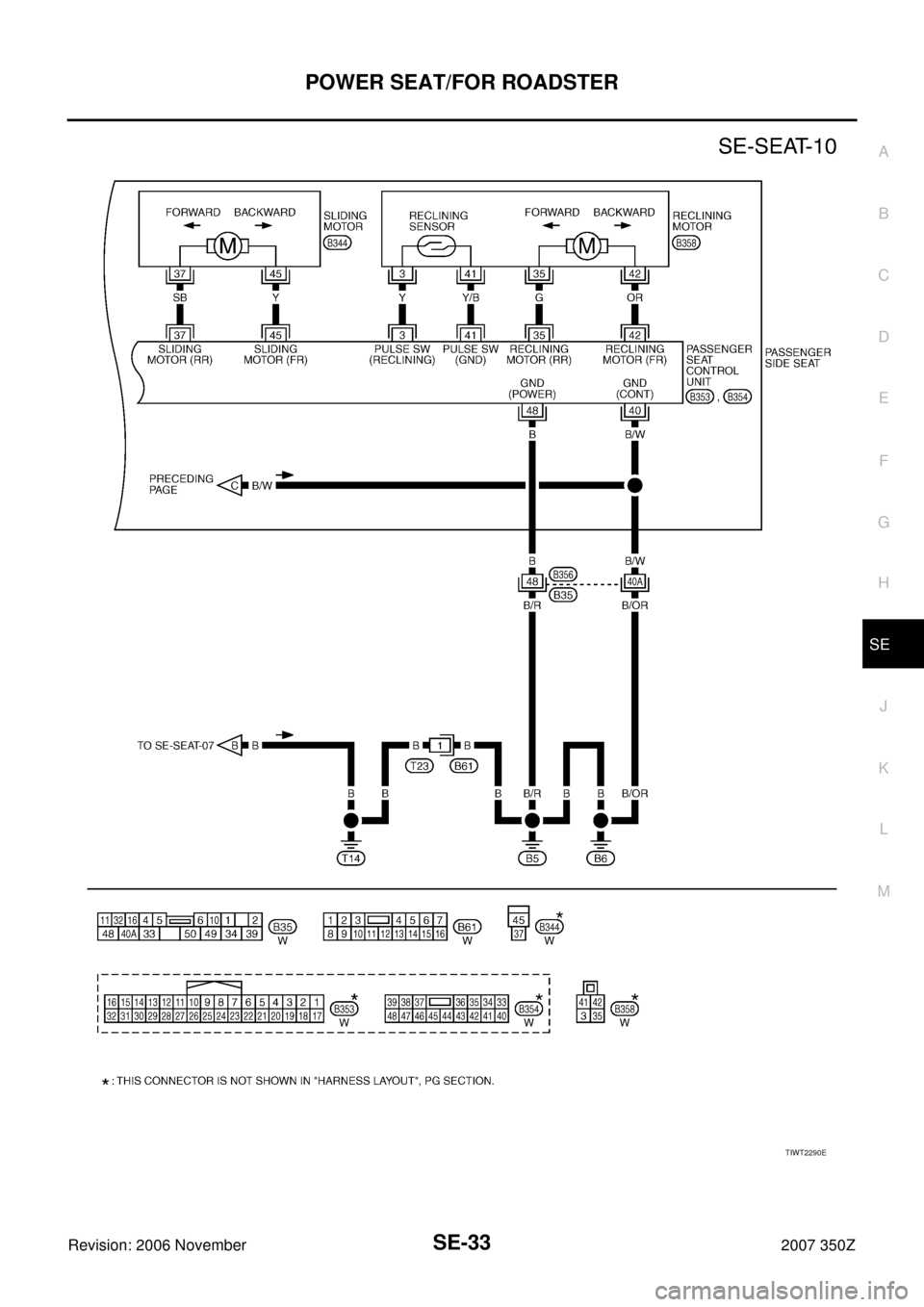

POWER SEAT/FOR ROADSTER
SE-33
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
TIWT2290E

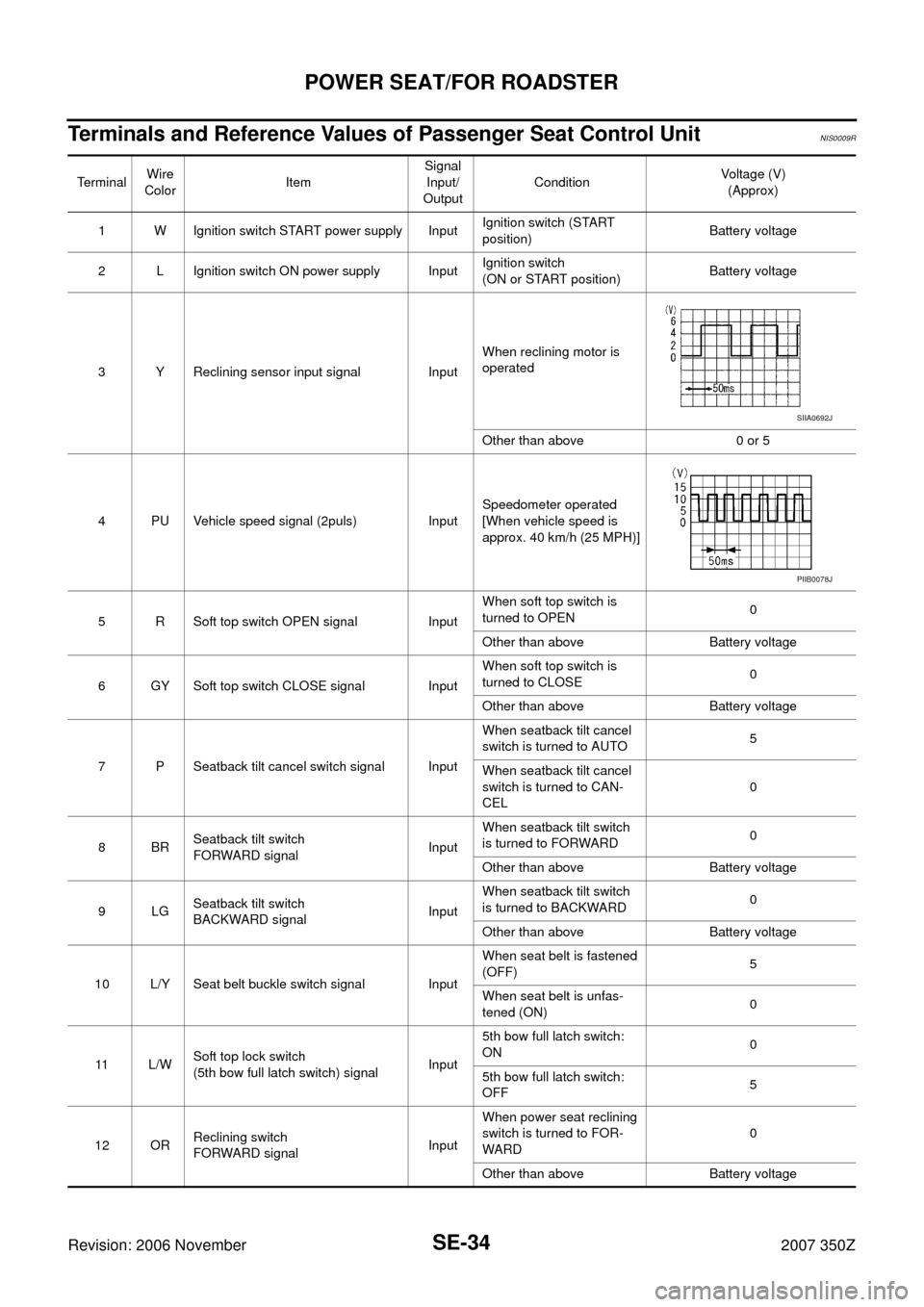

SE-34
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
Terminals and Reference Values of Passenger Seat Control UnitNIS0009R
TerminalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
1 W Ignition switch START power supply InputIgnition switch (START
position)Battery voltage
2 L Ignition switch ON power supply InputIgnition switch
(ON or START position)Battery voltage
3 Y Reclining sensor input signal InputWhen reclining motor is
operated
Other than above 0 or 5
4 PU Vehicle speed signal (2puls) InputSpeedometer operated
[When vehicle speed is
approx. 40 km/h (25 MPH)]
5 R Soft top switch OPEN signal InputWhen soft top switch is
turned to OPEN0
Other than above Battery voltage
6 GY Soft top switch CLOSE signal InputWhen soft top switch is
turned to CLOSE0
Other than above Battery voltage
7 P Seatback tilt cancel switch signal InputWhen seatback tilt cancel
switch is turned to AUTO5
When seatback tilt cancel
switch is turned to CAN-
CEL0
8BRSeatback tilt switch
FORWARD signalInputWhen seatback tilt switch
is turned to FORWARD0
Other than above Battery voltage
9LGSeatback tilt switch
BACKWARD signalInputWhen seatback tilt switch
is turned to BACKWARD0
Other than above Battery voltage
10 L/Y Seat belt buckle switch signal InputWhen seat belt is fastened
(OFF)5
When seat belt is unfas-
tened (ON)0
11 L / WSoft top lock switch
(5th bow full latch switch) signalInput5th bow full latch switch:
ON0
5th bow full latch switch:
OFF5
12 ORReclining switch
FORWARD signalInputWhen power seat reclining
switch is turned to FOR-
WARD0
Other than above Battery voltage
SIIA0692J
PIIB0078J

POWER SEAT/FOR ROADSTER
SE-35
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
Terminals and Reference Values of BCMNIS0009S
13 GReclining switch
BACKWARD signalInputWhen power seat reclining
switch is turned to BACK-
WARD0
Other than above Battery voltage
14 YSliding switch
FORWARD signalInputWhen power seat sliding
switch is turned to FOR-
WARD0
Other than above Battery voltage
15 SBSliding switch
BACKWARD signalInputWhen power seat sliding
switch is turned to BACK-
WARD0
Other than above Battery voltage
16 PU/W Power window down signal InputWhen soft top switch is
turned to ON0
Other than above 5
32 G/W Seatback position signal InputWhen the seatback is tilted
by the interlocking opera-
tion with soft top0
Other than above 5
33 G/BStorage lid actuator RH
CLOSE signalInputWhen storage lid actuator
is in a closed operationBattery voltage
Other than above 0
34 R/W Battery power supply (control unit) Input — Battery voltage
35 GReclining motor
BACKWARD outputOutputReclining switch backward
operation (Motor operated)Battery voltage
Other than above 0
37 SBSliding motor
BACKWARD outputOutputSliding switch backward
operation
(Motor operated)Battery voltage
Other than above 0
39 R Battery power supply (power) Output — Battery voltage
40 B/W Ground (control unit) — — 0
41 Y/B Ground (sensor) — — 0
42 ORReclining motor
FORWARD outputOutputReclining switch forward
operation (Motor operated)Battery voltage
Other than above 0
45 YSliding motor
FORWARD outputOutputSliding switch forward
operation (Motor operated)Battery voltage
Other than above 0
48 B Ground (power) — — 0 Te r m i n a lWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
TerminalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
42 GY Battery power supply (Fuse) Input — Battery voltage
52 B Ground — — 0

SE-36
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
54 WPower window power supply out-
put (driver side power seat switch
and passenger seat control unit
power supply)Output — Battery voltage
55 R Battery power supply (Fusible link) Input — Battery voltage TerminalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)

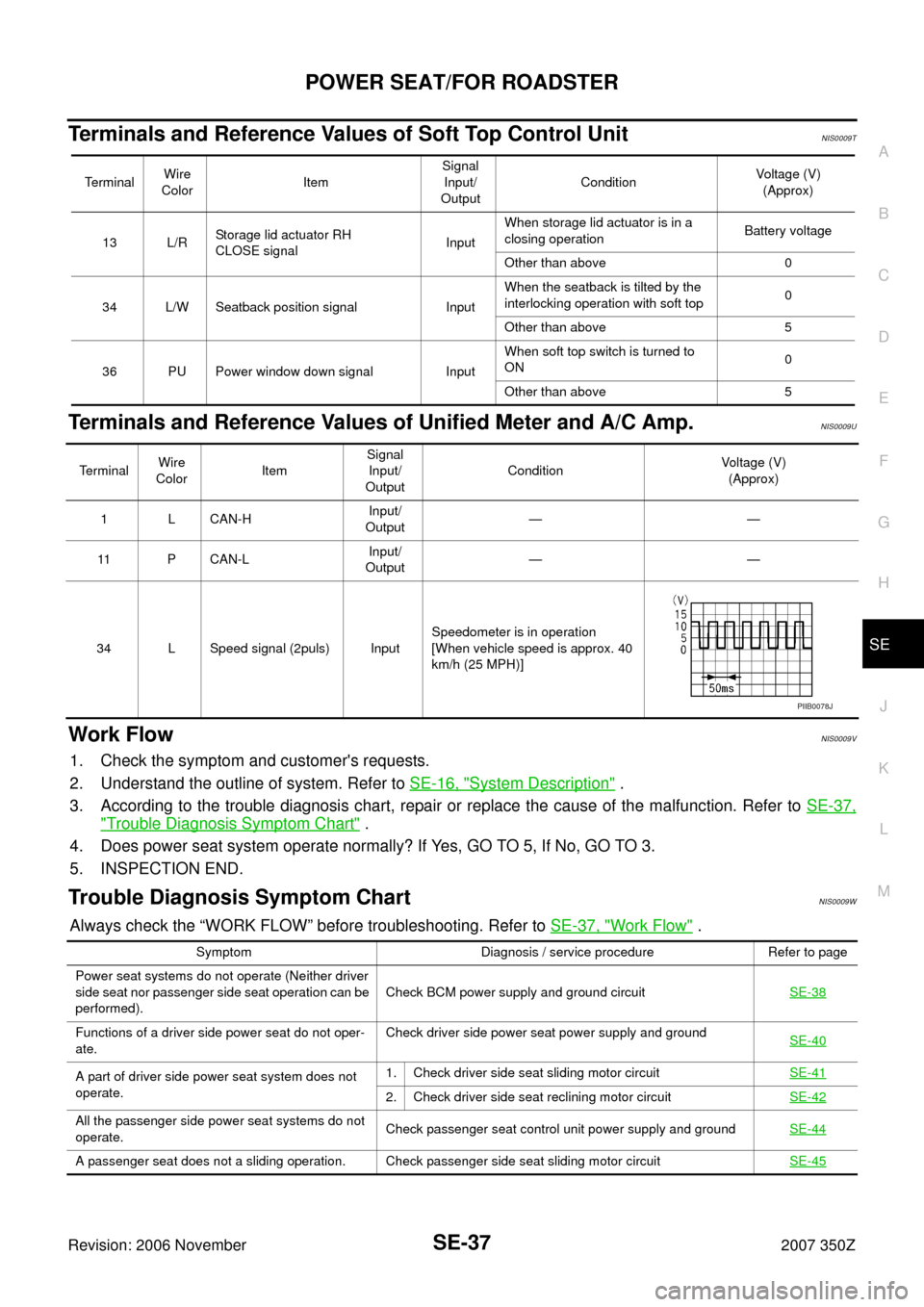

POWER SEAT/FOR ROADSTER
SE-37
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
Terminals and Reference Values of Soft Top Control UnitNIS0009T
Terminals and Reference Values of Unified Meter and A/C Amp.NIS0009U
Work FlowNIS0009V
1. Check the symptom and customer's requests.
2. Understand the outline of system. Refer to SE-16, "
System Description" .
3. According to the trouble diagnosis chart, repair or replace the cause of the malfunction. Refer to SE-37,
"Trouble Diagnosis Symptom Chart" .
4. Does power seat system operate normally? If Yes, GO TO 5, If No, GO TO 3.
5. INSPECTION END.
Trouble Diagnosis Symptom ChartNIS0009W
Always check the “WORK FLOW” before troubleshooting. Refer to SE-37, "Work Flow" .
TerminalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
13 L/RStorage lid actuator RH
CLOSE signalInputWhen storage lid actuator is in a
closing operationBattery voltage
Other than above 0
34 L/W Seatback position signal InputWhen the seatback is tilted by the
interlocking operation with soft top0
Other than above 5
36 PU Power window down signal InputWhen soft top switch is turned to
ON0
Other than above 5
TerminalWire
ColorItemSignal
Input/
OutputConditionVoltage (V)
(Approx)
1 L CAN-HInput/
Output——
11 P C A N - LInput/
Output——
34 L Speed signal (2puls) InputSpeedometer is in operation
[When vehicle speed is approx. 40
km/h (25 MPH)]
PIIB0078J
Symptom Diagnosis / service procedure Refer to page
Power seat systems do not operate (Neither driver
side seat nor passenger side seat operation can be
performed).Check BCM power supply and ground circuit SE-38
Functions of a driver side power seat do not oper-
ate.Check driver side power seat power supply and ground
SE-40
A part of driver side power seat system does not
operate.1. Check driver side seat sliding motor circuit SE-41
2. Check driver side seat reclining motor circuit SE-42
All the passenger side power seat systems do not
operate.Check passenger seat control unit power supply and ground SE-44
A passenger seat does not a sliding operation. Check passenger side seat sliding motor circuit SE-45

SE-38
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
Check BCM Power Supply and Ground NIS0009X
1. CHECK FUSE

Check 40A fusible link (letter F located in the fuse and fusible link box).

Check 10A fuse [No.18, located in the fuse block (J/B)]
NOTE:
Refer to SE-15, "
Component Parts and Harness Connector Location" .
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate cause of malfunction before installing new fuse. Refer to PG-
4, "POWER SUPPLY ROUTING CIRCUIT" .
A passenger seat does not carry out a reclining
operation (Neither manual operation nor an auto-
matic operation can be performed).Check passenger side seat reclining motor circuit SE-46
The automatic operation of a passenger seat can
not be performed (a manual operation can be per-
formed).1. Check passenger side seat reclining sensor circuit SE-472. Check seatback tilt cancel switch circuit SE-52
3. If the above systems are normal, replace passenger seat
control unit.SE-15
A passenger seat operates automatically when the
vehicle is running.Check vehicle speed signal SE-57
Passenger seatback does not return during a soft
top CLOSE operation.Check soft top lock switch circuit SE-55
Passenger seatback does not tilt forward and
return during a soft top OPEN operation.Check storage lid close signal circuit SE-55
Passenger seatback does not tilt forward during a
soft top CLOSE operation or OPEN operation.1. Check power window down request signal circuit SE-542. Check soft top switch circuit SE-53
3. If the above systems are normal, replace passenger seat
control unit.SE-15
Seat does not tilt when passenger seatback tilt
switch is pushed (other functions operate nor-
mally).1. Check seatback tilt switch circuit SE-512. Check seat belt buckle switch circuit SE-56
3.If the above systems are normal, replace passenger seat
control unitSE-15
A part of passenger seat system does not operate
(only manual).1. Check passenger side seat sliding switch circuit SE-48
2. Check passenger side seat reclining switch circuit SE-49
Passenger seatback dose not go back to the origi-
nal position during a soft top CLOSE or OPEN
operation.Check passenger seat control unit ignition signal circuit SE-44
The manual operation of a passenger seat cannot
be performed (a automatic operation can be per-
formed).Check passenger side power seat ground circuit SE-50
Symptom Diagnosis / service procedure Refer to page

POWER SEAT/FOR ROADSTER
SE-39
C
D
E
F
G
H
J
K
L
MA
B
SE
Revision: 2006 November2007 350Z
2. CHECK BCM POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM connector M91 terminal 42, 55
and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair or replace the harness between BCM and fusible
link.
3. CHECK BCM GROUND CIRCUIT
Check continuity between BCM connector M91 terminal 52 and
ground.
OK or NG
OK >> GO TO 4.
NG >> Repair or replace the harness between BCM and
ground.
4. CHECK BCM OUTPUT POWER SUPPLY CIRCUIT
1. Disconnect power seat switch and passenger seat control unit connector.
2. Check continuity between BCM connector M91 terminal 54 and
power seat switch connector B326 terminal 1.
3. Check continuity between BCM connector M91 terminal 54 and
passenger seat control unit connector B354 terminal 39.
4. Check continuity between BCM connector M91 terminal 54 and
ground.
OK or NG
OK >> GO TO 5.
NG >> Replace harness between BCM and power seat switch or passenger seat control unit.42 (GY) - Ground : Battery voltage
55 (R) - Ground : Battery voltage
PIIA6374E
52 (B) - Ground : Continuity should exist.
PIIA9131E
54 (W) - 1 (R) : Continuity should exist.
54 (W) - 39 (R) : Continuity should exist.
54 (W) - Ground : Continuity should not exist.

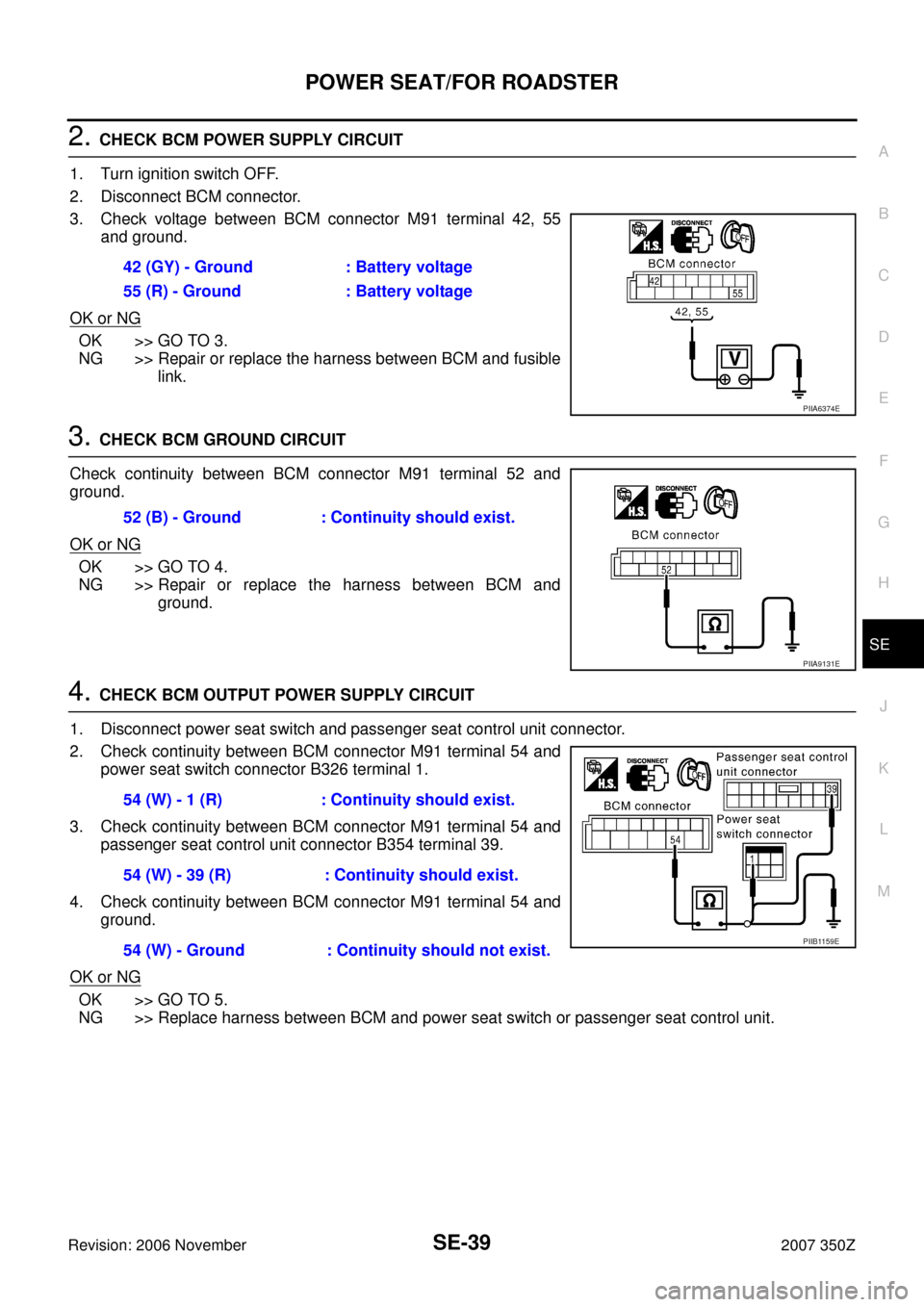

PIIB1159E

SE-40
POWER SEAT/FOR ROADSTER
Revision: 2006 November2007 350Z
5. CHECK BCM OUTPUT POWER SUPPLY
1. Connect BCM connector.
2. Check voltage between BCM connector M91 terminal 54 and
ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace BCM.
Check Driver Side Seat Power Supply and Ground NIS0009Y
1. CHECK POWER SEAT SWITCH POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect power seat switch connector.
3. Check voltage between power seat switch connector B326 ter-
minal 1 and ground.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. CHECK BCM OUTPUT POWER SUPPLY CIRCUIT
1. Disconnect passenger seat control unit connector.
2. Check continuity between BCM connector M91 terminal 54 and
power seat switch connector B326 terminal 1.
3. Check continuity between BCM connector M91 terminal 54 and
ground.
OK or NG
OK >> Check the condition of the harness and connector.
NG >> Replace harness between BCM and power seat switch.54 (W) - Ground : Battery voltage
PIIB1160E
1 (R) - Ground : Battery voltage
PIIA7741E
54 (W) - 1 (R) : Continuity should exist.
54 (W) - Ground : Continuity should not exist.
PIIB1161E
