NISSAN ALMERA 2001 Service Manual

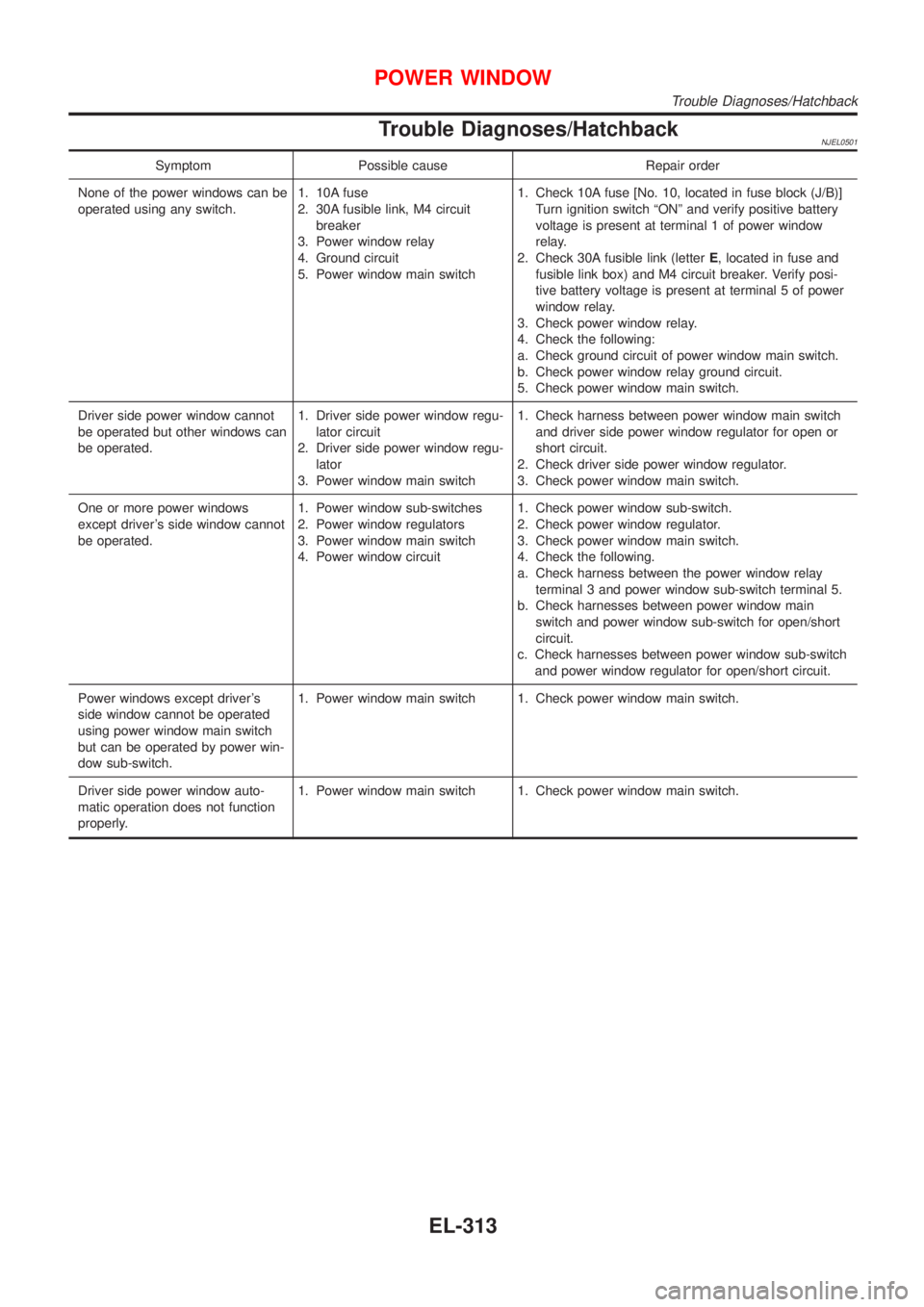

Trouble Diagnoses/HatchbackNJEL0501
Symptom Possible cause Repair order
None of the power windows can be
operated using any switch.1. 10A fuse
2. 30A fusible link, M4 circuit
breaker
3. Power window relay
4. Ground circuit
5. Power window main switch1. Check 10A fuse [No. 10, located in fuse block (J/B)]
Turn ignition switch ªONº and verify positive battery
voltage is present at terminal 1 of power window
relay.
2. Check 30A fusible link (letterE, located in fuse and
fusible link box) and M4 circuit breaker. Verify posi-
tive battery voltage is present at terminal 5 of power
window relay.
3. Check power window relay.
4. Check the following:
a. Check ground circuit of power window main switch.
b. Check power window relay ground circuit.
5. Check power window main switch.
Driver side power window cannot
be operated but other windows can
be operated.1. Driver side power window regu-
lator circuit
2. Driver side power window regu-
lator
3. Power window main switch1. Check harness between power window main switch
and driver side power window regulator for open or
short circuit.
2. Check driver side power window regulator.
3. Check power window main switch.
One or more power windows
except driver's side window cannot
be operated.1. Power window sub-switches
2. Power window regulators
3. Power window main switch
4. Power window circuit1. Check power window sub-switch.
2. Check power window regulator.
3. Check power window main switch.
4. Check the following.
a. Check harness between the power window relay
terminal 3 and power window sub-switch terminal 5.
b. Check harnesses between power window main
switch and power window sub-switch for open/short
circuit.
c. Check harnesses between power window sub-switch
and power window regulator for open/short circuit.
Power windows except driver's
side window cannot be operated
using power window main switch
but can be operated by power win-
dow sub-switch.1. Power window main switch 1. Check power window main switch.
Driver side power window auto-
matic operation does not function
properly.1. Power window main switch 1. Check power window main switch.
POWER WINDOW
Trouble Diagnoses/Hatchback
EL-313

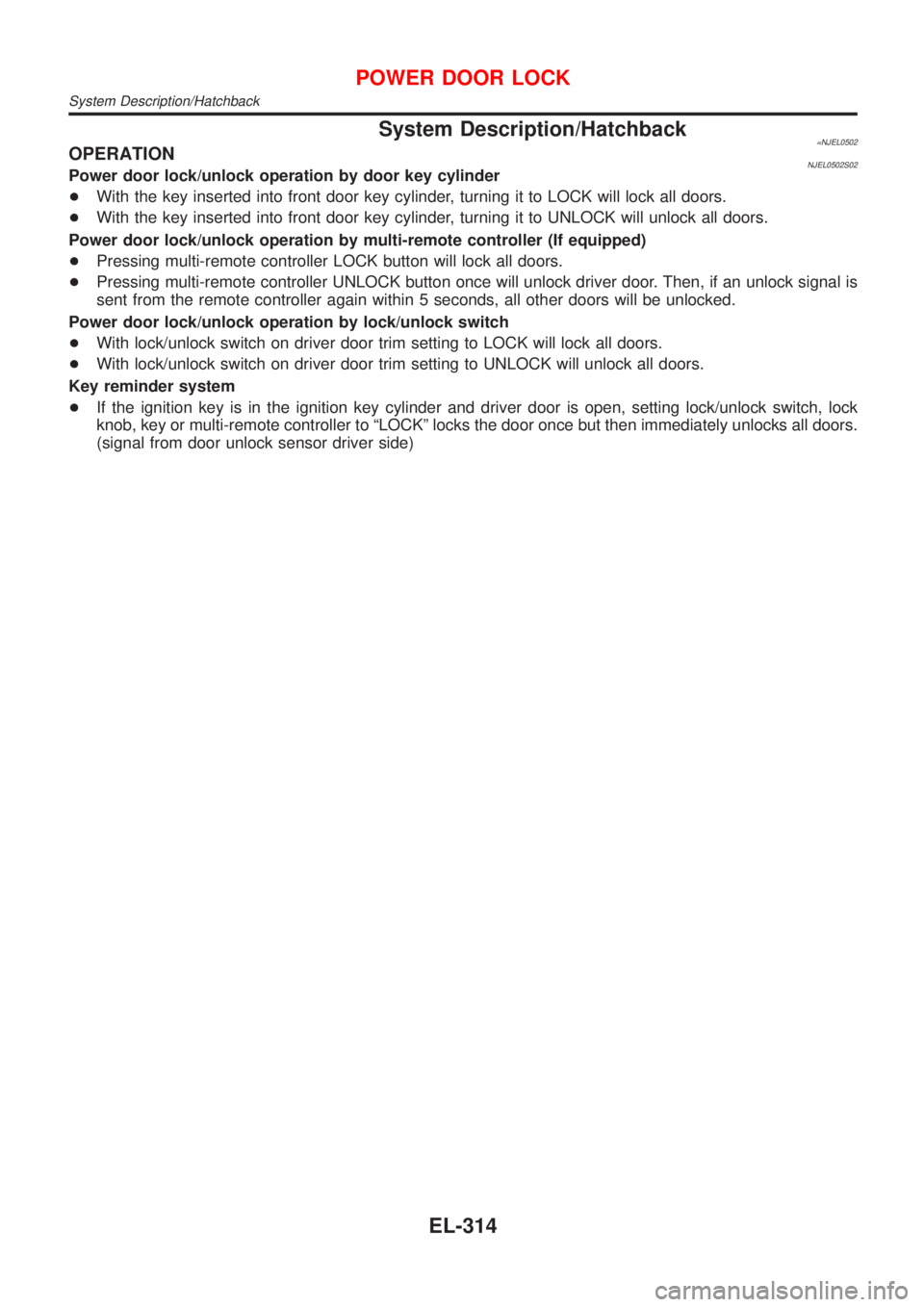

System Description/Hatchback=NJEL0502OPERATIONNJEL0502S02Power door lock/unlock operation by door key cylinder
+With the key inserted into front door key cylinder, turning it to LOCK will lock all doors.
+With the key inserted into front door key cylinder, turning it to UNLOCK will unlock all doors.
Power door lock/unlock operation by multi-remote controller (If equipped)
+Pressing multi-remote controller LOCK button will lock all doors.
+Pressing multi-remote controller UNLOCK button once will unlock driver door. Then, if an unlock signal is
sent from the remote controller again within 5 seconds, all other doors will be unlocked.
Power door lock/unlock operation by lock/unlock switch
+With lock/unlock switch on driver door trim setting to LOCK will lock all doors.
+With lock/unlock switch on driver door trim setting to UNLOCK will unlock all doors.
Key reminder system
+If the ignition key is in the ignition key cylinder and driver door is open, setting lock/unlock switch, lock
knob, key or multi-remote controller to ªLOCKº locks the door once but then immediately unlocks all doors.
(signal from door unlock sensor driver side)
POWER DOOR LOCK
System Description/Hatchback
EL-314

NOTE:
POWER DOOR LOCK
System Description/Hatchback (Cont'd)
EL-315

Schematic/HatchbackNJEL0503
MEL221M
POWER DOOR LOCK
Schematic/Hatchback

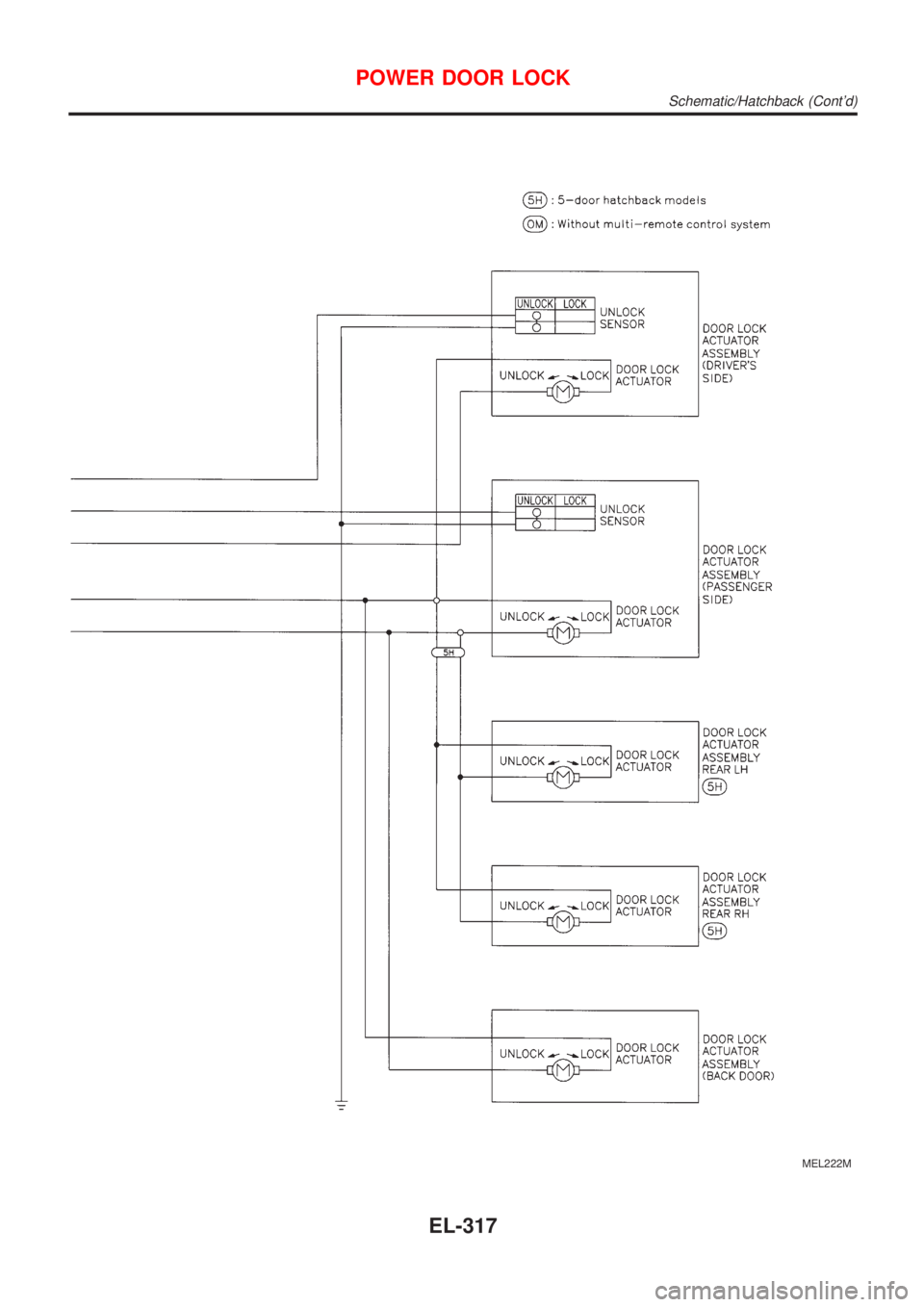

EL-316

MEL222M
POWER DOOR LOCK
Schematic/Hatchback (Cont'd)
EL-317

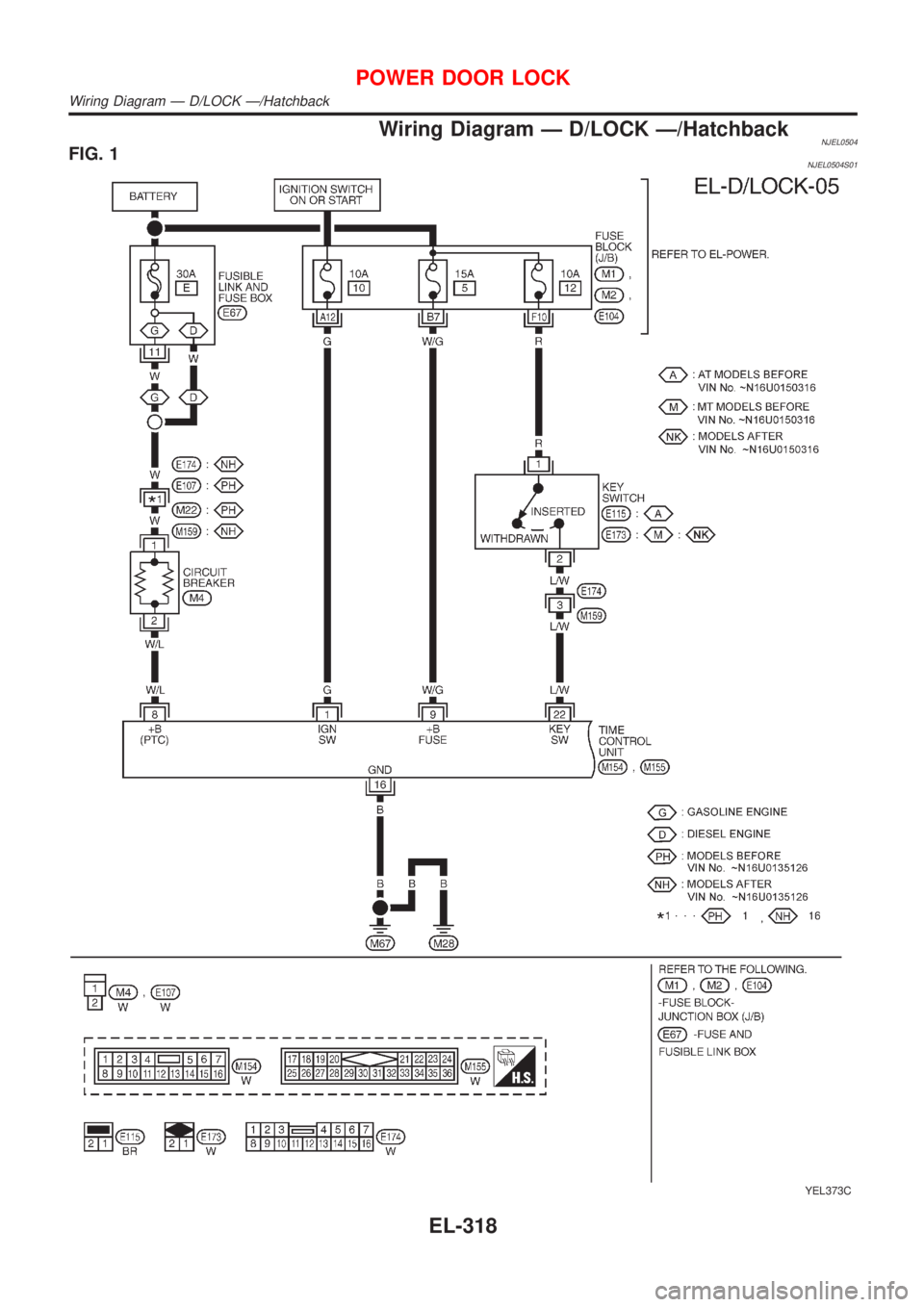

Wiring Diagram Ð D/LOCK Ð/HatchbackNJEL0504FIG. 1NJEL0504S01
YEL373C
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/Hatchback
EL-318

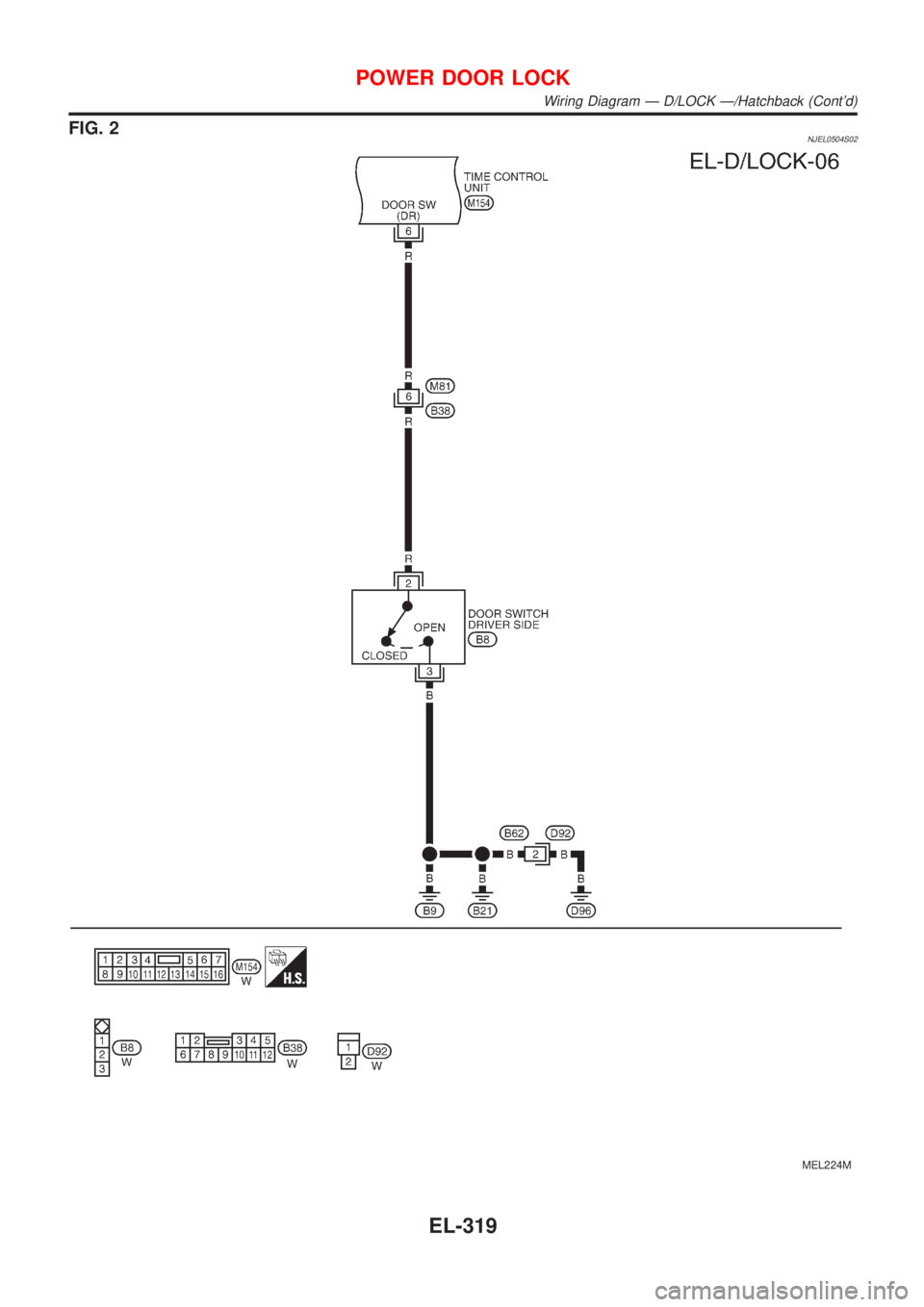

FIG. 2NJEL0504S02
MEL224M
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/Hatchback (Cont'd)
EL-319

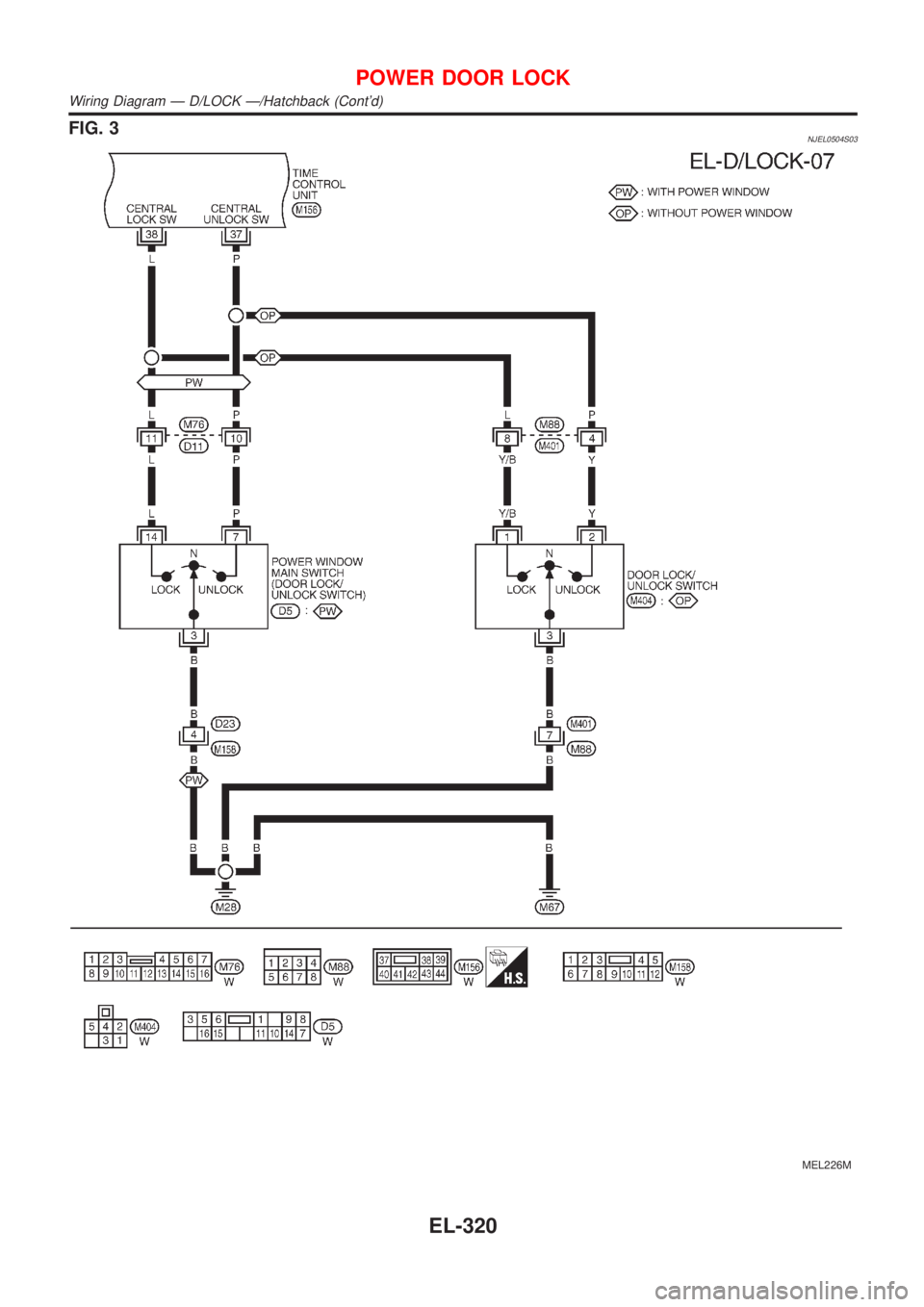

FIG. 3NJEL0504S03
MEL226M
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/Hatchback (Cont'd)
EL-320

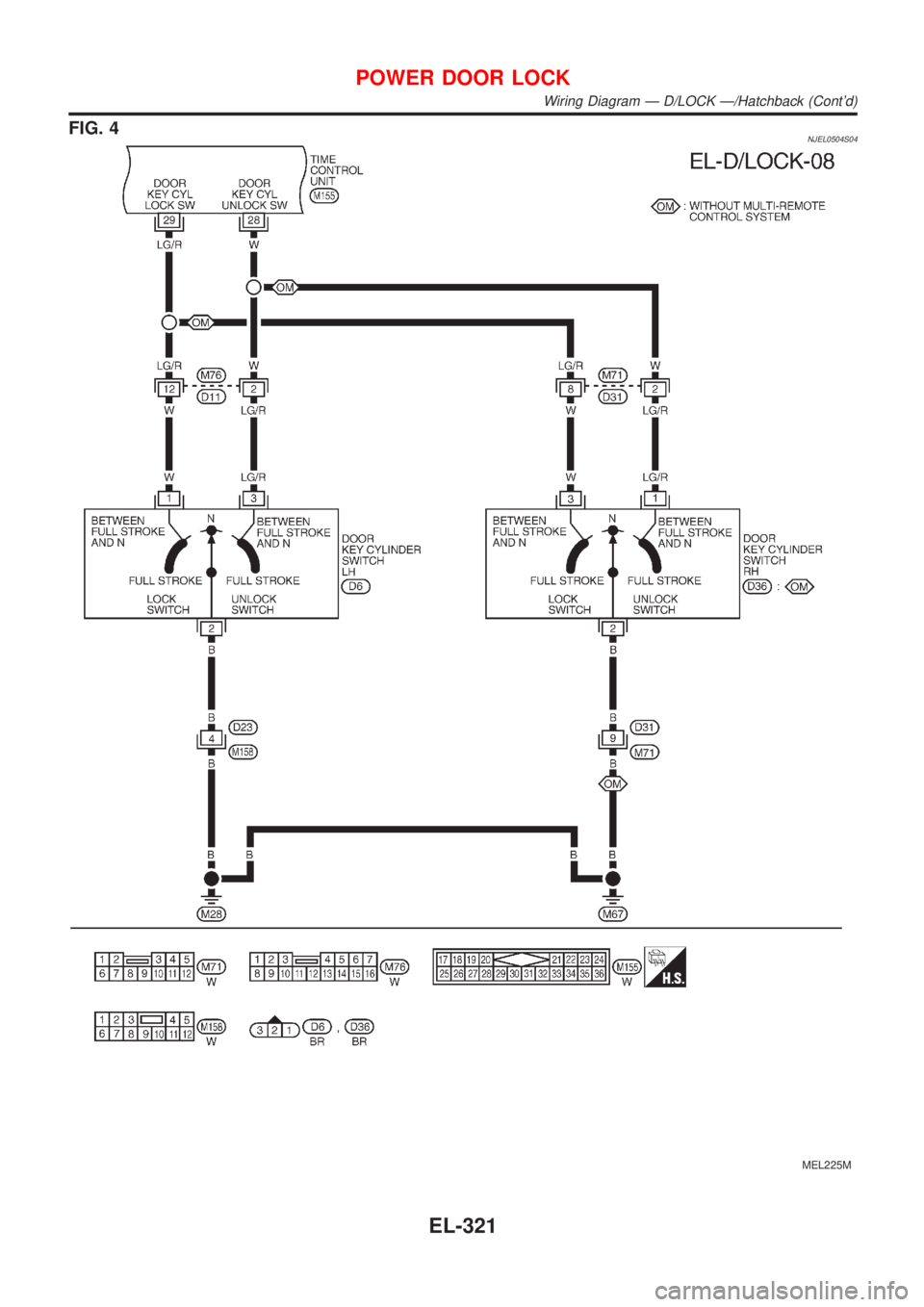

FIG. 4NJEL0504S04
MEL225M
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/Hatchback (Cont'd)
EL-321

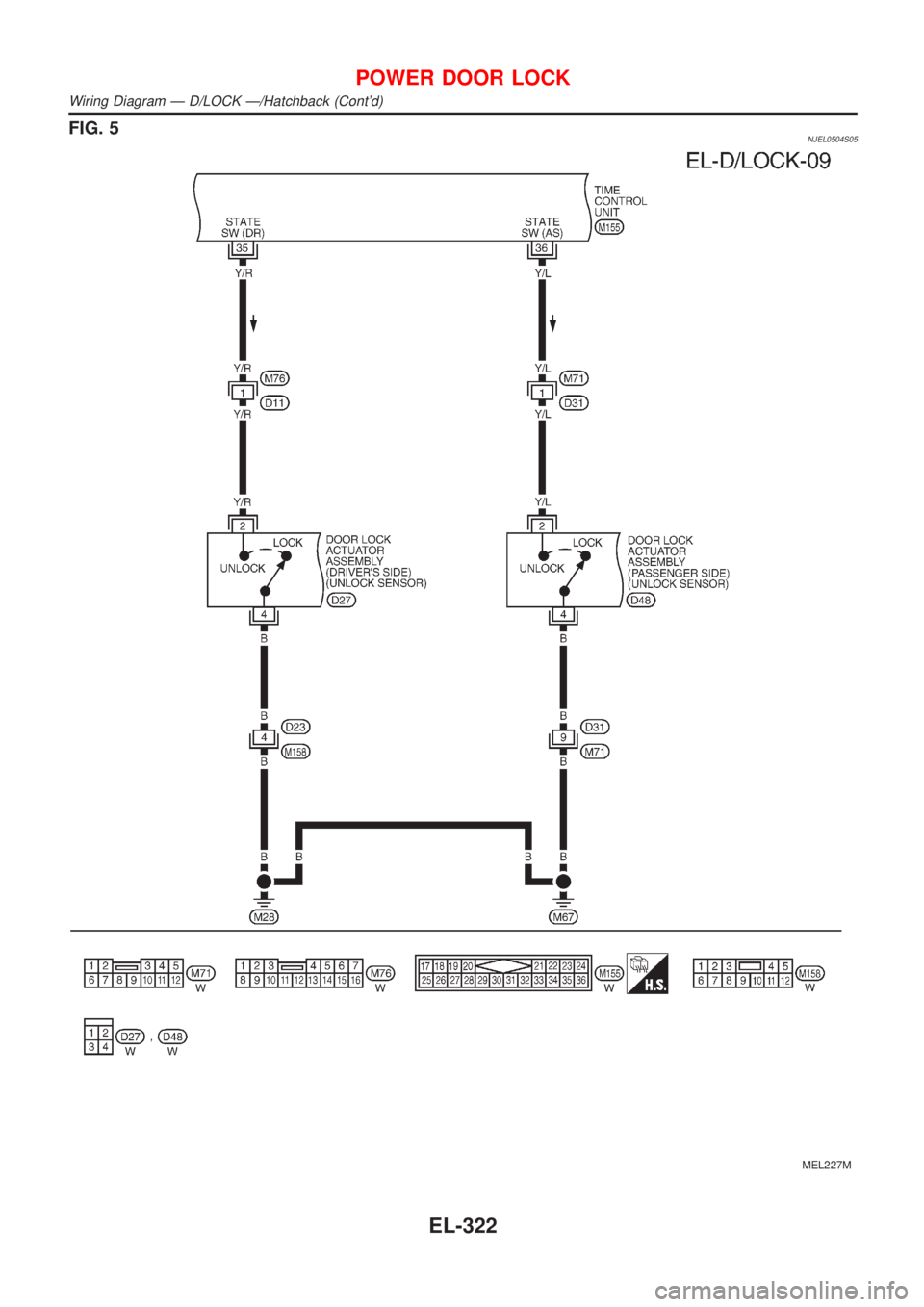

FIG. 5NJEL0504S05
MEL227M
POWER DOOR LOCK
Wiring Diagram Ð D/LOCK Ð/Hatchback (Cont'd)
EL-322
