NISSAN ALMERA 2001 Service Manual

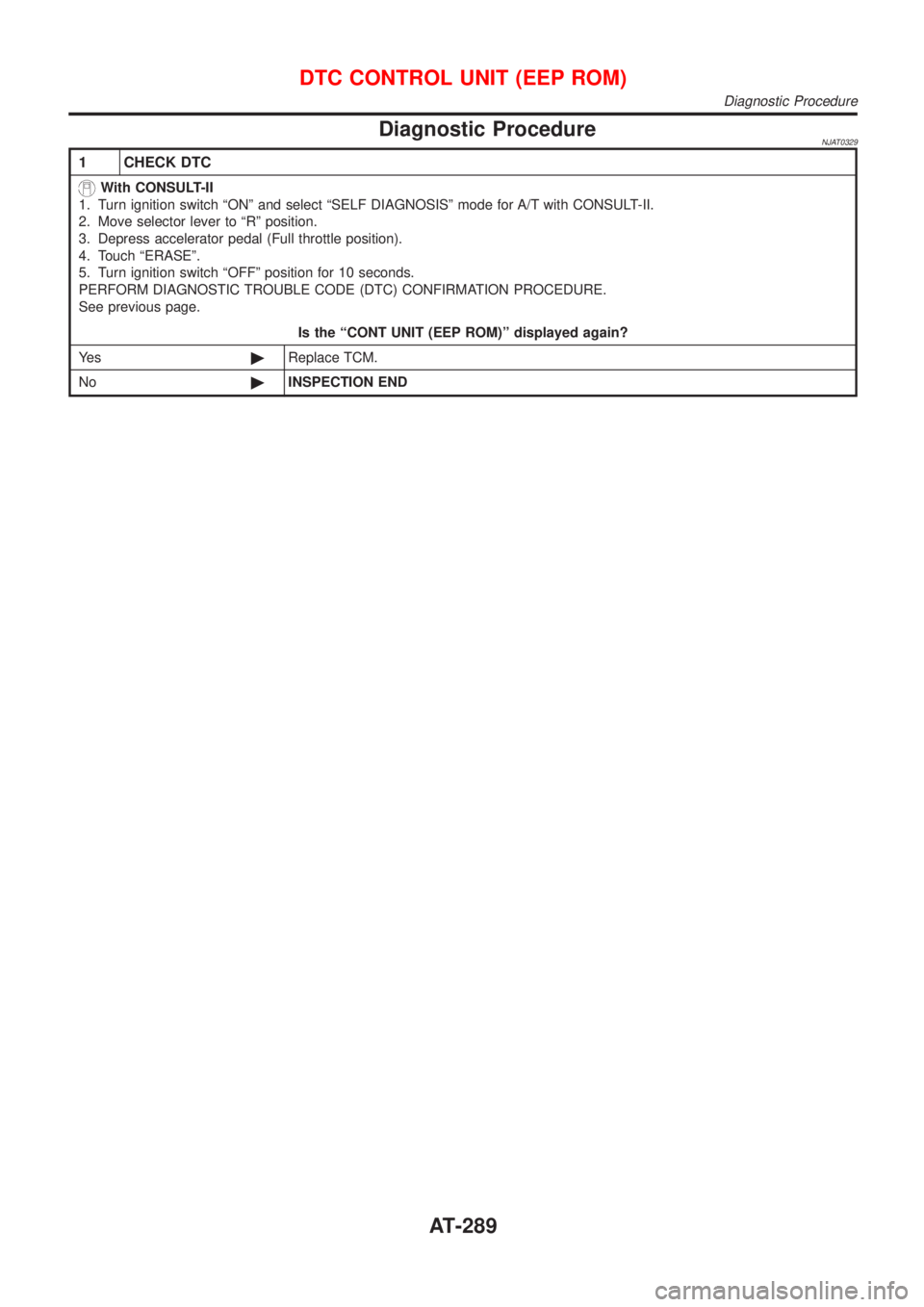

Diagnostic ProcedureNJAT0329
1 CHECK DTC
With CONSULT-II
1. Turn ignition switch ªONº and select ªSELF DIAGNOSISº mode for A/T with CONSULT-II.
2. Move selector lever to ªRº position.
3. Depress accelerator pedal (Full throttle position).
4. Touch ªERASEº.
5. Turn ignition switch ªOFFº position for 10 seconds.
PERFORM DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE.
See previous page.
Is the ªCONT UNIT (EEP ROM)º displayed again?
Ye s©Replace TCM.
No©INSPECTION END
DTC CONTROL UNIT (EEP ROM)
Diagnostic Procedure
AT-289

Wiring Diagram Ð AT Ð NONDTC/General and
Except for Euro-OBD
NJAT0353
HAT086
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/General and Except for Euro-OBD
AT-290

HAT087
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/General and Except for Euro-OBD (Cont'd)
AT-291

Wiring Diagram Ð AT Ð NONDTC/EURO-OBDNJAT0330SEDAN MODELS AND HATCHBACK MODELS BEFORE
VIN NO. Ð N16U0135126
NJAT0330S01
HAT097
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/EURO-OBD
AT-292

HAT130
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/EURO-OBD (Cont'd)
AT-293

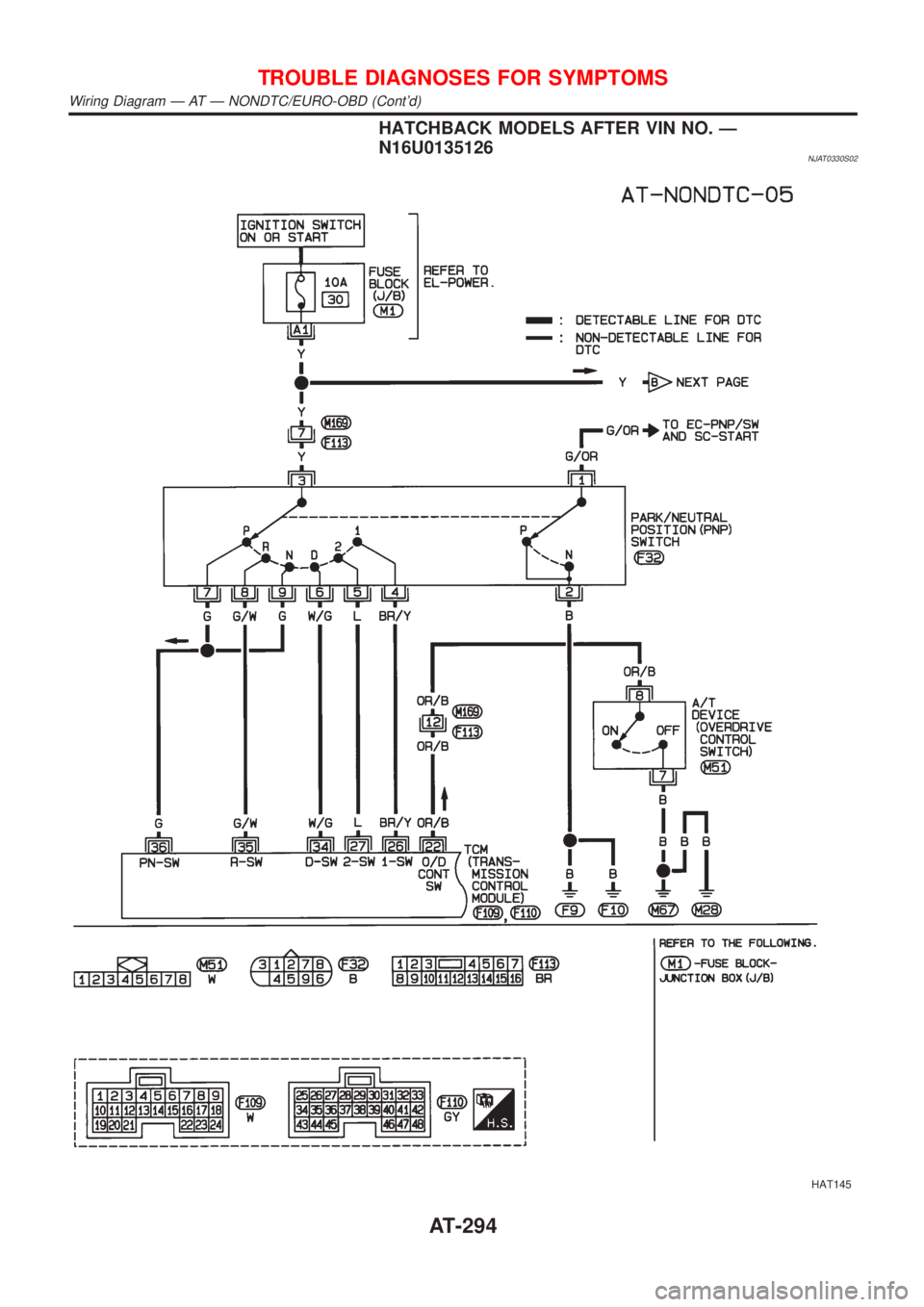

HATCHBACK MODELS AFTER VIN NO. Ð
N16U0135126
NJAT0330S02
HAT145
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/EURO-OBD (Cont'd)
AT-294

HAT146
TROUBLE DIAGNOSES FOR SYMPTOMS
Wiring Diagram Ð AT Ð NONDTC/EURO-OBD (Cont'd)
AT-295

SAT466J

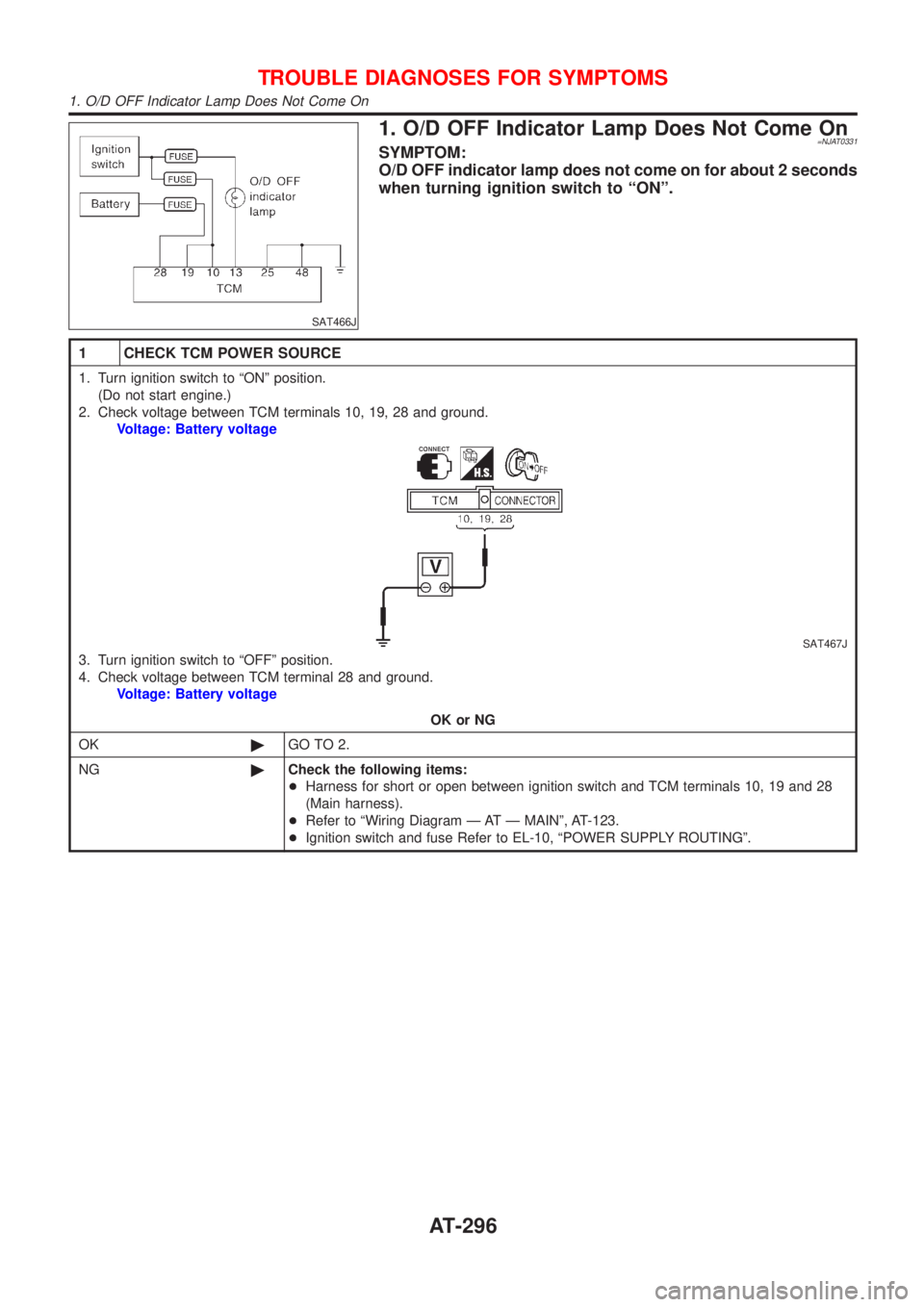

1. O/D OFF Indicator Lamp Does Not Come On=NJAT0331SYMPTOM:
O/D OFF indicator lamp does not come on for about 2 seconds
when turning ignition switch to ªONº.
1 CHECK TCM POWER SOURCE
1. Turn ignition switch to ªONº position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
Voltage: Battery voltage
SAT467J
3. Turn ignition switch to ªOFFº position.
4. Check voltage between TCM terminal 28 and ground.
Voltage: Battery voltage
OK or NG
OK©GO TO 2.
NG©Check the following items:
+Harness for short or open between ignition switch and TCM terminals 10, 19 and 28
(Main harness).
+Refer to ªWiring Diagram Ð AT Ð MAINº, AT-123.
+Ignition switch and fuse Refer to EL-10, ªPOWER SUPPLY ROUTINGº.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On
AT-296

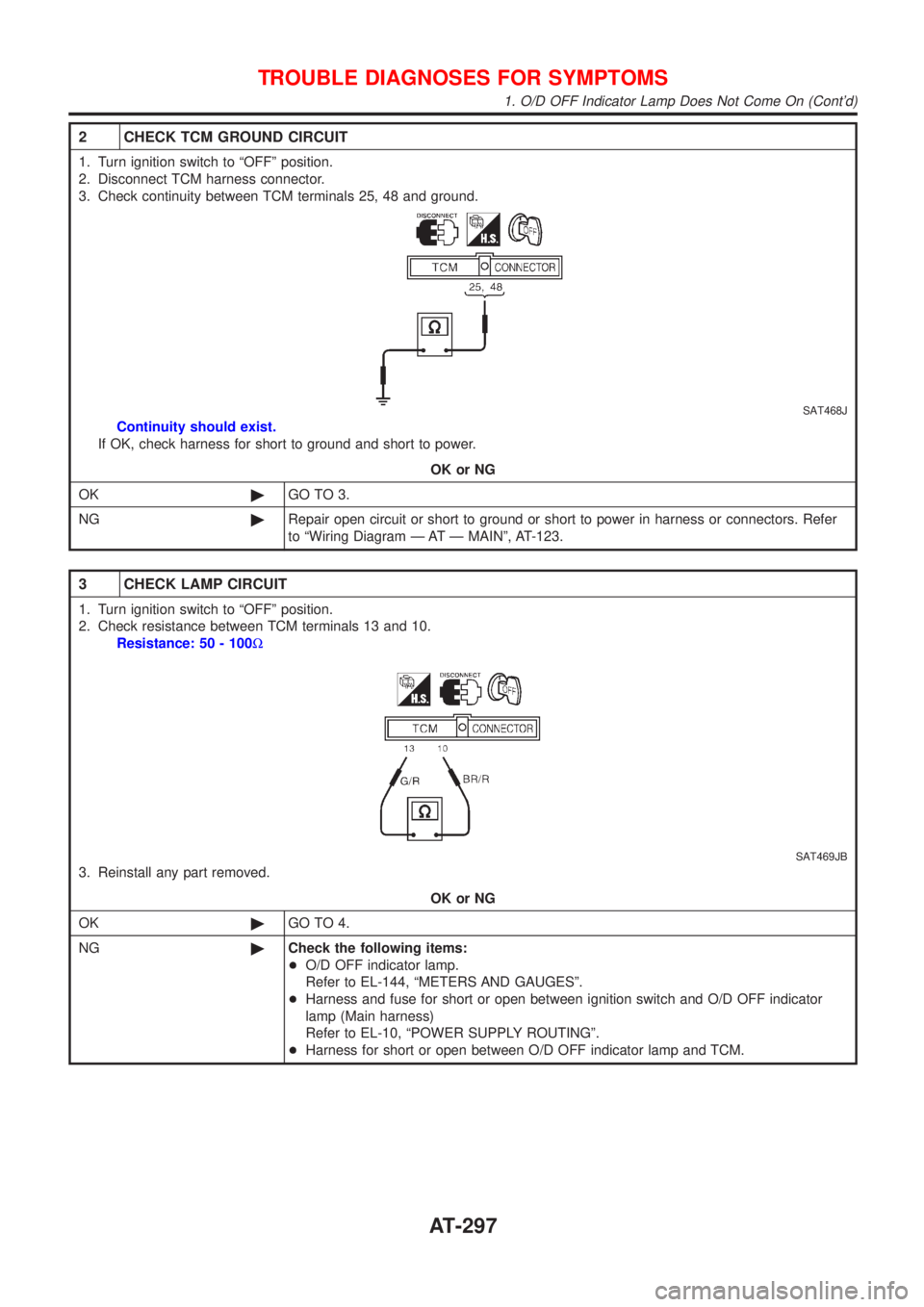

2 CHECK TCM GROUND CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between TCM terminals 25, 48 and ground.
SAT468J
Continuity should exist.
If OK, check harness for short to ground and short to power.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors. Refer
to ªWiring Diagram Ð AT Ð MAINº, AT-123.
3 CHECK LAMP CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Check resistance between TCM terminals 13 and 10.
Resistance: 50 - 100W
SAT469JB
3. Reinstall any part removed.
OK or NG
OK©GO TO 4.
NG©Check the following items:
+O/D OFF indicator lamp.
Refer to EL-144, ªMETERS AND GAUGESº.
+Harness and fuse for short or open between ignition switch and O/D OFF indicator
lamp (Main harness)
Refer to EL-10, ªPOWER SUPPLY ROUTINGº.
+Harness for short or open between O/D OFF indicator lamp and TCM.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On (Cont'd)
AT-297

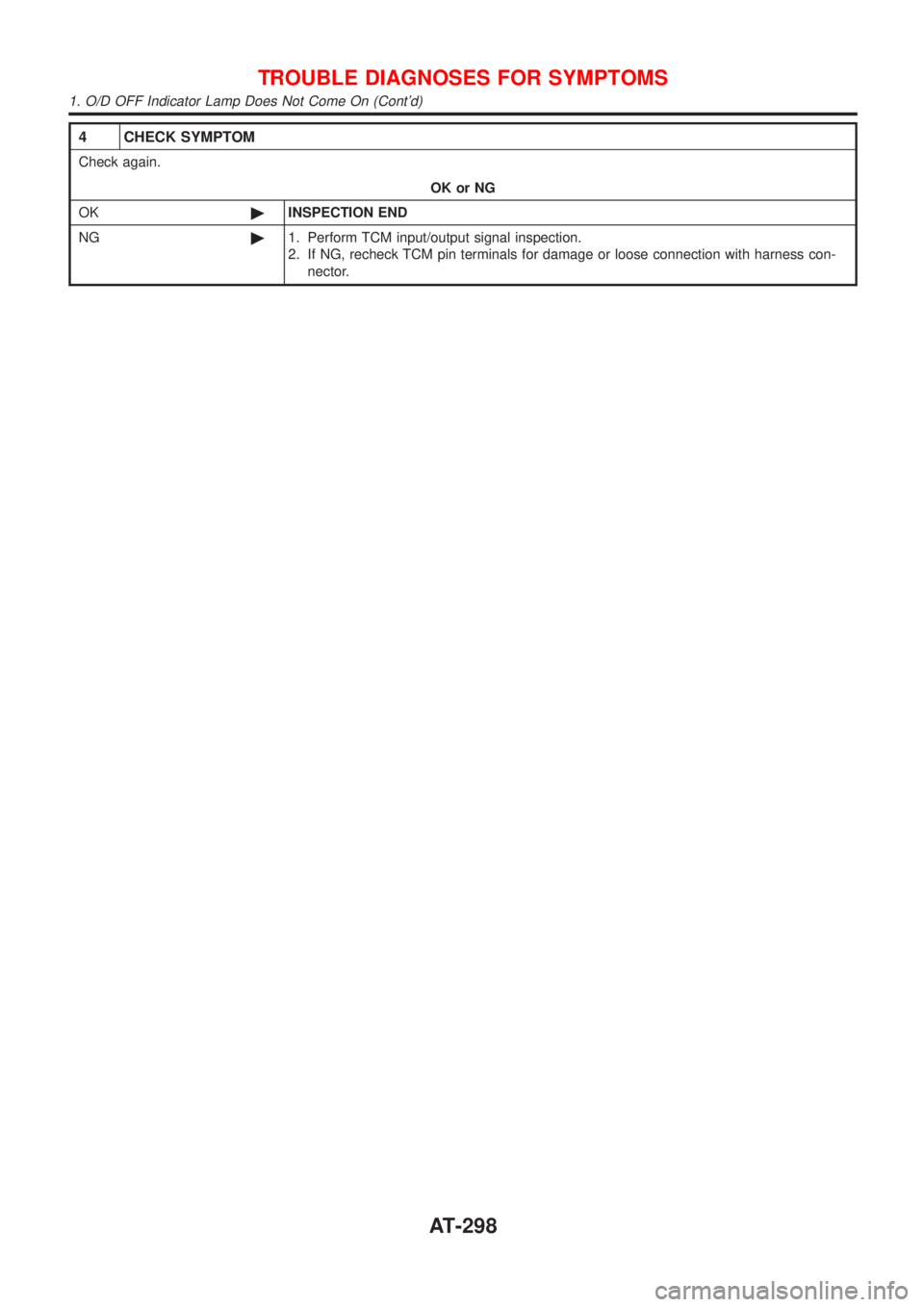

4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
1. O/D OFF Indicator Lamp Does Not Come On (Cont'd)
AT-298
