NISSAN ALMERA 2001 Service Manual

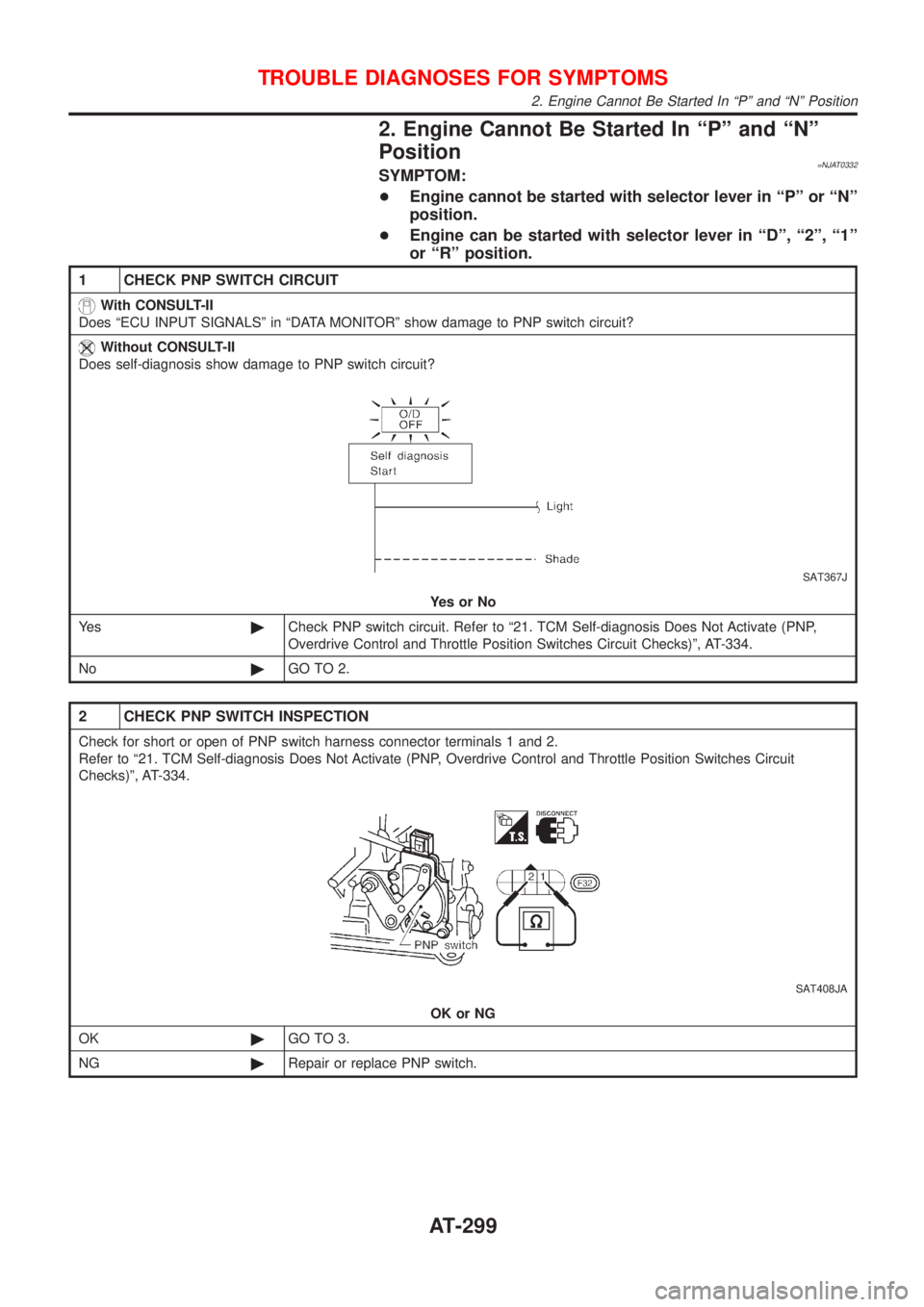

2. Engine Cannot Be Started In ªPº and ªNº
Position
=NJAT0332SYMPTOM:
+Engine cannot be started with selector lever in ªPº or ªNº
position.
+Engine can be started with selector lever in ªDº, ª2º, ª1º
or ªRº position.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªECU INPUT SIGNALSº in ªDATA MONITORº show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ª21. TCM Self-diagnosis Does Not Activate (PNP,
Overdrive Control and Throttle Position Switches Circuit Checks)º, AT-334.
No©GO TO 2.
2 CHECK PNP SWITCH INSPECTION
Check for short or open of PNP switch harness connector terminals 1 and 2.
Refer to ª21. TCM Self-diagnosis Does Not Activate (PNP, Overdrive Control and Throttle Position Switches Circuit
Checks)º, AT-334.
SAT408JA
OK or NG
OK©GO TO 3.
NG©Repair or replace PNP switch.
TROUBLE DIAGNOSES FOR SYMPTOMS
2. Engine Cannot Be Started In ªPº and ªNº Position
AT-299

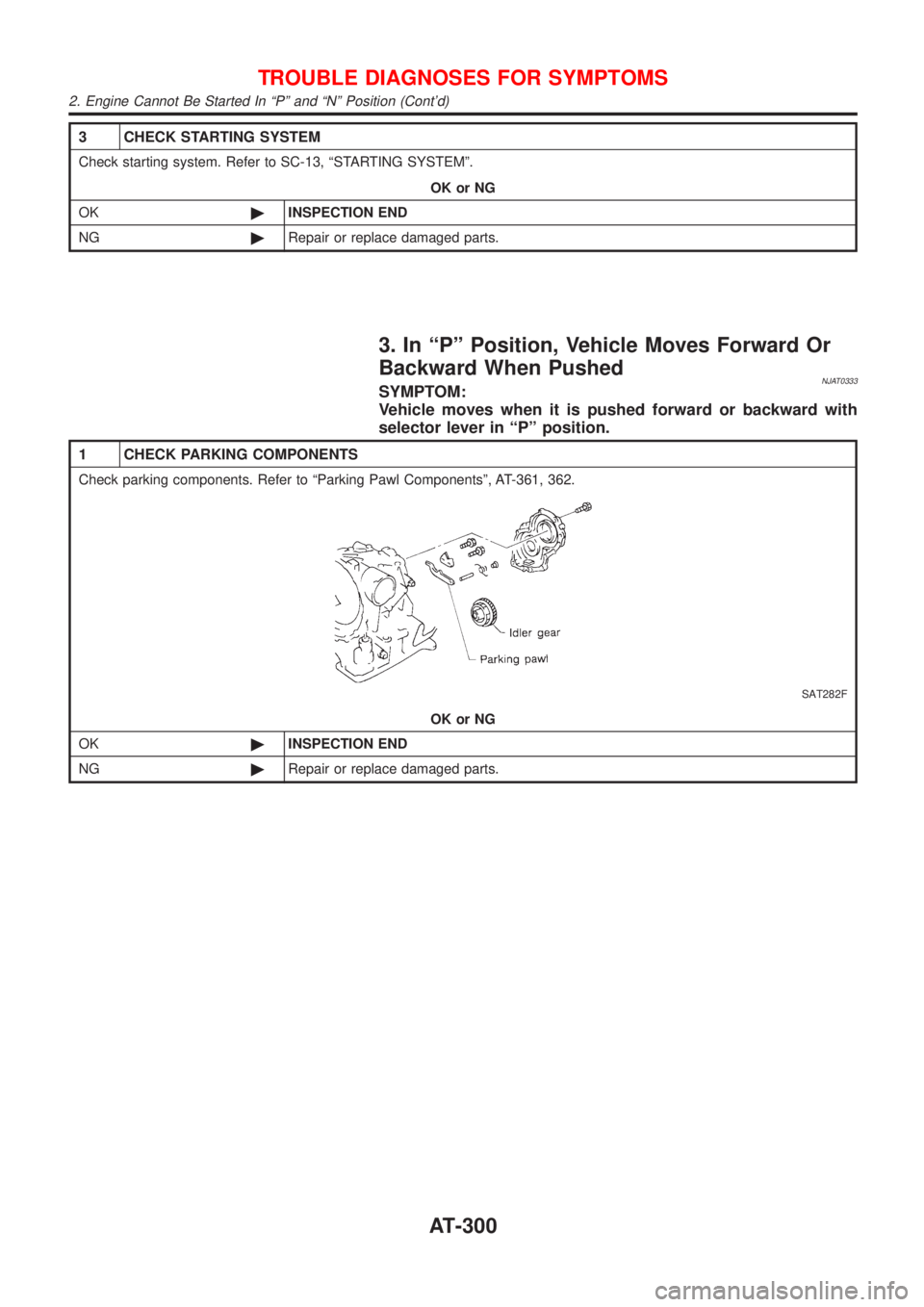

3 CHECK STARTING SYSTEM
Check starting system. Refer to SC-13, ªSTARTING SYSTEMº.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
3. In ªPº Position, Vehicle Moves Forward Or
Backward When Pushed
NJAT0333SYMPTOM:
Vehicle moves when it is pushed forward or backward with
selector lever in ªPº position.
1 CHECK PARKING COMPONENTS
Check parking components. Refer to ªParking Pawl Componentsº, AT-361, 362.
SAT282F
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
2. Engine Cannot Be Started In ªPº and ªNº Position (Cont'd)
AT-300

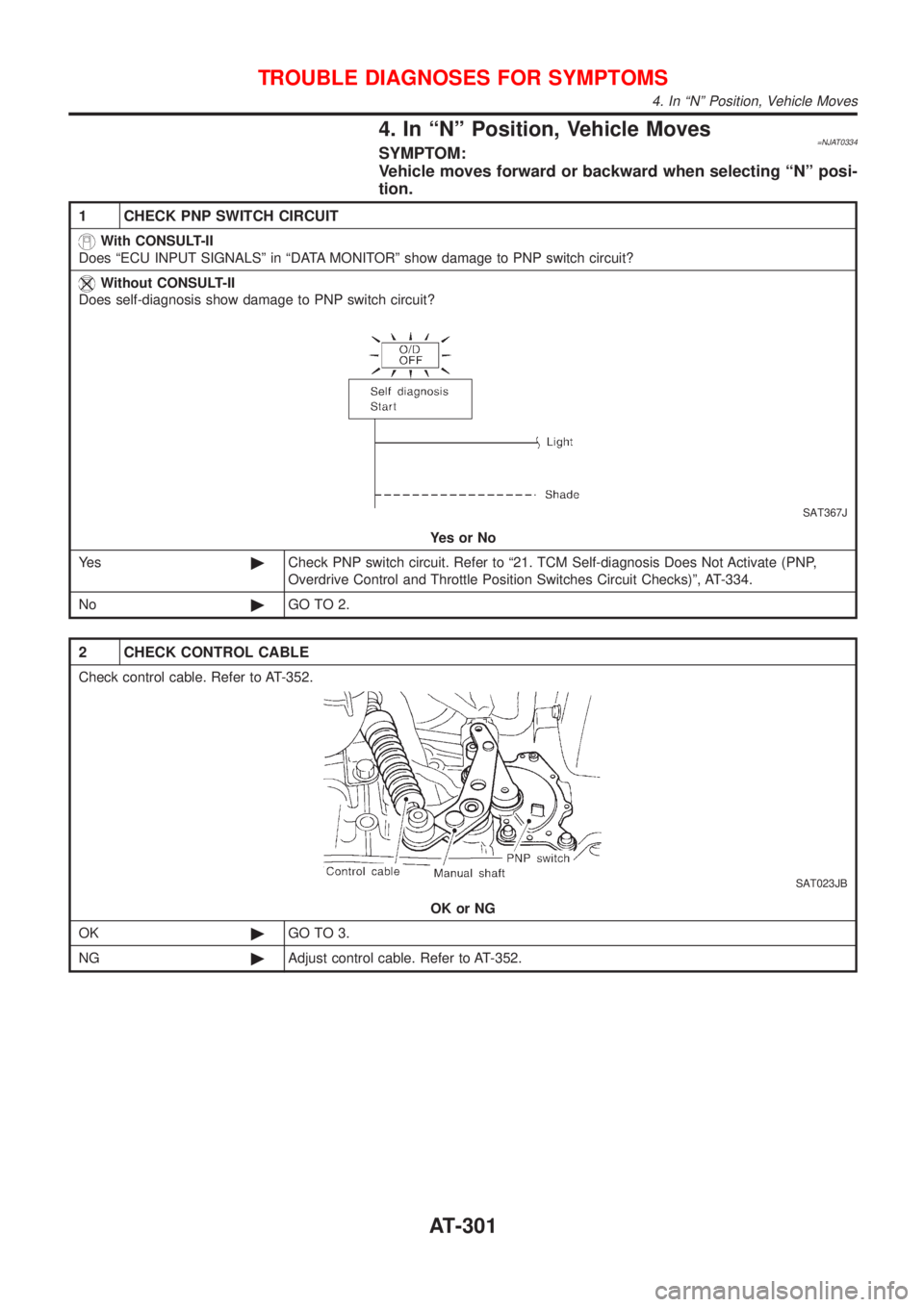

4. In ªNº Position, Vehicle Moves=NJAT0334SYMPTOM:
Vehicle moves forward or backward when selecting ªNº posi-
tion.
1 CHECK PNP SWITCH CIRCUIT
With CONSULT-II
Does ªECU INPUT SIGNALSº in ªDATA MONITORº show damage to PNP switch circuit?
Without CONSULT-II
Does self-diagnosis show damage to PNP switch circuit?
SAT367J
YesorNo
Ye s©Check PNP switch circuit. Refer to ª21. TCM Self-diagnosis Does Not Activate (PNP,
Overdrive Control and Throttle Position Switches Circuit Checks)º, AT-334.
No©GO TO 2.
2 CHECK CONTROL CABLE
Check control cable. Refer to AT-352.
SAT023JB
OK or NG
OK©GO TO 3.
NG©Adjust control cable. Refer to AT-352.
TROUBLE DIAGNOSES FOR SYMPTOMS
4. In ªNº Position, Vehicle Moves
AT-301

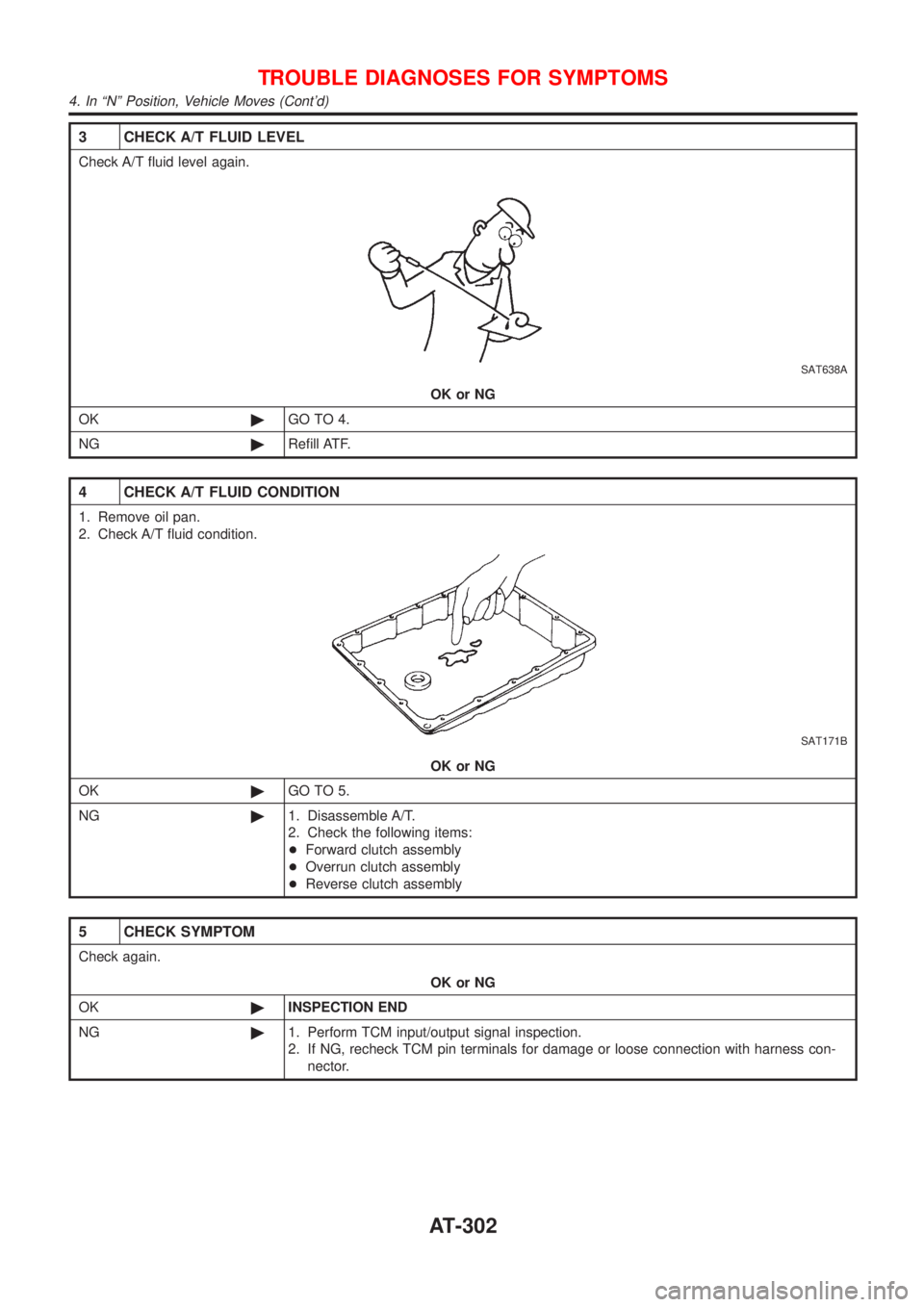

3 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 4.
NG©Refill ATF.
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©1. Disassemble A/T.
2. Check the following items:
+Forward clutch assembly
+Overrun clutch assembly
+Reverse clutch assembly
5 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
4. In ªNº Position, Vehicle Moves (Cont'd)
AT-302

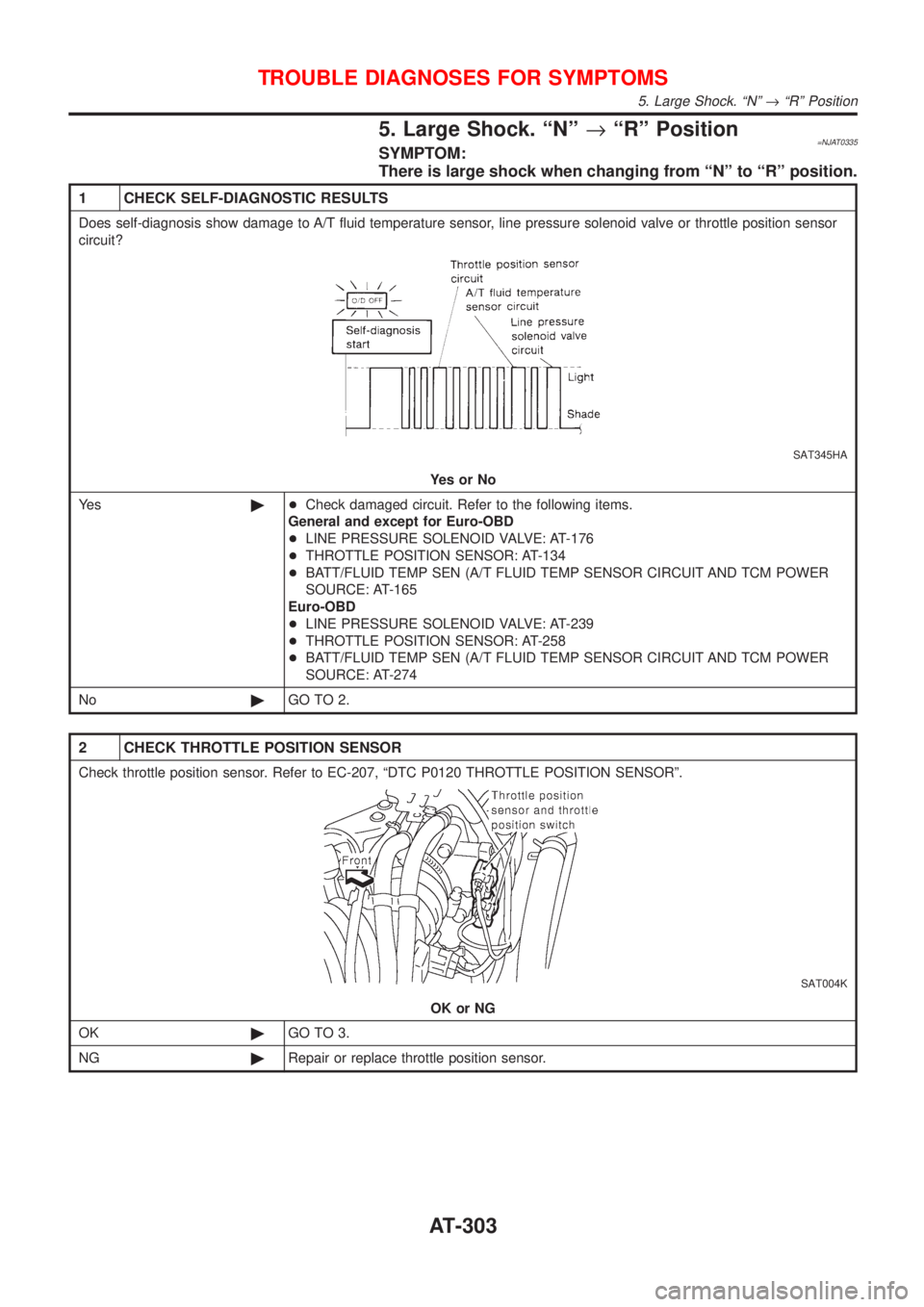

5. Large Shock. ªNº®ªRº Position=NJAT0335SYMPTOM:
There is large shock when changing from ªNº to ªRº position.
1 CHECK SELF-DIAGNOSTIC RESULTS
Does self-diagnosis show damage to A/T fluid temperature sensor, line pressure solenoid valve or throttle position sensor
circuit?
SAT345HA
YesorNo
Ye s©+Check damaged circuit. Refer to the following items.
General and except for Euro-OBD
+LINE PRESSURE SOLENOID VALVE: AT-176
+THROTTLE POSITION SENSOR: AT-134
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE: AT-165
Euro-OBD
+LINE PRESSURE SOLENOID VALVE: AT-239
+THROTTLE POSITION SENSOR: AT-258
+BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER
SOURCE: AT-274
No©GO TO 2.
2 CHECK THROTTLE POSITION SENSOR
Check throttle position sensor. Refer to EC-207, ªDTC P0120 THROTTLE POSITION SENSORº.
SAT004K
OK or NG
OK©GO TO 3.
NG©Repair or replace throttle position sensor.
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position
AT-303

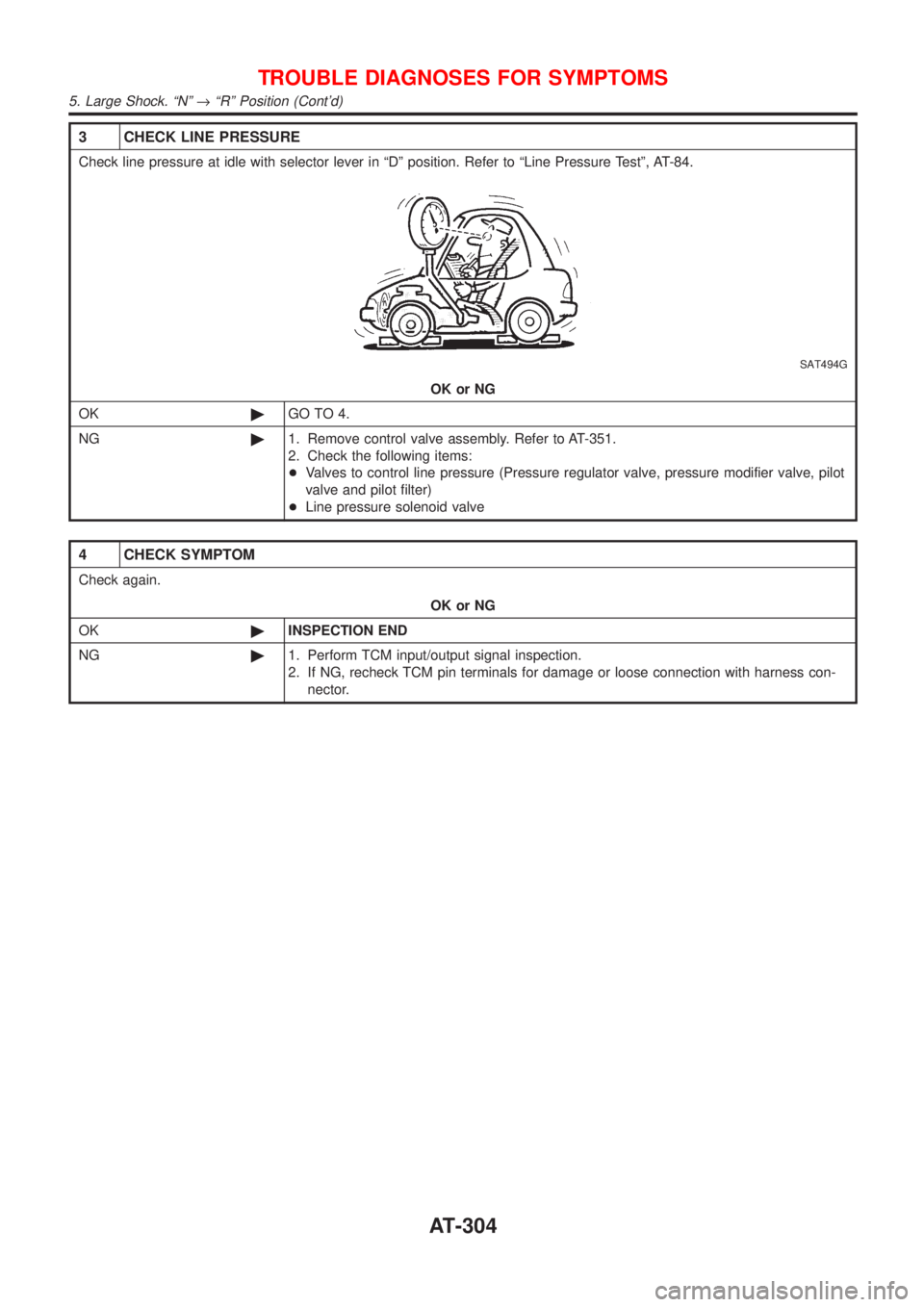

3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªDº position. Refer to ªLine Pressure Testº, AT-84.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve
4 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
5. Large Shock. ªNº®ªRº Position (Cont'd)
AT-304

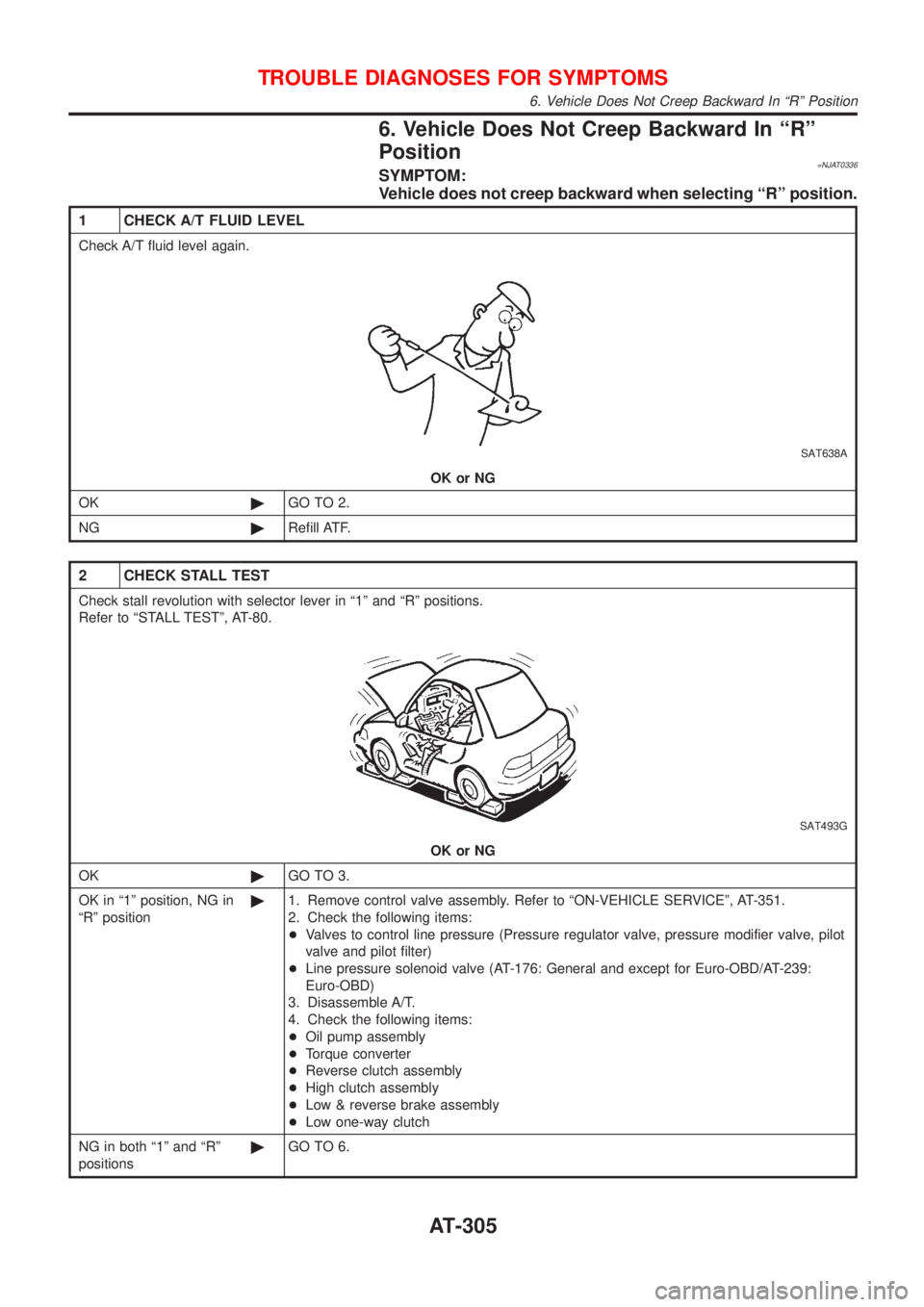

6. Vehicle Does Not Creep Backward In ªRº
Position
=NJAT0336SYMPTOM:
Vehicle does not creep backward when selecting ªRº position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 2.
NG©Refill ATF.
2 CHECK STALL TEST
Check stall revolution with selector lever in ª1º and ªRº positions.
Refer to ªSTALL TESTº, AT-80.
SAT493G
OK or NG
OK©GO TO 3.
OK in ª1º position, NG in
ªRº position©1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-351.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve (AT-176: General and except for Euro-OBD/AT-239:
Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
+Oil pump assembly
+Torque converter
+Reverse clutch assembly
+High clutch assembly
+Low & reverse brake assembly
+Low one-way clutch
NG in both ª1º and ªRº
positions©GO TO 6.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position
AT-305

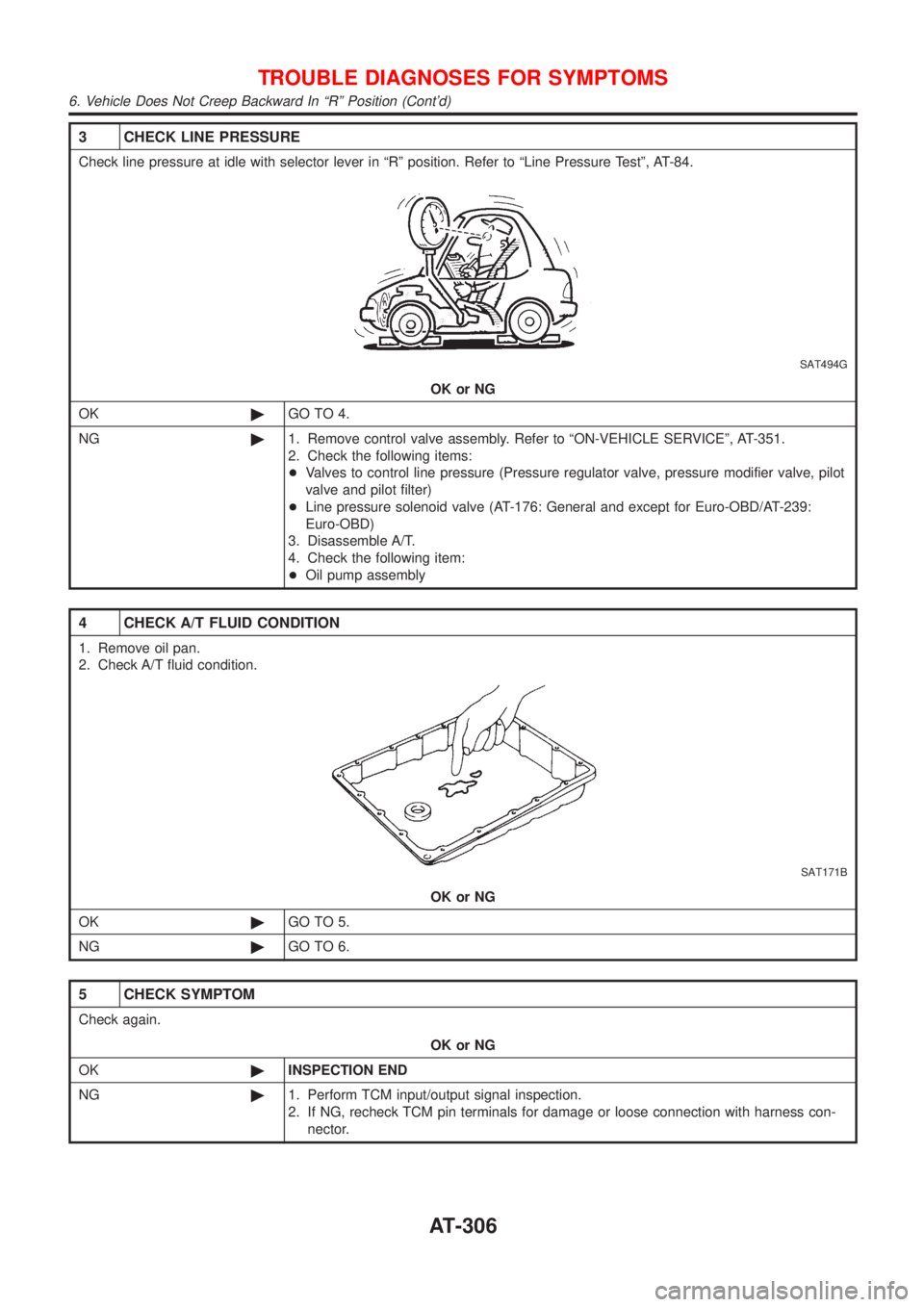

3 CHECK LINE PRESSURE
Check line pressure at idle with selector lever in ªRº position. Refer to ªLine Pressure Testº, AT-84.
SAT494G
OK or NG
OK©GO TO 4.
NG©1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-351.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot
valve and pilot filter)
+Line pressure solenoid valve (AT-176: General and except for Euro-OBD/AT-239:
Euro-OBD)
3. Disassemble A/T.
4. Check the following item:
+Oil pump assembly
4 CHECK A/T FLUID CONDITION
1. Remove oil pan.
2. Check A/T fluid condition.
SAT171B
OK or NG
OK©GO TO 5.
NG©GO TO 6.
5 CHECK SYMPTOM
Check again.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position (Cont'd)
AT-306

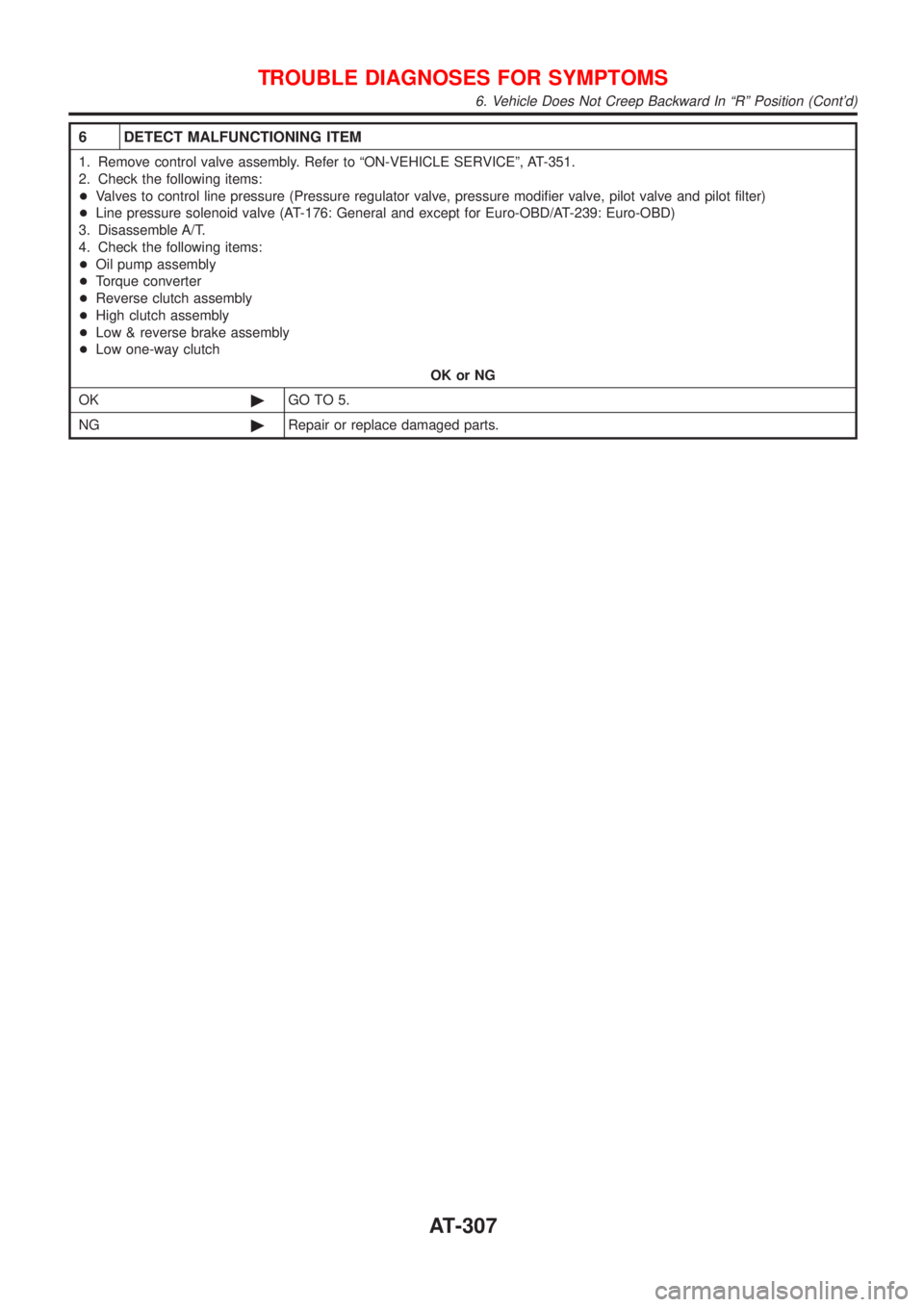

6 DETECT MALFUNCTIONING ITEM
1. Remove control valve assembly. Refer to ªON-VEHICLE SERVICEº, AT-351.
2. Check the following items:
+Valves to control line pressure (Pressure regulator valve, pressure modifier valve, pilot valve and pilot filter)
+Line pressure solenoid valve (AT-176: General and except for Euro-OBD/AT-239: Euro-OBD)
3. Disassemble A/T.
4. Check the following items:
+Oil pump assembly
+Torque converter
+Reverse clutch assembly
+High clutch assembly
+Low & reverse brake assembly
+Low one-way clutch
OK or NG
OK©GO TO 5.
NG©Repair or replace damaged parts.
TROUBLE DIAGNOSES FOR SYMPTOMS
6. Vehicle Does Not Creep Backward In ªRº Position (Cont'd)
AT-307

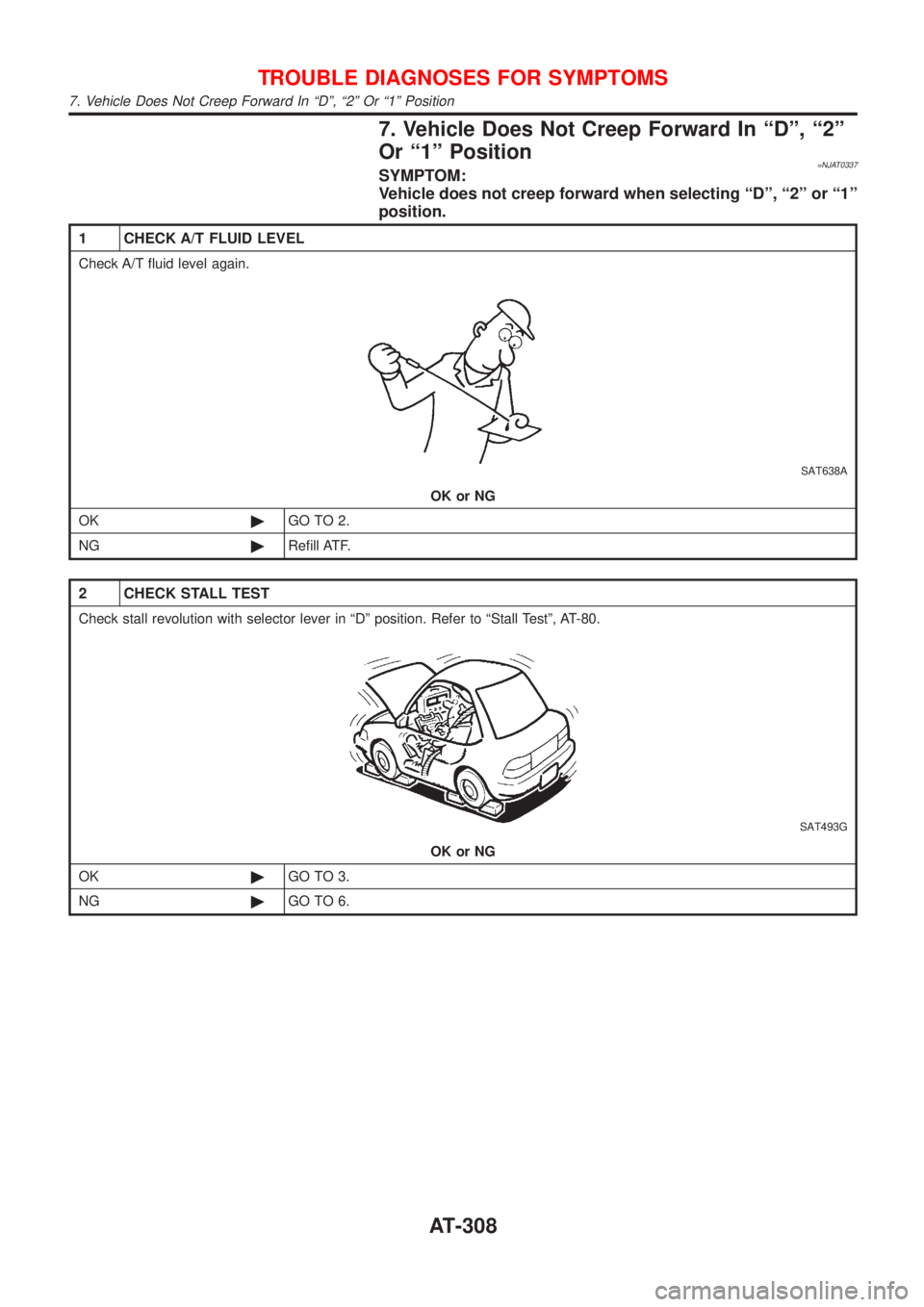

7. Vehicle Does Not Creep Forward In ªDº, ª2º
Or ª1º Position
=NJAT0337SYMPTOM:
Vehicle does not creep forward when selecting ªDº, ª2º or ª1º
position.
1 CHECK A/T FLUID LEVEL
Check A/T fluid level again.
SAT638A
OK or NG
OK©GO TO 2.
NG©Refill ATF.
2 CHECK STALL TEST
Check stall revolution with selector lever in ªDº position. Refer to ªStall Testº, AT-80.
SAT493G
OK or NG
OK©GO TO 3.
NG©GO TO 6.
TROUBLE DIAGNOSES FOR SYMPTOMS
7. Vehicle Does Not Creep Forward In ªDº, ª2º Or ª1º Position
