NISSAN ALMERA 2001 Service Manual

With GST
Follow the procedure ªWith CONSULT-IIº.
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Description (Cont'd)
AT-269

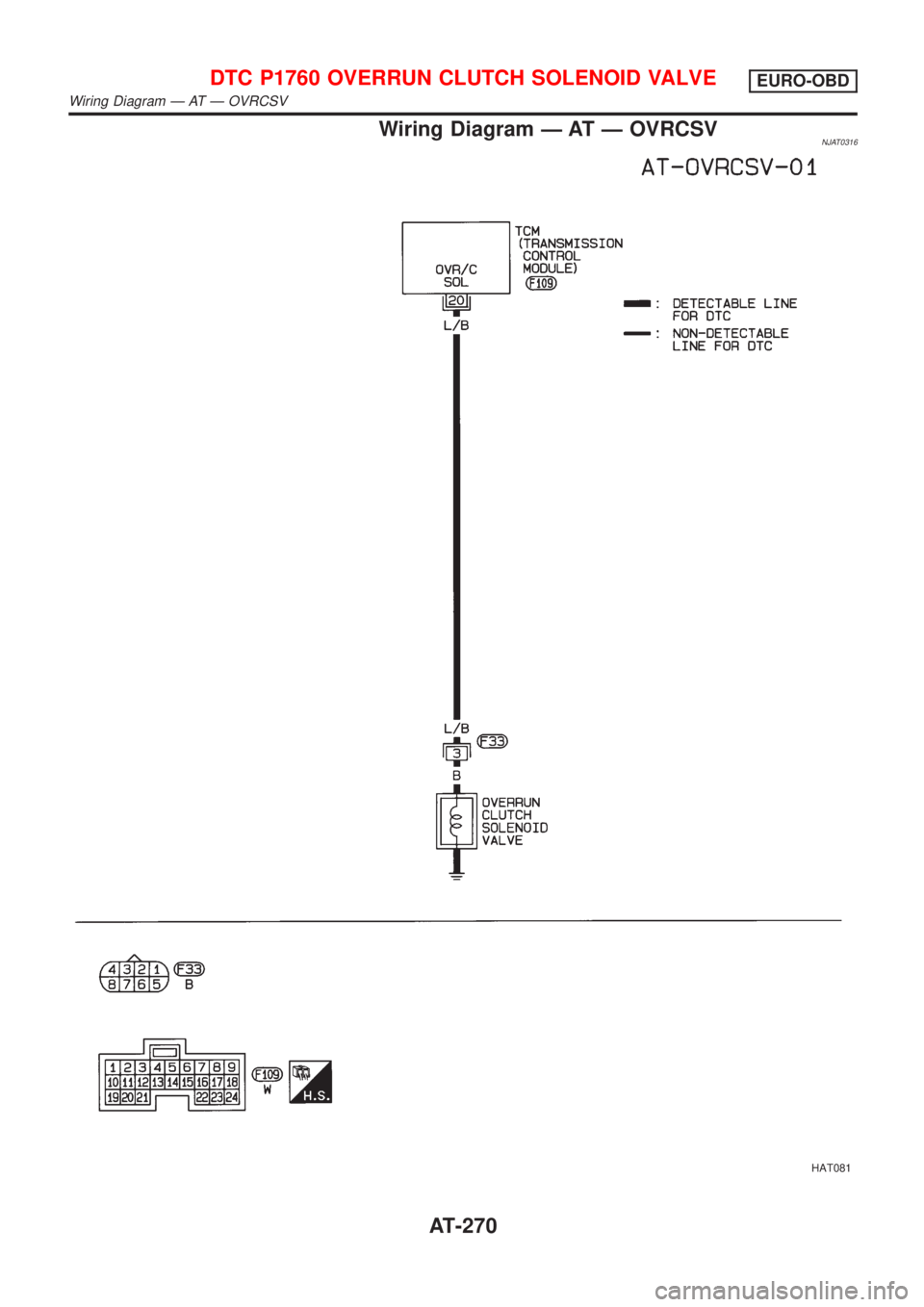

Wiring Diagram Ð AT Ð OVRCSVNJAT0316
HAT081
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Wiring Diagram Ð AT Ð OVRCSV
AT-270

Diagnostic ProcedureNJAT0317
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 3 and ground.
Resistance:
20-30W
SAT908JB
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-351.
2. Check the following items:
+Overrun clutch solenoid valve
Refer to ªComponent Inspectionº, AT-273.
+Harness of terminal cord assembly for short or open
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Diagnostic Procedure
AT-271

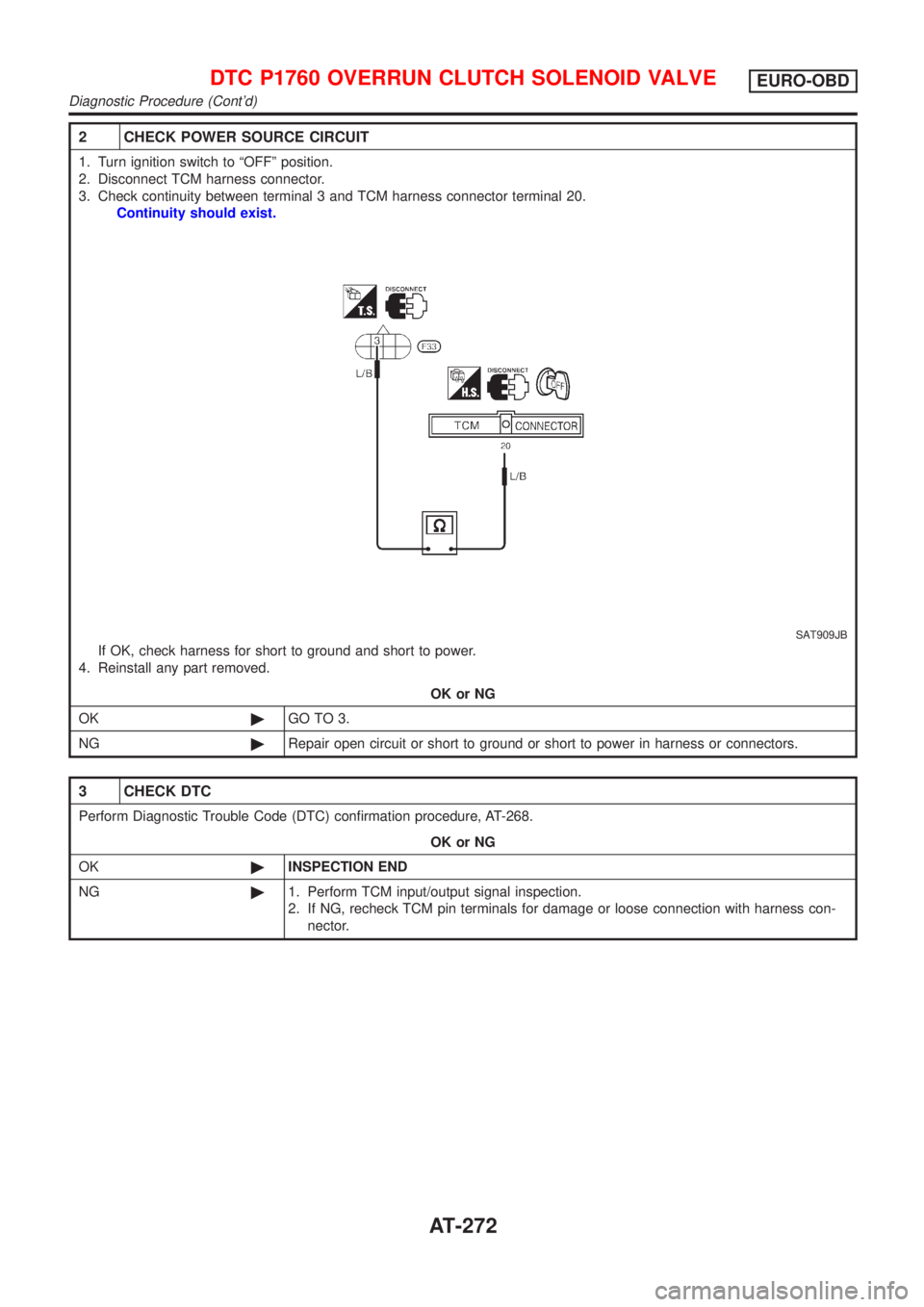

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 3 and TCM harness connector terminal 20.
Continuity should exist.
SAT909JB
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Diagnostic Trouble Code (DTC) confirmation procedure, AT-268.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Diagnostic Procedure (Cont'd)
AT-272

SAT910JB

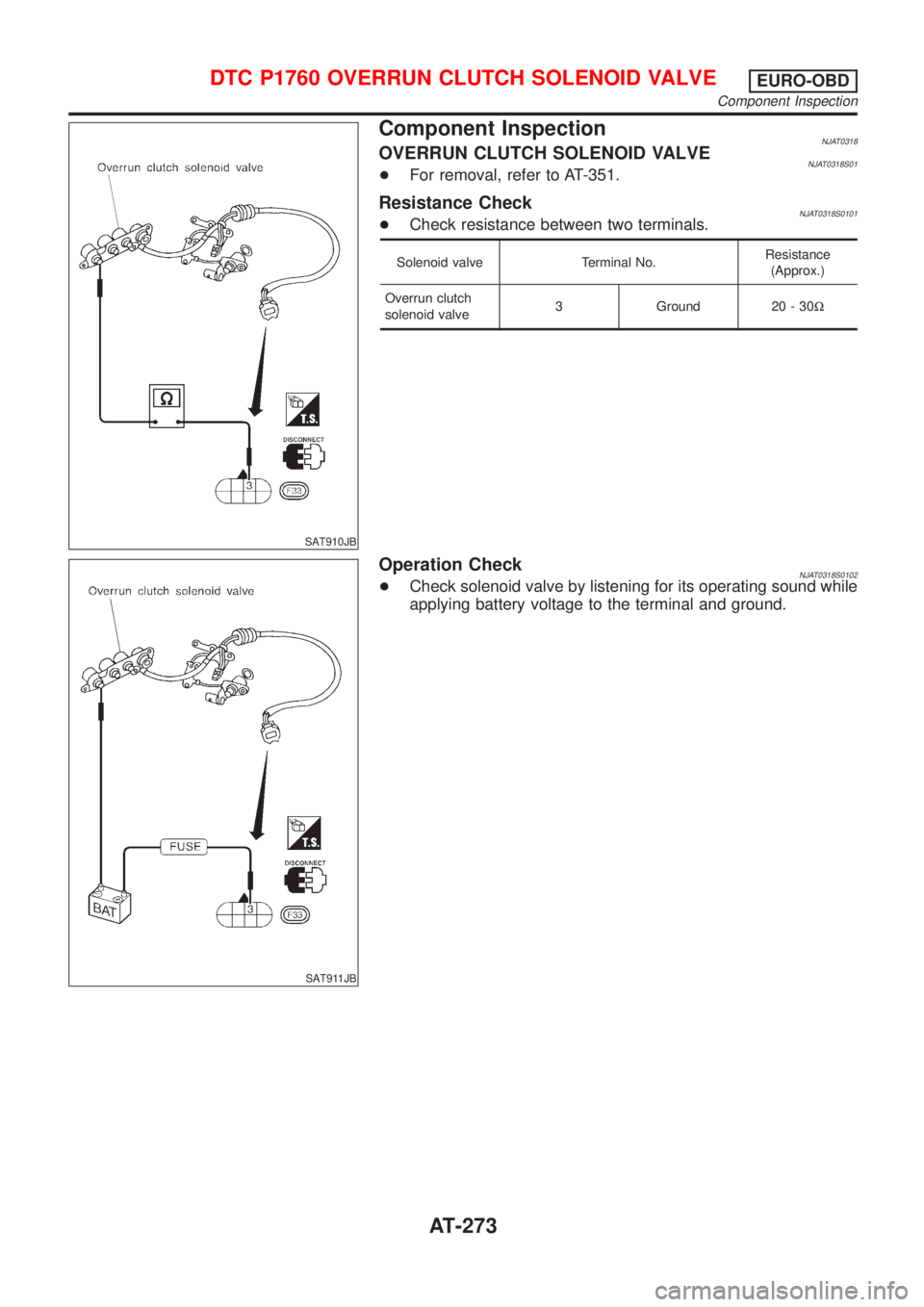

Component InspectionNJAT0318OVERRUN CLUTCH SOLENOID VALVENJAT0318S01+For removal, refer to AT-351.
Resistance CheckNJAT0318S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Overrun clutch
solenoid valve3 Ground 20 - 30W
SAT911JB
Operation CheckNJAT0318S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
DTC P1760 OVERRUN CLUTCH SOLENOID VALVEEURO-OBD
Component Inspection
AT-273

SAT322GC
SAT021J

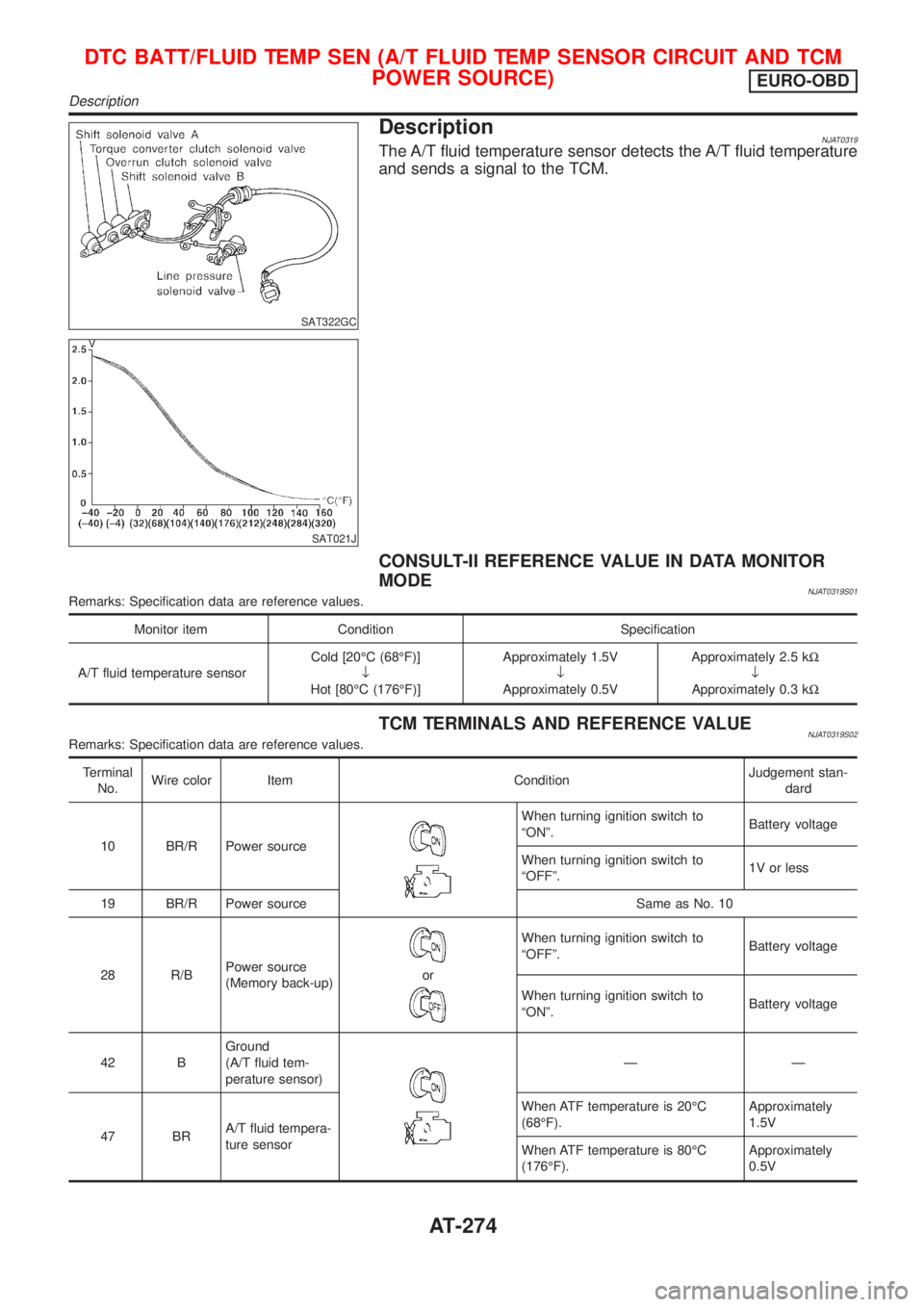

DescriptionNJAT0319The A/T fluid temperature sensor detects the A/T fluid temperature
and sends a signal to the TCM.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NJAT0319S01Remarks: Specification data are reference values.
Monitor item Condition Specification
A/T fluid temperature sensorCold [20ÉC (68ÉF)]
¯
Hot [80ÉC (176ÉF)]Approximately 1.5V
¯
Approximately 0.5VApproximately 2.5 kW
¯
Approximately 0.3 kW
TCM TERMINALS AND REFERENCE VALUENJAT0319S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard
10 BR/R Power source
When turning ignition switch to
ªONº.Battery voltage
When turning ignition switch to
ªOFFº.1V or less
19 BR/R Power source Same as No. 10
28 R/BPower source
(Memory back-up)
or
When turning ignition switch to
ªOFFº.Battery voltage
When turning ignition switch to
ªONº.Battery voltage
42 BGround
(A/T fluid tem-
perature sensor)
ÐÐ
47 BRA/T fluid tempera-
ture sensorWhen ATF temperature is 20ÉC
(68ÉF).Approximately
1.5V
When ATF temperature is 80ÉC
(176ÉF).Approximately
0.5V
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Description
AT-274

ON BOARD DIAGNOSIS LOGICNJAT0319S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: BATT/FLUID TEMP SEN
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+A/T fluid temperature sensor
: 8th judgement flicker
SAT014K
SAT971J
SAT335HC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION
PROCEDURE
NJAT0319S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-II
1) Start engine.
2) Select ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº, vehicle speed higher than 20 km/h (12
MPH).
Without CONSULT-II
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº, vehicle speed higher than 20 km/h (12
MPH).
3) Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools),
AT-63.
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Description (Cont'd)
AT-275

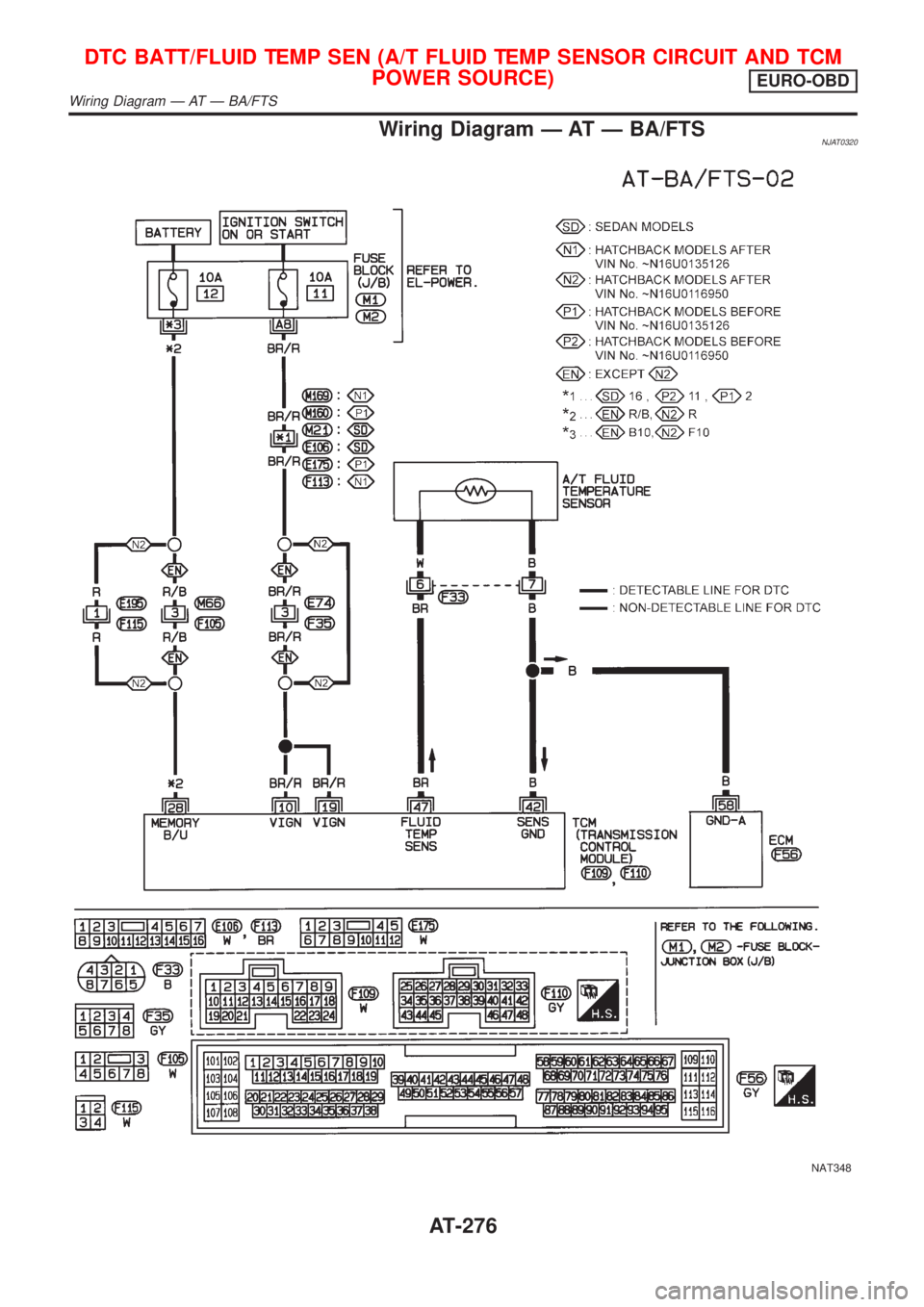

Wiring Diagram Ð AT Ð BA/FTSNJAT0320
NAT348
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Wiring Diagram Ð AT Ð BA/FTS
AT-276

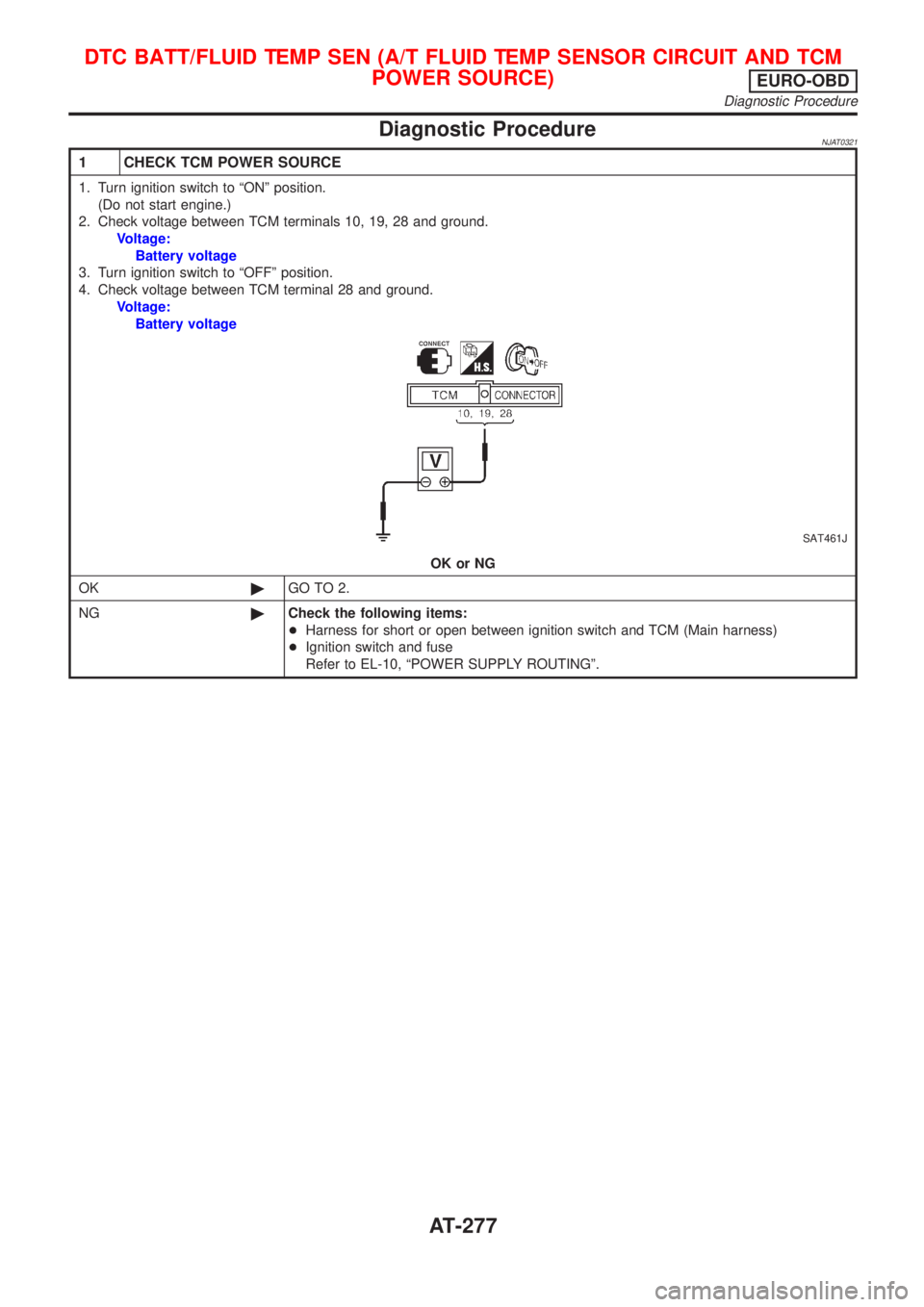

Diagnostic ProcedureNJAT0321
1 CHECK TCM POWER SOURCE
1. Turn ignition switch to ªONº position.
(Do not start engine.)
2. Check voltage between TCM terminals 10, 19, 28 and ground.
Voltage:
Battery voltage
3. Turn ignition switch to ªOFFº position.
4. Check voltage between TCM terminal 28 and ground.
Voltage:
Battery voltage
SAT461J
OK or NG
OK©GO TO 2.
NG©Check the following items:
+Harness for short or open between ignition switch and TCM (Main harness)
+Ignition switch and fuse
Refer to EL-10, ªPOWER SUPPLY ROUTINGº.
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Diagnostic Procedure
AT-277

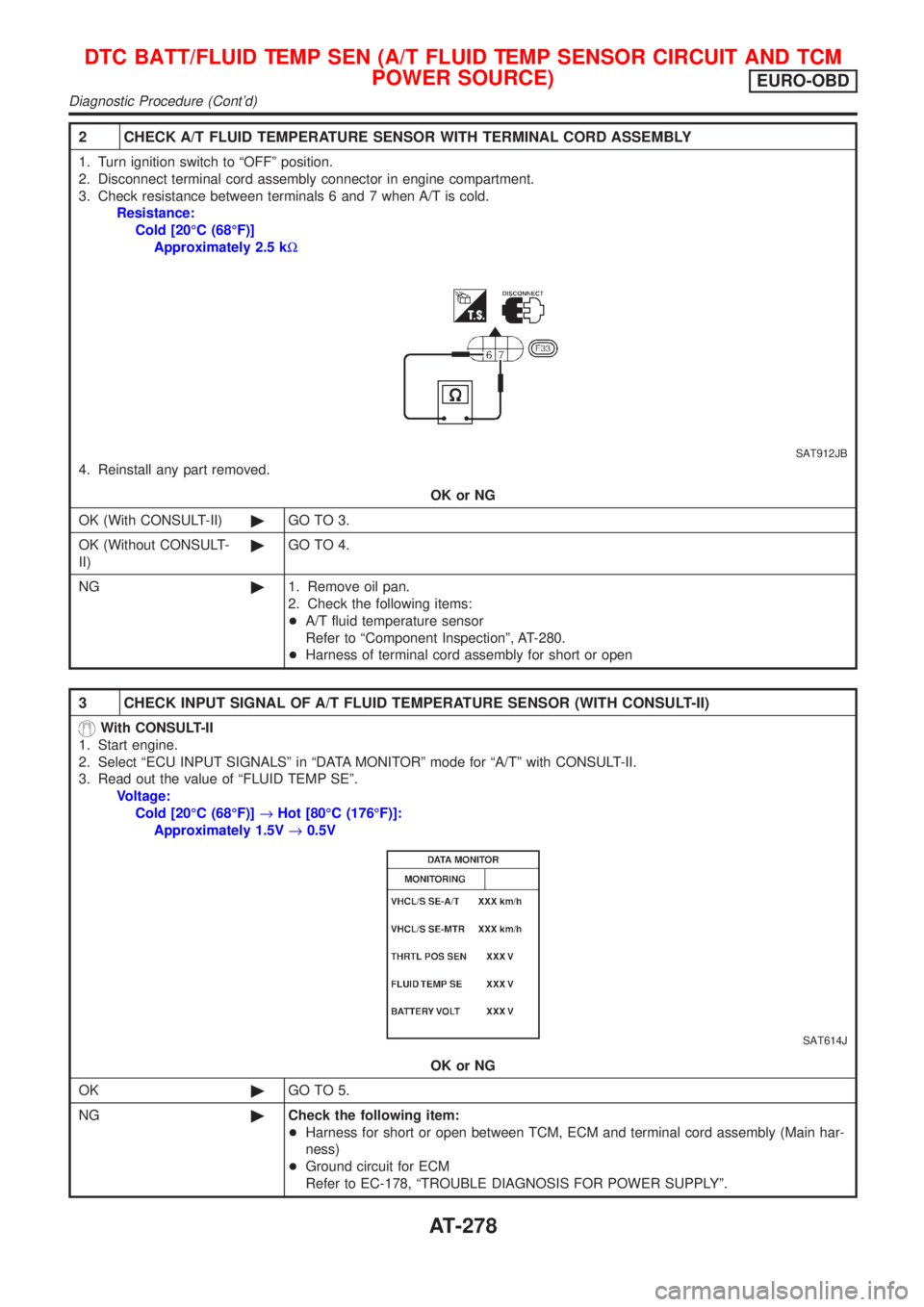

2 CHECK A/T FLUID TEMPERATURE SENSOR WITH TERMINAL CORD ASSEMBLY
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminals 6 and 7 when A/T is cold.
Resistance:
Cold [20ÉC (68ÉF)]
Approximately 2.5 kW
SAT912JB
4. Reinstall any part removed.
OK or NG
OK (With CONSULT-II)©GO TO 3.
OK (Without CONSULT-
II)©GO TO 4.
NG©1. Remove oil pan.
2. Check the following items:
+A/T fluid temperature sensor
Refer to ªComponent Inspectionº, AT-280.
+Harness of terminal cord assembly for short or open
3 CHECK INPUT SIGNAL OF A/T FLUID TEMPERATURE SENSOR (WITH CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªECU INPUT SIGNALSº in ªDATA MONITORº mode for ªA/Tº with CONSULT-II.
3. Read out the value of ªFLUID TEMP SEº.
Voltage:
Cold [20ÉC (68ÉF)]®Hot [80ÉC (176ÉF)]:
Approximately 1.5V®0.5V
SAT614J
OK or NG
OK©GO TO 5.
NG©Check the following item:
+Harness for short or open between TCM, ECM and terminal cord assembly (Main har-
ness)
+Ground circuit for ECM
Refer to EC-178, ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº.
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM
POWER SOURCE)
EURO-OBD
Diagnostic Procedure (Cont'd)
AT-278
