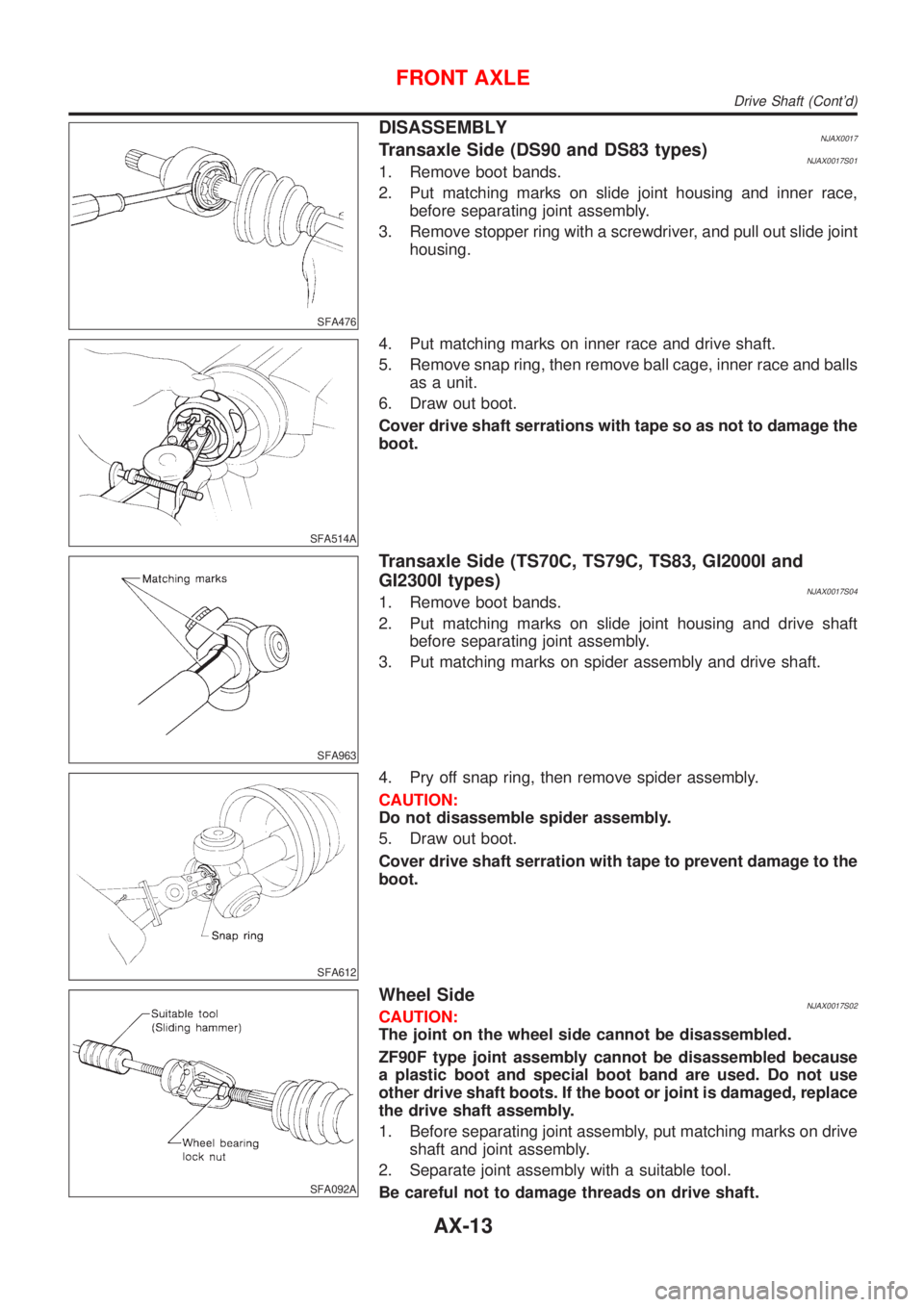

Page 501 of 2898

NISSAN ALMERA 2001  Service Manual SFA476
DISASSEMBLYNJAX0017Transaxle Side (DS90 and DS83 types)NJAX0017S011. Remove boot bands.
2. Put matching marks on slide joint housing and inner race,
before separating joint assembly.
3. Remove

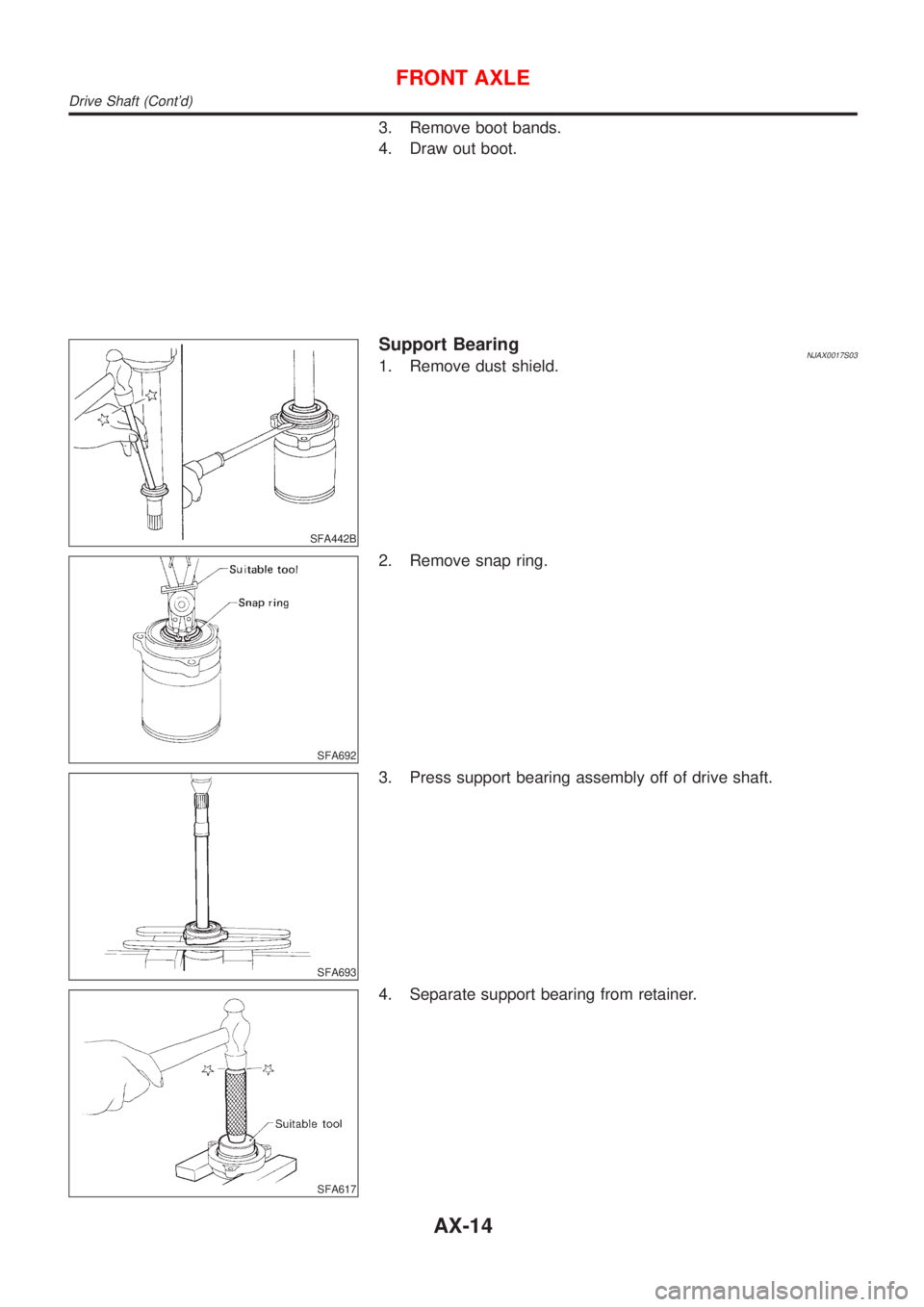

Page 502 of 2898

NISSAN ALMERA 2001  Service Manual 3. Remove boot bands.
4. Draw out boot.
SFA442B
Support BearingNJAX0017S031. Remove dust shield.
SFA692
2. Remove snap ring.
SFA693
3. Press support bearing assembly off of drive shaft.
SFA617
4. Sepa

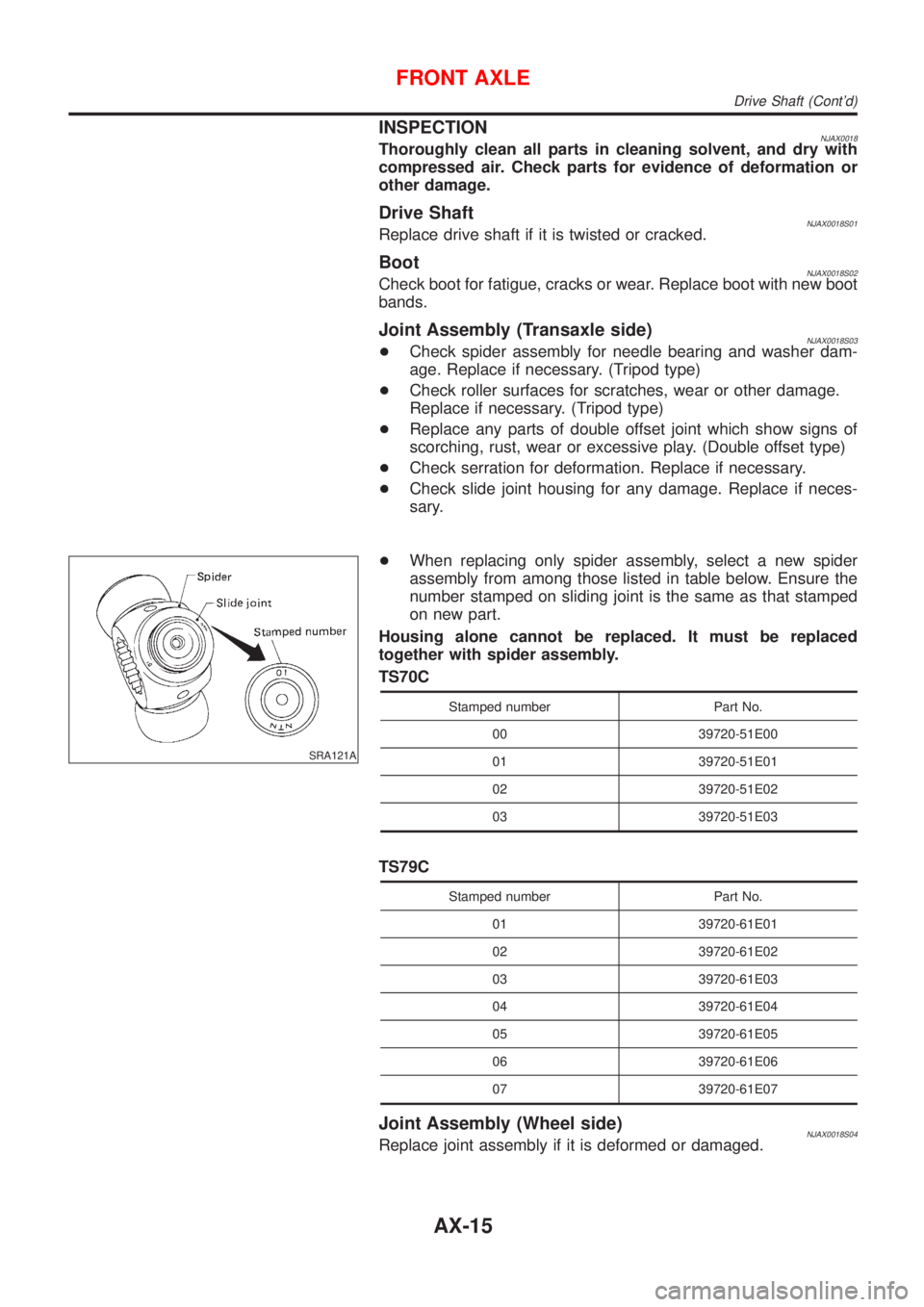

Page 503 of 2898

NISSAN ALMERA 2001  Service Manual INSPECTIONNJAX0018Thoroughly clean all parts in cleaning solvent, and dry with
compressed air. Check parts for evidence of deformation or
other damage.
Drive ShaftNJAX0018S01Replace drive shaft if it

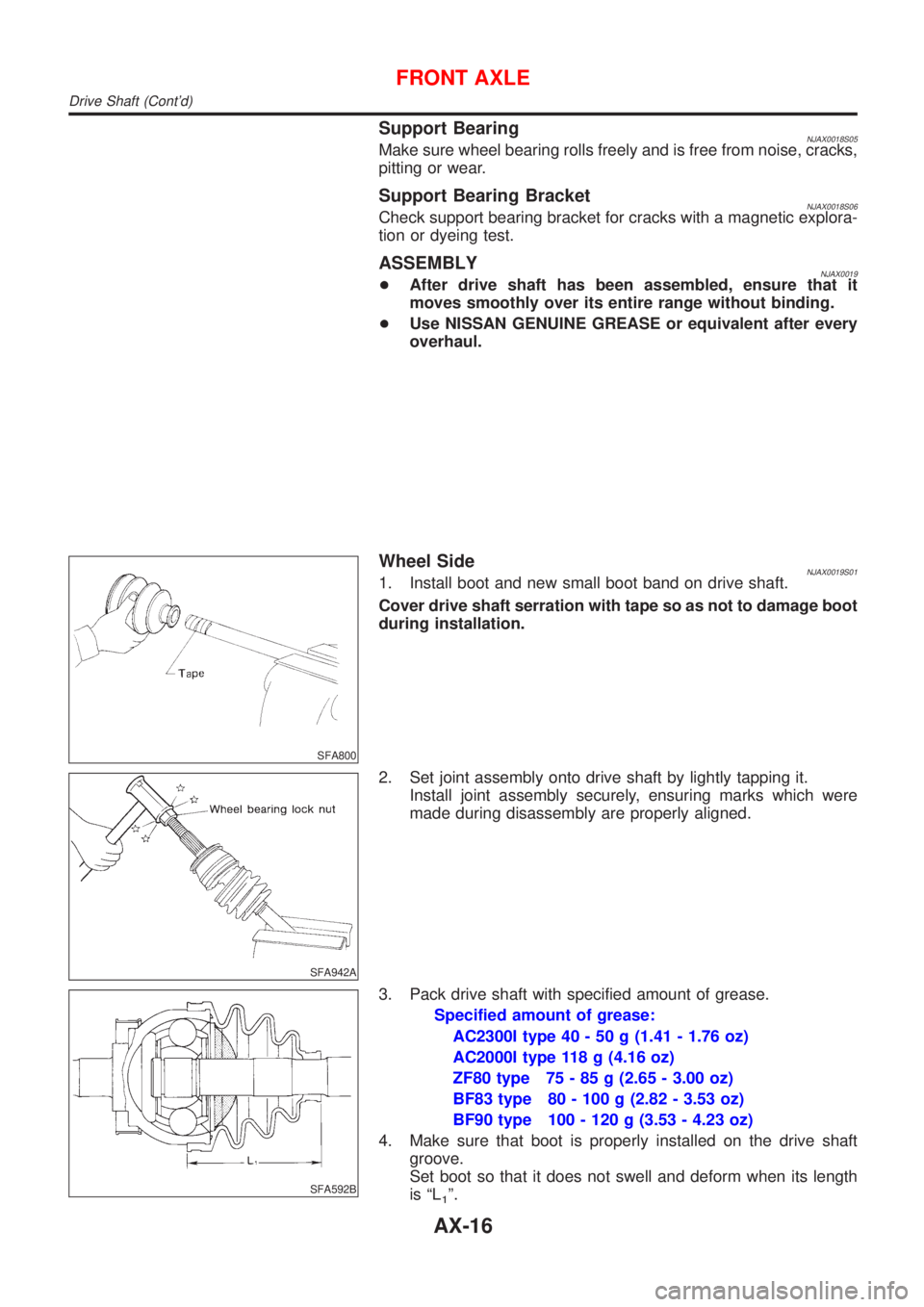

Page 504 of 2898

NISSAN ALMERA 2001  Service Manual Support BearingNJAX0018S05Make sure wheel bearing rolls freely and is free from noise, cracks,
pitting or wear.
Support Bearing BracketNJAX0018S06Check support bearing bracket for cracks with a magnet

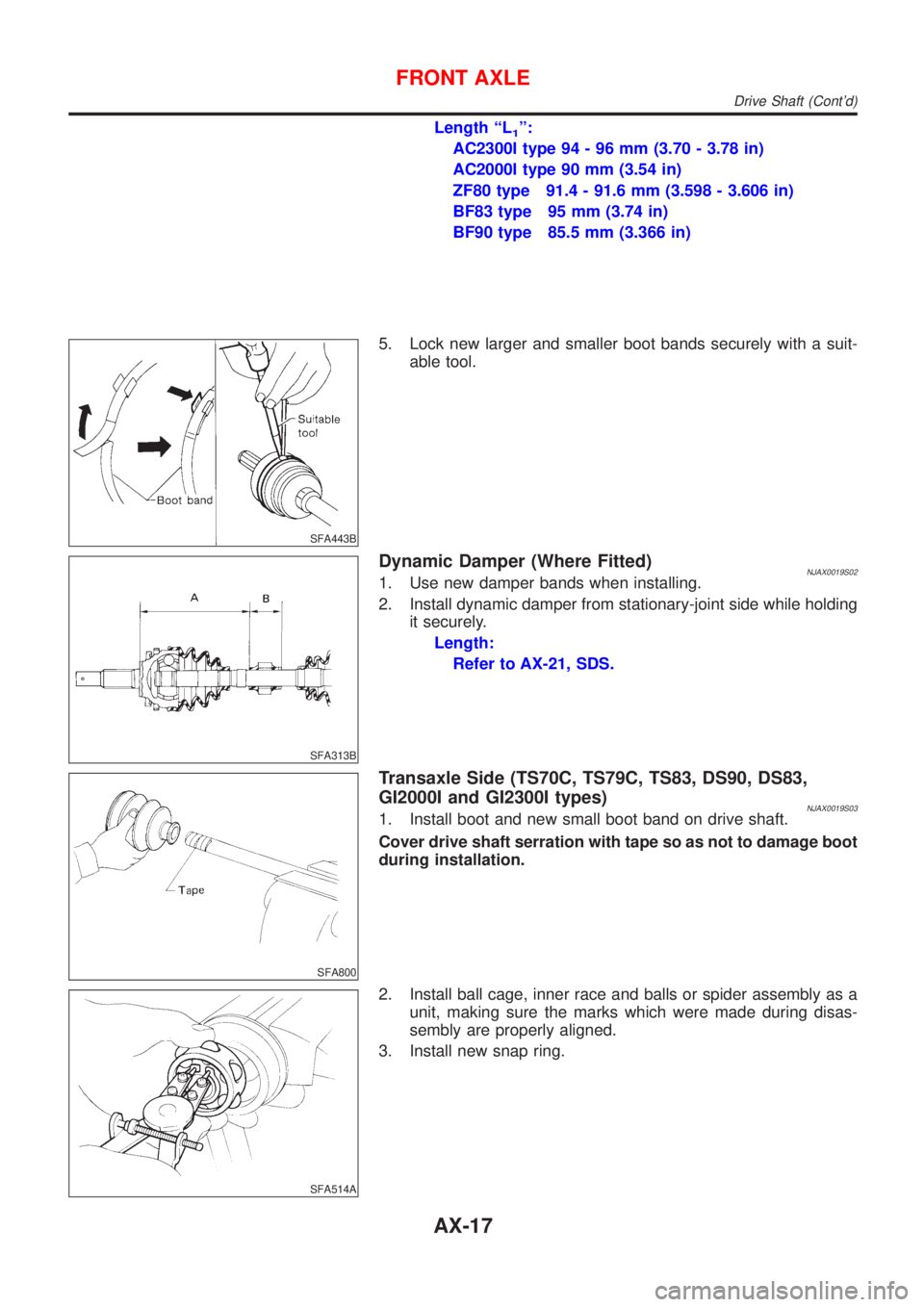

Page 505 of 2898

NISSAN ALMERA 2001  Service Manual Length ªL1º:
AC2300I type 94 - 96 mm (3.70 - 3.78 in)
AC2000I type 90 mm (3.54 in)
ZF80 type 91.4 - 91.6 mm (3.598 - 3.606 in)
BF83 type 95 mm (3.74 in)
BF90 type 85.5 mm (3.366 in)
SFA443B
5. Lock

Page 506 of 2898

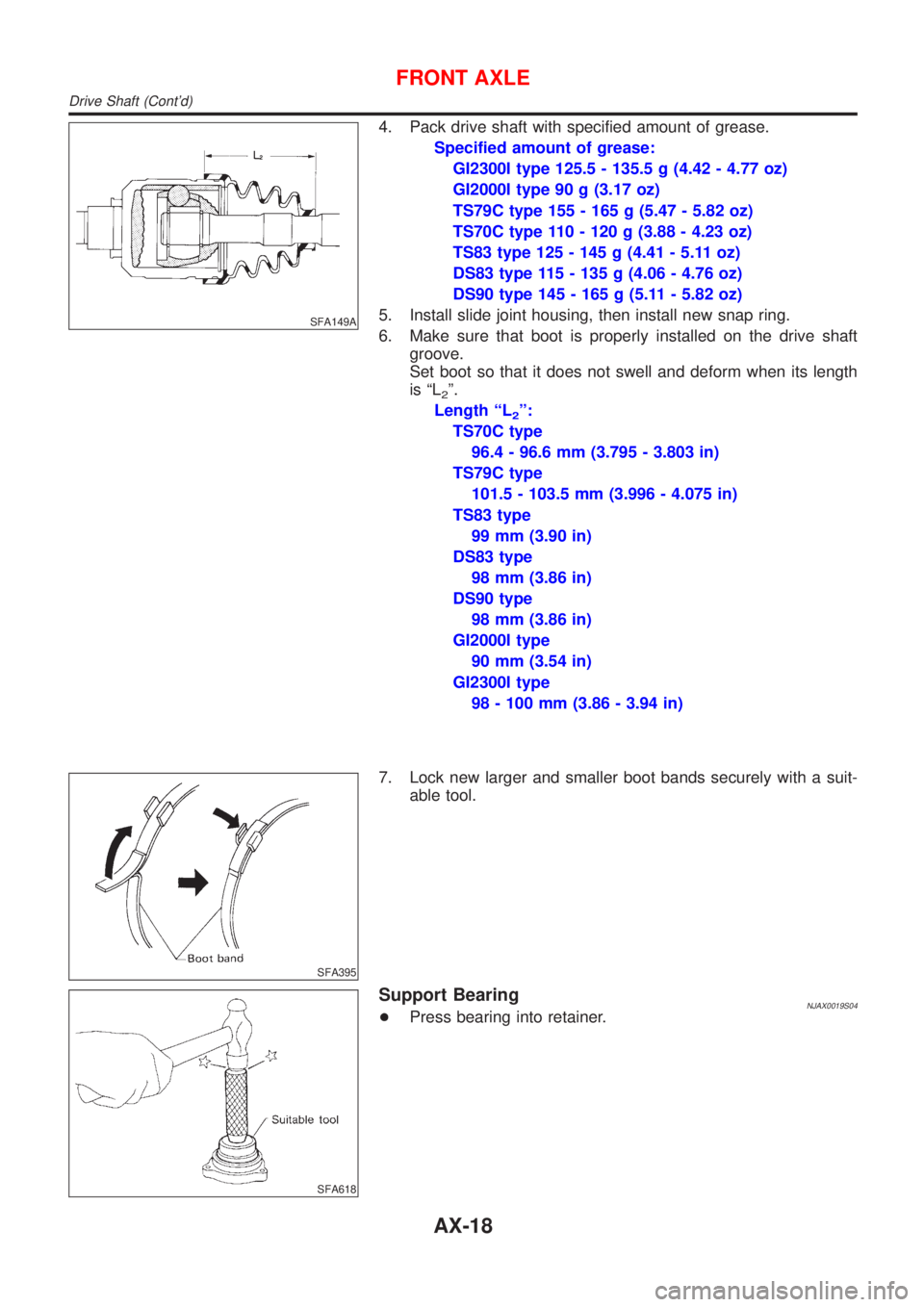

NISSAN ALMERA 2001  Service Manual SFA149A
4. Pack drive shaft with specified amount of grease.
Specified amount of grease:
GI2300I type 125.5 - 135.5 g (4.42 - 4.77 oz)
GI2000I type 90 g (3.17 oz)
TS79C type 155 - 165 g (5.47 - 5.82 o

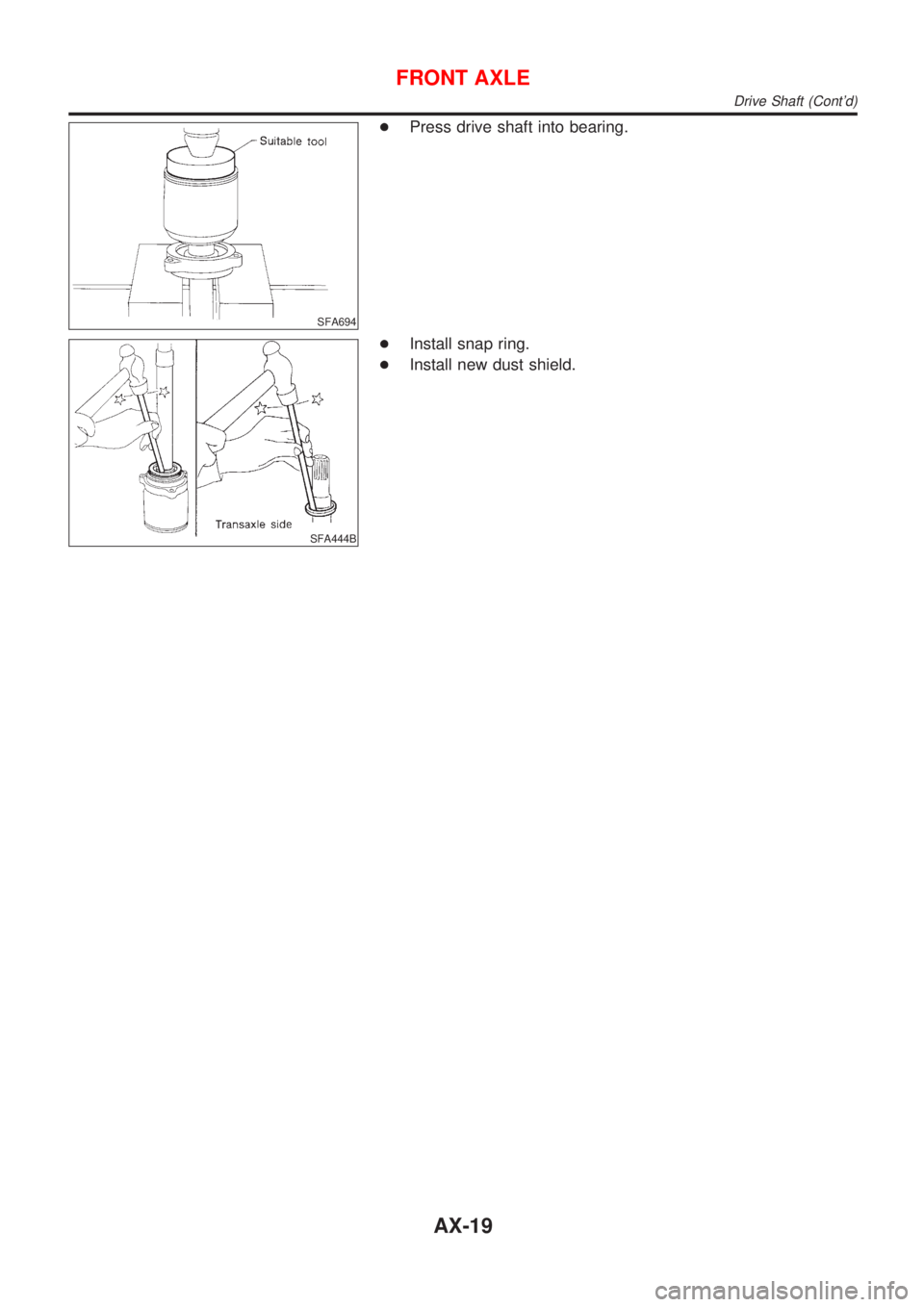

Page 507 of 2898

NISSAN ALMERA 2001  Service Manual SFA694
+Press drive shaft into bearing.
SFA444B
+Install snap ring.
+Install new dust shield.
FRONT AXLE
Drive Shaft (Contd)
AX-19

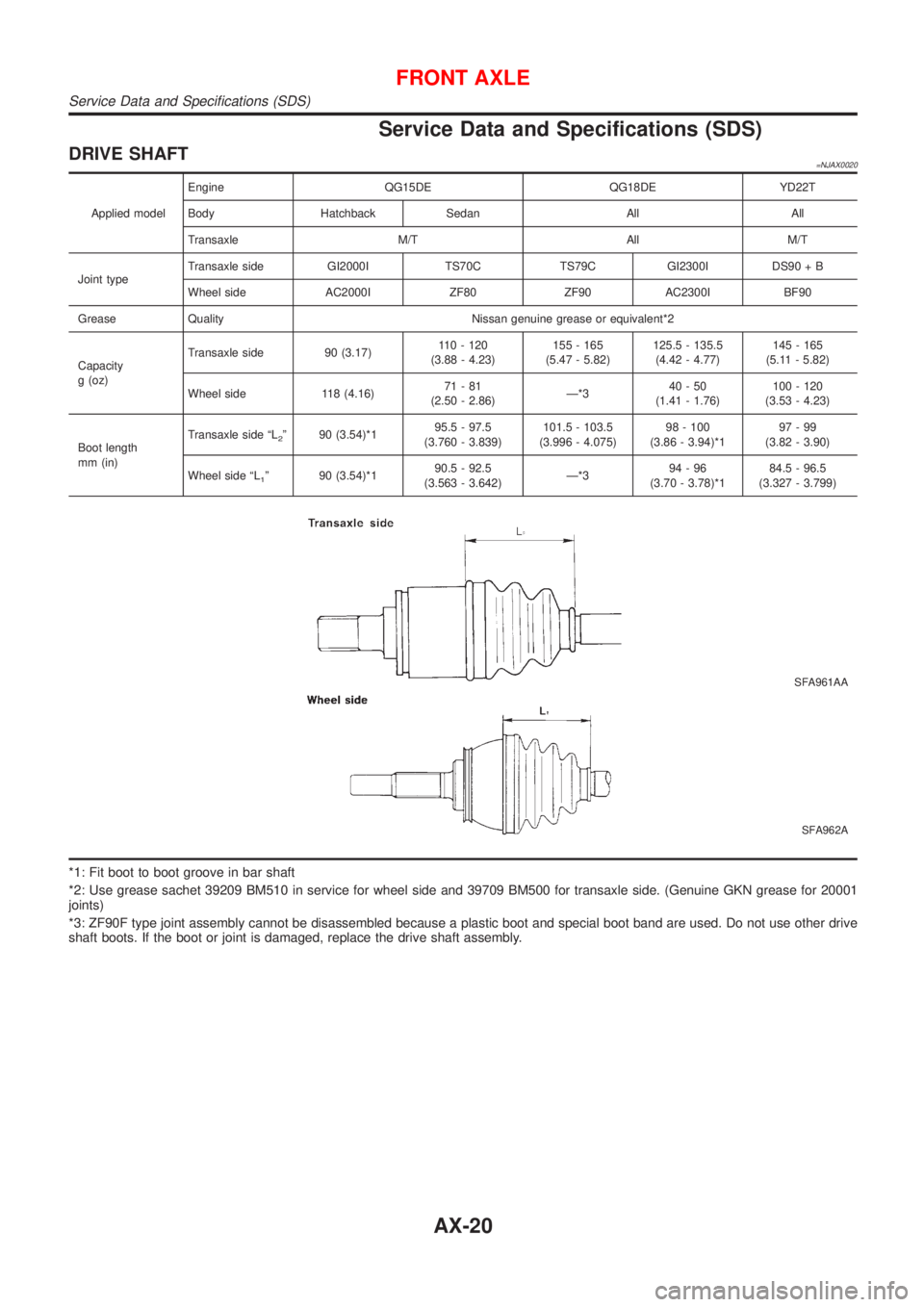

Page 508 of 2898

NISSAN ALMERA 2001  Service Manual Service Data and Specifications (SDS)
DRIVE SHAFT=NJAX0020
Applied modelEngine QG15DE QG18DE YD22T
Body Hatchback Sedan All All
Transaxle M/T All M/T
Joint typeTransaxle side GI2000I TS70C TS79C GI230

Page 509 of 2898

NISSAN ALMERA 2001  Service Manual DYNAMIC DAMPER (WHERE FITTED)=NJAX0033Unit: mm (in)
Applied
modelEngineQG15DE
QG18DE YD22T
Hatchback Sedan
Drive shaft LH RH LH RH LHRH (TS79C
& ZF90)RH (AC/
GI2300I)LH RH
LengthªAº175 - 185
(6.89 -

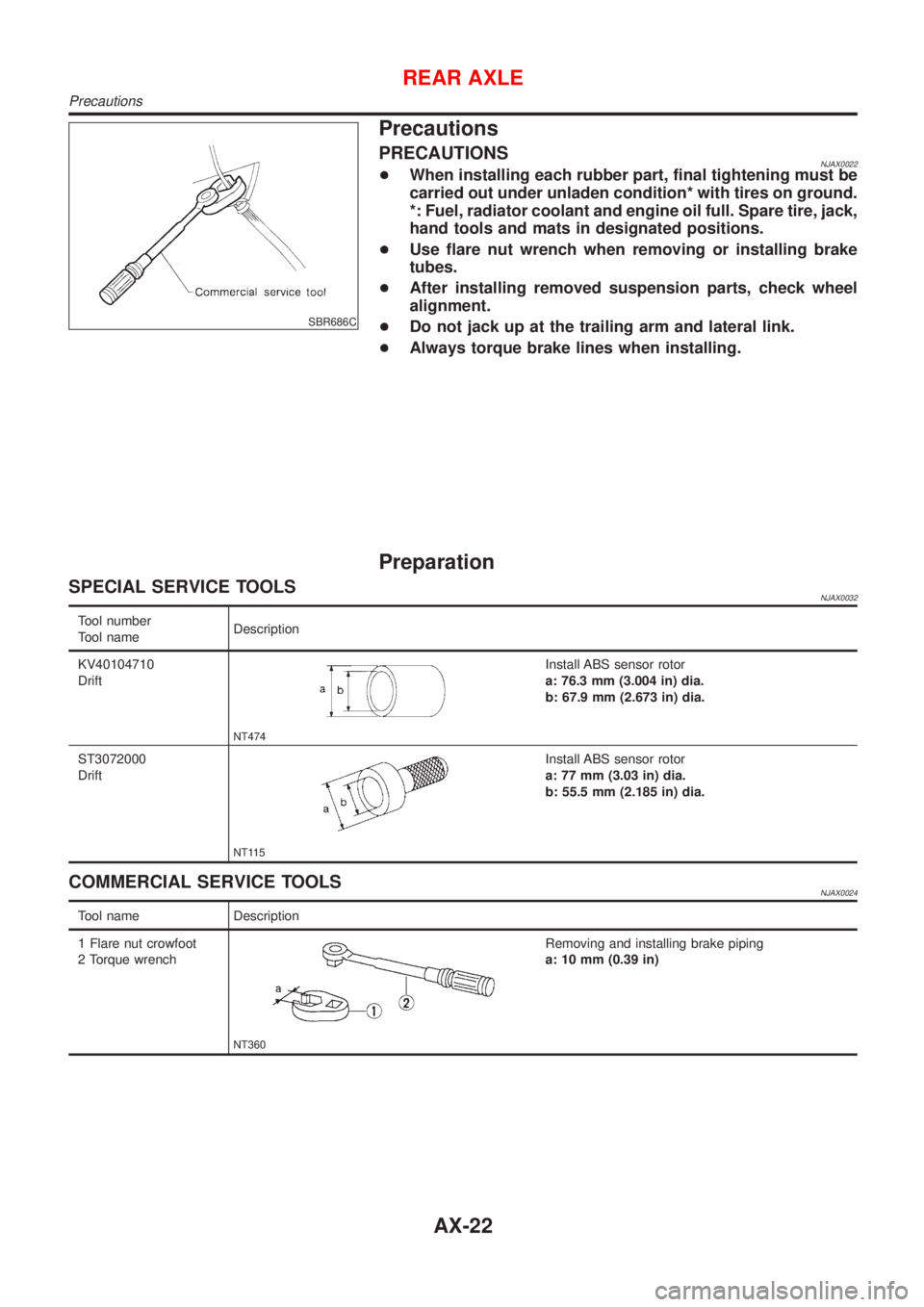

Page 510 of 2898

NISSAN ALMERA 2001  Service Manual SBR686C
Precautions
PRECAUTIONSNJAX0022+When installing each rubber part, final tightening must be
carried out under unladen condition* with tires on ground.
*: Fuel, radiator coolant and engine oil f
