Page 471 of 2898

NISSAN ALMERA 2001  Service Manual SAT430D
c. Measure distance ªAº to check that torque converter is in
proper position.
Distance ªAº:
15.9 mm (0.626 in) or more
ASSEMBLY
Assembly (4) (Contd)
AT-469

Page 472 of 2898

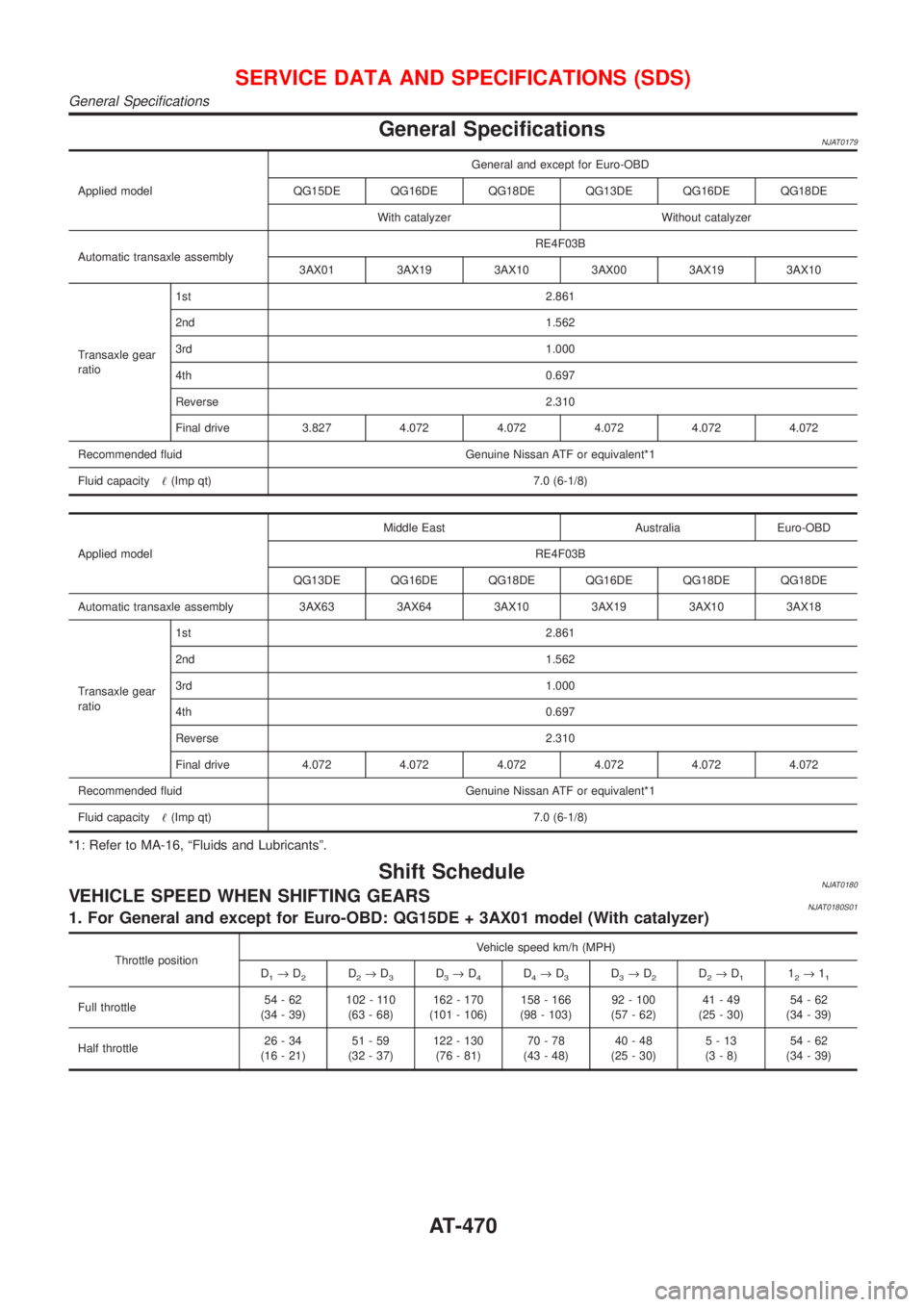

NISSAN ALMERA 2001  Service Manual General SpecificationsNJAT0179
Applied modelGeneral and except for Euro-OBD
QG15DE QG16DE QG18DE QG13DE QG16DE QG18DE
With catalyzer Without catalyzer
Automatic transaxle assemblyRE4F03B
3AX01 3AX19 3

Page 473 of 2898

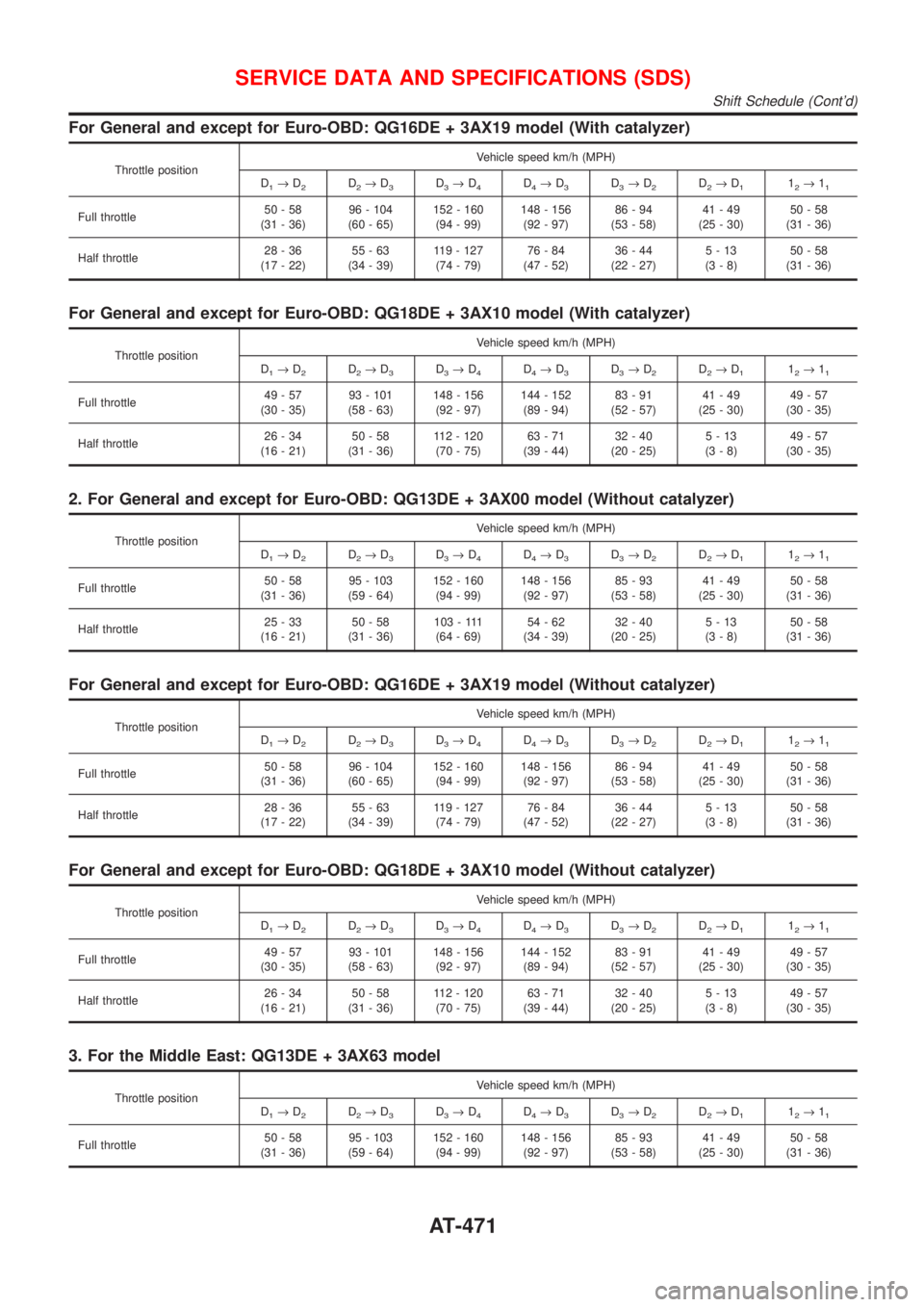

NISSAN ALMERA 2001  Service Manual For General and except for Euro-OBD: QG16DE + 3AX19 model (With catalyzer)
Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Full throttle50-58
(31 - 36)96 - 104
(6

Page 474 of 2898

NISSAN ALMERA 2001  Service Manual Throttle positionVehicle speed km/h (MPH)
D
1®D2D2®D3D3®D4D4®D3D3®D2D2®D112®11
Half throttle25-33
(16 - 21)50-58
(31 - 36)1 0 3 - 111
(64 - 69)54-62
(34 - 39)32-40
(20 - 25)5-13
(3-8)50-58
(31

Page 475 of 2898

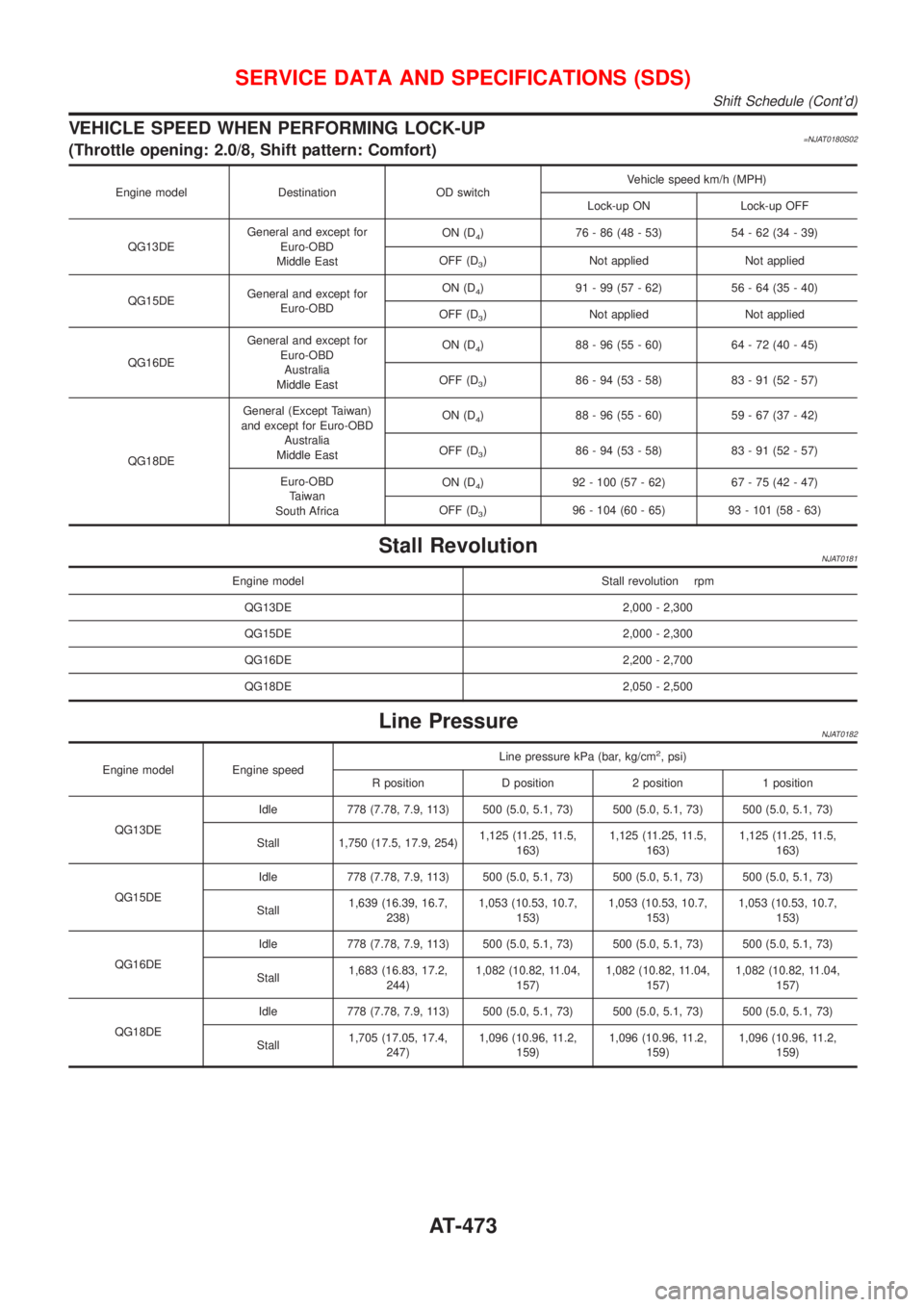

NISSAN ALMERA 2001  Service Manual VEHICLE SPEED WHEN PERFORMING LOCK-UP=NJAT0180S02(Throttle opening: 2.0/8, Shift pattern: Comfort)
Engine model Destination OD switchVehicle speed km/h (MPH)
Lock-up ON Lock-up OFF
QG13DEGeneral and e

Page 476 of 2898

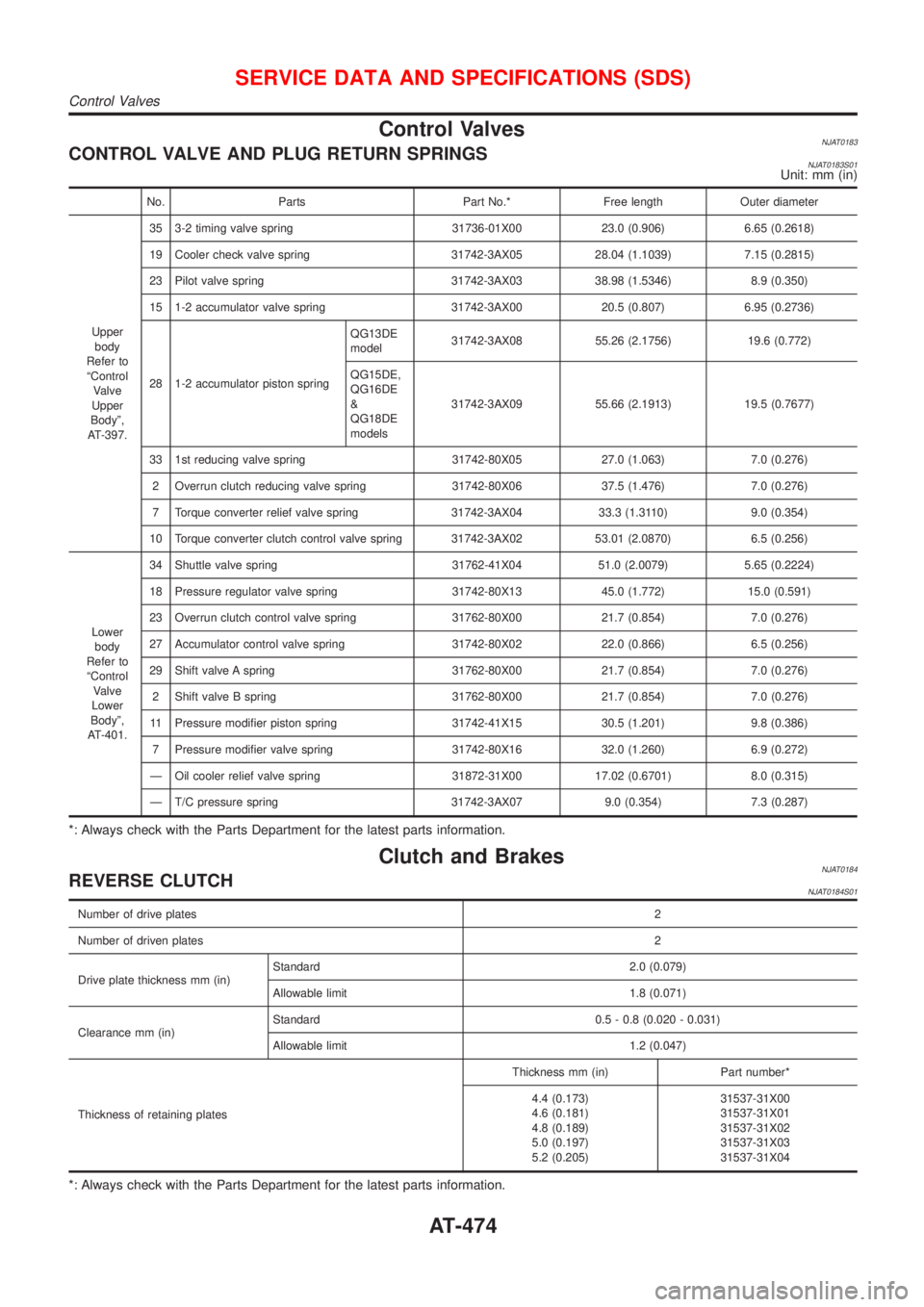

NISSAN ALMERA 2001  Service Manual Control ValvesNJAT0183CONTROL VALVE AND PLUG RETURN SPRINGSNJAT0183S01Unit: mm (in)
No. Parts Part No.* Free length Outer diameter
Upper
body
Refer to
ªControl
Valve
Upper
Bodyº,
AT-397.35 3-2 timin

Page 477 of 2898

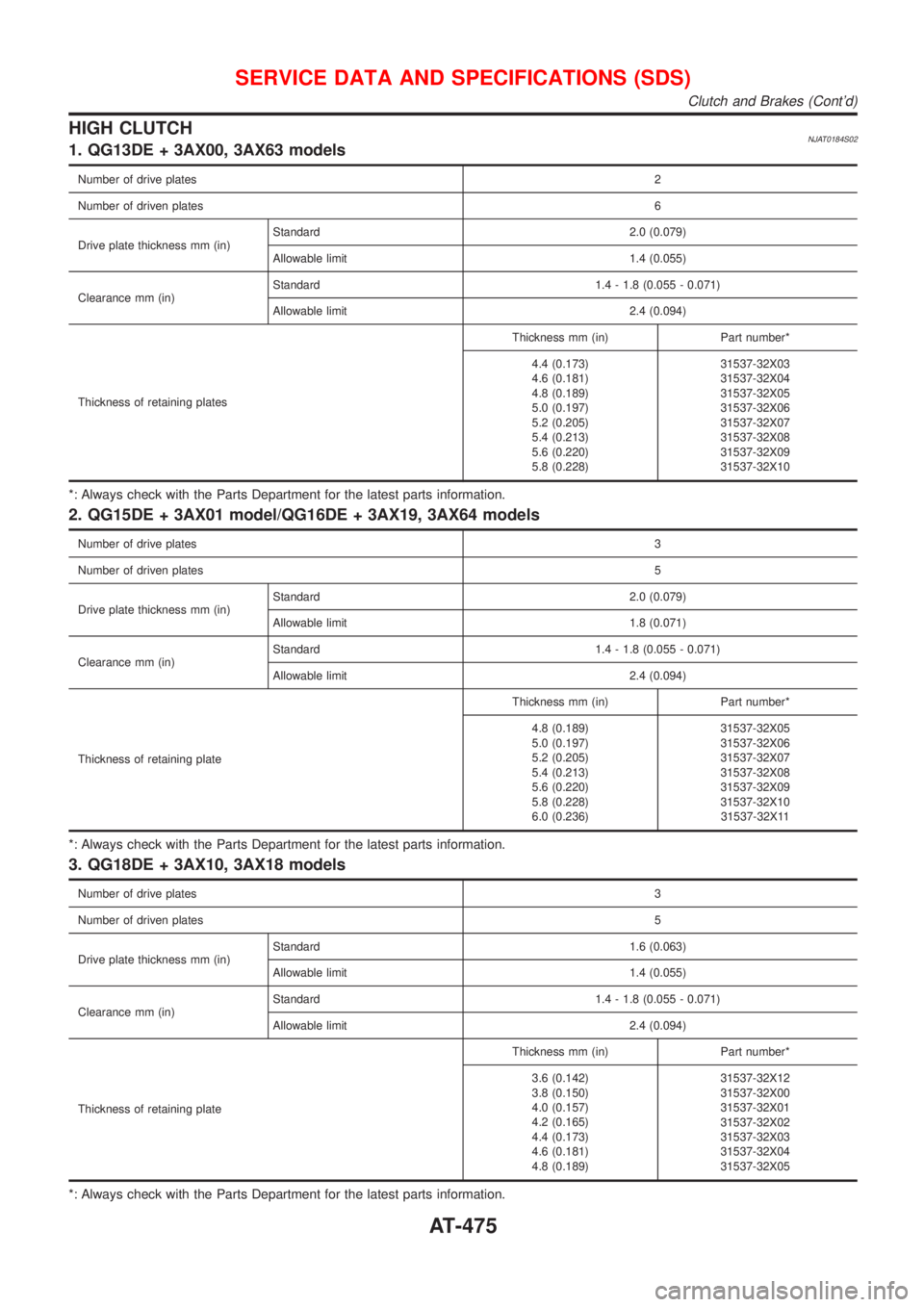

NISSAN ALMERA 2001  Service Manual HIGH CLUTCHNJAT0184S021. QG13DE + 3AX00, 3AX63 models
Number of drive plates2
Number of driven plates6
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1.4 (0.055)
Clearance mm (in)St

Page 478 of 2898

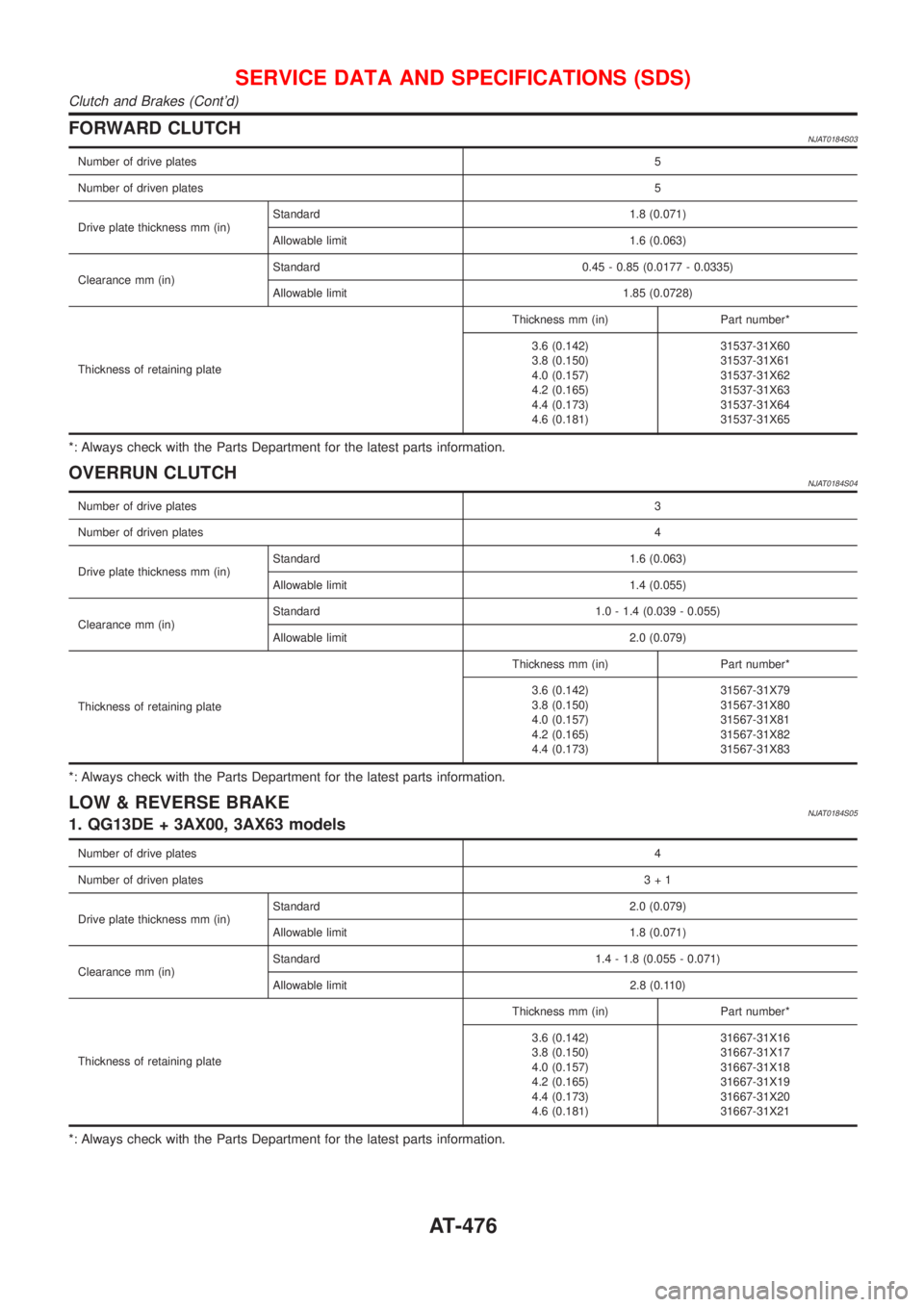

NISSAN ALMERA 2001  Service Manual FORWARD CLUTCHNJAT0184S03
Number of drive plates5
Number of driven plates5
Drive plate thickness mm (in)Standard 1.8 (0.071)
Allowable limit 1.6 (0.063)
Clearance mm (in)Standard 0.45 - 0.85 (0.0177 -

Page 479 of 2898

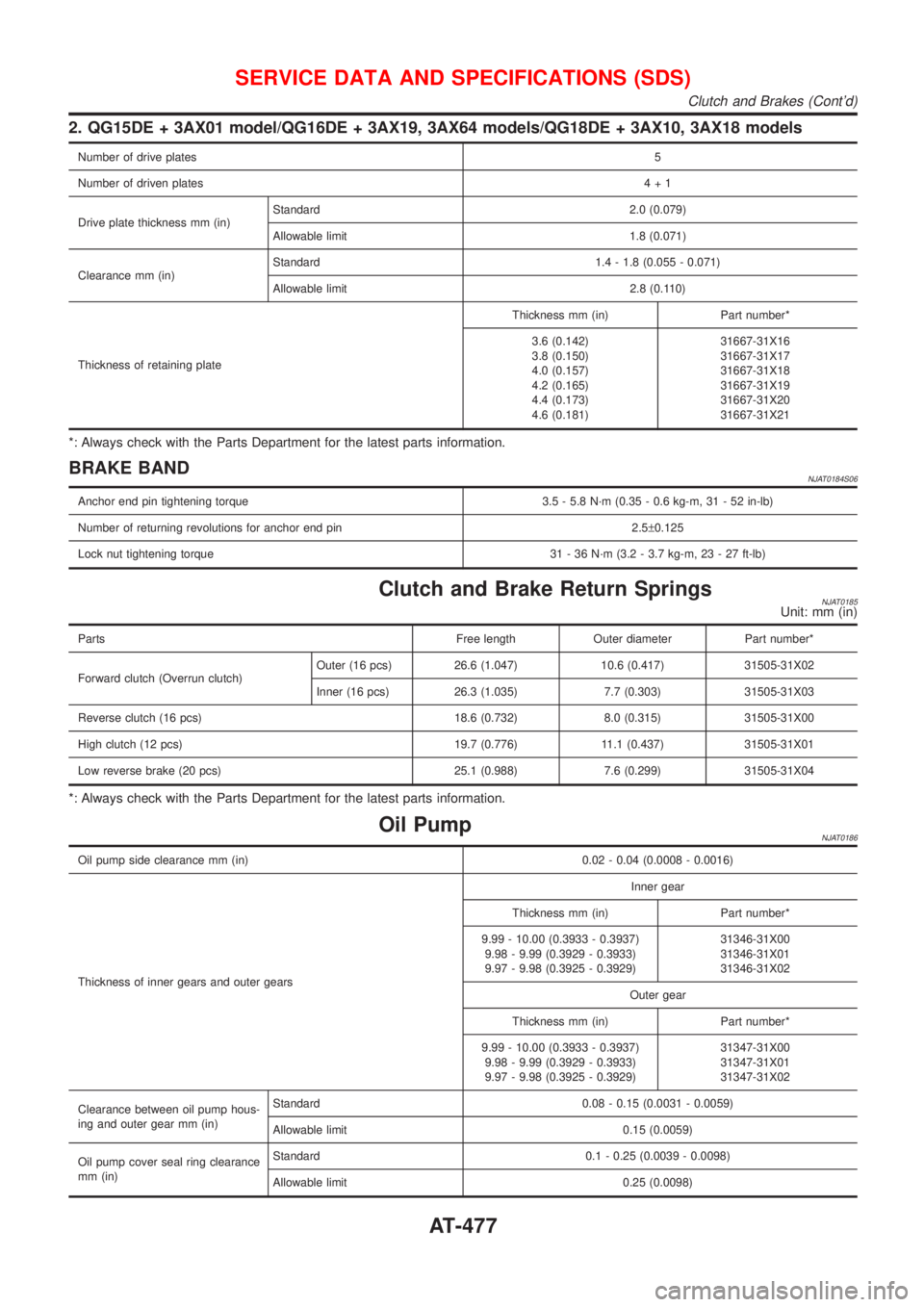

NISSAN ALMERA 2001  Service Manual 2. QG15DE + 3AX01 model/QG16DE + 3AX19, 3AX64 models/QG18DE + 3AX10, 3AX18 models
Number of drive plates5
Number of driven plates4+1
Drive plate thickness mm (in)Standard 2.0 (0.079)
Allowable limit 1

Page 480 of 2898

NISSAN ALMERA 2001  Service Manual *: Always check with the Parts Department for the latest parts information.

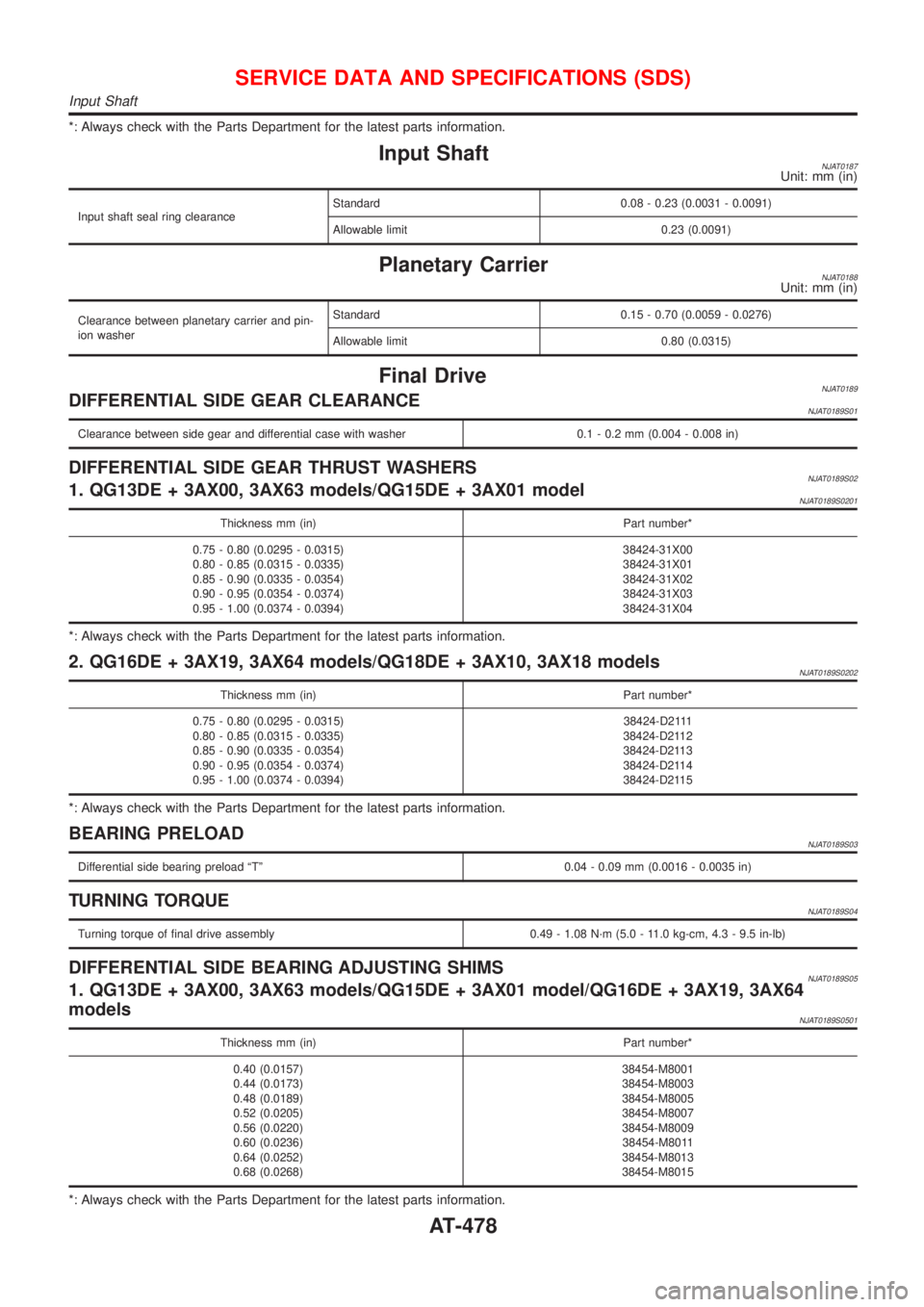

Input ShaftNJAT0187Unit: mm (in)
Input shaft seal ring clearanceStandard 0.08 - 0.23 (0.0031 - 0.0091)
Allowable limit 0.23
