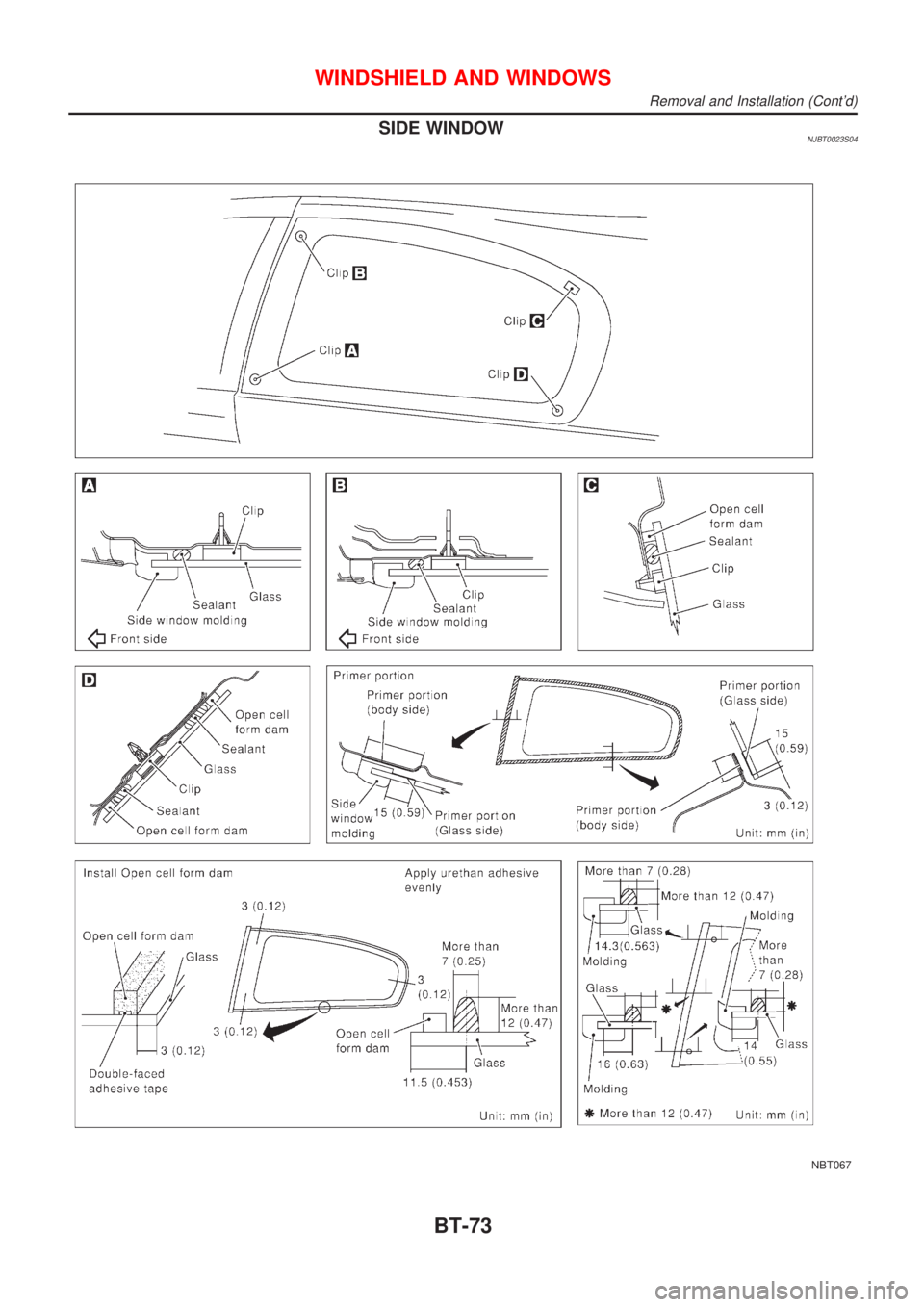

NISSAN ALMERA 2001 Service Manual

SIDE WINDOWNJBT0023S04
NBT067
WINDSHIELD AND WINDOWS
Removal and Installation (Cont'd)
BT-73

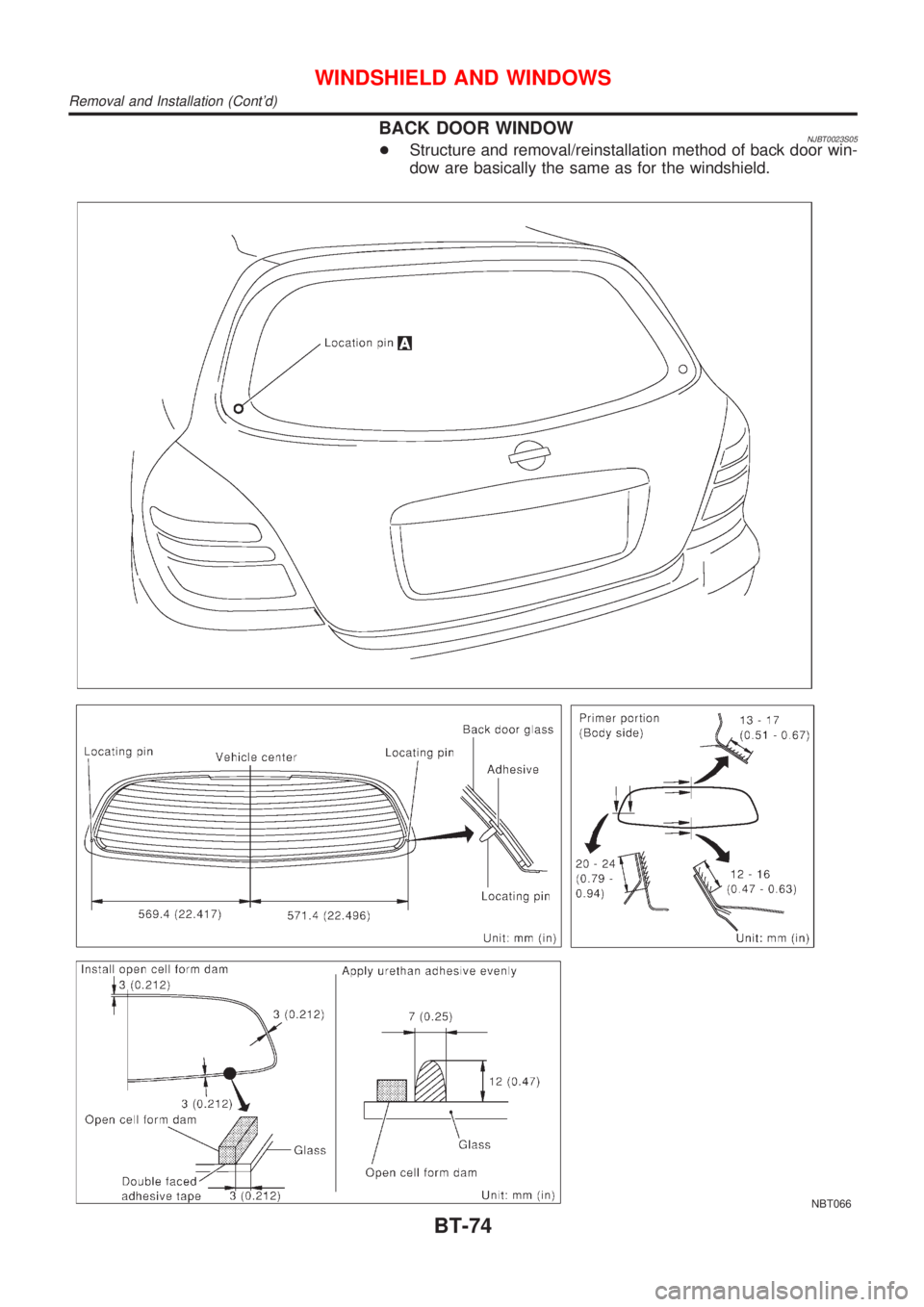

BACK DOOR WINDOWNJBT0023S05+Structure and removal/reinstallation method of back door win-
dow are basically the same as for the windshield.
NBT066
WINDSHIELD AND WINDOWS
Removal and Installation (Cont'd)
BT-74

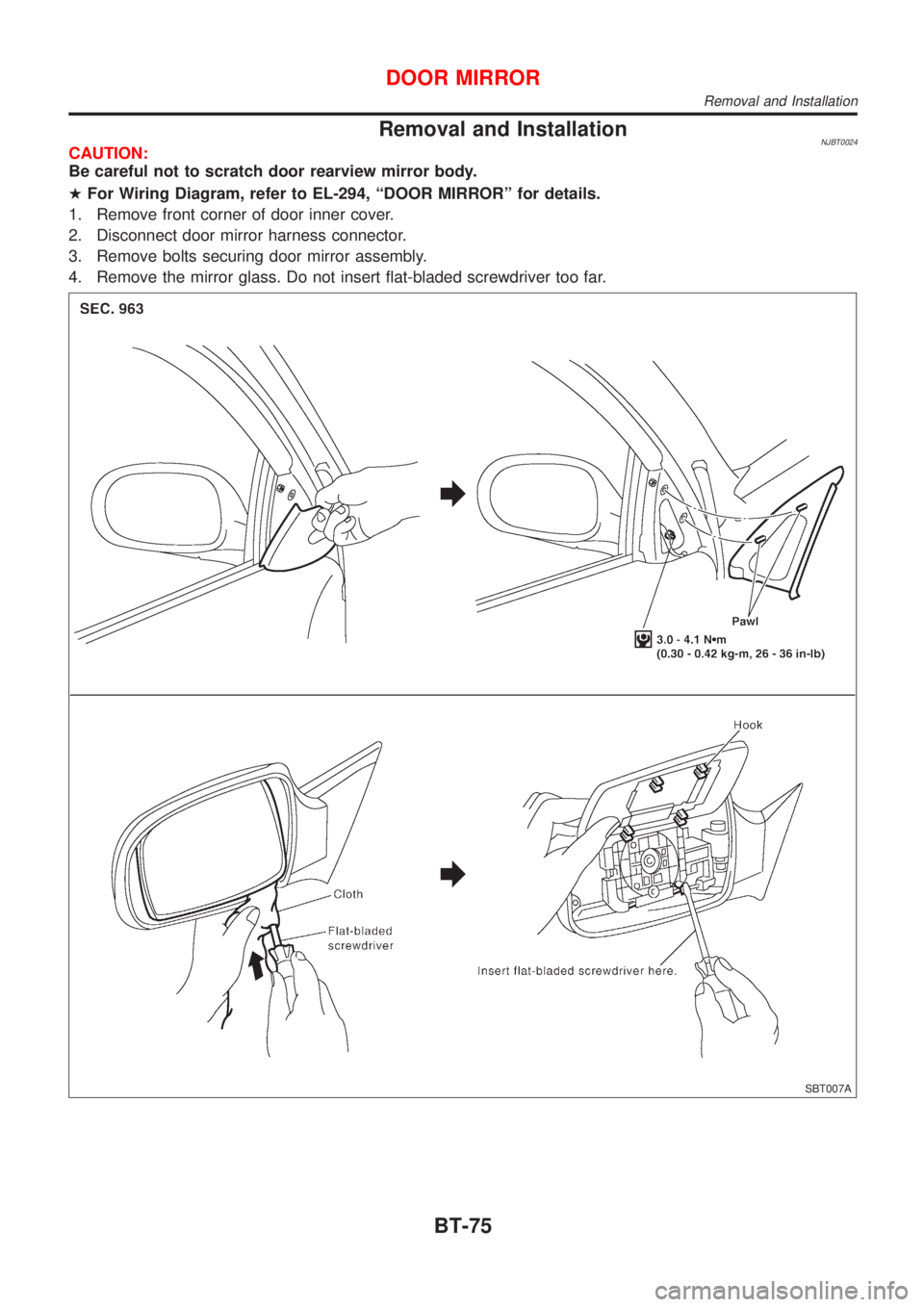

Removalan dInstallation
SBT007A
Removal and Installation

Removal and InstallationNJBT0025REMOVALNJBT0025S01
SBT880
SBT822

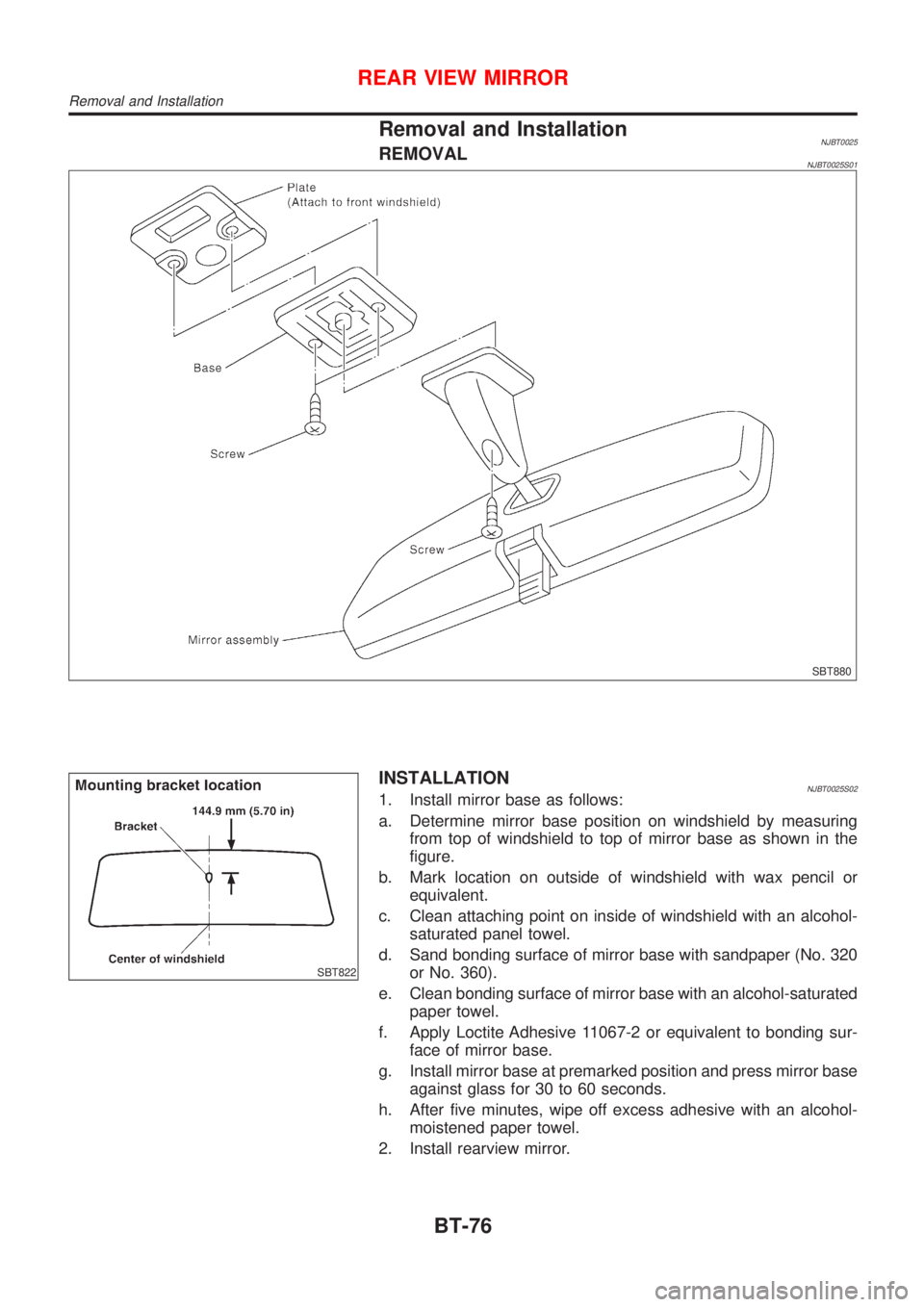

INSTALLATIONNJBT0025S021. Install mirror base as follows:
a. Determine mirror base position on windshield by measuring
from top of windshield to top of mirror base as shown in the
figure.
b. Mark location on outside of windshield with wax pencil or
equivalent.
c. Clean attaching point on inside of windshield with an alcohol-
saturated panel towel.
d. Sand bonding surface of mirror base with sandpaper (No. 320
or No. 360).
e. Clean bonding surface of mirror base with an alcohol-saturated
paper towel.
f. Apply Loctite Adhesive 11067-2 or equivalent to bonding sur-
face of mirror base.
g. Install mirror base at premarked position and press mirror base
against glass for 30 to 60 seconds.
h. After five minutes, wipe off excess adhesive with an alcohol-
moistened paper towel.
2. Install rearview mirror.
REAR VIEW MIRROR
Removal and Installation
BT-76

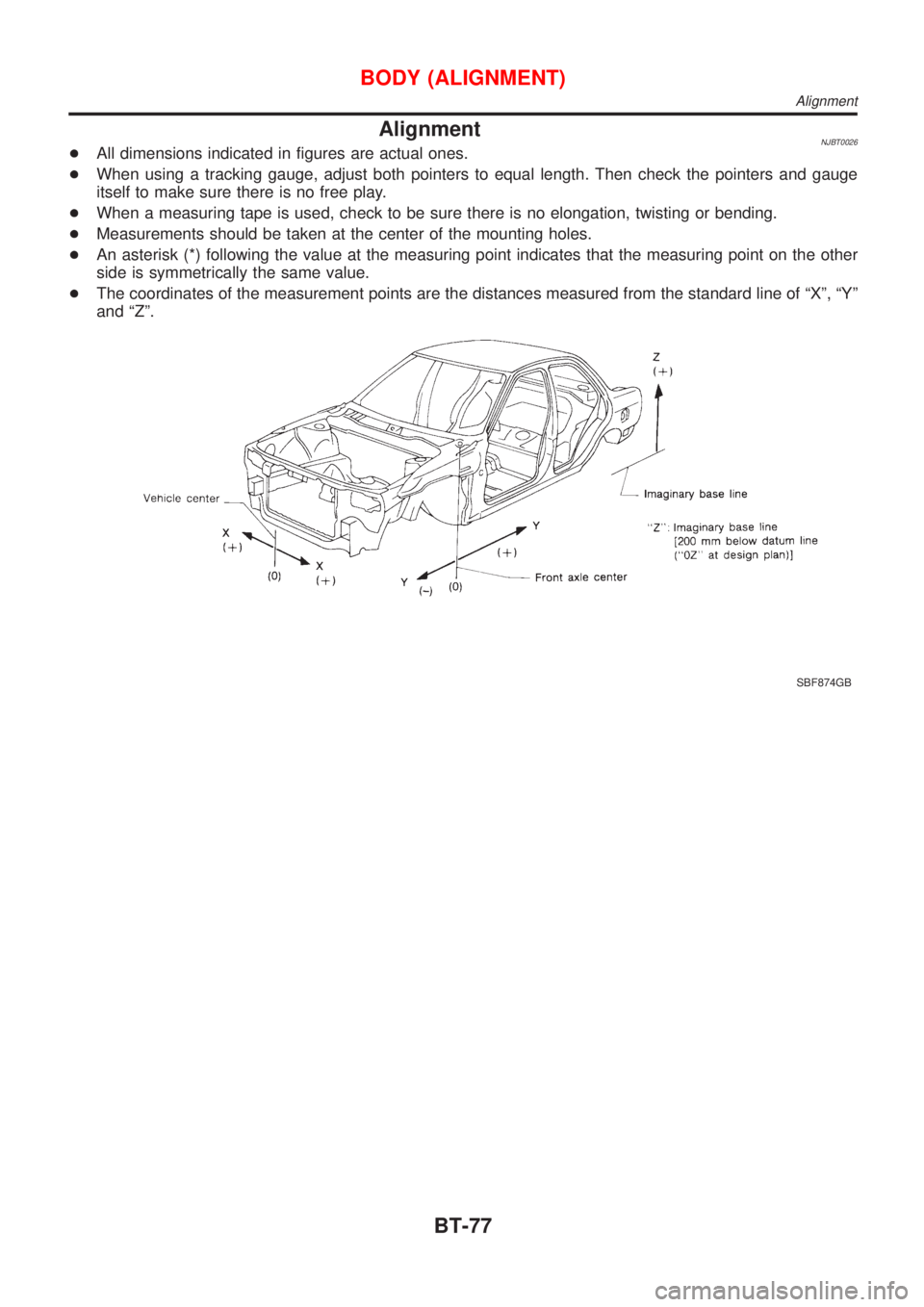

AlignmentNJBT0026+All dimensions indicated in figures are actual ones.
+When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge
itself to make sure there is no free play.
+When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
+Measurements should be taken at the center of the mounting holes.
+An asterisk (*) following the value at the measuring point indicates that the measuring point on the other
side is symmetrically the same value.
+The coordinates of the measurement points are the distances measured from the standard line of ªXº, ªYº
and ªZº.
SBF874GB
BODY (ALIGNMENT)
Alignment
BT-77

ENGINE COMPARTMENTNJBT0026S01MeasurementNJBT0026S0101
SBT008A
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-78

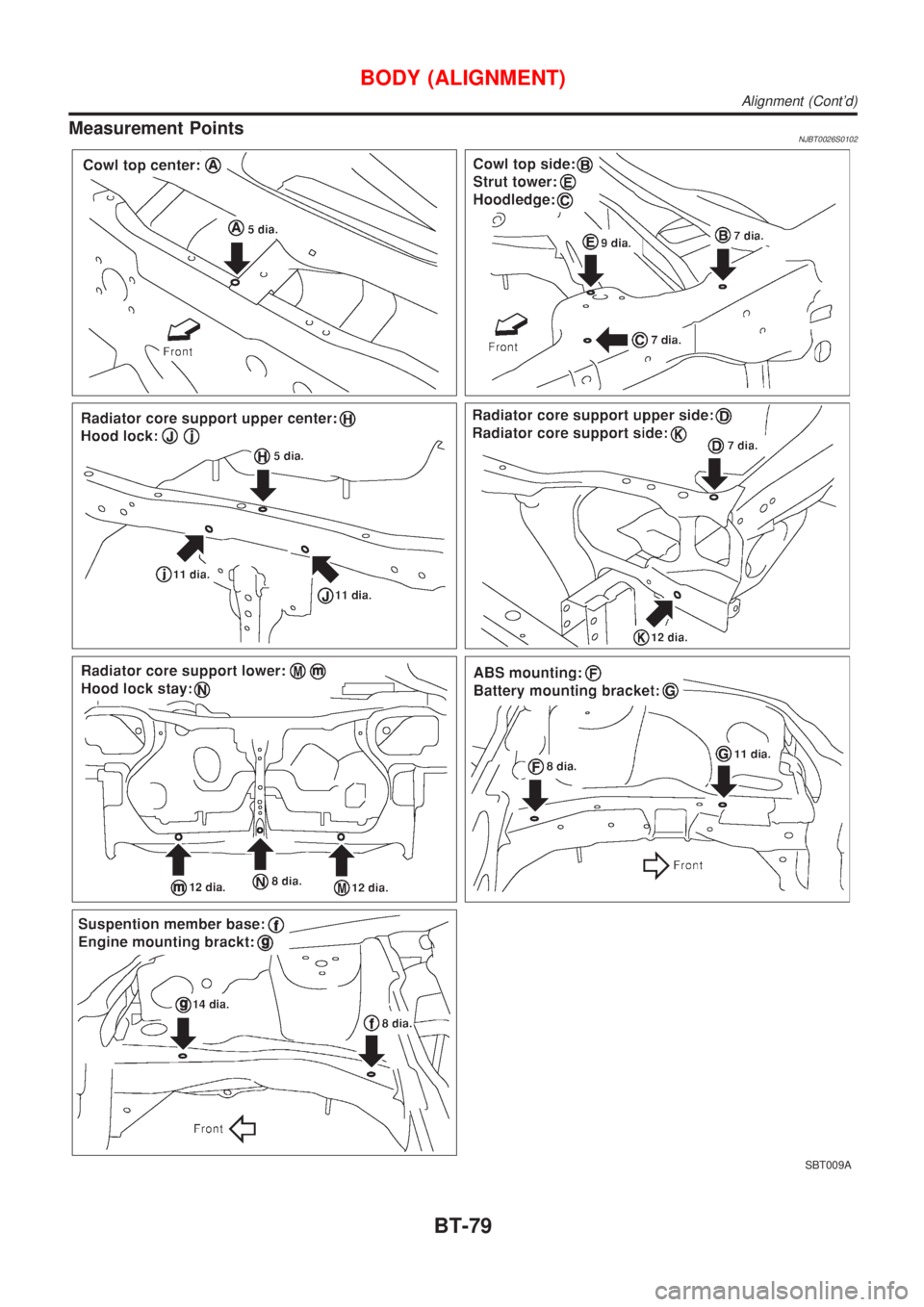

Measurement PointsNJBT0026S0102
SBT009A
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-79

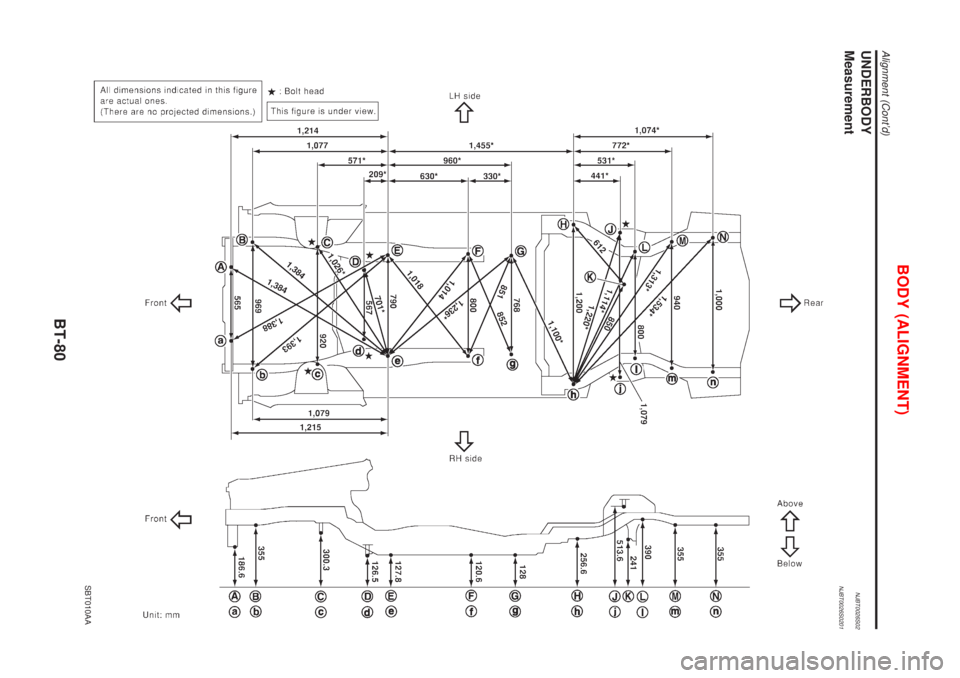

UNDERBODYNJBT0026S02MeasurementNJBT0026S0201
SBT010AA
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-80

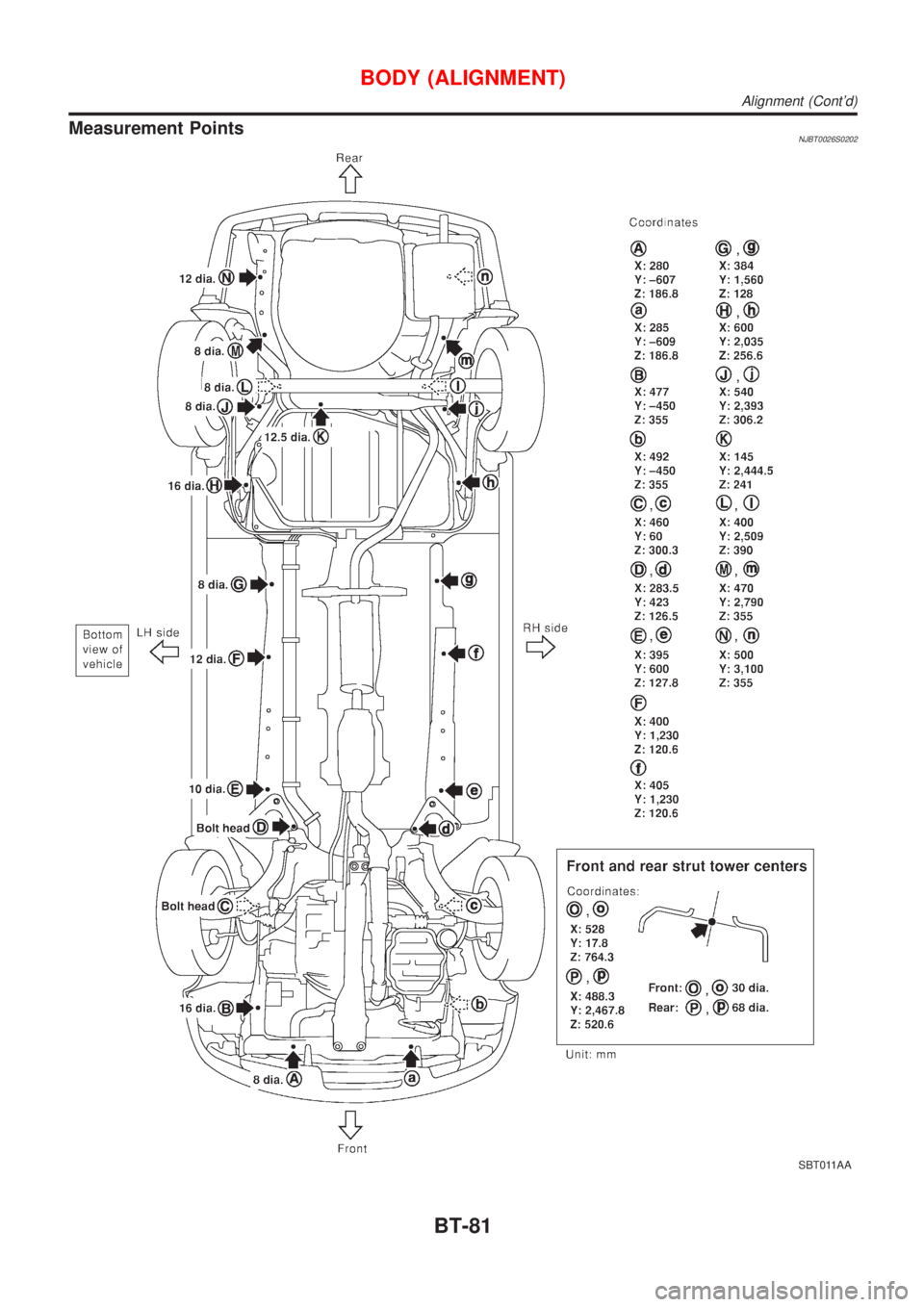

Measurement PointsNJBT0026S0202
SBT011AA
BODY (ALIGNMENT)
Alignment (Cont'd)
BT-81

BODY (ALIGNMENT)
Alignment (Cont'd)
BT-82
