NISSAN ALMERA N15 1995 Service Manual

SEM978C
SEM980C
SEM213F TIMING
CHAIN

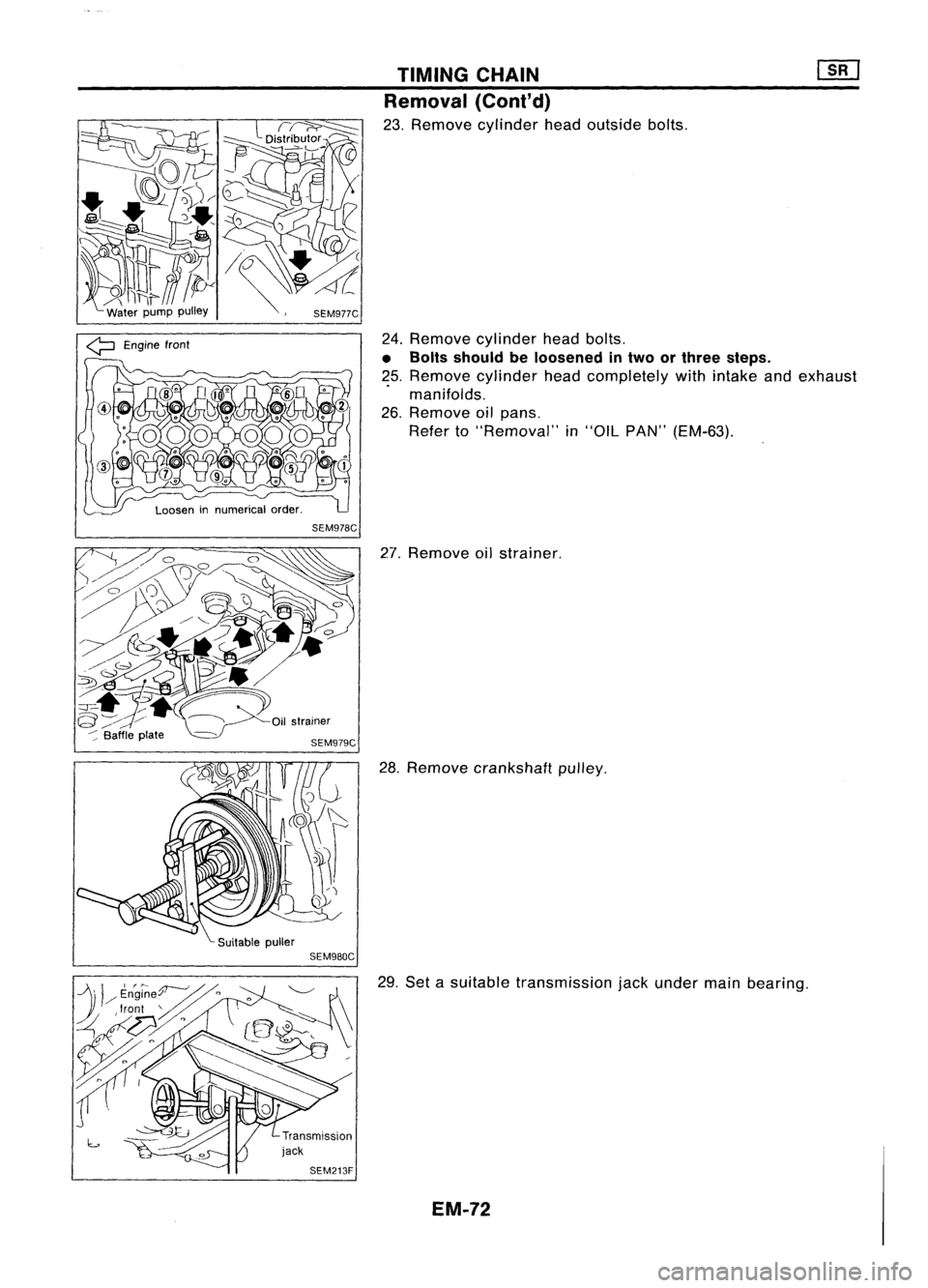

Removal (Cont'd)

23. Remove cylinder headoutside bolts.
24. Remove cylinder headbolts.

• Bolts should beloosened intwo orthree steps.

~5. Remove cylinder headcompletely withintake andexhaust
manifolds.
26. Remove oilpans.
Refer to"Removal" in"OIL PAN" (EM-63).
27. Remove oilstrainer.
28. Remove crankshaft pulley.
29. Set asuitable transmission jackunder mainbearing.

EM-72

Engine~
front
Y--J
SEM721E
SEM984C
~ Crankshaft

!..--..V
side
Crankshaft sprocket
SEM470E TIMING
CHAIN

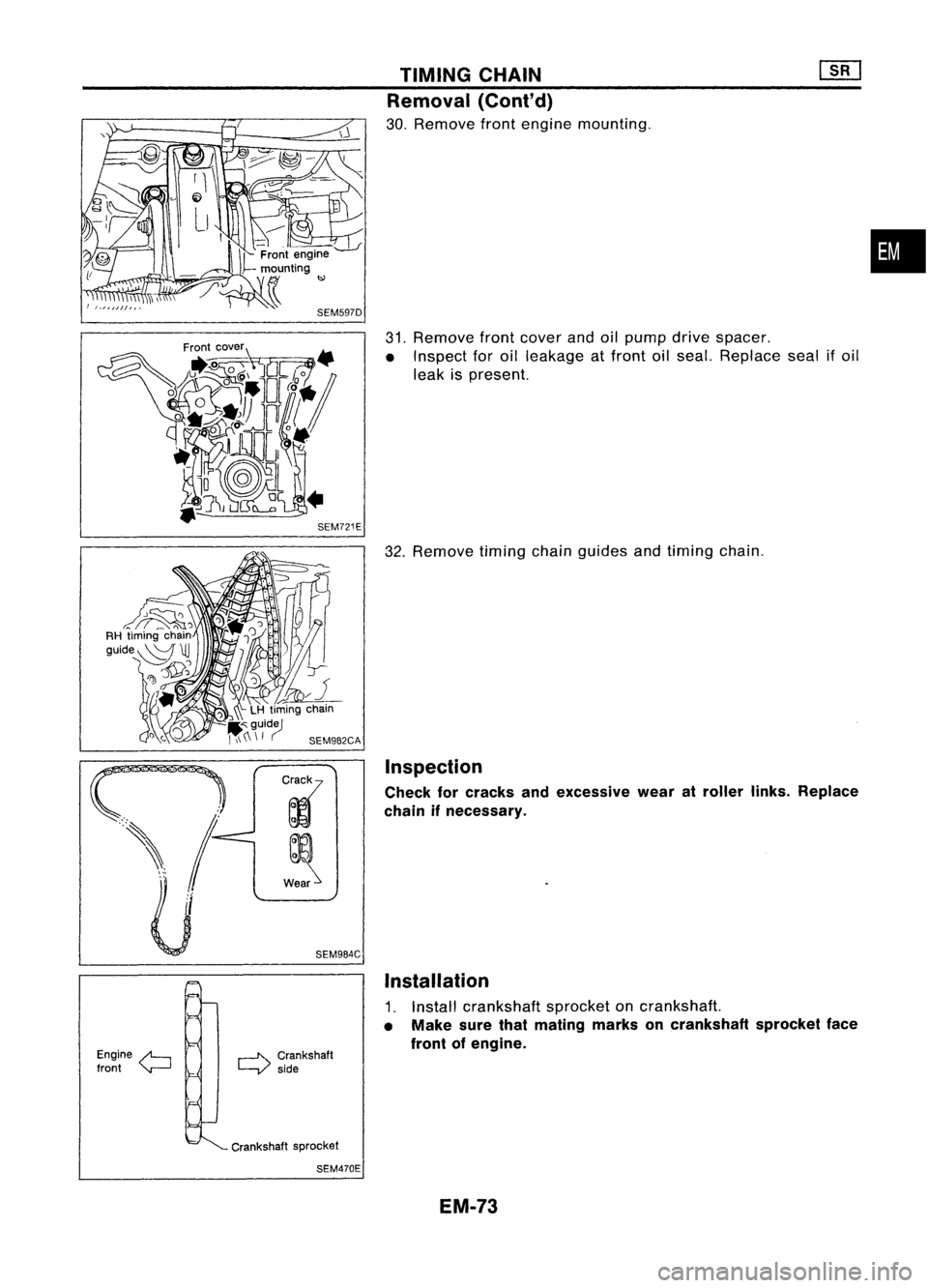

Removal (Cont'd)

30. Remove frontengine mounting.
31. Remove frontcover andoilpump drivespacer.
• Inspect foroilleakage atfront oilseal. Replace sealifoil
leak ispresent.
32. Remove timingchainguides andtiming chain.

Inspection
Check forcracks andexcessive wearatroller links.Replace
chain ifnecessary.
Installation
1. Install crankshaft sprocketoncrankshaft.

• Make surethatmating marksoncrankshaft sprocketface
front ofengine.
EM-73
•

@

~c
t':'
CO',
M''''',mwk

Mating markC
~!
56
coli'" ~
t..
coli."

CD

Mating mark
SEM500E TIMING
CHAIN
[]K]

Installation (Cont'd)

2. Position crankshaft sothat No.1 piston isset atTOG andkey
way isat 12 o'clock. Fittiming chainoncrankshaft sprocket,
aligning themating marks.
• Mating markcolorontiming chain.

eD
Gold

@,
CID:
Silver

3. Install timing chainandtiming chainguides.
4. Before installing frontcover, remove alltraces ofliquid
gasket frommating surface usingascraper.
• Also remove tracesofliquid gasket frommating surface of
cylinder block.
5. Apply acontinuous beadofliquid gasket tomating surface
of front cover.

• Use Genuine LiquidGasket orequivalent.
• Besure toinstall newfront oilseal inthe right direction.
Refer toEM-82.
EM-74

Wipeoff

liquid gasket

SEM214FTIMING
CHAIN ~
Installation (Cont'd)

6. Install oilpump drivespacer andfront cover .
• Wipe offexcessive liquidgasket.
•

7. Install frontengine mounting.
8. Install crankshaft pulley.
9. Set NO.1 piston atTDG onitscompression stroke.

EM.75

Cylinderheadbolt

OJ
1I111111111111111111111111111111D

L'A,,=J
SEM020D
Cylinder headboltwasher

0 __ 0

•

Cylinder headside
SEM877A
Tighten innumerical order.
SEM986C TIMING
CHAIN

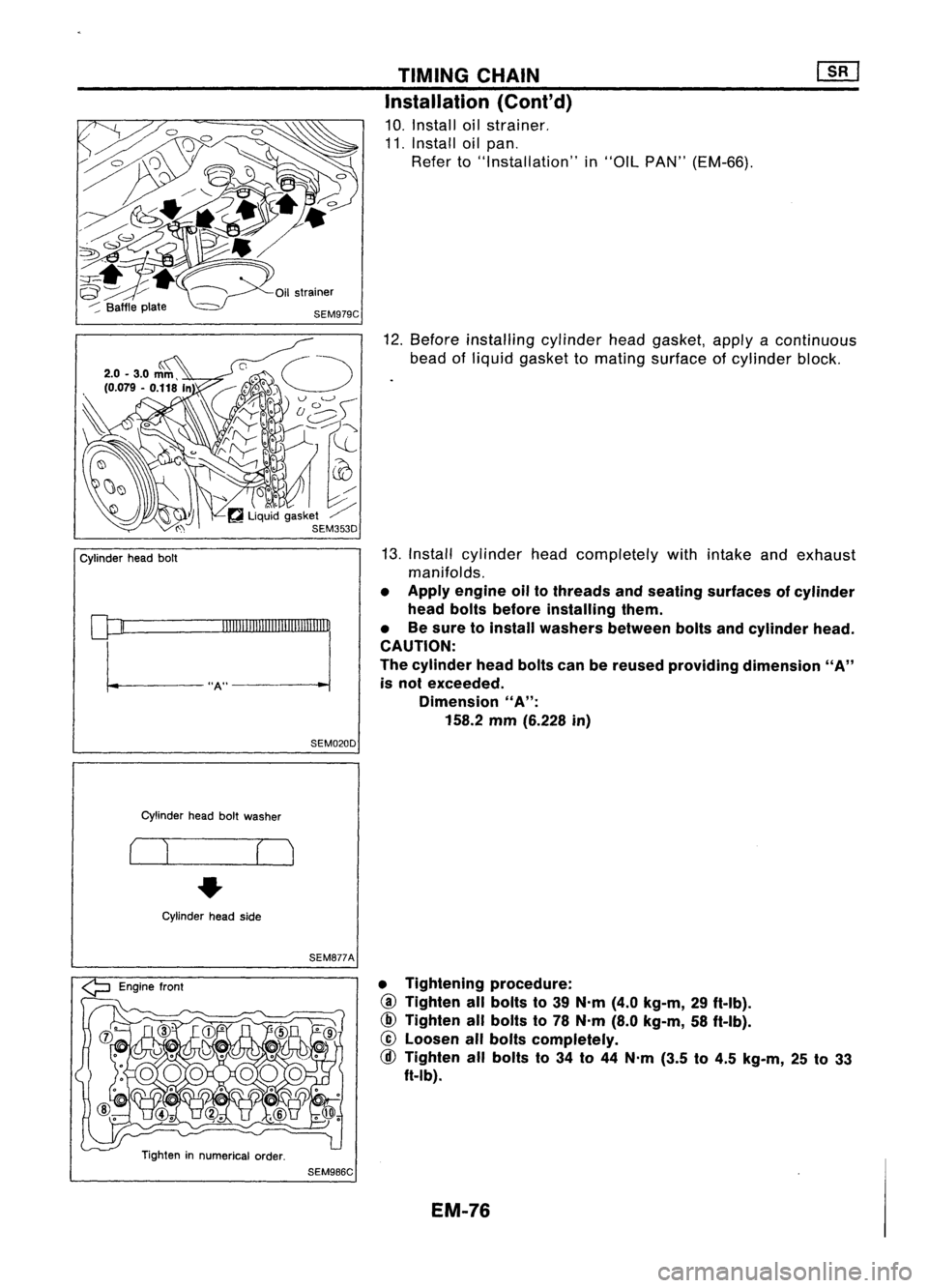

Installation (Cont'd)

10. Install oilstrainer.
11. Install oilpan.
Refer to"Installation" in
"Oil
PAN" (EM-66).
12. Before installing cylinderheadgasket, applyacontinuous
bead ofliquid gasket tomating surface ofcylinder block.
13. Install cylinder headcompletely withintake andexhaust
manifolds.

• Apply engine oiltothreads andseating surfaces ofcylinder
head bolts before installing them.
• Besure toinstall washers betweenboltsandcylinder head.
CAUTION:
The cylinder headboltscanbereused providing dimension
"A"

is not exceeded.
Dimension
"A":

158.2 mm(6.228 in)
• Tightening procedure:
@ Tighten allbolts to39 N'm (4.0kg-m, 29ft-Ib).
@ Tighten allbolts to78 N'm (8.0kg-m, 58ft-Ib).
@ Loosen allbolts completely.
@ Tighten allbolts to34 to44 N'm (3.5to4.5 kg-m, 25to33
ft-Ib).
EM-76

MethodA
Method B 90+5degrees

-0

Engine Paint
mark

front

:0
118

~
(12,87)

Plasticzone

EO
78

0,
(8,58)

~

E
39

z
(4,29)

SEM074DATIMING
CHAIN
[]B]

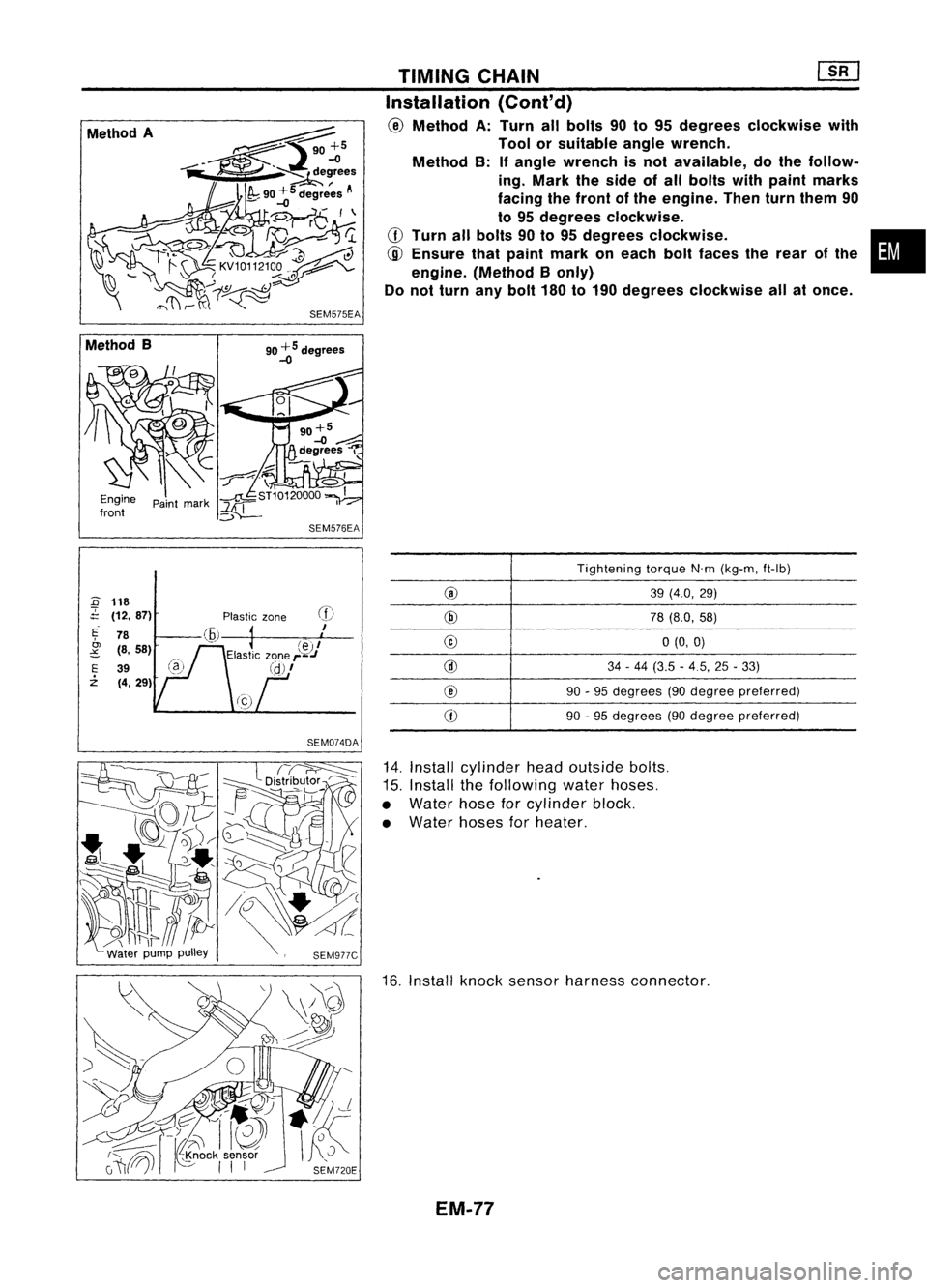

Installation (Cont'd)

@
Method A:Turn allbolts 90to95 degrees clockwise with
Tool orsuitable anglewrench.
Method B:
If
angle wrench isnot available, dothe follow-
ing. Mark theside ofall bolts withpaint marks
facing thefront ofthe engine. Thenturnthem 90
to 95 degrees clockwise.

CD
Turn allbolts 90to95 degrees clockwise. •

@
Ensure thatpaint mark oneach boltfaces therear ofthe
engine. (Method Bonly)
Do not turn anybolt 180to190 degrees clockwise allatonce.

Tightening torqueN'm(kg-m, ft-Ib)

@
39(4.0, 29)

@
78(8.0, 58)

@
0(0,0)

@
34-44 (3.5 -4.5, 25-33)

@
90-95 degrees (90degree preferred)

CD
90
-95 degrees (90degree preferred)

14. Install cylinder headoutside bolts.
15. Install thefollowing waterhoses.
• Water hoseforcylinder block.
• Water hosesforheater.
16. Install knocksensor harness connector.

EM-77

SEM354D

f'J
liquid gasket

Apply
liquidgasket
to the hatched area.

o ~
LHcamshaft endbracket

SEM075DA

RH camShaft./'::~nd bracket
brackey
0
Edb kt
~ "nrace
(1)

~~~;~ ~.o
o.
00'{'

NO.1 to4
0

brackets LHcamshaft
NO.1 to4brackets bracket

SEM098DA TIMING
CHAIN

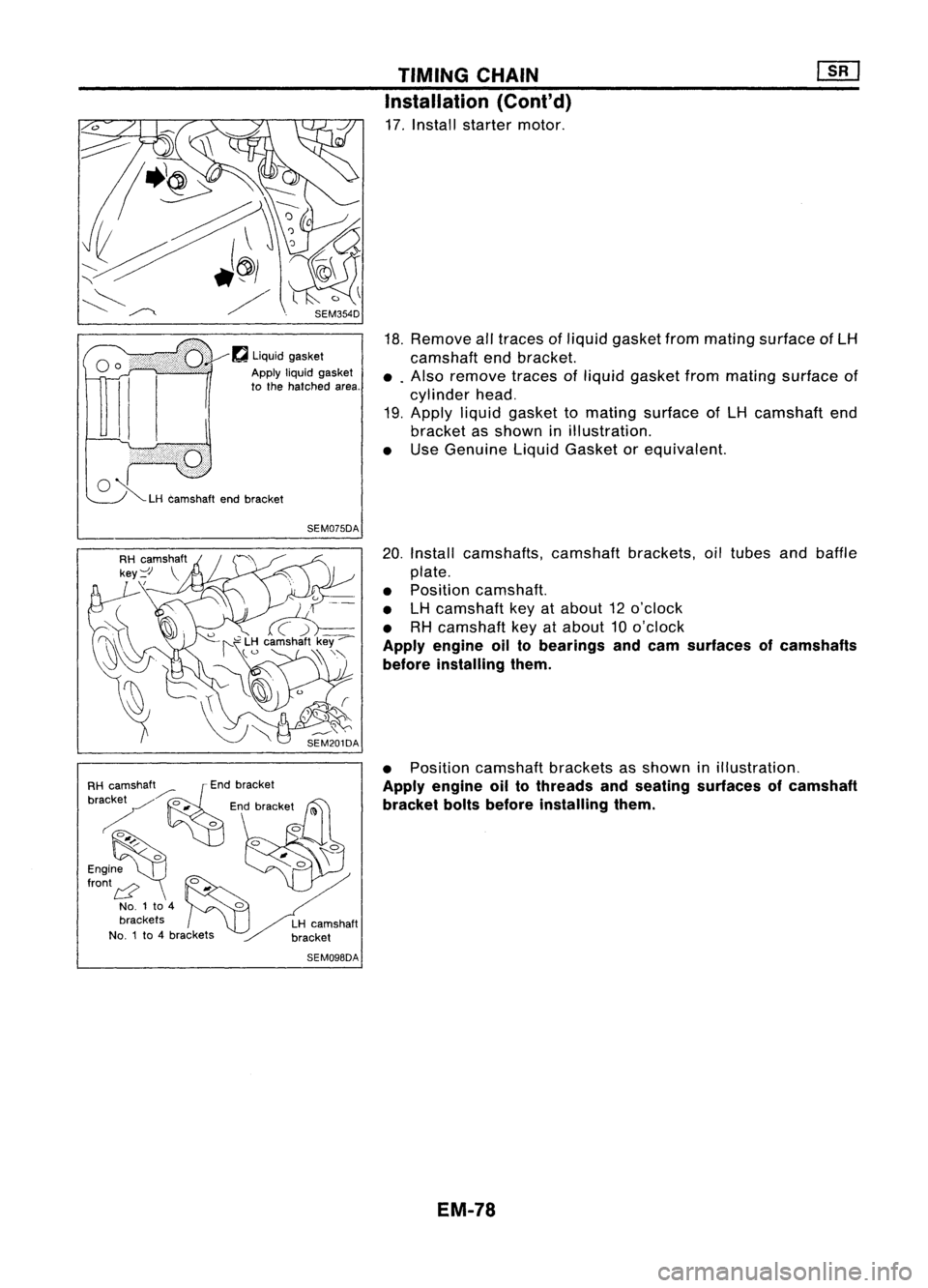

Installation (Cont'd)

17. Install starter motor.
18. Remove alltraces ofliquid gasket frommating surface ofLH
camshaft endbracket.
•. Also remove tracesofliquid gasket frommating surface of
cylinder head.
19. Apply liquidgasket tomating surface ofLH camshaft end
bracket asshown inillustration.
• Use Genuine LiquidGasket orequivalent.
20. Install camshafts, camshaftbrackets,oiltubes andbaffle
plate.
• Position camshaft.
• LHcamshaft keyatabout 12o'clock
• RHcamshaft keyatabout 10o'clock

Apply engine oiltobearings andcam surfaces ofcamshafts
before installing them.

• Position camshaft bracketsasshown inillustration.

Apply engine oiltothreads andseating surfaces ofcamshaft
bracket boltsbefore installing them.
EM-78

•

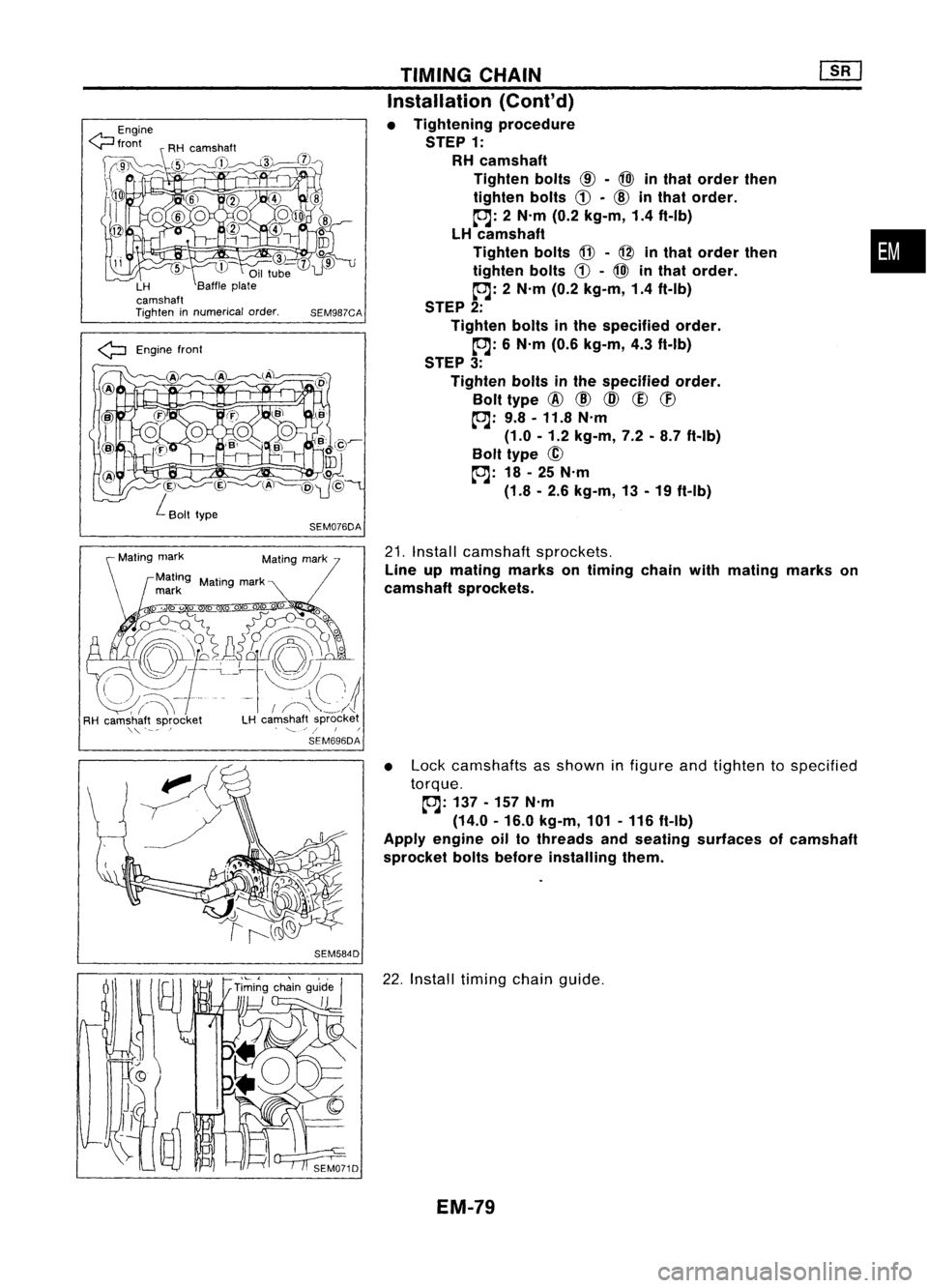

TIMING
CHAIN

Installation (Cont'd)

• Tightening procedure

STEP 1:

RH camshaft
Tighten bolts
@-
@l
inthat order then
tighten bolts
CD-
@
inthat order.
~: 2N'm (0.2kg-m, 1.4ft-Ib)
LH camshaft
Tighten bolts
@-
@
inthat order then
tighten bolts
CD-
@l
inthat order.
~: 2N'm (0.2kg-m, 1.4ft-Ib)

STEP 2:

Tighten boltsinthe specified order.
~: 6N'm (0.6kg-m, 4.3ft-Ib)

STEP 3:

Tighten boltsinthe specified order.
Bolt type
@
CID CID ~
(f)

~: 9.8-11.8 N'm
(1.0 -1.2 kg-m, 7.2-8.7 ft-Ib)
Bolt type
@
~: 18-25 N'm

(1.8 -2.6 kg-m, 13-19 ft-Ib)
21. Install camshaft sprockets.
Line upmating marksontiming chainwithmating markson
camshaft sprockets.

SEM987CA

, "--_ ../ / I

SEM696DA

LH

camshaft
Tighten innumerical order.
~ Engine front

•Lock camshafts asshown infigure andtighten tospecified
torque.
~: 137-157 N'm
(14.0 -16.0 kg-m, 101-116 ft-Ib)
Apply engine oiltothreads andseating surfaces ofcamshaft
sprocket boltsbefore installing them.

SEM584D
22.Install timing chainguide.

EM-79

SEM990C
SEM991C TIMING
CHAIN
[]K]

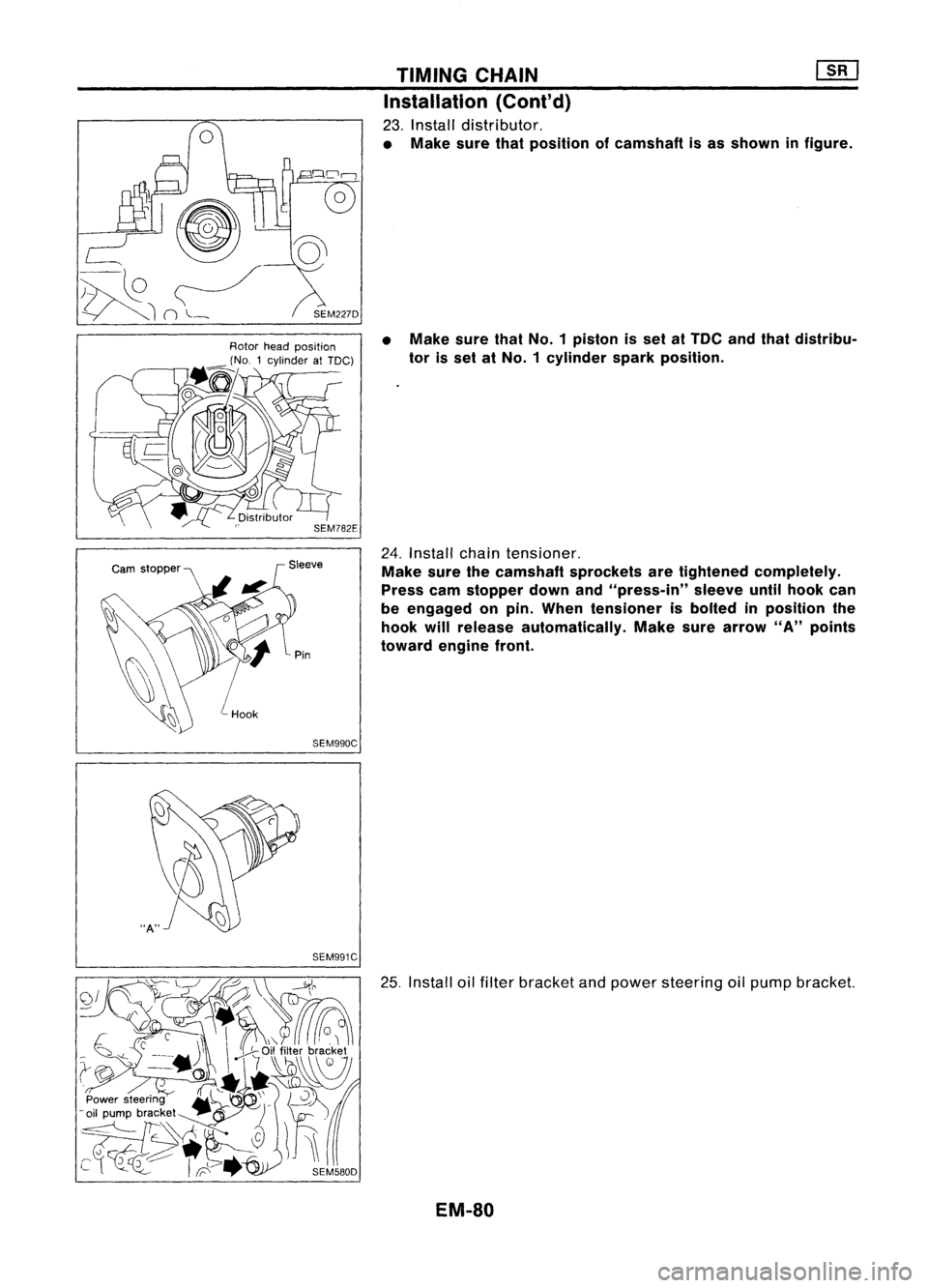

Installation (Cont'd)

23. Install distributor.

• Make surethatposition ofcamshaft isas shown infigure.
• Make surethatNo.1 piston isset at
TOe
andthat distribu-
tor isset atNo.1 cylinder sparkposition.

24. Install chaintensioner.

Make surethecamshaft sprockets aretightened completely.
Press camstopper downand"press-in" sleeveuntilhook can
be engaged onpin. When tensioner isbolted inposition the
hook willrelease automatically. Makesurearrow "A"points
toward enginefront.

25. Install oilfilter bracket andpower steering oilpump bracket.

EM-80

Unit:mm(in)
10
(0.39)

n'

Engine front
1+ .,..I

3 (0.12) ~LiqUid
gasket

SEM366D TIMING
CHAIN
Installation (Cont'd)

26. Install intakemanifold supports.
27. Remove allold liquid gasket frommating surfaces ofrocker
cover gasket andcylinder head.
28. Apply acontinuous beadofliquid gasket tomating surfaces
of rocker covergasket andcylinder head.

• Use Genuine LiquidGasket orequivalent.
•

3
1
mm (0.12
In)r~
liquidgasket

tJ$j

SEM367D

@

8l"-L~~[c,.l~
Q

[0 O@O 0

CD

Oil separator
Tighten innumerical order.

SEM585D
29.
Install rocker coverandoilseparator.

(1) Tighten nuts
C!J-
@l -
@ -@ -
cID
inthat order to4N'm
(0.4 kg-m, 35in-Ib).
(2) Tighten nuts
d)
through @innumerical orderto8to 10
N'm (0.8to1.0 kg-m, 69to87 in-Ib).

30. Refit spark plugsandleads.
31. Install vacuum hoses,fuelhoses, wires,harness, connec-
tors andsoon.
32. Install power steering oilpump andalternator.
33. Install waterpumppulley anddrive belts.
34. Refit airduct tointake manifold.
35. Install radiator.
36. Refit hoses andrefill withcoolant. (RefertoMA section.)
37. Install engine sidecover andfront RHwheel.
38. Install engine undercovers.

EM-81
