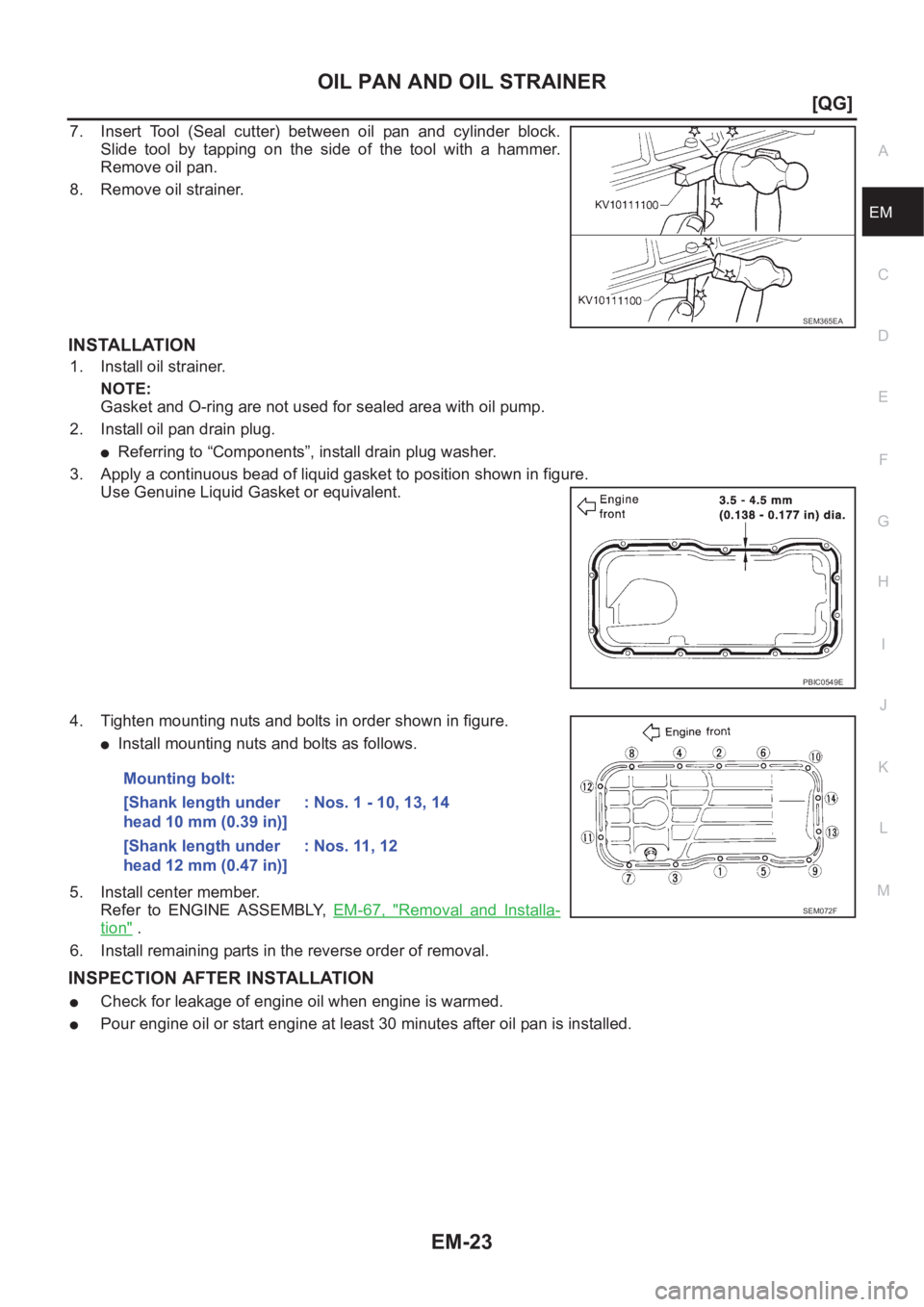

7. Insert Tool (Seal cutter) between oil pan and cylinder block.
Slide tool by tapping on the side of the tool with a hammer.
Remove oil pan.
8. Remove oil strainer.
INSTALLATION
1. Install oil strainer.
NOTE:
Gasket and O-ring are not used for sealed area with oil pump.
2. Install oil pan drain plug.
●Referring to “Components”, install drain plug washer.
3. Apply a continuous bead of liquid gasket to position shown in figure.
Use Genuine Liquid Gasket or equivalent.
4. Tighten mounting nuts and bolts in order shown in figure.
●Install mounting nuts and bolts as follows.
5. Install center member.
Refer to ENGINE ASSEMBLY, EM-67, "
Removal and Installa-
tion" .
6. Install remaining parts in the reverse order of removal.
INSPECTION AFTER INSTALLATION
●Check for leakage of engine oil when engine is warmed.
●Pour engine oil or start engine at least 30 minutes after oil pan is installed.
SEM365EA
PBIC0549E
Mounting bolt:
[Shank length under
head 10 mm (0.39 in)]: Nos. 1 - 10, 13, 14
[Shank length under
head 12 mm (0.47 in)]: Nos. 11, 12
SEM072F

EM-24
[QG]
IGNITION COIL
IGNITION COIL
PFP:22448
Removal and InstallationEBS00LQ7
REMOVAL

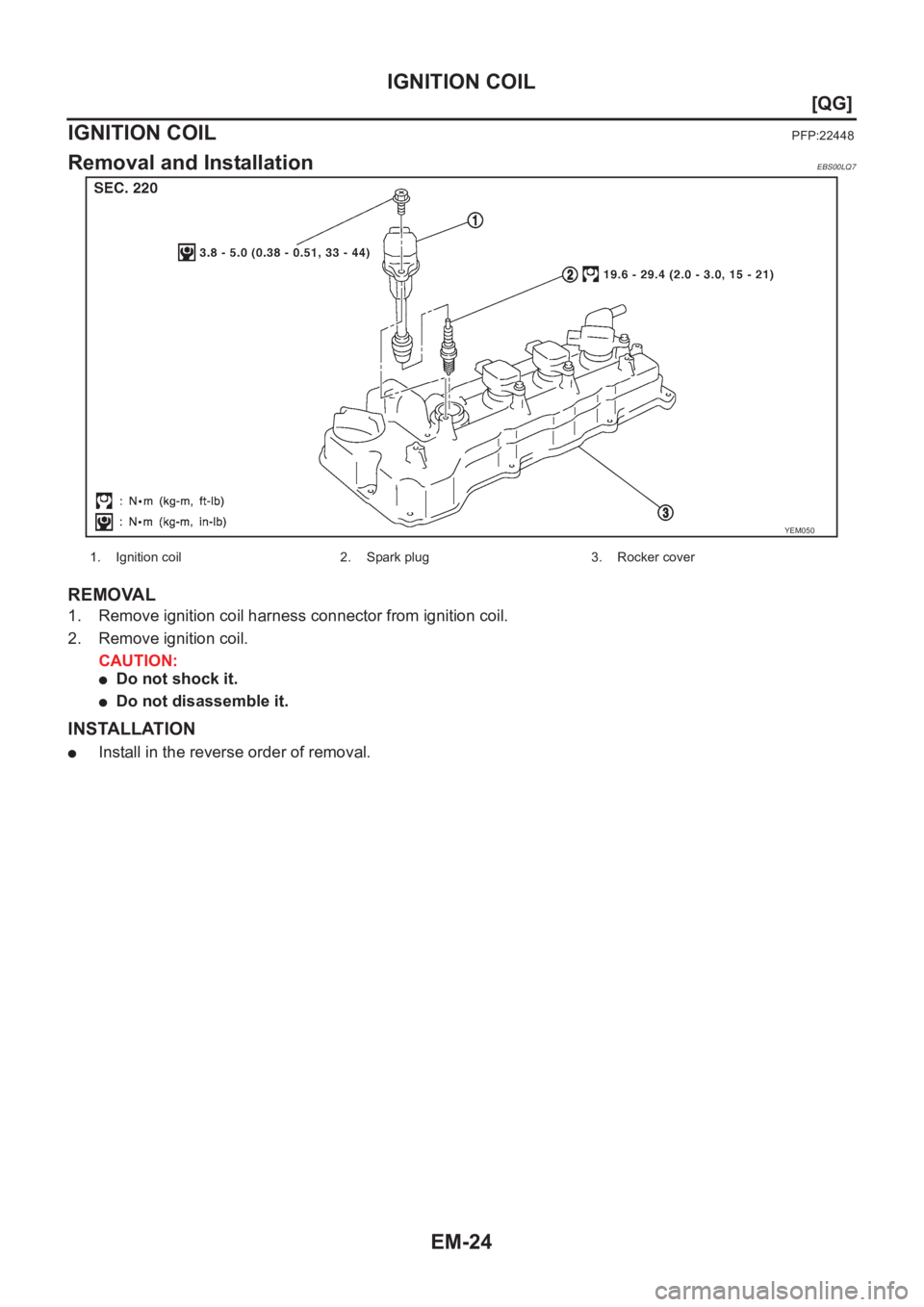

1. Remove ignition coil harness connector from ignition coil.
2. Remove ignition coil.
CAUTION:
●Do not shock it.
●Do not disassemble it.
INSTALLATION
●Install in the reverse order of removal.
YEM050
1. Ignition coil 2. Spark plug 3. Rocker cover

SPARK PLUG (CONVENTIONAL)
EM-25
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
SPARK PLUG (CONVENTIONAL)PFP:22401
Removal and InstallationEBS00LQ8
REMOVAL
1. Disconnect ignition coil harness connector from ignition coil.
2. Remove ignition coil.

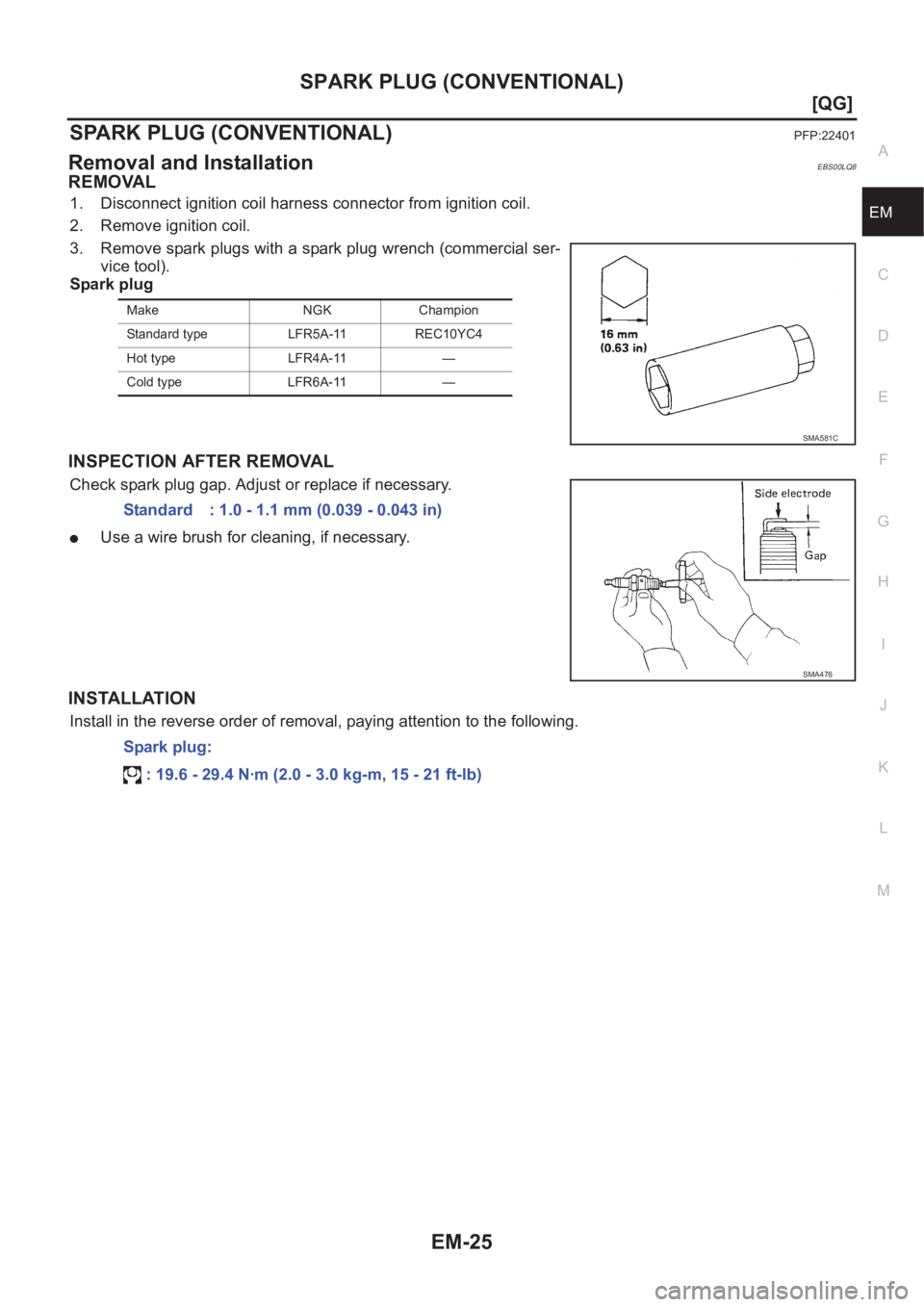

3. Remove spark plugs with a spark plug wrench (commercial ser-
vice tool).
Spark plug
INSPECTION AFTER REMOVAL
Check spark plug gap. Adjust or replace if necessary.
●Use a wire brush for cleaning, if necessary.
INSTALLATION
Install in the reverse order of removal, paying attention to the following.
Make NGK Champion
Standard type LFR5A-11 REC10YC4
Hot type LFR4A-11 —
Cold type LFR6A-11 —
SMA581C
Standard : 1.0 - 1.1 mm (0.039 - 0.043 in)
SMA476
Spark plug:
: 19.6 - 29.4 N·m (2.0 - 3.0 kg-m, 15 - 21 ft-lb)

EM-26
[QG]
FUEL INJECTOR AND FUEL TUBE
FUEL INJECTOR AND FUEL TUBE
PFP:16600
Removal and InstallationEBS00LQ9
CAUTION:
●Apply new engine oil when installing the parts that specified to do so in the figure.
●Do not remove or disassembly parts unless instructed as shown in the figure.
REMOVAL
1. Release fuel pressure. Refer to EC-34, "FUEL PRESSURE RELEASE" (WITH EURO-OBD), EC-427,
"FUEL PRESSURE RELEASE" (WITHOUT EURO-OBD).
2. Disconnect harness for fuel injector, and move it aside.
3. Remove fuel hose.
CAUTION:
After removal, install blind plug to fuel hose to prevent the fuel from draining.

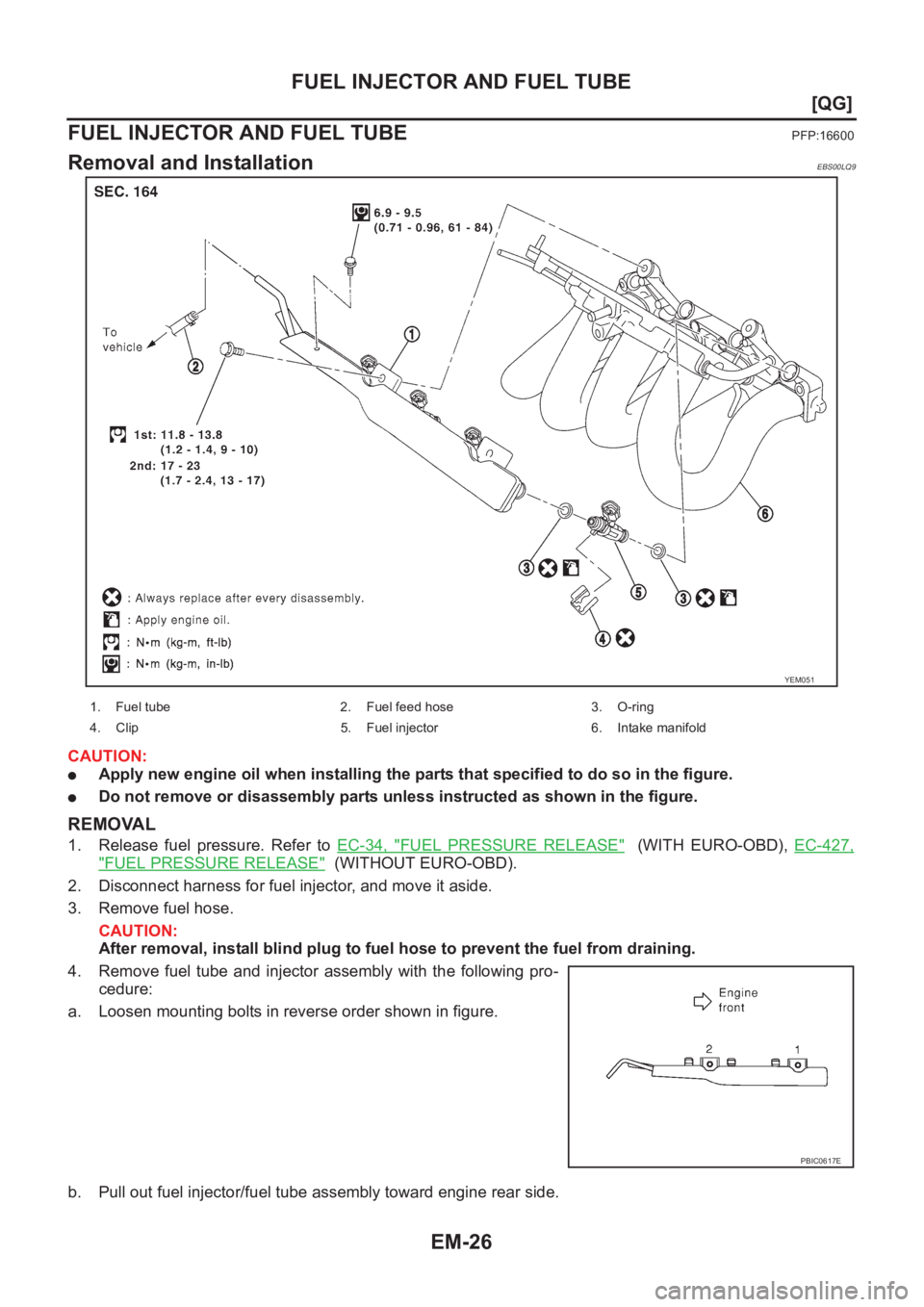

4. Remove fuel tube and injector assembly with the following pro-
cedure:
a. Loosen mounting bolts in reverse order shown in figure.
b. Pull out fuel injector/fuel tube assembly toward engine rear side.
YEM051
1. Fuel tube 2. Fuel feed hose 3. O-ring
4. Clip 5. Fuel injector 6. Intake manifold
PBIC0617E

FUEL INJECTOR AND FUEL TUBE
EM-27
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
CAUTION:
Do not touch fuel injector nozzle with intake manifold or other parts.
5. Remove fuel injector from fuel tube.
●Release clip and remove it.
●Pull fuel injector straight out of fuel tube.
CAUTION:
●Be careful not to damage nozzle part.
●Avoid any impact such as a dropping.
●Do not disassemble or adjust it.
INSTALLATION

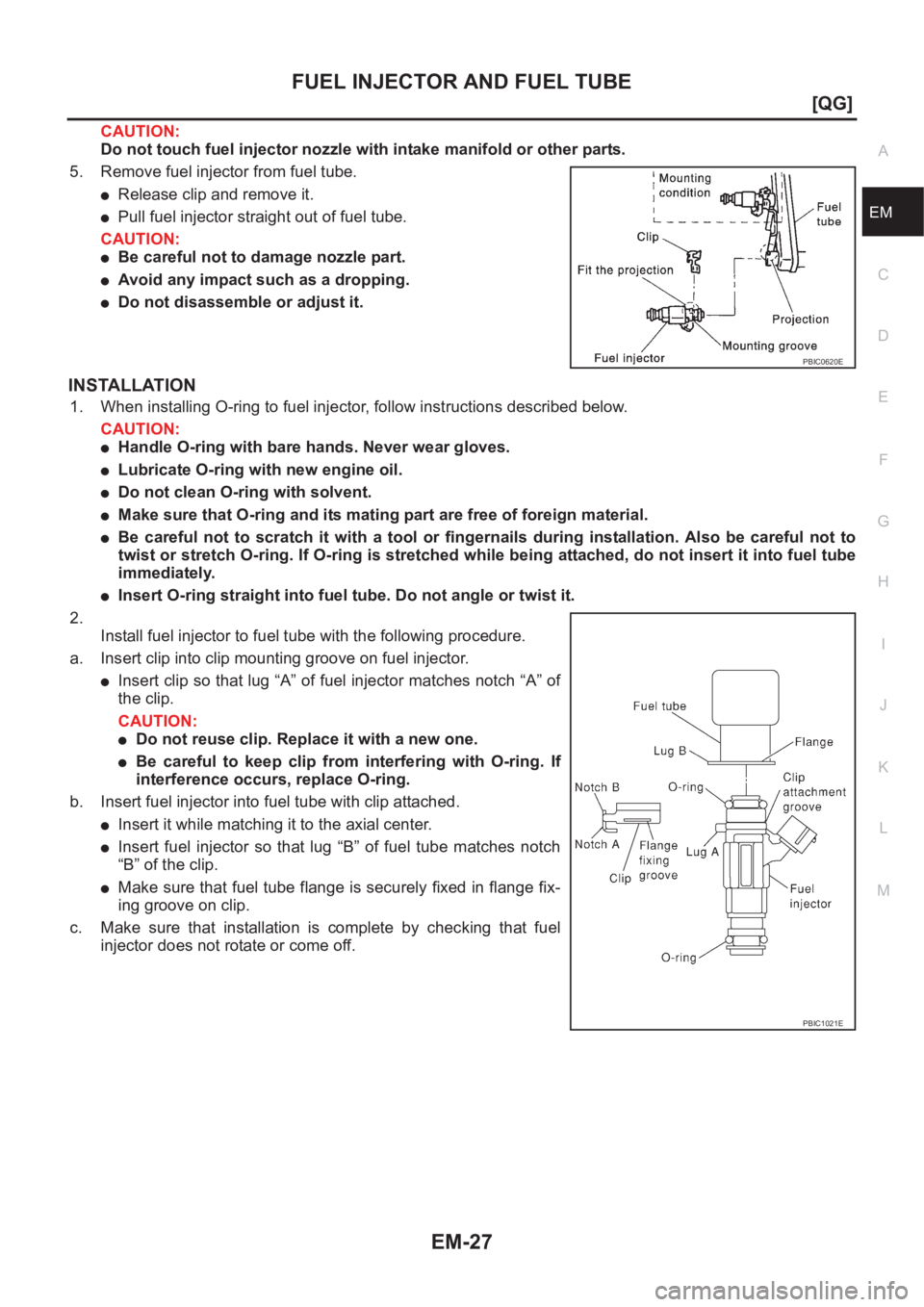

1. When installing O-ring to fuel injector, follow instructions described below.
CAUTION:
●Handle O-ring with bare hands. Never wear gloves.
●Lubricate O-ring with new engine oil.
●Do not clean O-ring with solvent.
●Make sure that O-ring and its mating part are free of foreign material.
●Be careful not to scratch it with a tool or fingernails during installation. Also be careful not to
twist or stretch O-ring. If O-ring is stretched while being attached, do not insert it into fuel tube
immediately.
●Insert O-ring straight into fuel tube. Do not angle or twist it.
2.
Install fuel injector to fuel tube with the following procedure.
a. Insert clip into clip mounting groove on fuel injector.
●Insert clip so that lug “A” of fuel injector matches notch “A” of
the clip.
CAUTION:
●Do not reuse clip. Replace it with a new one.
●Be careful to keep clip from interfering with O-ring. If
interference occurs, replace O-ring.
b. Insert fuel injector into fuel tube with clip attached.
●Insert it while matching it to the axial center.
●Insert fuel injector so that lug “B” of fuel tube matches notch
“B” of the clip.
●Make sure that fuel tube flange is securely fixed in flange fix-
ing groove on clip.
c. Make sure that installation is complete by checking that fuel
injector does not rotate or come off.
PBIC0620E
PBIC1021E

EM-28
[QG]
FUEL INJECTOR AND FUEL TUBE

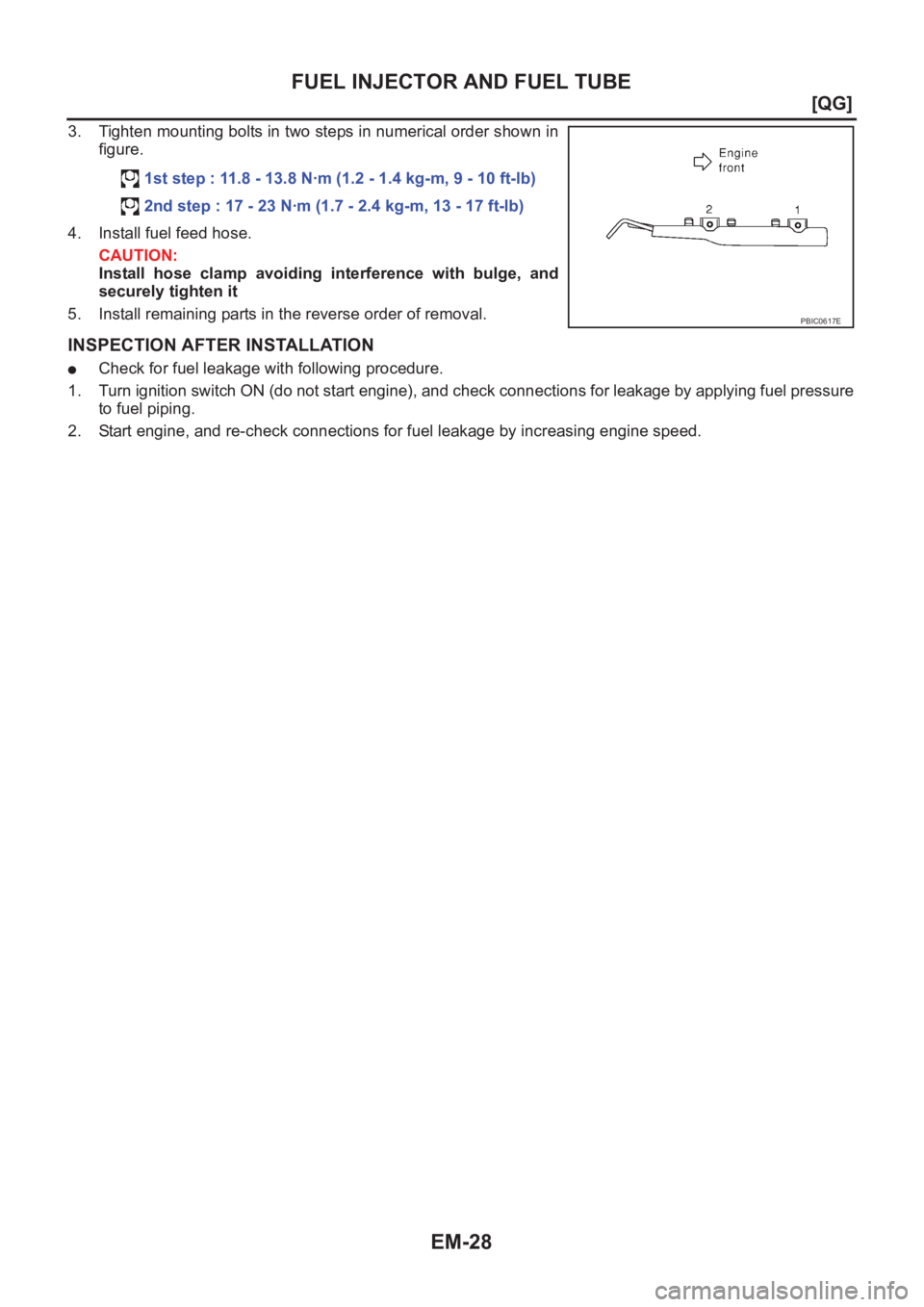

3. Tighten mounting bolts in two steps in numerical order shown in
figure.
4. Install fuel feed hose.
CAUTION:
Install hose clamp avoiding interference with bulge, and
securely tighten it
5. Install remaining parts in the reverse order of removal.
INSPECTION AFTER INSTALLATION
●Check for fuel leakage with following procedure.
1. Turn ignition switch ON (do not start engine), and check connections for leakage by applying fuel pressure
to fuel piping.
2. Start engine, and re-check connections for fuel leakage by increasing engine speed. 1st step : 11.8 - 13.8 N·m (1.2 - 1.4 kg-m, 9 - 10 ft-lb)
2nd step : 17 - 23 N·m (1.7 - 2.4 kg-m, 13 - 17 ft-lb)
PBIC0617E

ROCKER COVER
EM-29
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
ROCKER COVERPFP:13264
Removal and InstallationEBS00LQA
CAUTION:
Apply new engine oil when installing the parts that specified to do so in the figure.
REMOVAL

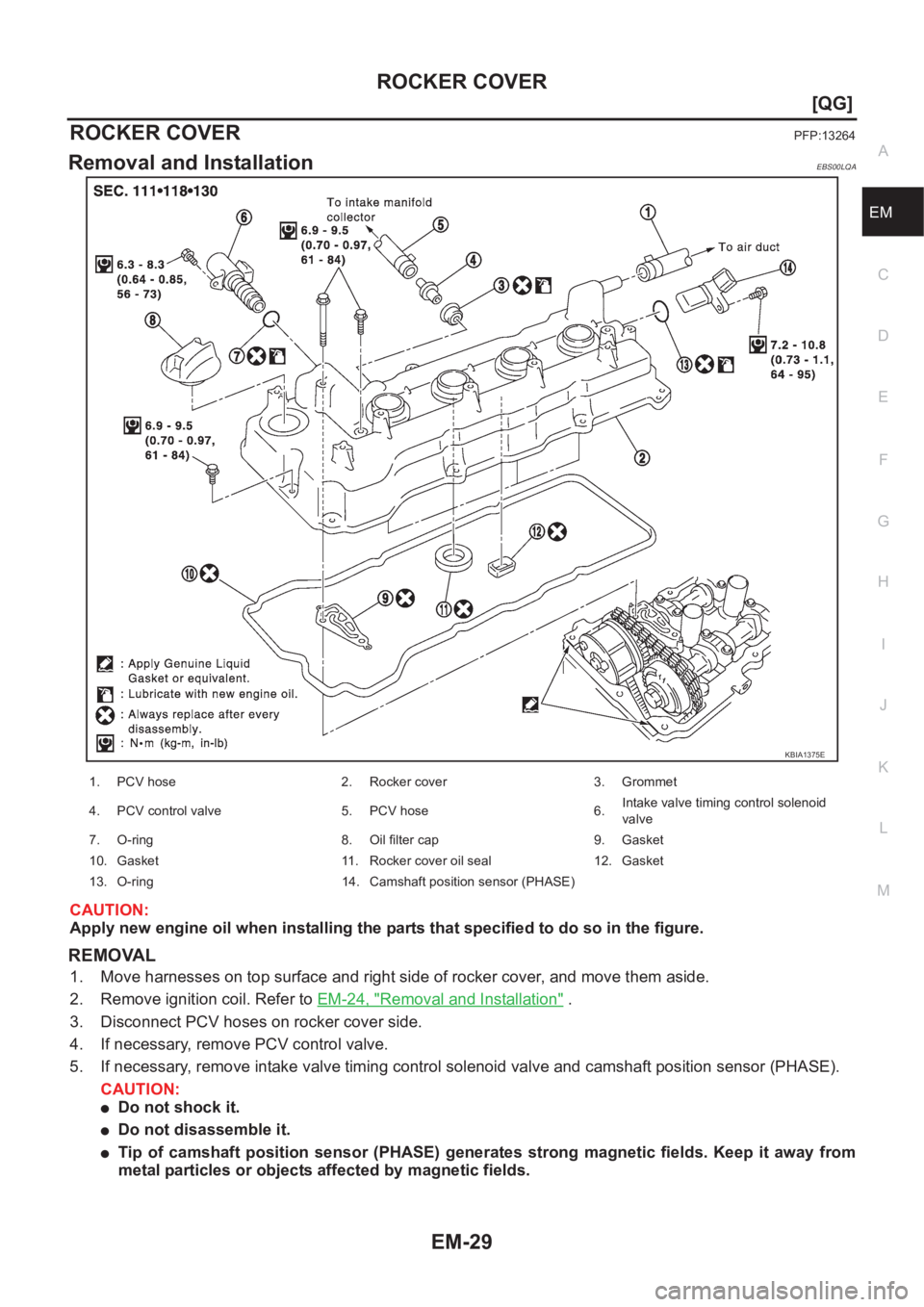

1. Move harnesses on top surface and right side of rocker cover, and move them aside.
2. Remove ignition coil. Refer to EM-24, "
Removal and Installation" .
3. Disconnect PCV hoses on rocker cover side.
4. If necessary, remove PCV control valve.
5. If necessary, remove intake valve timing control solenoid valve and camshaft position sensor (PHASE).
CAUTION:
●Do not shock it.
●Do not disassemble it.
●Tip of camshaft position sensor (PHASE) generates strong magnetic fields. Keep it away from
metal particles or objects affected by magnetic fields.
KBIA1375E
1. PCV hose 2. Rocker cover 3. Grommet
4. PCV control valve 5. PCV hose 6.Intake valve timing control solenoid
valve
7. O-ring 8. Oil filter cap 9. Gasket
10. Gasket 11. Rocker cover oil seal 12. Gasket
13. O-ring 14. Camshaft position sensor (PHASE)

EM-30
[QG]
ROCKER COVER
6. Loosen bolts in reverse order shown in the figure.
7. If replacement is necessary, remove rocker cover oil seal using flat-head screwdriver.
CAUTION:
Be careful not to damage rocker cover.
INSTALLATION
1. Install rocker cover oil seal.
●Using drift with outer diameter 97 mm (3.82 in) and inner
diameter 83 mm (3.27 in) to 88 mm (3.46 in) (commercial ser-
vice tool), press oil seal in.
NOTE:
There are 2 types of oil seal. If oil seal with flat bottom surface is
pressed in, drift with any inner diameter can be used.
●Press oil seal in until it is flush with installation surface.
2. Install rocker cover in following steps.
a. Install gasket on top of No. 1 camshaft bracket.
●Position gasket aligning its shape with camshaft bracket side.
Align positioning stopper pin with hole on gasket, and install.
b. Install gasket (for circumference, square type) to installation
groove of rocker cover.
c. Apply liquid gasket to positions shown in figure, then install
rocker cover.
KBIA1376E
KBIA1377E
KBIA1379E
PBIC0555E

ROCKER COVER
EM-31
[QG]
C
D
E
F
G
H
I
J
K
L
MA
EM
d. Tighten mounting screws to specified torque in 2 or more steps
in numerical order shown in figure.
3. Install intake valve timing control solenoid valve and camshaft position sensor (PHASE).
●Tighten bolt after fully inserting it into rocker cover.
4. Install PCV valve.
●Insert until flange contacts grommet tightly.
5. Install remaining parts in the reverse order of removal.Bolt length: Bolt position
25 mm (0.98 in) : 1
65 mm (2.56 in) : 2
20 mm (0.79 in) : Except the above (all circumference)
KBIA1376E

EM-32
[QG]
CAMSHAFT
CAMSHAFT
PFP:13001
Removal and InstallationEBS00LQB
CAUTION:
Prior to installation, apply engine oil to the parts marked in the figure.
REMOVAL

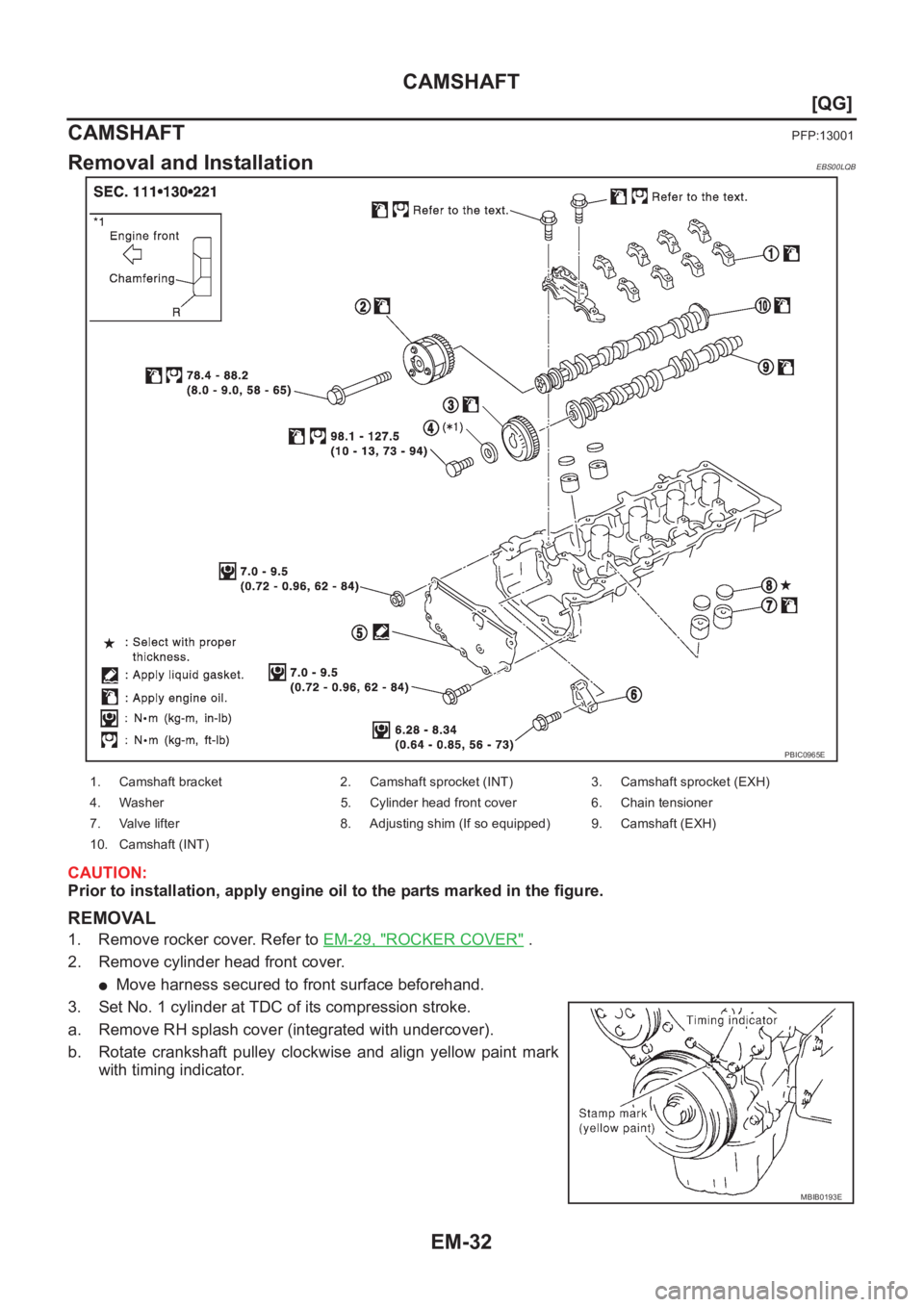

1. Remove rocker cover. Refer to EM-29, "ROCKER COVER" .
2. Remove cylinder head front cover.
●Move harness secured to front surface beforehand.
3. Set No. 1 cylinder at TDC of its compression stroke.
a. Remove RH splash cover (integrated with undercover).
b. Rotate crankshaft pulley clockwise and align yellow paint mark
with timing indicator.
PBIC0965E
1. Camshaft bracket 2. Camshaft sprocket (INT) 3. Camshaft sprocket (EXH)
4. Washer 5. Cylinder head front cover 6. Chain tensioner
7. Valve lifter 8. Adjusting shim (If so equipped) 9. Camshaft (EXH)
10. Camshaft (INT)
MBIB0193E
