NISSAN ALMERA TINO 2001 Service Repair Manual

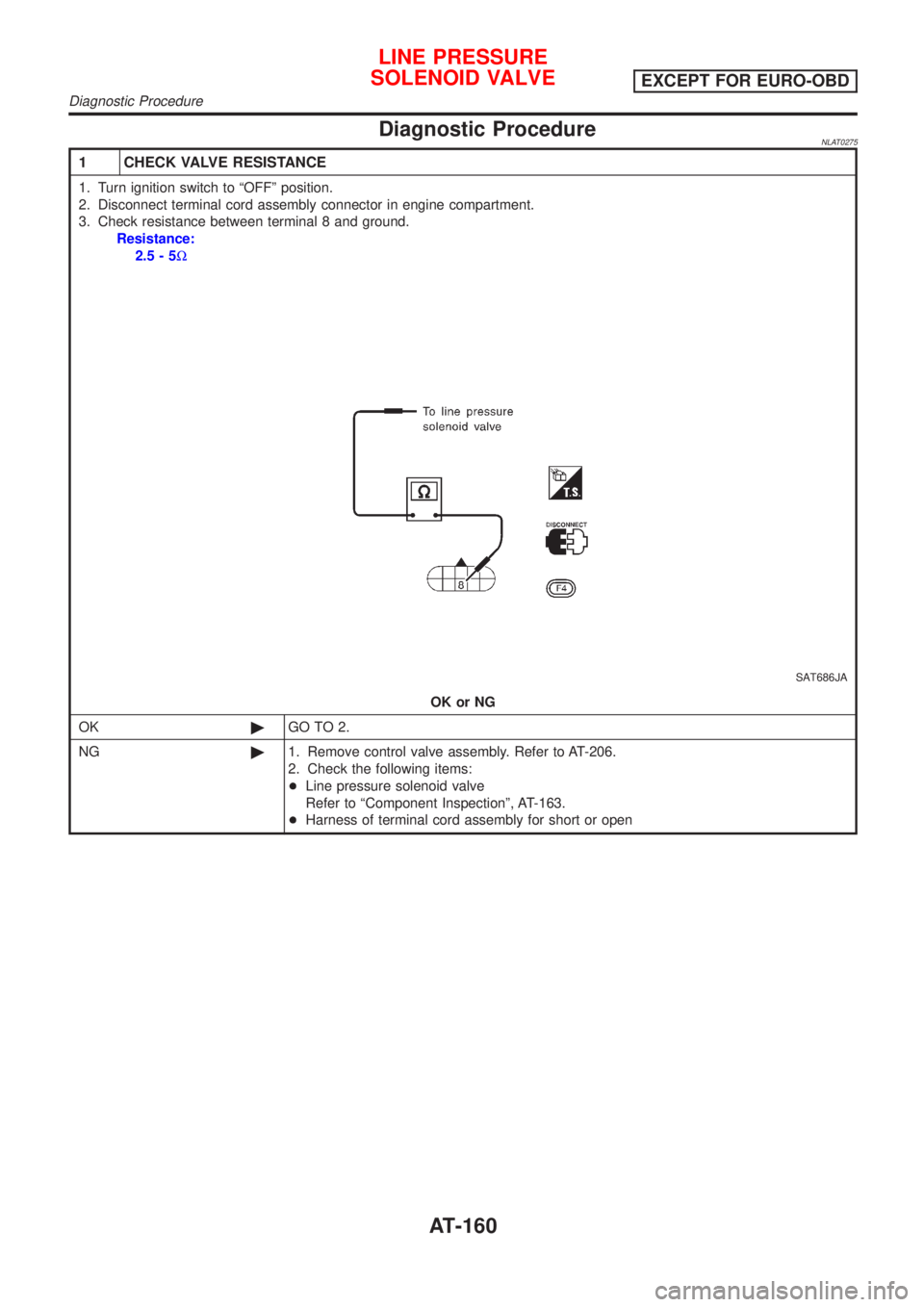

Diagnostic ProcedureNLAT0275
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 8 and ground.
Resistance:
2.5-5W
SAT686JA
OK or NG
OK©GO TO 2.
NG©1. Remove control valve assembly. Refer to AT-206.
2. Check the following items:
+Line pressure solenoid valve
Refer to ªComponent Inspectionº, AT-163.
+Harness of terminal cord assembly for short or open
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-160

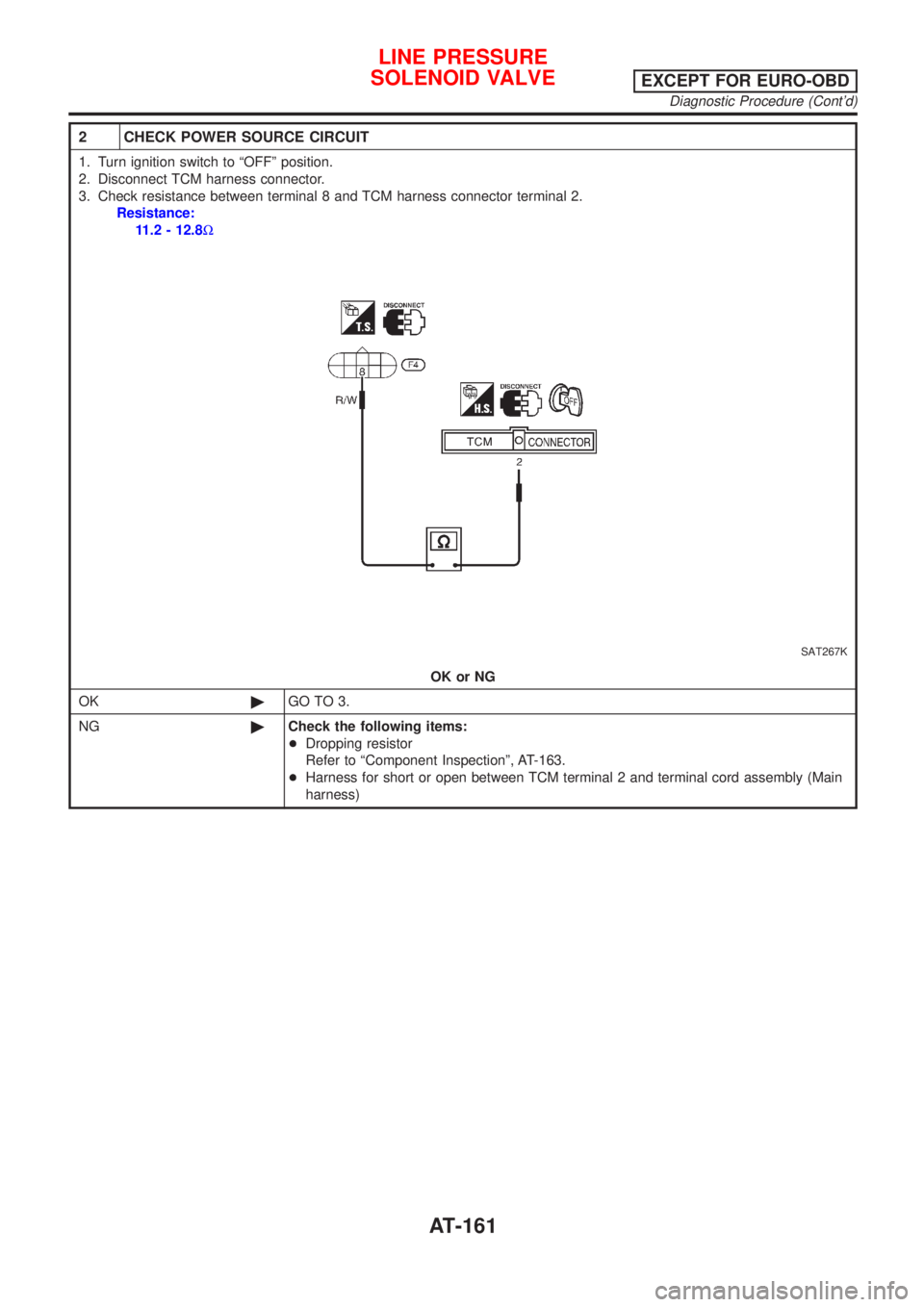

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check resistance between terminal 8 and TCM harness connector terminal 2.
Resistance:
11.2 - 12.8W
SAT267K
OK or NG
OK©GO TO 3.
NG©Check the following items:
+Dropping resistor
Refer to ªComponent Inspectionº, AT-163.
+Harness for short or open between TCM terminal 2 and terminal cord assembly (Main
harness)
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-161

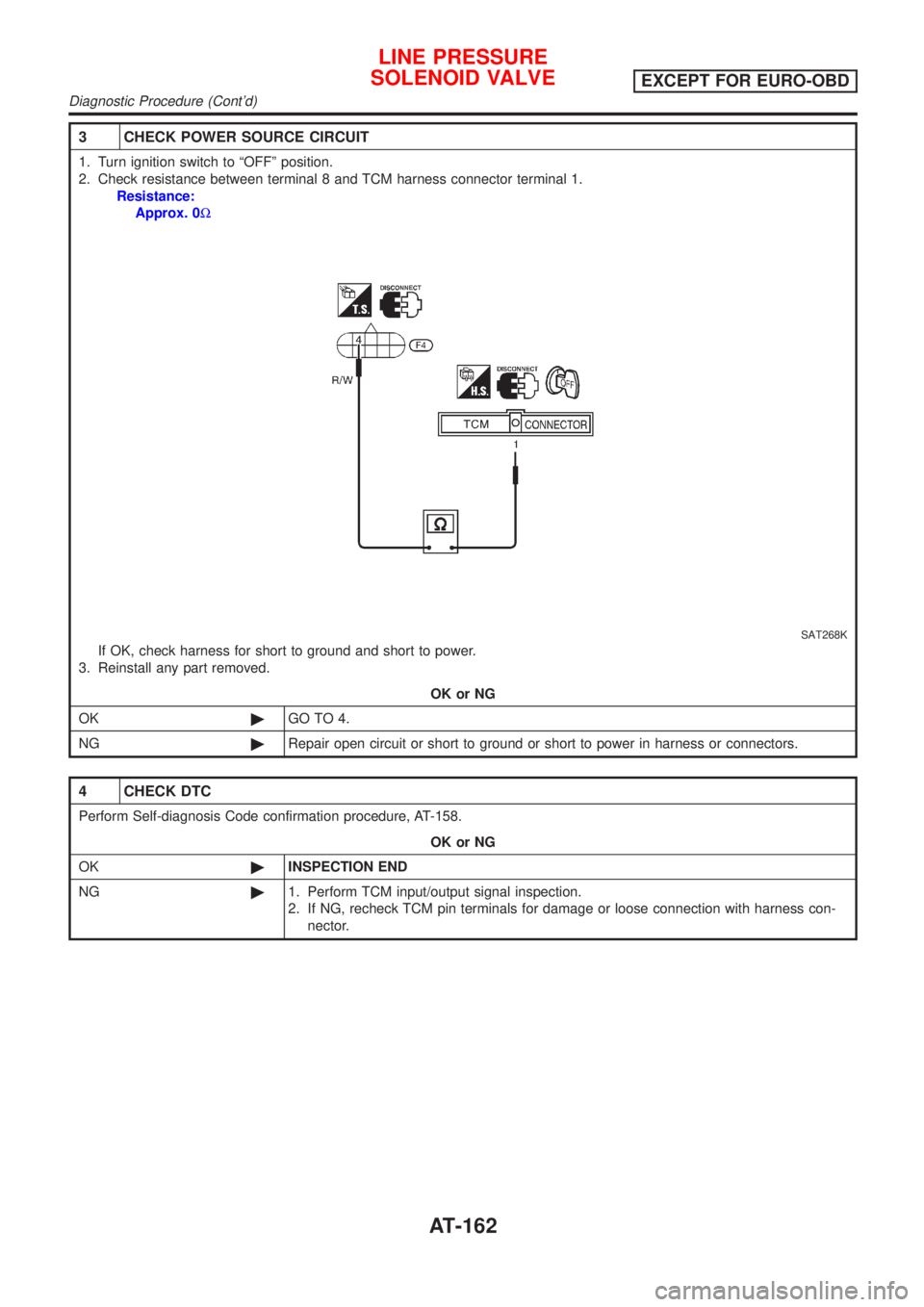

3 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Check resistance between terminal 8 and TCM harness connector terminal 1.
Resistance:
Approx. 0W
SAT268K
If OK, check harness for short to ground and short to power.
3. Reinstall any part removed.
OK or NG
OK©GO TO 4.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
4 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-158.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-162

SAT686JA

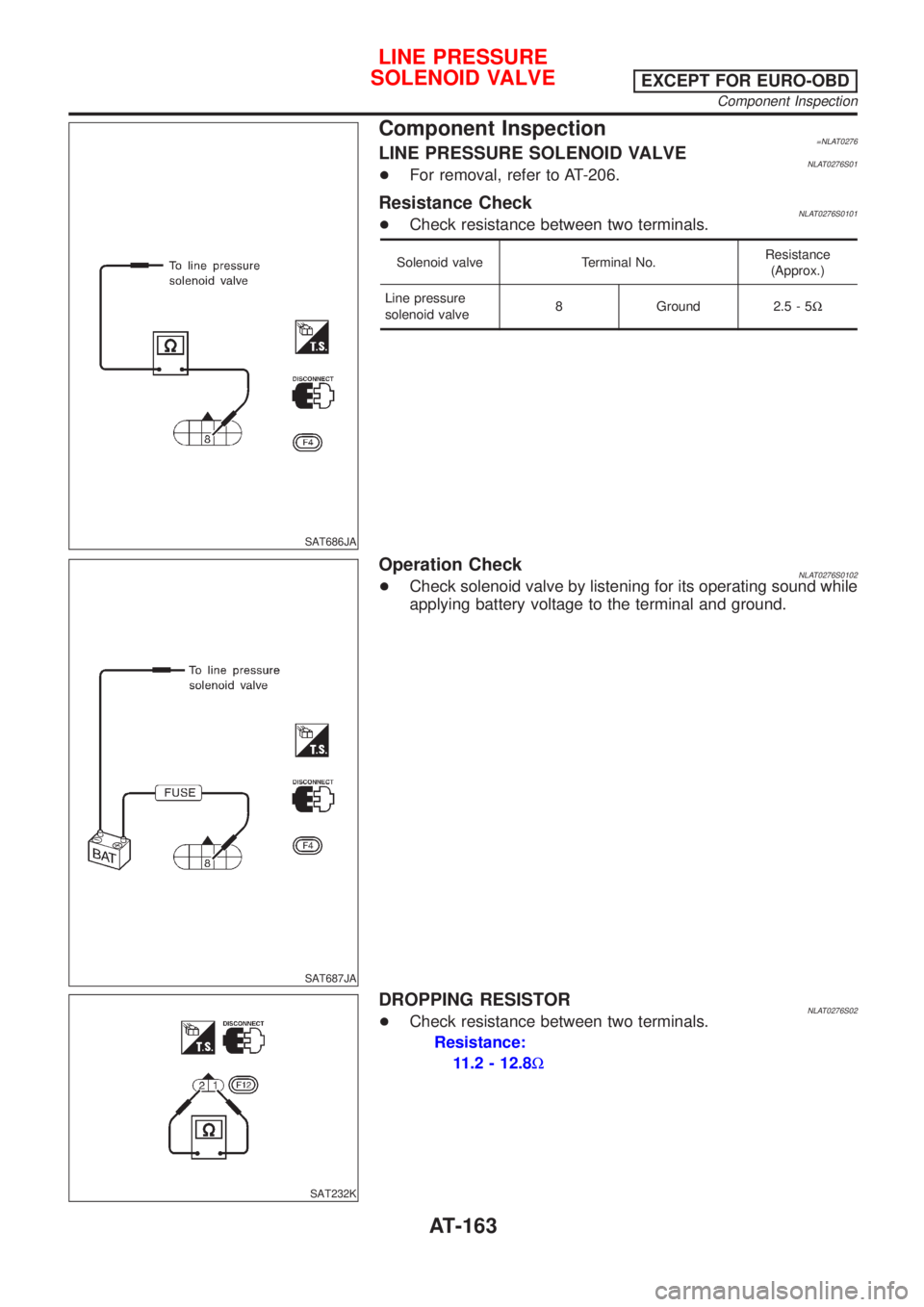

Component Inspection=NLAT0276LINE PRESSURE SOLENOID VALVENLAT0276S01+For removal, refer to AT-206.
Resistance CheckNLAT0276S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Line pressure
solenoid valve8 Ground 2.5 - 5W
SAT687JA
Operation CheckNLAT0276S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
SAT232K
DROPPING RESISTORNLAT0276S02+Check resistance between two terminals.
Resistance:
11.2 - 12.8W
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Component Inspection
AT-163

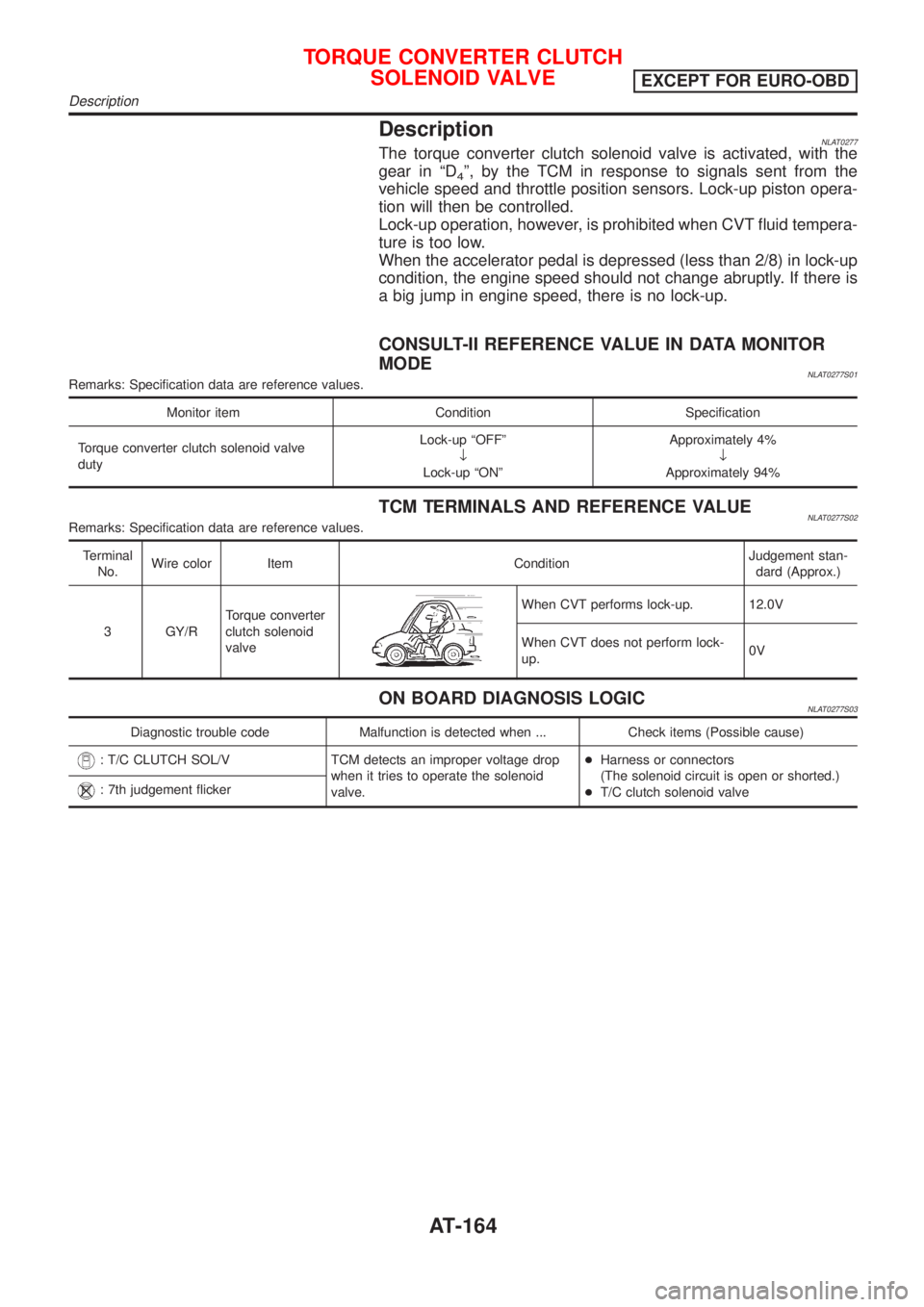

DescriptionNLAT0277The torque converter clutch solenoid valve is activated, with the
gear in ªD
4º, by the TCM in response to signals sent from the
vehicle speed and throttle position sensors. Lock-up piston opera-
tion will then be controlled.
Lock-up operation, however, is prohibited when CVT fluid tempera-
ture is too low.
When the accelerator pedal is depressed (less than 2/8) in lock-up
condition, the engine speed should not change abruptly. If there is
a big jump in engine speed, there is no lock-up.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0277S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Torque converter clutch solenoid valve
dutyLock-up ªOFFº
¯
Lock-up ªONºApproximately 4%
¯
Approximately 94%
TCM TERMINALS AND REFERENCE VALUENLAT0277S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
3 GY/RTorque converter
clutch solenoid
valve
When CVT performs lock-up. 12.0V
When CVT does not perform lock-
up.0V
ON BOARD DIAGNOSIS LOGICNLAT0277S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: T/C CLUTCH SOL/V TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+T/C clutch solenoid valve
: 7th judgement flicker
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Description
AT-164

SAT250K
SAT818H

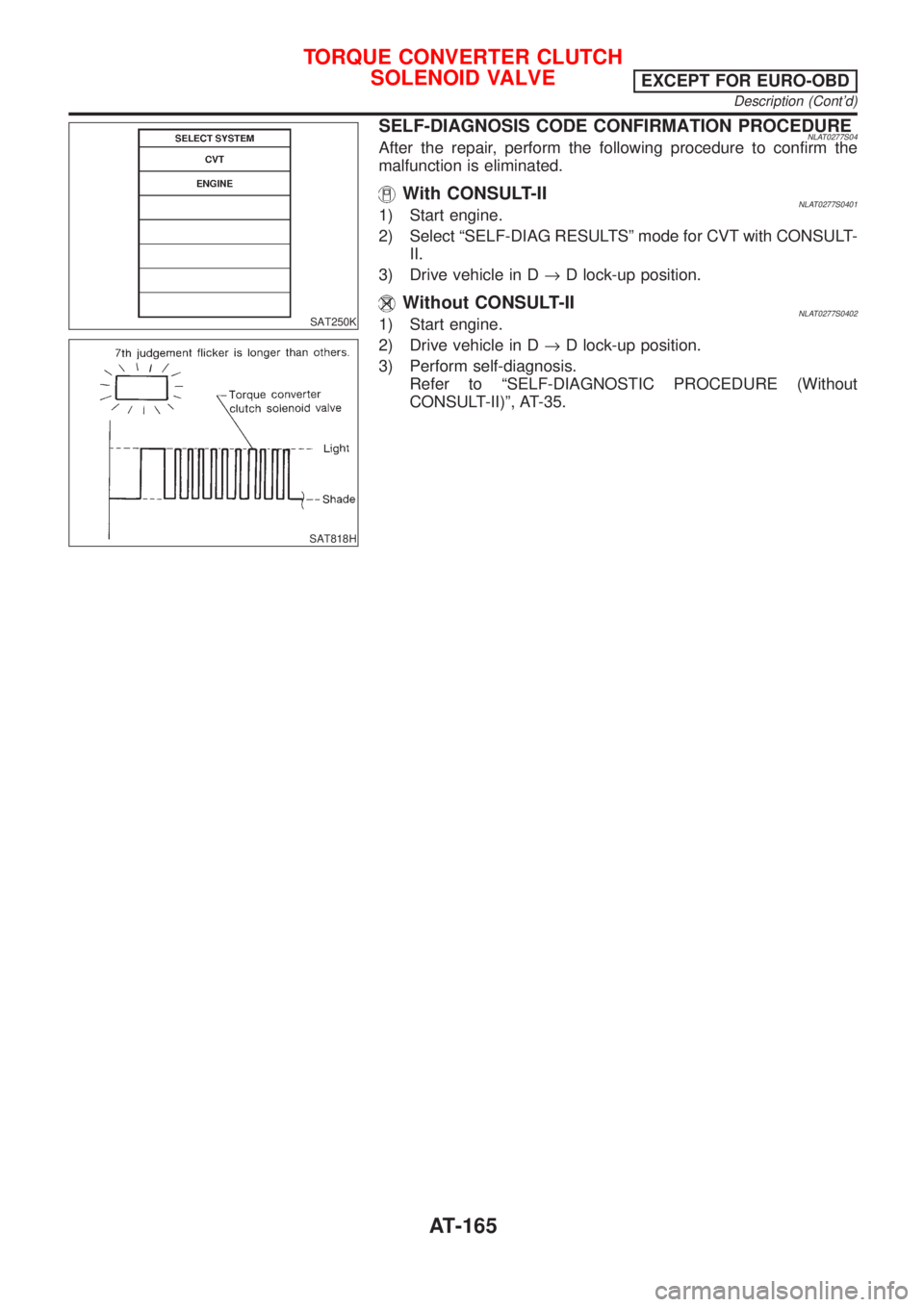

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0277S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0277S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) Drive vehicle in D®D lock-up position.
Without CONSULT-IINLAT0277S04021) Start engine.
2) Drive vehicle in D®D lock-up position.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Description (Cont'd)
AT-165

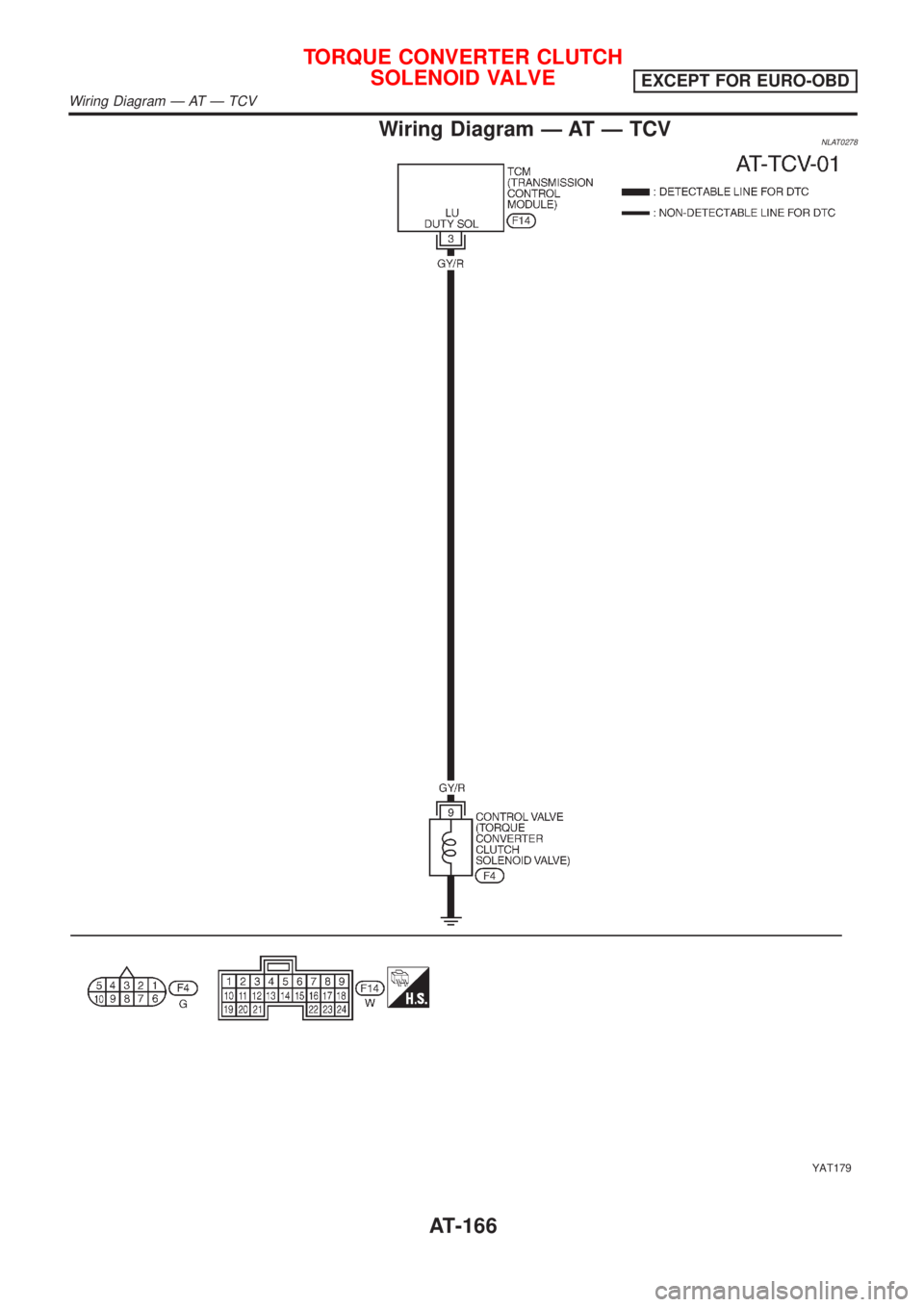

Wiring Diagram Ð AT Ð TCVNLAT0278
YAT179
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð TCV
AT-166

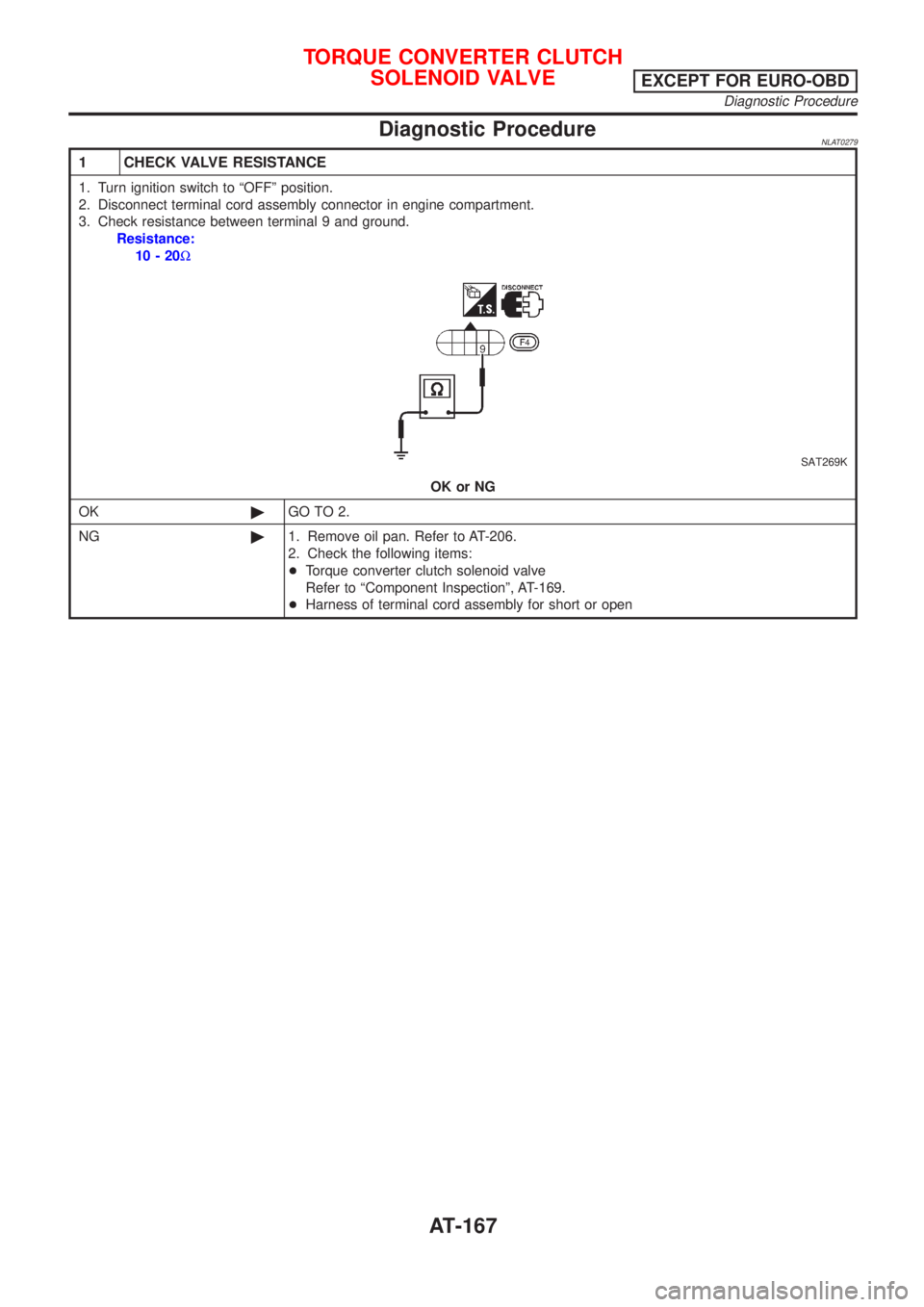

Diagnostic ProcedureNLAT0279
1 CHECK VALVE RESISTANCE
1. Turn ignition switch to ªOFFº position.
2. Disconnect terminal cord assembly connector in engine compartment.
3. Check resistance between terminal 9 and ground.
Resistance:
10-20W
SAT269K
OK or NG
OK©GO TO 2.
NG©1. Remove oil pan. Refer to AT-206.
2. Check the following items:
+Torque converter clutch solenoid valve
Refer to ªComponent Inspectionº, AT-169.
+Harness of terminal cord assembly for short or open
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-167

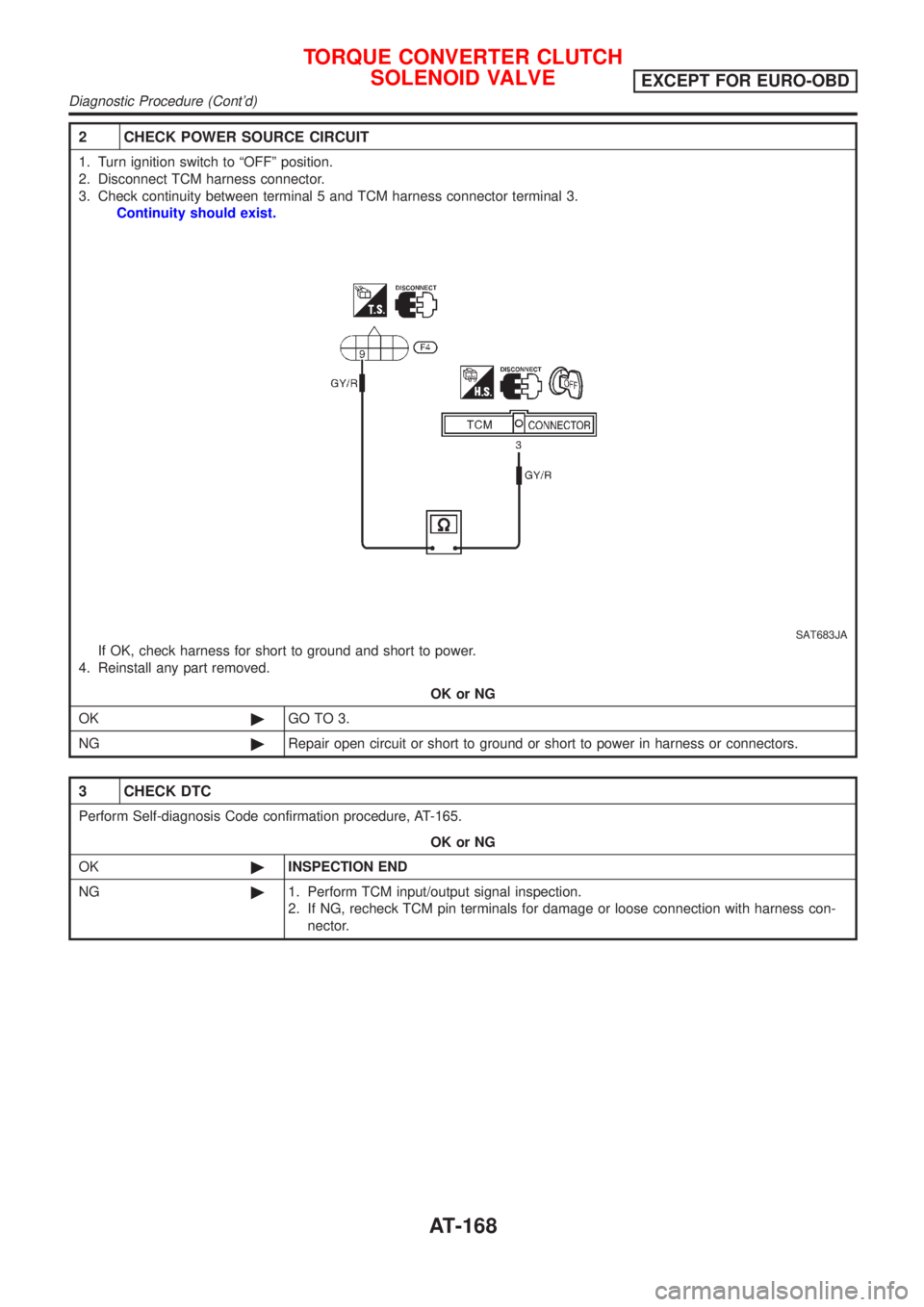

2 CHECK POWER SOURCE CIRCUIT
1. Turn ignition switch to ªOFFº position.
2. Disconnect TCM harness connector.
3. Check continuity between terminal 5 and TCM harness connector terminal 3.
Continuity should exist.
SAT683JA
If OK, check harness for short to ground and short to power.
4. Reinstall any part removed.
OK or NG
OK©GO TO 3.
NG©Repair open circuit or short to ground or short to power in harness or connectors.
3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-165.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-168

SAT684JA

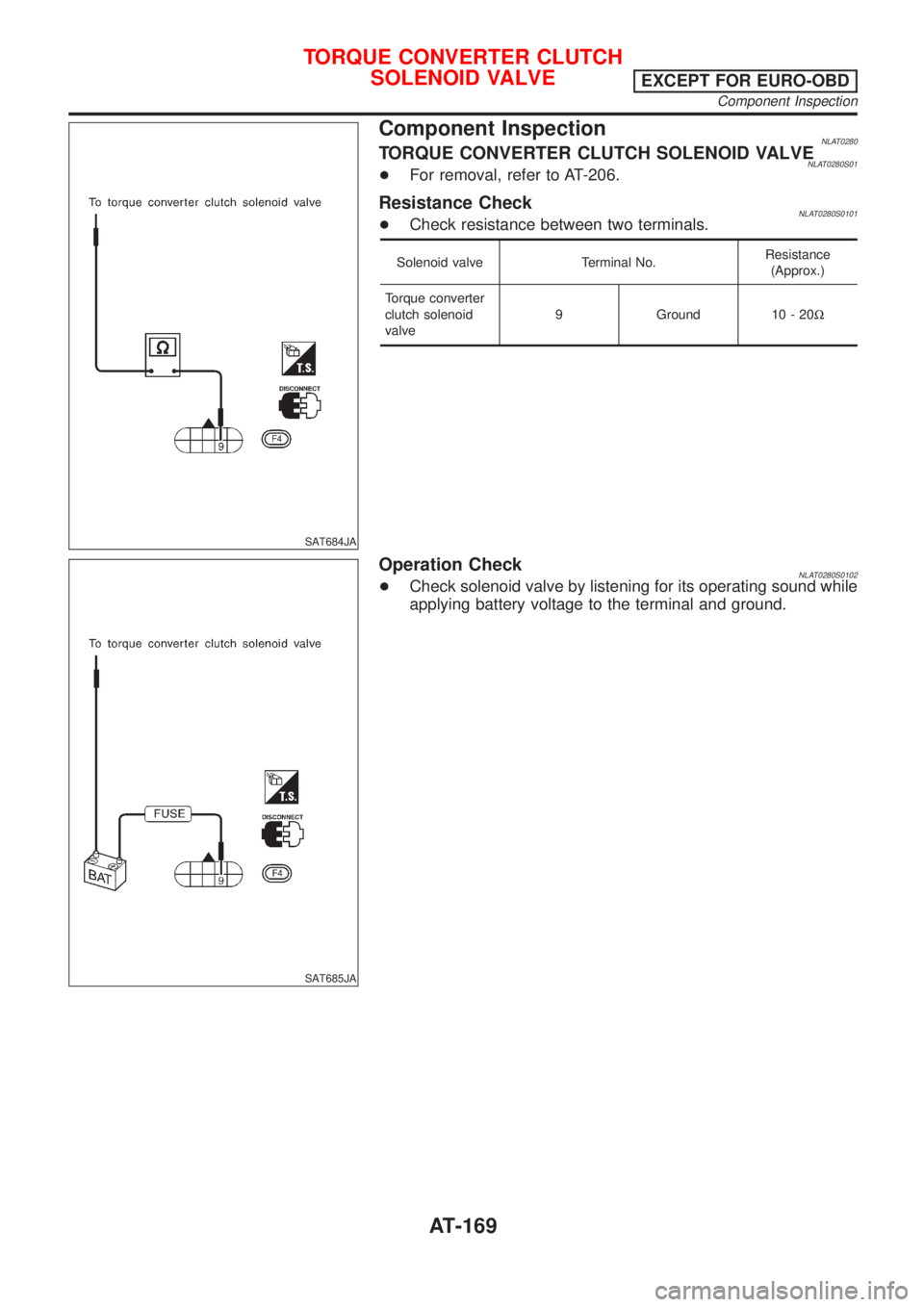

Component InspectionNLAT0280TORQUE CONVERTER CLUTCH SOLENOID VALVENLAT0280S01+For removal, refer to AT-206.
Resistance CheckNLAT0280S0101+Check resistance between two terminals.
Solenoid valve Terminal No.Resistance
(Approx.)
Torque converter
clutch solenoid
valve9 Ground 10 - 20W
SAT685JA
Operation CheckNLAT0280S0102+Check solenoid valve by listening for its operating sound while
applying battery voltage to the terminal and ground.
TORQUE CONVERTER CLUTCH
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Component Inspection
AT-169
