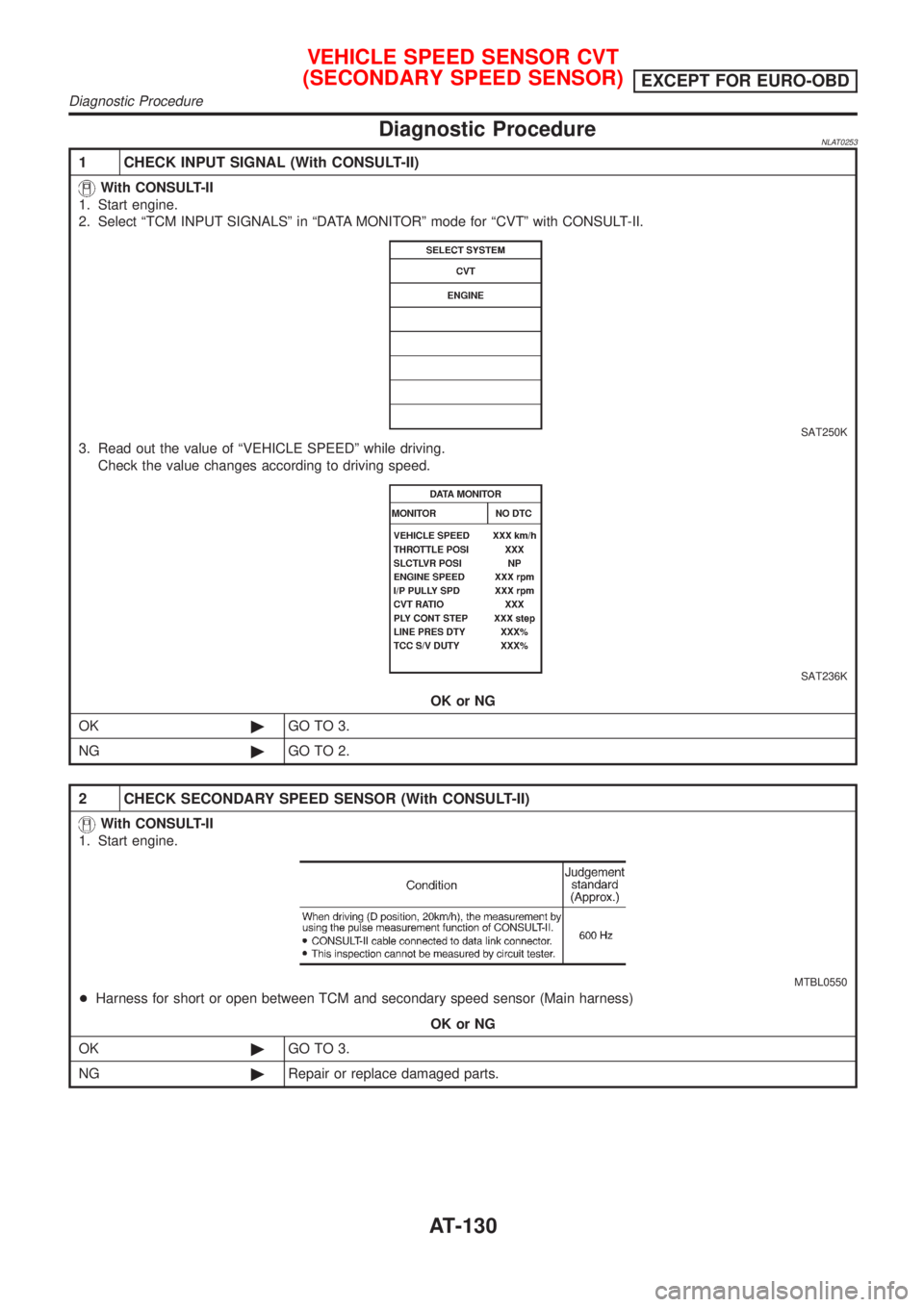

Diagnostic ProcedureNLAT0253
1 CHECK INPUT SIGNAL (With CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
SAT250K
3. Read out the value of ªVEHICLE SPEEDº while driving.
Check the value changes according to driving speed.
SAT236K
OK or NG
OK©GO TO 3.
NG©GO TO 2.
2 CHECK SECONDARY SPEED SENSOR (With CONSULT-II)
With CONSULT-II
1. Start engine.
MTBL0550
+Harness for short or open between TCM and secondary speed sensor (Main harness)
OK or NG
OK©GO TO 3.
NG©Repair or replace damaged parts.
VEHICLE SPEED SENSOR CVT
(SECONDARY SPEED SENSOR)
EXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-130

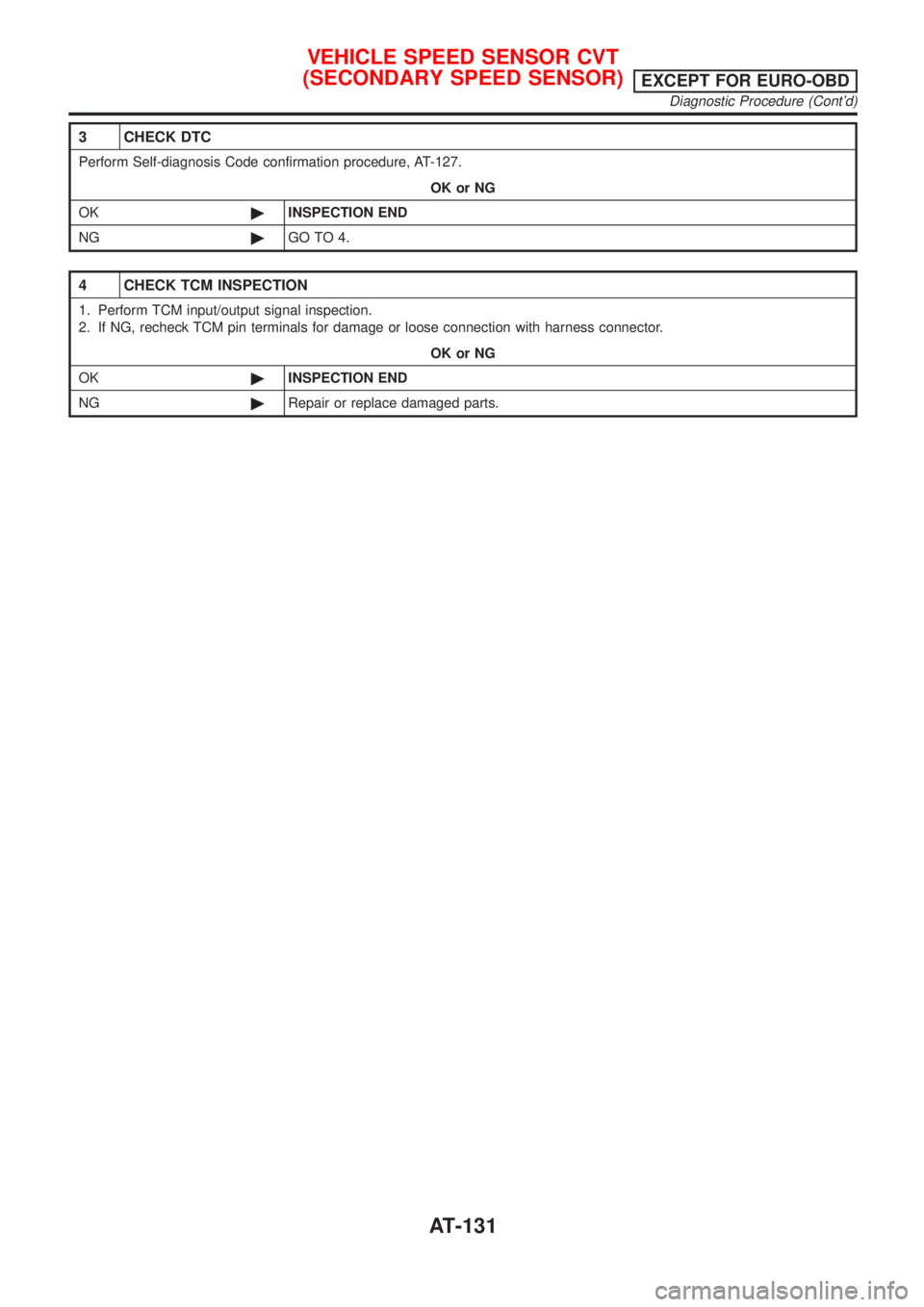

3 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-127.
OK or NG
OK©INSPECTION END
NG©GO TO 4.
4 CHECK TCM INSPECTION
1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK©INSPECTION END
NG©Repair or replace damaged parts.
VEHICLE SPEED SENSOR CVT
(SECONDARY SPEED SENSOR)
EXCEPT FOR EURO-OBD
Diagnostic Procedure (Cont'd)
AT-131

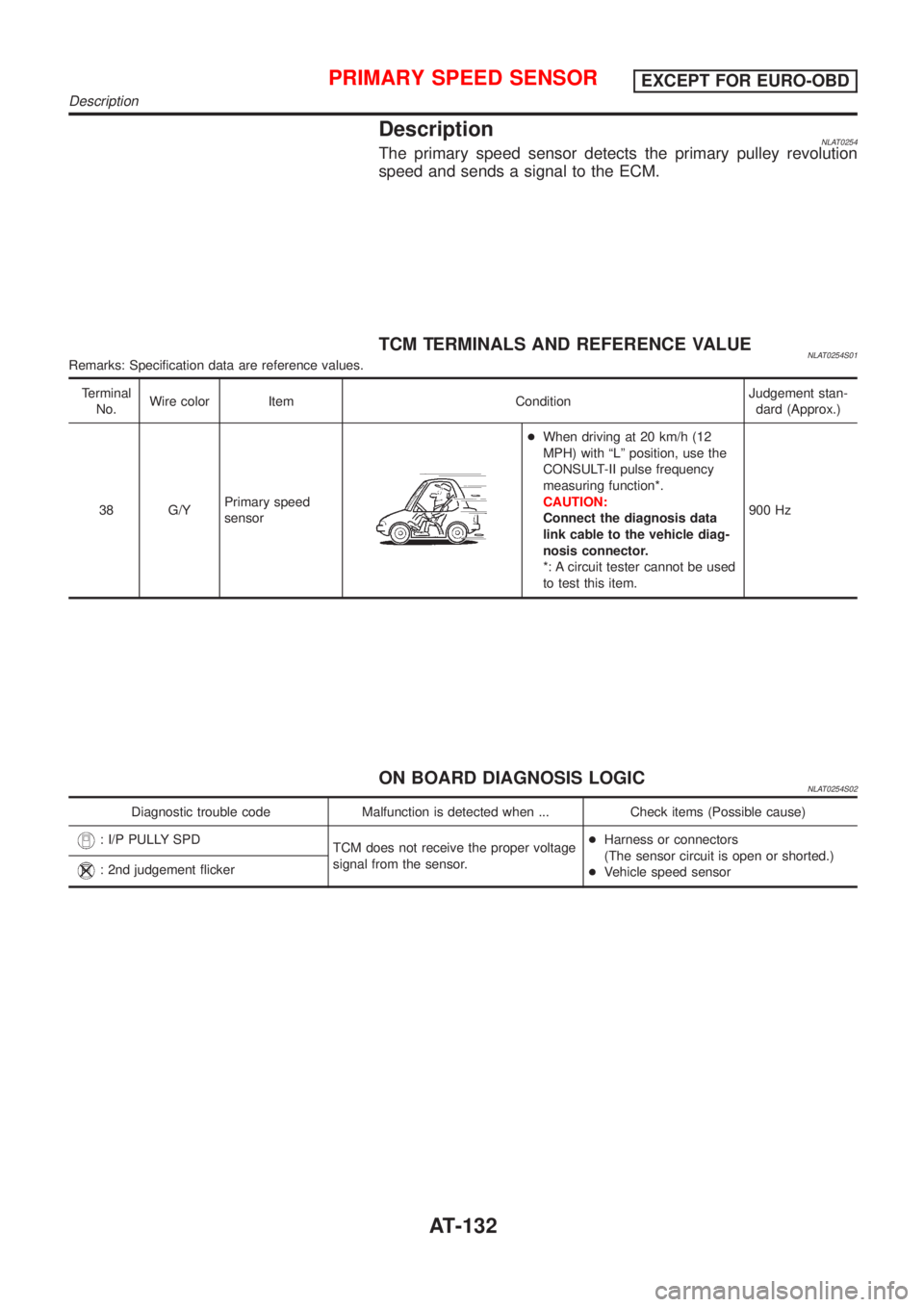

DescriptionNLAT0254The primary speed sensor detects the primary pulley revolution
speed and sends a signal to the ECM.
TCM TERMINALS AND REFERENCE VALUENLAT0254S01Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
38 G/YPrimary speed
sensor
+When driving at 20 km/h (12
MPH) with ªLº position, use the
CONSULT-II pulse frequency
measuring function*.
CAUTION:
Connect the diagnosis data
link cable to the vehicle diag-
nosis connector.
*: A circuit tester cannot be used
to test this item.900 Hz
ON BOARD DIAGNOSIS LOGICNLAT0254S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: I/P PULLY SPD
TCM does not receive the proper voltage
signal from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Vehicle speed sensor
: 2nd judgement flicker
PRIMARY SPEED SENSOREXCEPT FOR EURO-OBD
Description
AT-132

SAT250K
SAT807HA

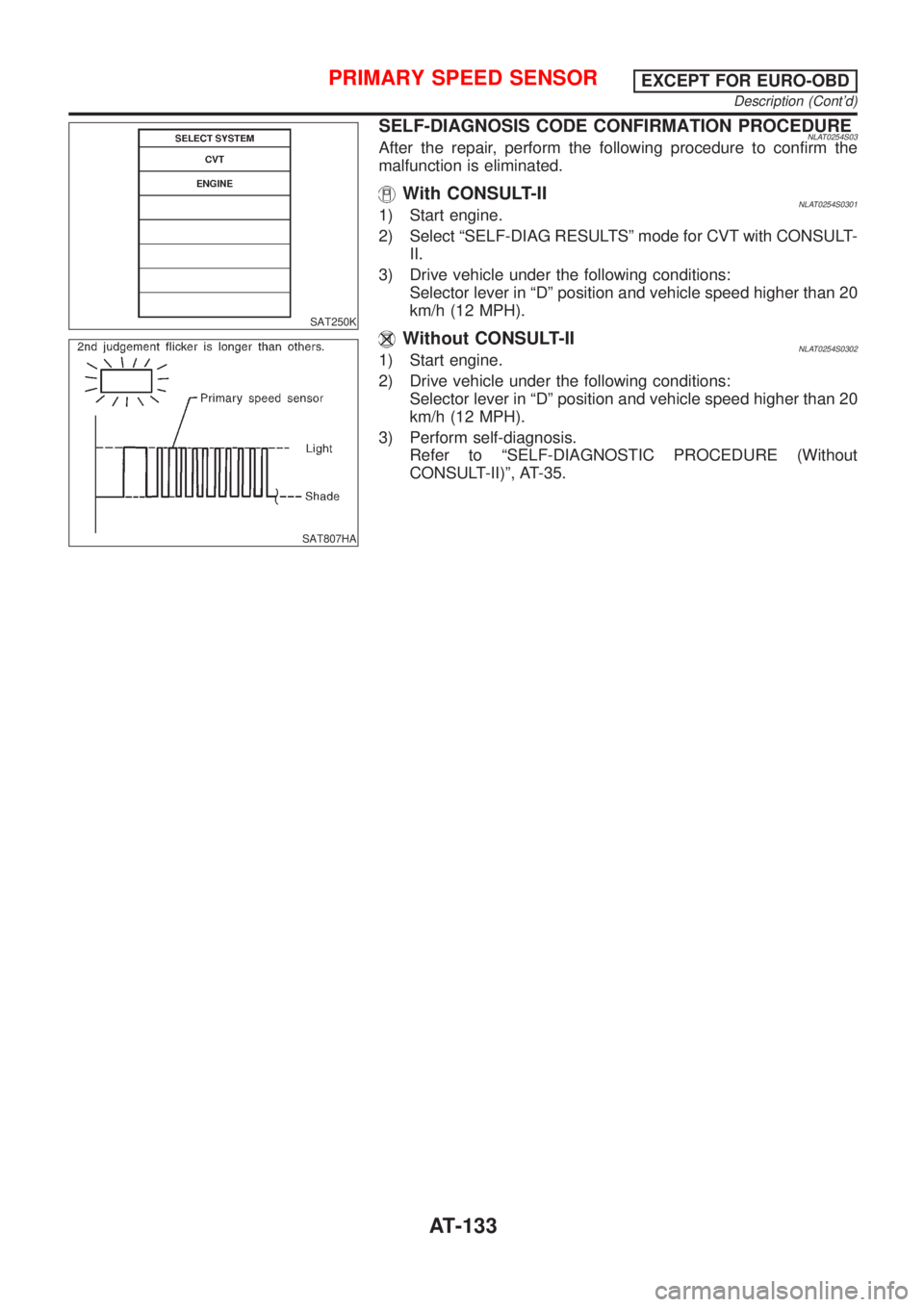

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0254S03After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0254S03011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position and vehicle speed higher than 20
km/h (12 MPH).
Without CONSULT-IINLAT0254S03021) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position and vehicle speed higher than 20
km/h (12 MPH).
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
PRIMARY SPEED SENSOREXCEPT FOR EURO-OBD
Description (Cont'd)
AT-133

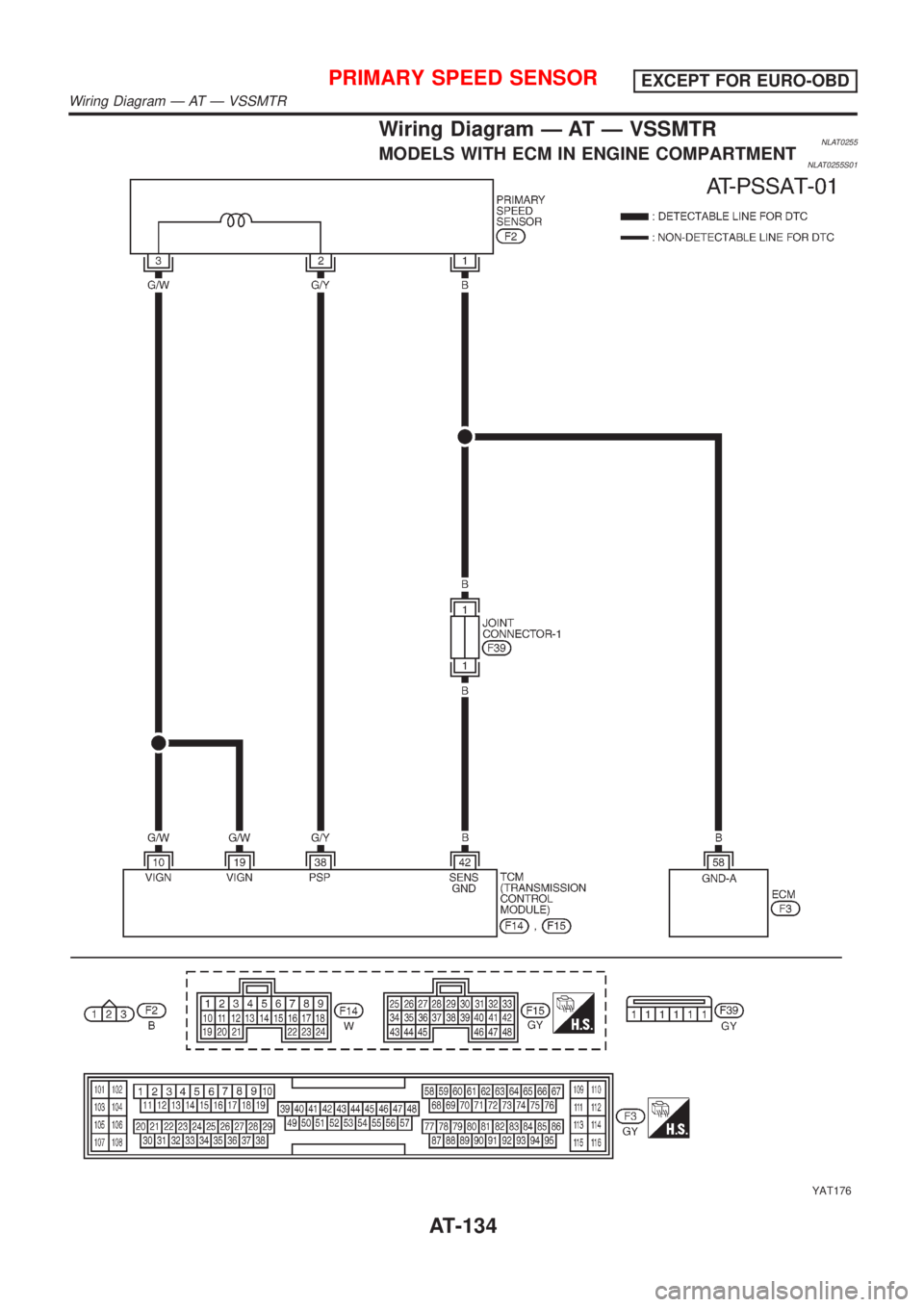

Wiring Diagram Ð AT Ð VSSMTRNLAT0255MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0255S01
YAT176
PRIMARY SPEED SENSOREXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð VSSMTR
AT-134

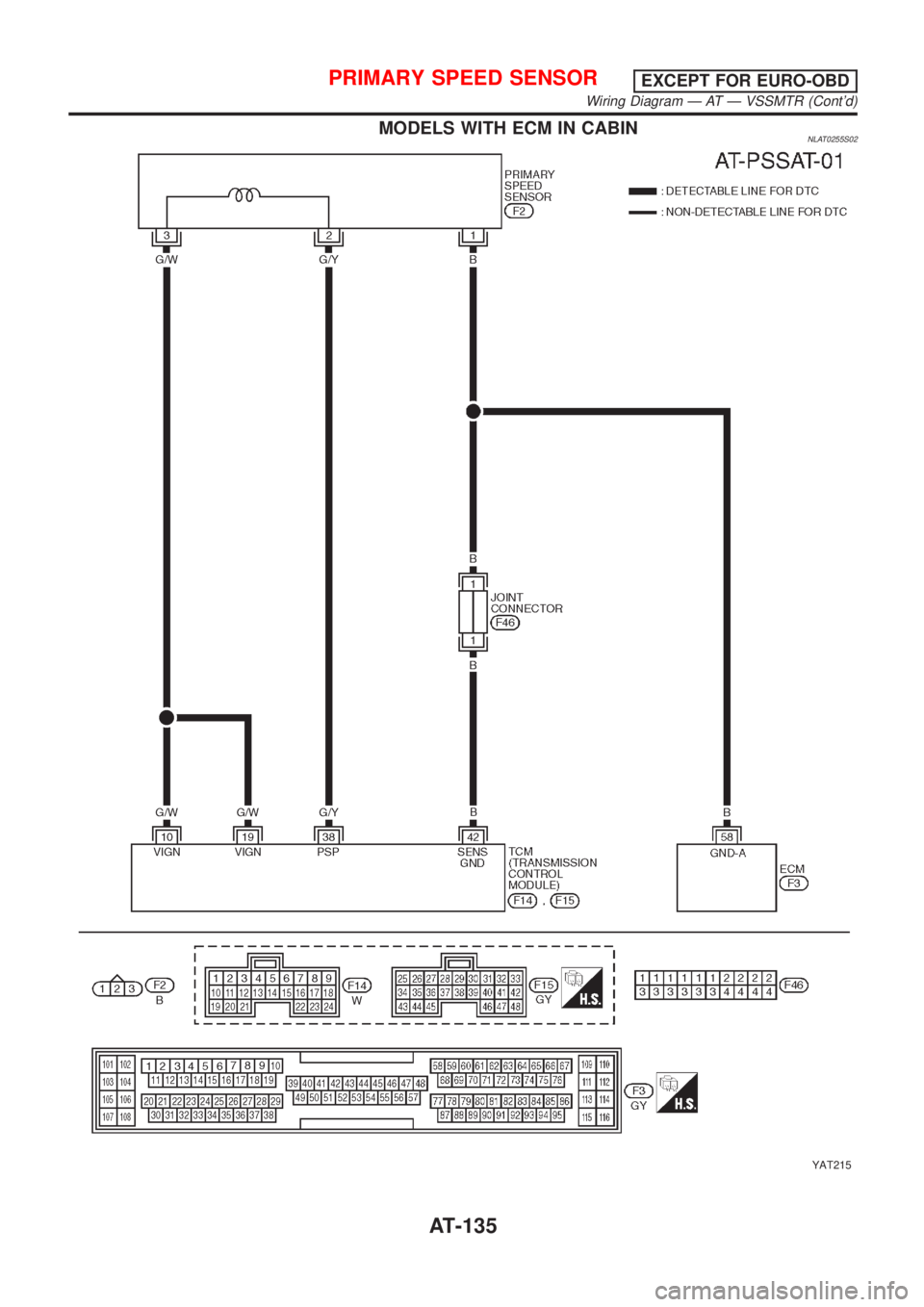

MODELS WITH ECM IN CABINNLAT0255S02
YAT215
PRIMARY SPEED SENSOREXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð VSSMTR (Cont'd)
AT-135

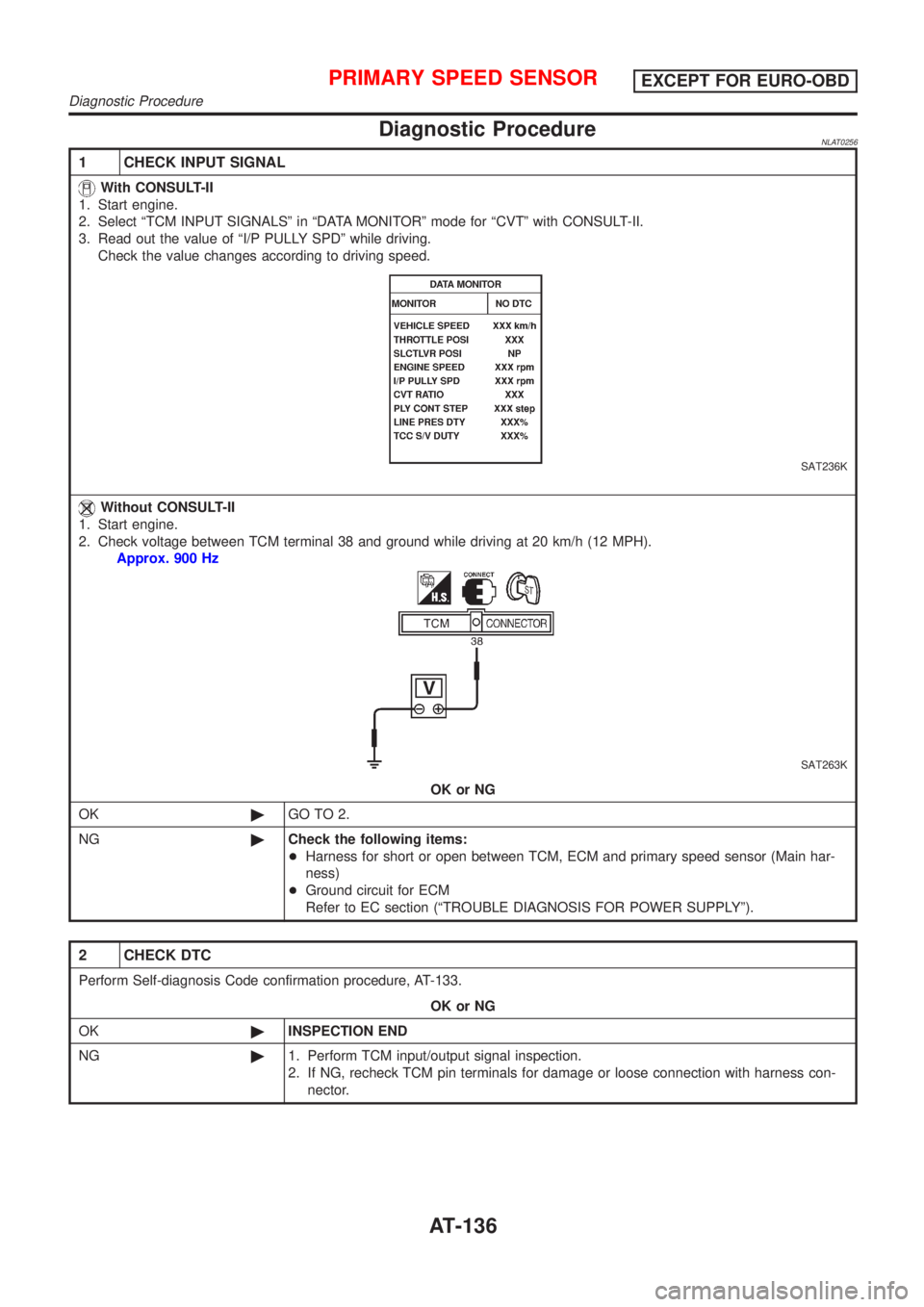

Diagnostic ProcedureNLAT0256
1 CHECK INPUT SIGNAL
With CONSULT-II
1. Start engine.
2. Select ªTCM INPUT SIGNALSº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
3. Read out the value of ªI/P PULLY SPDº while driving.
Check the value changes according to driving speed.
SAT236K
Without CONSULT-II
1. Start engine.
2. Check voltage between TCM terminal 38 and ground while driving at 20 km/h (12 MPH).
Approx. 900 Hz
SAT263K
OK or NG
OK©GO TO 2.
NG©Check the following items:
+Harness for short or open between TCM, ECM and primary speed sensor (Main har-
ness)
+Ground circuit for ECM
Refer to EC section (ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº).
2 CHECK DTC
Perform Self-diagnosis Code confirmation procedure, AT-133.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
PRIMARY SPEED SENSOREXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-136

SAT004K

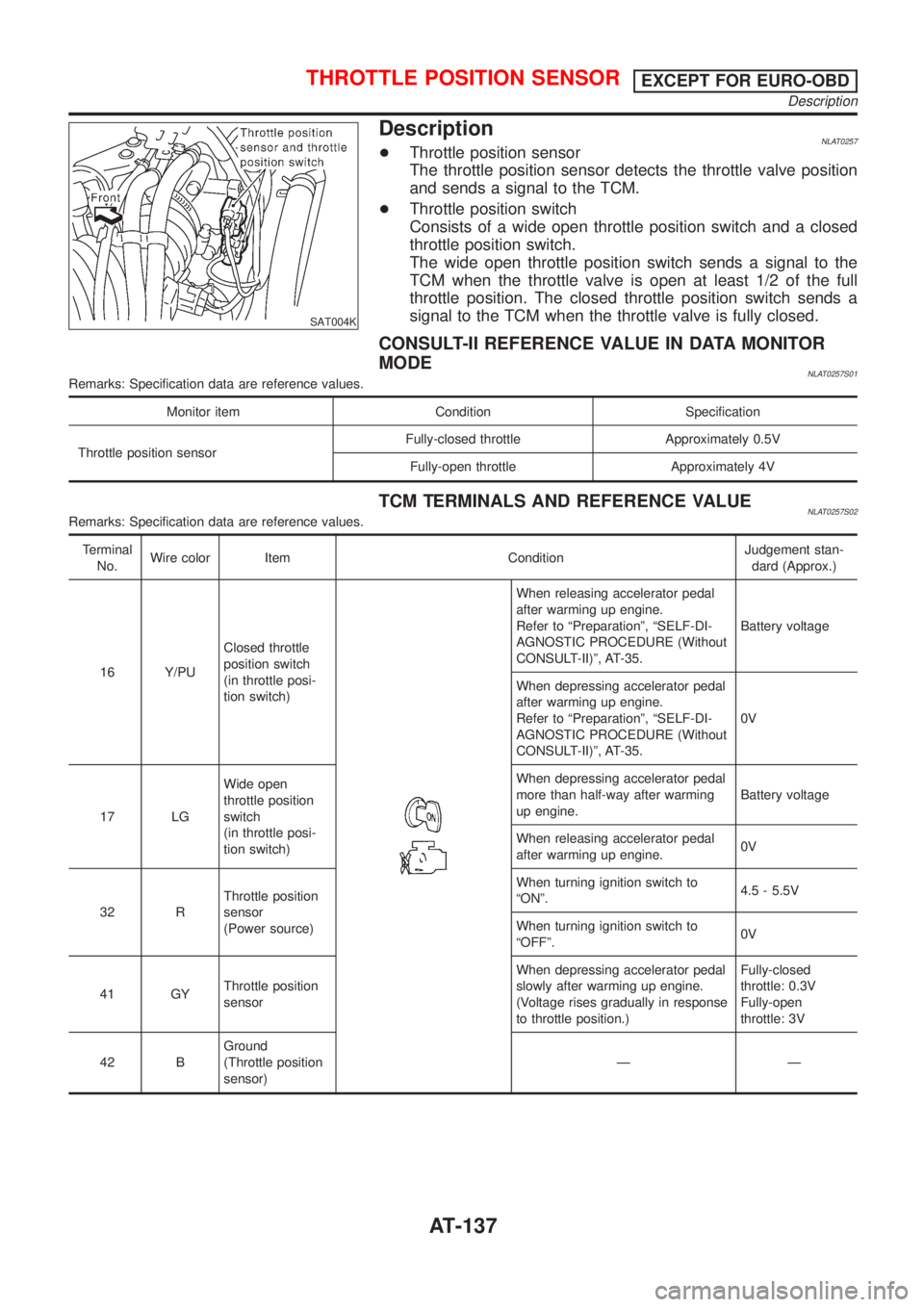

DescriptionNLAT0257+Throttle position sensor
The throttle position sensor detects the throttle valve position
and sends a signal to the TCM.
+Throttle position switch
Consists of a wide open throttle position switch and a closed
throttle position switch.
The wide open throttle position switch sends a signal to the
TCM when the throttle valve is open at least 1/2 of the full
throttle position. The closed throttle position switch sends a
signal to the TCM when the throttle valve is fully closed.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0257S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Throttle position sensorFully-closed throttle Approximately 0.5V
Fully-open throttle Approximately 4V
TCM TERMINALS AND REFERENCE VALUENLAT0257S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
16 Y/PUClosed throttle
position switch
(in throttle posi-
tion switch)
When releasing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªSELF-DI-
AGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.Battery voltage
When depressing accelerator pedal
after warming up engine.
Refer to ªPreparationº, ªSELF-DI-
AGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.0V
17 LGWide open
throttle position
switch
(in throttle posi-
tion switch)When depressing accelerator pedal
more than half-way after warming
up engine.Battery voltage
When releasing accelerator pedal
after warming up engine.0V
32 RThrottle position
sensor
(Power source)When turning ignition switch to
ªONº.4.5 - 5.5V
When turning ignition switch to
ªOFFº.0V
41 GYThrottle position
sensorWhen depressing accelerator pedal
slowly after warming up engine.
(Voltage rises gradually in response
to throttle position.)Fully-closed
throttle: 0.3V
Fully-open
throttle: 3V
42 BGround
(Throttle position
sensor)ÐÐ
THROTTLE POSITION SENSOREXCEPT FOR EURO-OBD
Description
AT-137

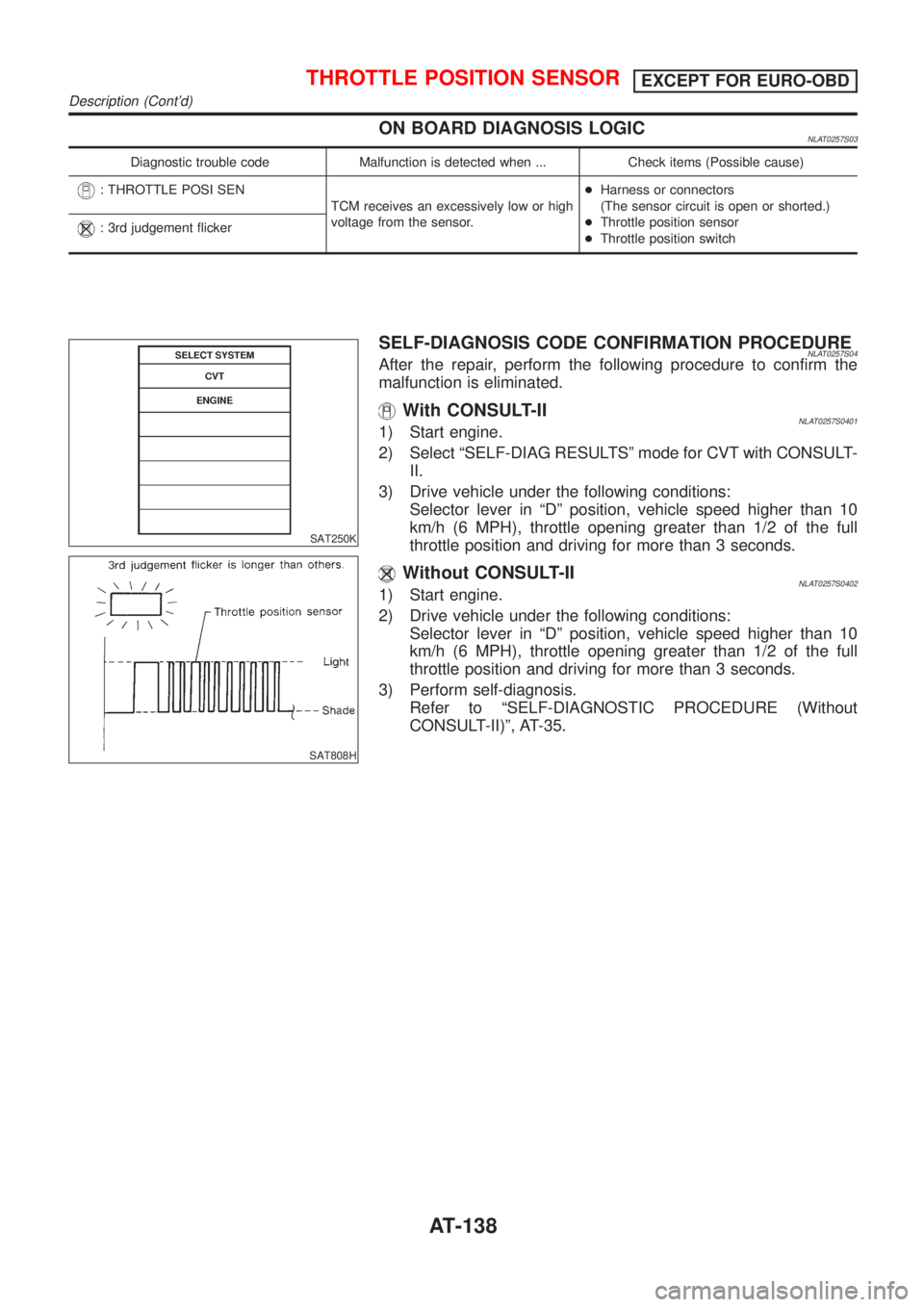

ON BOARD DIAGNOSIS LOGICNLAT0257S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: THROTTLE POSI SEN
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Throttle position sensor
+Throttle position switch
: 3rd judgement flicker
SAT250K
SAT808H
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0257S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0257S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than 10
km/h (6 MPH), throttle opening greater than 1/2 of the full
throttle position and driving for more than 3 seconds.
Without CONSULT-IINLAT0257S04021) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in ªDº position, vehicle speed higher than 10
km/h (6 MPH), throttle opening greater than 1/2 of the full
throttle position and driving for more than 3 seconds.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
THROTTLE POSITION SENSOREXCEPT FOR EURO-OBD
Description (Cont'd)
AT-138

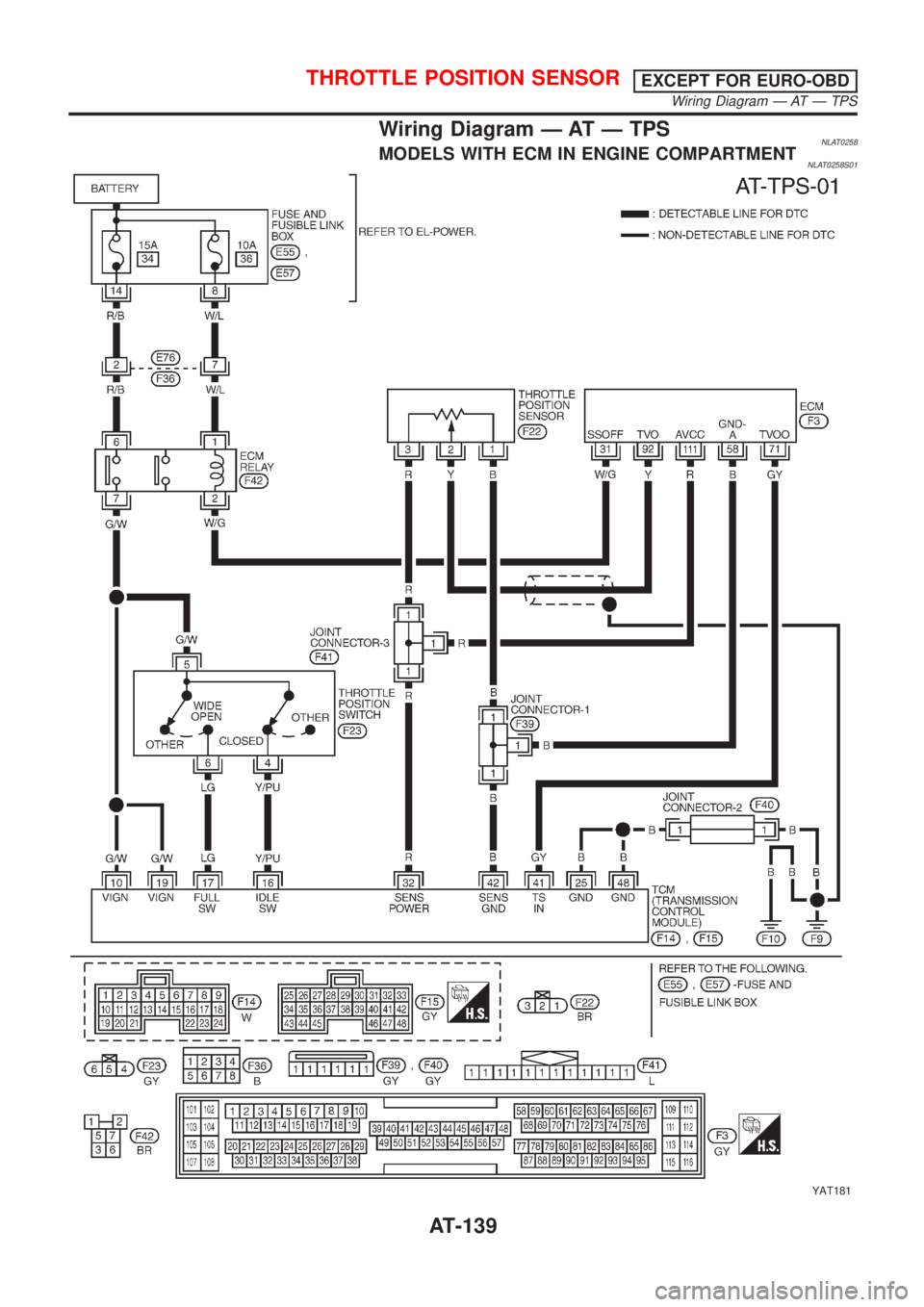

Wiring Diagram Ð AT Ð TPSNLAT0258MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0258S01
YAT181
THROTTLE POSITION SENSOREXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð TPS
