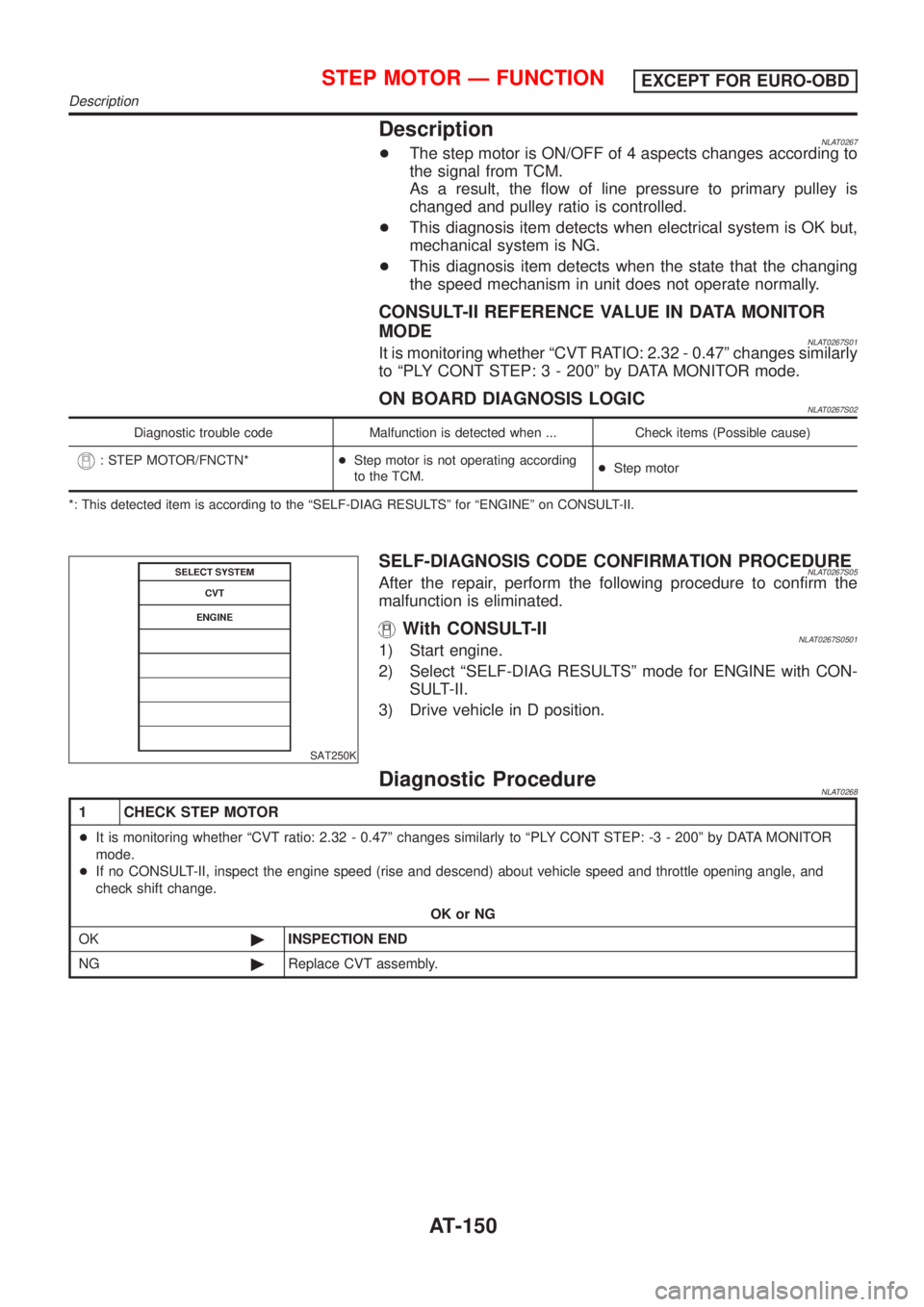

DescriptionNLAT0267+The step motor is ON/OFF of 4 aspects changes according to
the signal from TCM.
As a result, the flow of line pressure to primary pulley is
changed and pulley ratio is controlled.
+This diagnosis item detects when electrical system is OK but,
mechanical system is NG.
+This diagnosis item detects when the state that the changing
the speed mechanism in unit does not operate normally.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0267S01It is monitoring whether ªCVT RATIO: 2.32 - 0.47º changes similarly
to ªPLY CONT STEP: 3 - 200º by DATA MONITOR mode.
ON BOARD DIAGNOSIS LOGICNLAT0267S02
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: STEP MOTOR/FNCTN*+Step motor is not operating according
to the TCM.+Step motor
*: This detected item is according to the ªSELF-DIAG RESULTSº for ªENGINEº on CONSULT-II.
SAT250K
SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0267S05After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0267S05011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for ENGINE with CON-
SULT-II.
3) Drive vehicle in D position.
Diagnostic ProcedureNLAT0268
1 CHECK STEP MOTOR
+It is monitoring whether ªCVT ratio: 2.32 - 0.47º changes similarly to ªPLY CONT STEP: -3 - 200º by DATA MONITOR
mode.
+If no CONSULT-II, inspect the engine speed (rise and descend) about vehicle speed and throttle opening angle, and
check shift change.
OK or NG
OK©INSPECTION END
NG©Replace CVT assembly.
STEP MOTOR Ð FUNCTIONEXCEPT FOR EURO-OBD
Description
AT-150

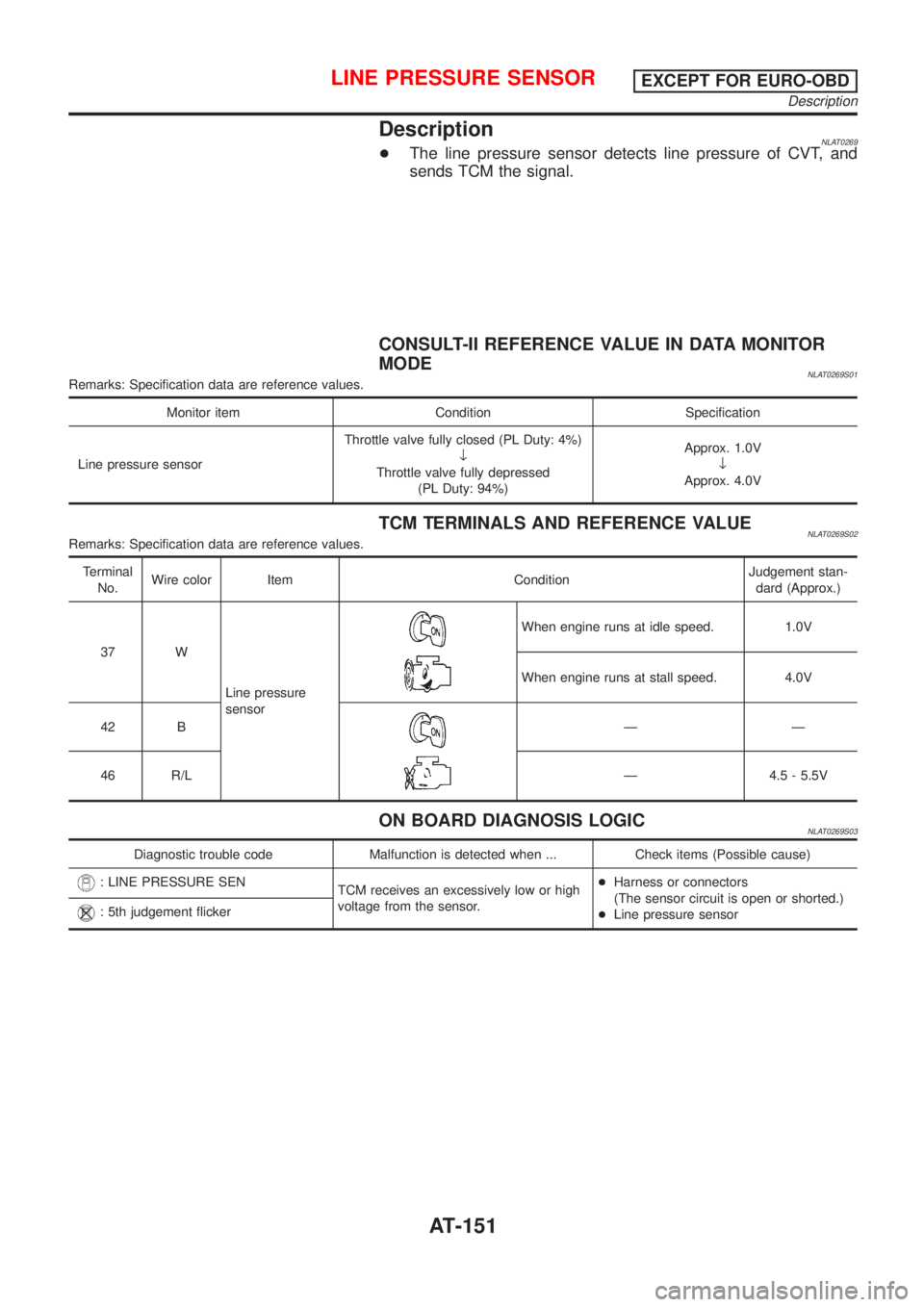

DescriptionNLAT0269+The line pressure sensor detects line pressure of CVT, and
sends TCM the signal.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0269S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Line pressure sensorThrottle valve fully closed (PL Duty: 4%)
¯
Throttle valve fully depressed
(PL Duty: 94%)Approx. 1.0V
¯
Approx. 4.0V
TCM TERMINALS AND REFERENCE VALUENLAT0269S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
37 W
Line pressure
sensor
When engine runs at idle speed. 1.0V
When engine runs at stall speed. 4.0V
42 B
ÐÐ
46 R/LÐ 4.5 - 5.5V
ON BOARD DIAGNOSIS LOGICNLAT0269S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: LINE PRESSURE SEN
TCM receives an excessively low or high
voltage from the sensor.+Harness or connectors
(The sensor circuit is open or shorted.)
+Line pressure sensor
: 5th judgement flicker
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Description
AT-151

SAT250K
SAT812HA

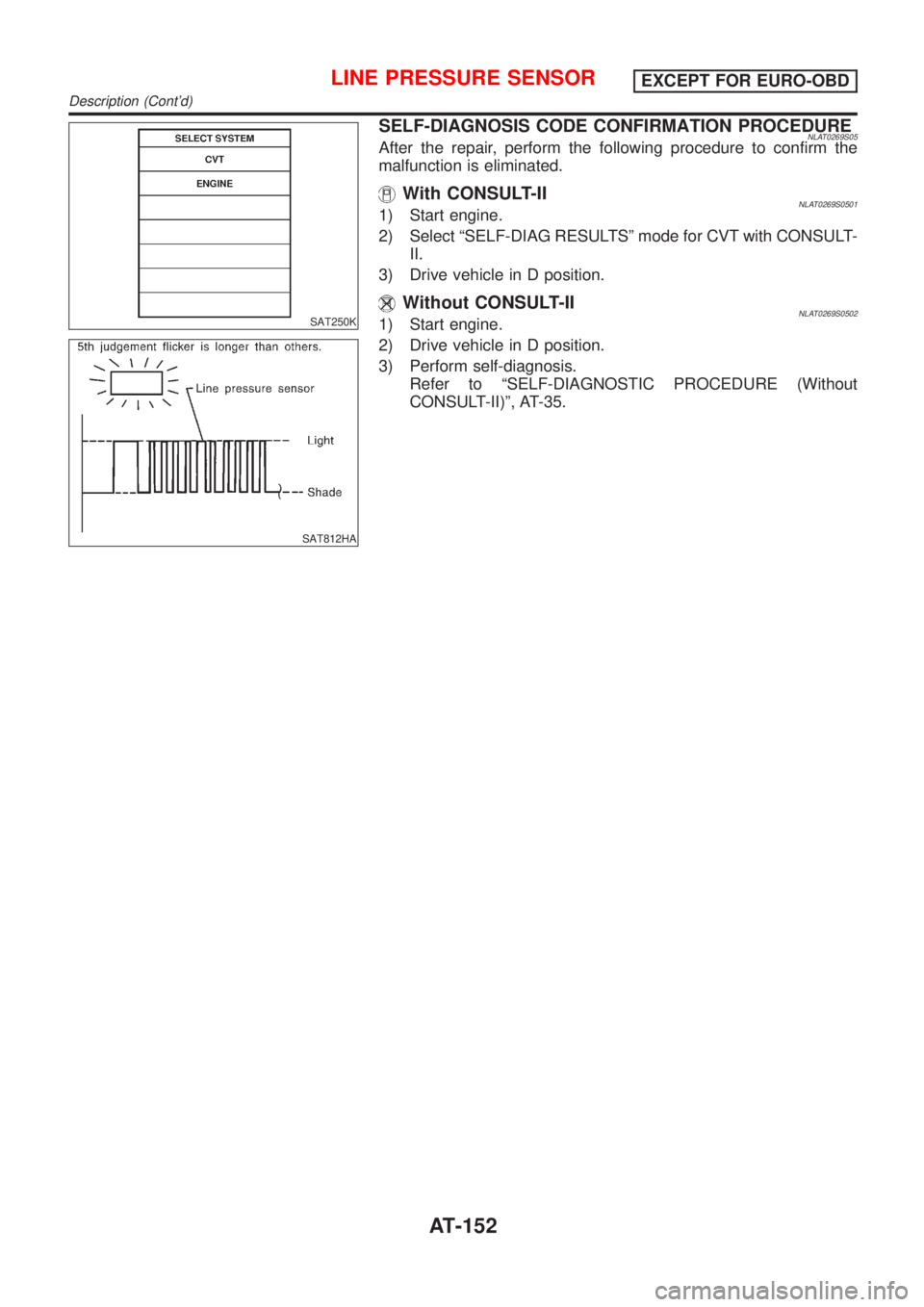

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0269S05After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0269S05011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) Drive vehicle in D position.
Without CONSULT-IINLAT0269S05021) Start engine.
2) Drive vehicle in D position.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Description (Cont'd)
AT-152

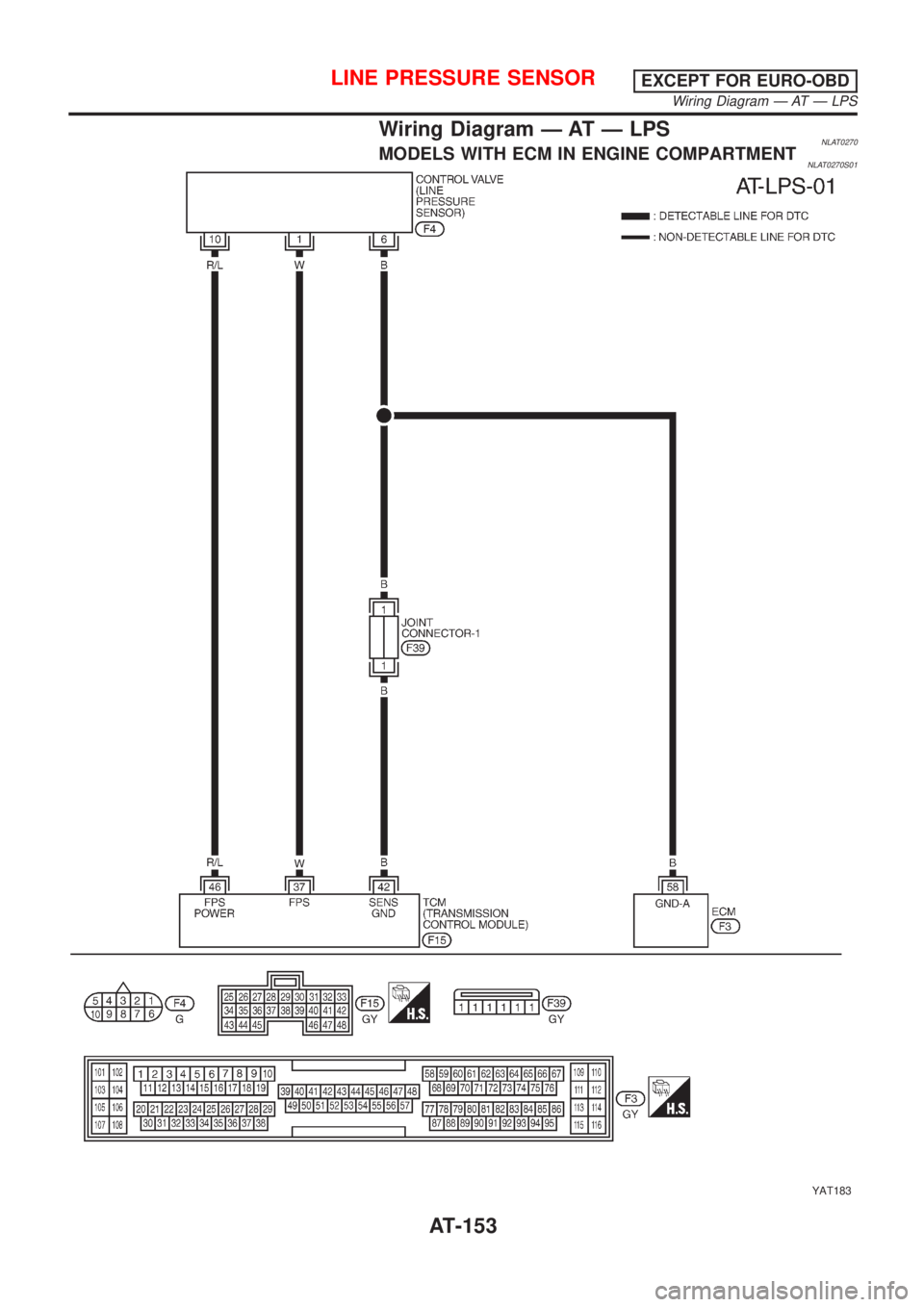

Wiring Diagram Ð AT Ð LPSNLAT0270MODELS WITH ECM IN ENGINE COMPARTMENTNLAT0270S01
YAT183
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð LPS
AT-153

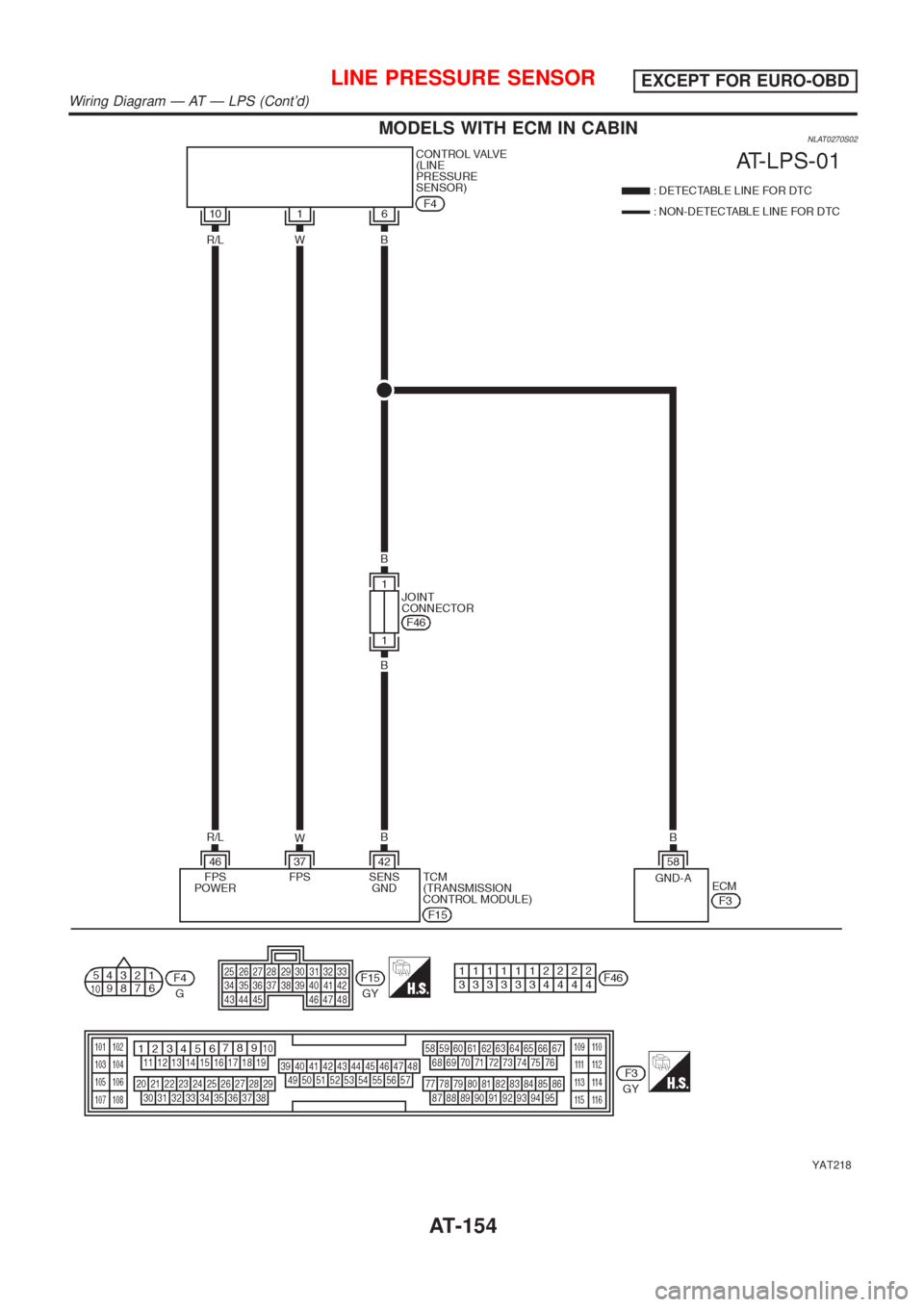

MODELS WITH ECM IN CABINNLAT0270S02
YAT218
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð LPS (Cont'd)
AT-154

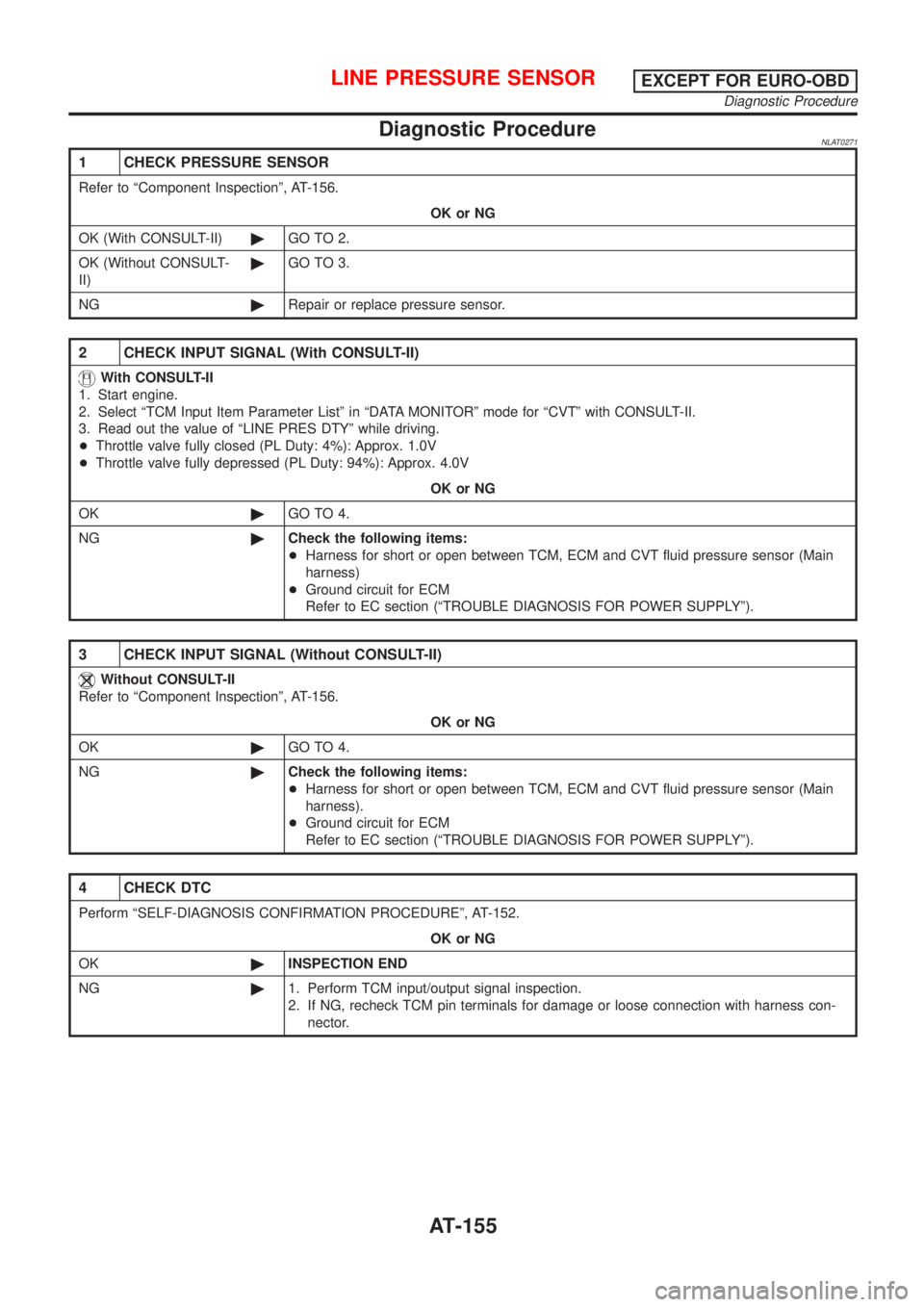

Diagnostic ProcedureNLAT0271
1 CHECK PRESSURE SENSOR
Refer to ªComponent Inspectionº, AT-156.
OK or NG
OK (With CONSULT-II)©GO TO 2.
OK (Without CONSULT-
II)©GO TO 3.
NG©Repair or replace pressure sensor.
2 CHECK INPUT SIGNAL (With CONSULT-II)
With CONSULT-II
1. Start engine.
2. Select ªTCM Input Item Parameter Listº in ªDATA MONITORº mode for ªCVTº with CONSULT-II.
3. Read out the value of ªLINE PRES DTYº while driving.
+Throttle valve fully closed (PL Duty: 4%): Approx. 1.0V
+Throttle valve fully depressed (PL Duty: 94%): Approx. 4.0V
OK or NG
OK©GO TO 4.
NG©Check the following items:
+Harness for short or open between TCM, ECM and CVT fluid pressure sensor (Main
harness)
+Ground circuit for ECM
Refer to EC section (ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº).
3 CHECK INPUT SIGNAL (Without CONSULT-II)
Without CONSULT-II
Refer to ªComponent Inspectionº, AT-156.
OK or NG
OK©GO TO 4.
NG©Check the following items:
+Harness for short or open between TCM, ECM and CVT fluid pressure sensor (Main
harness).
+Ground circuit for ECM
Refer to EC section (ªTROUBLE DIAGNOSIS FOR POWER SUPPLYº).
4 CHECK DTC
Perform ªSELF-DIAGNOSIS CONFIRMATION PROCEDUREº, AT-152.
OK or NG
OK©INSPECTION END
NG©1. Perform TCM input/output signal inspection.
2. If NG, recheck TCM pin terminals for damage or loose connection with harness con-
nector.
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Diagnostic Procedure
AT-155

SAT265K

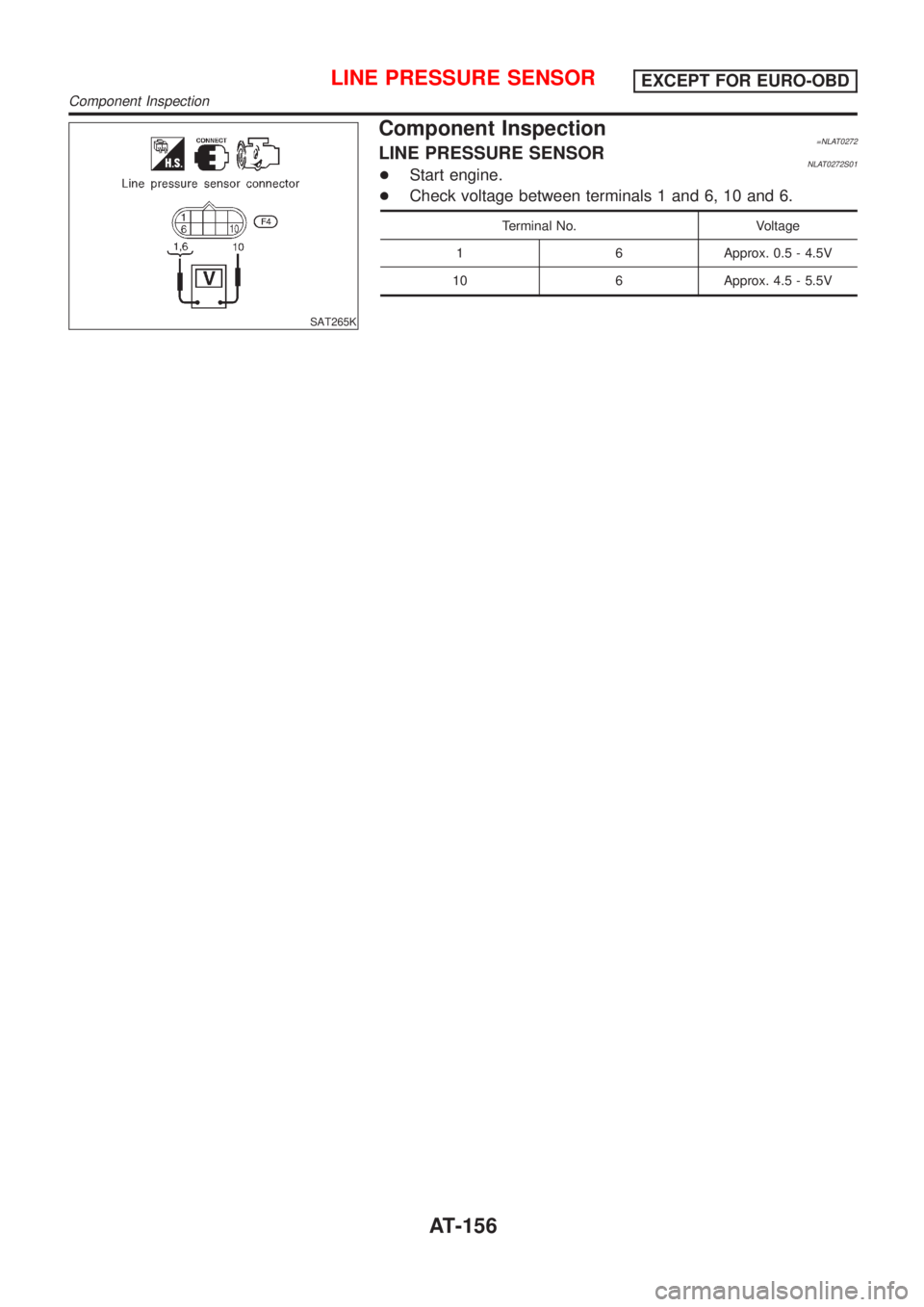

Component Inspection=NLAT0272LINE PRESSURE SENSORNLAT0272S01+Start engine.
+Check voltage between terminals 1 and 6, 10 and 6.
Terminal No. Voltage
1 6 Approx. 0.5 - 4.5V
10 6 Approx. 4.5 - 5.5V
LINE PRESSURE SENSOREXCEPT FOR EURO-OBD
Component Inspection
AT-156

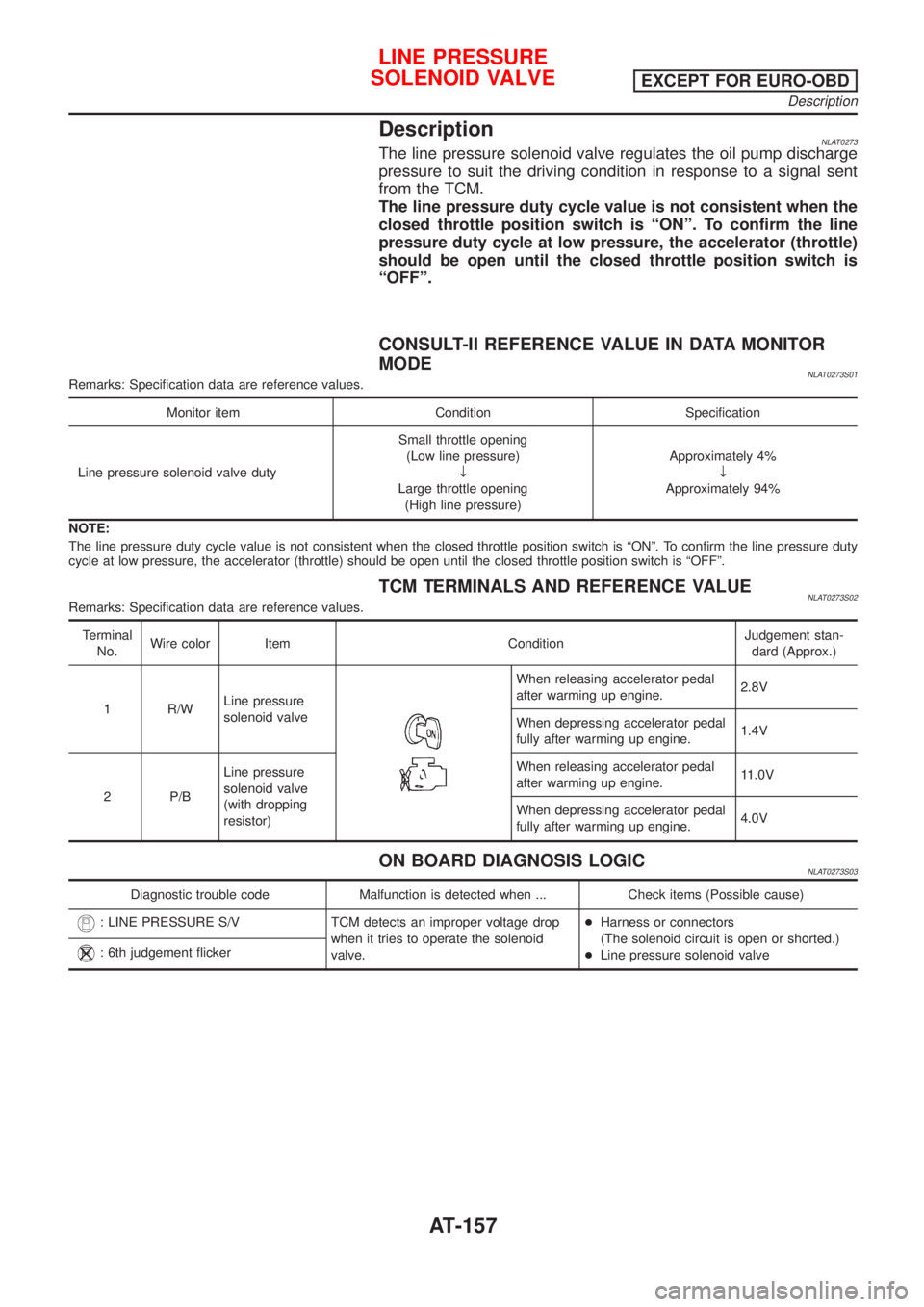

DescriptionNLAT0273The line pressure solenoid valve regulates the oil pump discharge
pressure to suit the driving condition in response to a signal sent
from the TCM.
The line pressure duty cycle value is not consistent when the
closed throttle position switch is ªONº. To confirm the line
pressure duty cycle at low pressure, the accelerator (throttle)
should be open until the closed throttle position switch is
ªOFFº.
CONSULT-II REFERENCE VALUE IN DATA MONITOR
MODE
NLAT0273S01Remarks: Specification data are reference values.
Monitor item Condition Specification
Line pressure solenoid valve dutySmall throttle opening
(Low line pressure)
¯
Large throttle opening
(High line pressure)Approximately 4%
¯
Approximately 94%
NOTE:
The line pressure duty cycle value is not consistent when the closed throttle position switch is ªONº. To confirm the line pressure duty
cycle at low pressure, the accelerator (throttle) should be open until the closed throttle position switch is ªOFFº.
TCM TERMINALS AND REFERENCE VALUENLAT0273S02Remarks: Specification data are reference values.
Terminal
No.Wire color Item ConditionJudgement stan-
dard (Approx.)
1 R/WLine pressure
solenoid valve
When releasing accelerator pedal
after warming up engine.2.8V
When depressing accelerator pedal
fully after warming up engine.1.4V
2 P/BLine pressure
solenoid valve
(with dropping
resistor)When releasing accelerator pedal
after warming up engine.11.0V
When depressing accelerator pedal
fully after warming up engine.4.0V
ON BOARD DIAGNOSIS LOGICNLAT0273S03
Diagnostic trouble code Malfunction is detected when ... Check items (Possible cause)
: LINE PRESSURE S/V TCM detects an improper voltage drop
when it tries to operate the solenoid
valve.+Harness or connectors
(The solenoid circuit is open or shorted.)
+Line pressure solenoid valve
: 6th judgement flicker
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Description
AT-157

SAT250K
SAT815HA

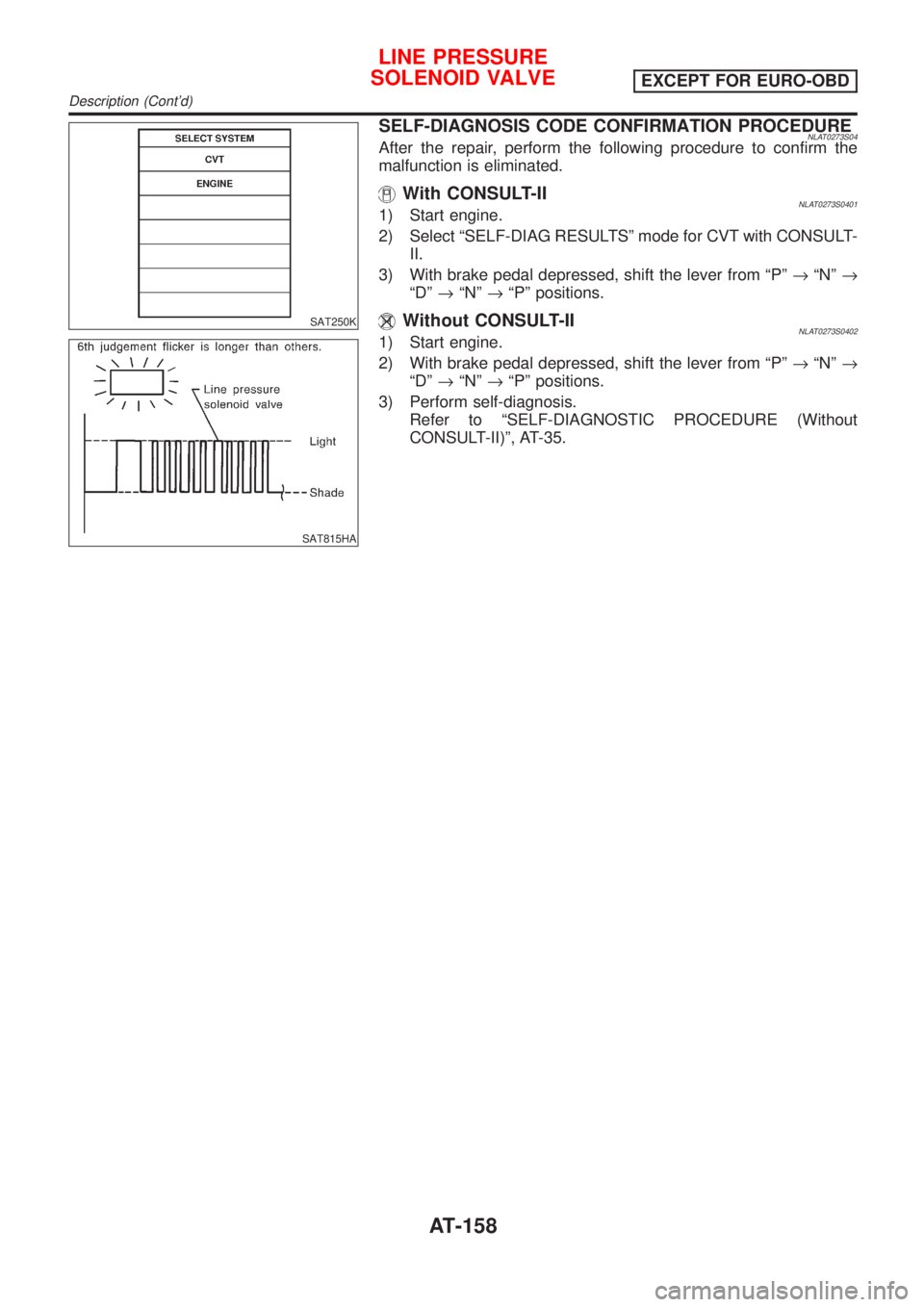

SELF-DIAGNOSIS CODE CONFIRMATION PROCEDURENLAT0273S04After the repair, perform the following procedure to confirm the
malfunction is eliminated.
With CONSULT-IINLAT0273S04011) Start engine.
2) Select ªSELF-DIAG RESULTSº mode for CVT with CONSULT-
II.
3) With brake pedal depressed, shift the lever from ªPº®ªNº®
ªDº®ªNº®ªPº positions.
Without CONSULT-IINLAT0273S04021) Start engine.
2) With brake pedal depressed, shift the lever from ªPº®ªNº®
ªDº®ªNº®ªPº positions.
3) Perform self-diagnosis.
Refer to ªSELF-DIAGNOSTIC PROCEDURE (Without
CONSULT-II)º, AT-35.
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Description (Cont'd)
AT-158

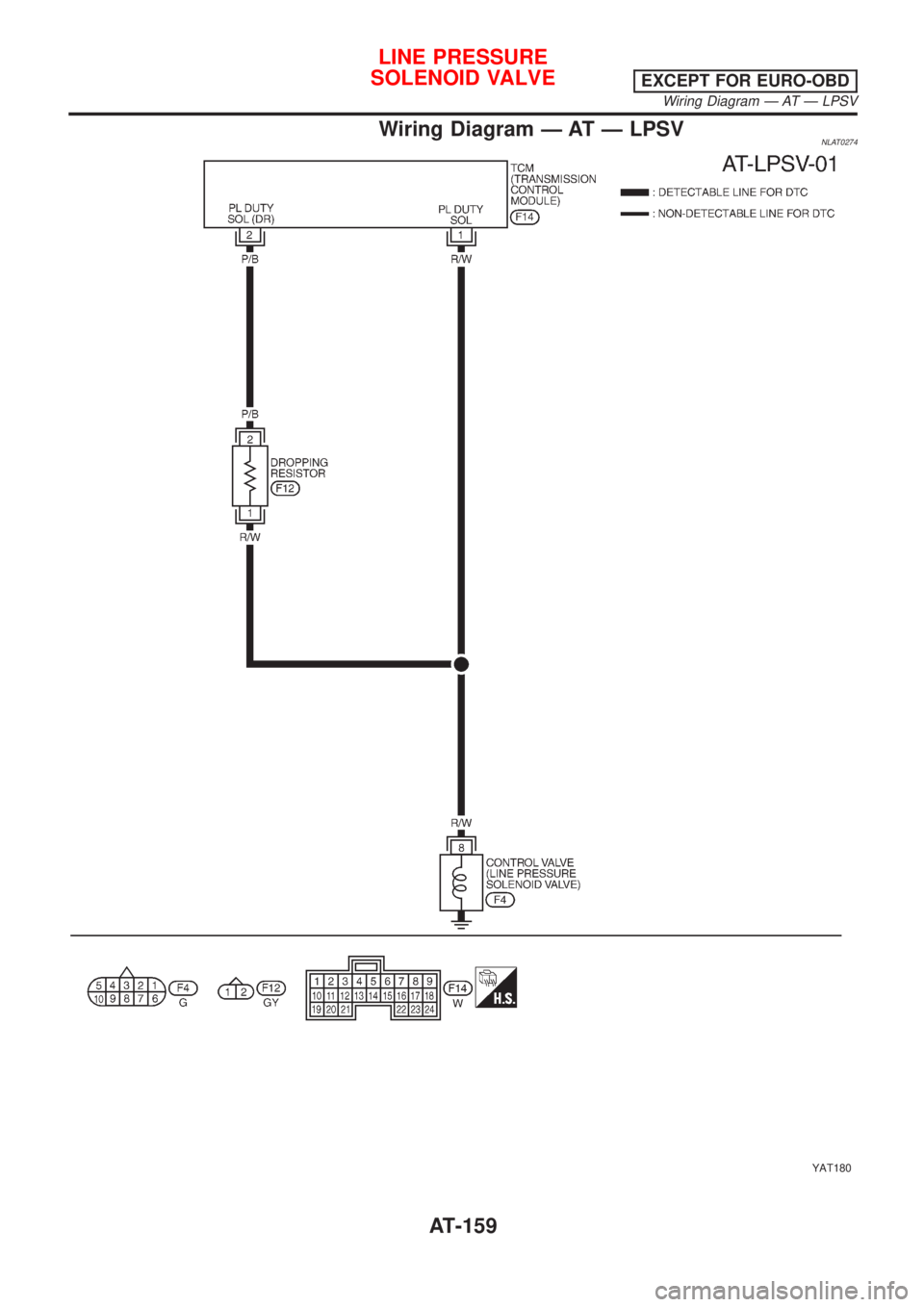

Wiring Diagram Ð AT Ð LPSVNLAT0274
YAT180
LINE PRESSURE
SOLENOID VALVE
EXCEPT FOR EURO-OBD
Wiring Diagram Ð AT Ð LPSV
AT-159
