SchematicNLEL0418MODELS WITH FUSE AND FUSIBLE LINK BOX E43NLEL0418S01
YEL860B
POWER SUPPLY ROUTING
Schematic
EL-10

YEL861B
POWER SUPPLY ROUTING

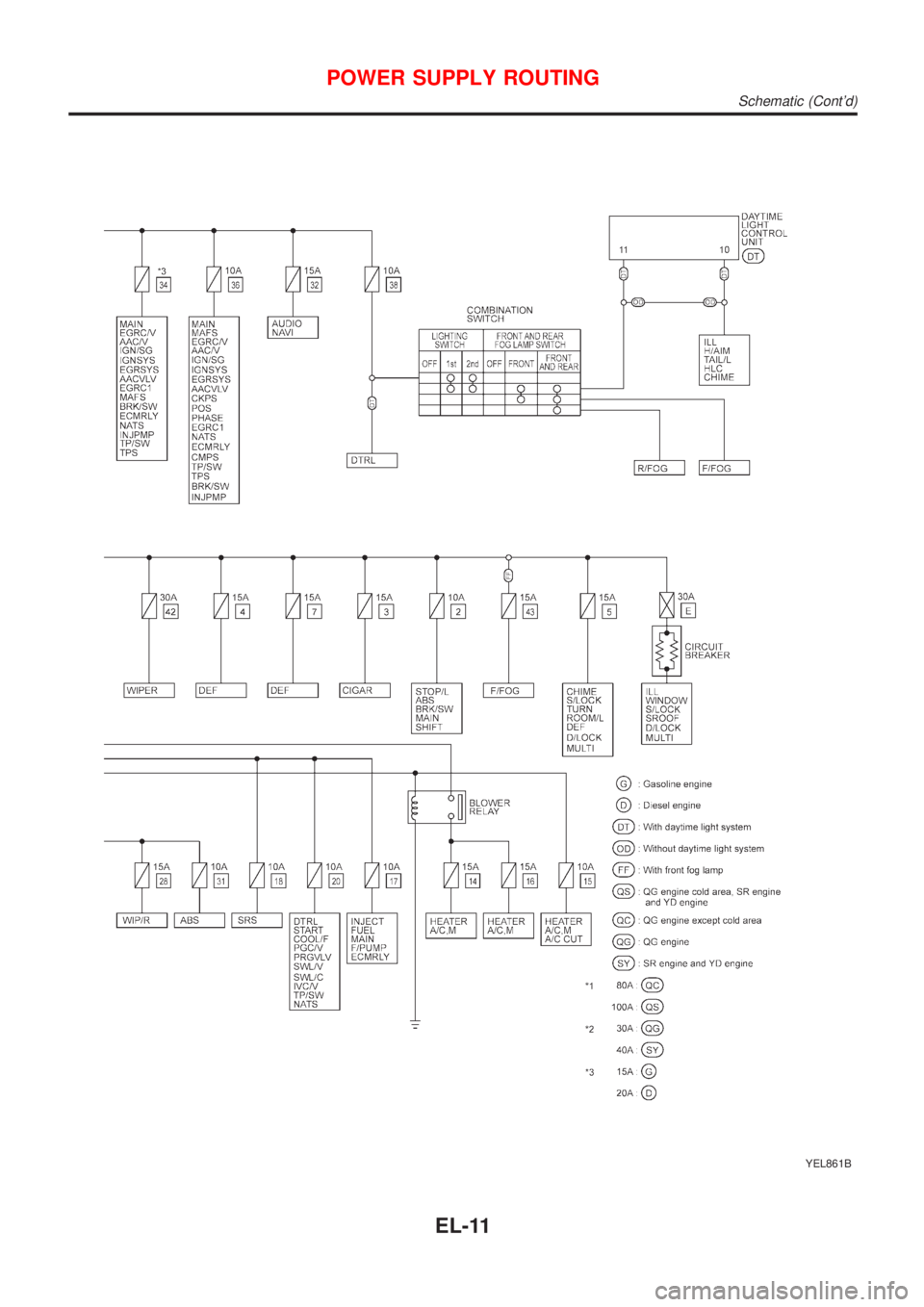

Schematic (Cont'd)
EL-11

MODELS WITH FUSE AND FUSIBLE LINK BOX E90NLEL0418S04
YEL390C
POWER SUPPLY ROUTING

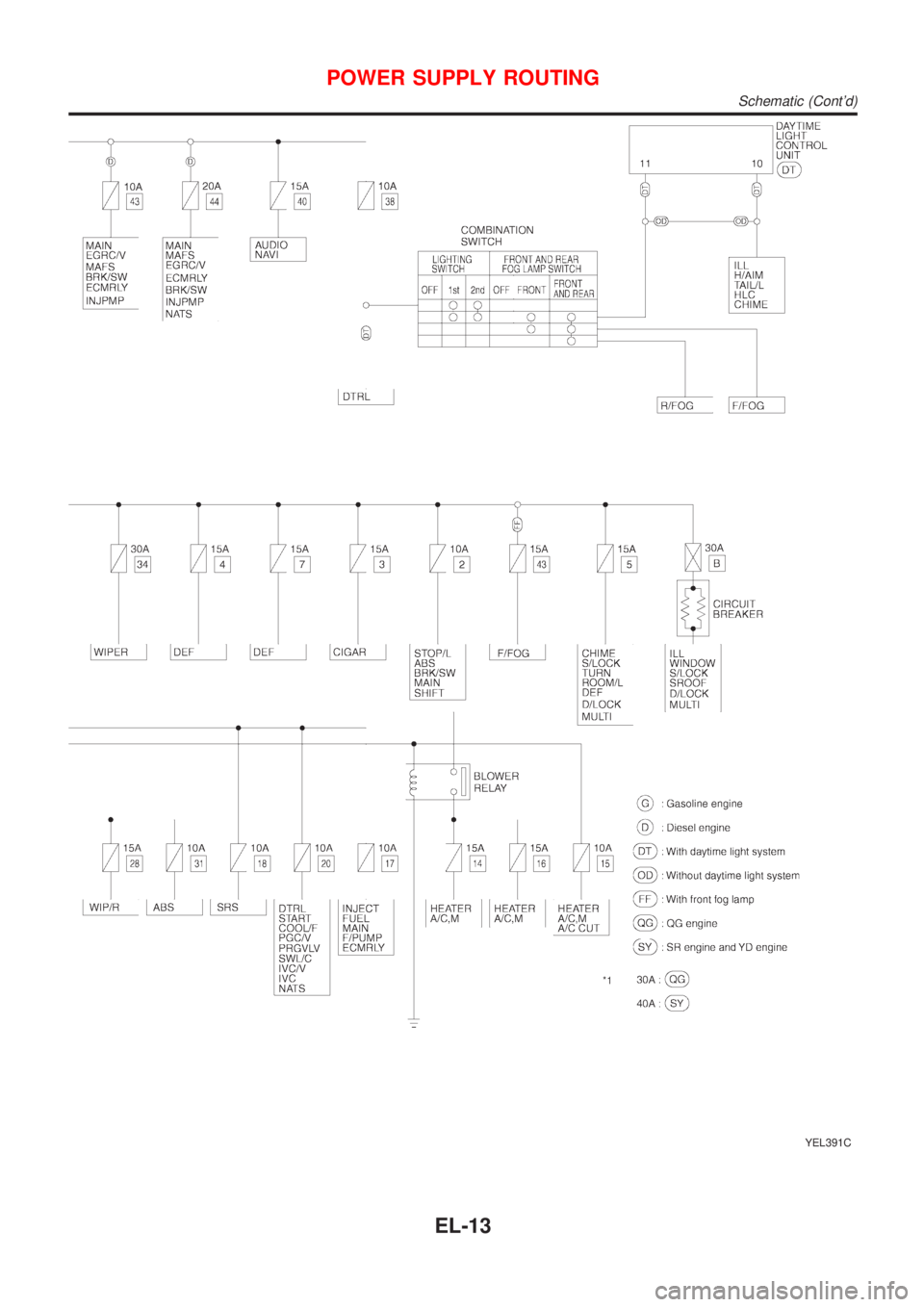

Schematic (Cont'd)
EL-12

YEL391C
POWER SUPPLY ROUTING
Schematic (Cont'd)
EL-13

Wiring Diagram Ð POWER Ð (Models with
fuse and fusible link box E43)

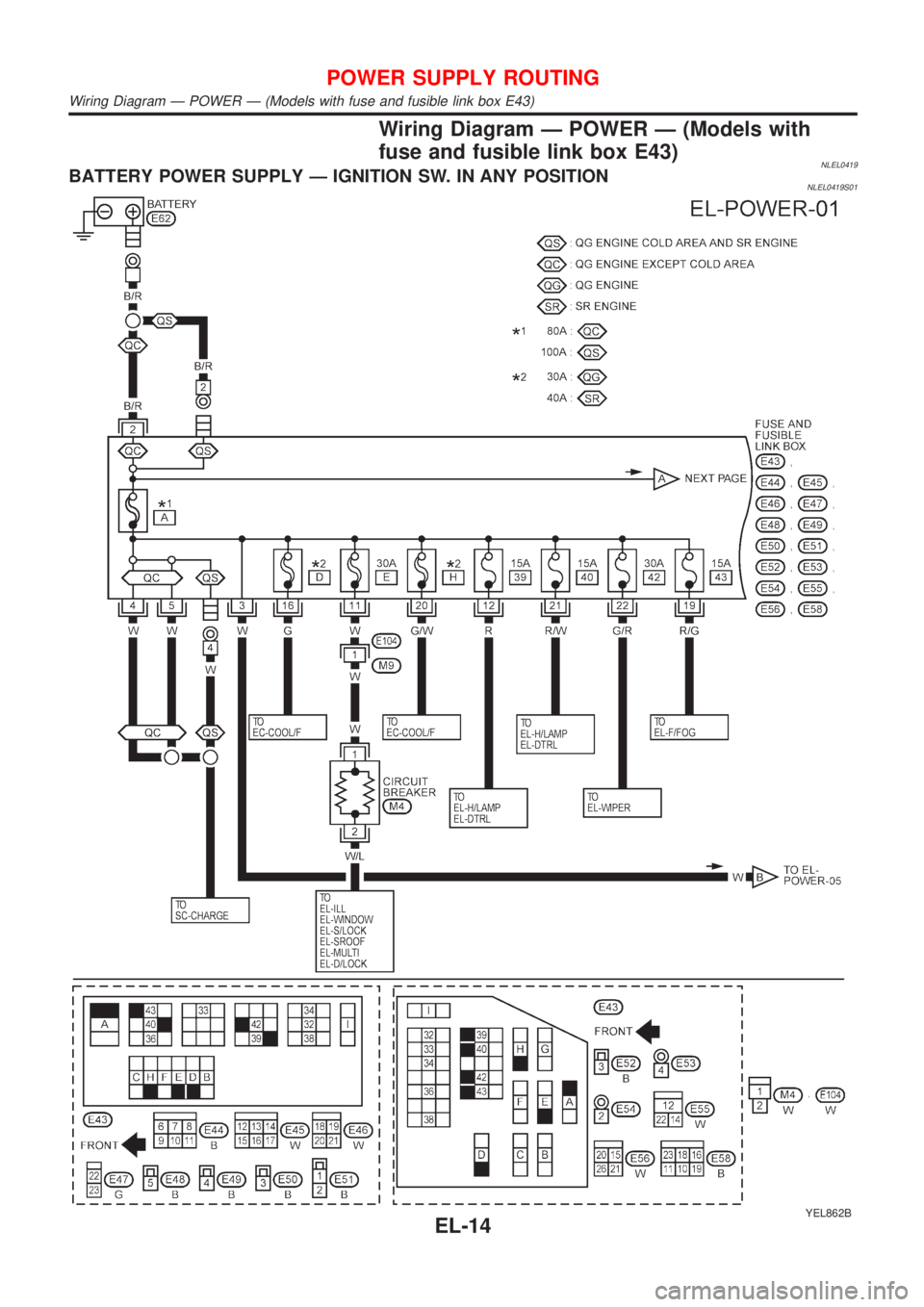

NLEL0419BATTERY POWER SUPPLY Ð IGNITION SW. IN ANY POSITIONNLEL0419S01
YEL862B
POWER SUPPLY ROUTING
Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43)
EL-14

YEL863B
POWER SUPPLY ROUTING

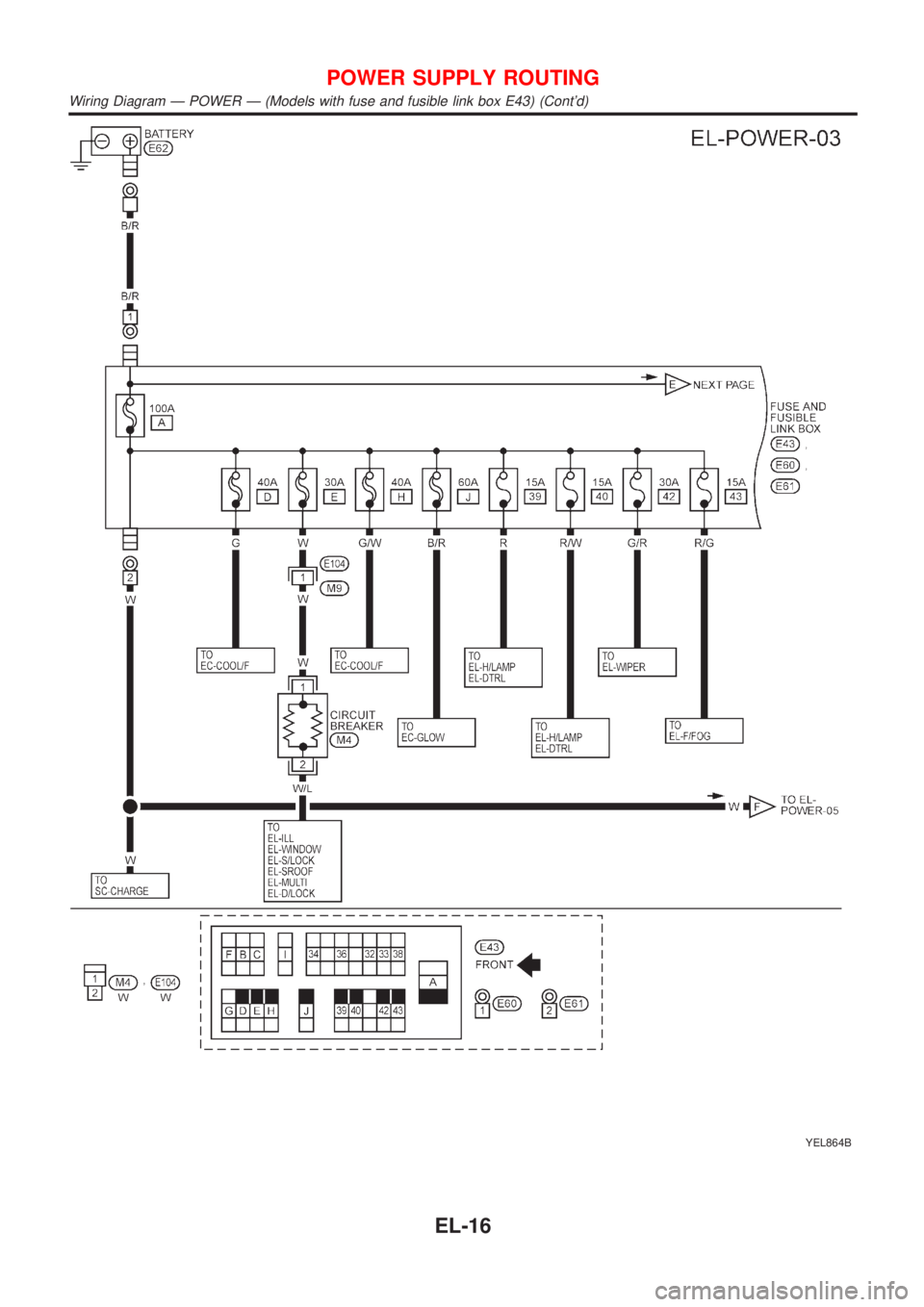

Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43) (Cont'd)
EL-15

YEL864B
POWER SUPPLY ROUTING

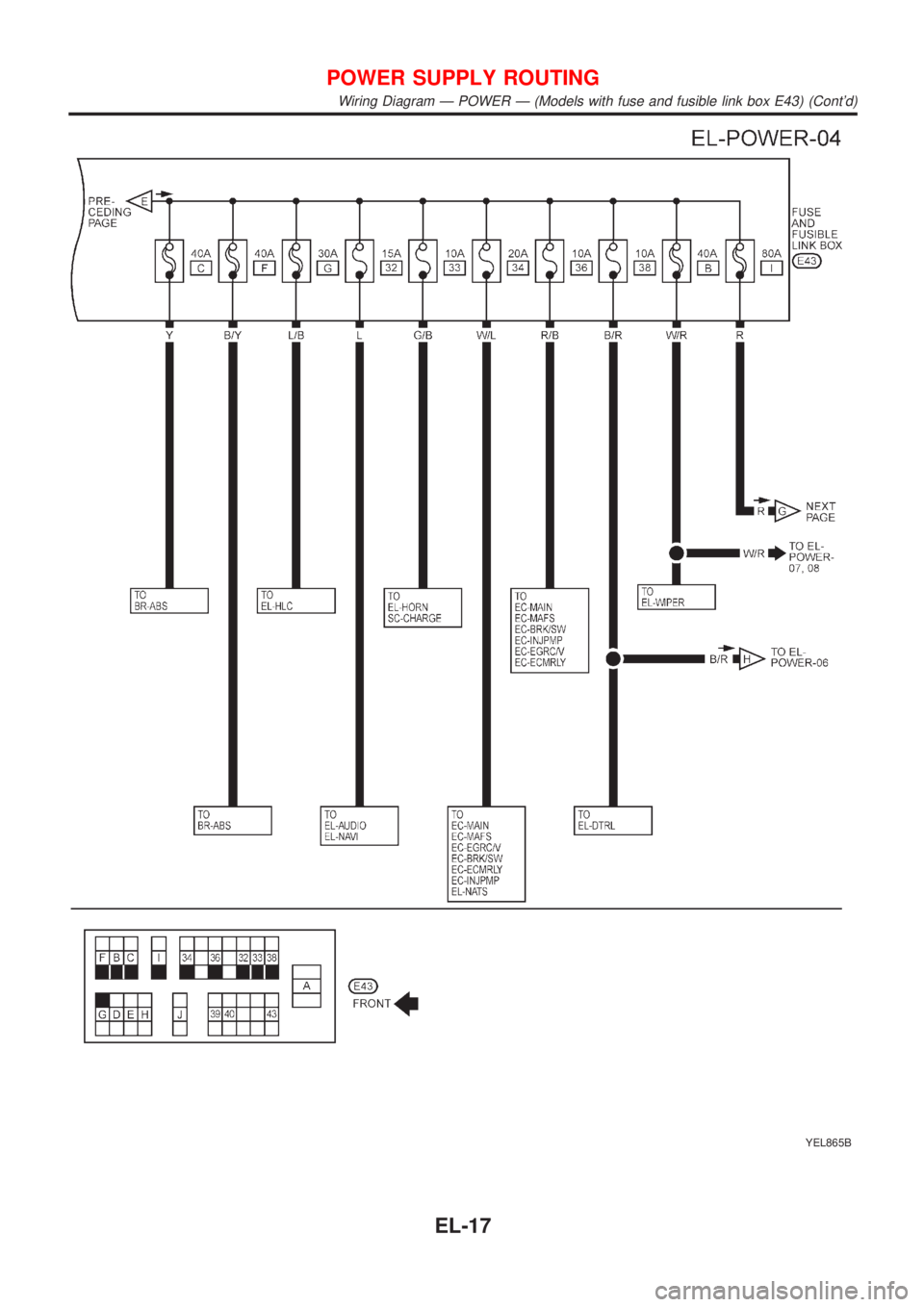

Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43) (Cont'd)
EL-16

YEL865B
POWER SUPPLY ROUTING

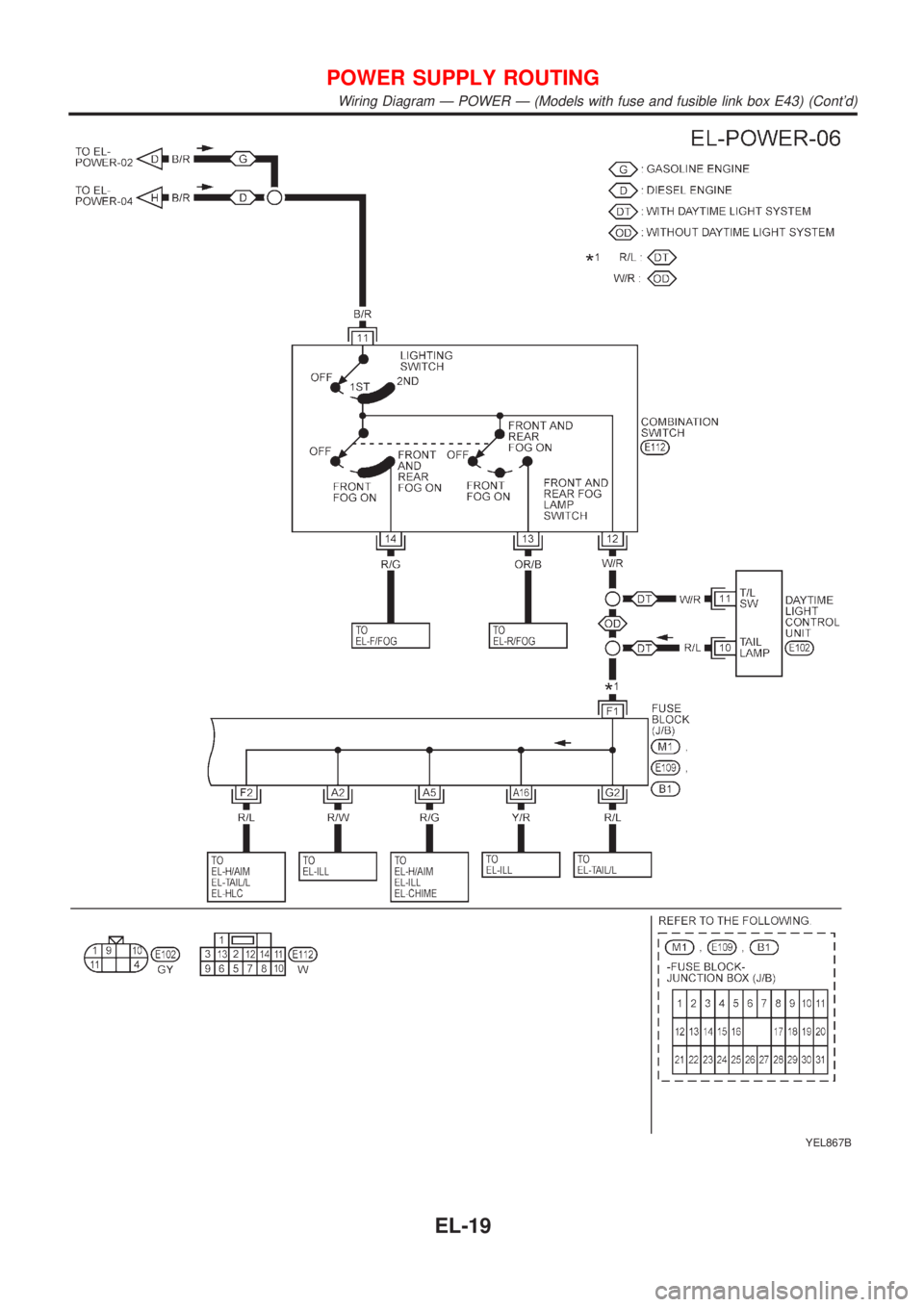

Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43) (Cont'd)
EL-17

YEL866B
POWER SUPPLY ROUTING

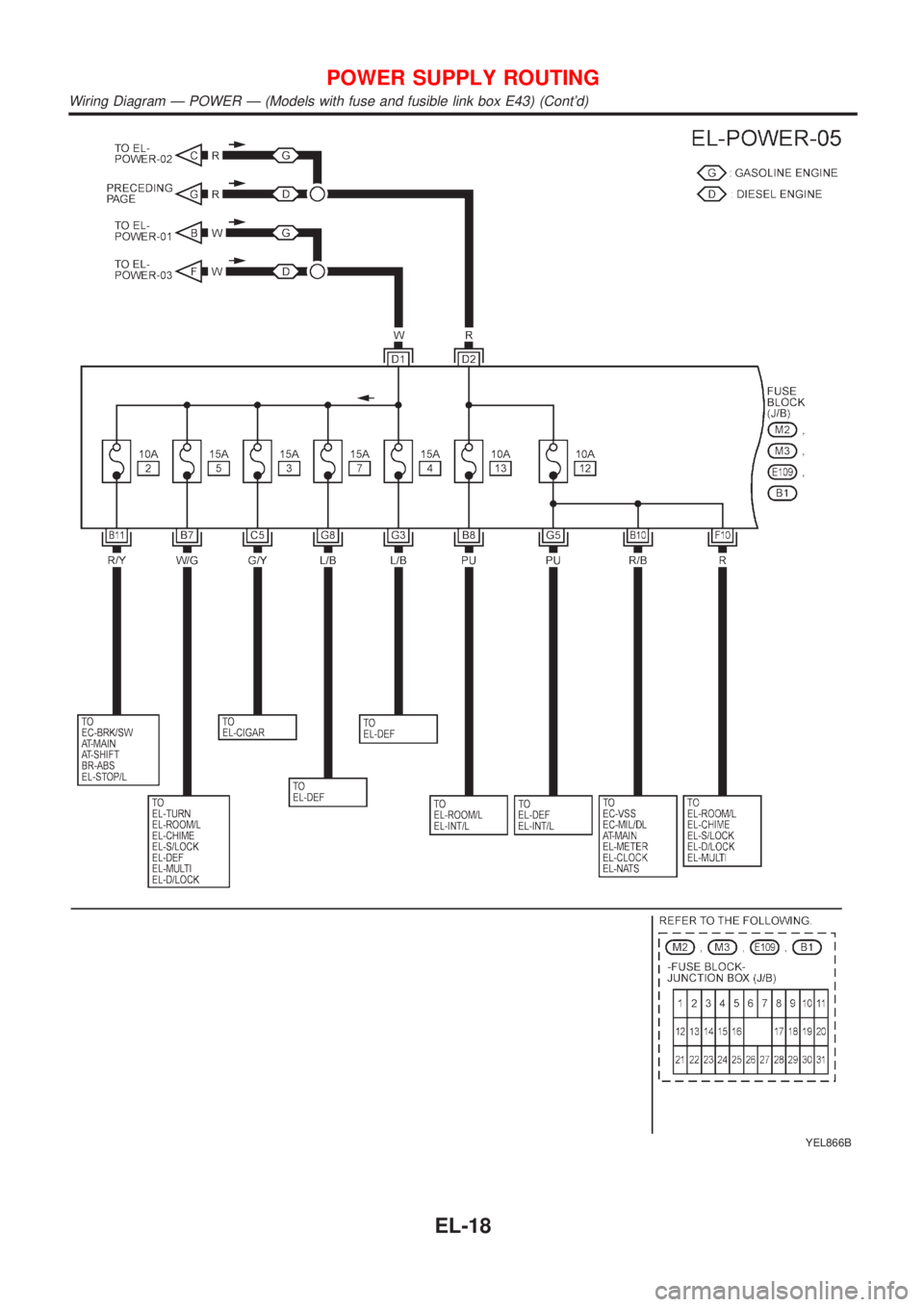

Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43) (Cont'd)
EL-18

YEL867B
POWER SUPPLY ROUTING

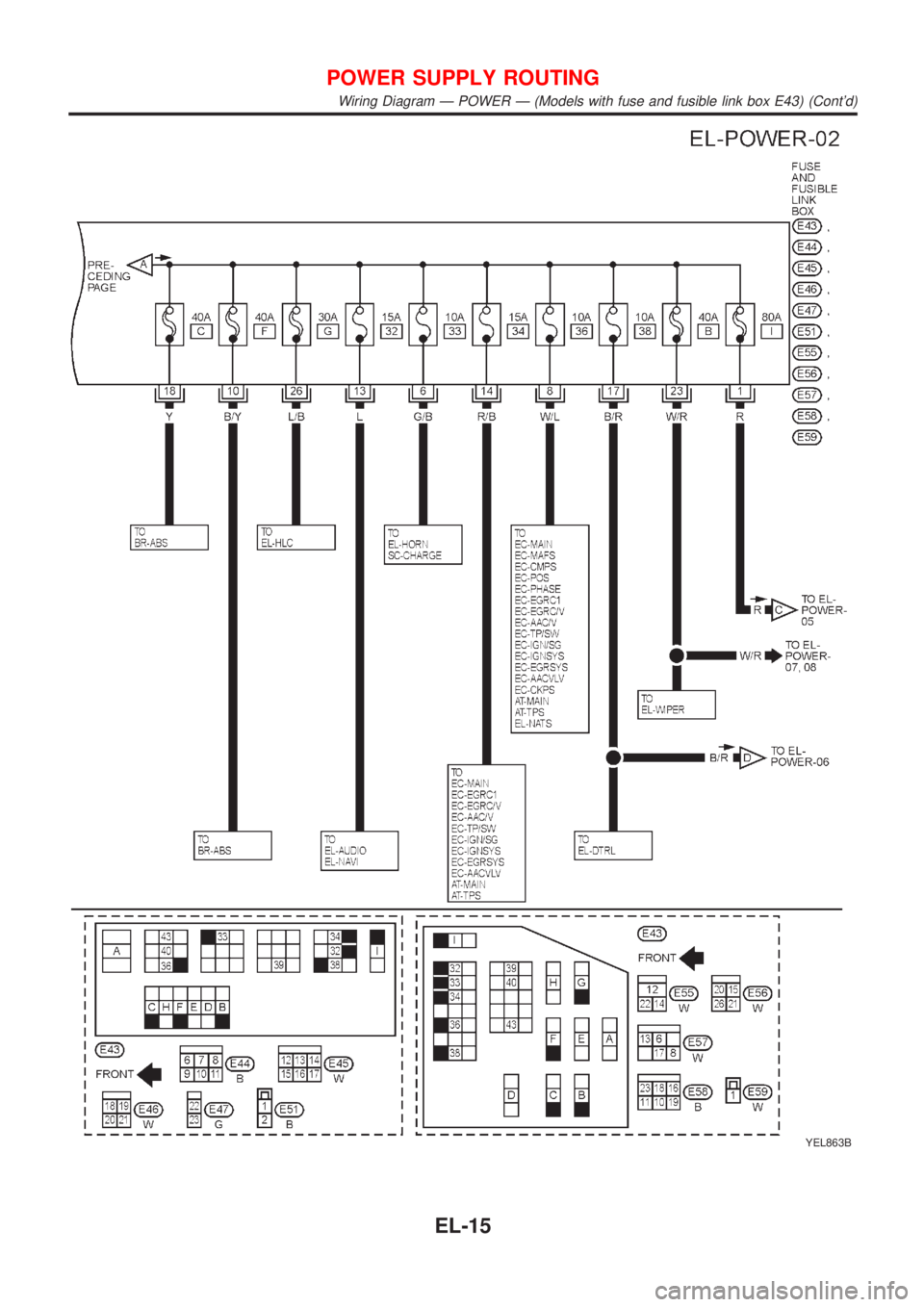

Wiring Diagram Ð POWER Ð (Models with fuse and fusible link box E43) (Cont'd)
EL-19
