NISSAN ALMERA TINO 2001 Service Repair Manual

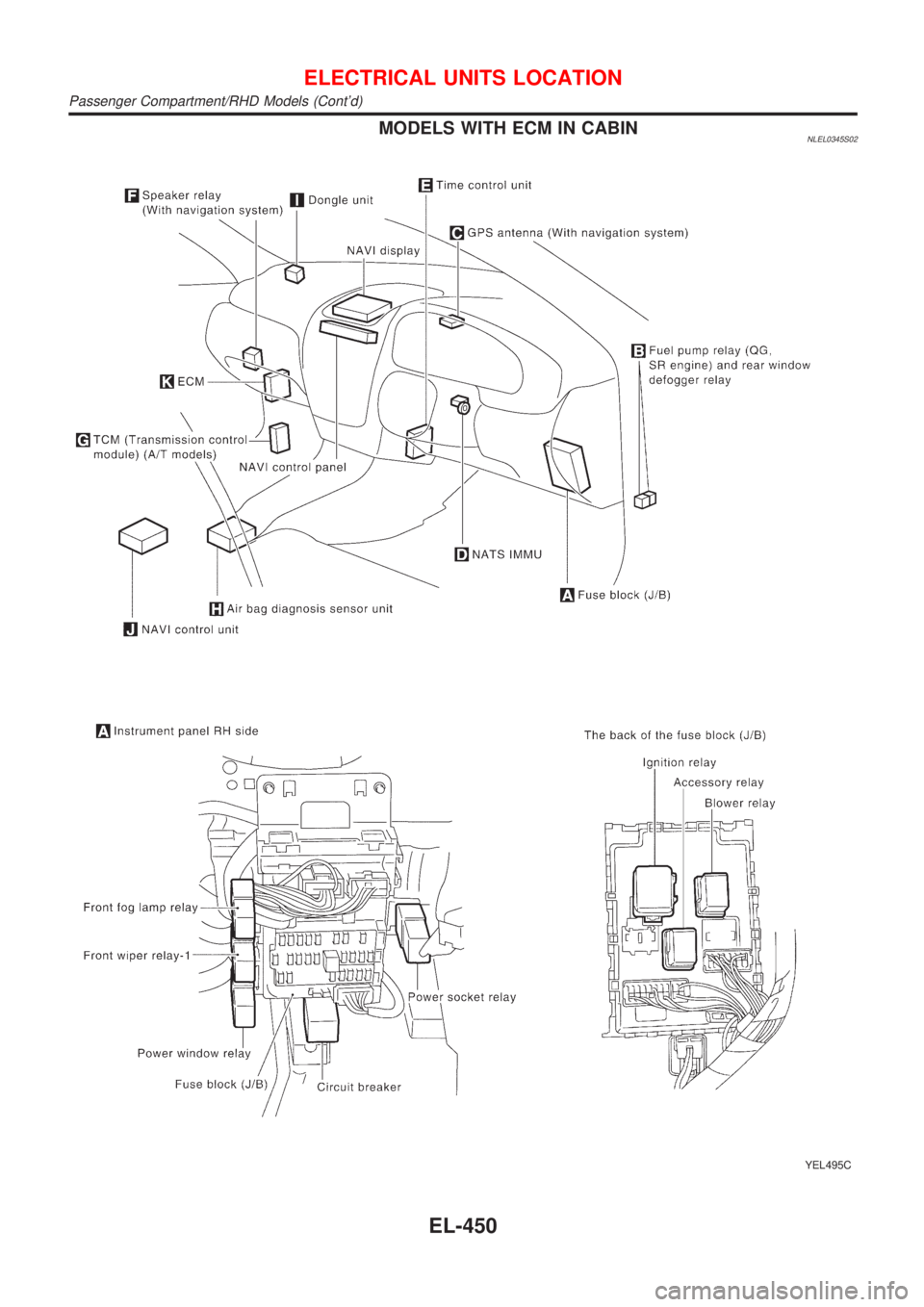

MODELS WITH ECM IN CABINNLEL0345S02
YEL495C
ELECTRICAL UNITS LOCATION
Passenger Compartment/RHD Models (Cont'd)
EL-450

NEL784

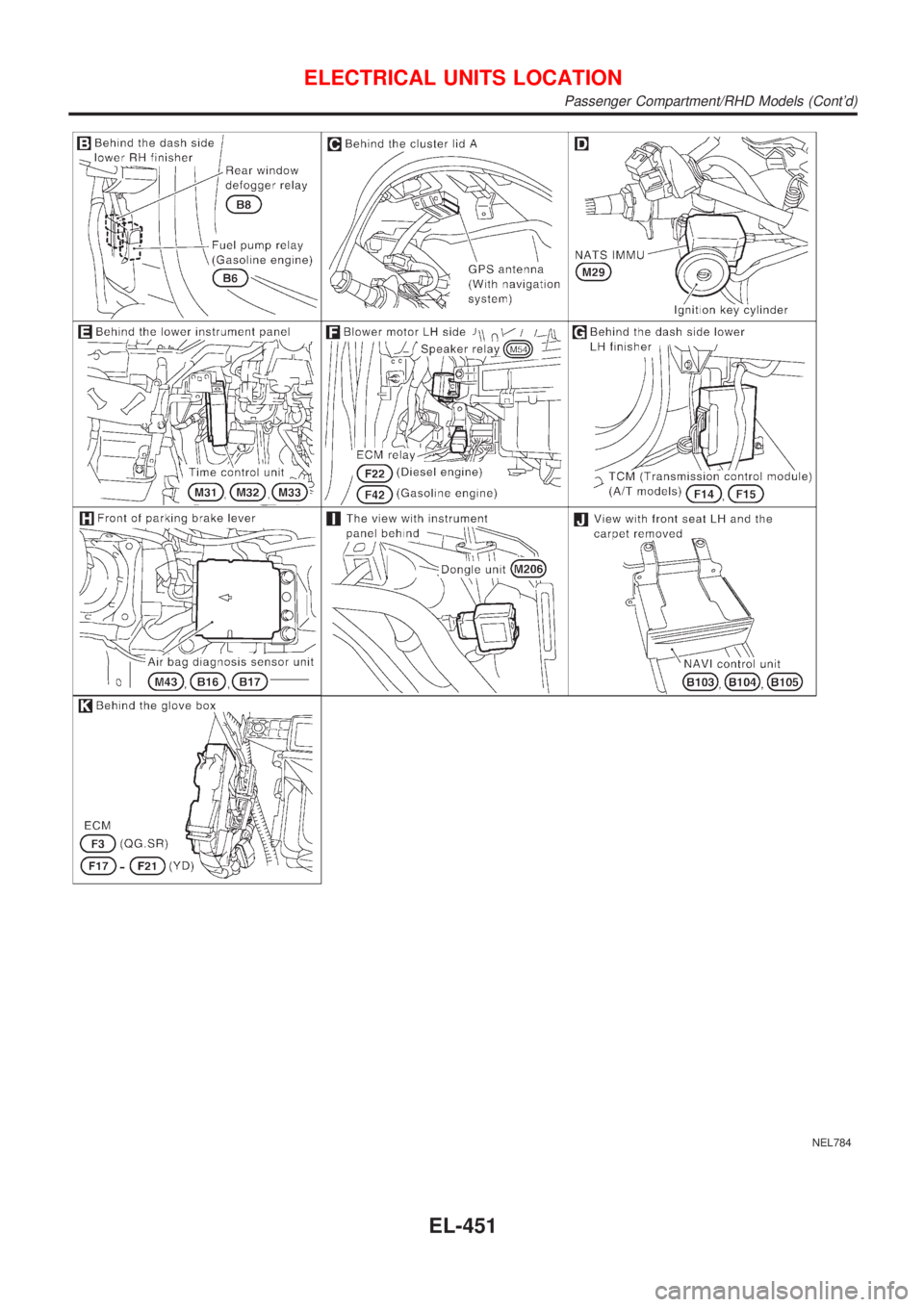

ELECTRICAL UNITS LOCATION
Passenger Compartment/RHD Models (Cont'd)
EL-451

How to Read Harness LayoutNLEL0131
SEL252V
The following Harness Layouts use a map style grid to help locate connectors on the drawings:
+Main Harness
+Engine Room Harness (Engine Compartment)
+Engine Control Harness
+Body Harness
TO USE THE GRID REFERENCENLEL0131S011. Find the desired connector number on the connector list.
2. Find the grid reference.
3. On the drawing, find the crossing of the grid reference letter column and number row.
4. Find the connector number in the crossing zone.
5. Follow the line (if used) to the connector.
CONNECTOR SYMBOLNLEL0131S02Main symbols of connector (in Harness Layout) are indicated in the below.
Connector typeWater proof type Standard type
Male Female Male Female
+Cavity: Less than 4
+Relay connector
+Cavity: From 5 to 8
+Cavity: More than 9
+Ground terminal etc.
Ð
HARNESS LAYOUT
How to Read Harness Layout
EL-452

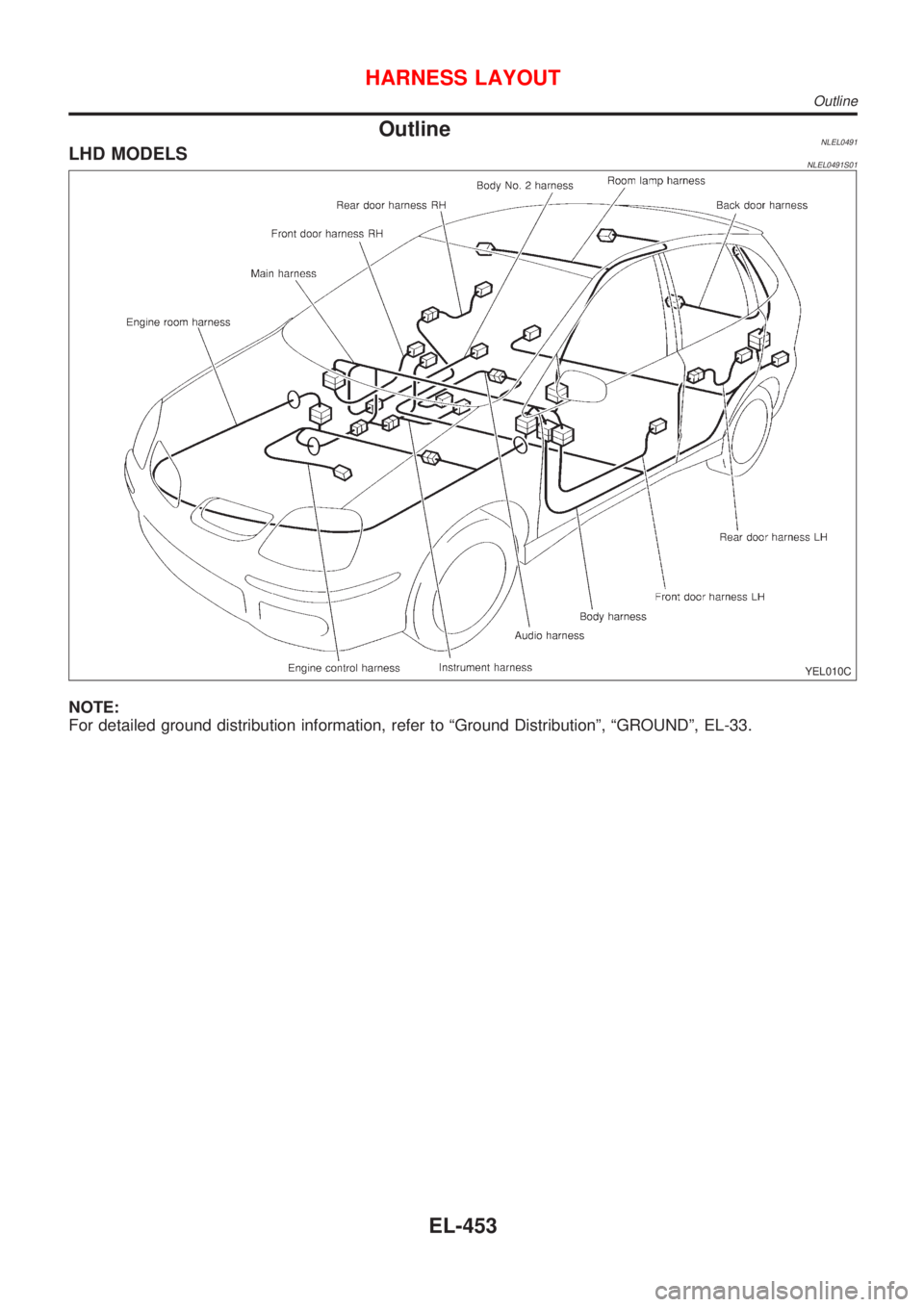

OutlineNLEL0491LHD MODELSNLEL0491S01
YEL010C
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-33.
HARNESS LAYOUT
Outline
EL-453

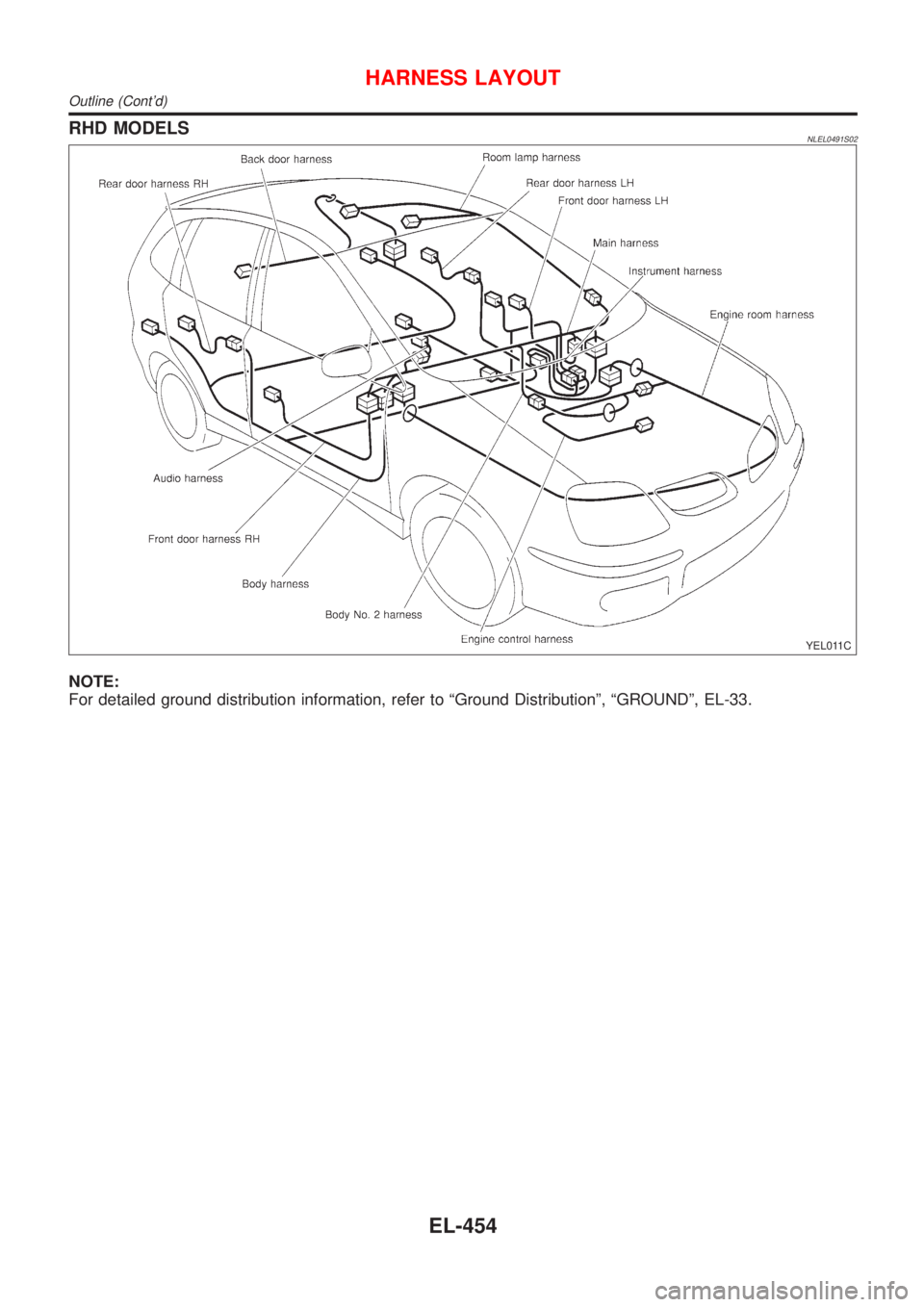

RHD MODELSNLEL0491S02
YEL011C
NOTE:
For detailed ground distribution information, refer to ªGround Distributionº, ªGROUNDº, EL-33.
HARNESS LAYOUT
Outline (Cont'd)
EL-454

NOTE:
HARNESS LAYOUT
Outline (Cont'd)
EL-455

Main HarnessNLEL0347LHD MODELS (MODELS WITH ECM IN ENGINE COMPARTMENT)NLEL0347S01
YEL012C
HARNESS LAYOUT
Main Harness
EL-456

YEL013C
HARNESS LAYOUT
Main Harness (Cont'd)
EL-457

LHD MODELS (MODELS WITH ECM IN CABIN)NLEL0347S04
YEL511C
HARNESS LAYOUT
Main Harness (Cont'd)
EL-458

YEL512C
HARNESS LAYOUT
Main Harness (Cont'd)
EL-459
