Connecting RodNLEM0152Unit: mm (in)
Center distance136.25 - 136.35 (5.3642 - 5.3681)
Bend [per 100 (3.94)] Limit 0.15 (0.0059)
Torsion [per 100 (3.94)] Limit 0.30 (0.0118)
Connecting rod small end inner diameter 24.980 - 25.000 (0.9835 - 0.9843)
Piston pin bushing inner diameter* 22.000 - 22.012 (0.8661 - 0.8666)
Connecting rod big end inner diameter 51.000 - 51.013 (2.0079 - 2.0084)
Side clearanceStandard 0.20 - 0.35 (0.0079 - 0.0138)
Limit 0.5 (0.020)
*After installing in connecting rod
SERVICE DATA AND SPECIFICATIONS (SDS)SR
Connecting Rod
EM-154

CrankshaftNLEM0153Unit: mm (in)
Main journal dia. ªDmºGrade No. 0 54.974 - 54.980(2.1643 - 2.1646)
Grade No. 1 54.968 - 54.974 (2.1641 - 2.1643)
Grade No. 2 54.962 - 54.968 (2.1639 - 2.1641)
Grade No. 3 54.956 - 54.962 (2.1636 - 2.1639)
Pin journal dia. ªDpºGrade No. 0 47.968 - 47.974 (1.8885 - 1.8887)
Grade No. 1 47.962 - 47.968 (1.8883 - 1.8885)
Grade No. 2 47.956 - 47.962 (1.8880 - 1.8883)
Center distance ªrº42.96 - 43.04 (1.6913 - 1.6945)
Out-of-round (X þ Y)
StandardMain journal Less than 0.005 (0.0002)
Pin journal Less than 0.003 (0.0001)
Taper (A þ B)
StandardMain journal Less than 0.005 (0.0002)
Pin journal Less than 0.0025 (0.0001)
Runout [TIR]Standard Less than 0.025 (0.0010)
Limit Less than 0.05 (0.0020)
Free end playStandard 0.10 - 0.26 (0.0039 - 0.0102)
Limit 0.30 (0.0118)
SEM954C
EM715
SERVICE DATA AND SPECIFICATIONS (SDS)SR
Crankshaft
EM-155

Main BearingNLEM0154
SEM685D
STANDARDNLEM0154S01Unit: mm (in)
Grade number Thickness ªTº Width ªWº Identification color (mark)
0 1.977 - 1.980 (0.0778 - 0.0780)
18.9 - 19.1 (0.744 - 0.752)Black (A)
1 1.980 - 1.983 (0.0780 - 0.0781) Red (B)
2 1.983 - 1.986 (0.0781 - 0.0782) Green (C)
3 1.986 - 1.989 (0.0782 - 0.0783) Yellow (D)
4 1.989 - 1.992 (0.0783 - 0.0784) Blue (E)
5 1.992 - 1.995 (0.0784 - 0.0785) Pink (F)
6 1.995 - 1.998 (0.0785 - 0.0787) White (G)
UNDERSIZENLEM0154S02Unit: mm (in)
Undersize Thickness ªTº Main journal diameter ªDmº
0.25 (0.0098) 2.109 - 2.117 (0.0830 - 0.0833)Grind so that bearing clearance is the specified
value.
Connecting Rod BearingNLEM0155STANDARD SIZENLEM0155S01Unit: mm (in)
Grade number Thickness ªTº Width ªWº Identification color (mark)
0 1.500 - 1.503 (0.0591 - 0.0592)
16.9 - 17.1 (0.665 - 0.673)Black or Yellow (A)
1 1.503 - 1.506 (0.0592 - 0.0593) Brown or Red (B)
2 1.506 - 1.509 (0.0593 - 0.0594) Green or Blue (C)
UNDERSIZENLEM0155S02Unit: mm (in)
Undersize Thickness ªTº Crank pin journal diameter ªDpº
0.08 (0.0031) 1.541 - 1.549 (0.0607 - 0.0610)
Grind so that bearing clearance is the specified
value. 0.12 (0.0047) 1.561 - 1.569 (0.0615 - 0.0618)
0.25 (0.0098) 1.626 - 1.634 (0.0640 - 0.0643)
SERVICE DATA AND SPECIFICATIONS (SDS)SR
Main Bearing
EM-156

Bearing ClearanceNLEM0156Unit: mm (in)
Main bearing clearanceStandard 0.004 - 0.022 (0.0002 - 0.0009)
Limit 0.05 (0.020)
Connecting rod bearing clearanceStandard 0.020 - 0.045 (0.0008 - 0.0018)
Limit 0.065 (0.0026)
Miscellaneous ComponentsNLEM0157Unit: mm (in)
Camshaft sprocket runout limit [TIR] 0.25 (0.0098)
Drive plate runout limit [TIR]0.2 (0.008)
SERVICE DATA AND SPECIFICATIONS (SDS)SR
Bearing Clearance
EM-157

Parts Requiring Angular TighteningNLEM0047+Use an angle wrench for the final tightening of the following
engine parts:
a) Cylinder head bolts
b) Main bearing cap bolts
c) Connecting rod cap nuts
d) Crankshaft pulley bolt
+Do not use a torque value for final tightening.
+The torque value for these parts are for a preliminary step.
+Ensure thread and seat surfaces are clean and coated with
engine oil.
SEM164F
Liquid Gasket Application ProcedureNLEM00481.Use a scraper to remove all traces of old liquid gasket
from mating surfaces and grooves. Also, completely clean
any oil from these areas.
2.Apply a continuous bead of liquid gasket to mating sur-
faces. (Use Genuine Liquid Gasket or equivalent.)
+Be sure liquid gasket diameter is as specified.
AEM080
3.Apply liquid gasket around the inner side of bolt holes
(unless otherwise specified).
4.Assembly should be done within 5 minutes after coating.
5.Wait at least 30 minutes before refilling engine oil and
engine coolant.
PRECAUTIONSYD
Parts Requiring Angular Tightening
EM-158

Special Service ToolsNLEM0049
Tool number
Tool nameDescription
ST0501S000
Engine stand assembly
1 ST05011000
Engine stand
2 ST05012000
Base
NT042
Disassembling and assembling
KV10106500
Engine stand shaft
NT028
KV11105900
Engine sub-attachment
NT799
KV10115900 has been replaced with
KV10106500.
KV10115600
Valve oil seal drift
NT603
Installing valve oil seal
Use side A.
Side A
a: 20 (0.79) dia.
b: 13 (0.51) dia.
c: 10.3 (0.406) dia.
d: 8 (0.31) dia.
e: 10.7 (0.421)
f: 5 (0.20)
Unit: mm (in)
KV10107902
Valve oil seal puller
1 KV10116100
Valve oil seal puller
adapter
NT605
Removing valve oil seal
KV11103000
Injection pump drive gear
puller
NT676
PREPARATIONYD
Special Service Tools
EM-159

Tool number
Tool nameDescription
KV101056S0
Ring gear stopper
1 KV10105630
Adapter
2 KV10105610
Plate
NT617
Preventing crankshaft from rotating
a: 3 (0.12)
b: 6.4 (0.252)
c: 2.8 (0.110)
d: 6.6 (0.260)
e: 107 (4.21)
f: 14 (0.55)
g: 20 (0.79)
h: 14 (0.55) dia.
Unit: mm (in)
KV101151S0
Lifter stopper set
1 KV10115110
Camshaft pliers
2 KV10115120
Lifter stopper
NT041
Changing shims
ST16610001
Pilot bushing puller
NT045
Removing crankshaft pilot bushing
KV101111 0 0
Seal cutter
NT046
Removing steel oil pan and rear timing chain
case
WS39930000
Tube presser
NT052
Pressing the tube of liquid gasket
KV10112100
Angle wrench
NT014
Tightening bolts for bearing cap, cylinder
head, etc.
KV10109300
Pulley holder
NT628
a: 68 mm (2.68 in)
b: 8 mm (0.31 in) dia.
PREPARATIONYD
Special Service Tools (Cont'd)
EM-160

Tool number
Tool nameDescription
KV11106010
Hexagon wrench
NT801
a: 5 mm (Face to face)
b: 20 mm
KV11106020
Hexagon wrench
NT803
a: 6 mm (Face to face)
b: 20 mm
KV11106030
Positioning stopper pin
NT804
a: 6 mm dia.
b: 80 mm
KV11106040
TORX wrench
NT805
a: T70
b: 26 mm
Commercial Service ToolsNLEM0050
Tool name Description
Valve seat cutter set
NT048
Finishing valve seat dimensions
Piston ring compressor
NT044
Installing piston assembly into cylinder bore
Piston ring expander
NT030
Removing and installing piston ring
PREPARATIONYD
Special Service Tools (Cont'd)
EM-161

Tool name Description
TORX socket
NT807
Standard Universal
NT808
PREPARATIONYD
Commercial Service Tools (Cont'd)
EM-162

NLEM0051

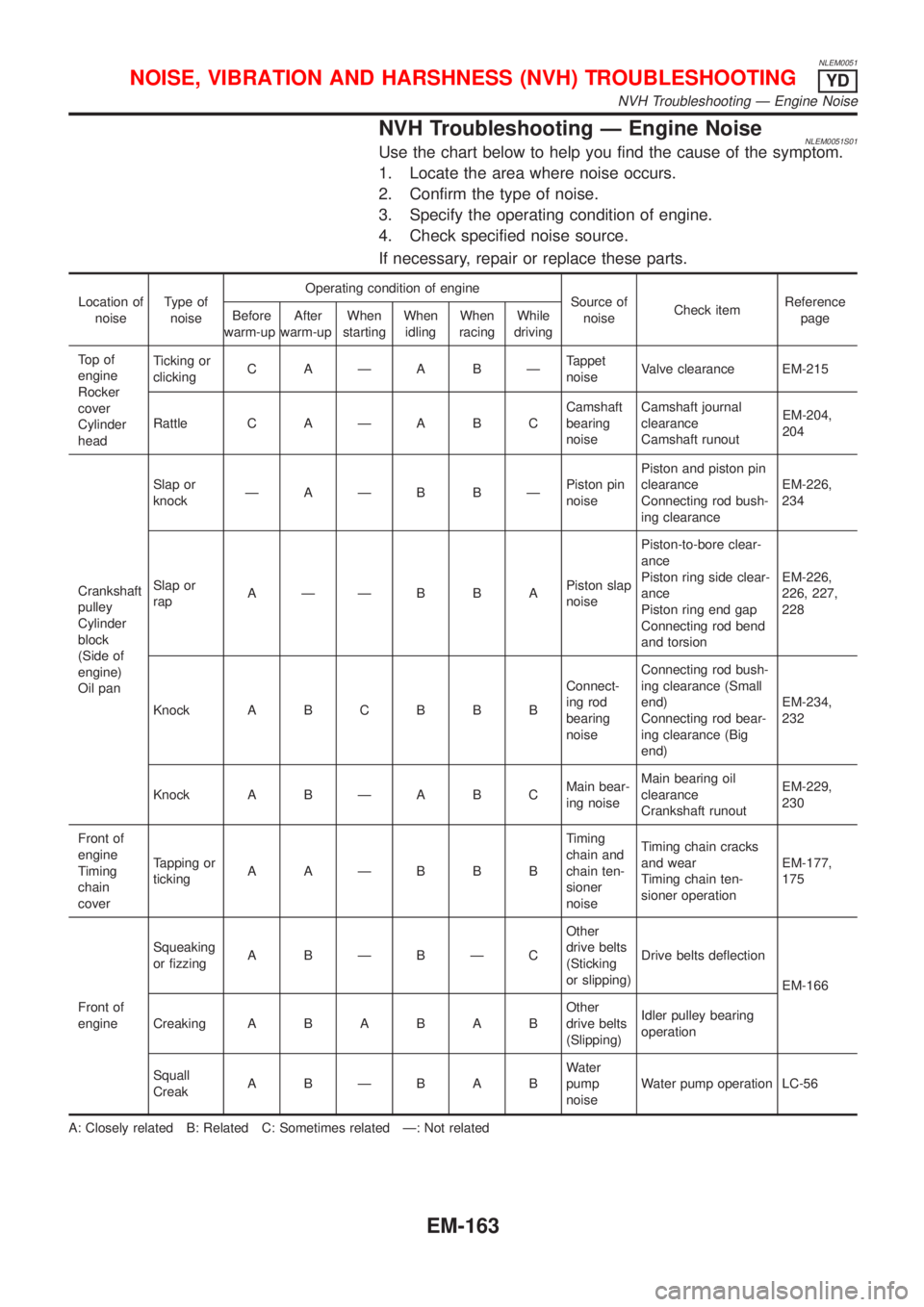

NVH Troubleshooting Ð Engine NoiseNLEM0051S01Use the chart below to help you find the cause of the symptom.
1. Locate the area where noise occurs.
2. Confirm the type of noise.
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
Location of
noiseType of
noiseOperating condition of engine
Source of
noiseCheck itemReference
page Before
warm-upAfter
warm-upWhen
startingWhen
idlingWhen
racingWhile
driving
To p o f
engine
Rocker
cover
Cylinder
headTicking or
clickingC AÐA BÐTappet
noiseValve clearance EM-215
Rattle C A Ð A B CCamshaft
bearing
noiseCamshaft journal
clearance
Camshaft runoutEM-204,
204
Crankshaft
pulley
Cylinder
block
(Side of
engine)
Oil panSlap or
knockÐAÐB BÐPiston pin
noisePiston and piston pin
clearance
Connecting rod bush-
ing clearanceEM-226,
234
Slap or
rapAÐÐB B APiston slap
noisePiston-to-bore clear-
ance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsionEM-226,
226, 227,
228
Knock A B C B B BConnect-
ing rod
bearing
noiseConnecting rod bush-
ing clearance (Small
end)
Connecting rod bear-
ing clearance (Big
end)EM-234,
232
Knock A B Ð A B CMain bear-
ing noiseMain bearing oil
clearance
Crankshaft runoutEM-229,
230
Front of
engine
Timing
chain
coverTapping or
tickingAAÐBBBTiming
chain and
chain ten-
sioner
noiseTiming chain cracks
and wear
Timing chain ten-
sioner operationEM-177,
175
Front of
engineSqueaking
or fizzingA BÐBÐCOther
drive belts
(Sticking
or slipping)Drive belts deflection
EM-166
CreakingABABABOther
drive belts
(Slipping)Idler pulley bearing
operation
Squall
CreakABÐBABWater
pump
noiseWater pump operation LC-56
A: Closely related B: Related C: Sometimes related Ð: Not related
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGYD
NVH Troubleshooting Ð Engine Noise
EM-163
