Removal and InstallationNLBT0034+When removing or installing back door, place a cloth or other padding on back door. This prevents vehicle
body from being scratched.
+Bumper fascia is made of plastic. Do not use excessive force and be sure to keep oil away from it.
+Back door adjustment: Adjust at hinge-back door portion for proper back door fit.
+Back door lock system adjustment: Adjust striker so that it is in the center of the lock. After adjustment,
check back door lock operation.
+After installation, make sure that back door and fuel filler lid open smoothly.
REAR BUMPER ASSEMBLYNLBT0034S011. Remove clips securing left and right chipping protectors.
2. Remove screws securing left and right rear fenders to bumper fascia.
3. Remove clips securing bumper fascia assembly.
4. Remove bolts securing left and right rear body to bumper fascia.
5. Open the bumper fascia side outward to disengage from side clips.
6. Extract bumper fascia assembly.
7. Remove nuts securing bumper reinforcement to left and right bumper stays.
8. Remove bolts securing bumper stays, then remove the bumper stays.
NBT168
BODY REAR END AND OPENER
Removal and Installation
BT-10

NBT169

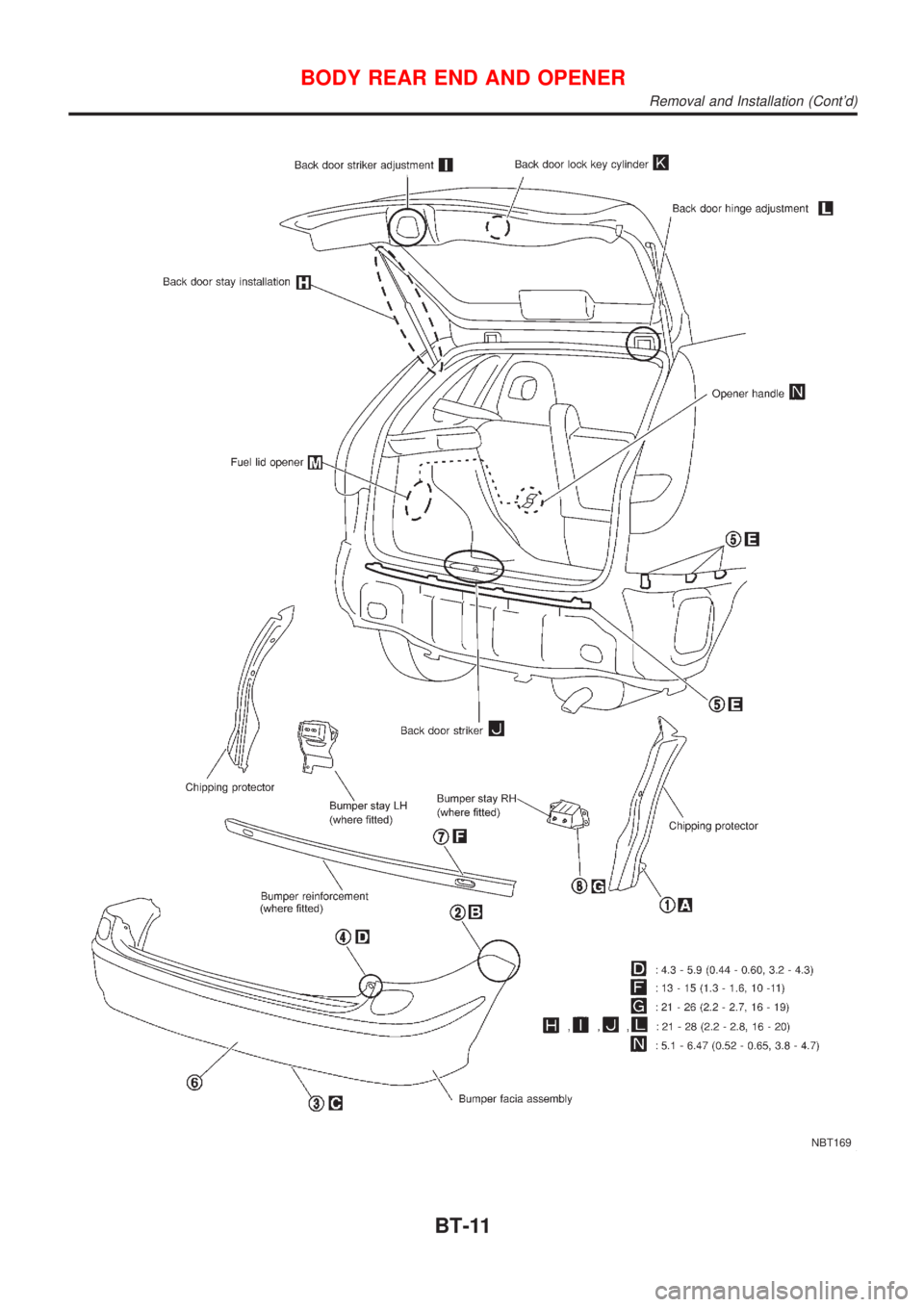

BODY REAR END AND OPENER
Removal and Installation (Cont'd)
BT-11

NBT170
BODY REAR END AND OPENER
Removal and Installation (Cont'd)
BT-12

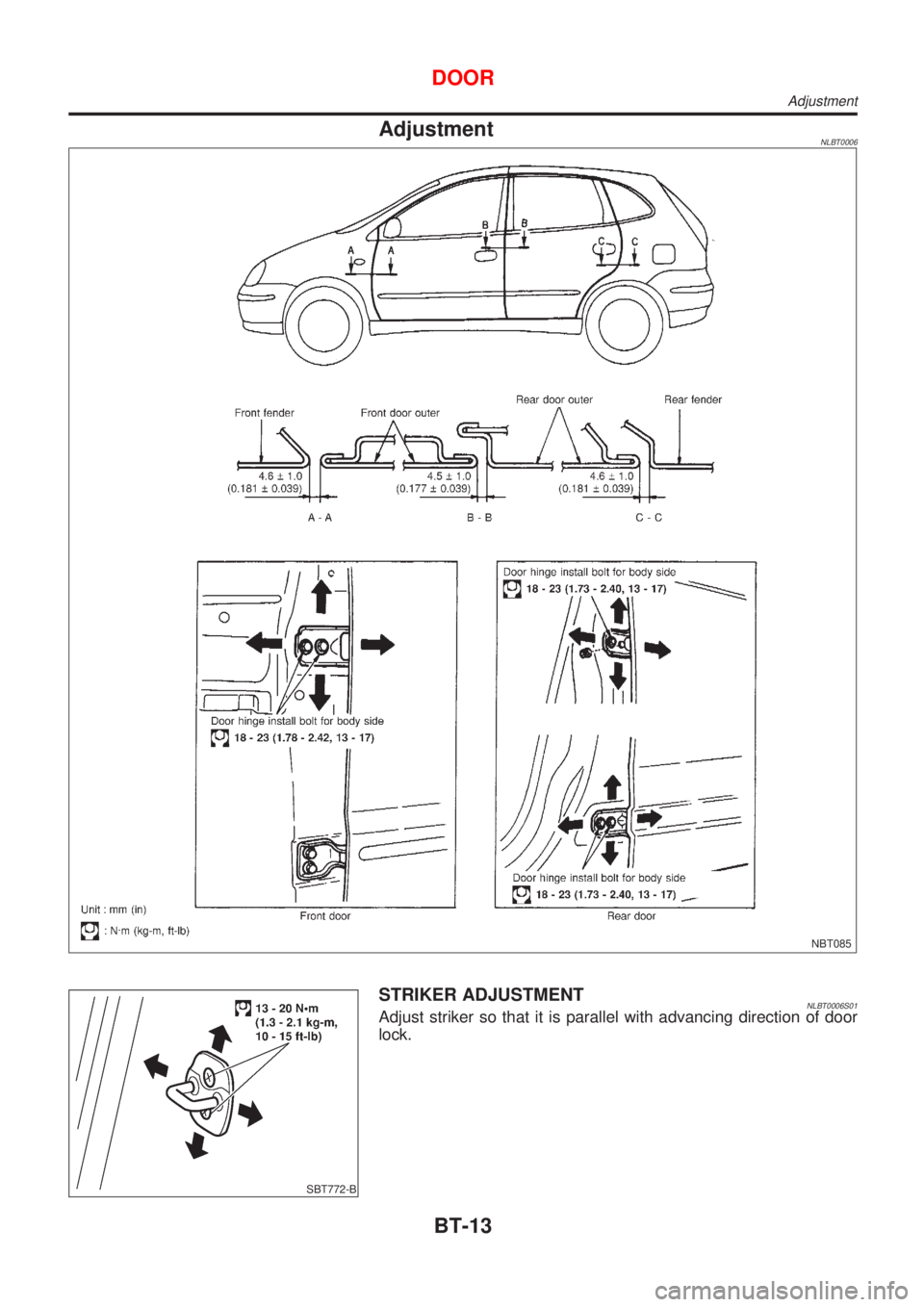

AdjustmentNLBT0006
NBT085
SBT772-B
STRIKER ADJUSTMENTNLBT0006S01Adjust striker so that it is parallel with advancing direction of door
lock.
DOOR
Adjustment
BT-13

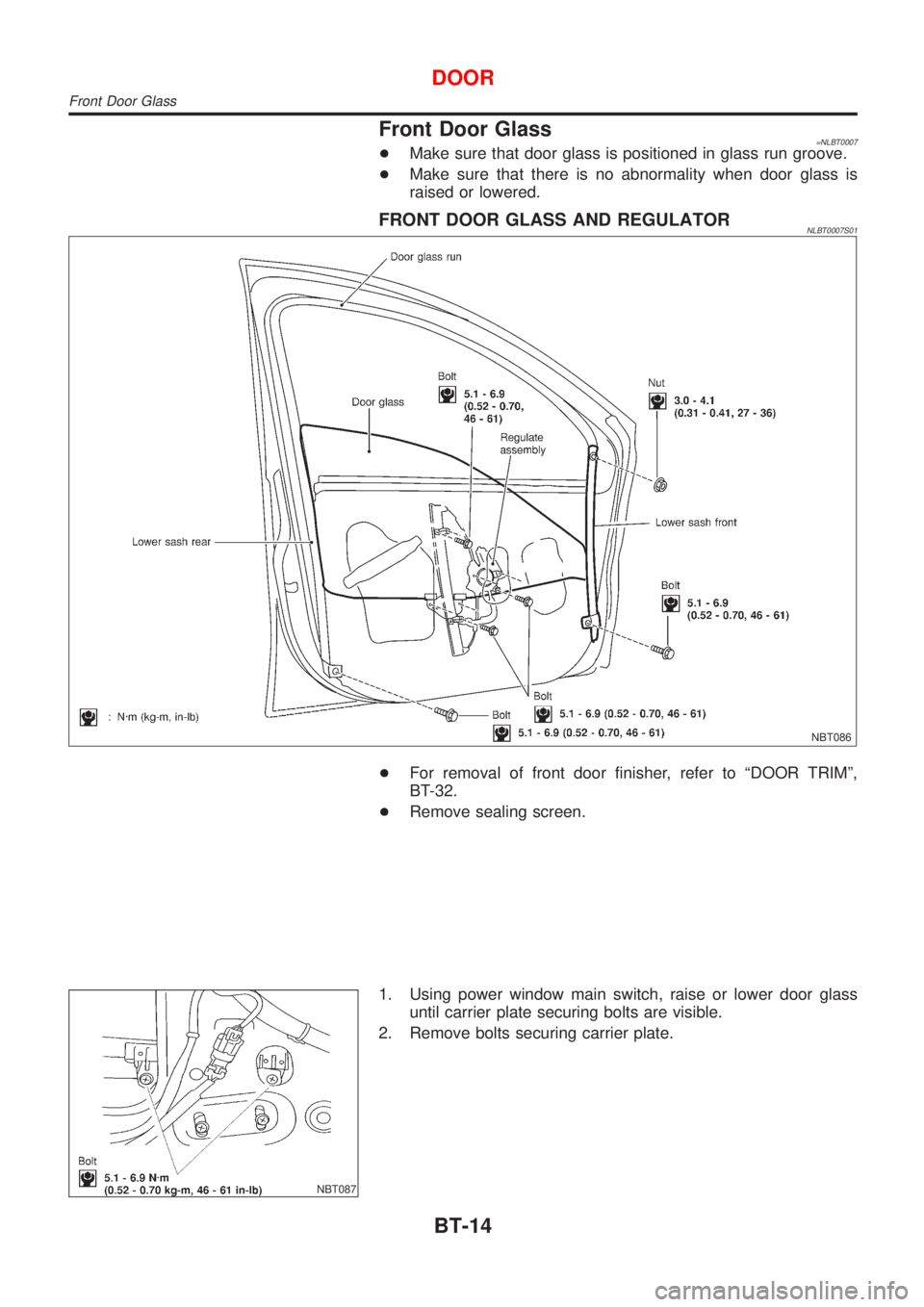

Front Door Glass=NLBT0007+Make sure that door glass is positioned in glass run groove.
+Make sure that there is no abnormality when door glass is
raised or lowered.
FRONT DOOR GLASS AND REGULATORNLBT0007S01
NBT086
+For removal of front door finisher, refer to ªDOOR TRIMº,
BT-32.
+Remove sealing screen.
NBT087
1. Using power window main switch, raise or lower door glass
until carrier plate securing bolts are visible.
2. Remove bolts securing carrier plate.
DOOR
Front Door Glass
BT-14

NBT088

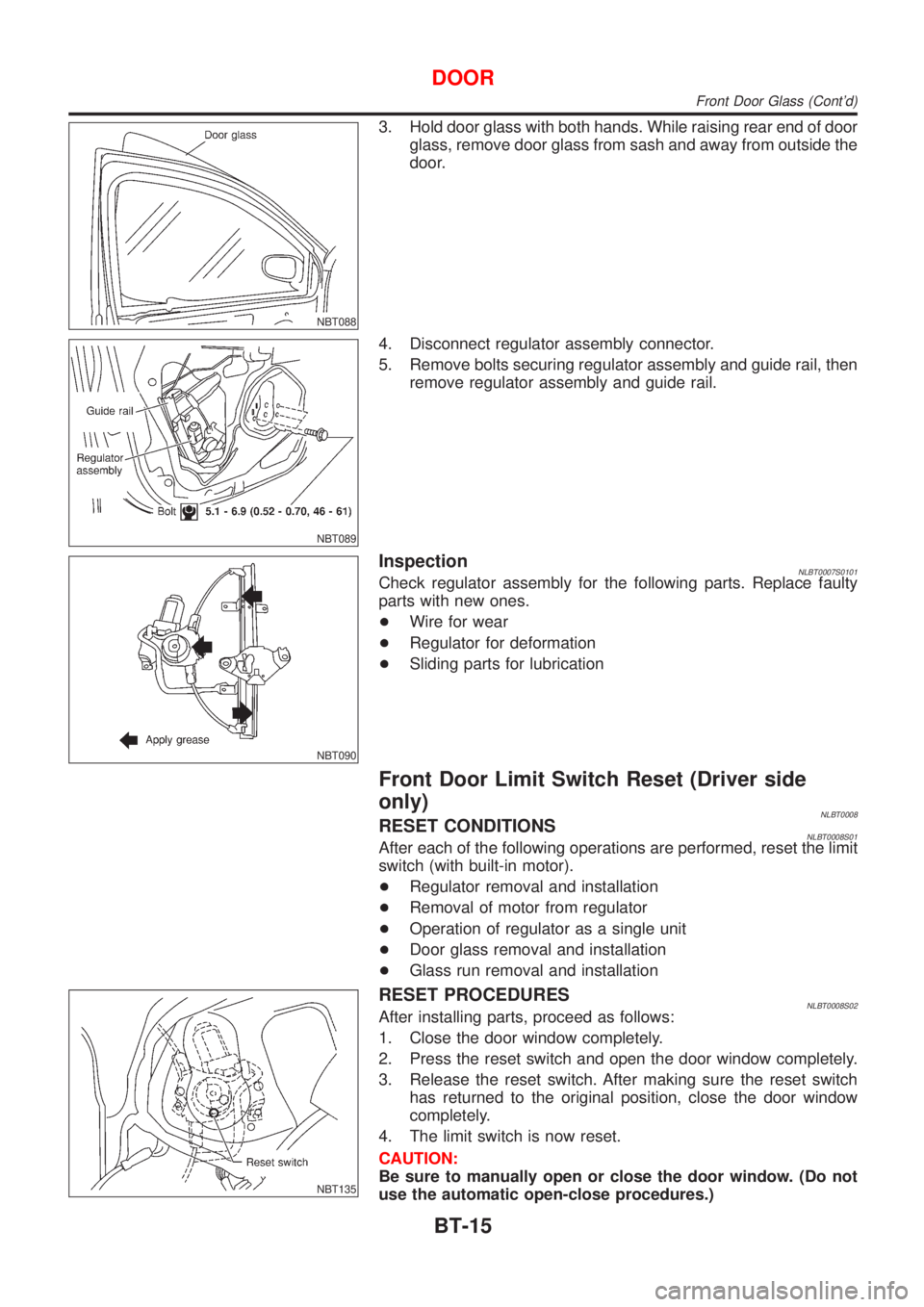

3. Hold door glass with both hands. While raising rear end of door
glass, remove door glass from sash and away from outside the
door.
NBT089
4. Disconnect regulator assembly connector.
5. Remove bolts securing regulator assembly and guide rail, then
remove regulator assembly and guide rail.
NBT090
InspectionNLBT0007S0101Check regulator assembly for the following parts. Replace faulty
parts with new ones.
+Wire for wear
+Regulator for deformation
+Sliding parts for lubrication
Front Door Limit Switch Reset (Driver side
only)
NLBT0008RESET CONDITIONSNLBT0008S01After each of the following operations are performed, reset the limit
switch (with built-in motor).
+Regulator removal and installation
+Removal of motor from regulator
+Operation of regulator as a single unit
+Door glass removal and installation
+Glass run removal and installation
NBT135
RESET PROCEDURESNLBT0008S02After installing parts, proceed as follows:
1. Close the door window completely.
2. Press the reset switch and open the door window completely.
3. Release the reset switch. After making sure the reset switch
has returned to the original position, close the door window
completely.
4. The limit switch is now reset.
CAUTION:
Be sure to manually open or close the door window. (Do not
use the automatic open-close procedures.)
DOOR
Front Door Glass (Cont'd)
BT-15

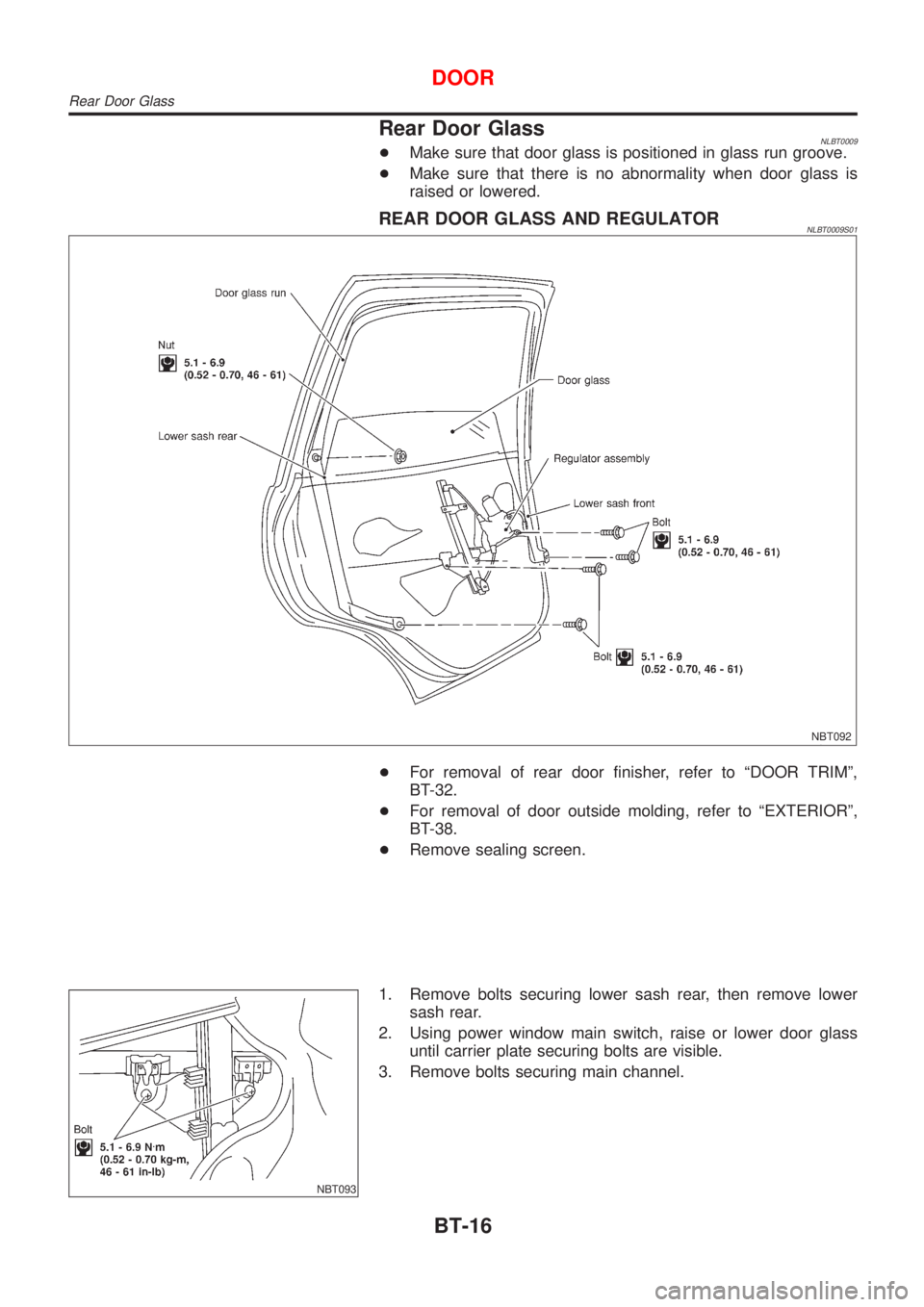

Rear Door GlassNLBT0009+Make sure that door glass is positioned in glass run groove.
+Make sure that there is no abnormality when door glass is
raised or lowered.
REAR DOOR GLASS AND REGULATORNLBT0009S01
NBT092
+For removal of rear door finisher, refer to ªDOOR TRIMº,
BT-32.
+For removal of door outside molding, refer to ªEXTERIORº,
BT-38.
+Remove sealing screen.
NBT093
1. Remove bolts securing lower sash rear, then remove lower
sash rear.
2. Using power window main switch, raise or lower door glass
until carrier plate securing bolts are visible.
3. Remove bolts securing main channel.
DOOR
Rear Door Glass
BT-16

NBT094

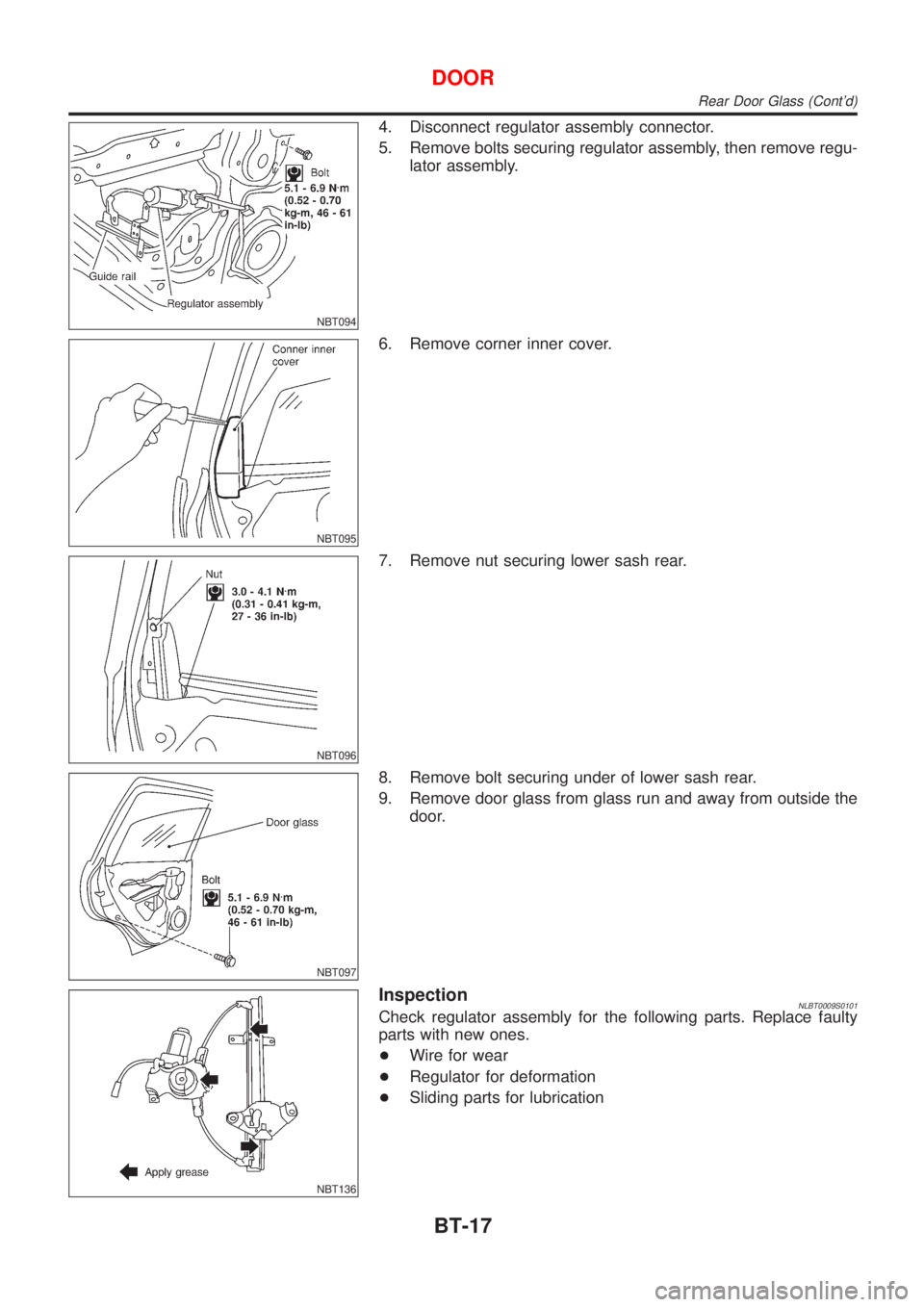

4. Disconnect regulator assembly connector.
5. Remove bolts securing regulator assembly, then remove regu-
lator assembly.
NBT095
6. Remove corner inner cover.
NBT096
7. Remove nut securing lower sash rear.
NBT097
8. Remove bolt securing under of lower sash rear.
9. Remove door glass from glass run and away from outside the
door.
NBT136
InspectionNLBT0009S0101Check regulator assembly for the following parts. Replace faulty
parts with new ones.
+Wire for wear
+Regulator for deformation
+Sliding parts for lubrication
DOOR
Rear Door Glass (Cont'd)
BT-17

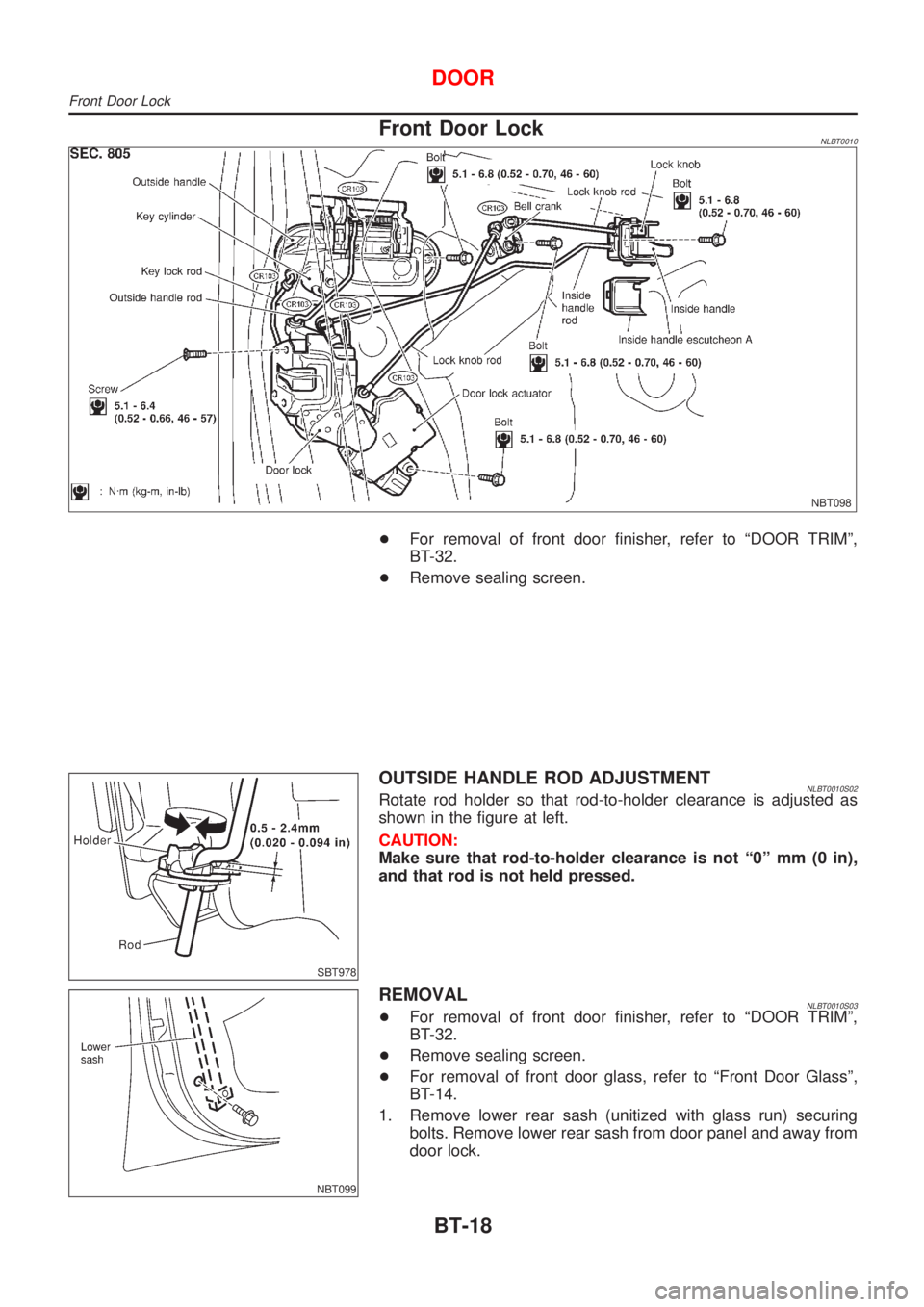

Front Door LockNLBT0010
NBT098
+For removal of front door finisher, refer to ªDOOR TRIMº,
BT-32.
+Remove sealing screen.
SBT978
OUTSIDE HANDLE ROD ADJUSTMENTNLBT0010S02Rotate rod holder so that rod-to-holder clearance is adjusted as
shown in the figure at left.
CAUTION:
Make sure that rod-to-holder clearance is not ª0º mm (0 in),
and that rod is not held pressed.
NBT099
REMOVALNLBT0010S03+For removal of front door finisher, refer to ªDOOR TRIMº,
BT-32.
+Remove sealing screen.
+For removal of front door glass, refer to ªFront Door Glassº,
BT-14.
1. Remove lower rear sash (unitized with glass run) securing
bolts. Remove lower rear sash from door panel and away from
door lock.
DOOR
Front Door Lock
BT-18

NBT100

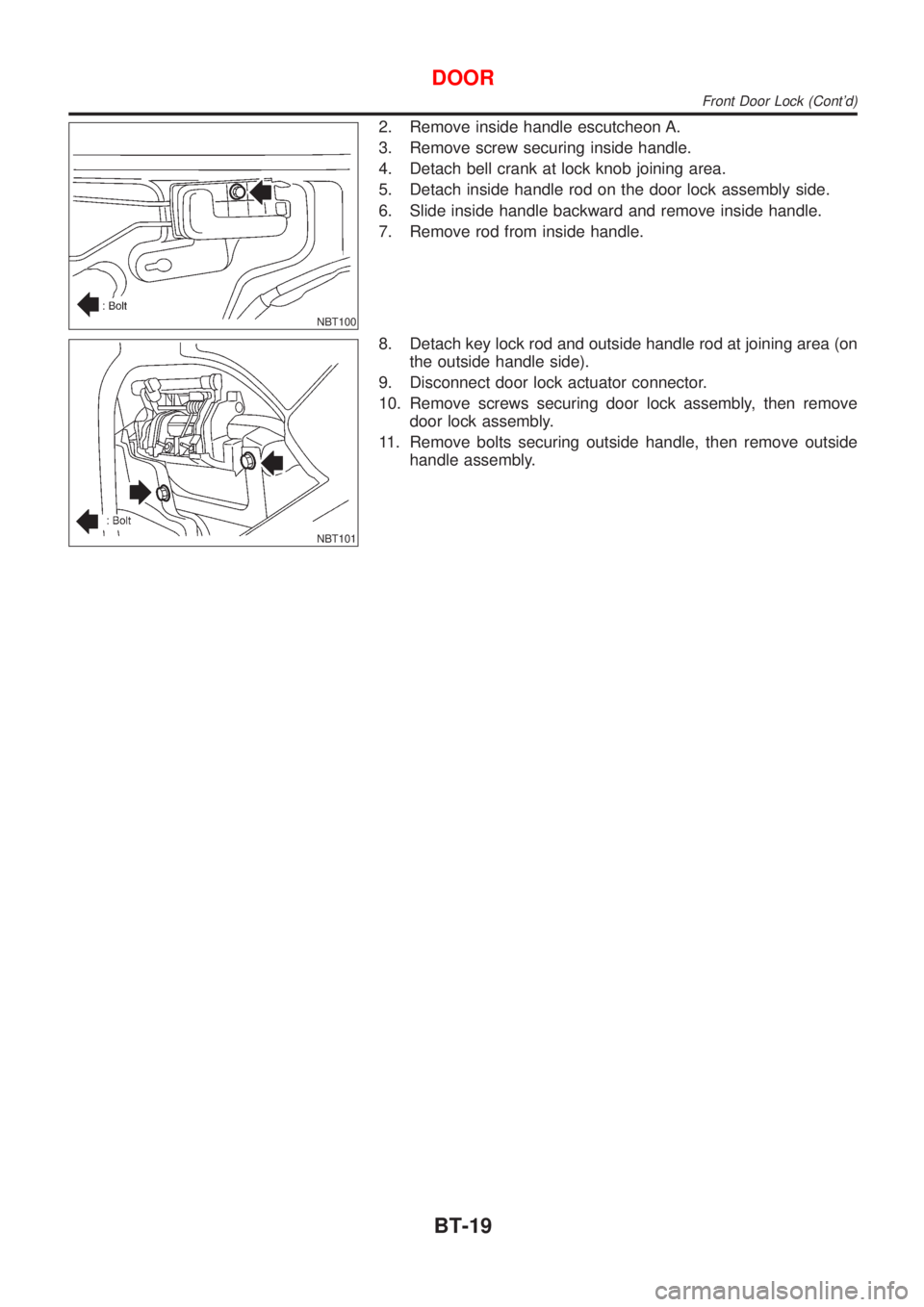

2. Remove inside handle escutcheon A.
3. Remove screw securing inside handle.
4. Detach bell crank at lock knob joining area.
5. Detach inside handle rod on the door lock assembly side.
6. Slide inside handle backward and remove inside handle.
7. Remove rod from inside handle.
NBT101
8. Detach key lock rod and outside handle rod at joining area (on
the outside handle side).
9. Disconnect door lock actuator connector.
10. Remove screws securing door lock assembly, then remove
door lock assembly.
11. Remove bolts securing outside handle, then remove outside
handle assembly.
DOOR
Front Door Lock (Cont'd)
