NISSAN ALMERA TINO 2001 Service Repair Manual

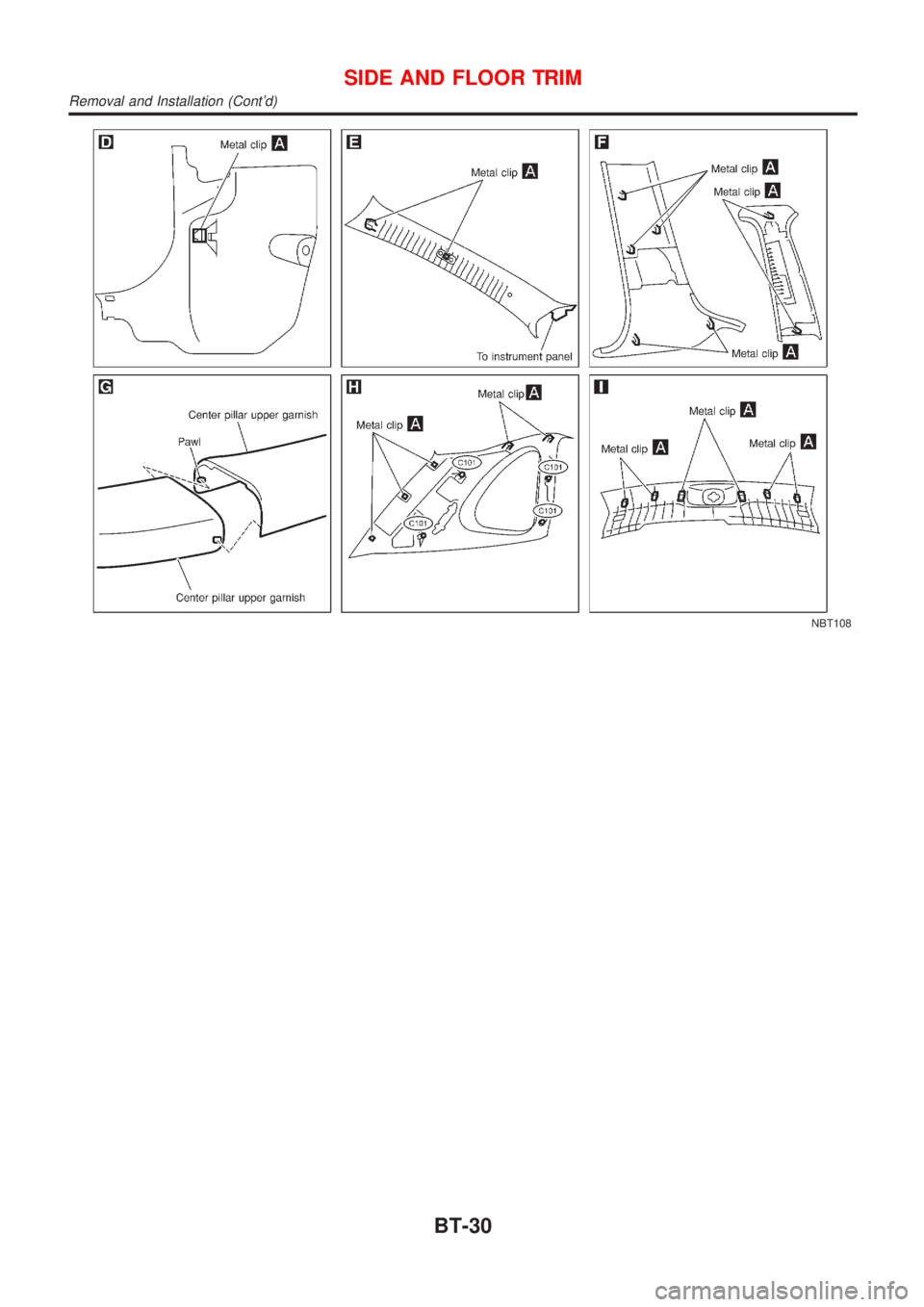

NBT108
SIDE AND FLOOR TRIM
Removal and Installation (Cont'd)
BT-30

Removal and InstallationNLBT0016
NBT181
LUGGAGE ROOM TRIM
Removal and Installation
BT-31

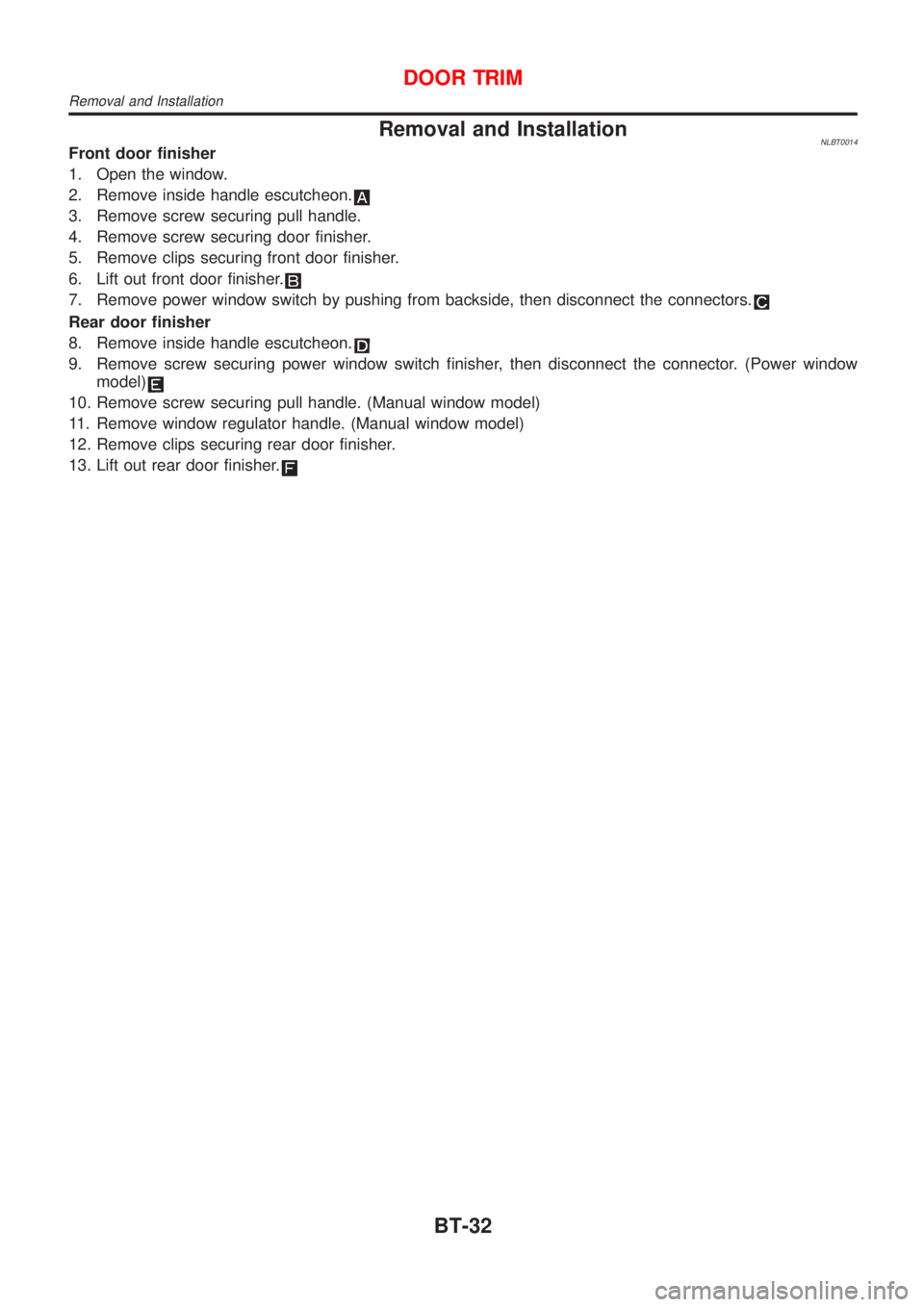

Removal and InstallationNLBT0014Front door finisher
1. Open the window.
2. Remove inside handle escutcheon.
3. Remove screw securing pull handle.
4. Remove screw securing door finisher.
5. Remove clips securing front door finisher.
6. Lift out front door finisher.
7. Remove power window switch by pushing from backside, then disconnect the connectors.
Rear door finisher
8. Remove inside handle escutcheon.
9. Remove screw securing power window switch finisher, then disconnect the connector. (Power window
model)
10. Remove screw securing pull handle. (Manual window model)
11. Remove window regulator handle. (Manual window model)
12. Remove clips securing rear door finisher.
13. Lift out rear door finisher.
DOOR TRIM
Removal and Installation
BT-32

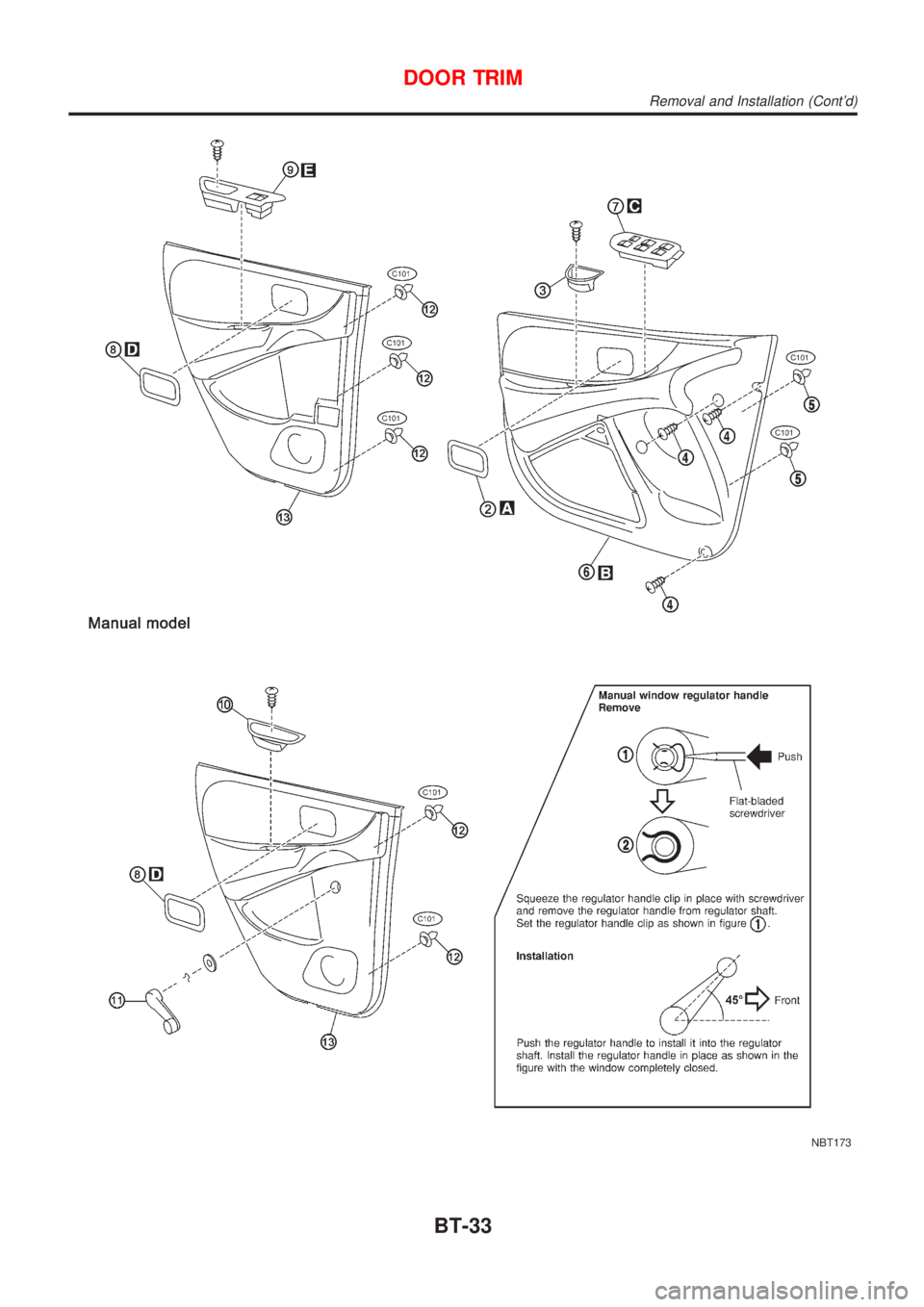

NBT173
DOOR TRIM
Removal and Installation (Cont'd)
BT-33

NBT174
DOOR TRIM
Removal and Installation (Cont'd)
BT-34

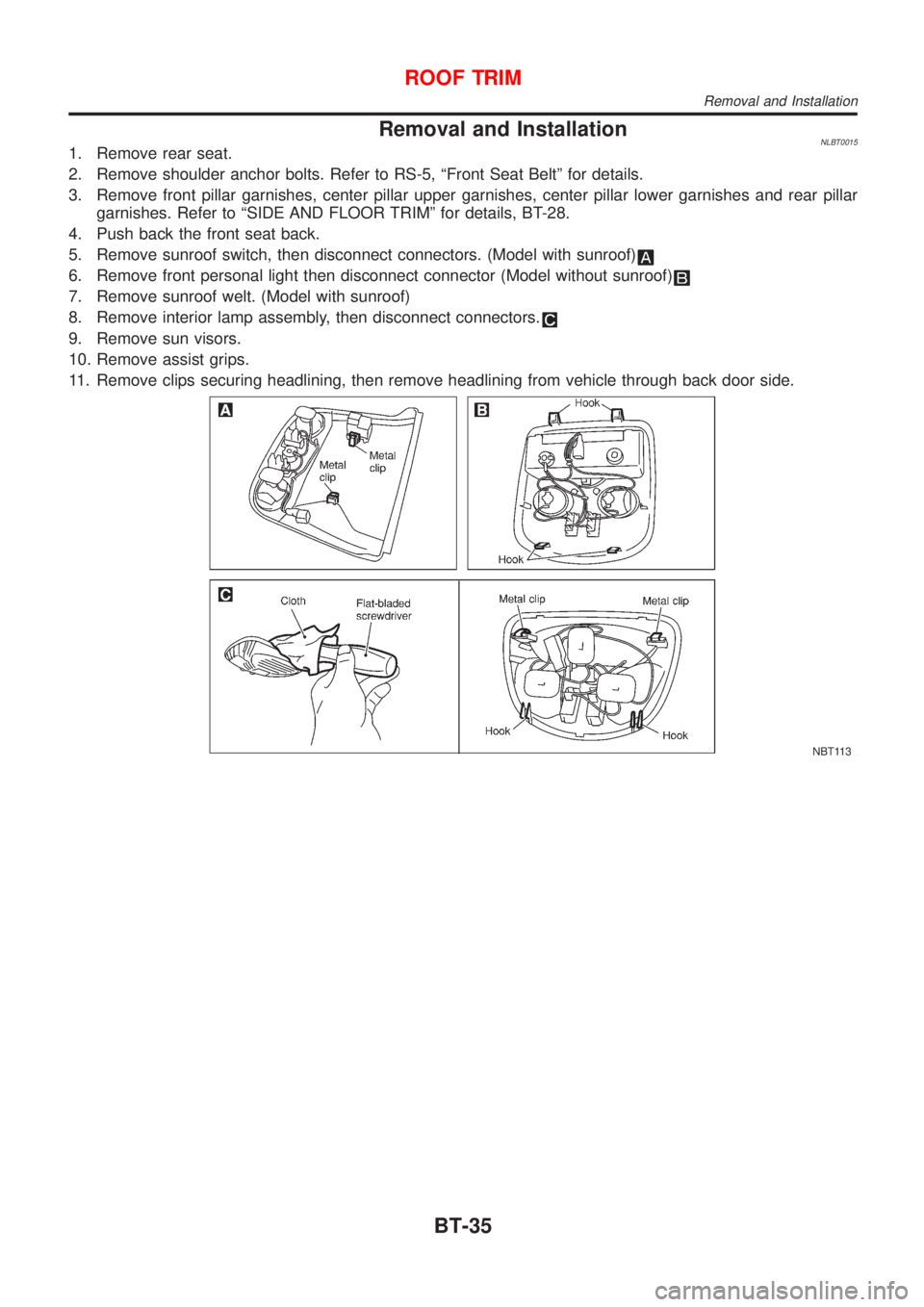

Removal and InstallationNLBT00151. Remove rear seat.
2. Remove shoulder anchor bolts. Refer to RS-5, ªFront Seat Beltº for details.
3. Remove front pillar garnishes, center pillar upper garnishes, center pillar lower garnishes and rear pillar
garnishes. Refer to ªSIDE AND FLOOR TRIMº for details, BT-28.
4. Push back the front seat back.
5. Remove sunroof switch, then disconnect connectors. (Model with sunroof)
6. Remove front personal light then disconnect connector (Model without sunroof)
7. Remove sunroof welt. (Model with sunroof)
8. Remove interior lamp assembly, then disconnect connectors.
9. Remove sun visors.
10. Remove assist grips.
11. Remove clips securing headlining, then remove headlining from vehicle through back door side.
NBT113
ROOF TRIM
Removal and Installation
BT-35

NBT114
ROOF TRIM
Removal and Installation (Cont'd)
BT-36

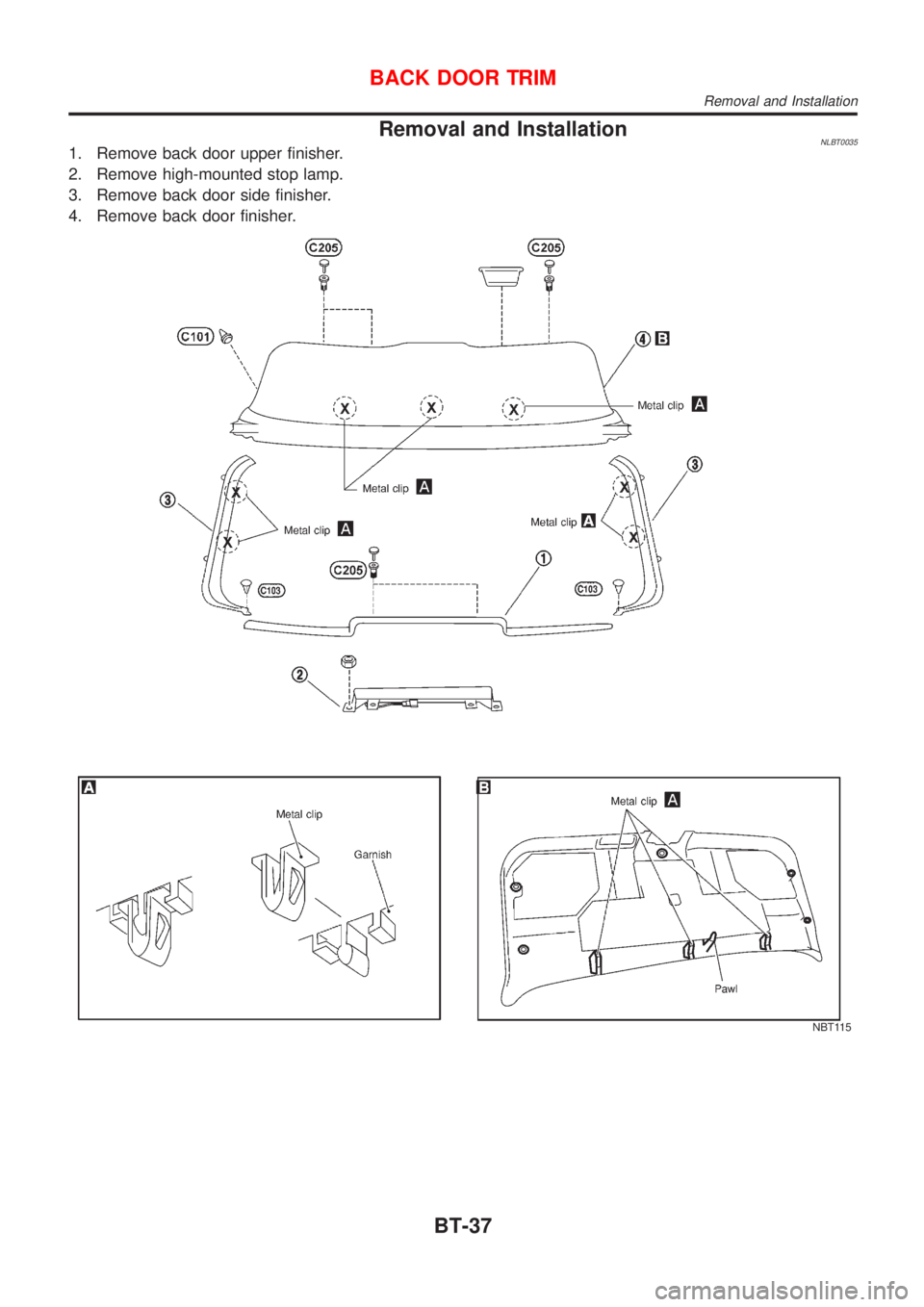

Removal and InstallationNLBT00351. Remove back door upper finisher.
2. Remove high-mounted stop lamp.
3. Remove back door side finisher.
4. Remove back door finisher.
NBT115
BACK DOOR TRIM
Removal and Installation
BT-37

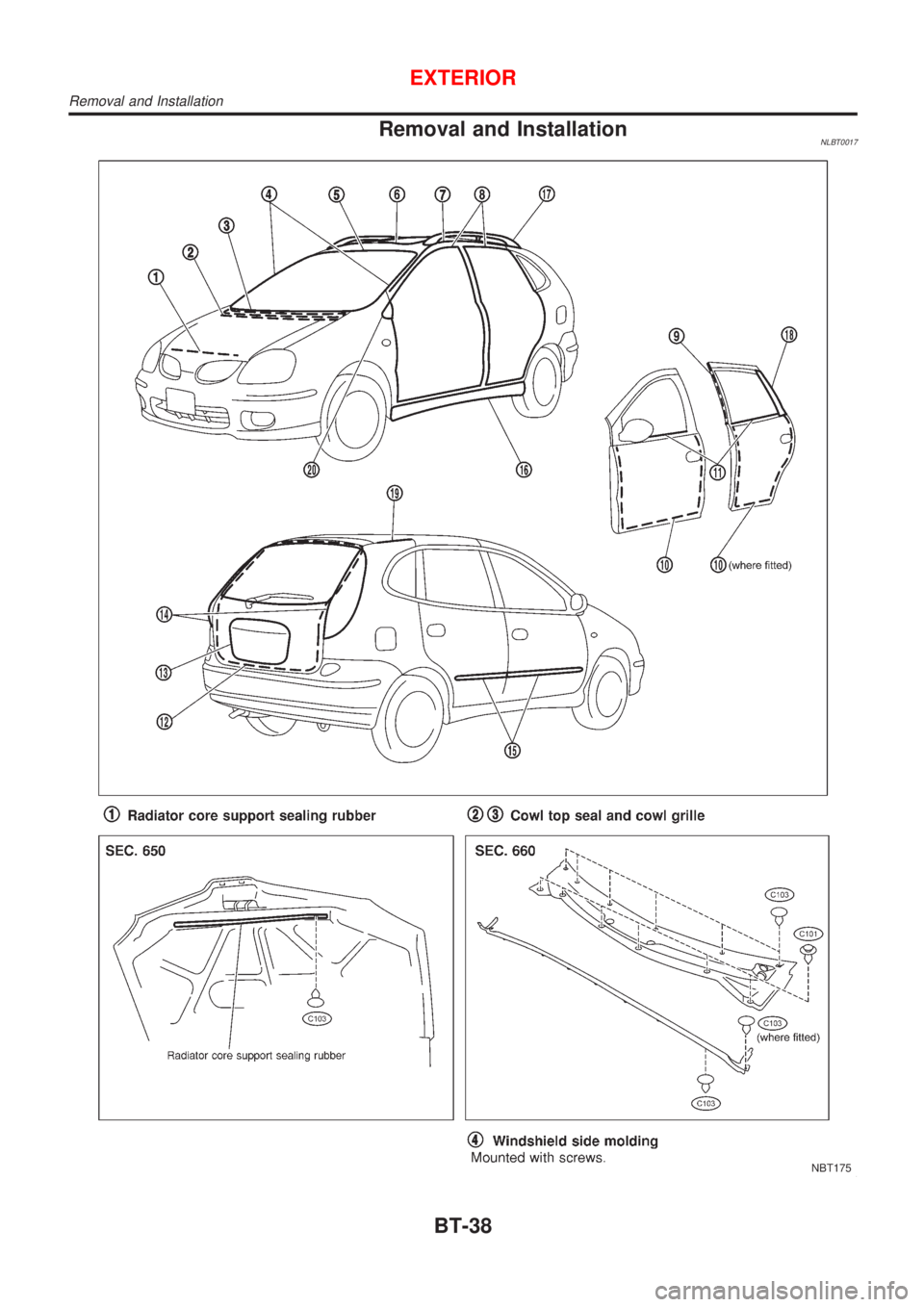

Removal and InstallationNLBT0017
NBT175
EXTERIOR
Removal and Installation
BT-38

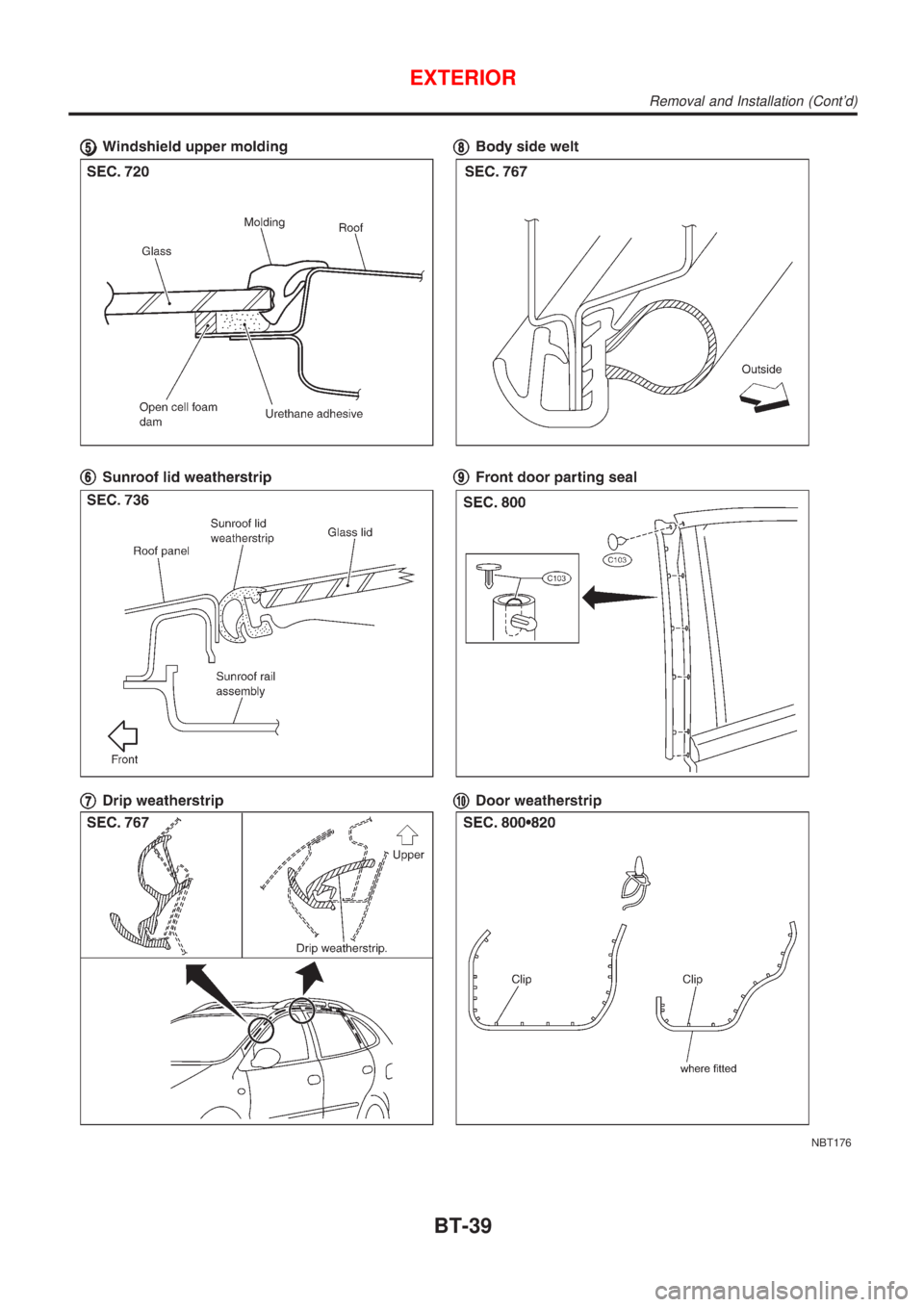

NBT176
EXTERIOR
Removal and Installation (Cont'd)
BT-39
