NISSAN ALMERA TINO 2001 Service Repair Manual

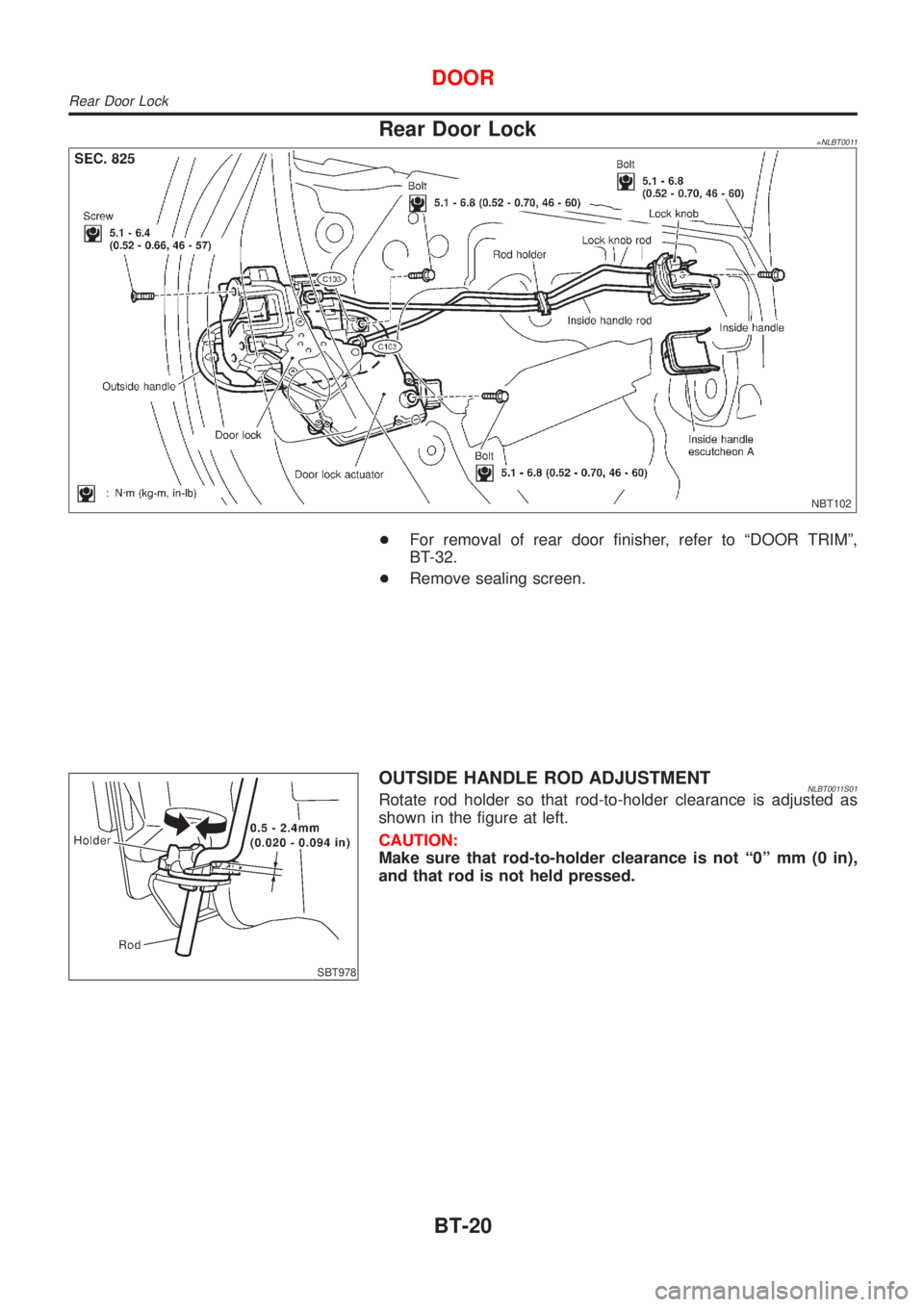

Rear Door Lock=NLBT0011
NBT102
+For removal of rear door finisher, refer to ªDOOR TRIMº,
BT-32.
+Remove sealing screen.
SBT978
OUTSIDE HANDLE ROD ADJUSTMENTNLBT0011S01Rotate rod holder so that rod-to-holder clearance is adjusted as
shown in the figure at left.
CAUTION:
Make sure that rod-to-holder clearance is not ª0º mm (0 in),
and that rod is not held pressed.
DOOR
Rear Door Lock
BT-20

SBT983

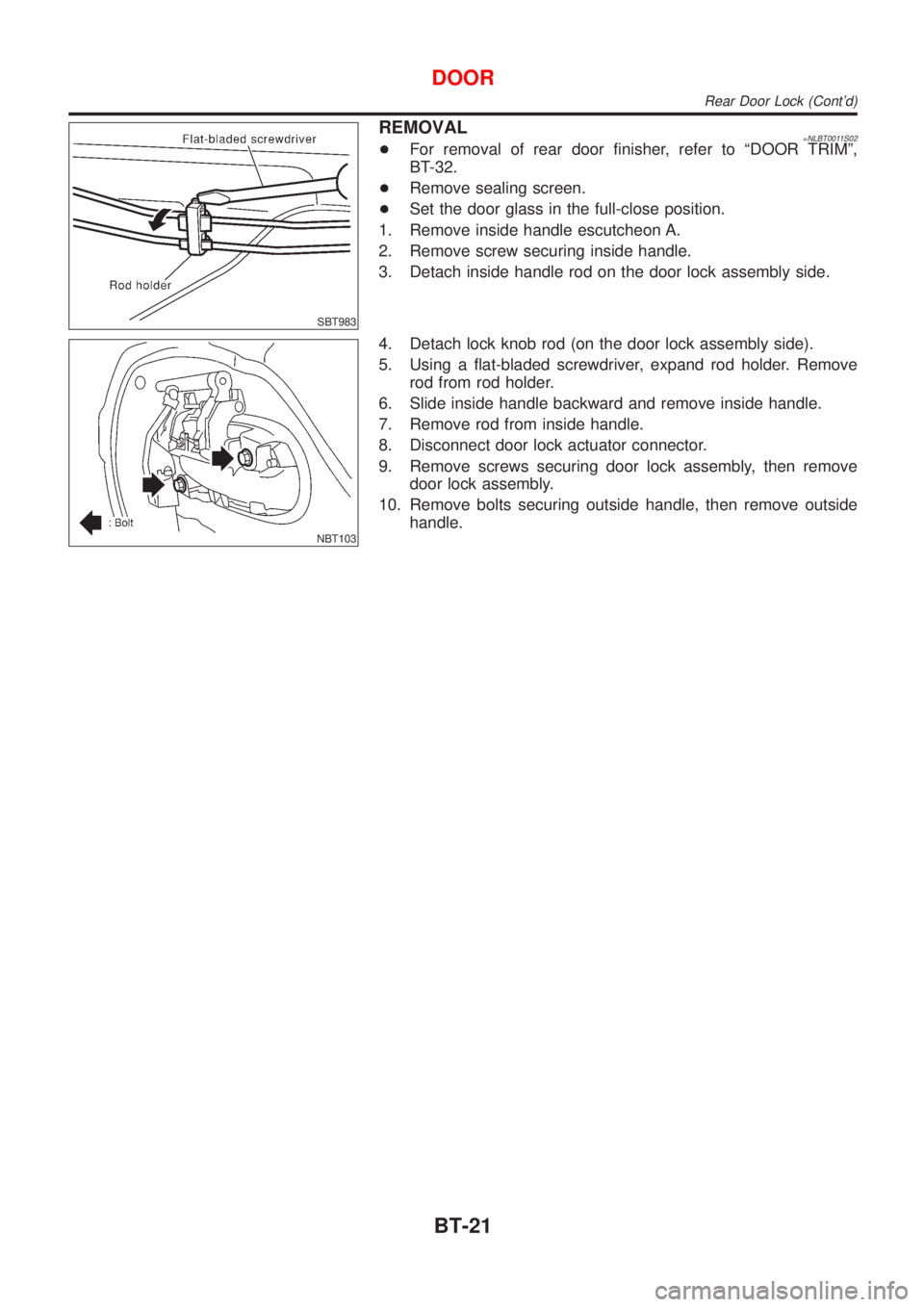

REMOVAL=NLBT0011S02+For removal of rear door finisher, refer to ªDOOR TRIMº,
BT-32.
+Remove sealing screen.
+Set the door glass in the full-close position.
1. Remove inside handle escutcheon A.
2. Remove screw securing inside handle.
3. Detach inside handle rod on the door lock assembly side.
NBT103
4. Detach lock knob rod (on the door lock assembly side).
5. Using a flat-bladed screwdriver, expand rod holder. Remove
rod from rod holder.
6. Slide inside handle backward and remove inside handle.
7. Remove rod from inside handle.
8. Disconnect door lock actuator connector.
9. Remove screws securing door lock assembly, then remove
door lock assembly.
10. Remove bolts securing outside handle, then remove outside
handle.
DOOR
Rear Door Lock (Cont'd)
BT-21

Removal and InstallationNLBT0012CAUTION:
+Disconnect ground terminal from battery in advance.
+Disconnect air bag system line in advance.
+Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
+Be careful not to scratch pad and other parts.
INSTRUMENT PANEL ASSEMBLY
Removal and Installation
BT-22

NBT133
*1 RS-24 *2 BT-28 *3 RS-27

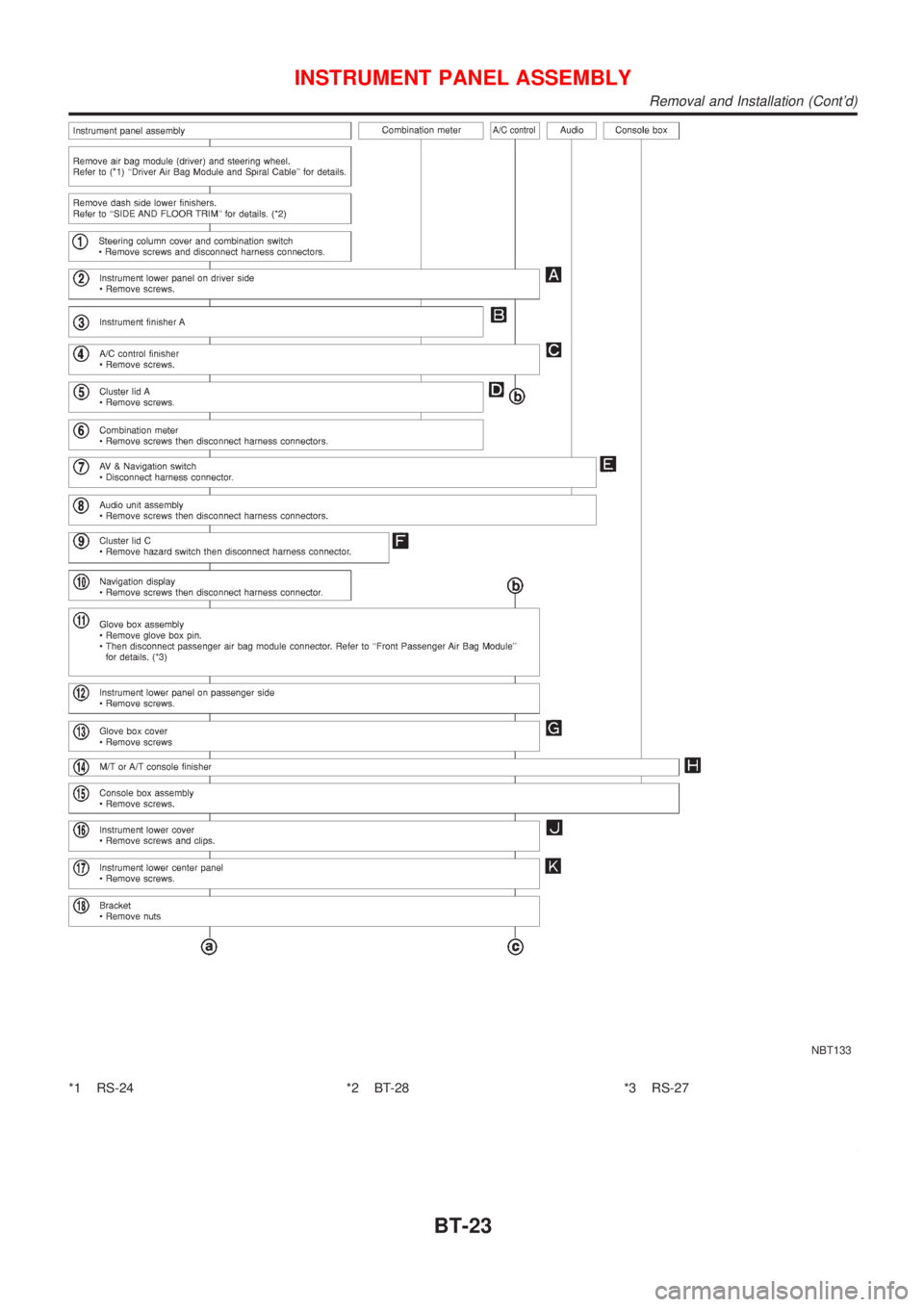

INSTRUMENT PANEL ASSEMBLY
Removal and Installation (Cont'd)
BT-23

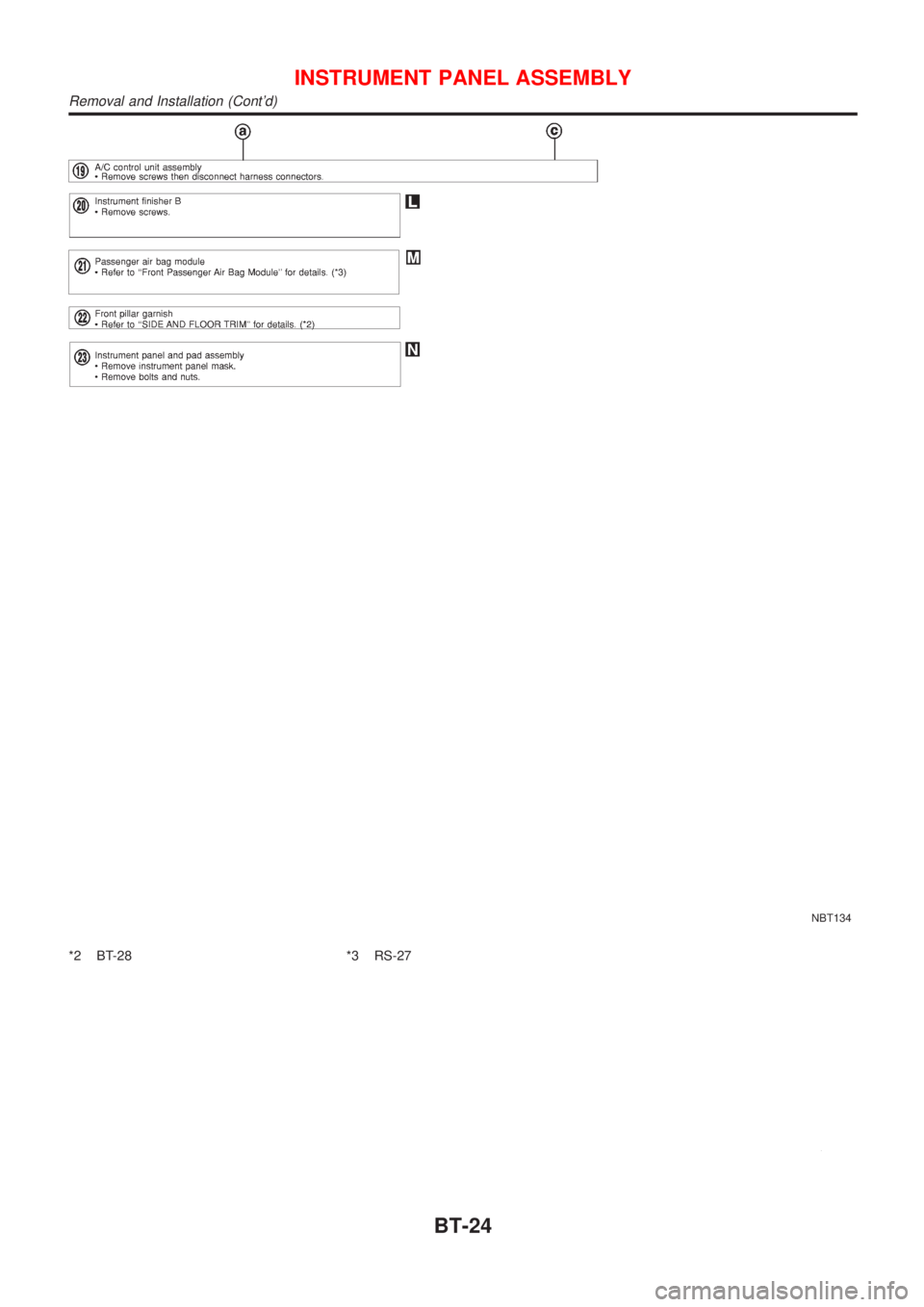

NBT134
*2 BT-28 *3 RS-27
INSTRUMENT PANEL ASSEMBLY
Removal and Installation (Cont'd)
BT-24

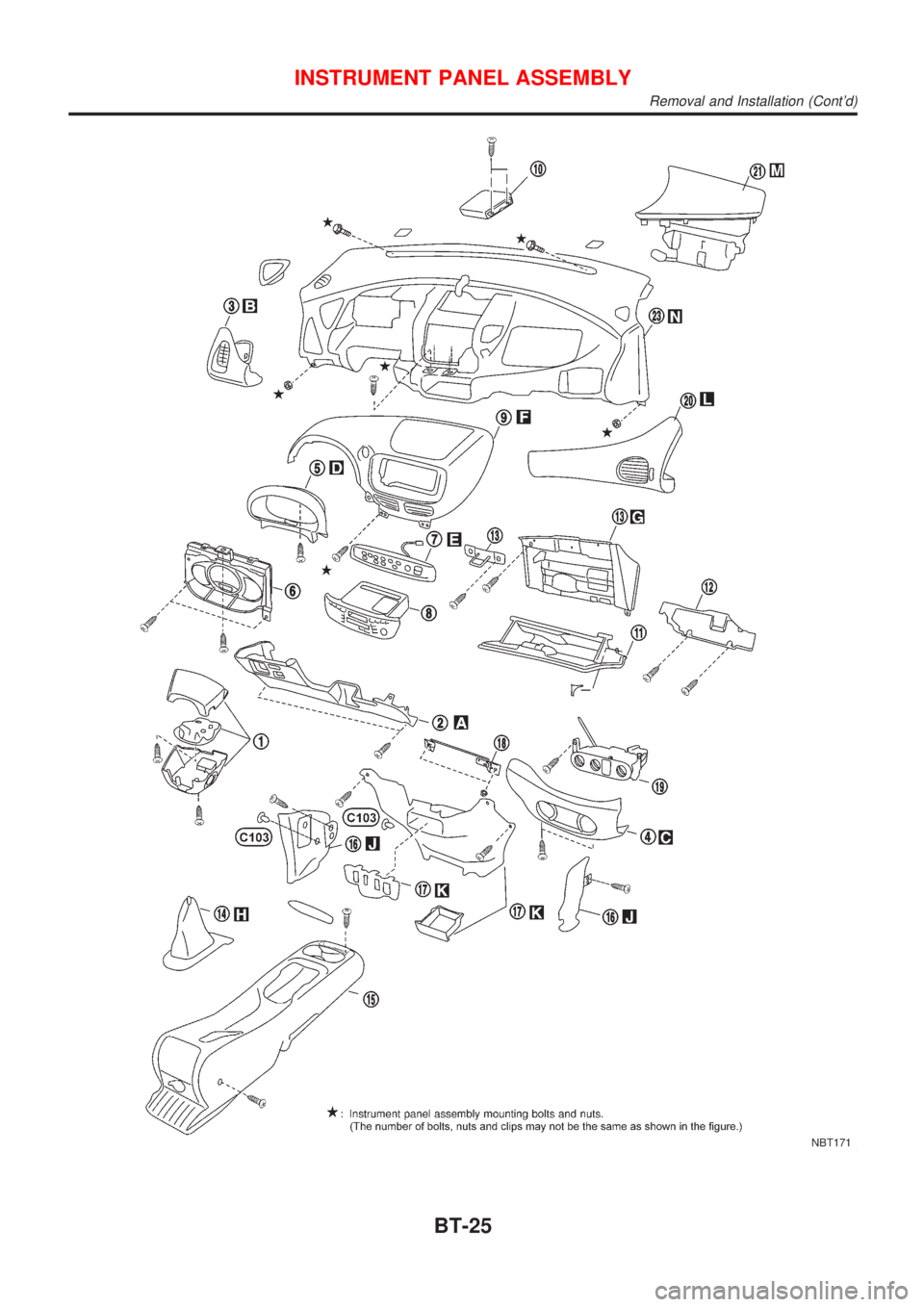

NBT171
INSTRUMENT PANEL ASSEMBLY
Removal and Installation (Cont'd)
BT-25

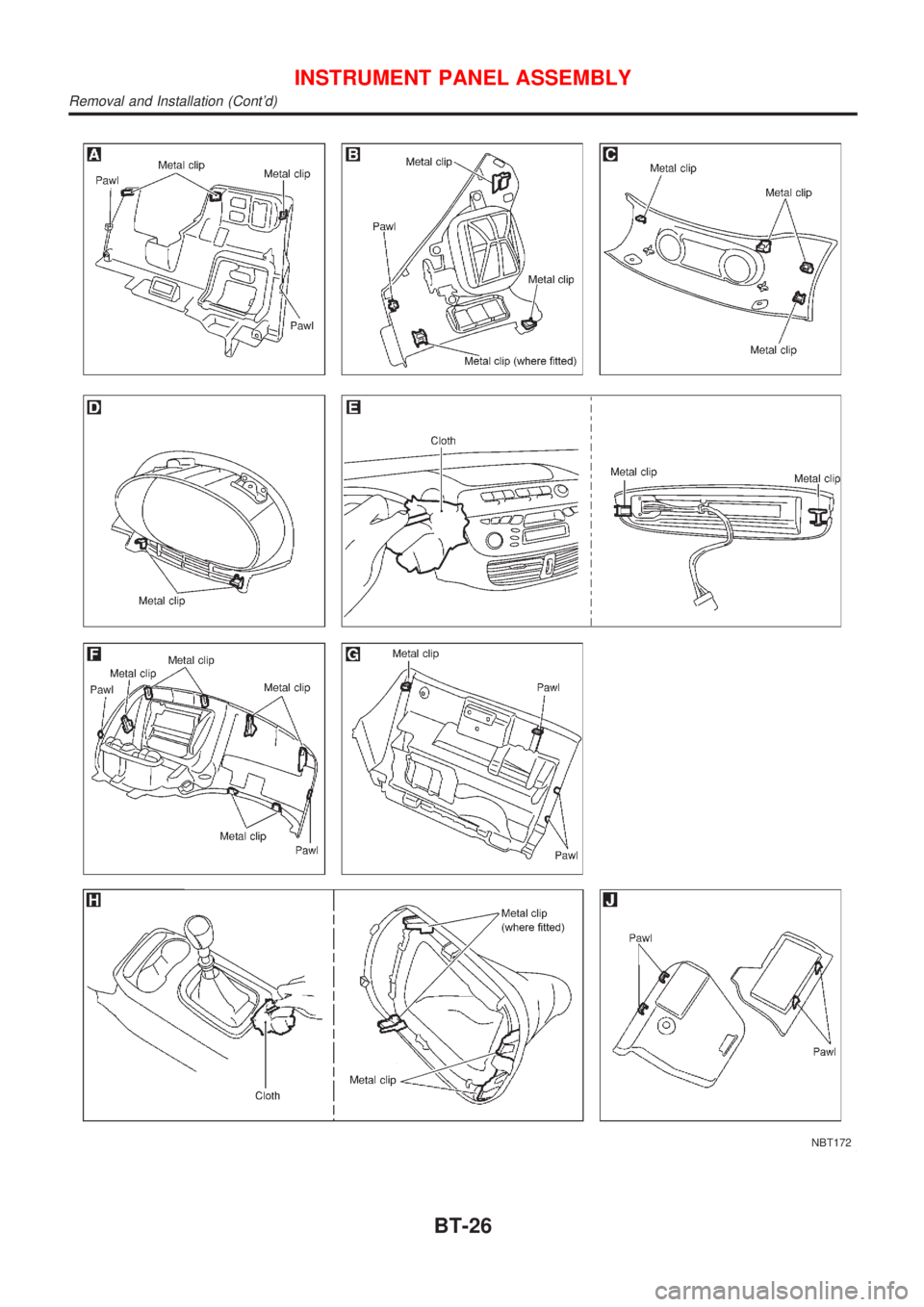

NBT172
INSTRUMENT PANEL ASSEMBLY
Removal and Installation (Cont'd)
BT-26

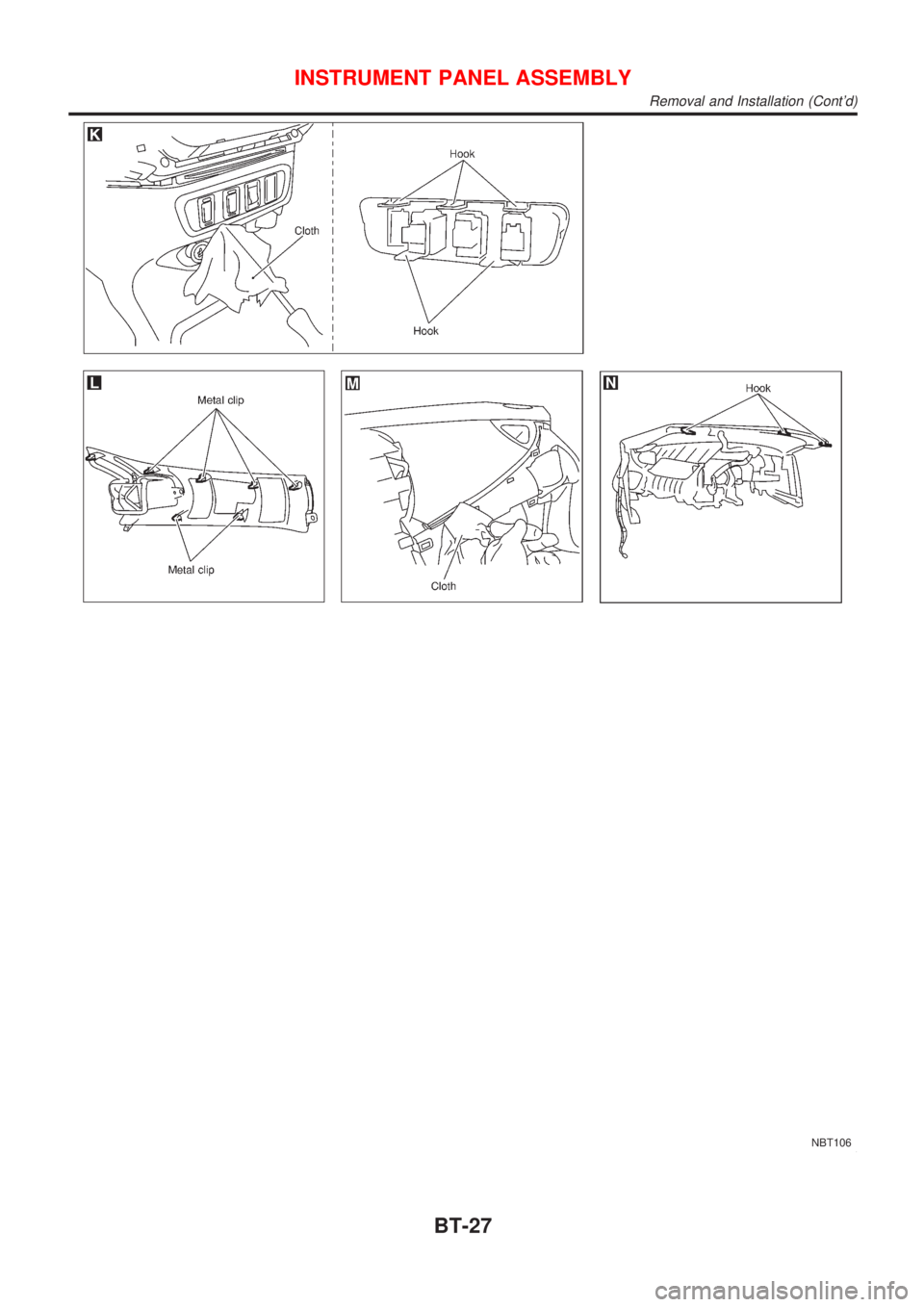

NBT106
INSTRUMENT PANEL ASSEMBLY
Removal and Installation (Cont'd)
BT-27

Removal and InstallationNLBT0013CAUTION:
+Wrap the tip of flat-bladed screwdriver with a cloth when removing metal clips from garnishes.
1. Remove front and rear seats. Refer to ªFRONT SEATº and ªREAR SEATº for details, BT-46 and BT-49.
2. Remove front and rear seat belts. Refer to RS-5 and RS-7, ªFront Seat Beltº and ªRear Seat Beltº for
details.
3. Remove carpet rear finish, front seat mounting cover and rear seat mounting cover. Refer to ªLUGGAGE
ROOM TRIMº for details, BT-31.
4. Remove front and rear outer kicking plates.
5. Remove front and rear inner kicking plates.
6. Remove dash side finishers.
7. Remove front and rear body side welts.
8. Remove front pillar garnishes.
9. Remove center pillar lower garnishes.
10. Remove center pillar upper garnishes.
11. Remove front and rear room carpet.
12. Remove rear pillar garnish.
13. Remove rear parcel shelf side finish.
14. Remove luggage room carpet.
15. Remove luggage room rear plate.
16. Remove luggage room rear side plate.
17. Remove luggage room rear side lower finish.
SIDE AND FLOOR TRIM
Removal and Installation
BT-28

NBT107
SIDE AND FLOOR TRIM
Removal and Installation (Cont'd)
