NISSAN ALMERA TINO 2001 Service Repair Manual

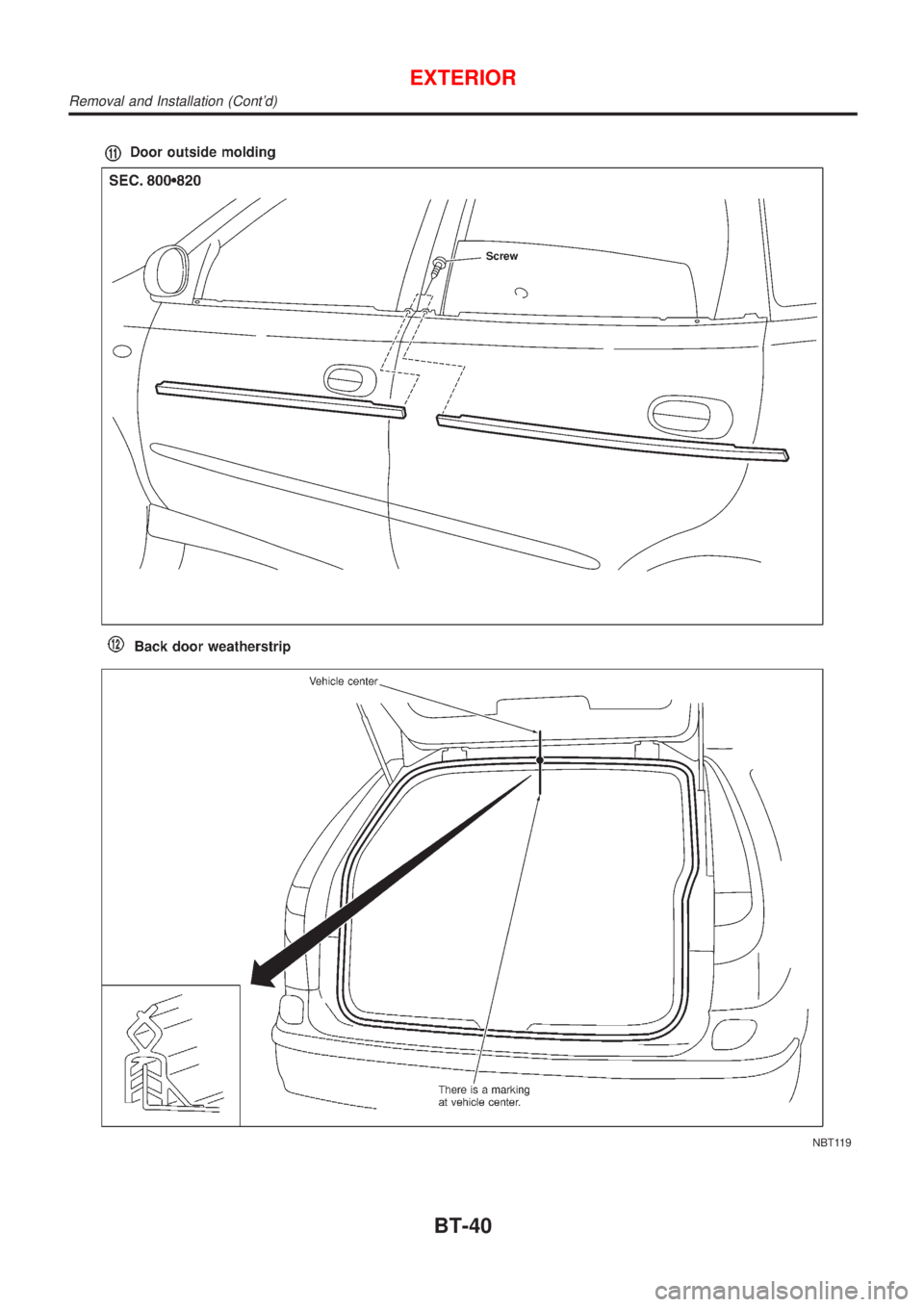

NBT119
EXTERIOR
Removal and Installation (Cont'd)
BT-40

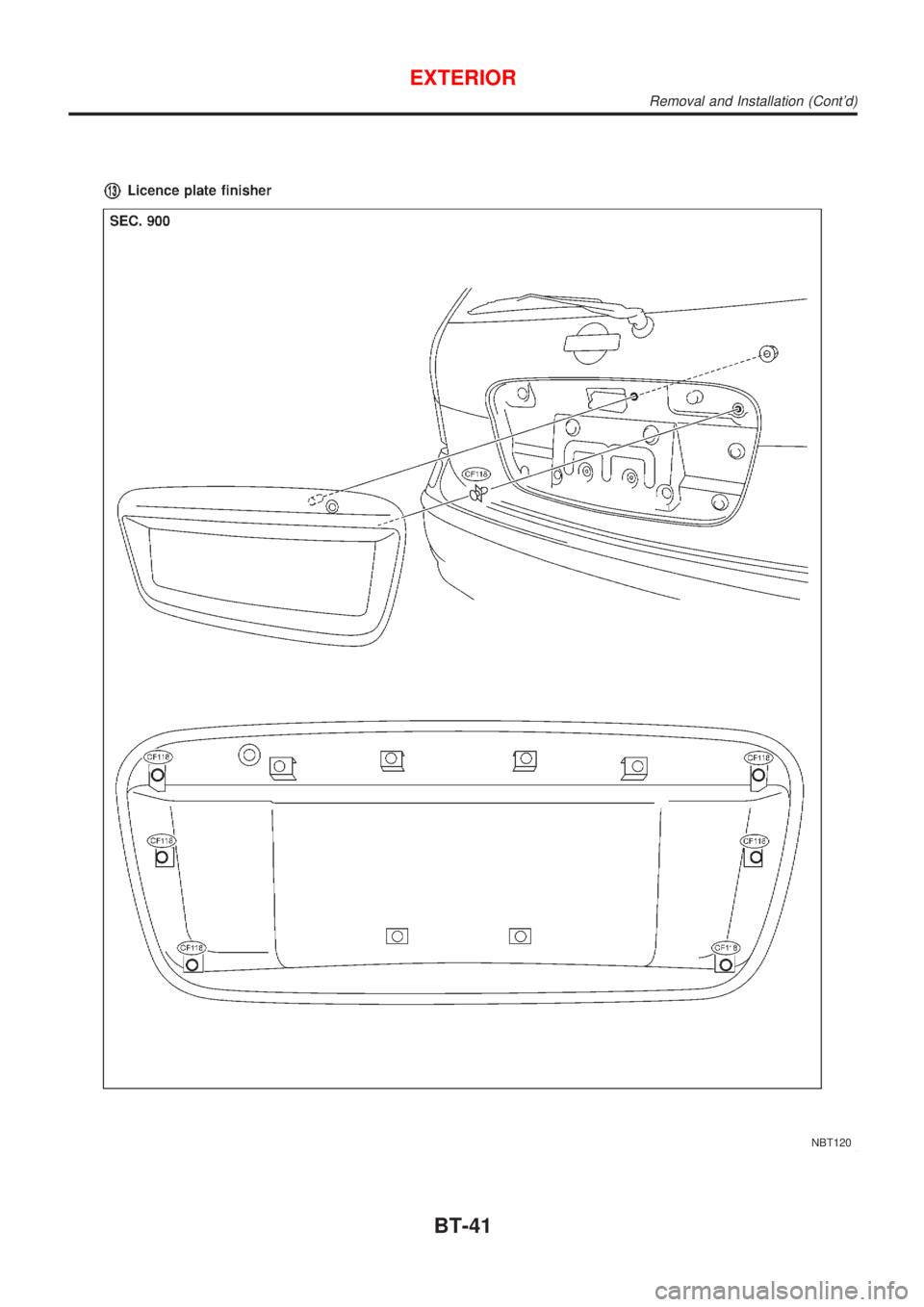

NBT120
EXTERIOR
Removal and Installation (Cont'd)
BT-41

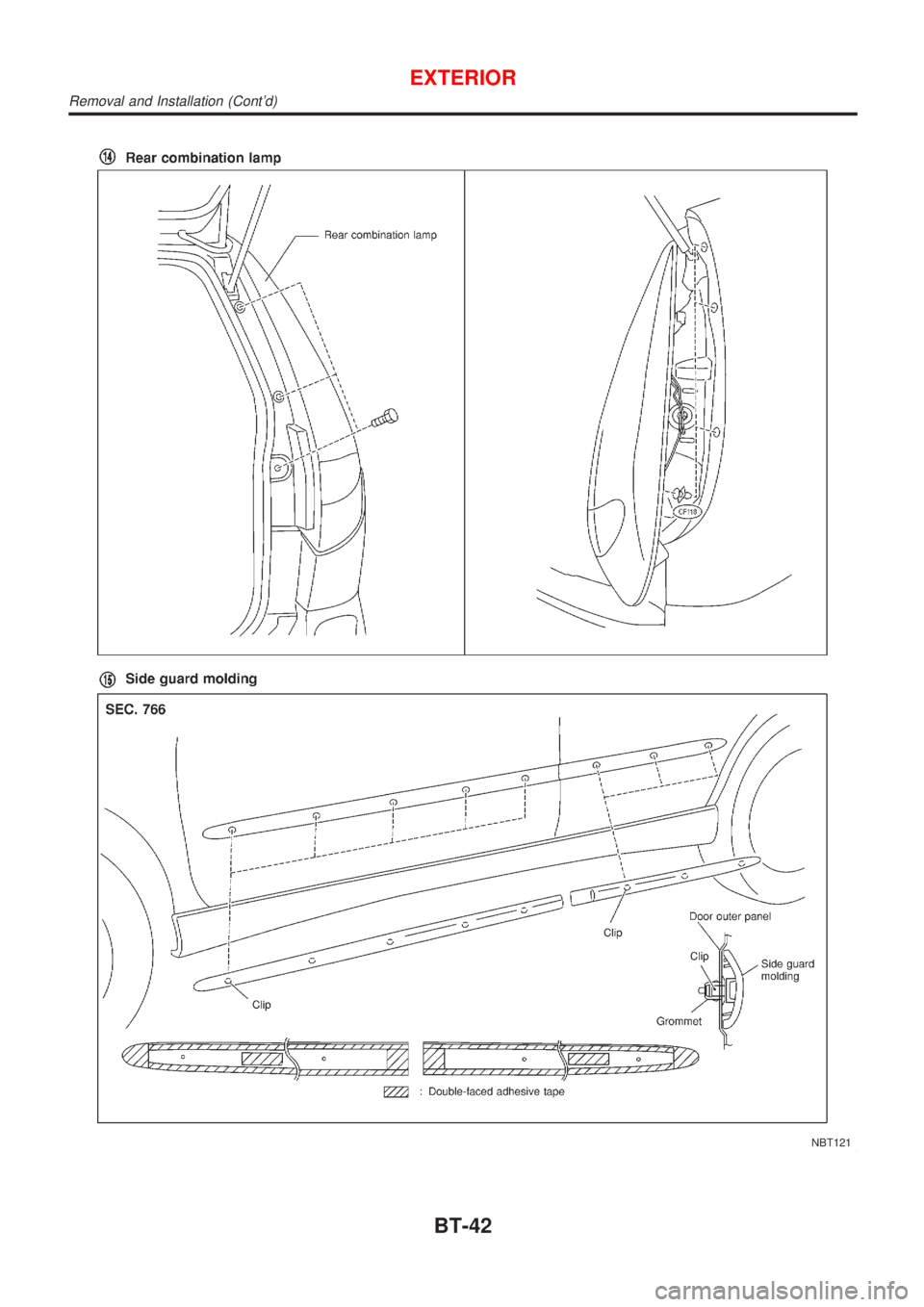

NBT121
EXTERIOR
Removal and Installation (Cont'd)
BT-42

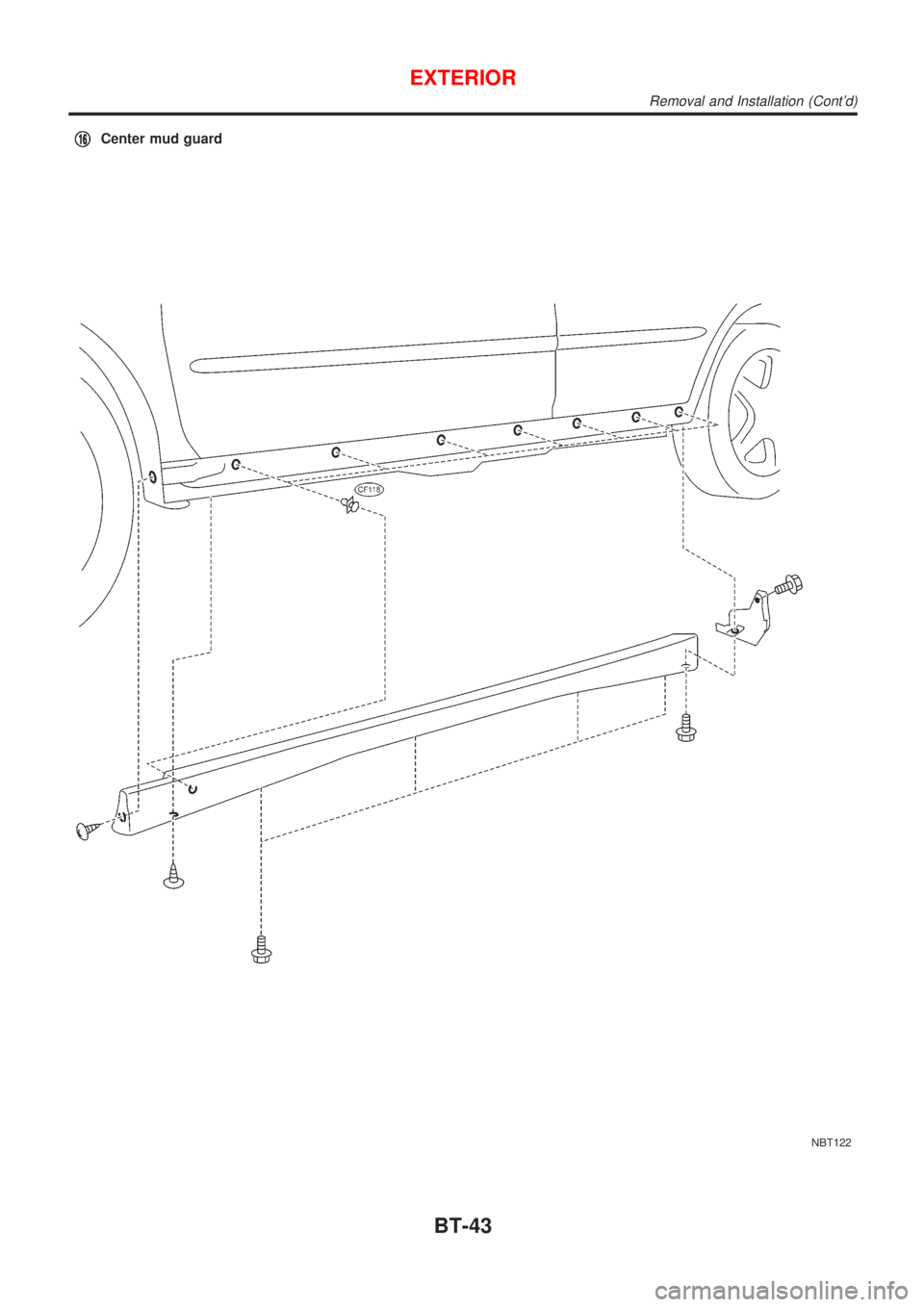

NBT122
EXTERIOR
Removal and Installation (Cont'd)
BT-43

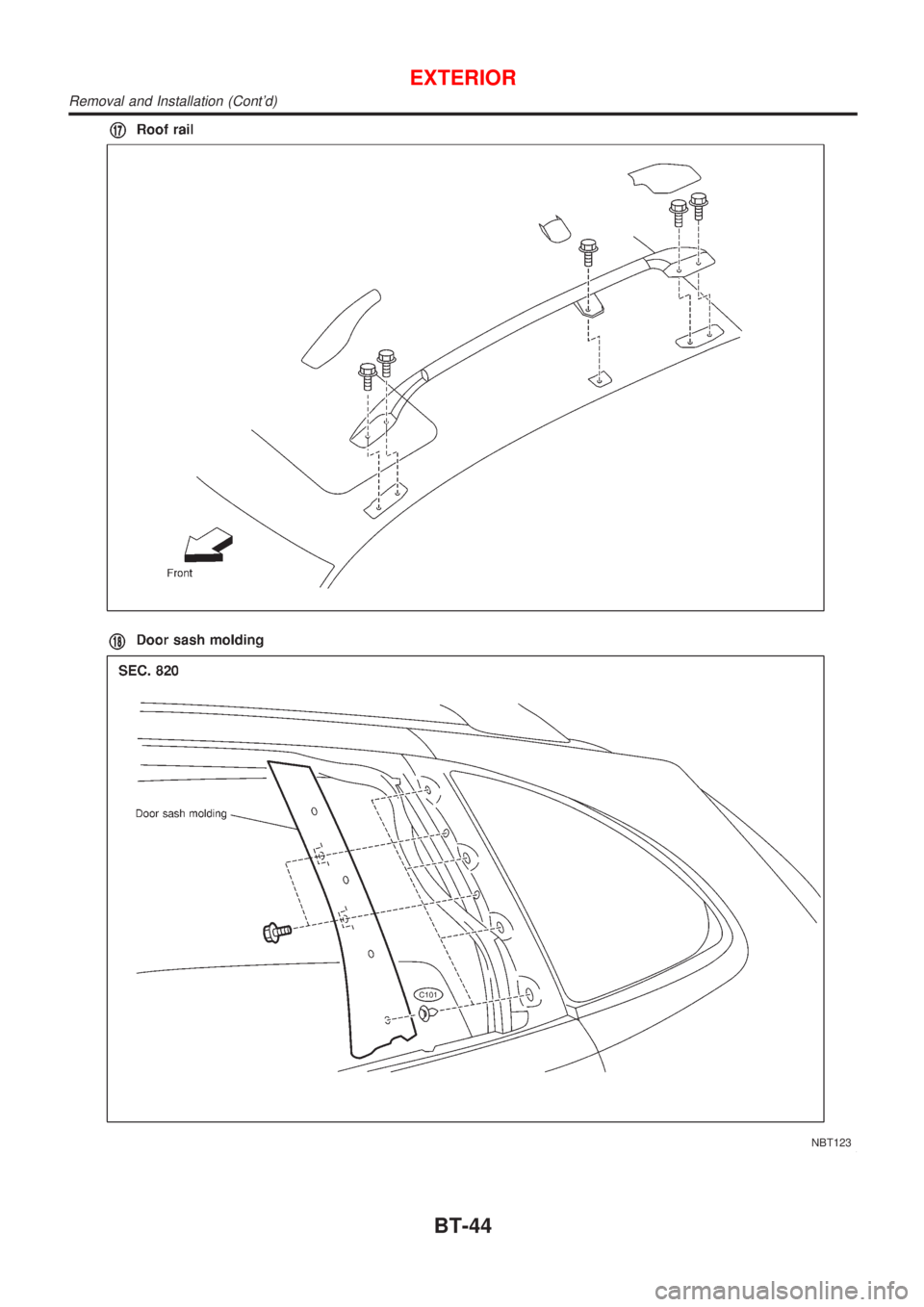

NBT123
EXTERIOR
Removal and Installation (Cont'd)
BT-44

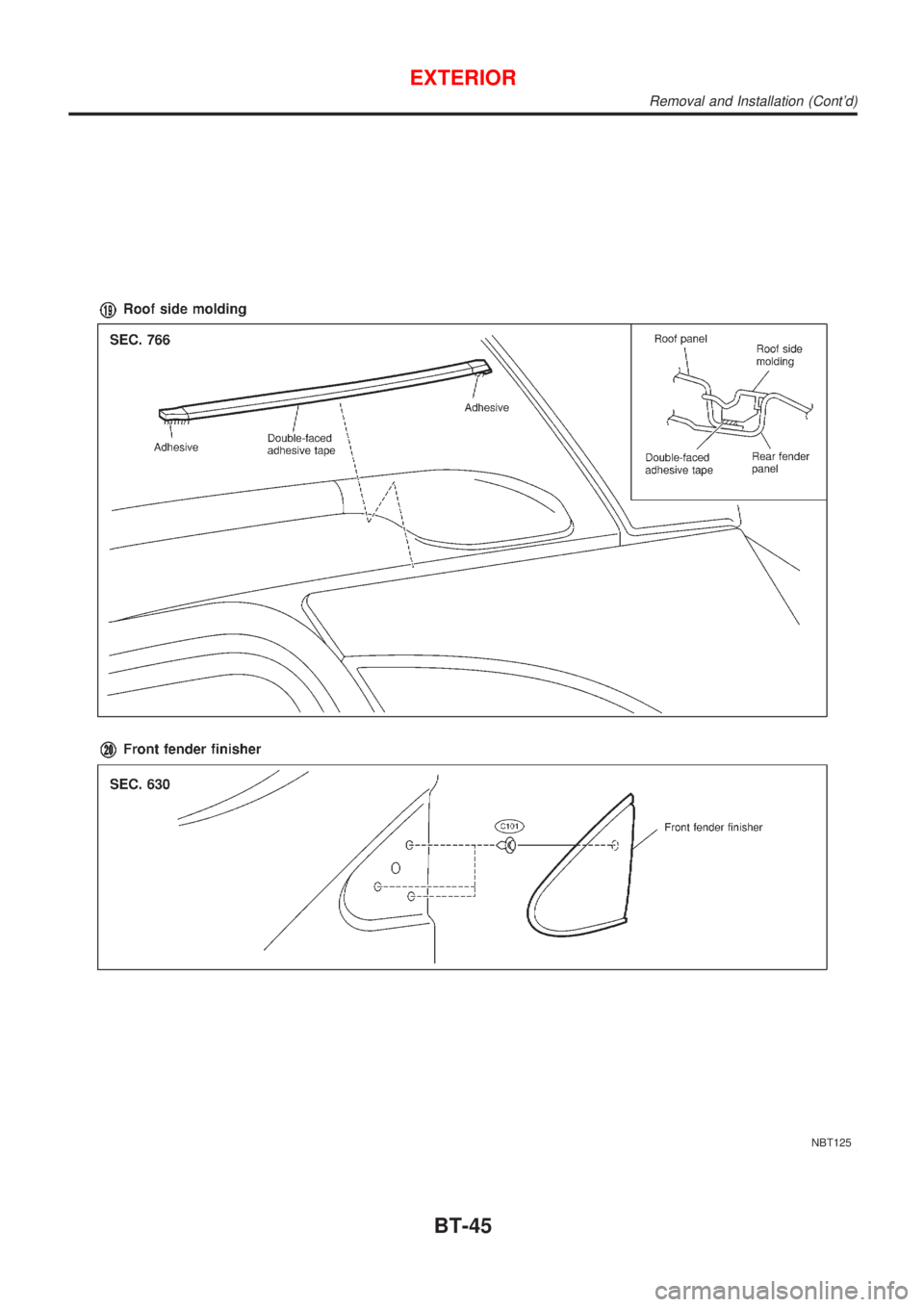

NBT125
EXTERIOR
Removal and Installation (Cont'd)
BT-45

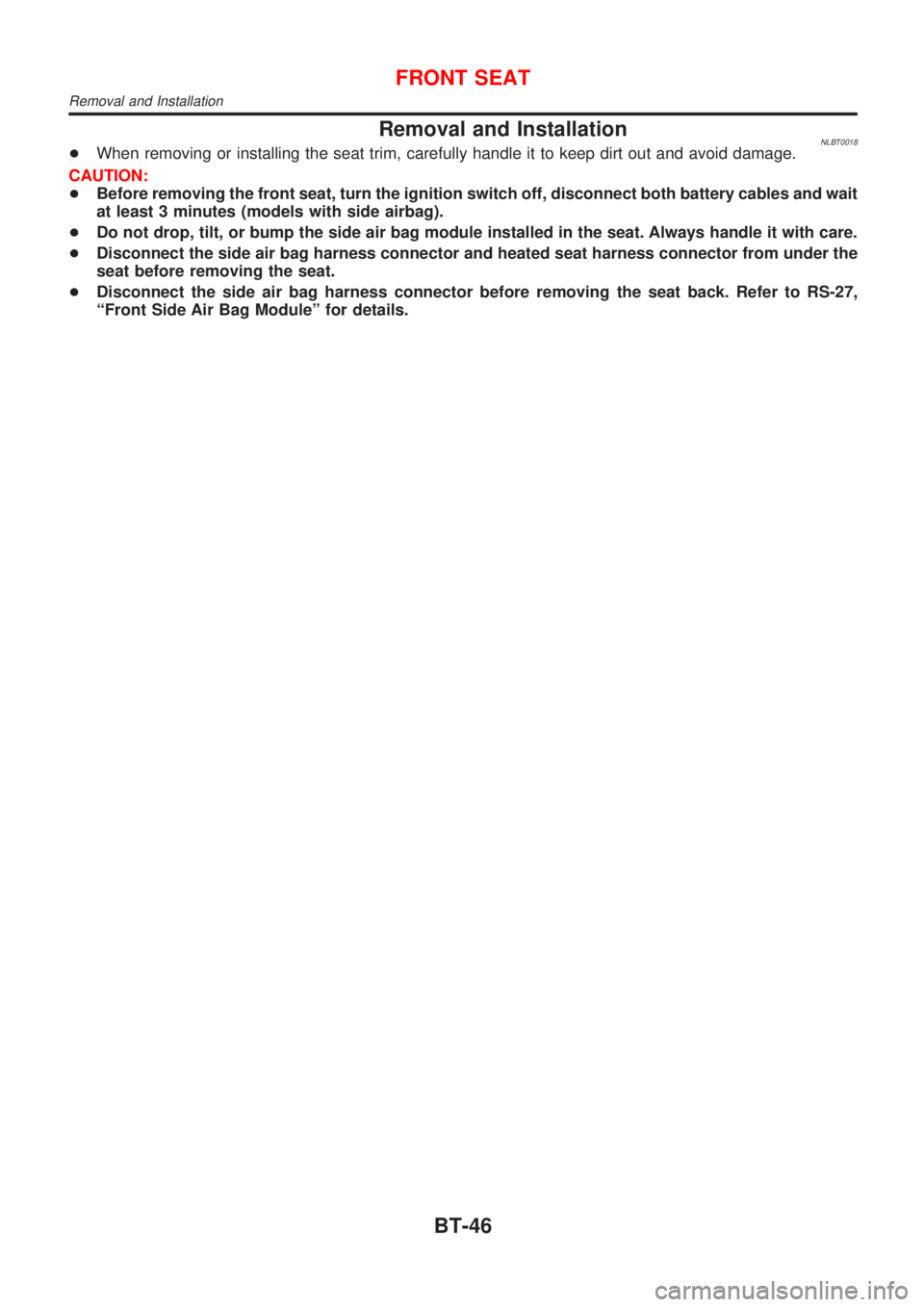

Removal and InstallationNLBT0018+When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage.
CAUTION:
+Before removing the front seat, turn the ignition switch off, disconnect both battery cables and wait
at least 3 minutes (models with side airbag).
+Do not drop, tilt, or bump the side air bag module installed in the seat. Always handle it with care.
+Disconnect the side air bag harness connector and heated seat harness connector from under the
seat before removing the seat.
+Disconnect the side air bag harness connector before removing the seat back. Refer to RS-27,
ªFront Side Air Bag Moduleº for details.
FRONT SEAT
Removal and Installation
BT-46

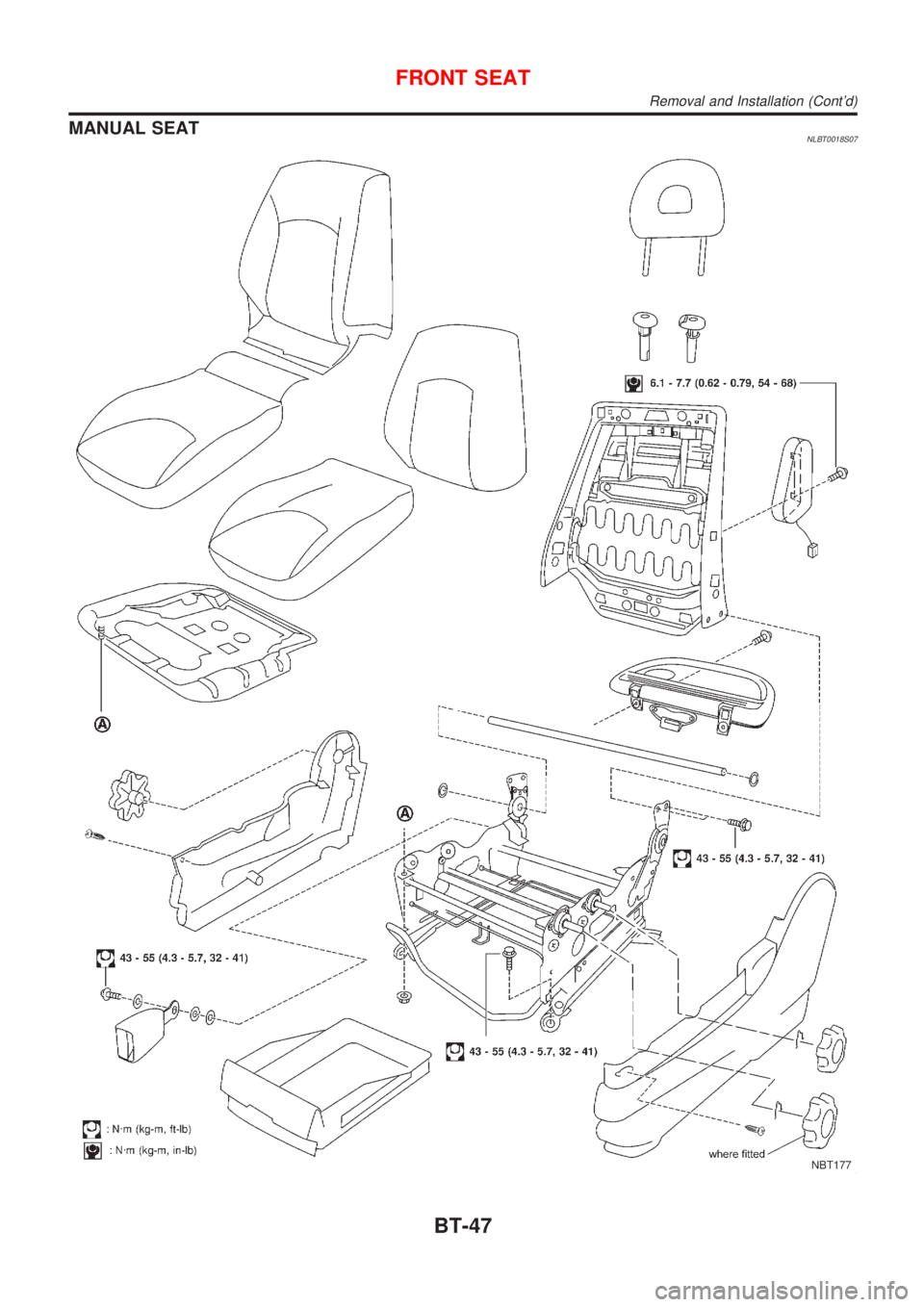

MANUAL SEATNLBT0018S07
NBT177
FRONT SEAT
Removal and Installation (Cont'd)
BT-47

Heated SeatNLBT0036HFor Wiring Diagram, refer to EL-234, ªHEATED SEATº for details.
SBT014A

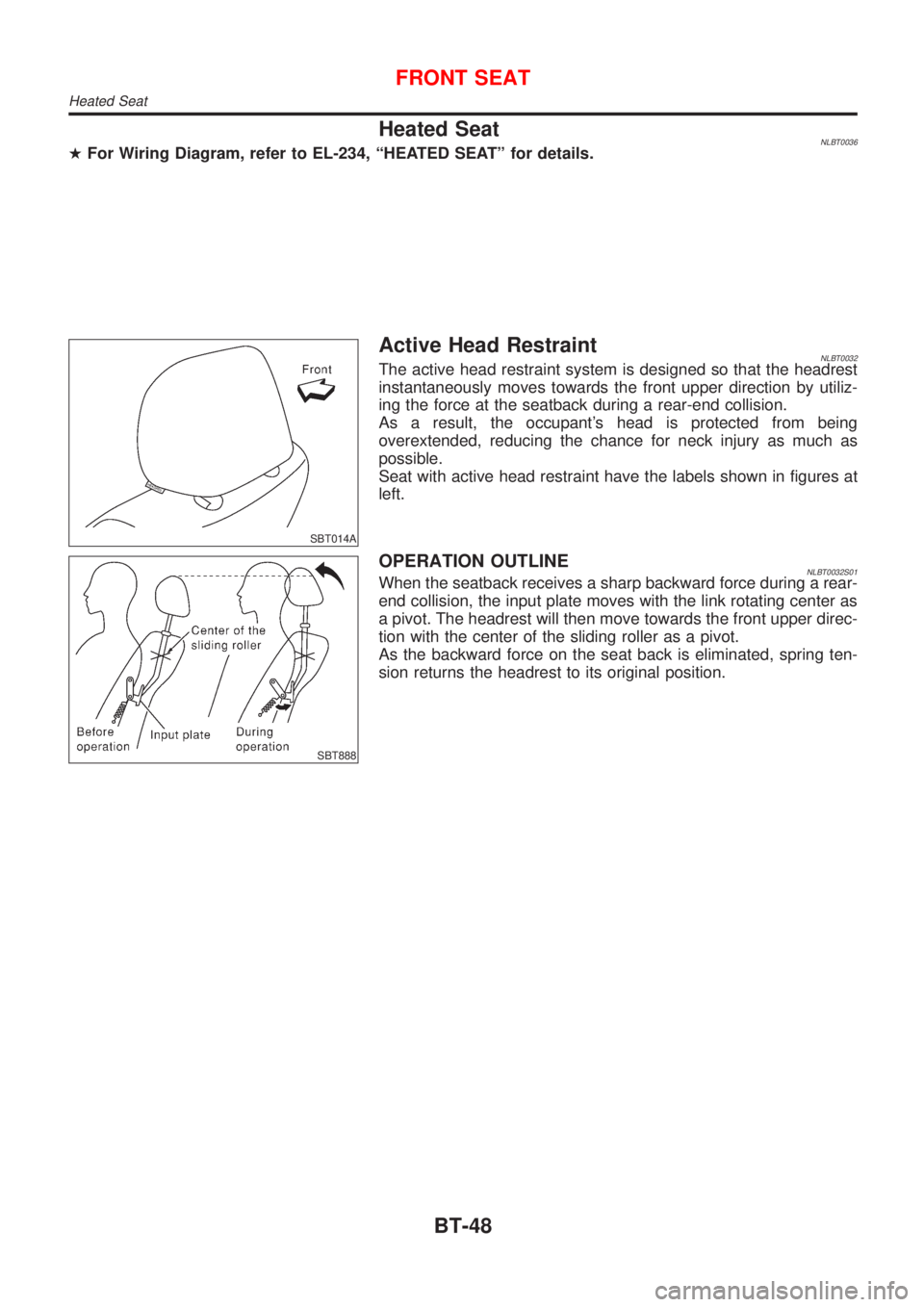

Active Head RestraintNLBT0032The active head restraint system is designed so that the headrest
instantaneously moves towards the front upper direction by utiliz-
ing the force at the seatback during a rear-end collision.
As a result, the occupant's head is protected from being
overextended, reducing the chance for neck injury as much as
possible.
Seat with active head restraint have the labels shown in figures at
left.
SBT888
OPERATION OUTLINENLBT0032S01When the seatback receives a sharp backward force during a rear-
end collision, the input plate moves with the link rotating center as
a pivot. The headrest will then move towards the front upper direc-
tion with the center of the sliding roller as a pivot.
As the backward force on the seat back is eliminated, spring ten-
sion returns the headrest to its original position.
FRONT SEAT
Heated Seat
BT-48

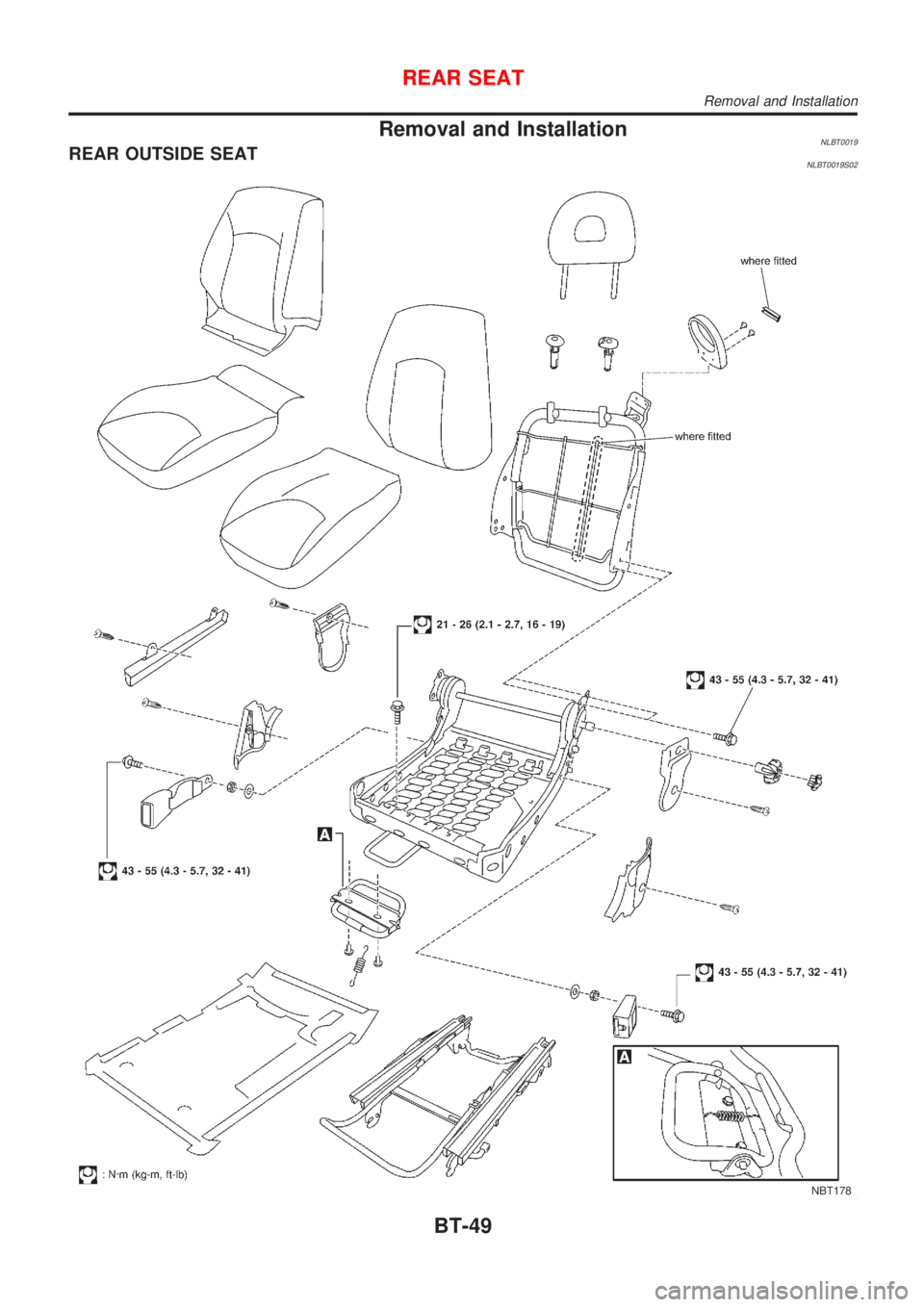

Removal and InstallationNLBT0019REAR OUTSIDE SEATNLBT0019S02
NBT178
REAR SEAT
Removal and Installation
BT-49
