Alphabetical& PNo .Inde xfo rDTC
Typ eapprova lnumber Model
Items

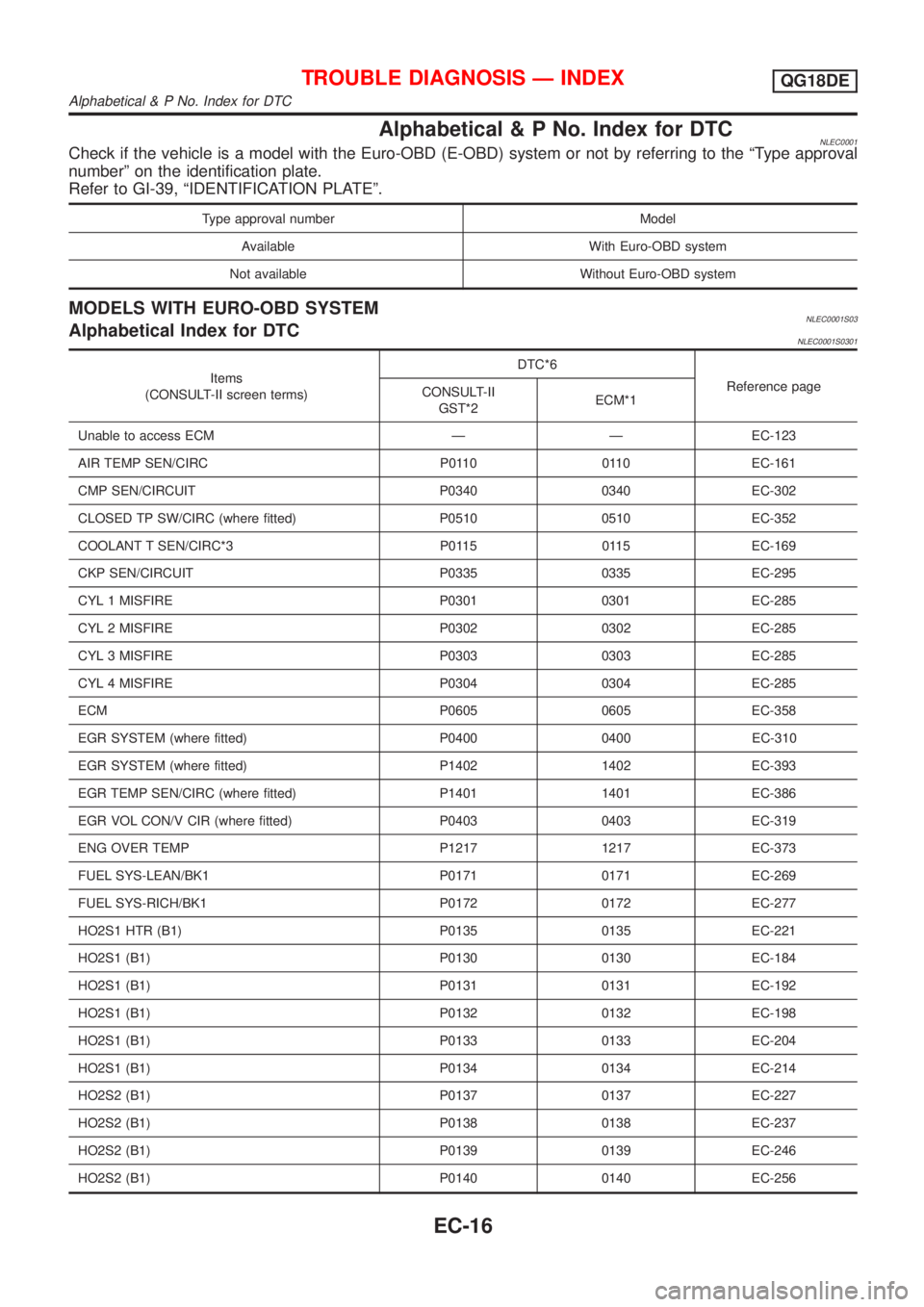

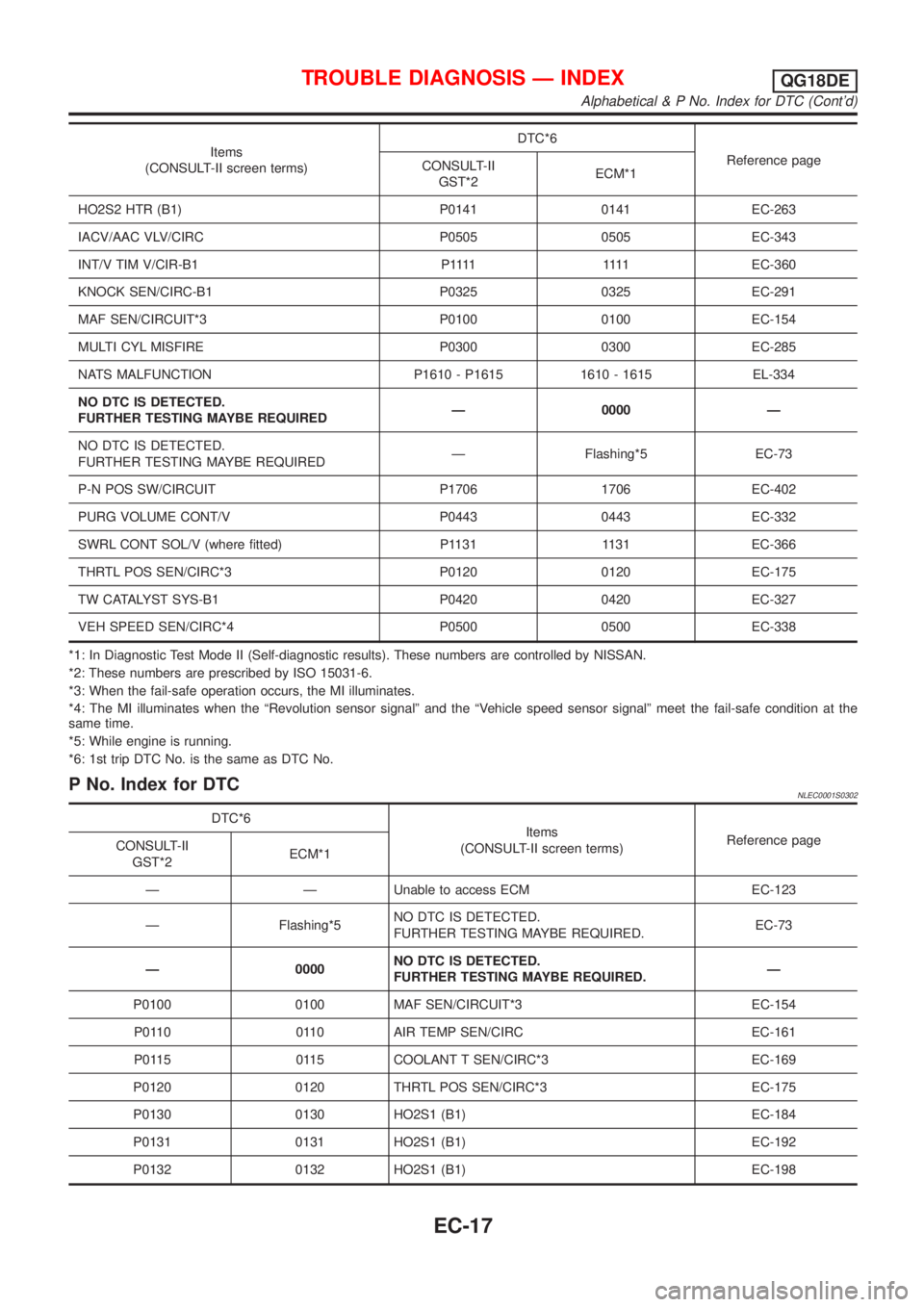

Alphabetical & P No. Index for DTC
Page 442 of 3051

Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1
HO2S2 HTR (B1) P0141 0141 EC-263
IACV/AAC VLV/CIRC P0505 0505 EC-343
INT/V TIM V/CIR-B1 P1111 1111EC-360
KNOCK SEN/CIRC-B1 P0325 0325 EC-291
MAF SEN/CIRCUIT*3 P0100 0100 EC-154
MULTI CYL MISFIRE P0300 0300 EC-285
NATS MALFUNCTION P1610 - P1615 1610 - 1615 EL-334
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ 0000 Ð
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ Flashing*5 EC-73
P-N POS SW/CIRCUIT P1706 1706 EC-402
PURG VOLUME CONT/V P0443 0443 EC-332
SWRL CONT SOL/V (where fitted) P1131 1131 EC-366
THRTL POS SEN/CIRC*3 P0120 0120 EC-175
TW CATALYST SYS-B1 P0420 0420 EC-327
VEH SPEED SEN/CIRC*4 P0500 0500 EC-338
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
P No. Index for DTCNLEC0001S0302
DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
Ð Ð Unable to access ECM EC-123
Ð Flashing*5NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.EC-73
Ð 0000NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.Ð
P0100 0100 MAF SEN/CIRCUIT*3 EC-154
P0110 0110 AIR TEMP SEN/CIRC EC-161
P0115 0115 COOLANT T SEN/CIRC*3 EC-169
P0120 0120 THRTL POS SEN/CIRC*3 EC-175
P0130 0130 HO2S1 (B1) EC-184
P0131 0131 HO2S1 (B1) EC-192
P0132 0132 HO2S1 (B1) EC-198
TROUBLE DIAGNOSIS Ð INDEXQG18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-17
Page 443 of 3051

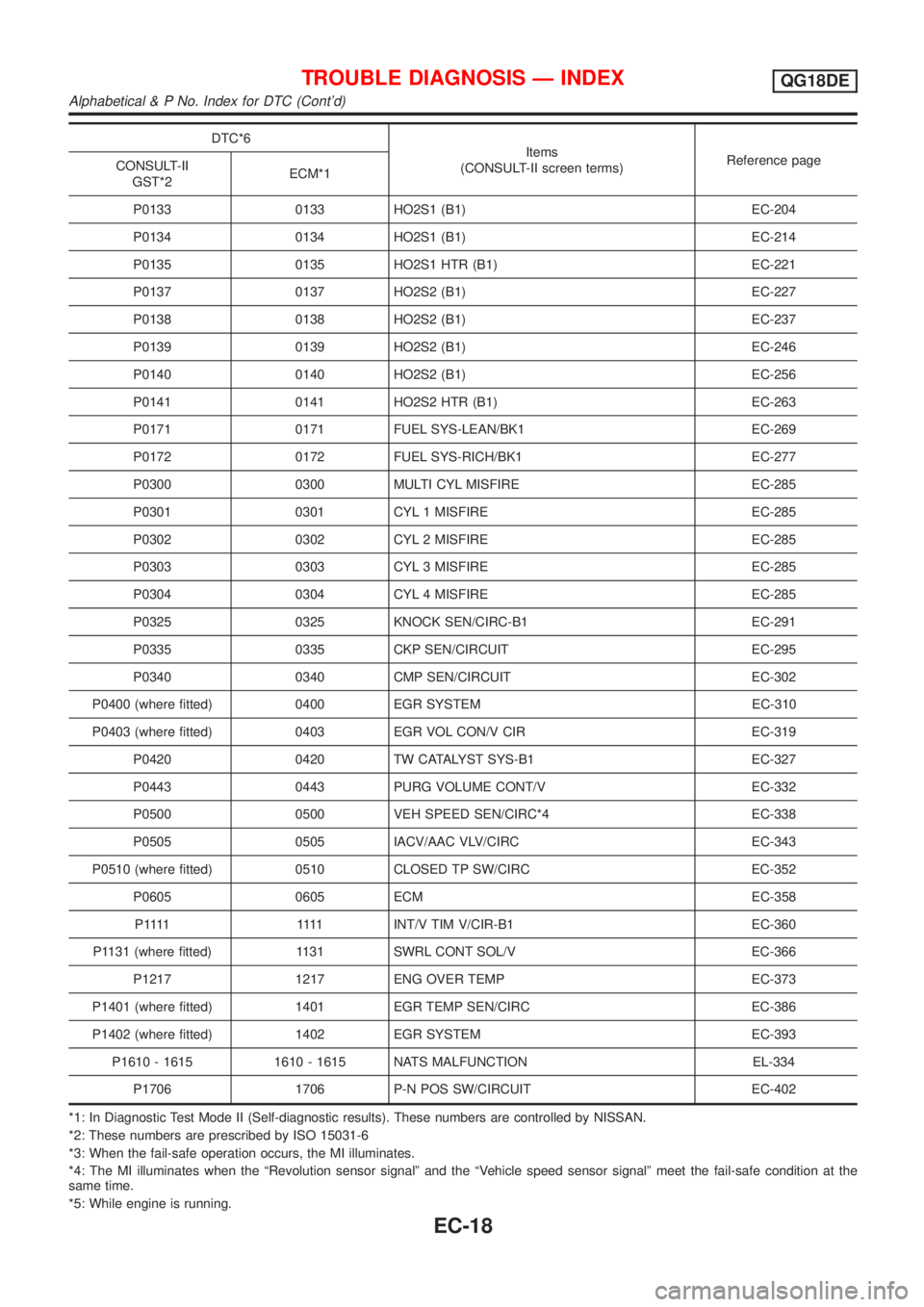

DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
P0133 0133 HO2S1 (B1) EC-204
P0134 0134 HO2S1 (B1) EC-214
P0135 0135 HO2S1 HTR (B1) EC-221
P0137 0137 HO2S2 (B1) EC-227
P0138 0138 HO2S2 (B1) EC-237
P0139 0139 HO2S2 (B1) EC-246
P0140 0140 HO2S2 (B1) EC-256
P0141 0141 HO2S2 HTR (B1) EC-263
P0171 0171 FUEL SYS-LEAN/BK1 EC-269
P0172 0172 FUEL SYS-RICH/BK1 EC-277
P0300 0300 MULTI CYL MISFIRE EC-285
P0301 0301 CYL 1 MISFIRE EC-285
P0302 0302 CYL 2 MISFIRE EC-285
P0303 0303 CYL 3 MISFIRE EC-285
P0304 0304 CYL 4 MISFIRE EC-285
P0325 0325 KNOCK SEN/CIRC-B1 EC-291
P0335 0335 CKP SEN/CIRCUIT EC-295
P0340 0340 CMP SEN/CIRCUIT EC-302
P0400 (where fitted) 0400 EGR SYSTEM EC-310
P0403 (where fitted) 0403 EGR VOL CON/V CIR EC-319
P0420 0420 TW CATALYST SYS-B1 EC-327
P0443 0443 PURG VOLUME CONT/V EC-332
P0500 0500 VEH SPEED SEN/CIRC*4 EC-338
P0505 0505 IACV/AAC VLV/CIRC EC-343
P0510 (where fitted) 0510 CLOSED TP SW/CIRC EC-352
P0605 0605 ECM EC-358
P 1111 1111INT/V TIM V/CIR-B1 EC-360
P1131 (where fitted) 1131 SWRL CONT SOL/V EC-366
P1217 1217 ENG OVER TEMP EC-373
P1401 (where fitted) 1401 EGR TEMP SEN/CIRC EC-386
P1402 (where fitted) 1402 EGR SYSTEM EC-393
P1610 - 1615 1610 - 1615 NATS MALFUNCTION EL-334
P1706 1706 P-N POS SW/CIRCUIT EC-402
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
TROUBLE DIAGNOSIS Ð INDEXQG18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-18
Page 444 of 3051

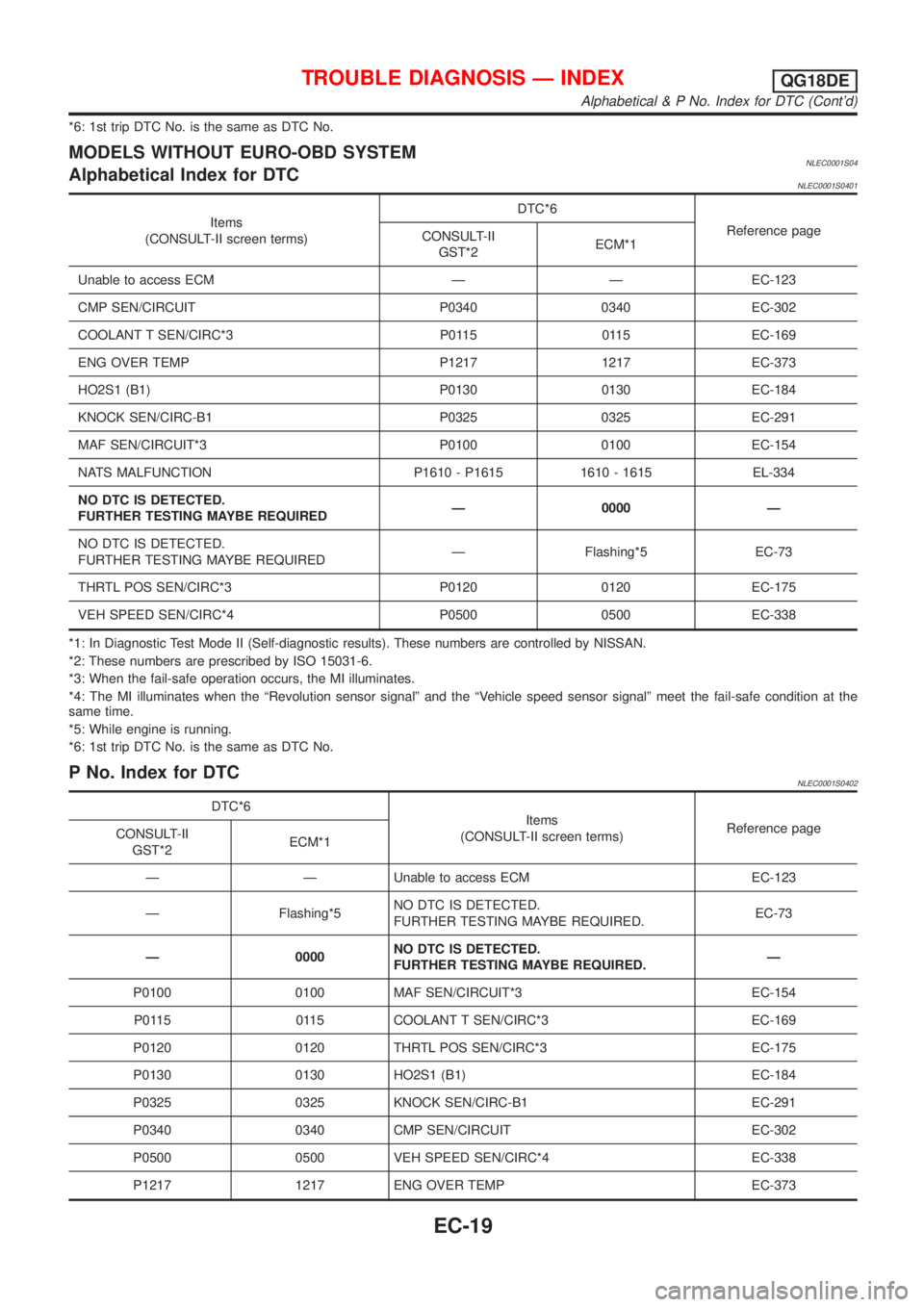

*6: 1st trip DTC No. is the same as DTC No.
MODELS WITHOUT EURO-OBD SYSTEMNLEC0001S04Alphabetical Index for DTCNLEC0001S0401
Items
(CONSULT-II screen terms)DTC*6
Reference page
CONSULT-II
GST*2ECM*1
Unable to access ECM Ð Ð EC-123
CMP SEN/CIRCUIT P0340 0340 EC-302
COOLANT T SEN/CIRC*3 P0115 0115 EC-169
ENG OVER TEMP P1217 1217 EC-373
HO2S1 (B1) P0130 0130 EC-184
KNOCK SEN/CIRC-B1 P0325 0325 EC-291
MAF SEN/CIRCUIT*3 P0100 0100 EC-154
NATS MALFUNCTION P1610 - P1615 1610 - 1615 EL-334
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ 0000 Ð
NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIREDÐ Flashing*5 EC-73
THRTL POS SEN/CIRC*3 P0120 0120 EC-175
VEH SPEED SEN/CIRC*4 P0500 0500 EC-338
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6.
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
P No. Index for DTCNLEC0001S0402
DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
Ð Ð Unable to access ECM EC-123
Ð Flashing*5NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.EC-73
Ð 0000NO DTC IS DETECTED.
FURTHER TESTING MAYBE REQUIRED.Ð
P0100 0100 MAF SEN/CIRCUIT*3 EC-154
P0115 0115 COOLANT T SEN/CIRC*3 EC-169
P0120 0120 THRTL POS SEN/CIRC*3 EC-175
P0130 0130 HO2S1 (B1) EC-184
P0325 0325 KNOCK SEN/CIRC-B1 EC-291
P0340 0340 CMP SEN/CIRCUIT EC-302
P0500 0500 VEH SPEED SEN/CIRC*4 EC-338
P1217 1217 ENG OVER TEMP EC-373
TROUBLE DIAGNOSIS Ð INDEXQG18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-19
Page 445 of 3051

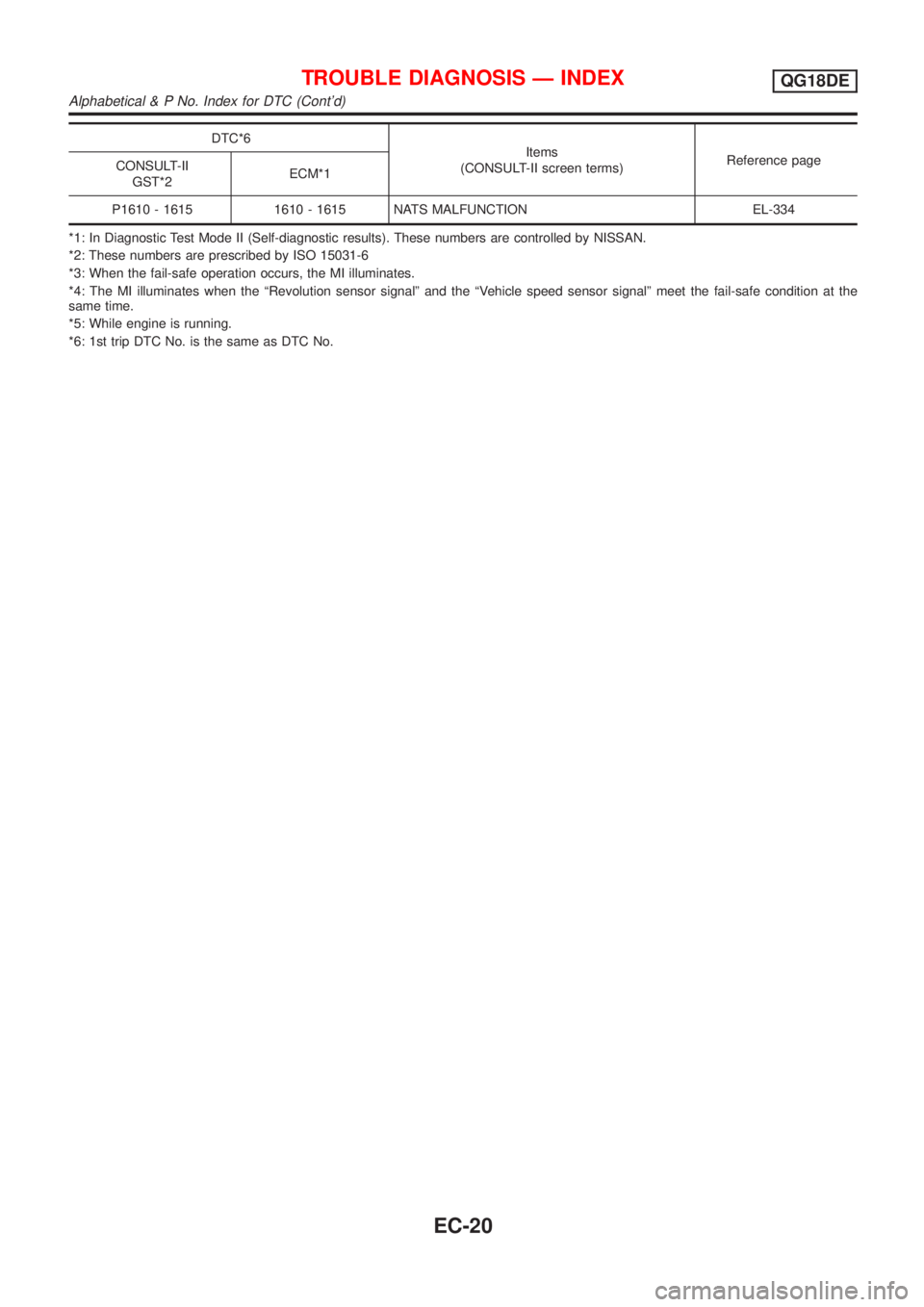

DTC*6
Items
(CONSULT-II screen terms)Reference page
CONSULT-II
GST*2ECM*1
P1610 - 1615 1610 - 1615 NATS MALFUNCTION EL-334
*1: In Diagnostic Test Mode II (Self-diagnostic results). These numbers are controlled by NISSAN.
*2: These numbers are prescribed by ISO 15031-6
*3: When the fail-safe operation occurs, the MI illuminates.
*4: The MI illuminates when the ªRevolution sensor signalº and the ªVehicle speed sensor signalº meet the fail-safe condition at the
same time.
*5: While engine is running.
*6: 1st trip DTC No. is the same as DTC No.
TROUBLE DIAGNOSIS Ð INDEXQG18DE
Alphabetical & P No. Index for DTC (Cont'd)
EC-20
Page 446 of 3051

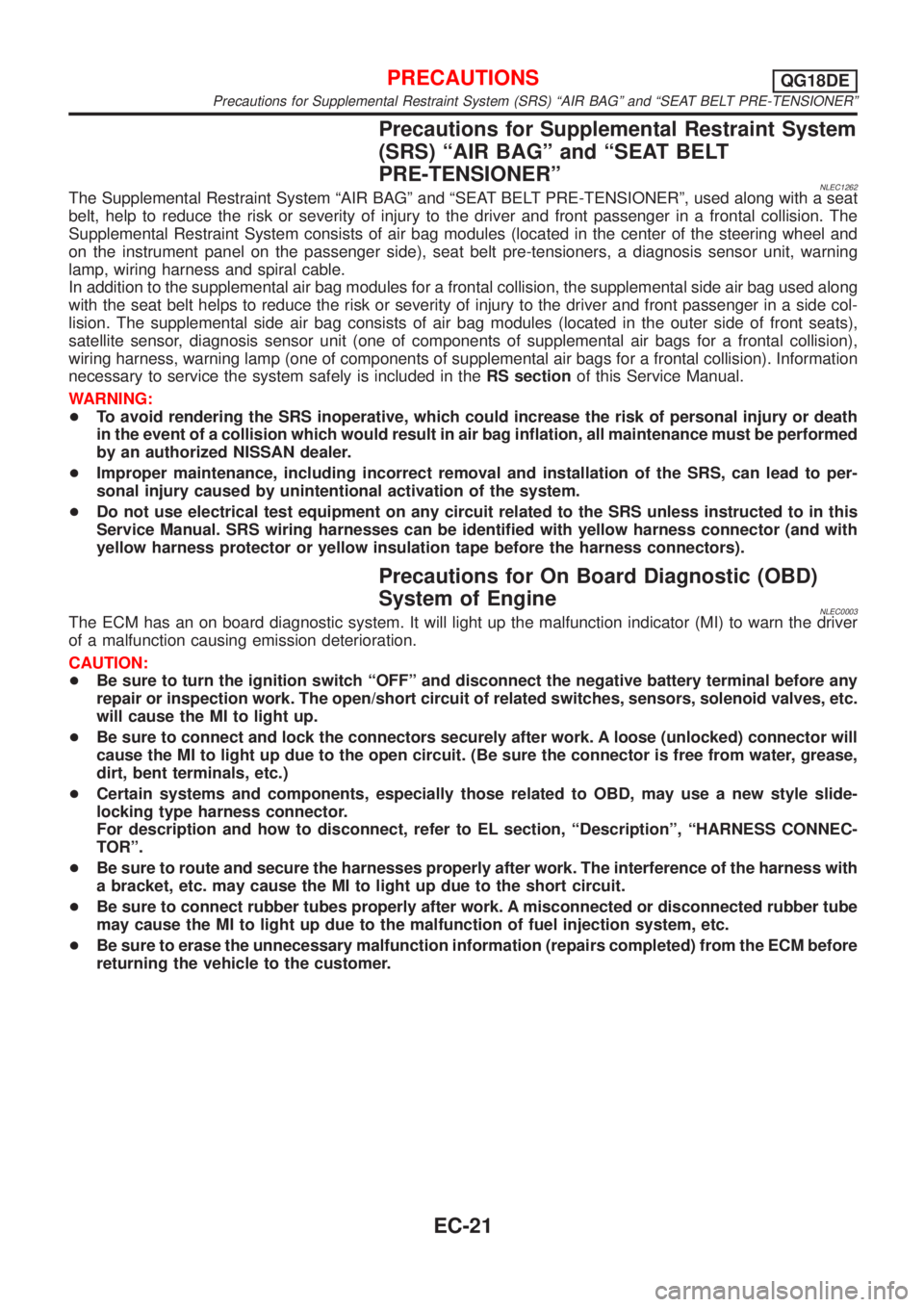

Precautions for Supplemental Restraint System
(SRS) ªAIR BAGº and ªSEAT BELT
PRE-TENSIONERº
NLEC1262The Supplemental Restraint System ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº, used along with a seat
belt, help to reduce the risk or severity of injury to the driver and front passenger in a frontal collision. The
Supplemental Restraint System consists of air bag modules (located in the center of the steering wheel and
on the instrument panel on the passenger side), seat belt pre-tensioners, a diagnosis sensor unit, warning
lamp, wiring harness and spiral cable.
In addition to the supplemental air bag modules for a frontal collision, the supplemental side air bag used along
with the seat belt helps to reduce the risk or severity of injury to the driver and front passenger in a side col-
lision. The supplemental side air bag consists of air bag modules (located in the outer side of front seats),
satellite sensor, diagnosis sensor unit (one of components of supplemental air bags for a frontal collision),
wiring harness, warning lamp (one of components of supplemental air bags for a frontal collision). Information
necessary to service the system safely is included in theRS sectionof this Service Manual.
WARNING:
+To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death
in the event of a collision which would result in air bag inflation, all maintenance must be performed
by an authorized NISSAN dealer.
+Improper maintenance, including incorrect removal and installation of the SRS, can lead to per-
sonal injury caused by unintentional activation of the system.
+Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identified with yellow harness connector (and with
yellow harness protector or yellow insulation tape before the harness connectors).
Precautions for On Board Diagnostic (OBD)
System of Engine
NLEC0003The ECM has an on board diagnostic system. It will light up the malfunction indicator (MI) to warn the driver
of a malfunction causing emission deterioration.
CAUTION:
+Be sure to turn the ignition switch ªOFFº and disconnect the negative battery terminal before any
repair or inspection work. The open/short circuit of related switches, sensors, solenoid valves, etc.
will cause the MI to light up.
+Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will
cause the MI to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
+Certain systems and components, especially those related to OBD, may use a new style slide-
locking type harness connector.
For description and how to disconnect, refer to EL section, ªDescriptionº, ªHARNESS CONNEC-
TORº.
+Be sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MI to light up due to the short circuit.
+Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube
may cause the MI to light up due to the malfunction of fuel injection system, etc.
+Be sure to erase the unnecessary malfunction information (repairs completed) from the ECM before
returning the vehicle to the customer.
PRECAUTIONSQG18DE
Precautions for Supplemental Restraint System (SRS) ªAIR BAGº and ªSEAT BELT PRE-TENSIONERº
EC-21
Page 447 of 3051

SEF706Y

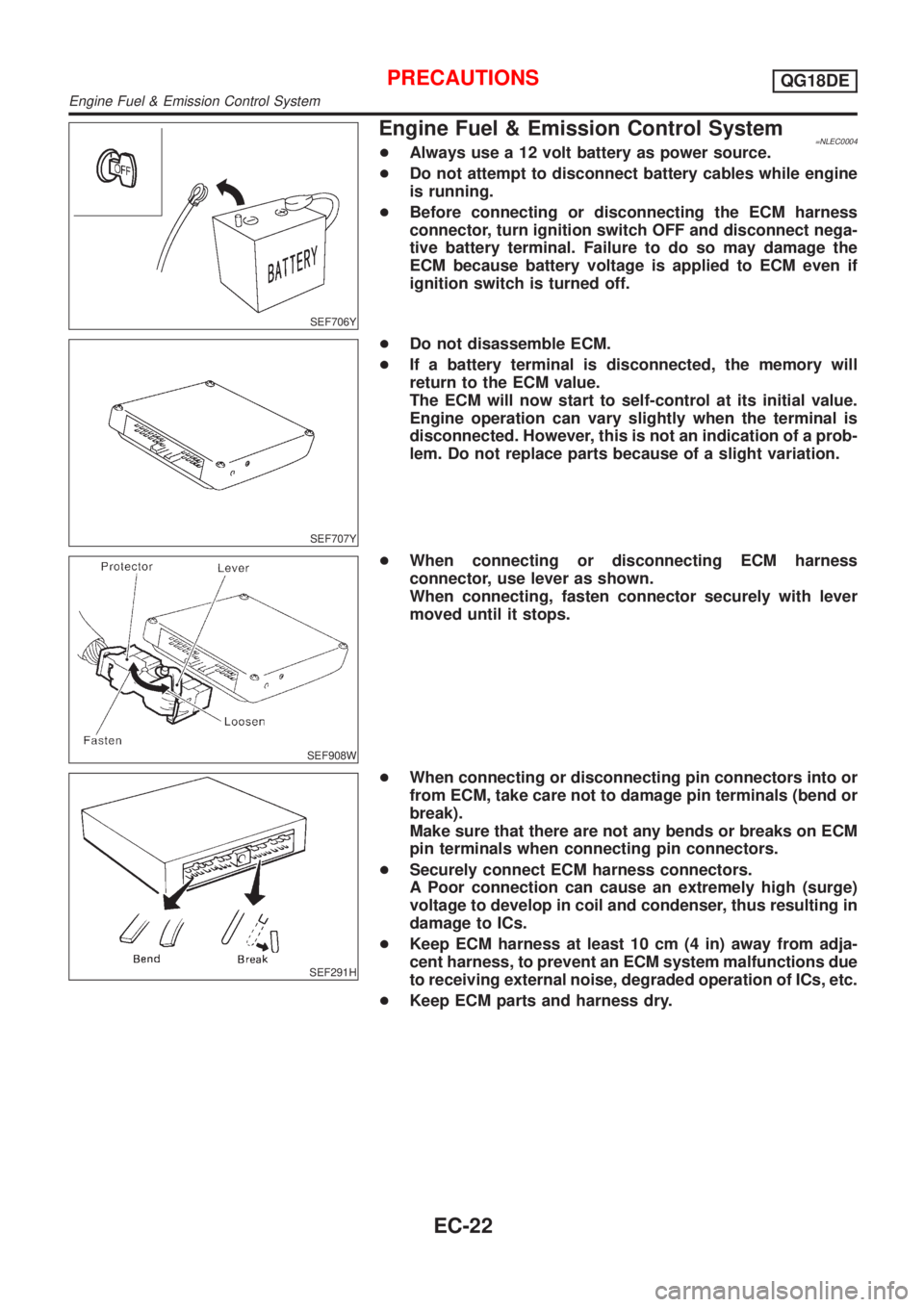

Engine Fuel & Emission Control System=NLEC0004+Always use a 12 volt battery as power source.
+Do not attempt to disconnect battery cables while engine
is running.
+Before connecting or disconnecting the ECM harness
connector, turn ignition switch OFF and disconnect nega-
tive battery terminal. Failure to do so may damage the
ECM because battery voltage is applied to ECM even if
ignition switch is turned off.
SEF707Y
+Do not disassemble ECM.
+If a battery terminal is disconnected, the memory will
return to the ECM value.
The ECM will now start to self-control at its initial value.
Engine operation can vary slightly when the terminal is
disconnected. However, this is not an indication of a prob-
lem. Do not replace parts because of a slight variation.
SEF908W
+When connecting or disconnecting ECM harness
connector, use lever as shown.
When connecting, fasten connector securely with lever
moved until it stops.
SEF291H
+When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM
pin terminals when connecting pin connectors.
+Securely connect ECM harness connectors.
A Poor connection can cause an extremely high (surge)
voltage to develop in coil and condenser, thus resulting in
damage to ICs.
+Keep ECM harness at least 10 cm (4 in) away from adja-
cent harness, to prevent an ECM system malfunctions due
to receiving external noise, degraded operation of ICs, etc.
+Keep ECM parts and harness dry.
PRECAUTIONSQG18DE
Engine Fuel & Emission Control System
EC-22
Page 448 of 3051

MEF040D

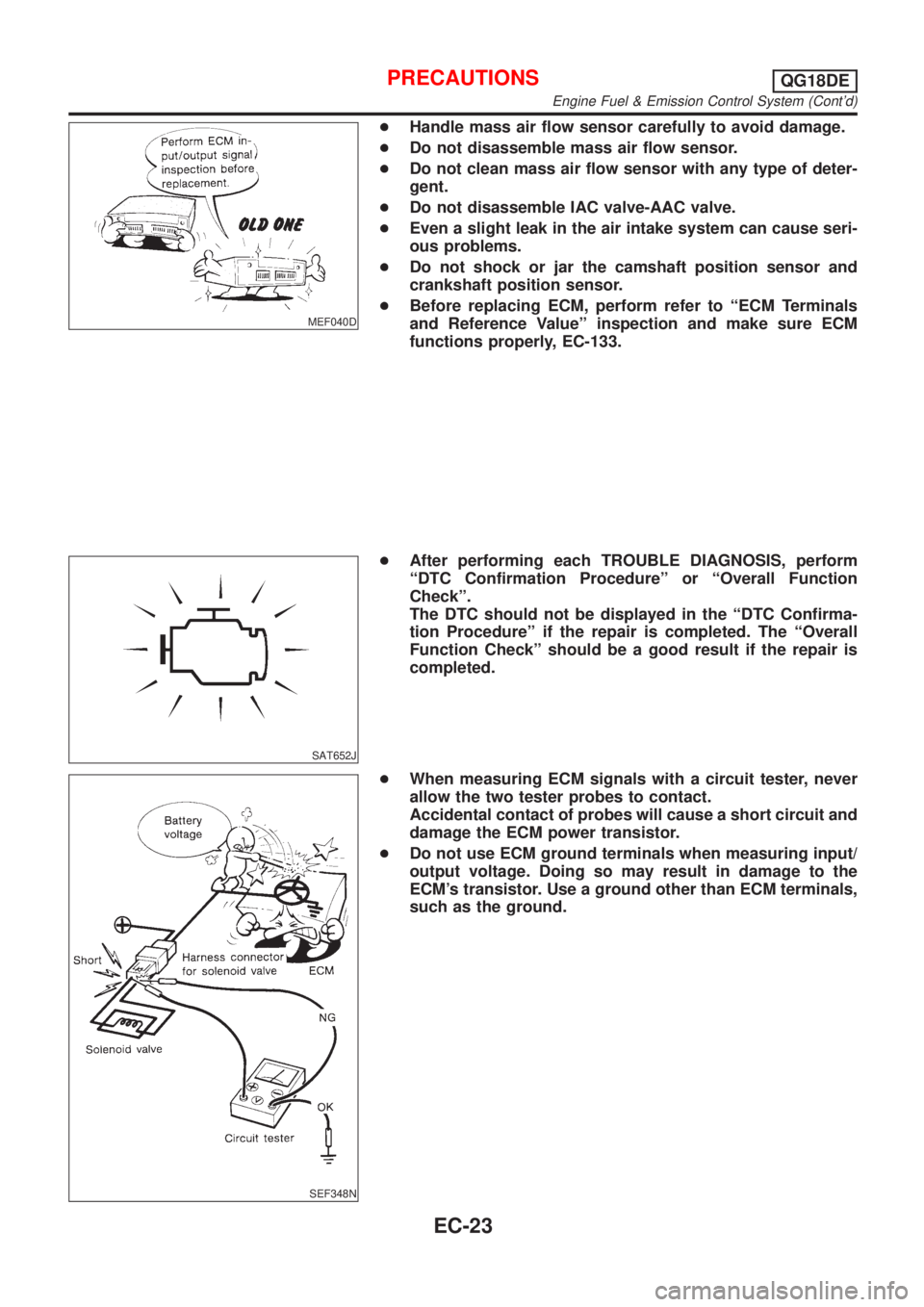

+Handle mass air flow sensor carefully to avoid damage.
+Do not disassemble mass air flow sensor.
+Do not clean mass air flow sensor with any type of deter-
gent.
+Do not disassemble IAC valve-AAC valve.
+Even a slight leak in the air intake system can cause seri-
ous problems.
+Do not shock or jar the camshaft position sensor and
crankshaft position sensor.
+Before replacing ECM, perform refer to ªECM Terminals
and Reference Valueº inspection and make sure ECM
functions properly, EC-133.
SAT652J
+After performing each TROUBLE DIAGNOSIS, perform
ªDTC Confirmation Procedureº or ªOverall Function
Checkº.
The DTC should not be displayed in the ªDTC Confirma-
tion Procedureº if the repair is completed. The ªOverall
Function Checkº should be a good result if the repair is
completed.
SEF348N
+When measuring ECM signals with a circuit tester, never
allow the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
+Do not use ECM ground terminals when measuring input/
output voltage. Doing so may result in damage to the
ECM's transistor. Use a ground other than ECM terminals,
such as the ground.
PRECAUTIONSQG18DE
Engine Fuel & Emission Control System (Cont'd)
EC-23
Page 449 of 3051

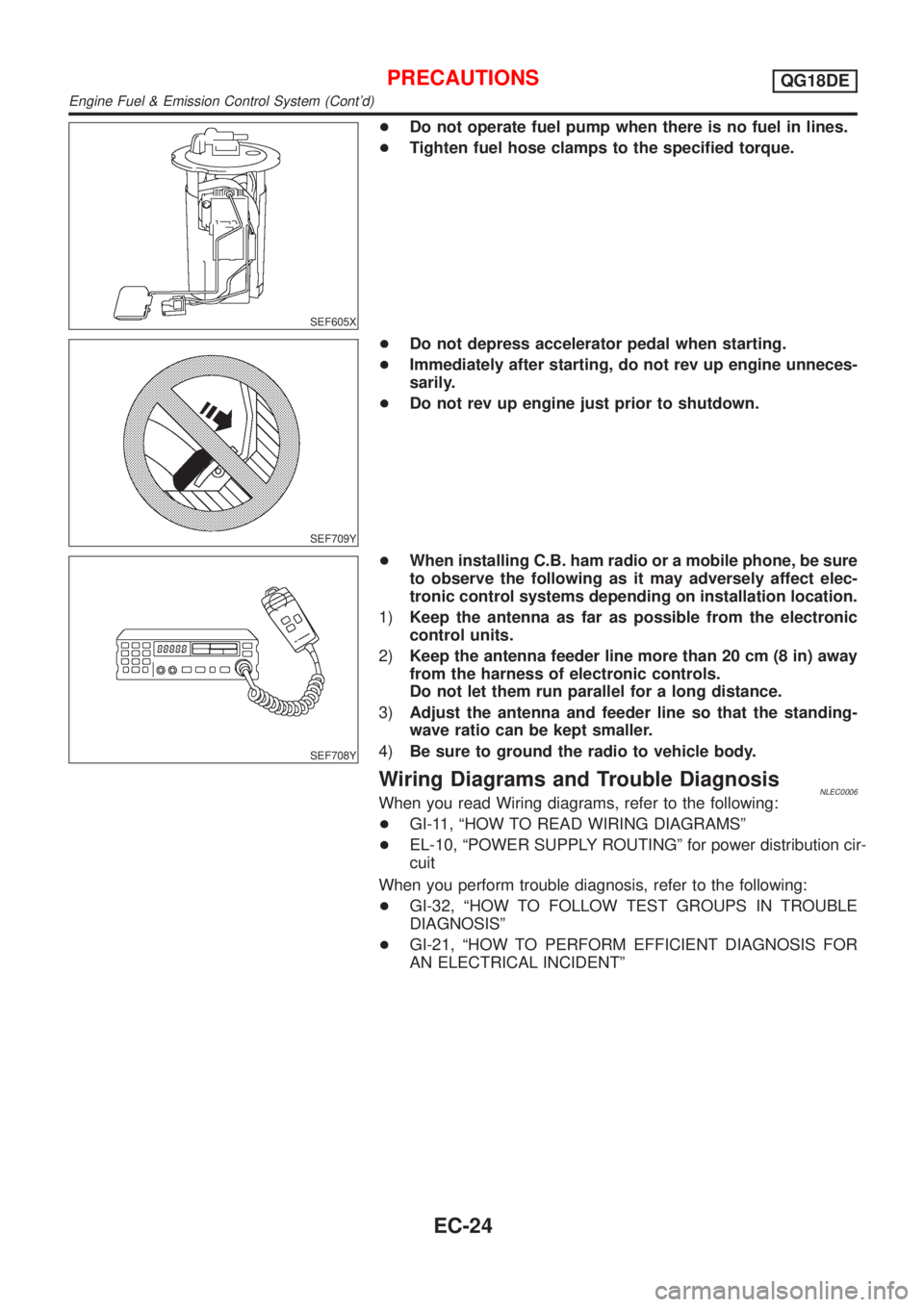

SEF605X
SEF709Y
SEF708Y
Engine Fuel & Emission Control System (Cont'd)
Page 450 of 3051

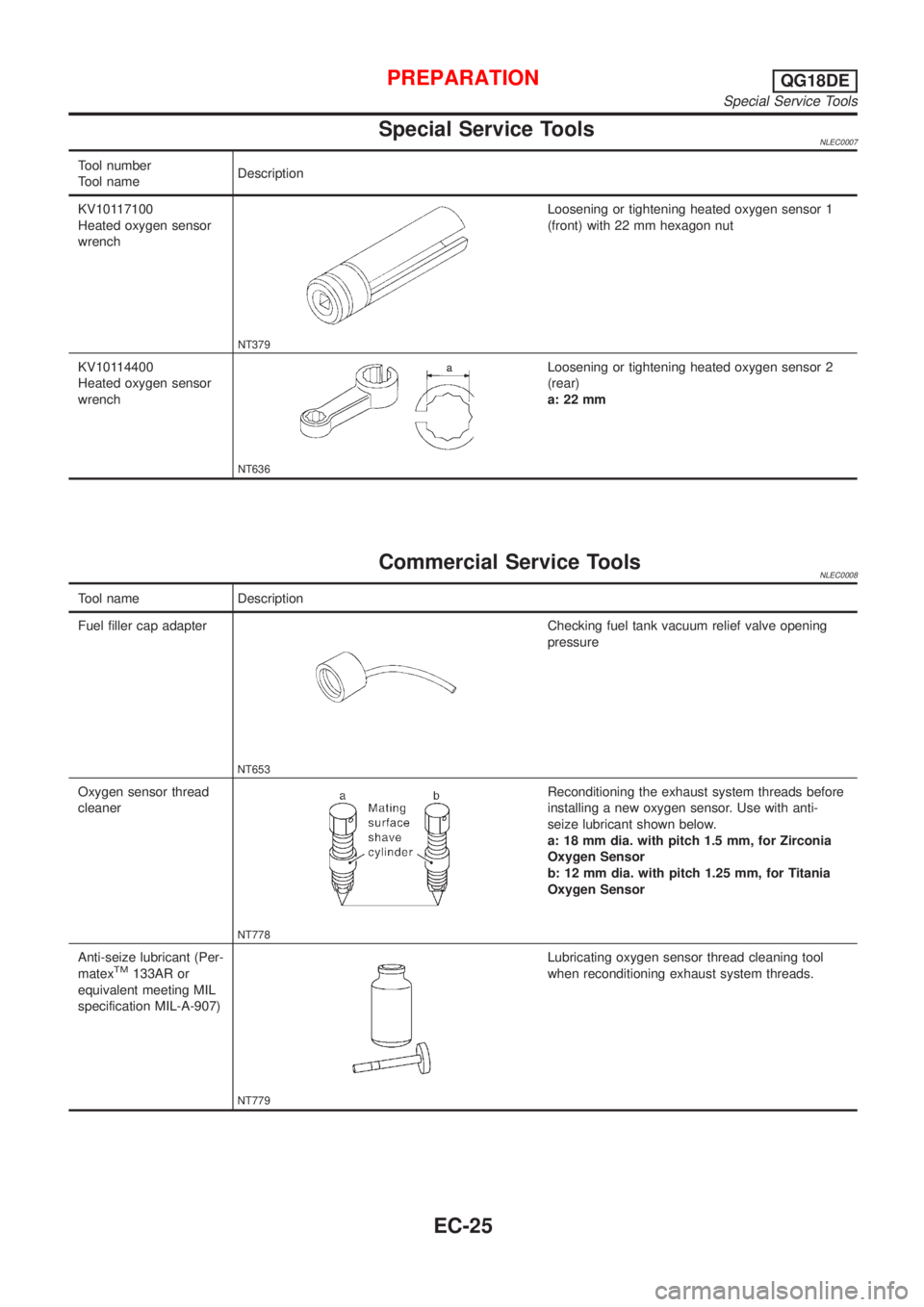

Special Service ToolsNLEC0007
Tool number
Tool nameDescription
KV10117100
Heated oxygen sensor
wrench
NT379
Loosening or tightening heated oxygen sensor 1
(front) with 22 mm hexagon nut
KV10114400
Heated oxygen sensor
wrench
NT636
Loosening or tightening heated oxygen sensor 2
(rear)
a: 22 mm
Commercial Service ToolsNLEC0008
Tool name Description
Fuel filler cap adapter
NT653
Checking fuel tank vacuum relief valve opening
pressure
Oxygen sensor thread
cleaner
NT778
Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm dia. with pitch 1.5 mm, for Zirconia
Oxygen Sensor
b: 12 mm dia. with pitch 1.25 mm, for Titania
Oxygen Sensor
Anti-seize lubricant (Per-
matex
TM133AR or
equivalent meeting MIL
specification MIL-A-907)
NT779
Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.
PREPARATIONQG18DE
Special Service Tools
EC-25
