NISSAN GT-R 2011 Owners Manual

Black plate (163,1)
Model "R35-N" EDITED: 2009/ 10/ 30
.Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATION
FCC Regulatory information— CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
— Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause un-
desired operation of the deviceIC Regulatory information— Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
— This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
BLUETOOTH
®
is a trademark
owned by Bluetooth SIG, Inc.,
U.S.A.
VOICE COMMANDSYou can use voice commands to operate various
Bluetooth
®Hands-Free Phone System features
using the NISSAN Voice Recognition system.
“Voice recognition” page 8-1
Bluetooth
®Hands-Free Phone System
4-3

Black plate (164,1)
Model "R35-N" EDITED: 2009/ 10/ 30

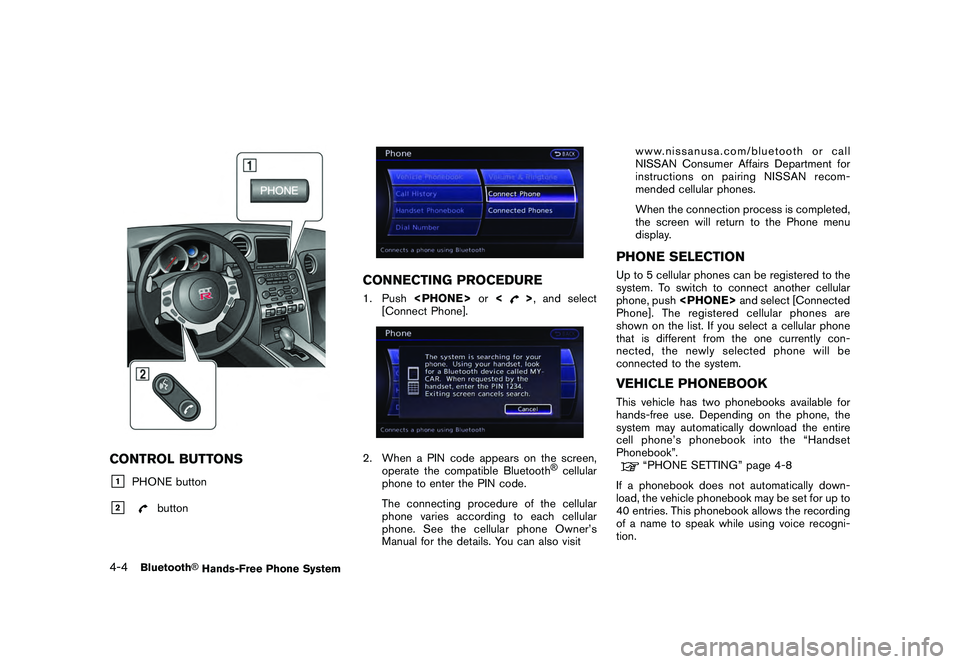

CONTROL BUTTONS&1
PHONE button
&2
button
CONNECTING PROCEDURE1. Push or<
>, and select
[Connect Phone].
2. When a PIN code appears on the screen, operate the compatible Bluetooth
®cellular
phone to enter the PIN code.
The connecting procedure of the cellular
phone varies according to each cellular
phone. See the cellular phone Owner’s
Manual for the details. You can also visit www.nissanusa.com/bluetooth or call
NISSAN Consumer Affairs Department for
instructions on pairing NISSAN recom-
mended cellular phones.
When the connection process is completed,
the screen will return to the Phone menu
display.
PHONE SELECTIONUp to 5 cellular phones can be registered to the
system. To switch to connect another cellular
phone, push
and select [Connected
Phone]. The registered cellular phones are
shown on the list. If you select a cellular phone
that is different from the one currently con-
nected, the newly selected phone will be
connected to the system.VEHICLE PHONEBOOKThis vehicle has two phonebooks available for
hands-free use. Depending on the phone, the
system may automatically download the entire
cell phone’s phonebook into the “Handset
Phonebook”.
“PHONE SETTING” page 4-8
If a phonebook does not automatically down-
load, the vehicle phonebook may be set for up to
40 entries. This phonebook allows the recording
of a name to speak while using voice recogni-
tion.
4-4
Bluetooth
®Hands-Free Phone System

Black plate (165,1)
Model "R35-N" EDITED: 2009/ 10/ 30

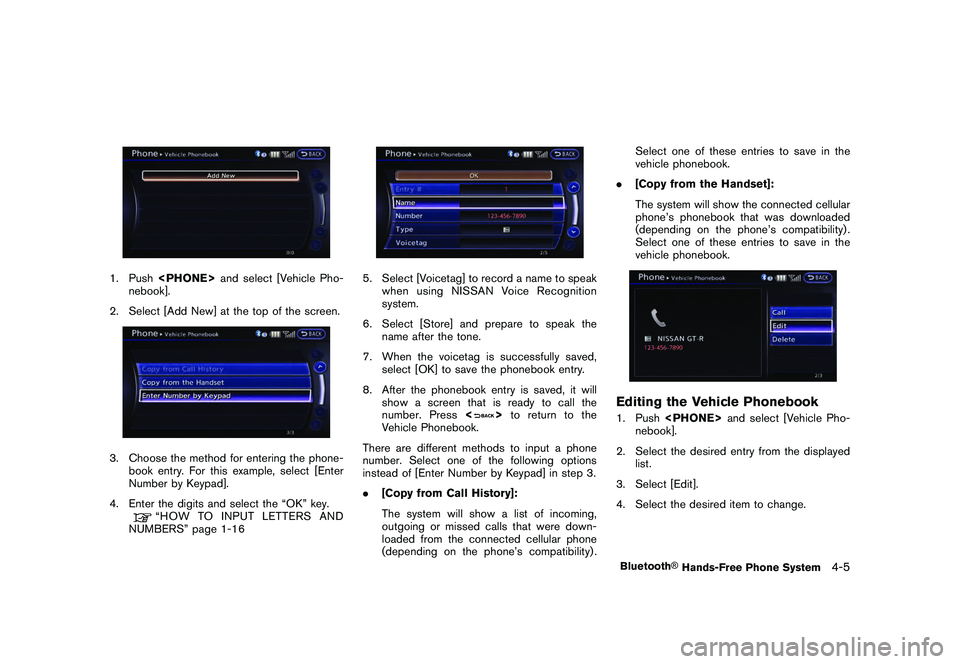

1. Push and select [Vehicle Pho-
nebook].
2. Select [Add New] at the top of the screen.3. Choose the method for entering the phone- book entry. For this example, select [Enter
Number by Keypad].
4. Enter the digits and select the “OK” key.
“HOW TO INPUT LETTERS AND
NUMBERS” page 1-16
5. Select [Voicetag] to record a name to speak when using NISSAN Voice Recognition
system.
6. Select [Store] and prepare to speak the name after the tone.
7. When the voicetag is successfully saved, select [OK] to save the phonebook entry.
8. After the phonebook entry is saved, it will show a screen that is ready to call the
number. Press <
>to return to the
Vehicle Phonebook.
There are different methods to input a phone
number. Select one of the following options
instead of [Enter Number by Keypad] in step 3.
. [Copy from Call History]:
The system will show a list of incoming,
outgoing or missed calls that were down-
loaded from the connected cellular phone
(depending on the phone’s compatibility) . Select one of these entries to save in the
vehicle phonebook.
. [Copy from the Handset]:
The system will show the connected cellular
phone’s phonebook that was downloaded
(depending on the phone’s compatibility) .
Select one of these entries to save in the
vehicle phonebook.
Editing the Vehicle Phonebook1. Push and select [Vehicle Pho-
nebook].
2. Select the desired entry from the displayed list.
3. Select [Edit].
4. Select the desired item to change.Bluetooth
®Hands-Free Phone System
4-5

Black plate (166,1)
Model "R35-N" EDITED: 2009/ 10/ 30

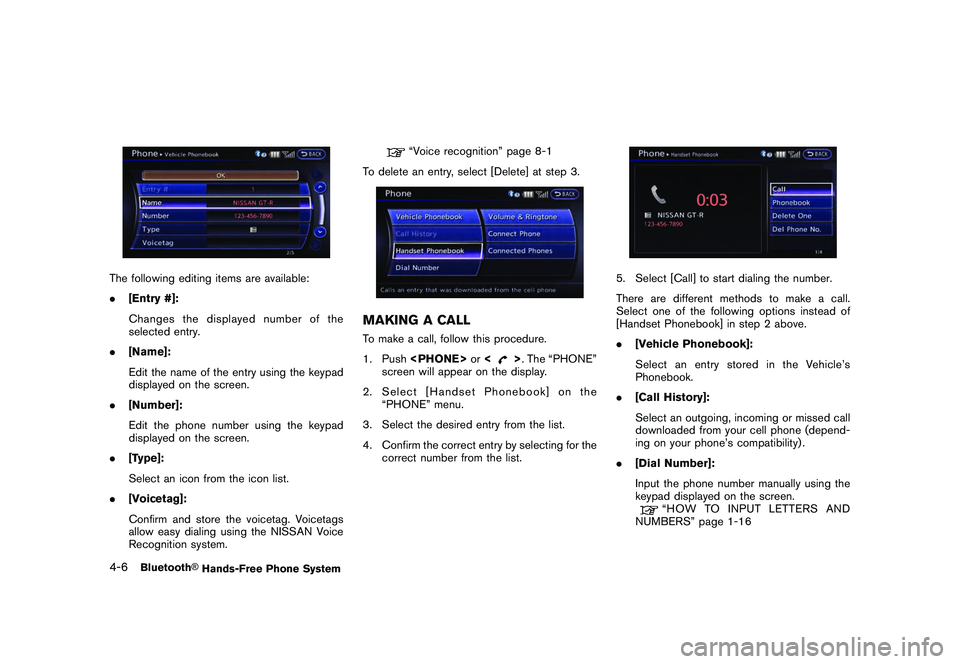

The following editing items are available:
.[Entry #]:
Changes the displayed number of the
selected entry.
. [Name]:
Edit the name of the entry using the keypad
displayed on the screen.
. [Number]:
Edit the phone number using the keypad
displayed on the screen.
. [Type]:
Select an icon from the icon list.
. [Voicetag]:
Confirm and store the voicetag. Voicetags
allow easy dialing using the NISSAN Voice
Recognition system.
“Voice recognition” page 8-1
To delete an entry, select [Delete] at step 3.
MAKING A CALLTo make a call, follow this procedure.
1. Push or<
>. The “PHONE”
screen will appear on the display.
2. Select [Handset Phonebook] on the “PHONE” menu.
3. Select the desired entry from the list.
4. Confirm the correct entry by selecting for the correct number from the list.
5. Select [Call] to start dialing the number.
There are different methods to make a call.
Select one of the following options instead of
[Handset Phonebook] in step 2 above.
.[Vehicle Phonebook]:
Select an entry stored in the Vehicle’s
Phonebook.
. [Call History]:
Select an outgoing, incoming or missed call
downloaded from your cell phone (depend-
ing on your phone’s compatibility) .
. [Dial Number]:
Input the phone number manually using the
keypad displayed on the screen.
“HOW TO INPUT LETTERS AND
NUMBERS” page 1-16
4-6
Bluetooth
®Hands-Free Phone System

Black plate (167,1)
Model "R35-N" EDITED: 2009/ 10/ 30
RECEIVING A CALLWhen you hear a phone ring, the display will
change to the incoming call mode. To receive a
call, perform one of the following procedures
listed below.
a) Select [Answer].
b) Push on the instrument panel.
c) Push <
>on the steering wheel.
There are some options available when receiving
a call. Select one of the following displayed on
the screen.
. [Answer]:
Accept an incoming call to talk.
. [Hold Call]:
Put an incoming call on hold. .
[Reject Call]:
Reject an incoming call.
To finish the call, perform one of the
following procedures listed below.
a) Select [Hang up].
b) Push on the instrument panel.
c) Push <
>on the steering wheel.
DURING A CALLThere are some options available during a call.
Select one of the following displayed on the
screen if necessary.
. [Hang up]:
Finish the call.
. [Use Handset]:
Transfer the call to the cellular phone. .
[Mute]:
Mute your voice to the person.
. [Keypad]:
Using the touch tone, send digits to the
connected party for using services such as
voicemail.
. [Cancel Mute]:
This will appear after [Mute] is selected.
Mute will be canceled.
To adjust the person’s voice to be louder or
quieter, push the volume control switch (+ or )
on the steering wheel or turn the volume control
knob on the instrument panel while talking on
the phone. This adjustment is also available in
the SETTING mode.
Bluetooth
®Hands-Free Phone System
4-7

Black plate (168,1)
Model "R35-N" EDITED: 2009/ 10/ 30

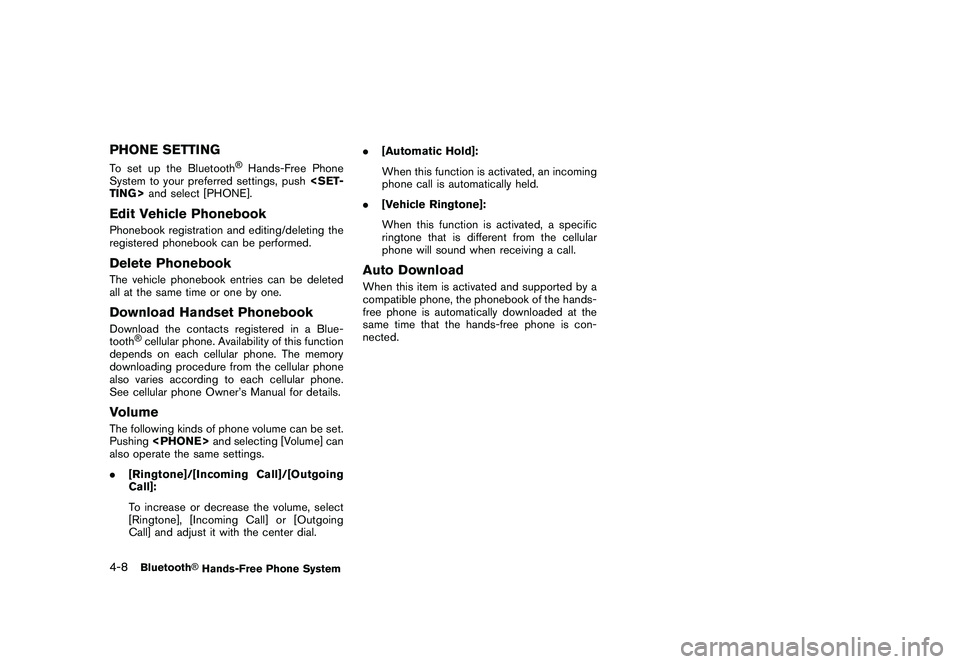

PHONE SETTINGTo set up the Bluetooth
®Hands-Free Phone
System to your preferred settings, push TING> and select [PHONE].
Edit Vehicle PhonebookPhonebook registration and editing/deleting the
registered phonebook can be performed.Delete PhonebookThe vehicle phonebook entries can be deleted
all at the same time or one by one.Download Handset PhonebookDownload the contacts registered in a Blue-
tooth
®cellular phone. Availability of this function
depends on each cellular phone. The memory
downloading procedure from the cellular phone
also varies according to each cellular phone.
See cellular phone Owner’s Manual for details.
VolumeThe following kinds of phone volume can be set.
Pushing and selecting [Volume] can
also operate the same settings.
. [Ringtone]/[Incoming Call]/[Outgoing
Call]:
To increase or decrease the volume, select
[Ringtone], [Incoming Call] or [Outgoing
Call] and adjust it with the center dial. .
[Automatic Hold]:
When this function is activated, an incoming
phone call is automatically held.
. [Vehicle Ringtone]:
When this function is activated, a specific
ringtone that is different from the cellular
phone will sound when receiving a call.
Auto DownloadWhen this item is activated and supported by a
compatible phone, the phonebook of the hands-
free phone is automatically downloaded at the
same time that the hands-free phone is con-
nected.
4-8
Bluetooth
®Hands-Free Phone System

Black plate (16,1)
5 Heater and air conditioner
Model "R35-N" EDITED: 2009/ 10/ 30
Operation precautions......................................... 5-2
How to view screen ........................................ 5-2
Automatic operation ............................................ 5-2
Cooling and/or dehumidified heating (AUTO) ........ 5-2
Heating (A/C OFF) ......................................... 5-3
Dehumidified defrosting or defogging .................. 5-4
Manual operation ............................................... 5-5
Fan speed control .......................................... 5-5
Air recirculation .............................................. 5-5 Outside air circulation
..................................... 5-5
Automatic air intake control .............................. 5-5
Air flow control .............................................. 5-6
To turn the system off ......................................... 5-6
Ventilators ........................................................ 5-6
Operating tips ................................................... 5-7
In-cabin microfilter .............................................. 5-7
Servicing air conditioner ...................................... 5-7

Black plate (172,1)
Model "R35-N" EDITED: 2009/ 10/ 30
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
You can individually set the driver and front
passenger side temperature using each tem-
perature control button.
HOW TO VIEW SCREENPush to display the heater and air
conditioner status screen.&1
Displays the temperature setting for the
driver side.
&2
Displays the ventilator mode.
&3
Displays that the air conditioner is set to
the AUTO mode when the DUAL mode is
turned to ON.
&4
Displays the fan speed setting.
&5
Displays the temperature setting for the
passenger side.
COOLING AND/OR DEHUMIDIFIED
HEATING (AUTO)This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.1. Push . (The indicator on
the button will illuminate and AUTO will be
displayed.)
5-2
Heater and air conditioner
OPERATION PRECAUTIONS AUTOMATIC OPERATION

Black plate (173,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Operate the driver side temperature controldial to set the desired temperature.
Adjust the temperature to about 75 8F
(24 8C) for normal operation.
. The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control dial. When DUAL> the passenger side temperature
control dial is operated, the DUAL indicator
will come on. To turn off the passenger side
temperature control, push .
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
HEATING (A/C OFF)The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Push . The A/C indicator will turn off.
Heater and air conditioner
5-3

Black plate (174,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Operate the temperature control dial to setthe desired temperature.
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
. Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog up.
DEHUMIDIFIED DEFROSTING OR
DEFOGGING1. Push the front defroster button <
>. The
indicator light on the button will come on.
2. Operate the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside of the
windows, turn the fan speed control dial
<
>and set it to the maximum position.
. As soon as possible after the windshield is
clean, push to return to
the auto mode. .
When the front defroster button <
>is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
23 8F( 58C) to defog the windshield, and
the air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
5-4
Heater and air conditioner
