NISSAN GT-R 2011 Owners Manual

Black plate (175,1)
Model "R35-N" EDITED: 2009/ 10/ 30
FAN SPEED CONTROLTurn the fan speed control dial<
>to
manually control the fan speed.
Push to return to automatic
control of the fan speed.
AIR RECIRCULATIONPush the intake air control button <
>to
recirculate interior air inside the vehicle. The
indicator light “
” will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode “
”.
OUTSIDE AIR CIRCULATIONPush the outside air circulation button <
>
to change the air circulation from the intake air to
the outside air. The indicator light “
” will
come on.
AUTOMATIC AIR INTAKE CONTROLIn the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the intake air control button
<
> . To return to the automatic control
mode, push the intake air control button
<> for about 2 seconds. The indicator
lights will flash twice, and then the intake air will
be controlled automatically.
Heater and air conditioner
5-5
MANUAL OPERATION

Black plate (176,1)
Model "R35-N" EDITED: 2009/ 10/ 30

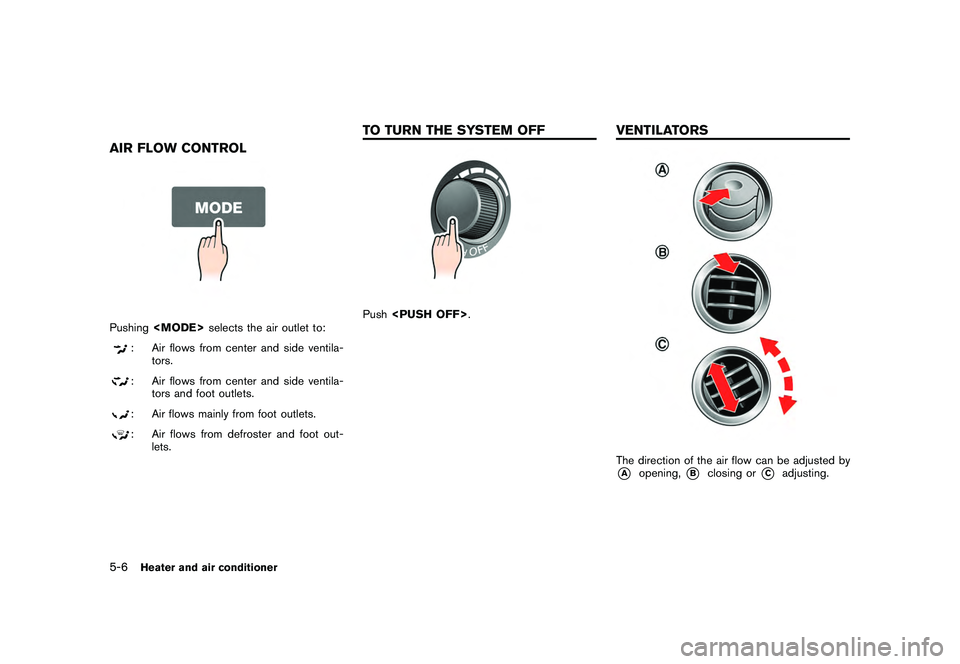

AIR FLOW CONTROLPushing selects the air outlet to:
: Air flows from center and side ventila-
tors.: Air flows from center and side ventila-tors and foot outlets.: Air flows mainly from foot outlets.: Air flows from defroster and foot out-
lets.
Push .
The direction of the air flow can be adjusted by*A
opening,
*B
closing or
*C
adjusting.
5-6
Heater and air conditioner
TO TURN THE SYSTEM OFF VENTILATORS

Black plate (177,1)
Model "R35-N" EDITED: 2009/ 11/ 13
The sensors
*A
and
*B
on the instrument
panel help maintain a constant temperature. Do
not put anything on or around these sensors.
The air conditioning system is equipped with an
in-cabin microfilter which collects dirt, pollen,
dust, etc. To make sure the air conditioner heats,
defogs, and ventilates efficiently, replace the
filter in accordance with the maintenance
schedule in the NISSAN Service and Mainte-
nance Guide. To replace the filter, contact a
NISSAN dealer or GT-R certified NISSAN
dealer.
The filter should be replaced if air flow is
extremely decreased or when windows fog
up easily when operating heater or air
conditioning system.
The recommended replacement interval for the
filter is every 1 year or 15,000 miles (24,000
km) .
The air conditioning system in your NISSAN is
charged with a refrigerant designed with the
environment in mind. This refrigerant will not
harm the earth’s ozone layer. However,
special charging equipment and lubricant are
required when servicing your NISSAN air con-
ditioner. Using improper refrigerants or lubri-
cants will cause severe damage to your air
conditioning system. Refer to the vehicle Own-
er’s Manual.
Your NISSAN dealer or GT-R certified NISSAN
dealer will be able to service your environmen-
tally friendly air conditioning system.
WARNING
The system contains refrigerant under
high pressure. To avoid personal injury,
any air conditioner service should be
done only by an experienced technician
with the proper equipment.
Heater and air conditioner
5-7
OPERATING TIPS IN-CABIN MICROFILTER SERVICING AIR CONDITIONER

Black plate (178,1)
Model "R35-N" EDITED: 2009/ 10/ 30

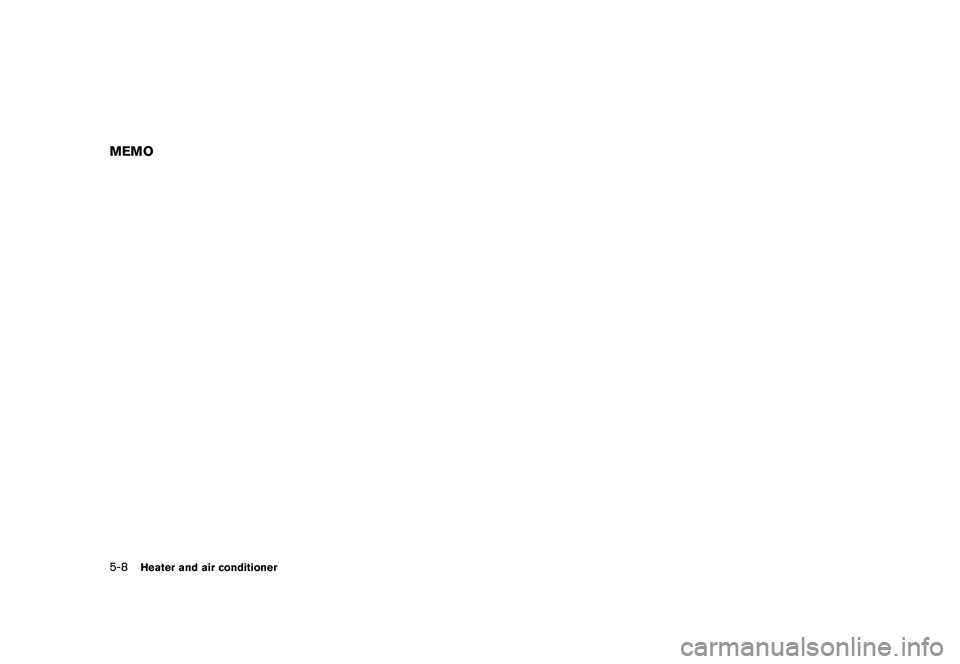

MEMO5-8
Heater and air conditioner

Black plate (19,1)
6 Viewing technical information
Model "R35-N" EDITED: 2009/ 10/ 30
Status screen.................................................... 6-2
Information screen .............................................. 6-2
Basic operation ............................................. 6-2
Viewing information about current vehicle location ...... 6-3
Basic operation ............................................. 6-3
Vehicle information display .................................... 6-4
Fuel economy information ................................. 6-4
Tire pressure information .................................. 6-5
Maintenance information .................................. 6-6
Viewing available traffic information ........................ 6-7
Basic operation ............................................. 6-8
Info on route ................................................. 6-9
Nearby traffic info. .......................................... 6-9 Display urgent traffic information
...................... 6-10
Traffic information on map .............................. 6-10
Traffic information settings .............................. 6-12
Viewing available weather information ................... 6-13
Displaying weather information screen ............... 6-14
Destination weather on suggested route
screen ....................................................... 6-20
Automatically display warnings/watches ............. 6-21
Map update .................................................... 6-23
Viewing navigation system version information ......... 6-24
Basic operation ........................................... 6-24
Viewing GPS current location information .............. 6-24
Basic operation ........................................... 6-24

Black plate (180,1)
Model "R35-N" EDITED: 2009/ 10/ 30

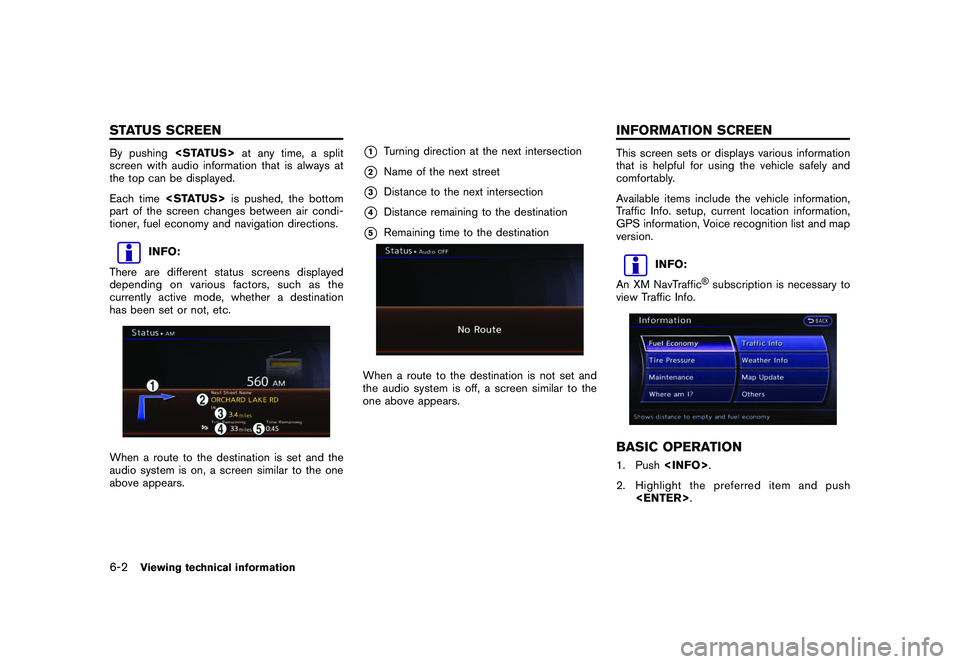

By pushing at any time, a split
screen with audio information that is always at
the top can be displayed.
Each time is pushed, the bottom
part of the screen changes between air condi-
tioner, fuel economy and navigation directions.
INFO:
There are different status screens displayed
depending on various factors, such as the
currently active mode, whether a destination
has been set or not, etc.
When a route to the destination is set and the
audio system is on, a screen similar to the one
above appears.
*1
Turning direction at the next intersection
*2
Name of the next street
*3
Distance to the next intersection
*4
Distance remaining to the destination
*5
Remaining time to the destination
When a route to the destination is not set and
the audio system is off, a screen similar to the
one above appears.
This screen sets or displays various information
that is helpful for using the vehicle safely and
comfortably.
Available items include the vehicle information,
Traffic Info. setup, current location information,
GPS information, Voice recognition list and map
version.
INFO:
An XM NavTraffic
®subscription is necessary to
view Traffic Info.
BASIC OPERATION1. Push .
2. Highlight the preferred item and push .
6-2
Viewing technical information
STATUS SCREEN INFORMATION SCREEN

Black plate (181,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Available items
.[Fuel Economy]:
Displays the fuel economy information.
“FUEL ECONOMY INFORMATION”
page 6-4
. [Tire Pressure]:
Displays the tire pressure information.“TIRE PRESSURE INFORMATION”
page 6-5
. [Maintenance]:
Displays the vehicle maintenance informa-
tion.“MAINTENANCE INFORMATION”
page 6-6
. [Where am I?]:
Displays information regarding the current
vehicle location.“VIEWING INFORMATION ABOUT
CURRENT VEHICLE LOCATION” page 6-3
. [Traffic Info]:
Allows Traffic Info. setup.“VIEWING AVAILABLE TRAFFIC IN-
FORMATION” page 6-7
. [Weather Info]:
Displays weather information.“VIEWING AVAILABLE WEATHER
INFORMATION” page 6-13 .
[Others]:
— [Map Update]: Display the map version and enable
updating of the map data.
“MAP UPDATE” page 6-23
— [Navigation Version]: Displays the current navigation system
version.“VIEWING NAVIGATION SYS-
TEM VERSION INFORMATION” page
6-24
— [GPS Position]: Displays GPS information regarding the
current vehicle location.“VIEWING GPS CURRENT LO-
CATION INFORMATION” page 6-24
— [Voice Recognition]: Displays the voice recognition list.“Voice recognition” page 8-1
This displays the information about the vehicle
location on the route when driving according to
route guidance.BASIC OPERATION1. Push .
2. Highlight [Where am I?] and push TER>.
3. Push <
>to return to the previous
screen. Push

Black plate (182,1)
Model "R35-N" EDITED: 2009/ 10/ 30

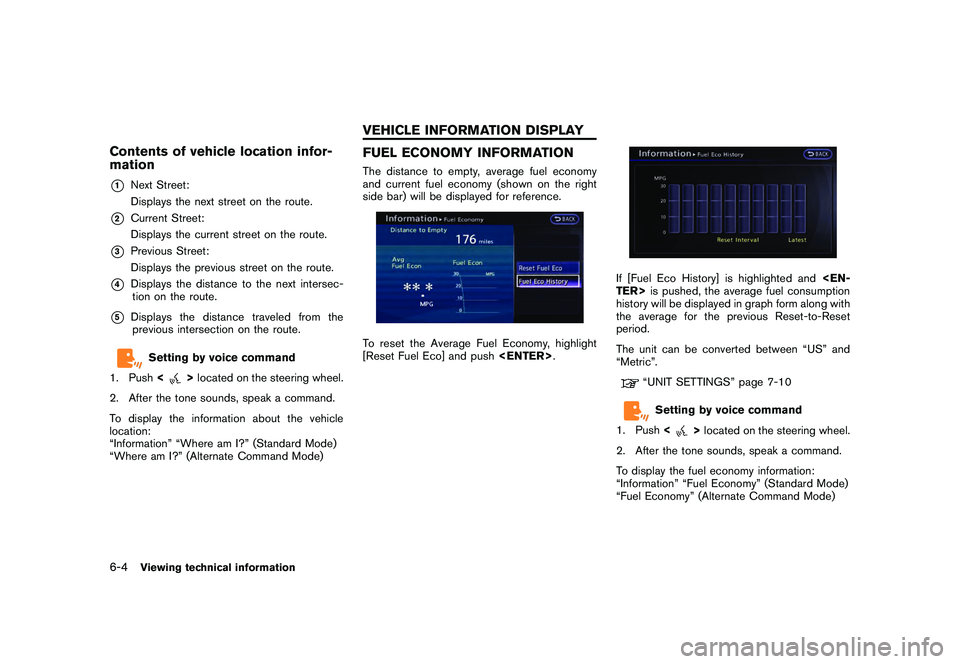

Contents of vehicle location infor-
mation*1
Next Street:
Displays the next street on the route.
*2
Current Street:
Displays the current street on the route.
*3
Previous Street:
Displays the previous street on the route.
*4
Displays the distance to the next intersec-tion on the route.
*5
Displays the distance traveled from theprevious intersection on the route.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the information about the vehicle
location:
“Information” “Where am I?” (Standard Mode)
“Where am I?” (Alternate Command Mode)
FUEL ECONOMY INFORMATIONThe distance to empty, average fuel economy
and current fuel economy (shown on the right
side bar) will be displayed for reference.To reset the Average Fuel Economy, highlight
[Reset Fuel Eco] and push .
If [Fuel Eco History] is highlighted and TER> is pushed, the average fuel consumption
history will be displayed in graph form along with
the average for the previous Reset-to-Reset
period.
The unit can be converted between “US” and
“Metric”.
“UNIT SETTINGS” page 7-10Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the fuel economy information:
“Information” “Fuel Economy” (Standard Mode)
“Fuel Economy” (Alternate Command Mode)
6-4
Viewing technical information
VEHICLE INFORMATION DISPLAY

Black plate (183,1)
Model "R35-N" EDITED: 2009/ 10/ 30
TIRE PRESSURE INFORMATIONThe tire pressure will be displayed for reference.The pressure indication “** psi” on the screen
means that the tire pressure is being measured.
After a few driving trips, the pressure for each
tire will be displayed.
In case of low tire pressure, LOW PRESSURE
information will be displayed on the screen.
Check the pressure for all tires.
Tire pressure rises and falls depending on the
heat caused by the vehicle’s traveling condition
and the temperature.
To change the measurement units, highlight
[Select Units] and press.
“UNIT SETTINGS” page 7-10
WARNING
.When a wheel is replaced, tire
pressure will not be indicated, the
TPMS will not function and the low
tire pressure warning light will flash
for approximately 1 minute. The
light will remain on after 1 minute.
Contact your NISSAN dealer or GT-R
certified NISSAN dealer as soon as
possible for tire replacement and/or
system resetting.
. Replacing tires with those not ori-
ginally specified by NISSAN could
affect the proper operation of the
TPMS.
Tire malfunctionWhen the system detects a tire malfunction, the
following message is displayed.
.Low pressureThe low-pressure tire is displayed in orange, and
a warning message appears.
.Flat tireWhen the system detects a puncture, the
punctured tire is displayed in red, and a warning
message appears.
Viewing technical information
6-5

Black plate (184,1)
Model "R35-N" EDITED: 2009/ 10/ 30
.TPMS malfunctionWhen the system displays the tire pressure as
“**”, the pressure values for the tires are not
displayed.
INFO:
When a tire malfunction occurs, a warning
message will also be displayed in Vehicle
Information.Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the tire pressure information:
“Tire Pressure” (Alternate Command Mode)
MAINTENANCE INFORMATIONThe maintenance intervals can be displayed for
your desired maintenance items.To set the maintenance interval for the engine oil,
oil filter, tire and other reminders, choose an item
and push .
You can also set to display a message to remind
you that the maintenance needs to be per-
formed.
The following example shows how to set the
engine oil maintenance information. Use the
same steps to set the other maintenance
information.
1. Reset the driving distance to the new maintenance schedule.
2. Set the interval (mileage) of the maintenance schedule. To determine the recommended
maintenance interval, refer to your “NISSAN
Service and Maintenance Guide”.
3. To display the reminder automatically when the set trip distance is reached, highlight
[Reminder] and push .
4. To return the display to MAINTENANCE INFO., push <
>.
Maintenance information display cannot be
operated when the vehicle is moving. Stop the
vehicle in a safe place to see the information.
The unit can be converted between “US” and
“Metric”.
“UNIT SETTINGS” page 7-10
6-6
Viewing technical information
