NISSAN GT-R 2011 Owners Manual

Black plate (277,1)
Model "R35-N" EDITED: 2009/ 10/ 30
&3
SPEED:
Displays the vehicle speed while driving.
&4
ELAPSED TIME:
Displays the total elapsed time measured
since the stopwatch function was started.
Measuring timed distanceTo measure the timed distance, use STOP> or on the steering switch.1. With the STOP WATCH screen displayed,
push . The timer-on in-
dicator will flash when the stopwatch func-
tion is active.
2. Each time you push the displayed
time will be recorded into the system and
will be viewable in the list.3. Push .Thestopwatch
function will stop timing.
INFO:
. The STOP WATCH function can only be
used when the clock is activated. .
If using the driver’s notes, the STOP
WATCH function is unavailable. To use the
STOP WATCH function, first finish using the
driver’s notes.
. If the ignition is in the OFF position, you will
not be able to use the STOP WATCH
function.
. If the ignition is put into the ACC or the OFF
position while using the timer, timing will
end.
. The timer will continue timing while you
display other screens until you push
.
. The maximum time that the system timer can
display is a recorded time of up to 9 hours
59 minutes and 59.99 seconds.
. When timing has finished, the upper timer
will reset to 00:00.0
. When the recorded time and the finished
recording time are displayed, they tempora-
rily interrupt the time recorder display and
are displayed in large numbers. The re-
corded time will disappear automatically
after 5-10 seconds.
. When screens other than the multi function
meter are displayed, the STOP WATCH
screen will not interrupt the display.
Multi function meter
9-29

Black plate (278,1)
Model "R35-N" EDITED: 2009/ 10/ 30

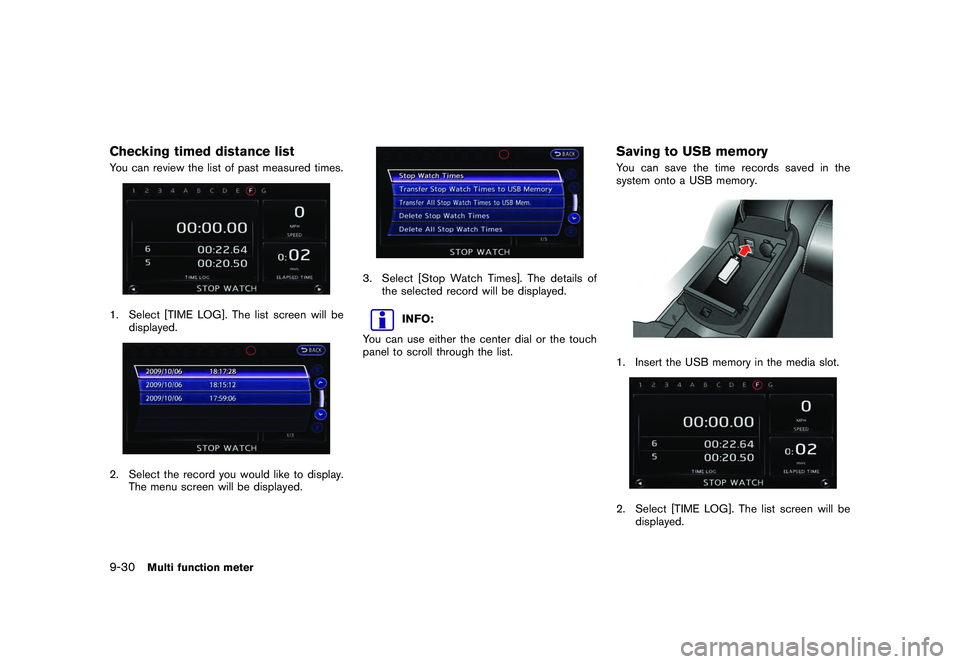

Checking timed distance listYou can review the list of past measured times.1. Select [TIME LOG]. The list screen will bedisplayed.2. Select the record you would like to display.The menu screen will be displayed.
3. Select [Stop Watch Times]. The details ofthe selected record will be displayed.
INFO:
You can use either the center dial or the touch
panel to scroll through the list.
Saving to USB memoryYou can save the time records saved in the
system onto a USB memory.1. Insert the USB memory in the media slot.2. Select [TIME LOG]. The list screen will be displayed.
9-30
Multi function meter

Black plate (279,1)
Model "R35-N" EDITED: 2009/ 10/ 30

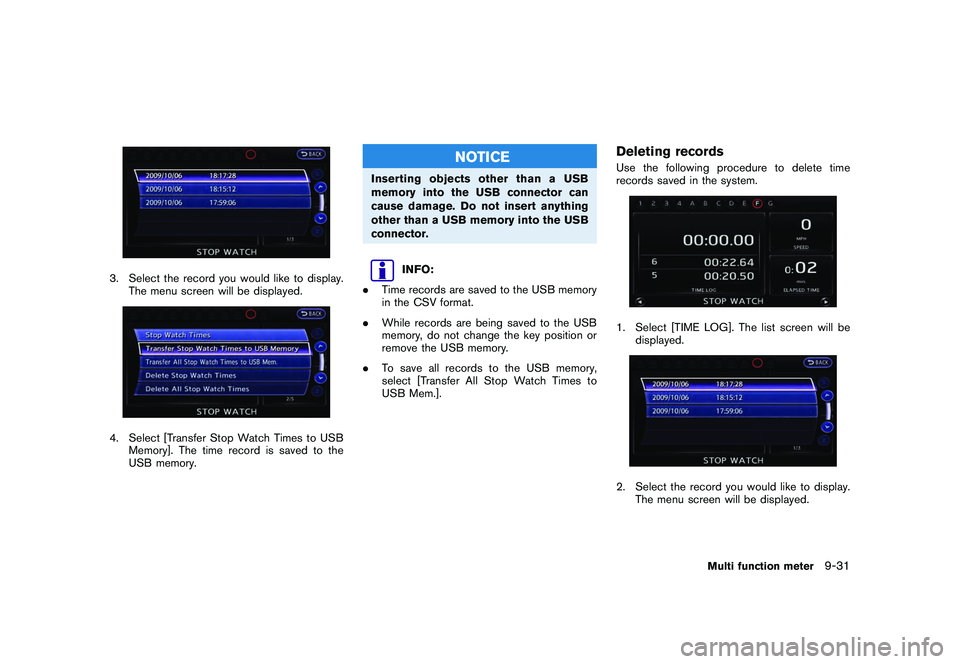

3. Select the record you would like to display.The menu screen will be displayed.4. Select [Transfer Stop Watch Times to USBMemory]. The time record is saved to the
USB memory.
NOTICE
Inserting objects other than a USB
memory into the USB connector can
cause damage. Do not insert anything
other than a USB memory into the USB
connector.
INFO:
. Time records are saved to the USB memory
in the CSV format.
. While records are being saved to the USB
memory, do not change the key position or
remove the USB memory.
. To save all records to the USB memory,
select [Transfer All Stop Watch Times to
USB Mem.].
Deleting recordsUse the following procedure to delete time
records saved in the system.1. Select [TIME LOG]. The list screen will be
displayed.2. Select the record you would like to display.
The menu screen will be displayed.
Multi function meter
9-31

Black plate (280,1)
Model "R35-N" EDITED: 2009/ 10/ 30
3. Select [Delete Stop Watch Times]. Themessage screen will be displayed.4. Select [YES]. The time record will bedeleted.
INFO:
. You cannot recover deleted records.
. To delete all records select [Delete All Stop
Watch Times].
DRIVER’S NOTES SCREENYou can record the waypoints that you pass
using the DRIVER’S NOTES screen.How to view screen&1
MARK LIST (waypoint list):
Displays a list of waypoints saved auto-
matically or manually.
&2
Timer indicator:
Flashes while the timer is operating.
&3
FUEL/RANGE:
Displays the amount of fuel and the
distance the vehicle can travel on the
remaining fuel
&4
TRIP DISTANCE:
Displays the driving time measured starting
from when the Driver’s notes function was
activated.
NOTICE
Even when the cruising distance dis-
plays that the vehicle has a sufficient
amount of fuel to travel a given dis-
tance, when the fuel indicator ap-
proachesE(empty),orthefuel
warning light illuminates, be sure to
fuel your vehicle.
9-32
Multi function meter

Black plate (281,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Timing waypointsTo measure a waypoint, use
or on the steering switch.1. With the DRIVER’S NOTES screen dis-
played, push . The DRI-
VER’S NOTES function will activate, and the
timer indicator will flash.
2. Pass the waypoint. The waypoint will be automatically recorded and will be displayed
in the list.3. Push . The waypoint will be dis-
played in the list when is pushed.
4. Push . The DRIVER’S
NOTES function will end.
The waypoint will be displayed as described
below:
. The name of the waypoint that was selected
when was pushed
. State line/provincial border (name of state/
province entered)
. Point where the name of the road changed
. Place where the vehicle was put in P (park)
Multi function meter
9-33

Black plate (282,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
. The STOP WATCH function can only be
used when the clock is activated.
. When the STOP WATCH function is acti-
vated, you cannot use the waypoint timer.
This is the waypoint timer after use of the
STOP WATCH function is completed.
. Even if you stop the engine, when RESUME
is set to ON, the timer will not reset and you
will be able to continue timing your travel.
. If a roadway with a long name has been
recorded as a waypoint, the city and state/
province names may not be displayed.
. If a place name that is not contained in the
map data is recorded as a waypoint, the
waypoint will be displayed by longitude and
latitude.
. Town/city/state/province names configured
in region settings will only be displayed on
the Destination screen for regions in which
the vehicle is located.
About Driver’s notes icon:
: Ordinary road
When your vehicle enters a road, the name of
the road is recorded.: Toll road
When your vehicle enters a toll road, the name
of the road is recorded.: U.S. highways
When your vehicle enters a U.S. highways, the
name of the road is recorded.: Freeway
When your vehicle enters a freeway, the name of
the freeway is recorded.: Parking
When the shift lever is put into the P position,
the vehicle’s current location is recorded.: Check point
When is pushed, the vehicle’s current
location is recorded.: Start point
When is pushed to start the
Drivers Notes function, the vehicle’s current
location is recorded.
: Destination
When is pushed to end the
Drivers Notes function, the vehicle’s current
location is recorded.
Confirming list of waypointsYou can review the list of past trips you have
made.1. Select [MARK LIST]. The list screen will be displayed.2. Select the record you would like to display.
9-34
Multi function meter

Black plate (283,1)
Model "R35-N" EDITED: 2009/ 10/ 30

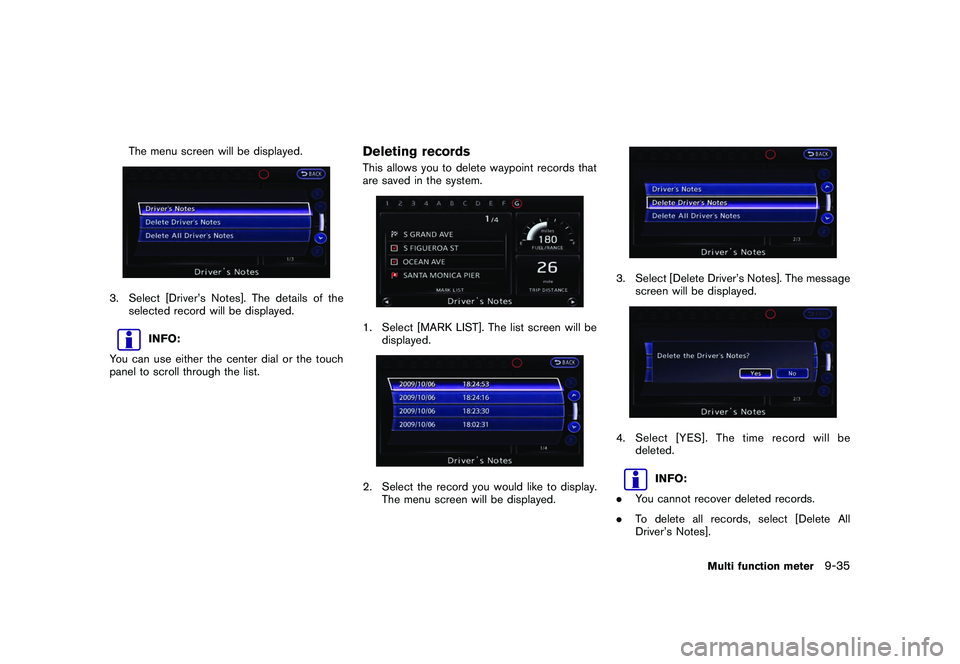

The menu screen will be displayed.
3. Select [Driver’s Notes]. The details of theselected record will be displayed.
INFO:
You can use either the center dial or the touch
panel to scroll through the list.
Deleting recordsThis allows you to delete waypoint records that
are saved in the system.1. Select [MARK LIST]. The list screen will be displayed.2. Select the record you would like to display.
The menu screen will be displayed.
3. Select [Delete Driver’s Notes]. The messagescreen will be displayed.4. Select [YES]. The time record will bedeleted.
INFO:
. You cannot recover deleted records.
. To delete all records, select [Delete All
Driver’s Notes].
Multi function meter
9-35

Black plate (284,1)
Model "R35-N" EDITED: 2009/ 10/ 30

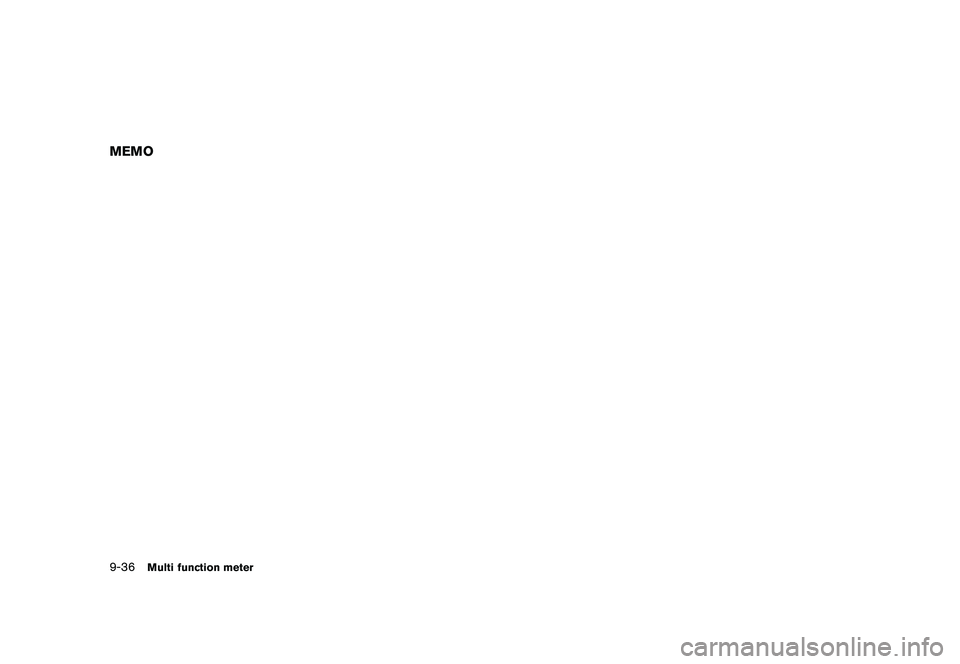

MEMO9-36
Multi function meter

Black plate (31,1)
10 General system information
Current vehicle location..................................... 10-2
Display of current vehicle location .................... 10-2
What is GPS (Global Positioning System)? ........ 10-2
Incorrect display of vehicle position .................. 10-3
Detailed Map Coverage Areas (MCA) for
navigation system ......................................... 10-5
When gray road is displayed on map ................ 10-5
Route calculation ............................................. 10-6
Route guidance ............................................... 10-7
Basics of voice guidance ............................... 10-7
Directions provided and distances to guide
points ........................................................ 10-8 Repeating voice guidance
............................ 10-10
Notes on voice guidance ............................. 10-10
Notes on XM NavTraffic ®
information .................. 10-11
Notes on XM NavWeather
TM
information .............. 10-12
Map data ..................................................... 10-13
How to order map data updates .................... 10-13
About map data ......................................... 10-13
End-user terms .......................................... 10-14
How to handle display ..................................... 10-16
Characteristics of liquid crystal display ............ 10-16
Maintenance of display ................................ 10-16

Black plate (286,1)
Model "R35-N" EDITED: 2009/ 10/ 30
DISPLAY OF CURRENT VEHICLE
LOCATIONThis navigation system combines the data
obtained from the vehicle (by gyro sensor) and
from GPS (Global Positioning System) satellites
to calculate the current location of the vehicle.
This position is then displayed throughout route
guidance to a destination.WHAT IS GPS (Global Positioning
System)?GPS is a position detecting system that uses
satellites deployed by the U.S. government. This
navigation system receives radio signals from
three or more different satellites that orbit
13,049 miles (21,000 km) above the earth in
space, and detects the position of the vehicle by
utilizing the principle of triangulation.Positioning adjustmentWhen the system judges that the vehicle
position information is not accurate based on
vehicle speed and gyro sensor data calculations,
the system will automatically adjust the position
of the vehicle icon using GPS signals.Receiving signals from GPS satel-
litesThe reception of GPS signals can be weak,
depending on the environment. Vehicles in the
following areas/environments may not receive
GPS signals (indicator color: gray) .
*Inside tunnels or parking garages*Areas with numerous tall buildings
*Under multi-layered highways*Under many large trees
