NISSAN GT-R 2011 Owners Manual

Black plate (247,1)
Model "R35-N" EDITED: 2009/ 10/ 30
MEMO
Voice recognition
8-29

Black plate (248,1)
Model "R35-N" EDITED: 2009/ 10/ 30
MEMO8-30
Voice recognition

Black plate (28,1)
9 Multi function meter
Model "R35-N" EDITED: 2009/ 10/ 30
About multi function meter.................................... 9-2
Safety notes ................................................. 9-2
Multi function meter list ................................... 9-3
Basic operation ................................................. 9-4
How to view the function meter screen ............... 9-4
How to switch screens .................................... 9-6
Custom view screen ........................................... 9-7
Selecting panel .............................................. 9-7
Performance and vehicle information panel ......... 9-10Driving support screen
...................................... 9-20
Acceleration screen ...................................... 9-20
Braking screen ............................................ 9-22
Steering screen ........................................... 9-24
Gear position screen .................................... 9-26
Fuel economy screen .................................... 9-27
Driving record screen ........................................ 9-28
Stopwatch screen ........................................ 9-28
Driver’s notes screen .................................... 9-32

Black plate (250,1)
Model "R35-N" EDITED: 2009/ 10/ 30

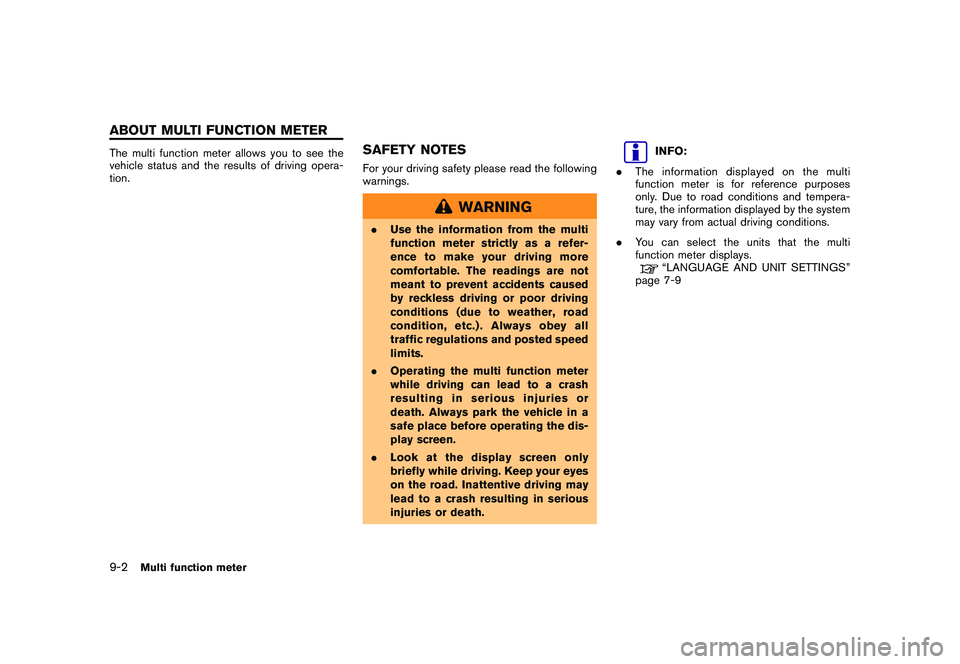

The multi function meter allows you to see the
vehicle status and the results of driving opera-
tion.
SAFETY NOTESFor your driving safety please read the following
warnings.
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Operating the multi function meter
while driving can lead to a crash
resulting in serious injuries or
death. Always park the vehicle in a
safe place before operating the dis-
play screen.
. Look at the display screen only
briefly while driving. Keep your eyes
on the road. Inattentive driving may
lead to a crash resulting in serious
injuries or death.
INFO:
. The information displayed on the multi
function meter is for reference purposes
only. Due to road conditions and tempera-
ture, the information displayed by the system
may vary from actual driving conditions.
. You can select the units that the multi
function meter displays.“LANGUAGE AND UNIT SETTINGS”
page 7-9
9-2
Multi function meter
ABOUT MULTI FUNCTION METER

Black plate (251,1)
Model "R35-N" EDITED: 2009/ 10/ 30

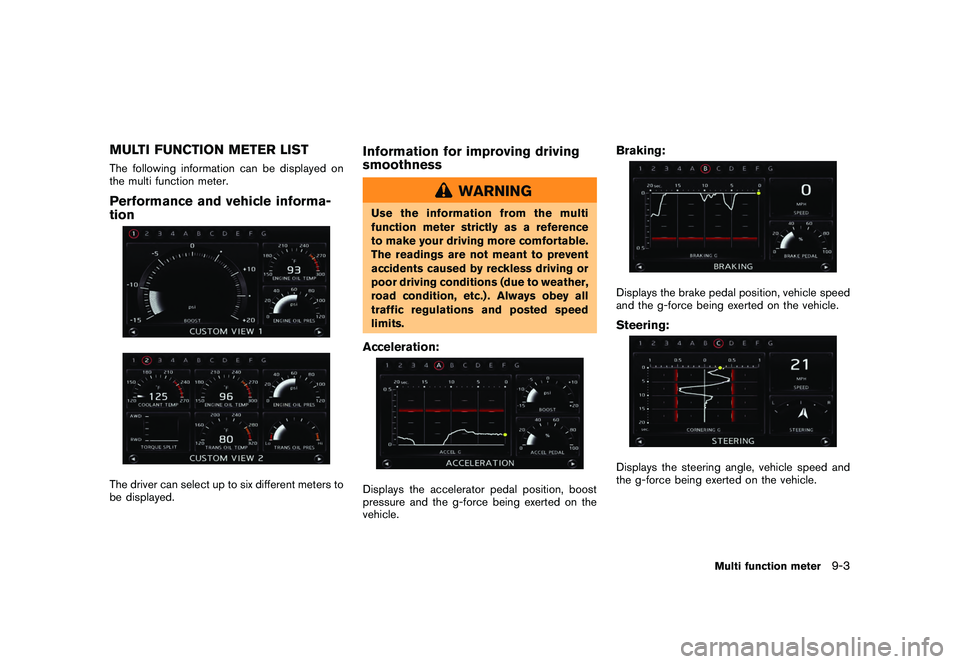

MULTI FUNCTION METER LISTThe following information can be displayed on
the multi function meter.Performance and vehicle informa-
tionThe driver can select up to six different meters to
be displayed.
Information for improving driving
smoothness
WARNING
Use the information from the multi
function meter strictly as a reference
to make your driving more comfortable.
The readings are not meant to prevent
accidents caused by reckless driving or
poor driving conditions (due to weather,
road condition, etc.) . Always obey all
traffic regulations and posted speed
limits.Acceleration:Displays the accelerator pedal position, boost
pressure and the g-force being exerted on the
vehicle.
Braking:Displays the brake pedal position, vehicle speed
and the g-force being exerted on the vehicle.Steering:Displays the steering angle, vehicle speed and
the g-force being exerted on the vehicle.
Multi function meter
9-3

Black plate (252,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Information for fuel economy im-
provementGear position:Displays the gear position, vehicle speed and
each gear’s fuel economy level/torque map.Fuel economy:Displays the fuel economy information.
Trip calculatorStopwatch:Displays the recorded driving time, vehicle
speed and elapsed time and saves the history
for each of these functions.Driver’s notes:Displays the driving history (waypoints passed) ,
remaining fuel/estimated cruising range (Dis-
tance to empty) and the distance driven.
Information displayed on the multi function meter
display will differ depending on your intended
use of the display. You can choose to select the
meters that best suit your needs.HOW TO VIEW THE FUNCTION ME-
TER SCREENThe vehicle’s display is divided into different
panels that display vehicle information.
9-4
Multi function meter
BASIC OPERATION

Black plate (253,1)
Model "R35-N" EDITED: 2009/ 10/ 30

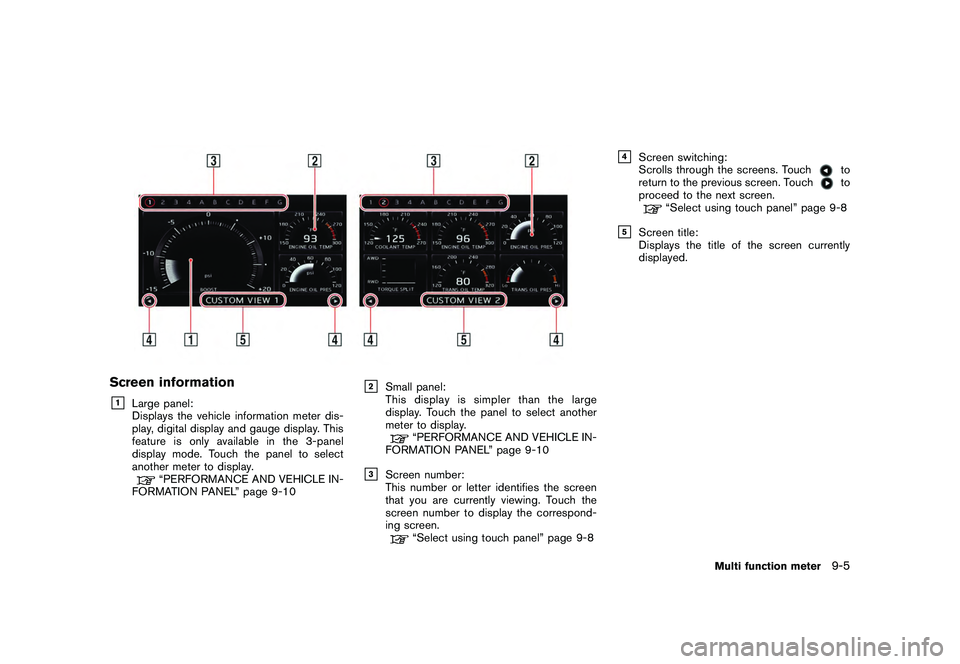

Screen information&1
Large panel:
Displays the vehicle information meter dis-
play, digital display and gauge display. This
feature is only available in the 3-panel
display mode. Touch the panel to select
another meter to display.
“PERFORMANCE AND VEHICLE IN-
FORMATION PANEL” page 9-10
&2
Small panel:
This display is simpler than the large
display. Touch the panel to select another
meter to display.
“PERFORMANCE AND VEHICLE IN-
FORMATION PANEL” page 9-10
&3
Screen number:
This number or letter identifies the screen
that you are currently viewing. Touch the
screen number to display the correspond-
ing screen.
“Select using touch panel” page 9-8
&4
Screen switching:
Scrolls through the screens. Touch
to
return to the previous screen. Touchto
proceed to the next screen.
“Select using touch panel” page 9-8
&5
Screen title:
Displays the title of the screen currently
displayed.
Multi function meter
9-5

Black plate (254,1)
Model "R35-N" EDITED: 2009/ 10/ 30

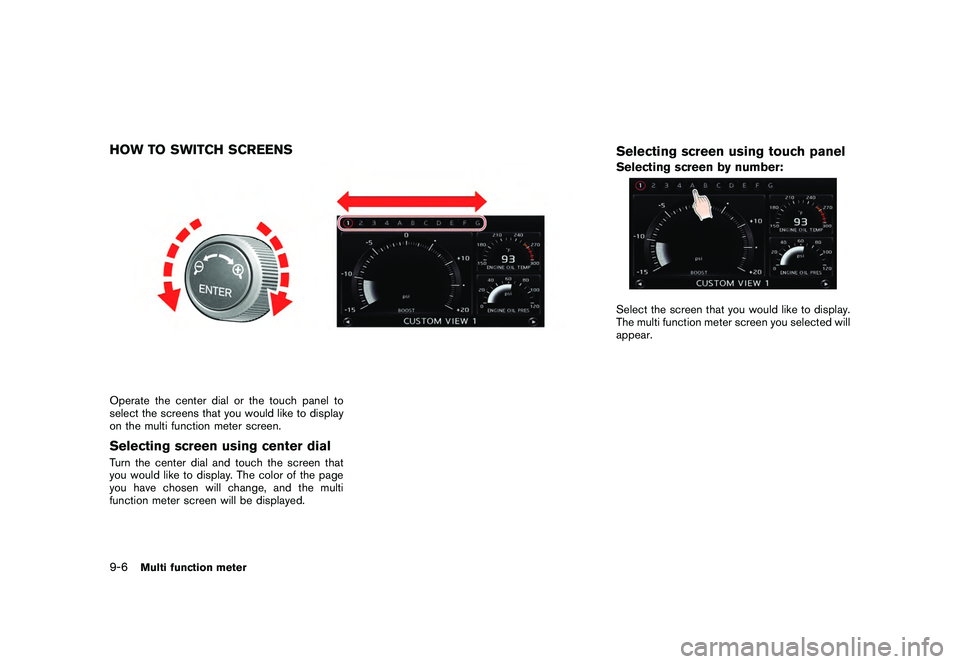

HOW TO SWITCH SCREENSOperate the center dial or the touch panel to
select the screens that you would like to display
on the multi function meter screen.Selecting screen using center dialTurn the center dial and touch the screen that
you would like to display. The color of the page
you have chosen will change, and the multi
function meter screen will be displayed.
Selecting screen using touch panelSelecting screen by number:Select the screen that you would like to display.
The multi function meter screen you selected will
appear.
9-6
Multi function meter

Black plate (255,1)
Model "R35-N" EDITED: 2009/ 10/ 30

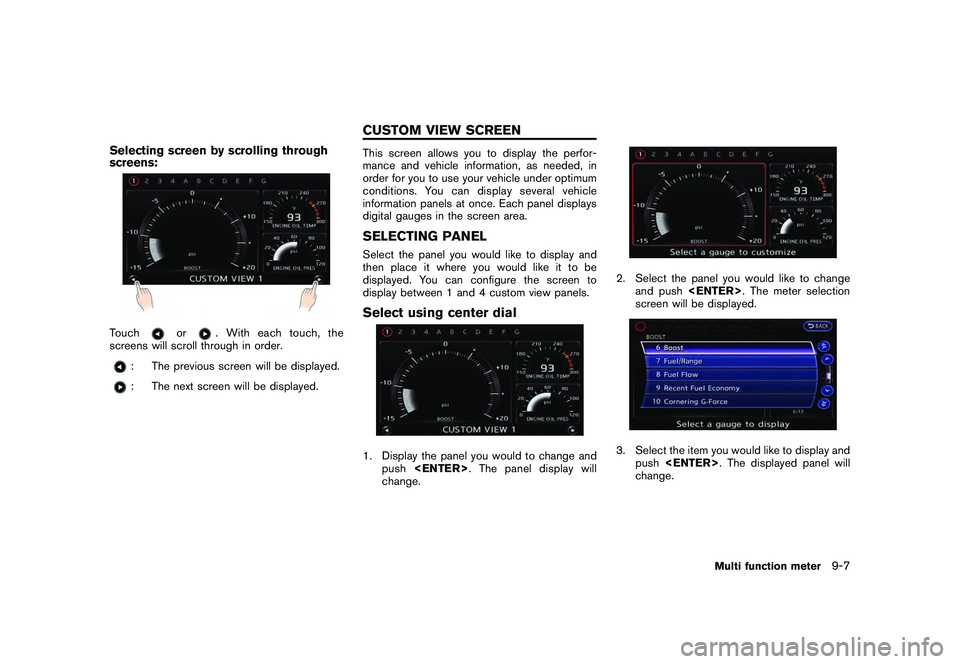

Selecting screen by scrolling through
screens:To u c h
or
.Witheachtouch,the
screens will scroll through in order.
: The previous screen will be displayed.: The next screen will be displayed.
This screen allows you to display the perfor-
mance and vehicle information, as needed, in
order for you to use your vehicle under optimum
conditions. You can display several vehicle
information panels at once. Each panel displays
digital gauges in the screen area.SELECTING PANELSelect the panel you would like to display and
then place it where you would like it to be
displayed. You can configure the screen to
display between 1 and 4 custom view panels.Select using center dial1. Display the panel you would to change and
push . The panel display will
change.
2. Select the panel you would like to change and push . The meter selection
screen will be displayed.3. Select the item you would like to display and push . The displayed panel will
change.
Multi function meter
9-7
CUSTOM VIEW SCREEN

Black plate (256,1)
Model "R35-N" EDITED: 2009/ 10/ 30

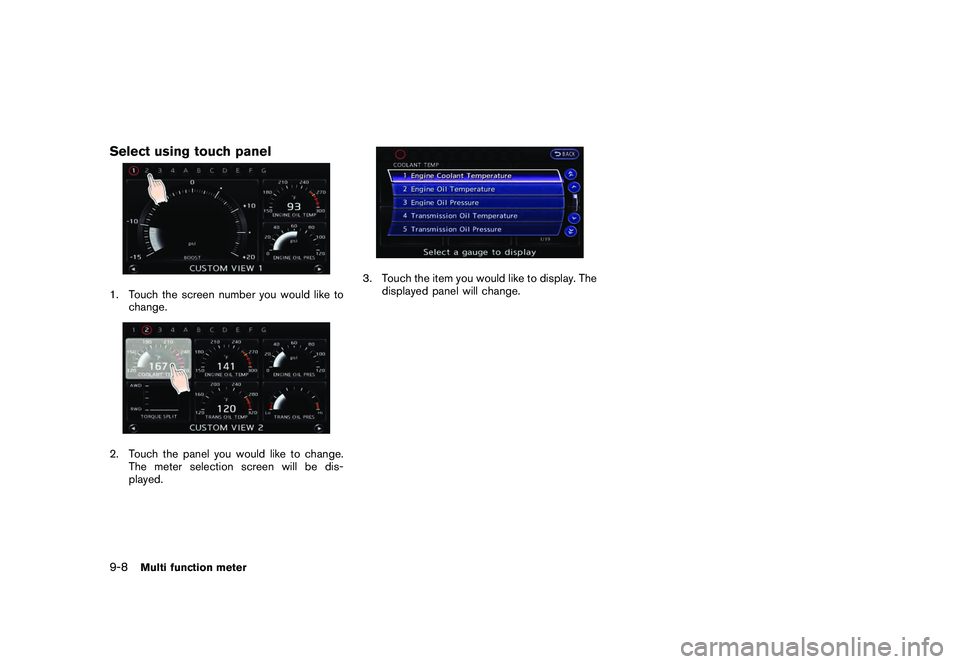

Select using touch panel1. Touch the screen number you would like tochange.2. Touch the panel you would like to change.The meter selection screen will be dis-
played.
3. Touch the item you would like to display. Thedisplayed panel will change.
9-8
Multi function meter
