NISSAN GT-R 2011 Owners Manual

Black plate (257,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Panel listThere is a difference between the items that you
can select as large or small panels.No.Item Large panel Small panel
1 Engine Coolant Temperature **
2 Engine Oil Temperature **
3 Engine Oil Pressure **
4 Transmission Oil Temperature **
5 Transmission Oil Pressure **
6 Boost **
7 Speed —*
8 Fuel/Range **
9 Fuel Flow **
10 Recent Fuel Economy **
11 Torque split —*
12 Accel pedal —*
13 Brake pedal —*
14 Steering —*
15 Cornering g-force **
16 Accel/Braking g-force **
17 Total g-force **
18 Clock —*
19 Reset the CUSTOM VIEW #(1-4) to Default *
*
INFO:
. Each panel selected will be saved
. Panels will remain saved in the system even
after the engine is turned off.
. Two of the same panels cannot be displayed
at the same time.
. Two of the same panels of different sizes
cannot be displayed at the same time.
. Panels that have not been assigned a
display item remain empty.
Initializing displayThe modified display will return to the screen
that was first configured.1. Display the screen you would like to initialize
and push .
Multi function meter
9-9

Black plate (258,1)
Model "R35-N" EDITED: 2009/ 10/ 30
2. Select the panel and push.3. Highlight [Reset the CUSTOM VIEW 1 to
Default] and push .
INFO:
When operating the touch panel to initialize the
display, the same procedure used to select a
meter is performed.“Select using touch panel” page 9-8
PERFORMANCE AND VEHICLE IN-
FORMATION PANELThe appearance of each panel varies. The way
that large panels and small panels are displayed
also differs, even when the same mechanical
information is displayed.Engine coolant temperatureDisplays the temperature of the engine coolant.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine coolant tempera-
ture is high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
9-10
Multi function meter

Black plate (259,1)
Model "R35-N" EDITED: 2009/ 10/ 30

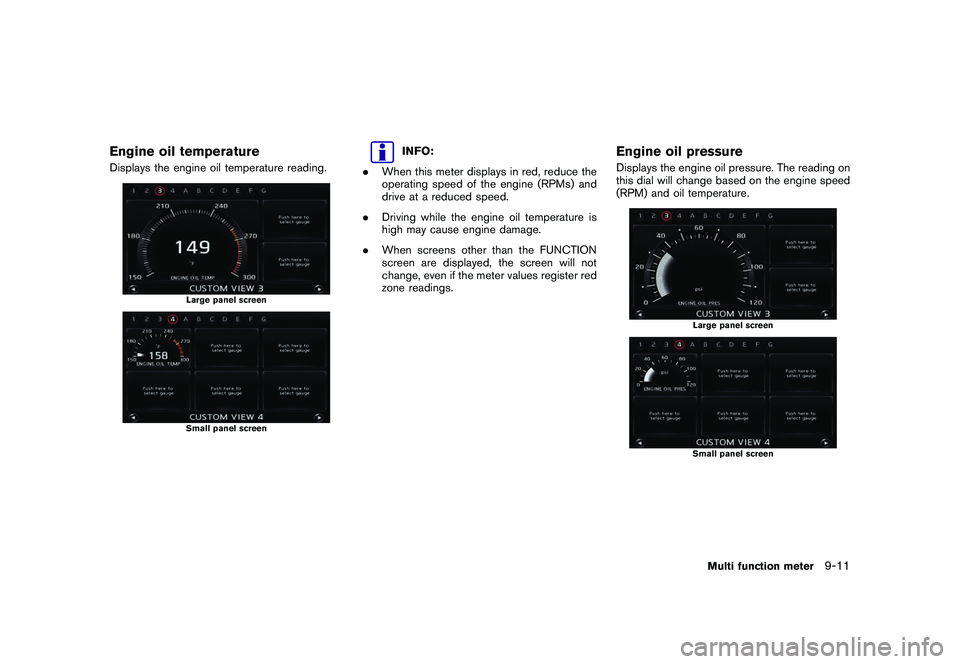

Engine oil temperatureDisplays the engine oil temperature reading.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
operating speed of the engine (RPMs) and
drive at a reduced speed.
. Driving while the engine oil temperature is
high may cause engine damage.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Engine oil pressureDisplays the engine oil pressure. The reading on
this dial will change based on the engine speed
(RPM) and oil temperature.
Large panel screenSmall panel screen
Multi function meter
9-11

Black plate (260,1)
Model "R35-N" EDITED: 2009/ 10/ 30

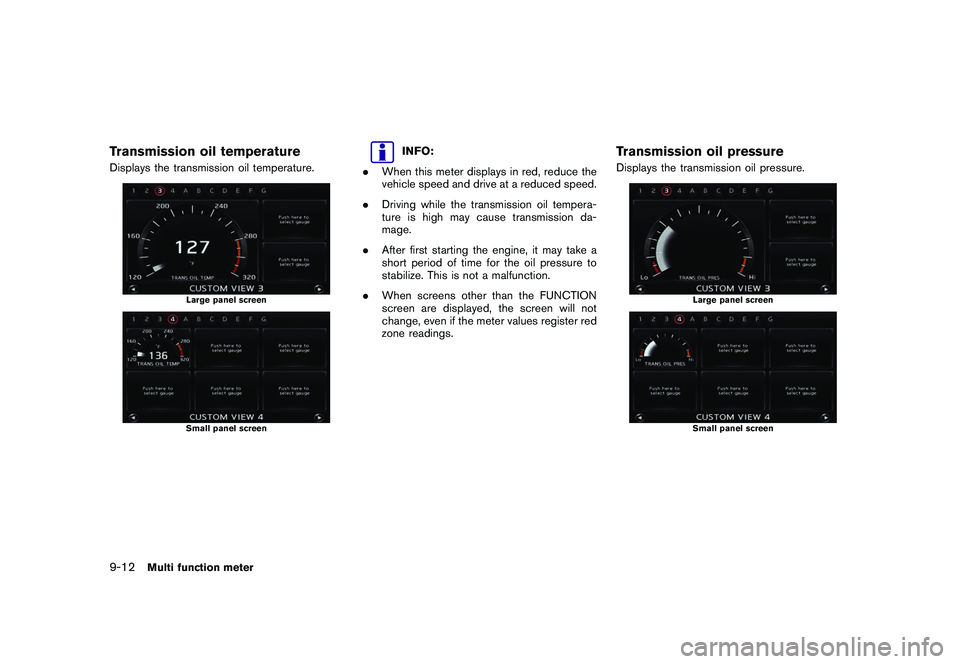

Transmission oil temperatureDisplays the transmission oil temperature.
Large panel screenSmall panel screen
INFO:
. When this meter displays in red, reduce the
vehicle speed and drive at a reduced speed.
. Driving while the transmission oil tempera-
ture is high may cause transmission da-
mage.
. After first starting the engine, it may take a
short period of time for the oil pressure to
stabilize. This is not a malfunction.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
Transmission oil pressureDisplays the transmission oil pressure.
Large panel screenSmall panel screen
9-12
Multi function meter

Black plate (261,1)
Model "R35-N" EDITED: 2009/ 10/ 30
INFO:
. The oil pressure gauge may momentarily
have a high reading, but this is a result of oil
pressure suppression and does not indicate
a malfunction.
. If the meter reads red frequently, have your
vehicle inspected at your NISSAN dealer or
GT-R certified NISSAN dealer.
. When screens other than the FUNCTION
screen are displayed, the screen will not
change, even if the meter values register red
zone readings.
BoostDisplays engine charging pressure.
Large panel screenSmall panel screen
SpeedDisplays the vehicle speed. This can only be
displayed as a small panel.
Small panel screen
Multi function meter
9-13

Black plate (262,1)
Model "R35-N" EDITED: 2009/ 10/ 30

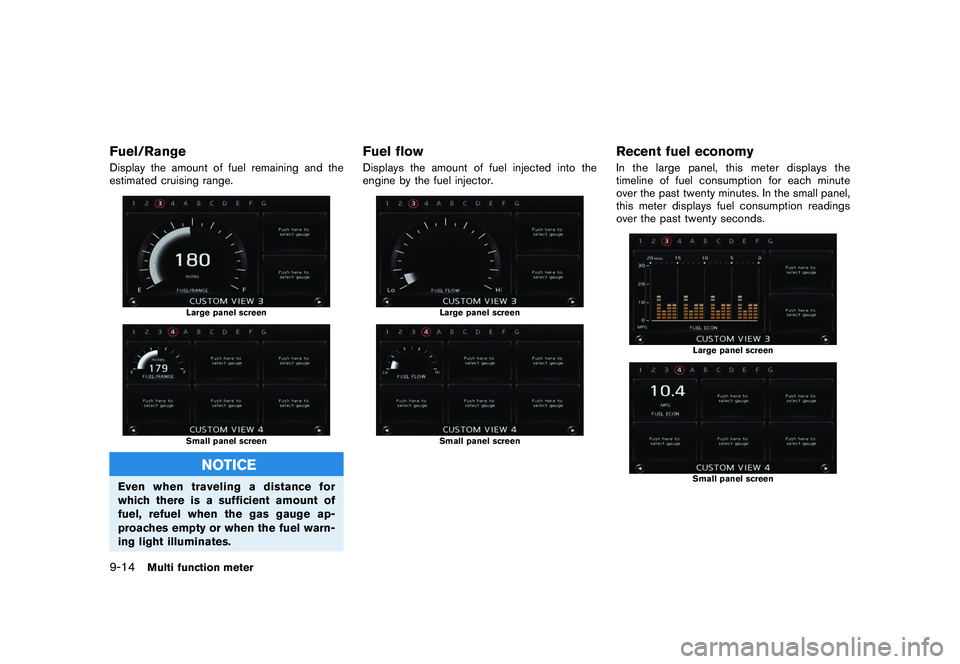

Fuel/RangeDisplay the amount of fuel remaining and the
estimated cruising range.
Large panel screenSmall panel screen
NOTICE
Even when traveling a distance for
which there is a sufficient amount of
fuel, refuel when the gas gauge ap-
proaches empty or when the fuel warn-
ing light illuminates.
Fuel flowDisplays the amount of fuel injected into the
engine by the fuel injector.
Large panel screenSmall panel screen
Recent fuel economyIn the large panel, this meter displays the
timeline of fuel consumption for each minute
over the past twenty minutes. In the small panel,
this meter displays fuel consumption readings
over the past twenty seconds.
Large panel screenSmall panel screen
9-14
Multi function meter

Black plate (263,1)
Model "R35-N" EDITED: 2009/ 10/ 30

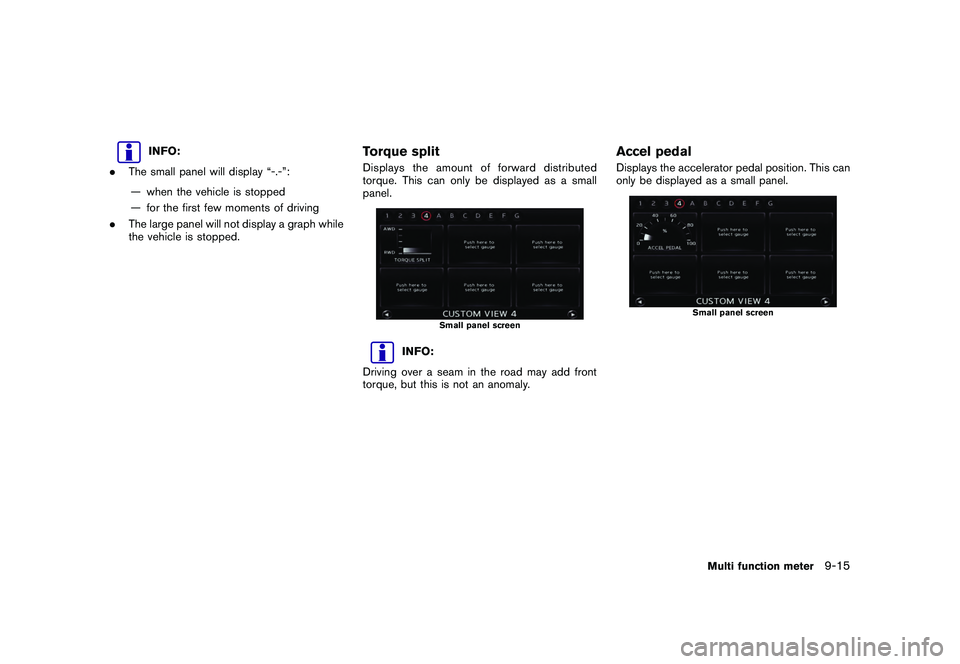

INFO:
. The small panel will display “-.-”:
— when the vehicle is stopped
— for the first few moments of driving
. The large panel will not display a graph while
the vehicle is stopped.
Torque splitDisplays the amount of forward distributed
torque. This can only be displayed as a small
panel.
Small panel screen
INFO:
Driving over a seam in the road may add front
torque, but this is not an anomaly.
Accel pedalDisplays the accelerator pedal position. This can
only be displayed as a small panel.
Small panel screen
Multi function meter
9-15

Black plate (264,1)
Model "R35-N" EDITED: 2009/ 10/ 30

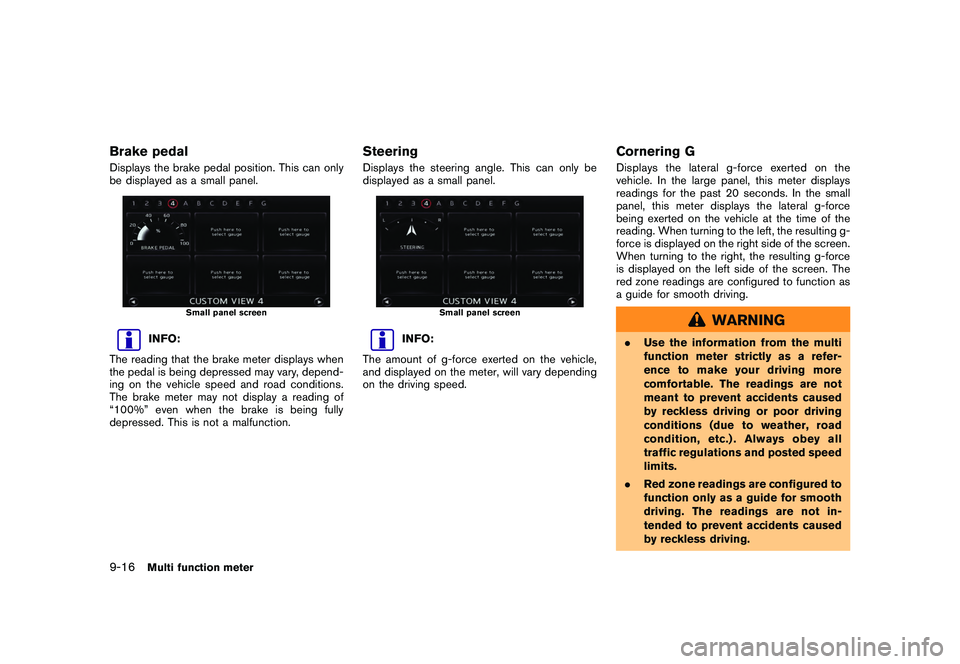

Brake pedalDisplays the brake pedal position. This can only
be displayed as a small panel.
Small panel screen
INFO:
The reading that the brake meter displays when
the pedal is being depressed may vary, depend-
ing on the vehicle speed and road conditions.
The brake meter may not display a reading of
“100%” even when the brake is being fully
depressed. This is not a malfunction.
SteeringDisplays the steering angle. This can only be
displayed as a small panel.
Small panel screen
INFO:
The amount of g-force exerted on the vehicle,
and displayed on the meter, will vary depending
on the driving speed.
Cornering GDisplays the lateral g-force exerted on the
vehicle. In the large panel, this meter displays
readings for the past 20 seconds. In the small
panel, this meter displays the lateral g-force
being exerted on the vehicle at the time of the
reading. When turning to the left, the resulting g-
force is displayed on the right side of the screen.
When turning to the right, the resulting g-force
is displayed on the left side of the screen. The
red zone readings are configured to function as
a guide for smooth driving.
WARNING
. Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Red zone readings are configured to
function only as a guide for smooth
driving. The readings are not in-
tended to prevent accidents caused
by reckless driving.
9-16
Multi function meter

Black plate (265,1)
Model "R35-N" EDITED: 2009/ 10/ 30

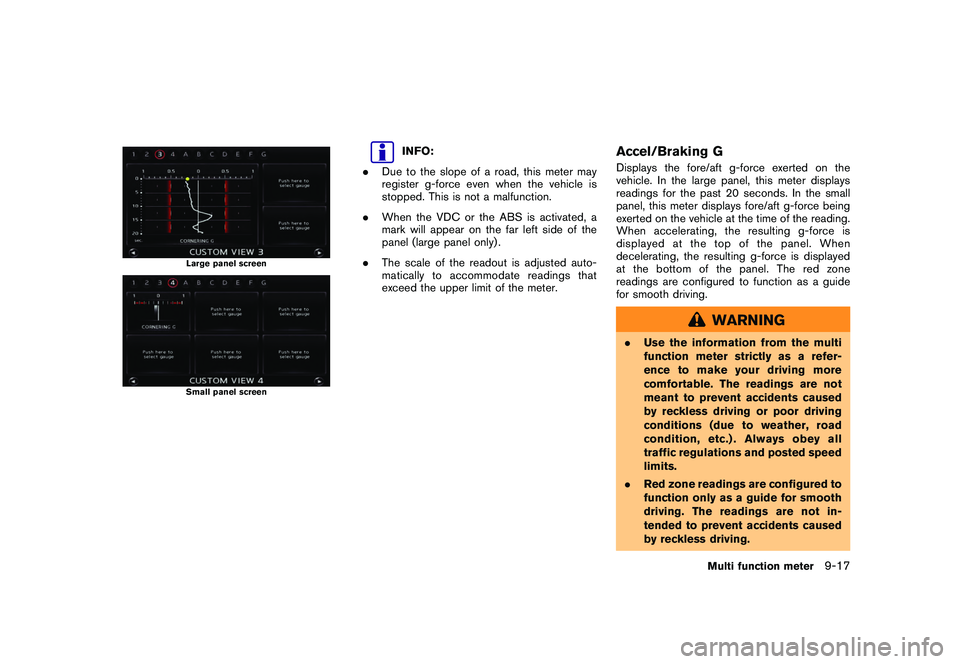

Large panel screenSmall panel screen
INFO:
. Due to the slope of a road, this meter may
register g-force even when the vehicle is
stopped. This is not a malfunction.
. When the VDC or the ABS is activated, a
mark will appear on the far left side of the
panel (large panel only) .
. The scale of the readout is adjusted auto-
matically to accommodate readings that
exceed the upper limit of the meter.
Accel/Braking GDisplays the fore/aft g-force exerted on the
vehicle. In the large panel, this meter displays
readings for the past 20 seconds. In the small
panel, this meter displays fore/aft g-force being
exerted on the vehicle at the time of the reading.
When accelerating, the resulting g-force is
displayed at the top of the panel. When
decelerating, the resulting g-force is displayed
at the bottom of the panel. The red zone
readings are configured to function as a guide
for smooth driving.
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Red zone readings are configured to
function only as a guide for smooth
driving. The readings are not in-
tended to prevent accidents caused
by reckless driving.
Multi function meter
9-17

Black plate (266,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Large panel screenSmall panel screen
INFO:
. Due to the slope of a road, this meter may
register g-force even when the vehicle is
stopped. This is not a malfunction.
. When the VDC or the ABS is activated, a
mark will appear on the far left side of the
panel (large panel only) .
. The scale of the readout is adjusted auto-
matically to accommodate readings that
exceed the upper limit of the meter.
Total g-forceDisplays the total combined g-force exerted on
the vehicle. In the large panel, this meter
displays readings for the past 20 seconds. In
the small panel, this meter displays the total
combined g-force being exerted on the vehicle
at the time of the reading. The red zone readings
are configured to function as a guide for smooth
driving.
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Red zone readings are configured to
function only as a guide for smooth
driving. The readings are not in-
tended to prevent accidents caused
by reckless driving.
9-18
Multi function meter
