NISSAN GT-R 2016 R35 Service Manual


> (GLW    0RGHO 5' @
0-4Illustrated table of contents

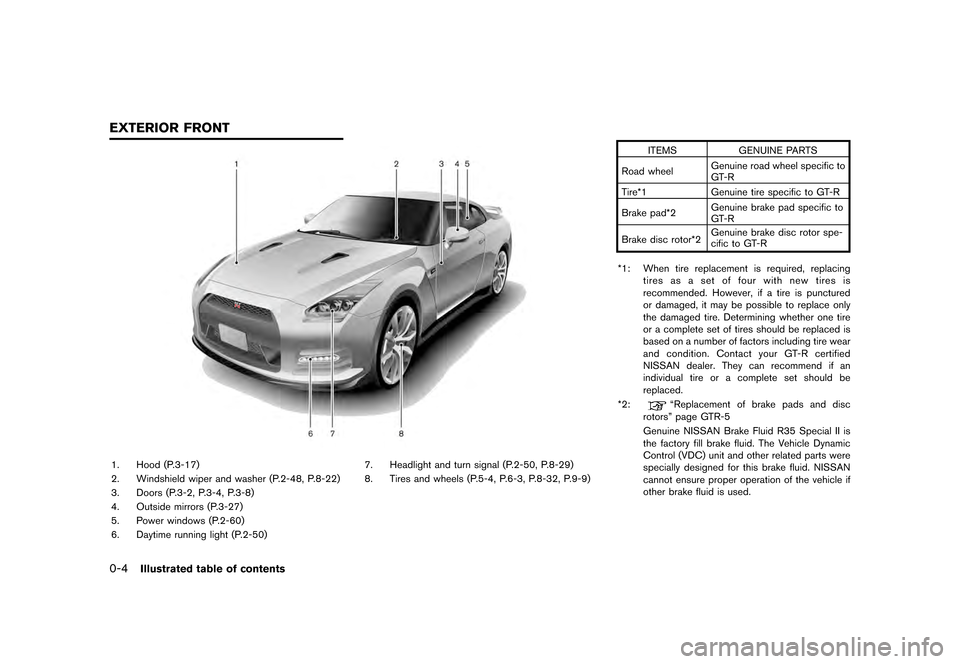

1. Hood (P.3-17)
2. Windshield wiper and washer (P.2-48, P.8-22)
3. Doors (P.3-2, P.3-4, P.3-8)
4. Outside mirrors (P.3-27)
5. Power windows (P.2-60)
6. Daytime running light (P.2-50)7. Headlight and turn signal (P.2-50, P.8-29)
8. Tires and wheels (P.5-4, P.6-3, P.8-32, P.9-9) ITEMS
GENUINE PARTS
Road wheel Genuine road wheel specific to
GT-R
Tire*1 Genuine tire specific to GT-R
Brake pad*2 Genuine brake pad specific to
GT-R
Brake disc rotor*2 Genuine brake disc rotor spe-
cific to GT-R
*1: When tire replacement is required, replacing tires as a set of four with new tires is
recommended. However, if a tire is punctured
or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. Contact your GT-R certified
NISSAN dealer. They can recommend if an
individual tire or a complete set should be
replaced.
*2:
ªReplacement of brake pads and disc
rotorsº page GTR-5
Genuine NISSAN Brake Fluid R35 Special II is
the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid. NISSAN
cannot ensure proper operation of the vehicle if
other brake fluid is used.
EXTERIOR FRONT


> (GLW    0RGHO 5' @

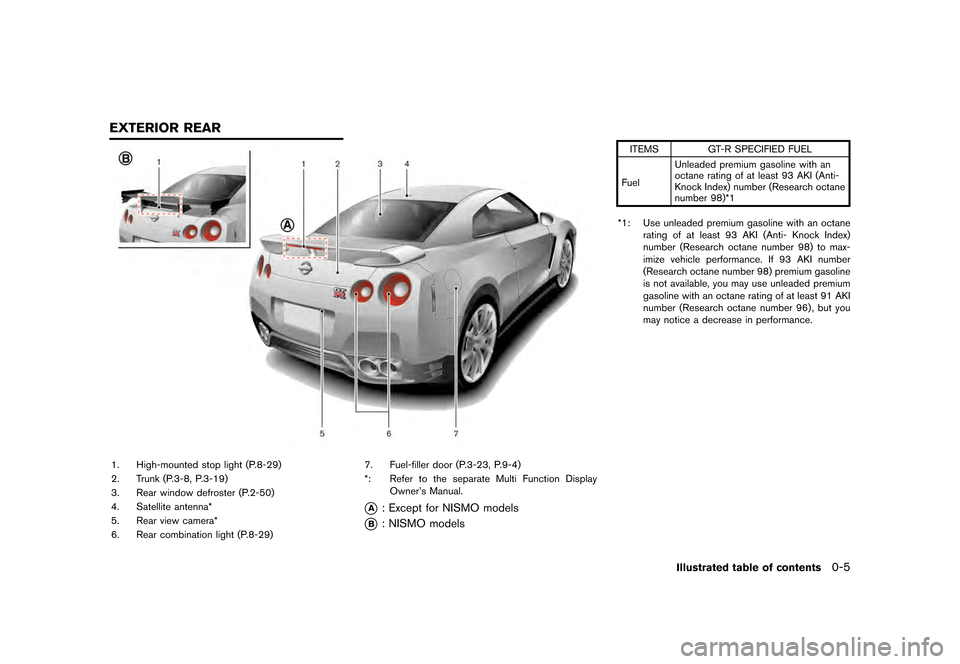

1. High-mounted stop light (P.8-29)
2. Trunk (P.3-8, P.3-19)
3. Rear window defroster (P.2-50)
4. Satellite antenna*
5. Rear view camera*
6. Rear combination light (P.8-29)7. Fuel-filler door (P.3-23, P.9-4)
*: Refer to the separate Multi Function Display
Owner's Manual.
*A: Except for NISMO models
*B: NISMO models
ITEMS GT-R SPECIFIED FUEL
Fuel Unleaded premium gasoline with an
octane rating of at least 93 AKI (Anti-
Knock Index) number (Research octane
number 98)*1
*1: Use unleaded premium gasoline with an octane rating of at least 93 AKI (Anti- Knock Index)
number (Research octane number 98) to max-
imize vehicle performance. If 93 AKI number
(Research octane number 98) premium gasoline
is not available, you may use unleaded premium
gasoline with an octane rating of at least 91 AKI
number (Research octane number 96) , but you
may notice a decrease in performance.
Illustrated table of contents0-5
EXTERIOR REAR


> (GLW    0RGHO 5' @
0-6Illustrated table of contents

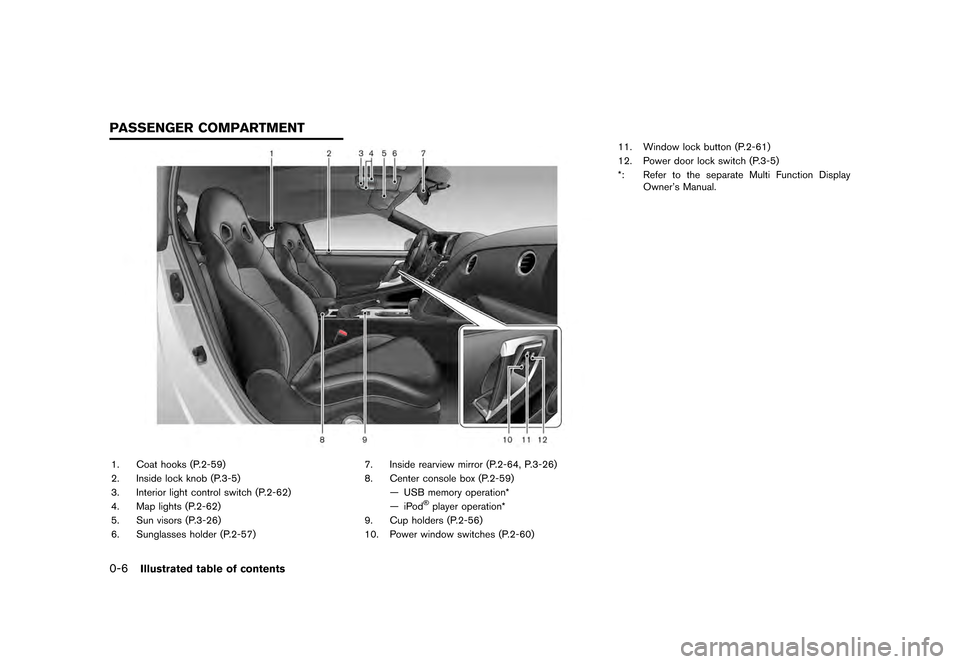

1. Coat hooks (P.2-59)
2. Inside lock knob (P.3-5)
3. Interior light control switch (P.2-62)
4. Map lights (P.2-62)
5. Sun visors (P.3-26)
6. Sunglasses holder (P.2-57)7. Inside rearview mirror (P.2-64, P.3-26)
8. Center console box (P.2-59)
Ð USB memory operation*
Ð iPod


> (GLW    0RGHO 5' @

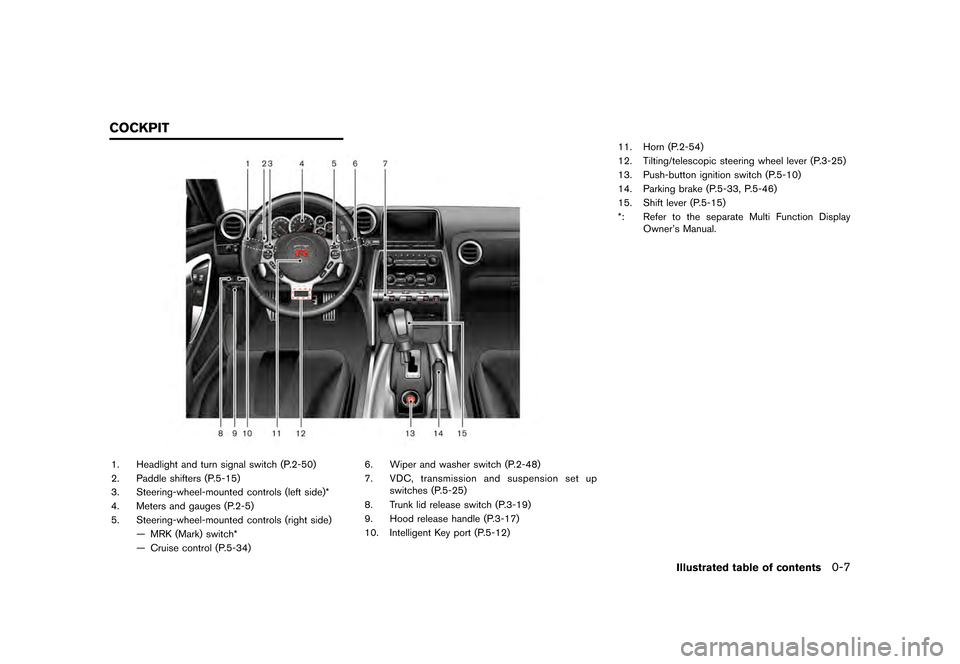

1. Headlight and turn signal switch (P.2-50)
2. Paddle shifters (P.5-15)
3. Steering-wheel-mounted controls (left side)*
4. Meters and gauges (P.2-5)
5. Steering-wheel-mounted controls (right side)Ð MRK (Mark) switch*
Ð Cruise control (P.5-34) 6. Wiper and washer switch (P.2-48)
7.
VDC, transmission and suspension set up
switches (P.5-25)
8. Trunk lid release switch (P.3-19)
9. Hood release handle (P.3-17)
10. Intelligent Key port (P.5-12) 11. Horn (P.2-54)
12. Tilting/telescopic steering wheel lever (P.3-25)
13. Push-button ignition switch (P.5-10)
14. Parking brake (P.5-33, P.5-46)
15. Shift lever (P.5-15)
*: Refer to the separate Multi Function Display
Owner's Manual.
Illustrated table of contents0-7
COCKPIT


> (GLW    0RGHO 5' @

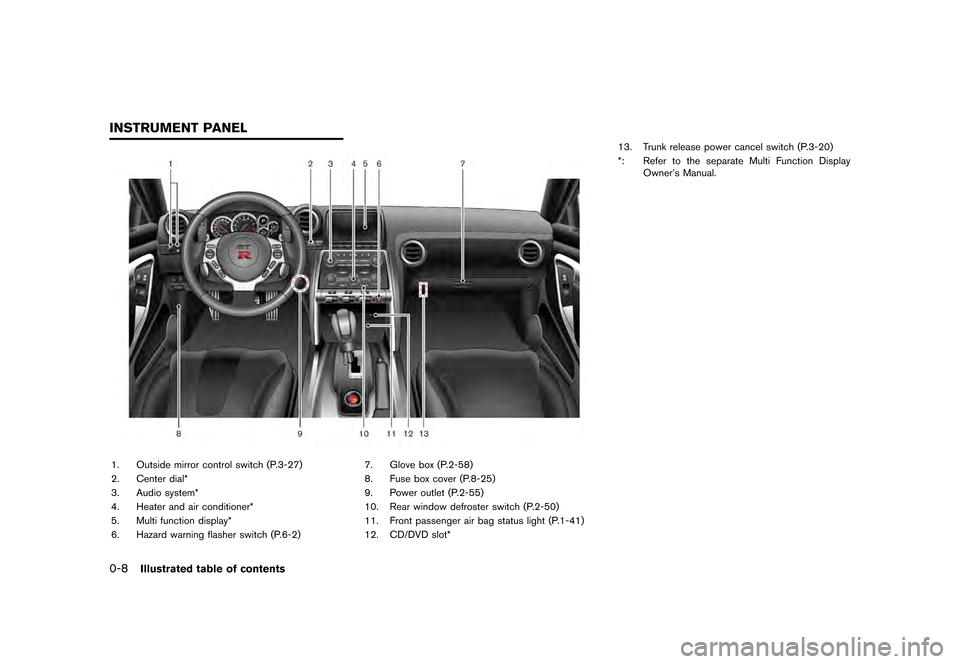

0-8Illustrated table of contents
1. Outside mirror control switch (P.3-27)
2. Center dial*
3. Audio system*
4. Heater and air conditioner*
5. Multi function display*
6. Hazard warning flasher switch (P.6-2)7. Glove box (P.2-58)
8. Fuse box cover (P.8-25)
9. Power outlet (P.2-55)
10. Rear window defroster switch (P.2-50)
11. Front passenger air bag status light (P.1-41)
12. CD/DVD slot*13. Trunk release power cancel switch (P.3-20)
*: Refer to the separate Multi Function Display
Owner's Manual.
INSTRUMENT PANEL


> (GLW    0RGHO 5' @

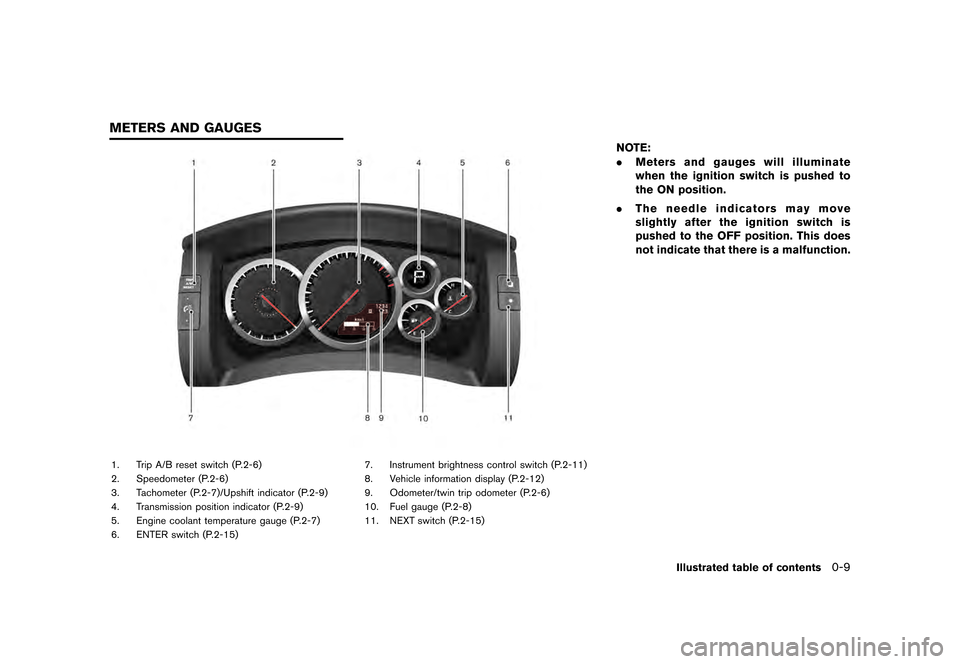

1. Trip A/B reset switch (P.2-6)
2. Speedometer (P.2-6)
3. Tachometer (P.2-7)/Upshift indicator (P.2-9)
4. Transmission position indicator (P.2-9)
5. Engine coolant temperature gauge (P.2-7)
6. ENTER switch (P.2-15)7. Instrument brightness control switch (P.2-11)
8. Vehicle information display (P.2-12)
9. Odometer/twin trip odometer (P.2-6)
10. Fuel gauge (P.2-8)
11. NEXT switch (P.2-15)
NOTE:
.
Meters and gauges will illuminate
when the ignition switch is pushed to
the ON position.
. The needle indicators may move
slightly after the ignition switch is
pushed to the OFF position. This does
not indicate that there is a malfunction.
Illustrated table of contents0-9
METERS AND GAUGES


> (GLW    0RGHO 5' @
0-10Illustrated table of contents

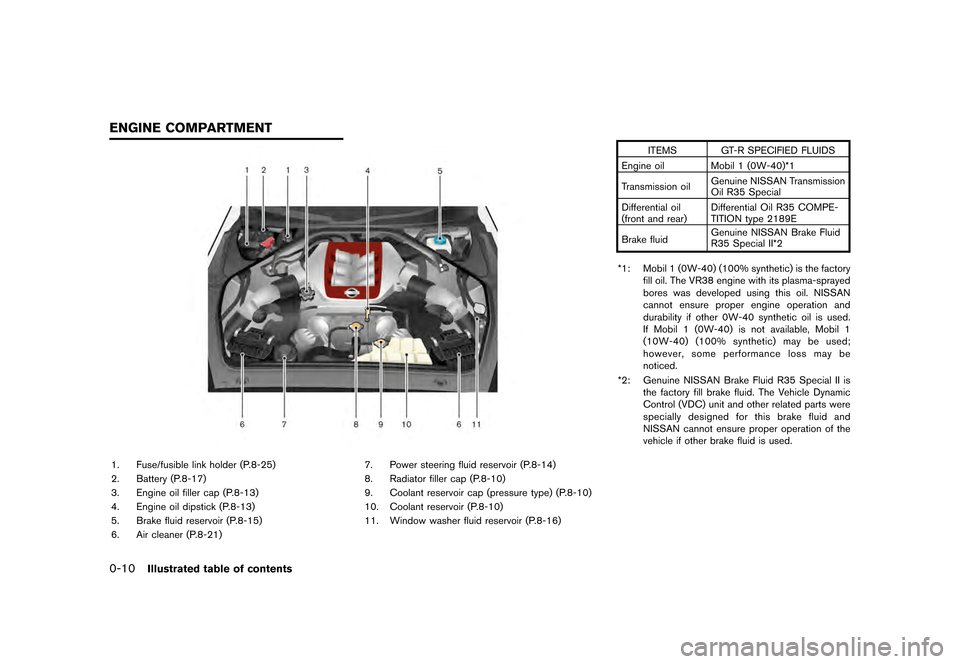

1. Fuse/fusible link holder (P.8-25)
2. Battery (P.8-17)
3. Engine oil filler cap (P.8-13)
4. Engine oil dipstick (P.8-13)
5. Brake fluid reservoir (P.8-15)
6. Air cleaner (P.8-21)7. Power steering fluid reservoir (P.8-14)
8. Radiator filler cap (P.8-10)
9. Coolant reservoir cap (pressure type) (P.8-10)
10. Coolant reservoir (P.8-10)
11. Window washer fluid reservoir (P.8-16) ITEMS GT-R SPECIFIED FLUIDS
Engine oil Mobil 1 (0W-40)*1
Transmission oil Genuine NISSAN Transmission
Oil R35 Special
Differential oil
(front and rear) Differential Oil R35 COMPE-
TITION type 2189E
Brake fluid Genuine NISSAN Brake Fluid
R35 Special II*2
*1: Mobil 1 (0W-40) (100% synthetic) is the factory fill oil. The VR38 engine with its plasma-sprayed
bores was developed using this oil. NISSAN
cannot ensure proper engine operation and
durability if other 0W-40 synthetic oil is used.
If Mobil 1 (0W-40) is not available, Mobil 1
(10W-40) (100% synthetic) may be used;
however, some performance loss may be
noticed.
*2: Genuine NISSAN Brake Fluid R35 Special II is the factory fill brake fluid. The Vehicle Dynamic
Control (VDC) unit and other related parts were
specially designed for this brake fluid and
NISSAN cannot ensure proper operation of the
vehicle if other brake fluid is used.
ENGINE COMPARTMENT


> (GLW    0RGHO 5' @
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light 2-25
Anti-lock Braking System
(ABS) warning light2-26
Brake warning light
2-26
Charge warning light2-27
Engine oil pressure warning
light2-27
Intelligent Key warning light 2-27
Low tire pressure warning light 2-27
Master warning light
2-29
Seat belt warning light 2-29
Supplemental air bag warning
light2-29
Transmission warning light 2-30 Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-31Indicator
light Name
PageCruise main switch indicator
light 2-31
Cruise set switch indicator light 2-31
Exterior light indicator
2-31
Front passenger air bag status
light2-31
High beam indicator light 2-31
Malfunction Indicator Light
(MIL)2-31
Turn signal/hazard indicator
lights2-32
Vehicle Dynamic Control (VDC)
off indicator light2-32
Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS


> (GLW    0RGHO 5' @
0-12Illustrated table of contents
MEMO


> (GLW    0RGHO 5' @

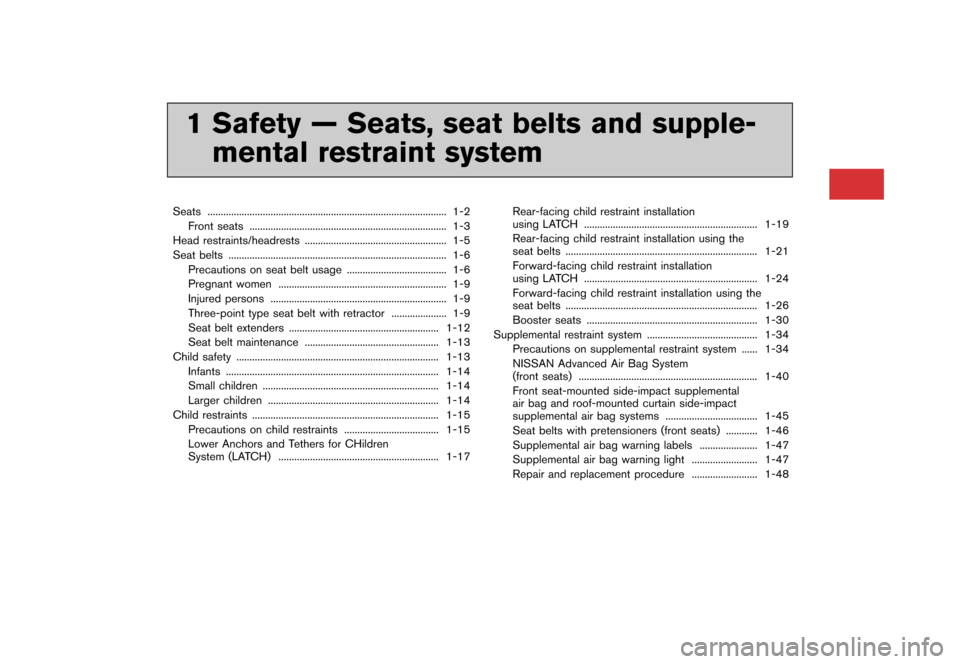

1 Safety Ð Seats, seat belts and supple-mental restraint system
Seats ........................................................................\
................... 1-2
Front seats ........................................................................\
... 1-3
Head restraints/headrests ...................................................... 1-5
Seat belts ........................................................................\
........... 1-6 Precautions on seat belt usage ...................................... 1-6
Pregnant women ................................................................ 1-9
Injured persons ................................................................... 1-9
Three-point type seat belt with retractor ..................... 1-9
Seat belt extenders ......................................................... 1-12
Seat belt maintenance ................................................... 1-13
Child safety ........................................................................\
..... 1-13 Infants ........................................................................\
......... 1-14
Small children ................................................................... 1-14
Larger children ................................................................. 1-14
Child restraints ....................................................................... 1-15 Precautions on child restraints .................................... 1-15
Lower Anchors and Tethers for CHildren
System (LATCH) ............................................................. 1-17 Rear-facing child restraint installation
using LATCH .................................................................. 1-19
Rear-facing child restraint installation using the
seat belts ........................................................................\
. 1-21
Forward-facing child restraint installation
using LATCH .................................................................. 1-24
Forward-facing child restraint installation using the
seat belts ........................................................................\
. 1-26
Booster seats ................................................................. 1-30
Supplemental restraint system .......................................... 1-34
Precautions on supplemental restraint system ...... 1-34
NISSAN Advanced Air Bag System
(front seats) .................................................................... 1-40
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ................................... 1-45
Seat belts with pretensioners (front seats) ............ 1-46
Supplemental air bag warning labels ...................... 1-47
Supplemental air bag warning light ......................... 1-47
Repair and replacement procedure ......................... 1-48
