NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 151 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

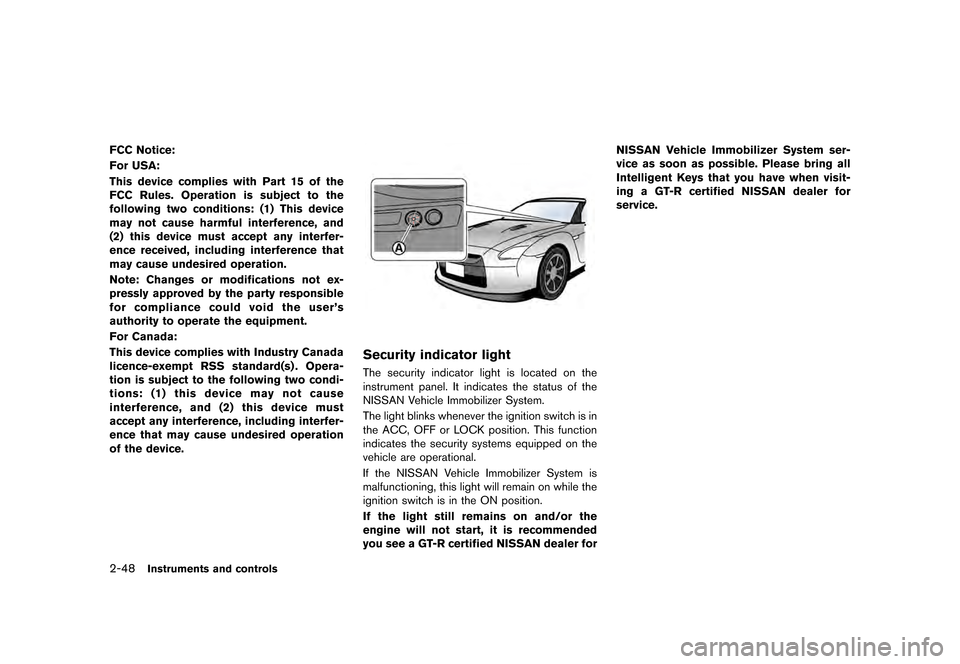

2-48Instruments and controls
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user's
authority to operate the equipment.
For Canada:
This device complies with Industry Canada
licence-exempt RSS standard(s) . Opera-
tion is subject to the following two condi-
tions: (1) this device may not cause
interference, and (2) this device must
accept any interference, including interfer-
ence that may cause undesired operation
of the device.
JVI0095X
Security indicator lightGUID-F11C75EF-0D68-4C3F-A312-C0031BE37433The security indicator light is located on the
instrument panel. It indicates the status of the
NISSAN Vehicle Immobilizer System.
The light blinks whenever the ignition switch is in
the ACC, OFF or LOCK position. This function
indicates the security systems equipped on the
vehicle are operational.
If the NISSAN Vehicle Immobilizer System is
malfunctioning, this light will remain on while the
ignition switch is in the ON position.
If the light still remains on and/or the
engine will not start, it is recommended
you see a GT-R certified NISSAN dealer forNISSAN Vehicle Immobilizer System ser-
vice as soon as possible. Please bring all
Intelligent Keys that you have when visit-
ing a GT-R certified NISSAN dealer for
service.

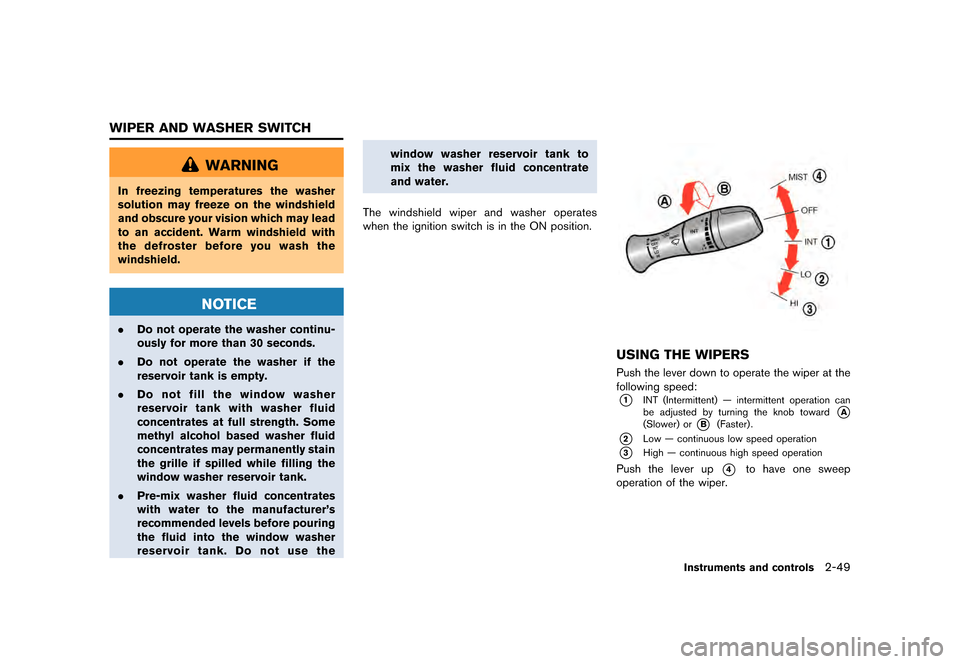

Page 152 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-925DD6A2-027E-428E-AB55-F68828C0CD40
WARNING
In freezing temperatures the washer
solution may freeze on the windshield
and obscure your vision which may lead
to an accident. Warm windshield with
the defroster before you wash the
windshield.
NOTICE
.Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer's
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the window washer reservoir tank to
mix the washer fluid concentrate
and water.
The windshield wiper and washer operates
when the ignition switch is in the ON position.JVI0900X
USING THE WIPERSGUID-DB8B6C4A-934E-4C12-945C-49339BBE8208Push the lever down to operate the wiper at the
following speed:
*1INT (Intermittent) Ð intermittent operation can
be adjusted by turning the knob toward*A(Slower) or*B(Faster) .
*2Low Ð continuous low speed operation
*3High Ð continuous high speed operation
Push the lever up*4to have one sweep
operation of the wiper.
Instruments and controls2-49
WIPER AND WASHER SWITCH
Page 153 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

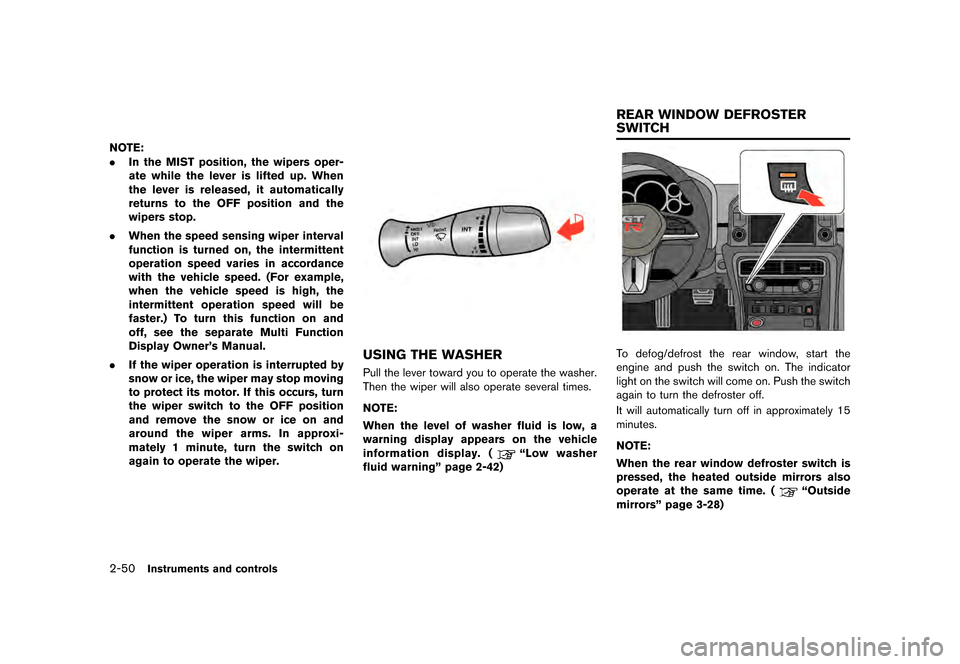

2-50Instruments and controls
NOTE:
.In the MIST position, the wipers oper-
ate while the lever is lifted up. When
the lever is released, it automatically
returns to the OFF position and the
wipers stop.
. When the speed sensing wiper interval
function is turned on, the intermittent
operation speed varies in accordance
with the vehicle speed. (For example,
when the vehicle speed is high, the
intermittent operation speed will be
faster.) To turn this function on and
off, see the separate Multi Function
Display Owner's Manual.
. If the wiper operation is interrupted by
snow or ice, the wiper may stop moving
to protect its motor. If this occurs, turn
the wiper switch to the OFF position
and remove the snow or ice on and
around the wiper arms. In approxi-
mately 1 minute, turn the switch on
again to operate the wiper.
JVI0907X
USING THE WASHERGUID-74E5C3EC-28DC-4109-A2BD-256046160FCBPull the lever toward you to operate the washer.
Then the wiper will also operate several times.
NOTE:
When the level of washer fluid is low, a
warning display appears on the vehicle
information display. (
ªLow washer
fluid warningº page 2-42)
GUID-758F14E8-AEB1-4436-AC9B-B9A128AA7C5B
JVI1459X
To defog/defrost the rear window, start the
engine and push the switch on. The indicator
light on the switch will come on. Push the switch
again to turn the defroster off.
It will automatically turn off in approximately 15
minutes.
NOTE:
When the rear window defroster switch is
pressed, the heated outside mirrors also
operate at the same time. (
ªOutside
mirrorsº page 3-28)
REAR WINDOW DEFROSTER
SWITCH
Page 154 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

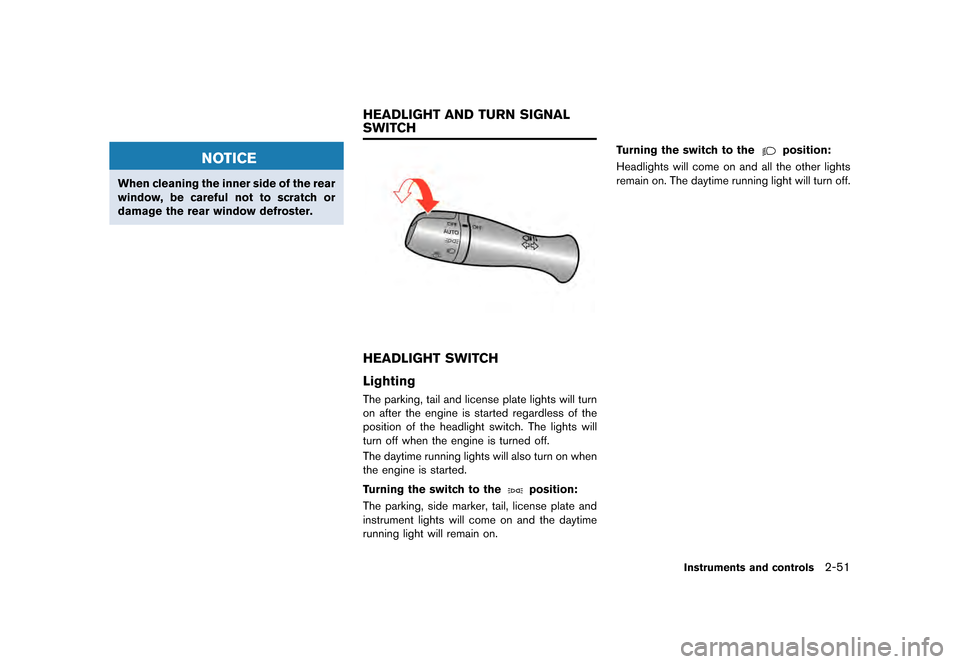

NOTICE
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
GUID-3C94CAA2-3FE9-46C4-866E-6125BB53BBBA
JVI0255X
HEADLIGHT SWITCHGUID-8D8636DE-42C3-459B-B394-77C79B8FEB8D
LightingGUID-24210D3D-5055-4E6E-8EDB-FAF1756BEF99The parking, tail and license plate lights will turn
on after the engine is started regardless of the
position of the headlight switch. The lights will
turn off when the engine is turned off.
The daytime running lights will also turn on when
the engine is started.
Turning the switch to the
position:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The parking, side marker, tail, license plate and
instrument lights will come on and the daytime
running light will remain on.Turning the switch to the
position:GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9Headlights will come on and all the other lights
remain on. The daytime running light will turn off.
Instruments and controls2-51
HEADLIGHT AND TURN SIGNAL
SWITCH

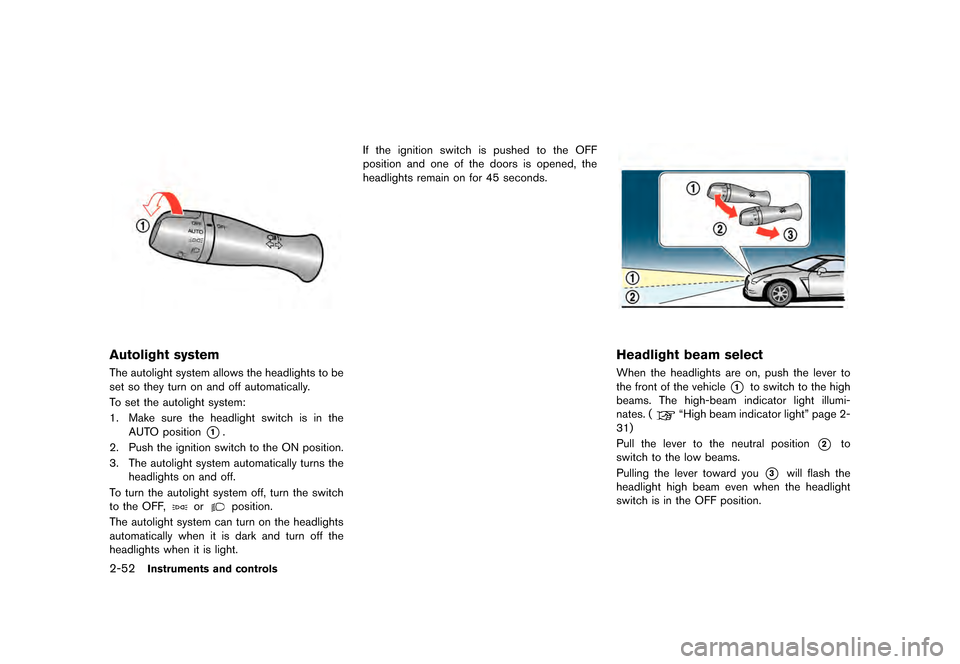

Page 155 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-52Instruments and controls
JVI0256X
Autolight systemGUID-E27458B8-BB7D-4E8D-8F8E-644425657E97The autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in theAUTO position
*1.
2. Push the ignition switch to the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition.
The autolight system can turn on the headlights
automatically when it is dark and turn off the
headlights when it is light. If the ignition switch is pushed to the OFF
position and one of the doors is opened, the
headlights remain on for 45 seconds.
JVI0257X
Headlight beam selectGUID-466D2816-0062-4167-B5B7-48092441ED0EWhen the headlights are on, push the lever to
the front of the vehicle
*1to switch to the high
beams. The high-beam indicator light illumi-
nates. (
ªHigh beam indicator lightº page 2-
31)
Pull the lever to the neutral position
*2to
switch to the low beams.
Pulling the lever toward you
*3will flash the
headlight high beam even when the headlight
switch is in the OFF position.
Page 156 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

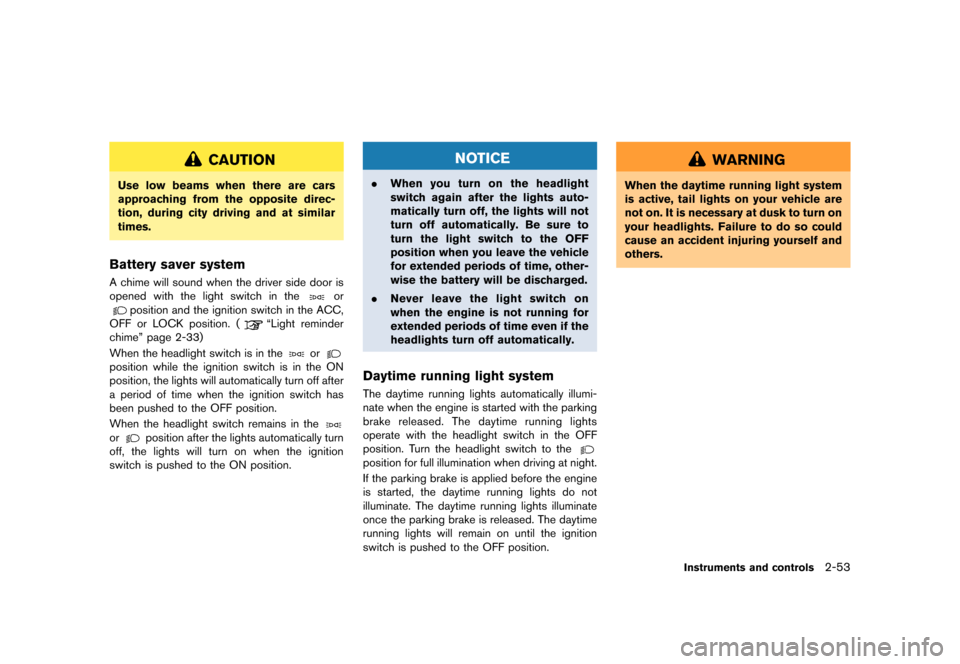

CAUTION
Use low beams when there are cars
approaching from the opposite direc-
tion, during city driving and at similar
times.
Battery saver systemGUID-14D5BA42-BB8C-4BD7-9D16-9AC9745F8B72A chime will sound when the driver side door is
opened with the light switch in the
or
position and the ignition switch in the ACC,
OFF or LOCK position. (
ªLight reminder
chimeº page 2-33)
When the headlight switch is in the
or
position while the ignition switch is in the ON
position, the lights will automatically turn off after
a period of time when the ignition switch has
been pushed to the OFF position.
When the headlight switch remains in the
orposition after the lights automatically turn
off, the lights will turn on when the ignition
switch is pushed to the ON position.
NOTICE
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
Daytime running light systemGUID-C6B953C9-5CB8-4E31-BB3A-F4BD70D2E336The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position. Turn the headlight switch to the
position for full illumination when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is pushed to the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
Instruments and controls2-53
Page 157 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

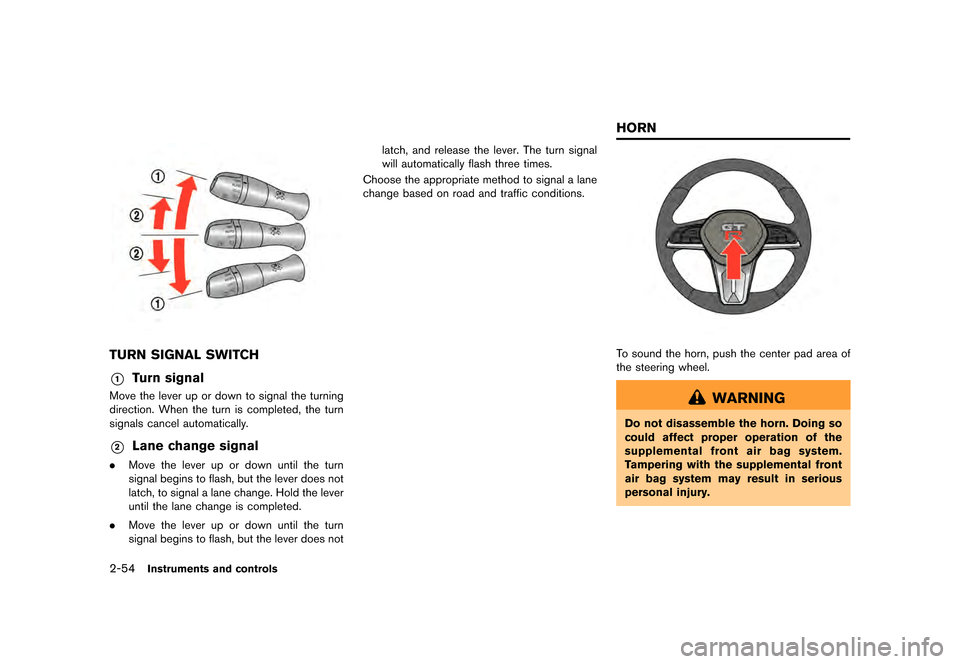

2-54Instruments and controls
JVI0156X
TURN SIGNAL SWITCHGUID-3E90D433-421B-49B7-BB68-0A49A8C905DC
*1Turn signalGUID-D930822E-1B78-44B6-947F-F14FAB277860Move the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-071A16F1-2DDB-4763-B256-67DF90ED0133.Move the lever up or down until the turn
signal begins to flash, but the lever does not
latch, to signal a lane change. Hold the lever
until the lane change is completed.
. Move the lever up or down until the turn
signal begins to flash, but the lever does not latch, and release the lever. The turn signal
will automatically flash three times.
Choose the appropriate method to signal a lane
change based on road and traffic conditions.
GUID-E6838E91-9B44-446A-9139-732C2BD39269
JVI1460X
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
HORN
Page 158 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-AC5BDA42-EA40-4CB5-9C90-5765A6DBEB0E
JVI0104X

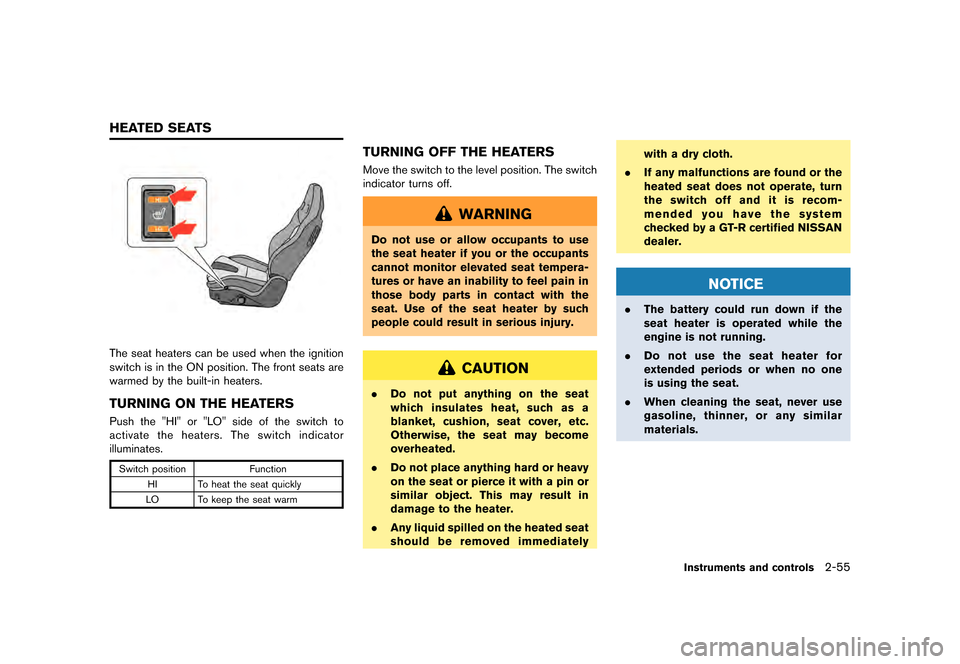

The seat heaters can be used when the ignition
switch is in the ON position. The front seats are
warmed by the built-in heaters.
TURNING ON THE HEATERSGUID-07C6AE9B-84FE-47C0-A95C-CC84566145B5Push the "HI" or "LO" side of the switch to
activate the heaters. The switch indicator
illuminates.
Switch positionFunction
HI To heat the seat quickly
LO To keep the seat warm
TURNING OFF THE HEATERSGUID-0AFB3C41-E37B-4A5D-8857-74E127323927Move the switch to the level position. The switch
indicator turns off.
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
those body parts in contact with the
seat. Use of the seat heater by such
people could result in serious injury.
CAUTION
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in
damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately with a dry cloth.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and it is recom-
mended you have the system
checked by a GT-R certified NISSAN
dealer.
NOTICE
.The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
Instruments and controls2-55
HEATED SEATS
Page 159 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

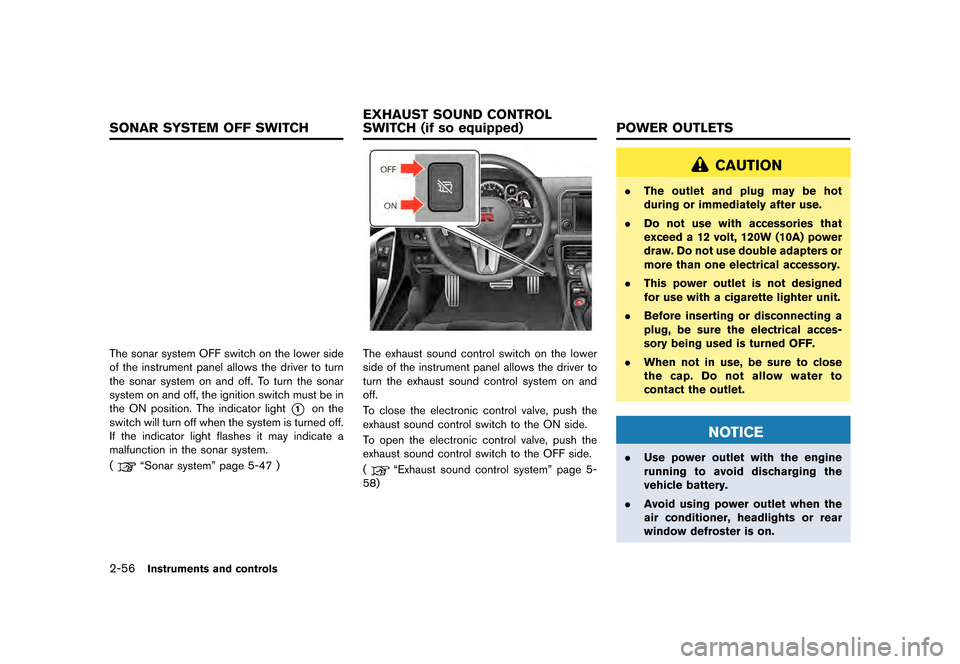

2-56Instruments and controls
GUID-6E444278-29B6-4C8B-858F-EC85933BCC26
JVS0803X
The sonar system OFF switch on the lower side
of the instrument panel allows the driver to turn
the sonar system on and off. To turn the sonar
system on and off, the ignition switch must be in
the ON position. The indicator light
*1on the
switch will turn off when the system is turned off.
If the indicator light flashes it may indicate a
malfunction in the sonar system.
(
ªSonar systemº page 5-47 )
GUID-B547D28E-6241-4B24-B8C5-9516353CE47B
JVS0814X
The exhaust sound control switch on the lower
side of the instrument panel allows the driver to
turn the exhaust sound control system on and
off.
To close the electronic control valve, push the
exhaust sound control switch to the ON side.
To open the electronic control valve, push the
exhaust sound control switch to the OFF side.
(
ªExhaust sound control systemº page 5-
58)
GUID-0FB1AF40-8345-44F5-A4A0-BCF46FD7CE43
CAUTION
. The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
NOTICE
.Use power outlet with the engine
running to avoid discharging the
vehicle battery.
. Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
SONAR SYSTEM OFF SWITCH EXHAUST SOUND CONTROL
SWITCH (if so equipped)
POWER OUTLETS
Page 160 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

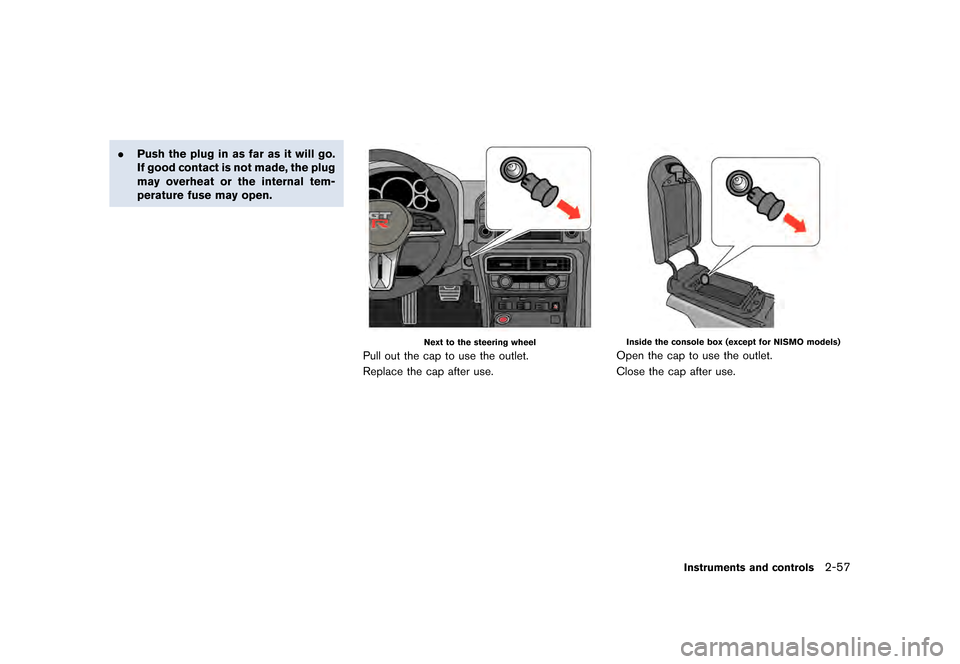

.Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
JVI1461X
Next to the steering wheel
Pull out the cap to use the outlet.
Replace the cap after use.
JVI0157X
Inside the console box (except for NISMO models)
Open the cap to use the outlet.
Close the cap after use.
Instruments and controls2-57
