NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 161 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

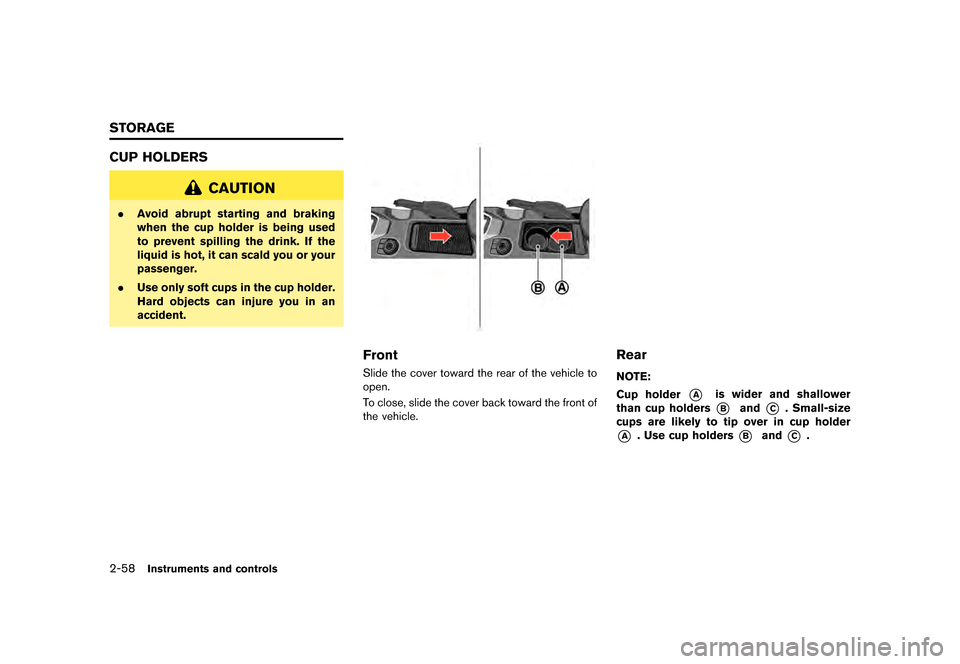

2-58Instruments and controls
GUID-6A18D526-5CB9-41D7-B4FF-0D7507B79533
CUP HOLDERSGUID-E3E655C8-C0C5-46EC-AB8B-382427EA18C0
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
JVI1462X
FrontGUID-F2430C9F-6ACE-49AF-8047-791DB961DFBASlide the cover toward the rear of the vehicle to
open.
To close, slide the cover back toward the front of
the vehicle.
GEC0009
RearGUID-13EA0CB8-9B96-482E-8D0F-42E8D2ADF982
NOTE:
Cup holder
*Ais wider and shallower
than cup holders
*Band*C. Small-size
cups are likely to tip over in cup holder
*A. Use cup holders*Band*C.
STORAGE
Page 162 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GEC0012

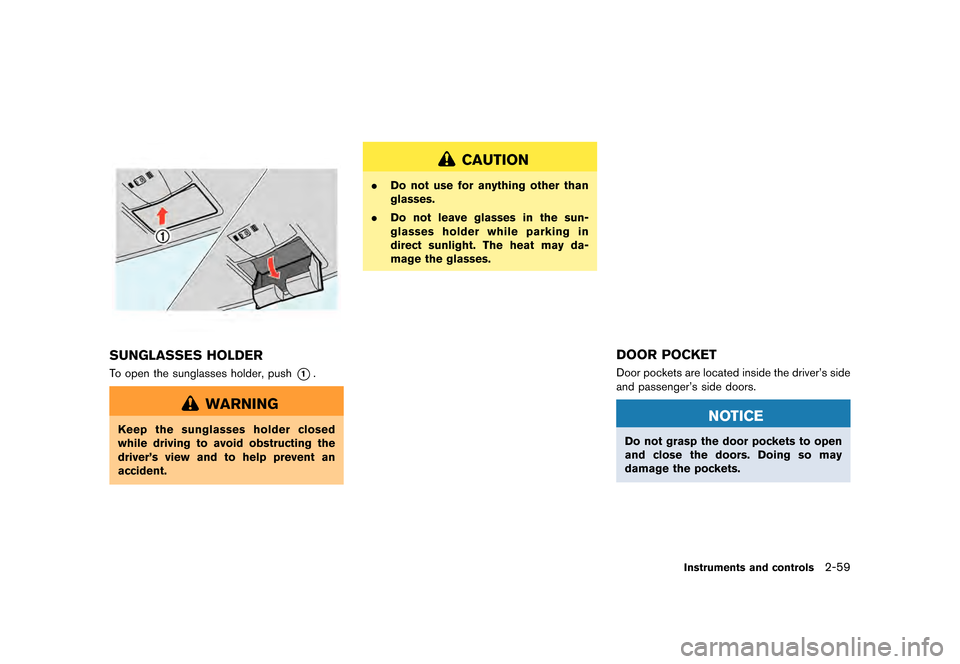

SUNGLASSES HOLDERGUID-4544D307-DD6D-44B5-8BD9-2EC51EE7B857To open the sunglasses holder, push*1.
WARNING
Keep the sunglasses holder closed
while driving to avoid obstructing the
driver's view and to help prevent an
accident.
CAUTION
.Do not use for anything other than
glasses.
. Do not leave glasses in the sun-
glasses holder while parking in
direct sunlight. The heat may da-
mage the glasses.
GEC0013
DOOR POCKETGUID-CE28F1B9-926B-406B-8A1E-8102F74C67A3Door pockets are located inside the driver's side
and passenger's side doors.
NOTICE
Do not grasp the door pockets to open
and close the doors. Doing so may
damage the pockets.
Instruments and controls2-59
Page 163 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

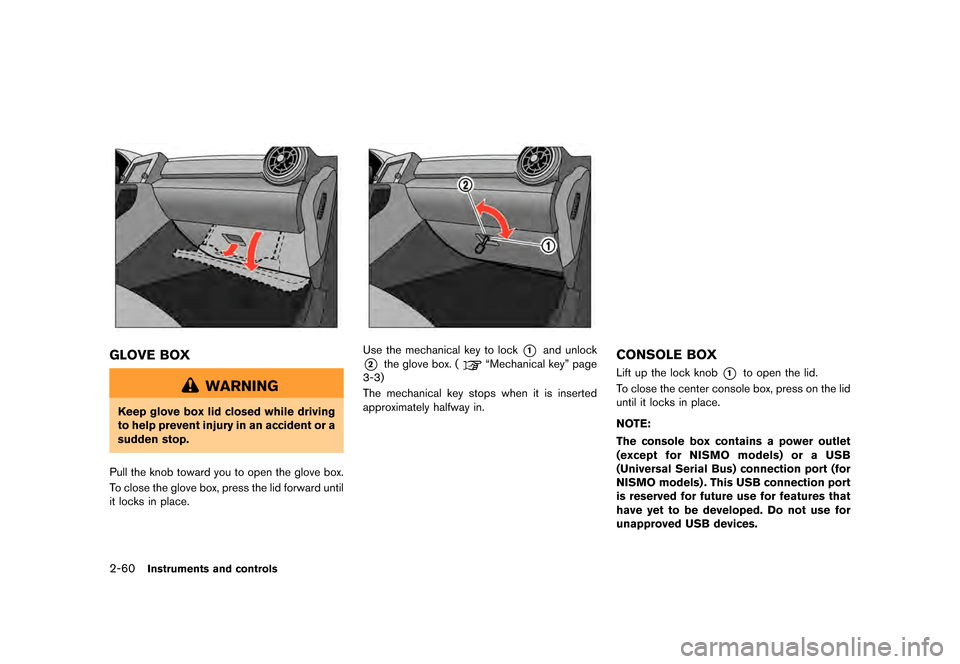

2-60Instruments and controls
JVI1464X
GLOVE BOXGUID-82CE5C2D-7F3D-4F59-B569-AD7C24D964A3
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
Pull the knob toward you to open the glove box.
To close the glove box, press the lid forward until
it locks in place.
JVI1465X
Use the mechanical key to lock*1and unlock
*2the glove box. (ªMechanical keyº page
3-3)
The mechanical key stops when it is inserted
approximately halfway in.
GEC0007
CONSOLE BOXGUID-E7E4F929-20D0-41B9-9DCA-197EDCD2A091Lift up the lock knob*1to open the lid.
To close the center console box, press on the lid
until it locks in place.
NOTE:
The console box contains a power outlet
(except for NISMO models) or a USB
(Universal Serial Bus) connection port (for
NISMO models) . This USB connection port
is reserved for future use for features that
have yet to be developed. Do not use for
unapproved USB devices.
Page 164 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0364X

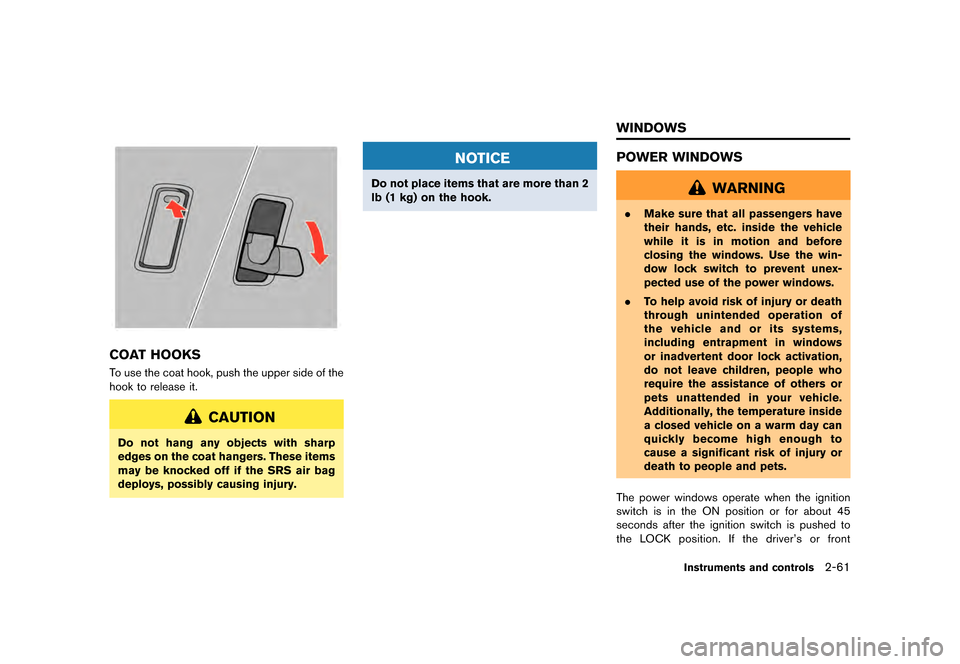

COAT HOOKSGUID-B7A6B7E3-AA21-4E40-B3D0-96333F908D0DTo use the coat hook, push the upper side of the
hook to release it.
CAUTION
Do not hang any objects with sharp
edges on the coat hangers. These items
may be knocked off if the SRS air bag
deploys, possibly causing injury.
NOTICE
Do not place items that are more than 2
lb (1 kg) on the hook.
GUID-C9D2C7DA-4A37-48B2-8A7F-D0E747198C2F
POWER WINDOWSGUID-8983BC23-B098-4739-A641-62610B97F693
WARNING
.Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before
closing the windows. Use the win-
dow lock switch to prevent unex-
pected use of the power windows.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
The power windows operate when the ignition
switch is in the ON position or for about 45
seconds after the ignition switch is pushed to
the LOCK position. If the driver's or front
Instruments and controls2-61
WINDOWS
Page 165 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-62Instruments and controls
passenger's door is opened during this period of
about 45 seconds, power to the windows is
canceled.
GPC0029
Driver's side1. Window lock button
2. Driver's window switch
3. Front passenger's window switch
GPC0030
Front passenger's side4. Front passenger's window switch
Main power window switch (driver's
side)
GUID-B362F3B5-2513-4C3A-8A01-03B98A4A968CTo open or close the window, push down or pull
up the switch and hold it. The main switch
(driver's side switches) will open or close all the
windows.
Locking passengers' windowsGUID-052BA6B0-94E9-4018-936F-7B93853FECAEWhen the window lock button is pushed in, only
the driver's side window can be opened or
closed. Push it in again to cancel.
Page 166 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Passenger's side power window
switch
GUID-FD50AD69-3133-49AD-911F-250975B6848BThe passenger side switch will open or close
only the corresponding window. To open close
the window, push down or pull up the switch
and hold it.
Automatic operationGUID-7366C822-EF8E-4227-AA59-B7C48B101963To fully open or close the window, completely
push down or pull up the switch and release it; it
does not need to be held. The window will
automatically open or close all the way. To stop
the window, just push or lift the switch in the
opposite direction.
A light push or pull on the switch will cause the
window to open or close until the switch is
released.
Auto reverse functionGUID-C35E6F6A-C346-483C-B064-1671456B5F18If the control unit detects something caught in
the window as it is closing, the window will be
immediately lowered.
The auto reverse function can be activated when
the window is closed by automatic operation
when the ignition switch is in the ON position or
for 45 seconds after the ignition switch is
pushed to the OFF position.
Depending on the environment or driving con-
ditions, the auto reverse function may beactivated if an impact or load similar to some-
thing being caught in the window occurs.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-
side the vehicle before closing the
window.
Automatic adjusting functionGUID-22FF747B-A38A-4C34-B557-1A8155403F02
CAUTION
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work
and the side roof panel may be da-
maged.
The power window has an automatic adjusting
function. When the door is being opened, the
window is automatically lowered slightly to avoid
contact between the window and the side roof
panel. When the door is closed, the window is automatically raised slightly.
While the automatic adjusting function does not
work, the window will be controlled as follows:
.
When the door is opened, the window
lowers for approximately 2 seconds.
. While the door is open, the window cannot
be raised.
If the windows do not close auto-
matically
GUID-64C42FF5-E0C5-4653-A662-6BA62B5B5709If the power window automatic function (closing
only) does not operate properly, perform the
following procedure to initialize the power
window system.
1. Push the ignition switch to the ON position.
2. Close the door.
3. Open the window completely by operating
the power window switch.
4. Pull the power window switch and hold it to close the driver side window, and then hold
the switch more than 3 seconds after the
window is closed completely.
5. Release the power window switch. Operate the window by the automatic function to
confirm the initialization is complete.
6. Perform steps 2 through 5 above for the passenger side window by operating either
driver's or passenger's side switch.
Instruments and controls2-63
Page 167 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

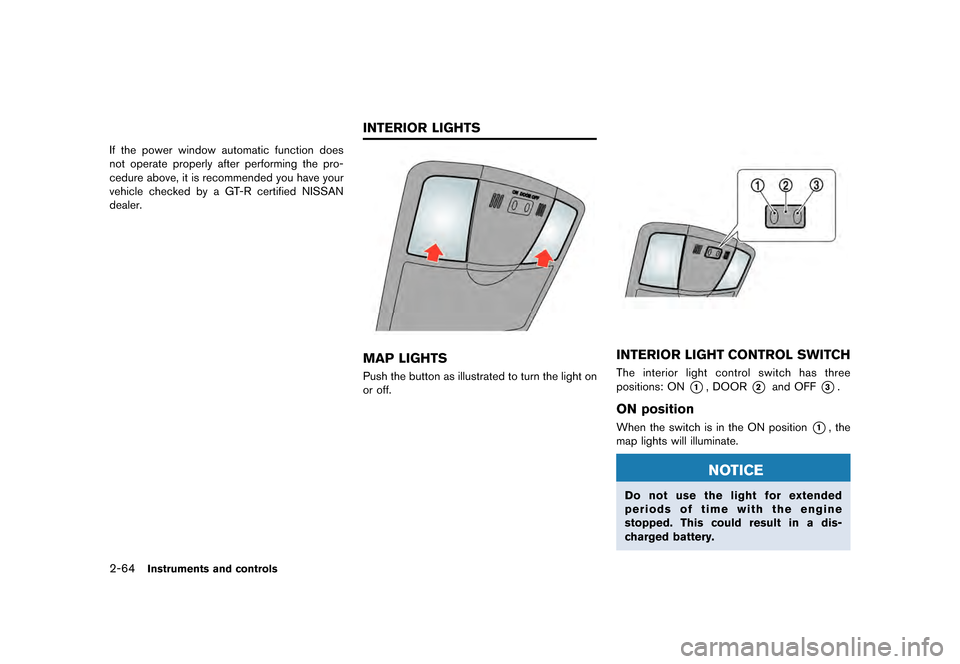

2-64Instruments and controls
If the power window automatic function does
not operate properly after performing the pro-
cedure above, it is recommended you have your
vehicle checked by a GT-R certified NISSAN
dealer.GUID-742E2C05-9115-4485-B910-DCB4E3FFB304
GEC0003
MAP LIGHTSGUID-D5CC0FAD-B8D2-427D-A5ED-4B4F4CE78017Push the button as illustrated to turn the light on
or off.
GEC0004
INTERIOR LIGHT CONTROL SWITCHGUID-A8154452-DF27-4375-BFEE-53DBA9D09569The interior light control switch has three
positions: ON
*1, DOOR*2and OFF*3.
ON positionGUID-9E550CDA-6A5F-4776-919A-97920632DA2BWhen the switch is in the ON position*1, the
map lights will illuminate.
NOTICE
Do not use the light for extended
periods of time with the engine
stopped. This could result in a dis-
charged battery.
INTERIOR LIGHTS
Page 168 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

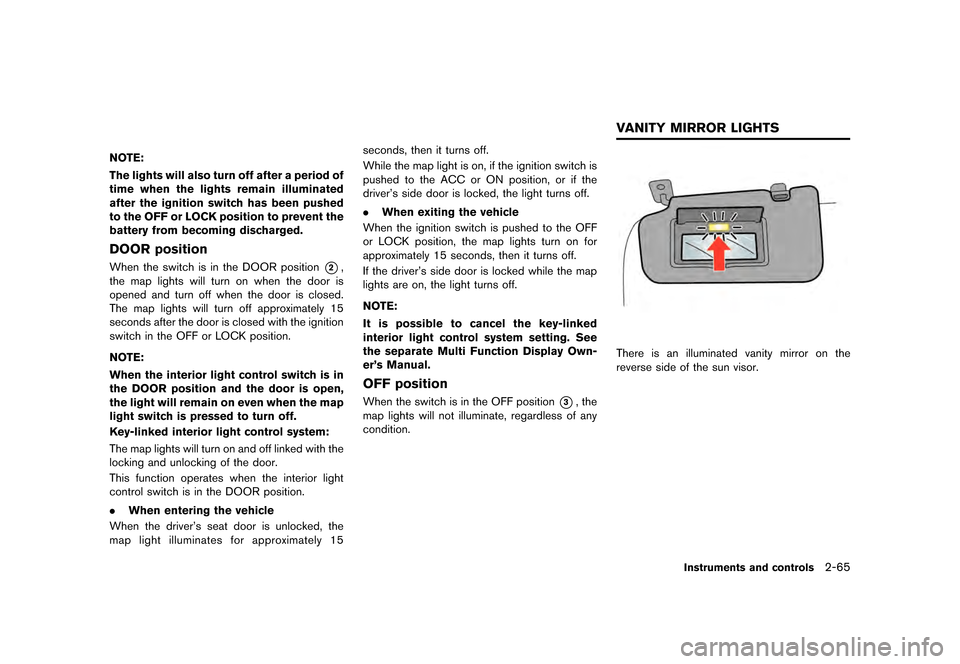

NOTE:
The lights will also turn off after a period of
time when the lights remain illuminated
after the ignition switch has been pushed
to the OFF or LOCK position to prevent the
battery from becoming discharged.
DOOR positionGUID-31F69CCA-C199-4829-8D83-95C634DA50F6When the switch is in the DOOR position*2,
the map lights will turn on when the door is
opened and turn off when the door is closed.
The map lights will turn off approximately 15
seconds after the door is closed with the ignition
switch in the OFF or LOCK position.
NOTE:
When the interior light control switch is in
the DOOR position and the door is open,
the light will remain on even when the map
light switch is pressed to turn off.
Key-linked interior light control system:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9The map lights will turn on and off linked with the
locking and unlocking of the door.
This function operates when the interior light
control switch is in the DOOR position.
. When entering the vehicle
When the driver's seat door is unlocked, the
map light illuminates for approximately 15 seconds, then it turns off.
While the map light is on, if the ignition switch is
pushed to the ACC or ON position, or if the
driver's side door is locked, the light turns off.
.
When exiting the vehicle
When the ignition switch is pushed to the OFF
or LOCK position, the map lights turn on for
approximately 15 seconds, then it turns off.
If the driver's side door is locked while the map
lights are on, the light turns off.
NOTE:
It is possible to cancel the key-linked
interior light control system setting. See
the separate Multi Function Display Own-
er's Manual.
OFF positionGUID-A8A74054-EE3F-40C1-8FC1-F9AA774B30AEWhen the switch is in the OFF position*3, the
map lights will not illuminate, regardless of any
condition.
GUID-955EF2DF-5A59-475A-BDE9-62BBF322A7CF
GEC0002
There is an illuminated vanity mirror on the
reverse side of the sun visor.
Instruments and controls2-65
VANITY MIRROR LIGHTS
Page 169 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-66Instruments and controls
GUID-BFDE3295-1923-40D9-8C5F-E6EB36CD4012The HomeLink
Page 170 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
JVI0428X

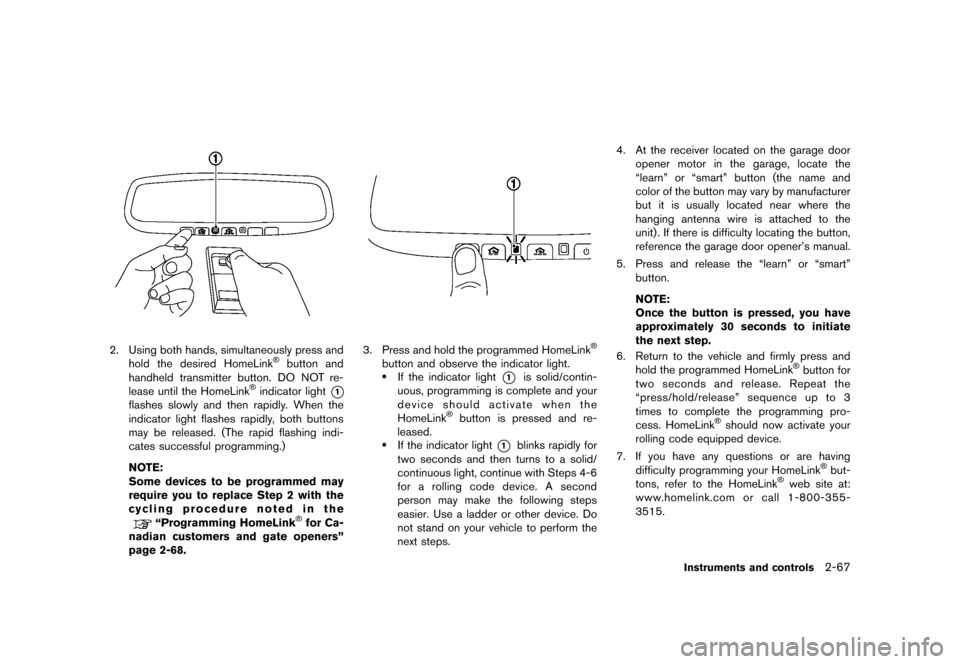

2. Using both hands, simultaneously press andhold the desired HomeLink
