NISSAN GT-R 2017 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2017, Model line: GT-R, Model: NISSAN GT-R 2017 R35Pages: 386, PDF Size: 5.14 MB
Page 171 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-68Instruments and controls
PROGRAMMING HomeLink
Page 172 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

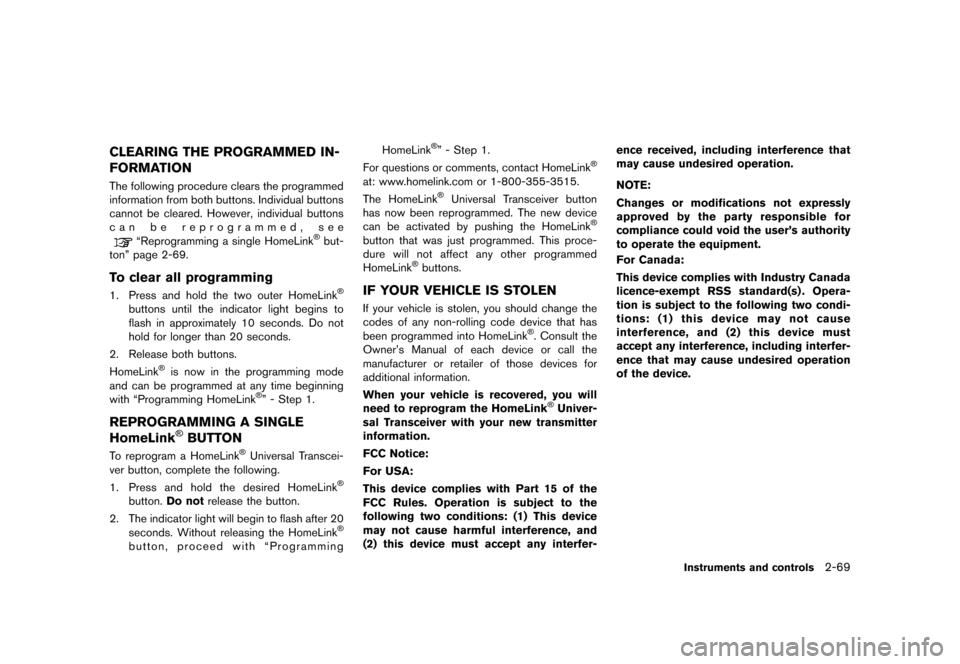

CLEARING THE PROGRAMMED IN-
FORMATION
GUID-AEA9A6F7-0ACF-4AED-9153-A2742F0F899DThe following procedure clears the programmed
information from both buttons. Individual buttons
cannot be cleared. However, individual buttons
can be reprogrammed, see
ªReprogramming a single HomeLink
Page 173 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-70Instruments and controls

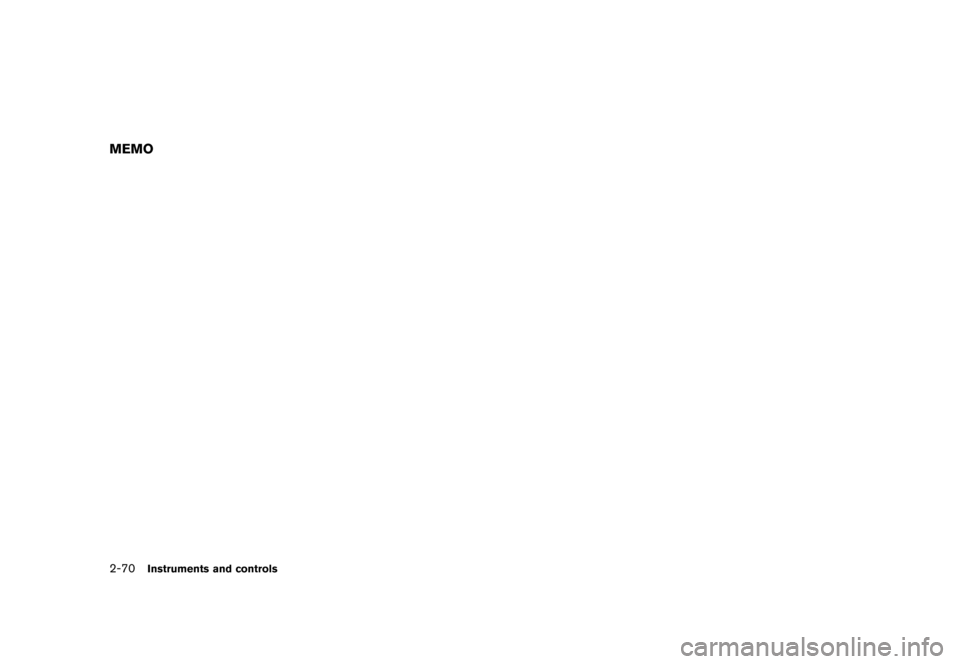

MEMO
Page 174 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

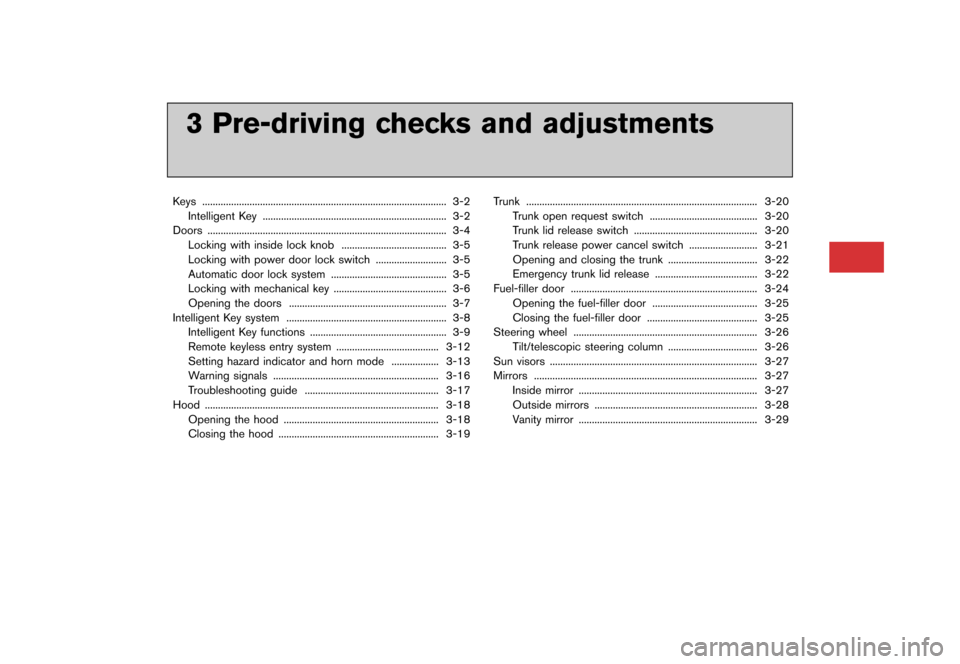

3 Pre-driving checks and adjustments
Keys............................................................................\
..................... 3-2
Intelligent Key .......................................................................... 3-2
Doors ....
........................................................................\
................... 3-4
Locking with inside lock knob ............................................ 3-5
Locking with power door lock switch ....
........................... 3-5
Automatic door lock system ....
............................................ 3-5
Locking with mechanical key ....
........................................... 3-6
Opening the doors ................................................................ 3-7
Intelligent Key system ................................................................. 3-8
Intelligent Key functions ....
.................................................... 3-9
Remote keyless entry system ....
....................................... 3-12
Setting hazard indicator and horn mode ...................... 3-13
Warning signals ................................................................... 3-16
Troubleshooting guide ....................................................... 3-17
Hood ....
........................................................................\
................. 3-18
Opening the hood ....
........................................................... 3-18
Closing the hood ....
............................................................. 3-19 Trunk
............................................................................\
................ 3-20
Trunk open request switch ............................................. 3-20
Trunk lid release switch ....
............................................... 3-20
Trunk release power cancel switch ....
.......................... 3-21
Opening and closing the trunk ....
.................................. 3-22
Emergency trunk lid release ....
....................................... 3-22
Fuel-filler door ........................................................................... 3-24
Opening the fuel-filler door ............................................ 3-25
Closing the fuel-filler door .............................................. 3-25
Steering wheel .......................................................................... 3-26
Tilt/telescopic steering column ....
.................................. 3-26
Sun visors ....
........................................................................\
....... 3-27
Mirrors ............................................................................\
............. 3-27
Inside mirror ....
.................................................................... 3-27
Outside mirrors ....
.............................................................. 3-28
Vanity mirror ....
.................................................................... 3-29
Page 175 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

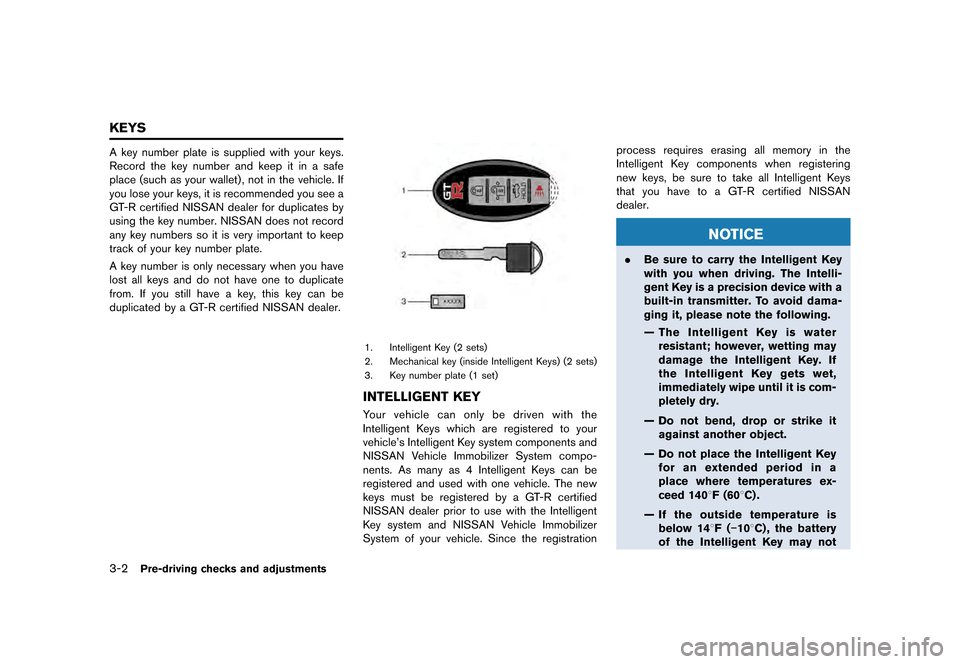

3-2Pre-driving checks and adjustments
GUID-0F85E24B-3B61-4032-BBF1-0B2357060839A key number plate is supplied with your keys.
Record the key number and keep it in a safe
place (such as your wallet) , not in the vehicle. If
you lose your keys, it is recommended you see a
GT-R certified NISSAN dealer for duplicates by
using the key number. NISSAN does not record
any key numbers so it is very important to keep
track of your key number plate.
A key number is only necessary when you have
lost all keys and do not have one to duplicate
from. If you still have a key, this key can be
duplicated by a GT-R certified NISSAN dealer.
GPC0051
1. Intelligent Key (2 sets)
2. Mechanical key (inside Intelligent Keys) (2 sets)
3. Key number plate (1 set)
INTELLIGENT KEYGUID-55514E95-F475-46ED-A8AC-046514ADBAC4Your vehicle can only be driven with the
Intelligent Keys which are registered to your
vehicle's Intelligent Key system components and
NISSAN Vehicle Immobilizer System compo-
nents. As many as 4 Intelligent Keys can be
registered and used with one vehicle. The new
keys must be registered by a GT-R certified
NISSAN dealer prior to use with the Intelligent
Key system and NISSAN Vehicle Immobilizer
System of your vehicle. Since the registrationprocess requires erasing all memory in the
Intelligent Key components when registering
new keys, be sure to take all Intelligent Keys
that you have to a GT-R certified NISSAN
dealer.
NOTICE
.
Be sure to carry the Intelligent Key
with you when driving. The Intelli-
gent Key is a precision device with a
built-in transmitter. To avoid dama-
ging it, please note the following.
Ð The Intelligent Key is water
resistant; however, wetting may
damage the Intelligent Key. If
the Intelligent Key gets wet,
immediately wipe until it is com-
pletely dry.
Ð Do not bend, drop or strike it against another object.
Ð Do not place the Intelligent Key for an extended period in a
place where temperatures ex-
ceed 1408F (608C) .
Ð If the outside temperature is below 148F (
Page 176 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

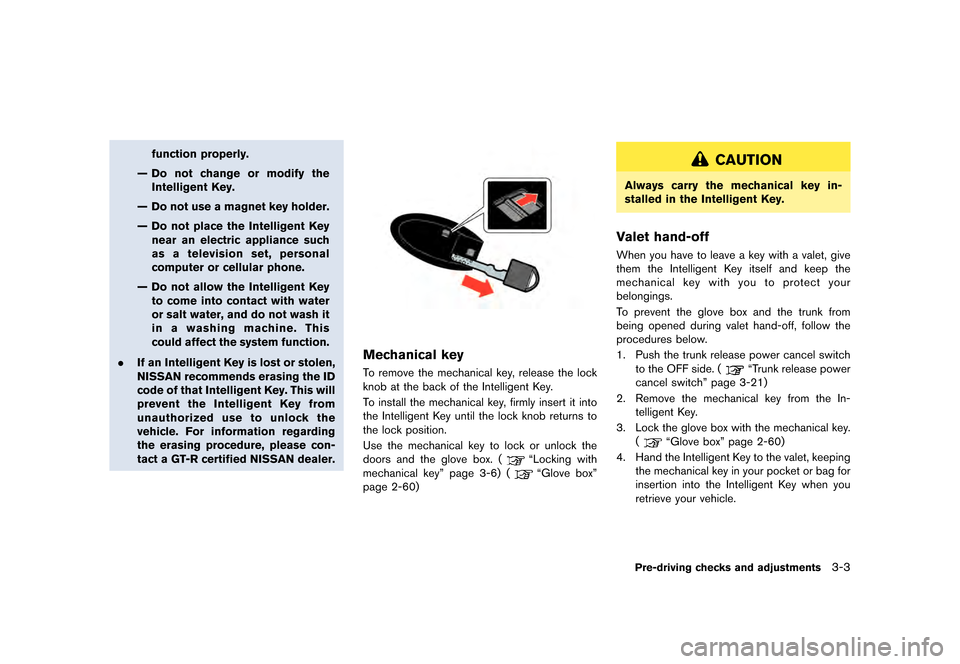

function properly.
Ð Do not change or modify the Intelligent Key.
Ð Do not use a magnet key holder.
Ð Do not place the Intelligent Key near an electric appliance such
as a television set, personal
computer or cellular phone.
Ð Do not allow the Intelligent Key to come into contact with water
or salt water, and do not wash it
in a washing machine. This
could affect the system function.
. If an Intelligent Key is lost or stolen,
NISSAN recommends erasing the ID
code of that Intelligent Key. This will
prevent the Intelligent Key from
unauthorized use to unlock the
vehicle. For information regarding
the erasing procedure, please con-
tact a GT-R certified NISSAN dealer.
GPC0004
Mechanical keyGUID-773BACA2-EA33-4F18-83FE-96DF0DC886B0To remove the mechanical key, release the lock
knob at the back of the Intelligent Key.
To install the mechanical key, firmly insert it into
the Intelligent Key until the lock knob returns to
the lock position.
Use the mechanical key to lock or unlock the
doors and the glove box. (
ªLocking with
mechanical keyº page 3-6) (
ªGlove boxº
page 2-60)
CAUTION
Always carry the mechanical key in-
stalled in the Intelligent Key.
Valet hand-offGUID-D759551B-4593-496F-8B92-A63320B51560When you have to leave a key with a valet, give
them the Intelligent Key itself and keep the
mechanical key with you to protect your
belongings.
To prevent the glove box and the trunk from
being opened during valet hand-off, follow the
procedures below.
1. Push the trunk release power cancel switch
to the OFF side. (
ªTrunk release power
cancel switchº page 3-21)
2. Remove the mechanical key from the In- telligent Key.
3. Lock the glove box with the mechanical key. (
ªGlove boxº page 2-60)
4. Hand the Intelligent Key to the valet, keeping the mechanical key in your pocket or bag for
insertion into the Intelligent Key when you
retrieve your vehicle.
Pre-driving checks and adjustments3-3
Page 177 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @

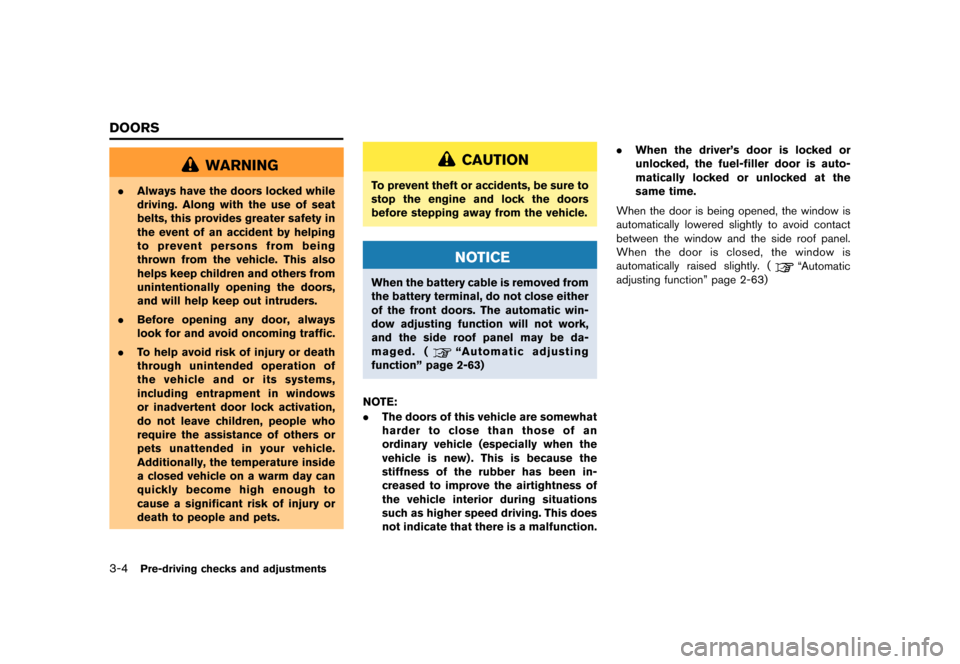

3-4Pre-driving checks and adjustments
GUID-B97E82CC-83B2-40F3-9F28-848321677F51
WARNING
.Always have the doors locked while
driving. Along with the use of seat
belts, this provides greater safety in
the event of an accident by helping
to prevent persons from being
thrown from the vehicle. This also
helps keep children and others from
unintentionally opening the doors,
and will help keep out intruders.
. Before opening any door, always
look for and avoid oncoming traffic.
. To help avoid risk of injury or death
through unintended operation of
the vehicle and or its systems,
including entrapment in windows
or inadvertent door lock activation,
do not leave children, people who
require the assistance of others or
pets unattended in your vehicle.
Additionally, the temperature inside
a closed vehicle on a warm day can
quickly become high enough to
cause a significant risk of injury or
death to people and pets.
CAUTION
To prevent theft or accidents, be sure to
stop the engine and lock the doors
before stepping away from the vehicle.
NOTICE
When the battery cable is removed from
the battery terminal, do not close either
of the front doors. The automatic win-
dow adjusting function will not work,
and the side roof panel may be da-
maged. (
ªAutomatic adjusting
functionº page 2-63)
NOTE:
. The doors of this vehicle are somewhat
harder to close than those of an
ordinary vehicle (especially when the
vehicle is new) . This is because the
stiffness of the rubber has been in-
creased to improve the airtightness of
the vehicle interior during situations
such as higher speed driving. This does
not indicate that there is a malfunction. .
When the driver's door is locked or
unlocked, the fuel-filler door is auto-
matically locked or unlocked at the
same time.
When the door is being opened, the window is
automatically lowered slightly to avoid contact
between the window and the side roof panel.
When the door is closed, the window is
automatically raised slightly. (
ªAutomatic
adjusting functionº page 2-63)
DOORS
Page 178 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GPC0012

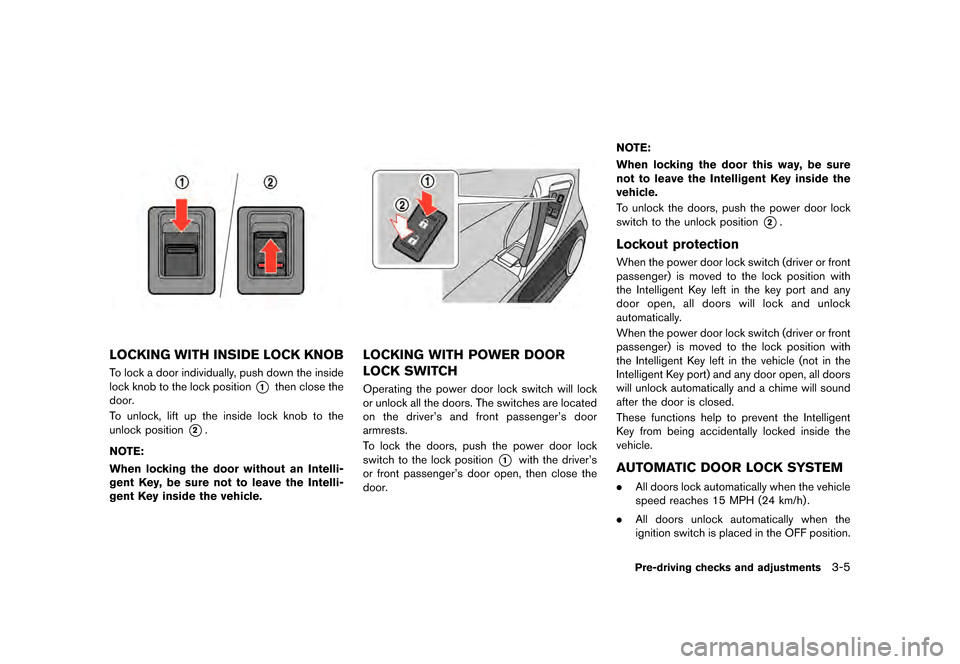

LOCKING WITH INSIDE LOCK KNOBGUID-2A99E88F-EC7B-4B89-A8CE-44732E09B44BTo lock a door individually, push down the inside
lock knob to the lock position
*1then close the
door.
To unlock, lift up the inside lock knob to the
unlock position
*2.
NOTE:
When locking the door without an Intelli-
gent Key, be sure not to leave the Intelli-
gent Key inside the vehicle.
JVP0353X
LOCKING WITH POWER DOOR
LOCK SWITCH
GUID-B2C8C659-BA6D-4E95-9137-32DC9365E1A4Operating the power door lock switch will lock
or unlock all the doors. The switches are located
on the driver's and front passenger's door
armrests.
To lock the doors, push the power door lock
switch to the lock position
*1with the driver's
or front passenger's door open, then close the
door. NOTE:
When locking the door this way, be sure
not to leave the Intelligent Key inside the
vehicle.
To unlock the doors, push the power door lock
switch to the unlock position
*2.
Lockout protectionGUID-2FC90FA2-331F-4810-8CF1-768EF32F74DFWhen the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the key port and any
door open, all doors will lock and unlock
automatically.
When the power door lock switch (driver or front
passenger) is moved to the lock position with
the Intelligent Key left in the vehicle (not in the
Intelligent Key port) and any door open, all doors
will unlock automatically and a chime will sound
after the door is closed.
These functions help to prevent the Intelligent
Key from being accidentally locked inside the
vehicle.
AUTOMATIC DOOR LOCK SYSTEMGUID-EA4D7C64-4519-4ADA-931A-F3E840B64795.
All doors lock automatically when the vehicle
speed reaches 15 MPH (24 km/h) .
. All doors unlock automatically when the
ignition switch is placed in the OFF position.
Pre-driving checks and adjustments3-5
Page 179 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
3-6Pre-driving checks and adjustments

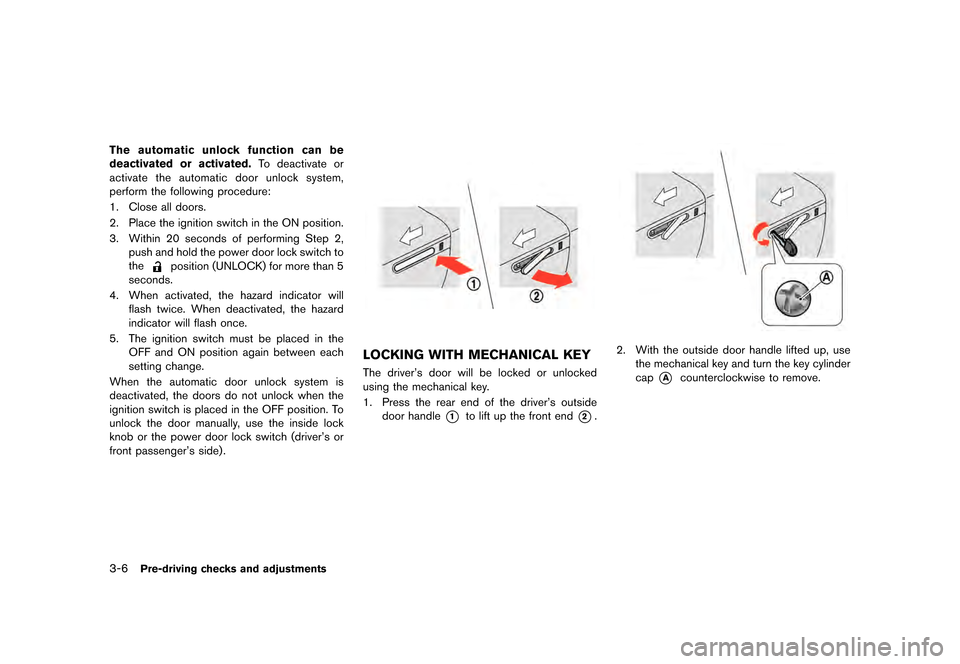

The automatic unlock function can be
deactivated or activated.To deactivate or
activate the automatic door unlock system,
perform the following procedure:
1. Close all doors.
2. Place the ignition switch in the ON position.
3. Within 20 seconds of performing Step 2, push and hold the power door lock switch to
the
position (UNLOCK) for more than 5
seconds.
4. When activated, the hazard indicator will flash twice. When deactivated, the hazard
indicator will flash once.
5. The ignition switch must be placed in the OFF and ON position again between each
setting change.
When the automatic door unlock system is
deactivated, the doors do not unlock when the
ignition switch is placed in the OFF position. To
unlock the door manually, use the inside lock
knob or the power door lock switch (driver's or
front passenger's side) .
GPC0014
LOCKING WITH MECHANICAL KEYGUID-8A6F3EFA-CDFD-41BB-99E0-D69752DB88D7The driver's door will be locked or unlocked
using the mechanical key.
1. Press the rear end of the driver's outside door handle
*1to lift up the front end*2.
GPC0015
2. With the outside door handle lifted up, usethe mechanical key and turn the key cylinder
cap
*Acounterclockwise to remove.
Page 180 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GPC0016

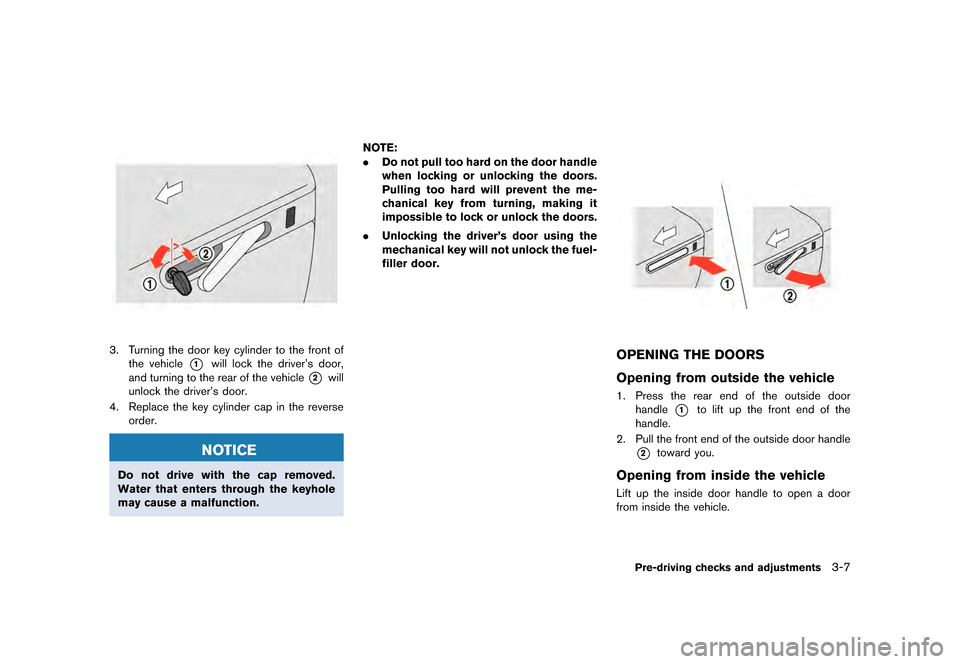

3. Turning the door key cylinder to the front ofthe vehicle
*1will lock the driver's door,
and turning to the rear of the vehicle
*2will
unlock the driver's door.
4. Replace the key cylinder cap in the reverse order.
NOTICE
Do not drive with the cap removed.
Water that enters through the keyhole
may cause a malfunction. NOTE:
.
Do not pull too hard on the door handle
when locking or unlocking the doors.
Pulling too hard will prevent the me-
chanical key from turning, making it
impossible to lock or unlock the doors.
. Unlocking the driver's door using the
mechanical key will not unlock the fuel-
filler door.
GPC0014
OPENING THE DOORSGUID-027984B2-5D1A-4486-B199-D7BD710B9F80
Opening from outside the vehicleGUID-358D3EB8-D76D-4AA6-A154-D4BCAFBD6AC31. Press the rear end of the outside door
handle
*1to lift up the front end of the
handle.
2. Pull the front end of the outside door handle
*2toward you.
Opening from inside the vehicleGUID-D5DBC49E-6D86-438B-93A8-24842417D53BLift up the inside door handle to open a door
from inside the vehicle.
Pre-driving checks and adjustments3-7
