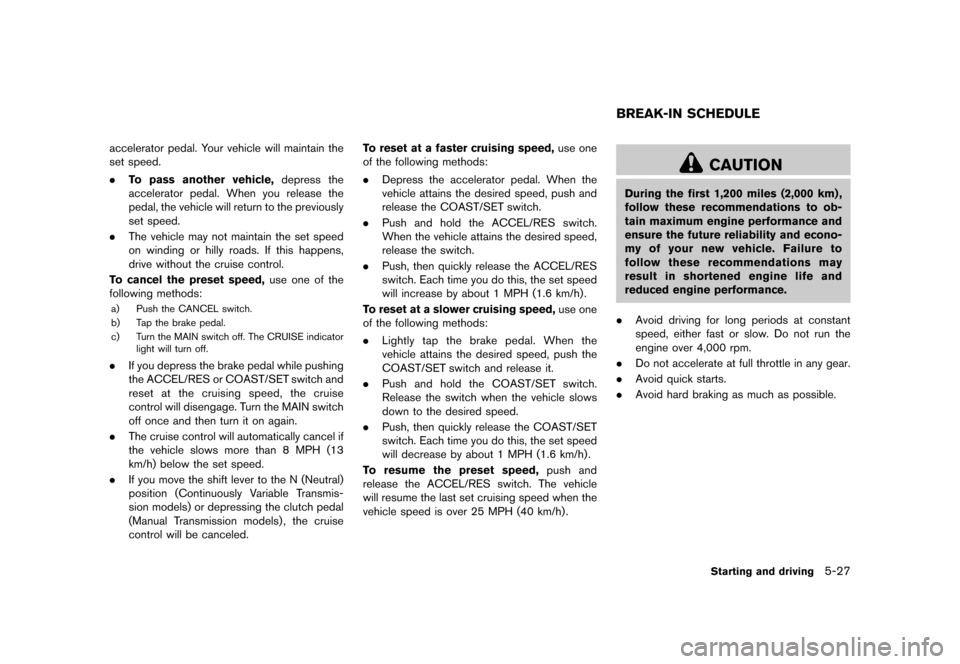

accelerator pedal.Your vehicle willmaintain the
set speed.
. To pass another vehicle,depressthe
accelerator pedal.Whenyourelease the
pedal, thevehicle willreturn tothe previously
set speed.
. The vehicle maynotmaintain thesetspeed
on winding orhilly roads. Ifthis happens,
drive without thecruise control.
T o cancel thepreset speed, useone ofthe
following methods:
a) PushtheCANCEL switch.
b) Tap the brake pedal.
c) Turn theMAIN switch off.The CRUISE indicator
light willturn off.
. Ifyou depress thebrake pedalwhilepushing
the ACCEL/RES orCOAST/SET switchand
reset atthe cruising speed,thecruise
control willdisengage. Turn theMAIN switch
off once andthen turniton again.
. The cruise control willautomatically cancelif
the vehicle slowsmorethan8MPH (13
km/h) below thesetspeed.
. Ifyou move theshift lever tothe N(Neutral)
position (Continuously Variable Transmis-
sion models) ordepressing theclutch pedal
(Manual Transmission models),the cruise
control willbecanceled. T
o reset atafaster cruising speed,useone
of the following methods:
. Depress theaccelerator pedal.Whenthe
vehicle attainsthedesired speed,pushand
release theCOAST/SET switch.
. Push andhold theACCEL/RES switch.
When thevehicle attainsthedesired speed,
release theswitch.
. Push, thenquickly release theACCEL/RES
switch. Eachtimeyoudothis, thesetspeed
will increase byabout 1MPH (1.6km/h) .
T o reset ataslower cruising speed,useone
of the following methods:
. Lightly tapthebrake pedal. Whenthe
vehicle attainsthedesired speed,pushthe
COAST/SET switchandrelease it.
. Push andhold theCOAST/SET switch.
Release theswitch whenthevehicle slows
down tothe desired speed.
. Push, thenquickly release theCOAST/SET
switch. Eachtimeyoudothis, thesetspeed
will decrease byabout 1MPH (1.6km/h) .
T o resume thepreset speed, pushand
release theACCEL/RES switch.Thevehicle
will resume thelast setcruising speedwhenthe
vehicle speedisover 25MPH (40km/h) .
GUID-EC2F D794-8914-4CC0-A38E-2BDC09 CE9FF5
CAUTION
During thefirst 1,200 miles (2,000 km),
follow theserecommendations toob-
tain maximum engineperformance and
ensure thefuture reliability andecono-
my ofyour newvehicle. Failureto
follow theserecommendations may
result inshortened enginelifeand
reduced engineperformance.
. Avoid driving forlong periods atconstant
speed, eitherfastorslow .Do not run the
engine over4,000 rpm.
. Donot accelerate atfull throttle inany gear.
. Avoid quickstarts.
. Avoid hardbraking asmuch aspossible.
Starting anddriving
5-27
BREAK-IN SCHEDULE
&RQGLWLRQ


> (GLW   0RGHO )'@
5-28
Starting anddriving
GUID-7C03 A534-EF0E- 40B7-84F0-1 3B8CB4EE473

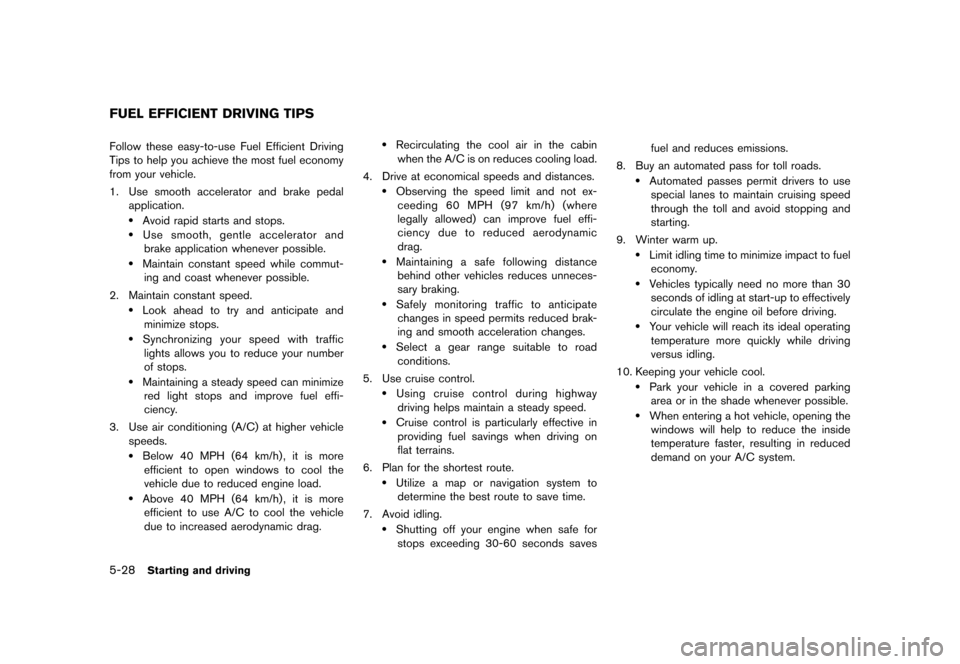

Follow theseeasy-to-use FuelEfficient Driving
Tips tohelp youachieve themost fueleconomy
from yourvehicle.
1. Use smooth accelerator andbrake pedal
application.
.
Avoid rapidstarts andstops.
.
Use smooth, gentleaccelerator and
brake application wheneverpossible.
.
Maintain constant speedwhilecommut-
ing and coast whenever possible.
2. Maintain constant speed.
.
Look ahead totry and anticipate and
minimize stops.
.
Synchronizing yourspeed withtraffic
lights allows youtoreduce yournumber
of stops.
.
Maintaining asteady speedcanminimize
red light stops andimprove fueleffi-
ciency .
3. Use airconditioning (A/C)athigher vehicle
speeds.
.
Below 40MPH (64km/h) ,it is more
efficient toopen windows tocool the
vehicle duetoreduced engineload.
.
Above 40MPH (64km/h) ,it is more
efficient touse A/C tocool thevehicle
due toincreased aerodynamic drag.
.
Recirculating thecool airinthe cabin
when theA/C ison reduces coolingload.
4. Drive ateconomical speedsanddistances.
.
Observing thespeed limitandnotex-
ceeding 60MPH (97km/h) (where
legally allowed) canimprove fueleffi-
ciency duetoreduced aerodynamic
drag.
.
Maintaining asafe following distance
behind othervehicles reduces unneces-
sary braking.
.
Safely monitoring traffictoanticipate
changes inspeed permits reduced brak-
ing and smooth acceleration changes.
.
Select agear range suitable toroad
conditions.
5. Use cruise control.
.
Using cruise control duringhighway
driving helpsmaintain asteady speed.
.
Cruise control isparticularly effectivein
providing fuelsavings whendriving on
flat terrains.
6. Plan forthe shortest route.
.
Utilize amap ornavigation systemto
determine thebest route tosave time.
7. Avoid idling.
.
Shutting offyour engine whensafefor
stops exceeding 30-60seconds saves fuel
and reduces emissions.
8. Buy anautomated passfortoll roads.
.
Automated passespermitdrivers touse
special lanestomaintain cruisingspeed
through thetolland avoid stopping and
starting.
9. Winter warmup.
.
Limit idling timetominimize impacttofuel
economy .
.
V ehicles typically neednomore than30
seconds ofidling atstart-up toeffectively
circulate theengine oilbefore driving.
.
Y our vehicle willreach itsideal operating
temperature morequickly whiledriving
versus idling.
10. Keeping yourvehicle cool.
.
Park yourvehicle inacovered parking
area orinthe shade whenever possible.
.
When entering ahot vehicle, opening the
windows willhelp toreduce theinside
temperature faster,resulting inreduced
demand onyour A/Csystem.
FUEL EFFICIENT DRIVINGTIPS
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-A 7F7F37C-BB 96-45E4-9A88-BFC066 7354EF

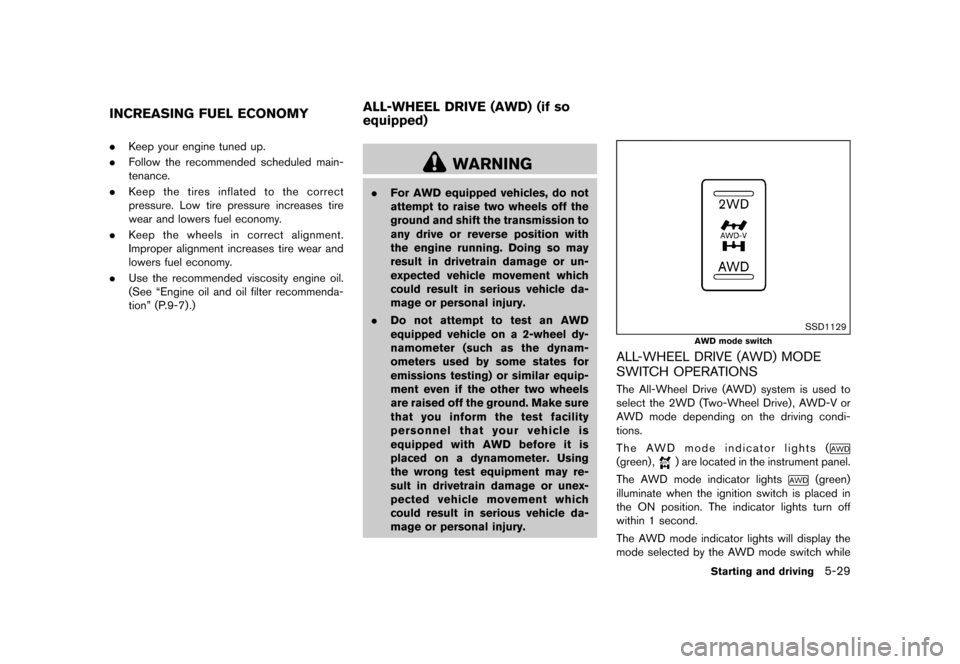

. Keep your engine tunedup.
. Follow therecommended scheduledmain-
tenance.
. Keep thetires inflated tothe correct
pressure. Lowtirepressure increases tire
wear andlowers fueleconomy .
. Keep thewheels incorrect alignment.
Improper alignment increasestirewear and
lowers fueleconomy .
. Use therecommended viscosityengineoil.
(See ªEngine oiland oilfilter recommenda-
tionº (P.9-7) .)
GUID-63E 39624-CE54 -4BBF-8A6D-1FF62766 9DD9
WARNING
. For AWD equipped vehicles,donot
attempt toraise twowheels offthe
ground andshift thetransmission to
any drive orreverse position with
the engine running. Doingsomay
result indrivetrain damageorun-
expected vehiclemovement which
could result inserious vehicleda-
mage orpersonal injury.
. Do not attempt totest anAWD
equipped vehicleona2-wheel dy-
namometer (suchasthe dynam-
ometers usedbysome states for
emissions testing)orsimilar equip-
ment evenifthe other twowheels
are raised offthe ground. Makesure
that youinform thetest facility
personnel thatyour vehicle is
equipped withAWD before itis
placed onadynamometer. Using
the wrong testequipment mayre-
sult indrivetrain damageorunex -
pected vehicle movement which
could result inserious vehicleda-
mage orpersonal
injury.
SSD1129
AWD mode switch
ALL -WHEEL DRIVE(AWD) MODE
SWIT CHOPERA TIONS
GUID-D1E 25B84-9B31 -4A3A-B30F-1ACF488 15006
The All-Wheel Drive(AWD) system isused to
select the2WD (Two-Wheel Drive),A WD-V or
A WD mode depending onthe driving condi-
tions.
The AWD mode indicator lights(
(green) ,
) are located inthe instrument panel.
The AWD mode indicator lights
(green)
illuminate whentheignition switchisplaced in
the ON position. Theindicator lightsturnoff
within 1second.
The AWD mode indicator lightswilldisplay the
mode selected bythe AWD mode switch while
Starting anddriving
5-29
INCREASING FUELECONOMY ALL
-WHEEL DRIVE(AWD) (ifso
equipped)
&RQGLWLRQ


> (GLW   0RGHO )'@
5-30
Starting anddriving

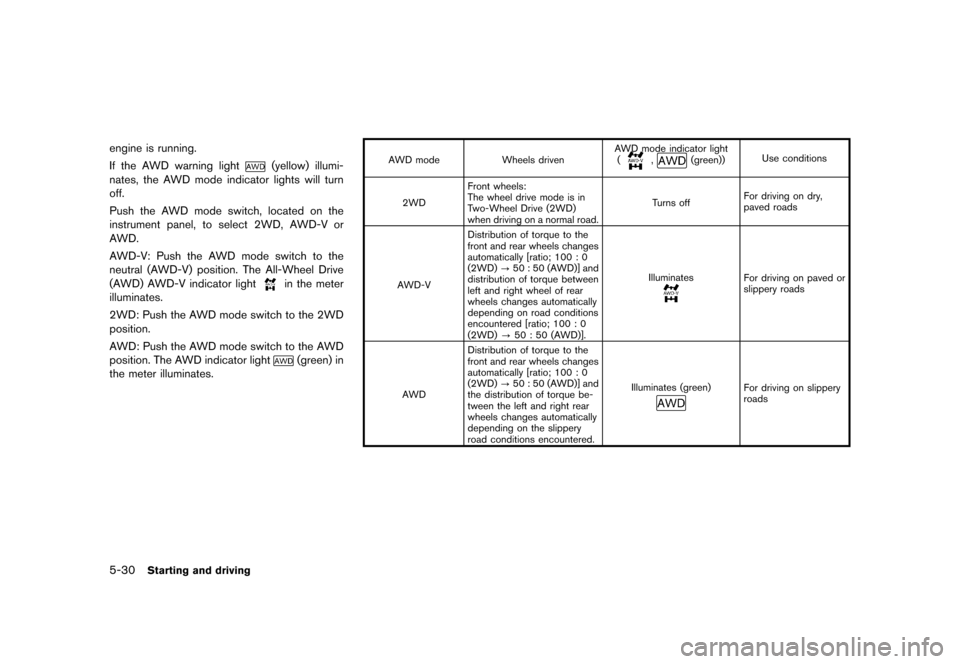

engine isrunning.
If the AWD warning light
(yellow) illumi-
nates, theAWD mode indicator lightswillturn
off.
Push theAWD mode switch, located onthe
instrument panel,toselect 2WD,AWD-V or
A WD.
A WD-V :Push theAWD mode switch tothe
neutral (AWD-V) position. TheAll-Wheel Drive
(A WD) AWD-V indicator light
in the meter
illuminates.
2WD: PushtheAWD mode switch tothe 2WD
position.
A WD: Push theAWD mode switch tothe AWD
position. TheAWD indicator light
(green) in
the meter illuminates.
A WD mode Wheelsdriven A
WD mode indicator light
(
,
(green)) Use
conditions
2WD Front
wheels:
The wheel drivemode isin
T wo-Wheel Drive(2WD)
when driving onanormal road. T
urns off For
driving ondry,
paved roads
A WD-V Distribution
oftorque tothe
front andrear wheels changes
automatically [ratio;100:0
(2WD) ?50 :50 (AWD)] and
distribution oftorque between
left and right wheel ofrear
wheels changes automatically
depending onroad conditions
encountered [ratio;100:0
(2WD) ?50 :50 (AWD)]. Illuminates
For driving onpaved or
slippery roads
A WD Distribution
oftorque tothe
front andrear wheels changes
automatically [ratio;100:0
(2WD) ?50 :50 (AWD)] and
the distribution oftorque be-
tween theleftand right rear
wheels changes automatically
depending onthe slippery
road conditions encountered. Illuminates
(green)
For driving onslippery
roads
&RQGLWLRQ


> (GLW   0RGHO )'@

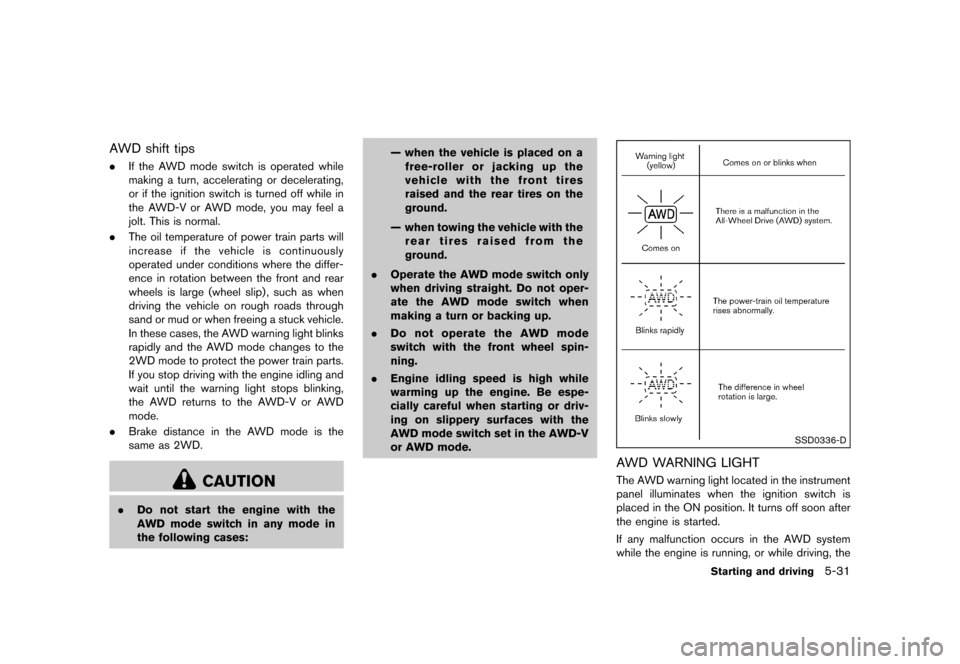

A WD shift tips
GUID-C35 72DD7-028 5-47BA-B5AE -F412F28BC6E1
. Ifthe AWD mode switch isoperated while
making aturn, accelerating ordecelerating,
or ifthe ignition switchisturned offwhile in
the AWD-V orAWD mode, youmay feela
jolt. This isnormal.
. The oiltemperature ofpower trainparts will
increase ifthe vehicle iscontinuously
operated underconditions wherethediffer-
ence inrotation between thefront andrear
wheels islarge (wheel slip),such aswhen
driving thevehicle onrough roadsthrough
sand ormud orwhen freeing astuck vehicle.
In these cases, theAWD warning lightblinks
rapidly andtheAWD mode changes tothe
2WD mode toprotect thepower trainparts.
If you stop driving withtheengine idlingand
wait until thewarning lightstops blinking,
the AWD returns tothe AWD-V orAWD
mode.
. Brake distance inthe AWD mode isthe
same as2WD.
CAUTION
. Do not start theengine withthe
AWD mode switch inany mode in
the following cases: Ð
when thevehicle isplaced ona
free-roller orjacking upthe
vehicle withthefront tires
raised andtherear tires onthe
ground.
Ð when towing thevehicle withthe
rear tires raised fromthe
ground.
. Operate theAWD mode switch only
when driving straight. Donot oper-
ate the AWD mode switch when
making aturn orbacking up.
. Do not operate theAWD mode
switch withthefront wheel spin-
ning.
. Engine idlingspeed ishigh while
warming upthe engine. Beespe-
cially careful whenstarting ordriv-
ing onslippery surfaces withthe
AWD mode switch setinthe AWD-V
or AWD mode.
SSD0336-D
A WD WARNING LIGHT
GUID-00 AD0D7B-4E5 0-437F-8A9D-C89C8757 711F
The AWD warning lightlocated inthe instrument
panel illuminates whentheignition switchis
placed inthe ON position. Itturns offsoon after
the engine isstarted.
If any malfunction occursinthe AWD system
while theengine isrunning, orwhile driving, the
Starting anddriving
5-31
&RQGLWLRQ


> (GLW   0RGHO )'@
5-32
Starting anddriving

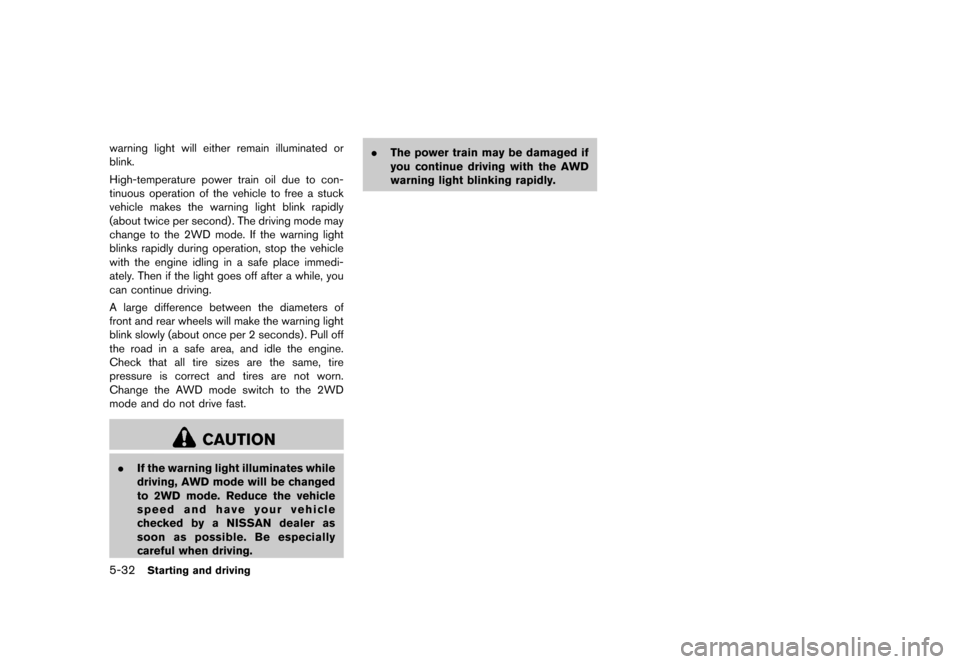

warning lightwilleither remain illuminated or
blink.
High-temperature powertrainoildue tocon-
tinuous operation ofthe vehicle tofree astuck
vehicle makesthewarning lightblink rapidly
(about twicepersecond) .The driving modemay
change tothe 2WD mode. Ifthe warning light
blinks rapidly duringoperation, stopthevehicle
with theengine idlinginasafe place immedi-
ately .Then ifthe light goes offafter awhile, you
can continue driving.
A large difference betweenthediameters of
front andrear wheels willmake thewarning light
blink slowly (about onceper2seconds) .Pull off
the road inasafe area, andidletheengine.
Check thatalltire sizes arethesame, tire
pressure iscorrect andtires arenot worn.
Change theAWD mode switch tothe 2WD
mode anddonot drive fast.
CAUTION
. Ifthe warning lightilluminates while
driving, AWDmode willbechanged
to 2WD mode. Reduce thevehicle
speed andhave yourvehicle
checked byaNISSAN dealeras
soon aspossible. Beespecially
careful whendriving. .
The power trainmaybedamaged if
you continue drivingwiththeAWD
warning lightblinking rapidly.
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-E73 6AF38-DC1B -4F99-A928-0D36F3C B2A37
SSD0488
WARNING
. Donot stop orpark thevehicle over
flammable materialssuchasdry
grass, wastepaperorrags. They
may ignite andcause afire.
. Never leavetheengine running
while thevehicle isunattended.
. Do not leave children unattended
inside thevehicle. Theycould un-
knowingly activateswitches orcon-
trols. Unattended childrencould
become involved inserious acci- dents.
. Safe parking procedures require
that both theparking brakebe
applied andthetransmission placed
into P(Park) forContinuously Vari-
able Transmission (CVT)model orin
an appropriate gearforManual
T ransmission (MT)model. Failure
to do socould cause thevehicle to
move unexpectedly orroll away and
result inan accident.
. Make surethecontinuously variable
transmission shiftlever hasbeen
pushed asfar forward asitcan go and
cannot bemoved without de-
pressing thefoot brake pedal.
1. Firmly applytheparking brake.
2. Continuously Variable Transmission
(CVT) models:
Move theshift lever tothe P(Park) position.
Manual Transmission (MT)models:
Move theshift lever tothe R(Reverse) gear.
When parking onanuphill grade, placethe
shift lever inthe 1st gear.
3. To help prevent thevehicle fromrolling into
the street whenparked onasloping drive
way ,it is agood practice toturn thewheels
as illustrated.
.
HEADED DOWNHILL WITHCURB:
*
1
T urn thewheels intothecurb andmove
the vehicle forward untilthecurb side
wheel gently touches thecurb.
.
HEADED UPHILLWITHCURB:
*
2
T urn thewheels awayfromthecurb and
move thevehicle backuntilthecurb side
wheel gently touches thecurb.
.
HEADED UPHILLORDOWNHILL, NO
CURB:
*
3
T urn thewheels towardtheside ofthe
road sothe vehicle willmove awayfrom
the center ofthe road ifit moves.
Starting anddriving
5-33

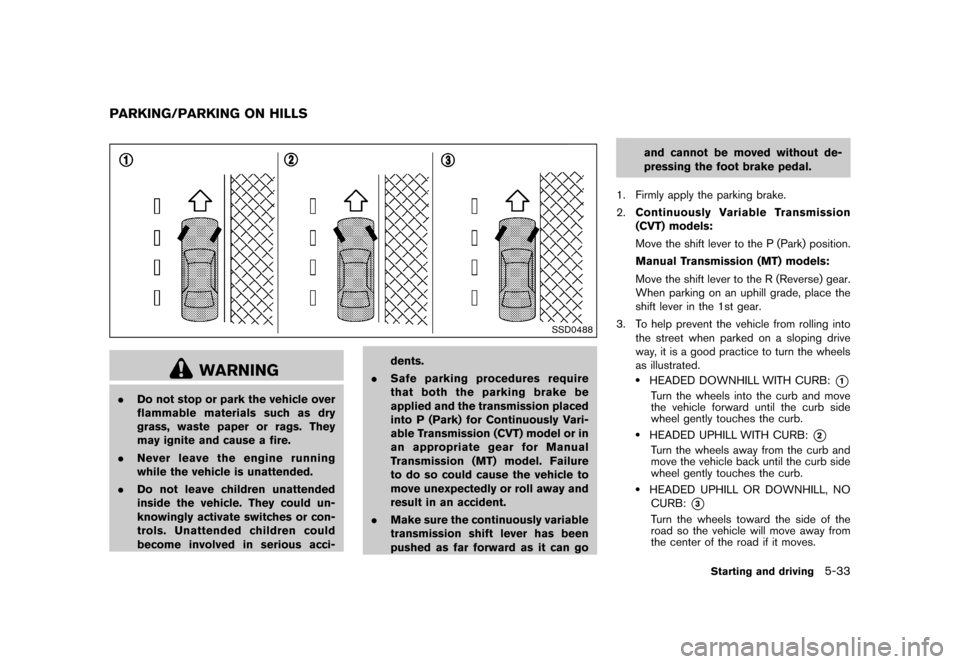

P ARKING/PARKING ONHILLS
&RQGLWLRQ


> (GLW   0RGHO )'@
5-34
Starting anddriving
4. Place theignition switchinthe OFF position.
GUID-FCEF4 119-86A5-4E 02-81F1-220A1BD67BD0
WARNING
. Ifthe engine isnot running oris
turned offwhile driving, thepower
assist forthe steering willnotwork.
Steering willbeharder tooperate.
. When theelectric powersteering
warning lightilluminates withthe
engine running, thepower assistfor
the steering willcease operation.
Y ou will still have control ofthe
vehicle butthesteering willbe
harder tooperate.
The electric powersteering systemisdesigned
to provide powerassistwhiledriving tooperate
the steering wheelwithlight force.
When thesteering wheelisoperated repeatedly
or continuously whileparking ordriving atavery
low speed, thepower assistforthe steering
wheel willbereduced. Thisisto prevent
overheating ofthe electric powersteering
system andprotect itfrom getting damaged.
While thepower assistisreduced, steering
wheel operation willbecome heavy.When the
temperature ofthe electric powersteering
system goesdown, thepower assistlevelwill
return tonormal. Avoidrepeating suchsteering wheel
operations thatcould cause theelectric
power steering systemtooverheat.
Y ou may hear asound whenthesteering wheel
is operated quickly.However, thisisnot a
malfunction.
If the electric powersteering warninglight
illuminates whiletheengine isrunning, itmay
indicate theelectric powersteering systemis
not functioning properlyandmay need servicing.
Have theelectric powersteering system
checked byaNISSAN dealer.(SeeªElectric
power steering warninglightº(P.2-14) .)
When theelectric powersteering warninglight
illuminates withtheengine running, thepower
assist forthe steering willcease operation. You
will still have control ofthe vehicle. However,
greater steering effortisneeded, especially in
sharp turnsandatlow speeds.

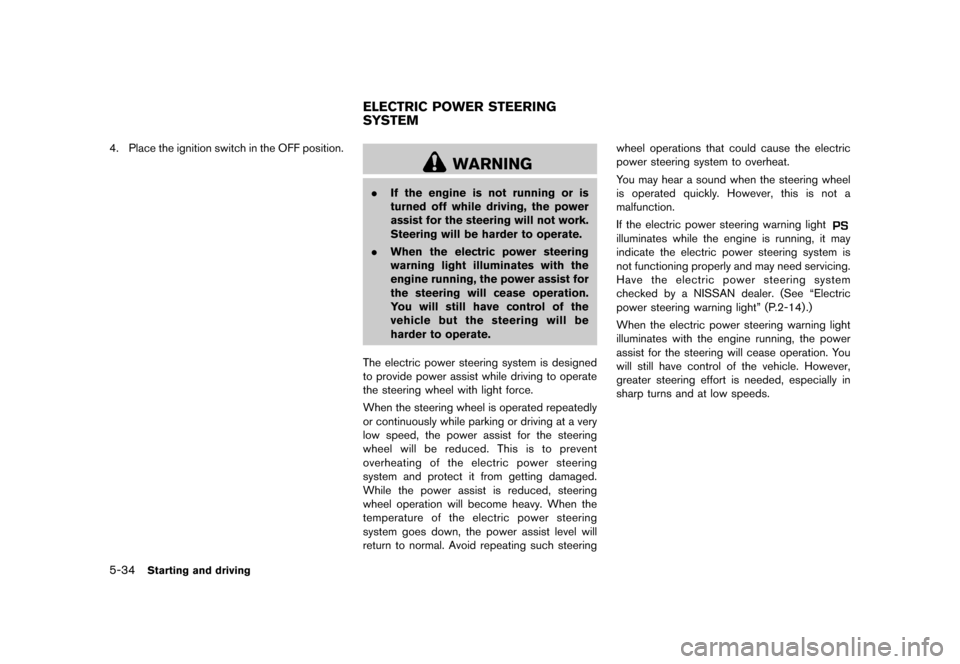

ELECTRIC POWERSTEERING
S Y STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
GUID-C85 EA487-970D -4143-8E32-0A76E249C6 2B
BRAKING PRECAUTION S
GUID-E19 3E720-D85 3-4379-82D C-E8EA84DDFD5B
The brake system hastwo separate hydraulic
circuits. Ifone circuit malfunctions, youwillstill
have braking attwo wheels.
Y ou may feelasmall clickandhear asound
when thebrake pedalisfully depressed slowly.
This isnot amalfunction andindicates thatthe
brake assist mechanism isoperating properly.
V acuum assisted brakes
GUID-0E2 3F656-D41A-4 88F-8147-9851A53DE80D
The brake booster aidsbraking byusing engine
vacuum. Ifthe engine stops,youcan stop the
vehicle bydepressing thebrake pedal. However,
greater footpressure onthe brake pedalwillbe
required tostop thevehicle andthestopping
distance willbelonger.
When thebrake pedalisdepressed slowlyand
firmly ,you may hear aclicking noiseandfeela
slight pulsation. Thisisnormal andindicates that
the Brake Assist System isoperating.
Using thebrakes
GUID-68FF F67F-04F0- 402E-BB4B-8 82B90506CCB
Avoid resting yourfootonthe brake pedalwhile
driving. Thiswillcause overheating ofthe
brakes, wearing outthebrake padsandshoes
faster andreduce gasmileage.
T o help reduce brakewearandtoprevent the
brakes fromoverheating, reducespeedand
downshift toalower gearbefore goingdownaslope
orlong grade. Overheated brakesmay
reduce braking performance andcould resultin
loss ofvehicle control.
WARNING
. While driving onaslippery surface,
be careful whenbraking, accelerat-
ing ordownshifting. Abruptbraking
or accelerating couldcause the
wheels toskid andresult inan
accident.
. Ifthe engine isnot running oris
turned offwhile driving, thepower
assist forthe brakes willnotwork.
Braking willbeharder.
W et brakes
GUID-853 A77D3-7334 -4546-A056-4F624706 91EB
When thevehicle iswashed ordriven through
water, thebrakes maygetwet. Asaresult, your
braking distance willbelonger andthevehicle
may pulltoone side during braking.
T o dry brakes, drivethevehicle atasafe speed
while lightly tapping thebrake pedaltoheat-up
the brakes. Dothis until thebrakes returnto
normal. Avoiddriving thevehicle athigh speeds
until thebrakes function correctly.
Parking brakebreak-in
GUID-3CAC C1C2-C000-436E-B53 F-77E9E90BA938
Break inthe parking brakeshoes whenever the
stopping effectofthe parking brakeisweakened
or whenever theparking brakeshoes and/or
drums/rotors arereplaced, inorder toassure the
best braking performance.
This procedure isdescribed inthe vehicle
service manual andcanbeperformed bya
NISSAN dealer.
Starting anddriving
5-35

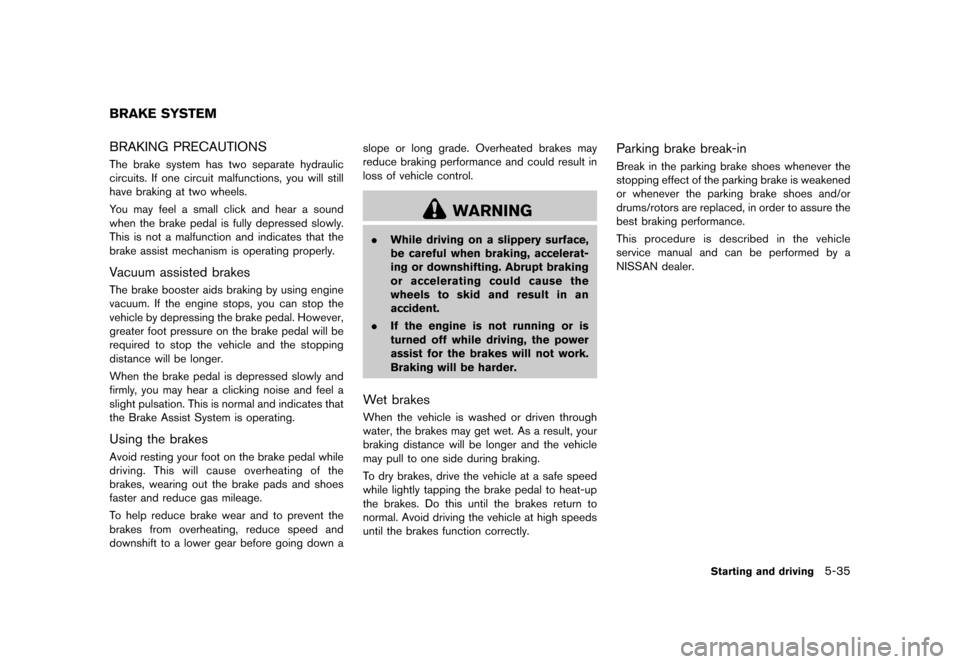

BRAKE SY STEM
&RQGLWLRQ


> (GLW   0RGHO )'@
5-36
Starting anddriving
GUID-EC3 A4D5C-5B0D -4B05-8797-16078A3B B5CF

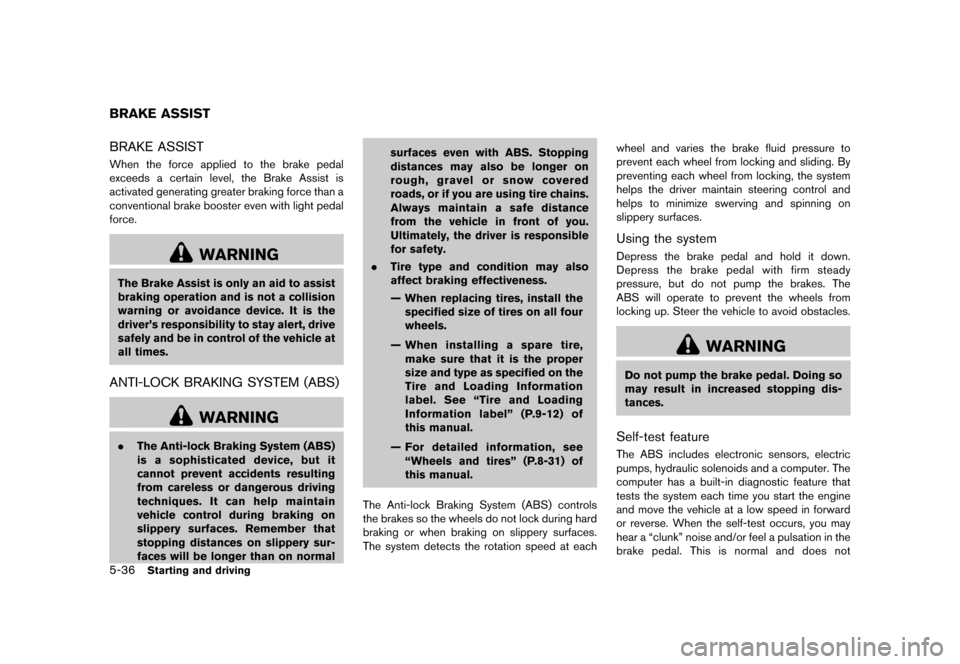

BRAKE ASSIST
GUID-4F7C1 0AE-4D30-42D8-A185-FF 61F97693EE
When theforce applied tothe brake pedal
exceeds acertain level,theBrake Assist is
activated generating greaterbraking forcethana
conventional brakebooster evenwithlight pedal
force.
WARNING
The Brake Assist isonly anaid toassist
braking operation andisnot acollision
warning oravoidance device.Itis the
driver's responsibility tostay alert, drive
safely andbeincontrol ofthe vehicle at
all times.
ANTI-L OCKBRAKING SYSTEM (ABS)
GUID-AD93 4732-3AE5-459A-B8C3 -7A014C0C24D9
WARNING
. The Anti-lock BrakingSystem(ABS)
is asophisticated device,butit
cannot prevent accidents resulting
from careless ordangerous driving
techniques. Itcan help maintain
vehicle control duringbraking on
slippery surfaces. Remember that
stopping distances onslippery sur-
faces willbelonger thanonnormal surfaces
evenwithABS. Stopping
distances mayalso belonger on
rough, gravelorsnow covered
roads, orifyou areusing tirechains.
Always maintain asafe distance
from thevehicle infront ofyou.
Ultimately, thedriver isresponsible
for safety.
. Tire type andcondition mayalso
affect braking effectiveness.
Ð When replacing tires,install the
specified sizeoftires onallfour
wheels.
Ð When installing aspare tire,
make surethatitis the proper
size andtype asspecified onthe
Tire andLoading Information
label. SeeªTire andLoading
Information labelº(P.9-12) of
this manual.
Ð For detailed information, see
ª Wheels andtiresº (P.8-31) of
this manual.
The Anti-lock BrakingSystem(ABS)controls
the brakes sothe wheels donot lock during hard
braking orwhen braking onslippery surfaces.
The system detects therotation speedateach wheel
andvaries thebrake fluidpressure to
prevent eachwheel fromlocking andsliding. By
preventing eachwheel fromlocking, thesystem
helps thedriver maintain steeringcontroland
helps tominimize swerving andspinning on
slippery surfaces.
Using thesystem
GUID-597 530BD-6BA 0-4B9D-B015-6FBB8D 66C7EE
Depress thebrake pedalandhold itdown.
Depress thebrake pedalwithfirmsteady
pressure, butdonot pump thebrakes. The
ABS willoperate toprevent thewheels from
locking up.Steer thevehicle toavoid obstacles.
WARNING
Do not pump thebrake pedal. Doingso
may result inincreased stoppingdis-
tances.
Self-test feature
GUID-A 2B20D88- 3F8D-458B-A0 1C-ABFC4E8BBA39
The ABS includes electronic sensors,electric
pumps, hydraulic solenoids andacomputer. The
computer hasabuilt-in diagnostic featurethat
tests thesystem eachtimeyoustart theengine
and move thevehicle atalow speed inforward
or reverse. Whentheself-test occurs,youmay
hear aªclunkº noiseand/or feelapulsation inthe
brake pedal. Thisisnormal anddoes not
BRAKE ASSIST
&RQGLWLRQ
