indicate amalfunction. Ifthe computer sensesa
malfunction, itswitches theABS offand
illuminates theABS warning lightonthe
instrument panel.Thebrake system thenoper-
ates normally ,but without anti-lock assistance.
If the ABS warning lightilluminates duringthe
self-test orwhile driving, havethevehicle
checked byaNISSAN dealer.
Normal operation
GUID-9CB A1EE9-2858-46A7-AF1 C-F9A91252FE68
The ABS operates atspeeds above3to 6MPH
(5 to10 km/h) .The speed variesaccording to
road conditions.
When theABS senses thatoneormore wheels
are close tolocking up,the actuator rapidly
applies andreleases hydraulic pressure. This
action issimilar topumping thebrakes very
quickly .You may feelapulsation inthe brake
pedal andhear anoise fromunder thehood or
feel avibration fromtheactuator whenitis
operating. Thisisnormal andindicates thatthe
ABS isoperating properly.However, thepulsa-
tion may indicate thatroad conditions are
hazardous andextra careisrequired while
driving.
GUID-4D5 7C7DA-67 68-4F4F-88 24-D372FBB 702EE
The Vehicle Dynamic Control(VDC)system
uses various sensors tomonitor driverinputs
and vehicle motion. Undercertain drivingcon-
ditions, theVDC system helpstoperform the
following functions.
. Controls brakepressure toreduce wheel
slip onone slipping drivewheel sopower is
transferred toanon slipping drivewheel on
the same axle.
. Controls brakepressure andengine output
to reduce drivewheel slipbased onvehicle
speed (traction controlfunction) .
. Controls brakepressure atindividual wheels
and engine outputtohelp thedriver maintain
control ofthe vehicle inthe following
conditions:
Ð understeer (vehicletendstonot follow
the steered pathdespite increased
steering input)
Ð oversteer (vehicletendstospin dueto
certain roadordriving conditions) .
The VDC system canhelp thedriver tomaintain
control ofthe vehicle, butitcannot prevent loss
of vehicle controlinall driving situations.
When theVDC system operates, theVDC
warning light
in the instrument panelflashes
so note thefollowing:
. The road maybeslippery orthe system may
determine someaction isrequired tohelp keep
thevehicle onthe steered path.
. You may feelapulsation inthe brake pedal
and hear anoise orvibration fromunder the
hood. Thisisnormal andindicates thatthe
VDC system isworking properly.
. Adjust yourspeed anddriving tothe road
conditions.
If a malfunction occursinthe system, theVDC
warning light
illuminates inthe instrument
panel. TheVDC system automatically turnsoff.
The VDC OFFswitch isused toturn offthe VDC
system. TheVDC offindicator
illuminates to
indicate theVDC system isoff. When theVDC
switch isused toturn offthe system, theVDC
system stilloperates toprevent onedrive wheel
from slipping bytransferring powertoanon
slipping drivewheel. TheVDC warning light
flashes ifthis occurs. Allother VDCfunctions
are off,and theVDC warning light
will not
flash. TheVDC system isautomatically resetto
on when theignition switchisplaced inthe off
position thenback tothe onposition.
See ªVehicle Dynamic Control(VDC)warning
lightº (P.2-17) andªVehicle Dynamic Control
(VDC) offindicator lightº(P.2-19) .
The computer hasabuilt-in diagnostic feature
that tests thesystem eachtimeyoustart the
engine andmove thevehicle forward orin
reverse ataslow speed. Whentheself-test
Starting anddriving
5-37
VEHICLE DYNAMIC CONTROL (VDC)
S Y STEM
& R Q G L W L R Q
Page 282 of 383
> ( G L W 0 R G H O ) ' @
5-38
Starting anddriving
occurs, youmay hear aªclunkº noiseand/or feel
a pulsation inthe brake pedal. Thisisnormal and
is not anindication ofamalfunction.
WARNING
. The VDC system isdesigned tohelp
improve drivingstability butdoes
not prevent accidents duetoabrupt
steering operation athigh speeds or
by careless ordangerous driving
techniques. Reducevehiclespeed
and beespecially carefulwhendriv-
ing and cornering onslippery sur-
faces andalways drivecarefully.
. Do not modify thevehicle's suspen-
sion. Ifsuspension partssuchas
shock absorbers, struts,springs,
stabilizer bars,bushings and
wheels arenot NISSAN recom-
mended foryour vehicle orare
extremely deteriorated, theVDC
system maynotoperate properly.
This could adversely affectvehicle
handling performance, andtheVDC
warning light
may illuminate.
. Ifbrake related partssuchasbrake
pads, rotors andcalipers arenot
NISSAN recommended orare extre- mely
deteriorated, theVDC system
may notoperate properly andthe
VDC warning light
may illumi-
nate.
. Ifengine control relatedpartsare
not NISSAN recommended orare
extremely deteriorated, theVDC
warning light
may illuminate.
. When driving onextremely inclined
surfaces suchashigher banked
corners, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate. Donot
drive onthese typesofroads.
. When driving onanunstable sur-
face such asaturntable, ferry,
elevator orramp, theVDC warning
light
may illuminate. Thisisnot
a malfunction. Restarttheengine
after driving ontoastable surface.
. Ifwheels ortires other thanthe
NISSAN recommended onesare
used, theVDC system maynot
operate properly andtheVDC warn-
ing light
may illuminate.
. The VDC system isnot asubstitute
for winter tiresortire chains ona
snow covered road.
& R Q G L W L R Q
Page 283 of 383
> ( G L W 0 R G H O ) ' @
GUID-5460F B5E-5751-4144-BEDA-9 C44CC26E1E8
FREEING AFROZEN DOORLOCK
GUID-C74 B4044-96AE-491C-B C91-45A9E CC9A5E7
T o prevent adoor lockfrom freezing, apply
deicer through thekey hole. Ifthe lock becomes
frozen, heatthekey before inserting itinto the
key hole oruse theIntelligent Key system.
ANTI-FREEZE
GUID-90BF B791-C394 -4902-BD39-3C2F719 5DC93
In the winter whenitis anticipated thatthe
outside temperature willdrop below 328F(08C) ,
check theanti-freeze toassure proper winter
protection. Foradditional information, seeªEn-
gine cooling systemº (P.8-7) .
BA TTER Y
GUID-EB5 AE933-122D -4608-B599-298971BE3 1E0
If the battery isnot fully charged during
extremely coldweather conditions, thebattery
fluid mayfreeze anddamage thebattery .To
maintain maximum efficiency,the battery should
be checked regularly.For additional information,
see ªBatteryº (P.8-13) .
DRAINING OFCOOLANT WATER
GUID-A4BF6 6A7-0598-4C 4A-8F3F-1B3EE14A1F6A
If the vehicle isto be left outside withoutanti-
freeze, drainthecooling system, including the
engine block.Refillbefore operating thevehicle.
For details, seeªEngine coolingsystemº (P.8-7) .
TIRE EQUIPMENT
GUID-9C84 39E1-BA84-4 85E-ACF6-DFC2574800 D6
SUMMER tireshave atread designed toprovide
superior performance ondry pavement. How-
ever, theperformance ofthese tireswillbe
substantially reducedinsnowy andicycondi-
tions. Ifyou operate yourvehicle onsnowy oricy
roads, NISSAN recommends theuse ofMUD &
SNOW orALL SEASON tiresonallfour wheels.
Consult aNISSAN dealerforthe tiretype, size,
speed ratingandavailability information.
For additional tractiononicy roads, studded
tires maybeused. However, someU.S.states
and Canadian provinces prohibittheiruse.
Check local,stateandprovincial lawsbefore
installing studdedtires.
Skid andtraction capabilities ofstudded
snow tires,onwet ordry surfaces, maybe
poorer thanthatofnon-studded snow
tires.
Tire chains maybeused. Fordetails, seeªTire
chainsº (P.8-39) ofthis manual.
All-Wheel Drive(AWD) model
GUID-CA 8E5B24-EE0 B-4E6E-8EC1-7A9D 3E4537A5
If you install snowtires,theymust alsobethe
same size,brand, construction andtread pattern
on allfour wheels.
SPECIAL WINTEREQUIPMENT
GUID-349 1A18F-97B 7-48DE-9D7 7-0C0C0BB3803C
It is recommended thatthefollowing itemsbe
carried inthe vehicle duringwinter:
. Ascraper andstiff-bristled brushtoremove
ice and snow fromthewindows andwiper
blades.
. Asturdy ,flat board tobe placed underthe
jack togive itfirm support.
. Ashovel todig thevehicle outofsnow-
drifts.
. Extra window washerfluidtorefill the
reservoir tank.
DRIVING ONSNOW ORICE
GUID-286 40823-2F38 -49A8-9D56- 4832A7583977
WARNING
. Wet ice(328F ,08C and freezing rain),
very cold snow orice can beslick
and very hard todrive on.The
vehicle willhave much lesstraction
or ªgripº undertheseconditions. Try
to avoid driving onwet iceuntil the
road issalted orsanded.
. Whatever thecondition, drivewith
caution. Accelerate andslow down
with care. Ifaccelerating ordown-
shifting toofast, thedrive wheels
will lose even more traction.
Starting anddriving
5-39
COLD WEATHER DRIVING
& R Q G L W L R Q
Page 284 of 383
> ( G L W 0 R G H O ) ' @
5-40
Starting anddriving
. Allow morestopping distanceunder
these conditions. Brakingshouldbe
started soonerthanondry pave-
ment.
. Allow greater following distances
on slippery roads.
. Watch forslippery spots(glare ice).
These mayappear onanotherwise
clear roadinshaded areas.Ifa
patch ofice isseen ahead, brake
before reaching it.Try not tobrake
while onthe ice, and avoid any
sudden steering maneuvers.
. Do not use cruise control onslip-
pery roads.
. Snow cantrap dangerous exhaust
gases underyourvehicle. Keep
snow clearofthe exhaust pipeand
from around yourvehicle.
ENGINE BLOCK HEATER (ifso
equipped)
GUID-9EB D4000-0E2 9-4092-92D 0-5C9ACC0 F9DA3
Engine blockheaters areused toassist incold
temperature starting.
The engine blockheater should beused when
the outside temperature is208F (
Page 285 of 383
> ( G L W 0 R G H O ) ' @
6 In case ofemergency
Hazard warning flasherswitch ...
.............................................. 6-2
Emergency engineshutoff...
..................................................... 6-2
Flat tire ...
......................................................................................... 6-3
Tire Pressure Monitoring System(TPMS) ...
.................... 6-3
Changing aflat tire ...
............................................................. 6-3
Jump starting ...
.............................................................................. 6-8Push
starting ...
........................................................................... 6-10
If your vehicle overheats ...
...................................................... 6-10
T owing yourvehicle ...
.............................................................. 6-12
T owing recommended byNISSAN ...
........................... 6-13
V ehicle recovery (freeingastuck vehicle) ...
............... 6-14
& R Q G L W L R Q
Page 286 of 383
> ( G L W 0 R G H O ) ' @
6-2
In case ofemergency
GUID-F8 C8FFF6-A599 -4B3B-A1E6-F9439E4 BD2DC
SIC2574

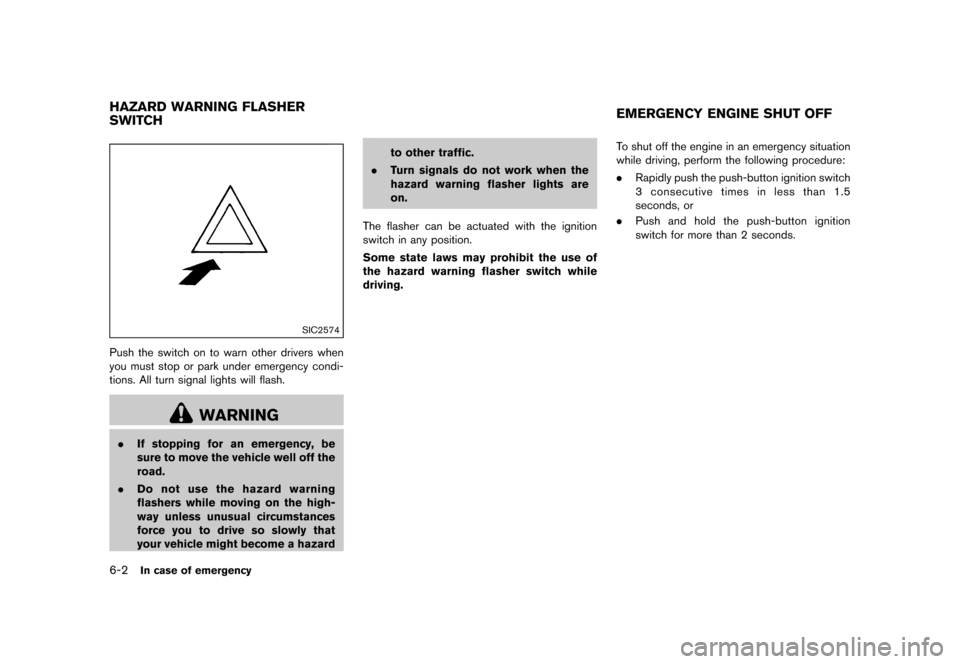

Push theswitch ontowarn other drivers when
you must stoporpark under emergency condi-
tions. Allturn signal lightswillflash.
WARNING
. Ifstopping foranemergency, be
sure tomove thevehicle welloffthe
road.
. Do not use thehazard warning
flashers whilemoving onthe high-
way unless unusual circumstances
force youtodrive soslowly that
your vehicle mightbecome ahazard to
other traffic.
. Turn signals donot work when the
hazard warning flasherlightsare
on.
The flasher canbeactuated withtheignition
switch inany position.
Some statelawsmayprohibit theuse of
the hazard warning flasherswitchwhile
driving.
GUID-7C6 757DA-C9FC- 43FC-9E43-9CB1131A89 D7
T o shut offthe engine inan emergency situation
while driving, perform thefollowing procedure:
. Rapidly pushthepush-button ignitionswitch
3 consecutive timesinless than 1.5
seconds, or
. Push andhold thepush-button ignition
switch formore than2seconds.
HAZARD WARNING FLASHER
SWIT CH EMERGEN
CY ENGINE SHUTOFF
& R Q G L W L R Q
Page 287 of 383
> ( G L W 0 R G H O ) ' @
GUID-5D64A B92-19AE-4EBB-85E2-0 500CB2054C5
TIRE PRESSURE MONITORING SYS-
TEM (TPMS)
GUID-E05 64C3C-60A 2-48DF-92E3 -FDD16E1184 5D
This vehicle isequipped withtheTire Pressure
Monitoring System(TPMS).It monitors tire
pressure ofall tires except thespare. When
the low tirepressure warninglightislit, and the
CHECK TIREPRES (pressure) warningmes-
sage isdisplayed inthe vehicle information
display ,one ormore ofyour tires issignificantly
under-inflated. Ifthe vehicle isbeing driven with
low tirepressure, theTPMS willactivate and
warn youofitby the low tirepressure warning
light. Thissystem willactivate onlywhen the
vehicle isdriven atspeeds above16MPH (25
km/h) .For more details, seeªWarning/indicator
lights andaudible remindersº (P.2-12) andªTire
Pressure Monitoring System(TPMS)º (P.5-3) .
WARNING
. Ifthe low tirepressure warninglight
illuminates whiledriving, avoidsud-
den steering maneuvers orabrupt
braking, reducevehicle speed,pull
off the road toasafe location and
stop thevehicle assoon aspossi-
ble. Driving withunder-inflated tires
may permanently damagethetires
and increase thelikelihood oftire failure.
Serious vehicledamage
could occurandmay lead toan
accident andcould result inserious
personal injury.Check thetire pres-
sure forallfour tires. Adjust thetire
pressure tothe recommended COLD
tire pressure shownonthe Tire and
Loading Information labeltoturn
the low tirepressure warninglight
OFF .If you have aflat tire, replace it
with aspare tireassoon aspossi-
ble.
. When aspare tireismounted ora
wheel isreplaced, theTPMS willnot
function andthelow tirepressure
warning lightwillflash forapproxi-
mately 1minute. Thelight will
remain onafter 1minute. Contact
your NISSAN dealerassoon as
possible fortire replacement and/
or system resetting.
. Replacing tireswiththose notori-
ginally specified byNISSAN could
affect theproper operation ofthe
TPMS.
. Do not inject anytireliquid or
aerosol tiresealant intothetires,
as this may cause amalfunction ofthe
tire pressure sensors.
CHANGING AFLA TTIRE
GUID-847 4486F-6C 56-450C-B1 B8-C91BAAF1ADF3
If you have aflat tire, follow theinstructions
below .
Stopping thevehicle
GUID-C0CA 87DA-59C4-4915-A C34-CE46166 CC4B8
1. Safely movethevehicle offthe road and
away fromtraffic.
2. Turn onthe hazard warning flashers.
3. Park onalevel surface andapply theparking
brake.
4. Continuously Variable Transmission
(CVT) models:
Move theshift lever tothe P(Park) position.
Manual Transmission (MT)models:
Move theshift lever tothe R(Reverse)
position.
5. Turn offthe engine.
6. Raise thehood towarn other traffic, andto
signal professional roadassistance person-
nel that youneed assistance.
7. Have allpassengers getoutofthe vehicle
and stand inasafe place, awayfromtraffic
and clear ofthe vehicle.
In case ofemergency
6-3
FLA TTIRE
& R Q G L W L R Q
Page 288 of 383
> ( G L W 0 R G H O ) ' @
6-4
In case ofemergency
WARNING
. Make suretheparking brakeis
securely appliedandtheManual
T ransmission isshifted intoR(Re-
verse) ,or the Continuously Variable
T ransmission intoP(Park) .
. Never change tireswhen thevehicle
is on aslope, iceorslippery areas.
This ishazardous.
. Never change tiresifoncoming
traffic isclose toyour vehicle. Wait
for professional road
assistance.
MCE0001A
Blocking wheels
GUID-B5 F204A8-24 35-40F7-A0 E6-8D2BC69 3DD3A
Place suitable blocks
*
1
at both thefront and
back ofthe wheel diagonally oppositetheflat
tire toprevent thevehicle frommoving whenitis
jacked up.
WARNING
Be sure toblock thewheel asthe
vehicle maymove andresult inpersonal
injury.
SCE0946
Jacking tools
Getting thespare tireand tools
GUID-97946D B1-3B73-45B8-A2F0 -CC2CD616 99B0
Open theliftgate. Raise thecargo floorboard
*
1
. Remove jackingtools.
& R Q G L W L R Q
Page 289 of 383
> ( G L W 0 R G H O ) ' @
SCE0947
The spare tireislocated underthecargo floor
board.
Loosen theclamp
*
2
and remove thespacer
*
1
and take outthespare tire.
Jacking upthe vehicle andremoving the
damaged tire
GUID-9D4 83FCD-A1F 1-4D38-AB5 2-601B804B7 6EC
WARNING
. Never getunder thevehicle whileit
is supported onlybythe jack. Ifitis
necessary towork under thevehicle,
support itwith safety stands.
. Use only thejack provided withyour
vehicle tolift the vehicle. Donot use
the jack provided withyour vehicle
on other vehicles. Thejack isde-
signed forlifting onlyyour vehicle
during atire change.
. Use thecorrect jack-up points.
Never useanyother partofthe
vehicle forjack support.
. Never jackupthe vehicle morethan
necessary.
. Never useblocks onorunder the
jack.
. Donot start orrun theengine while
vehicle ison the jack, asitmay
cause thevehicle tomove. Thisis
especially trueforvehicles with
limited slipdifferentials. .
Do not allow passengers tostay in
the vehicle whileitis on the jack.
Carefully readthecaution labelattached
to the jack body andthefollowing instruc-
tions.
In case ofemergency
6-5
& R Q G L W L R Q
Page 290 of 383
> ( G L W 0 R G H O ) ' @
6-6
In case ofemergency
SCE0948
Jack -uppoint
1. Place thejack directly underthejack-up
point asillustrated sothe top ofthe jack
contacts thevehicle atthe jack-up point.
Align thejack head between thetwo
notches inthe front orthe rear asshown.
Also fitthe groove ofthe jack head between
the notches asshown.
The jack should beused onlevel firm
ground.
SCE0504
2. Loosen eachwheel nutone ortwo turns by
turning itcounterclockwise withthewheel
nut wrench. Donot remove thewheel
nuts until thetire isoff the ground.
3. To lift the vehicle, securely holdthejack lever
and rodwith both hands asshown above.
Carefully raisethevehicle untilthetire clears
the ground. Remove thewheel nuts,and
then remove thetire.
& R Q G L W L R Q
